Product Type	Microwave Oven
Brand	Nabo
Model	MWO 2800
Capacity	28 Liters
Dimensions (W x D x H)	510 x 400 x 310 mm
Weight	14.5 kg
Power Supply	230 V, 50 Hz
Power Consumption	1200 W (microwave), 1000 W (grill)
Microwave Power Output	900 W
Grill Power	1000 W
Functions	Microwave, Grill, Combination, Defrost, Auto Cook
Control Type	Digital Touch with LED Display
Timer	Up to 99 minutes 99 seconds
Interior Material	Stainless Steel
Turntable	Yes, 315 mm diameter
Child Lock	Yes
Care and Cleaning	Wipe interior with damp cloth; clean turntable with mild detergent
Safety Features	Overheat protection, door interlock, child lock
Spare Parts Availability	Glass turntable, roller ring, and fuse available from authorized service centers
Repairability Index	8.2 / 10 (indicative)
Warranty	2 years
Manual Languages	English, German, French

Frequently Asked Questions - MWO 2800 Nabo

How do I set the clock on my Nabo MWO 2800?

Press the Clock button, then use the number pad to enter the time. Press Clock again to confirm.

Can I use metal containers in the microwave?

No, metal containers can cause sparks and damage the oven. Use only microwave-safe glass, ceramic, or plastic containers.

How do I use the grill function?

Press the Grill button, then set the cooking time. The grill element will heat up; use the metal rack provided for browning.

What does the 'Combination' mode do?

Combination mode uses both microwave and grill together for faster cooking and browning. Press Combination and select the desired cooking time.

How do I defrost food?

Press the Defrost button, then enter the weight of the food. The oven will automatically set the defrost time.

The turntable is not turning, what should I do?

Check that the glass tray and roller ring are properly seated. If still not turning, contact service for a possible motor issue.

How do I clean the interior?

Wipe with a damp cloth and mild detergent. Do not use abrasive cleaners. For stubborn stains, heat a cup of water for 5 minutes to loosen residues.

Why is my microwave not heating?

Ensure the door is fully closed. Check the power supply. If it still doesn't heat, the magnetron may be faulty; contact a technician.

Can I use the microwave empty?

No, operating the microwave empty can damage the magnetron. Always place food or a cup of water inside when running.

How do I activate the child lock?

Press and hold the Stop/Clear button for 3 seconds. The display will show a lock icon. Repeat to unlock.

USER MANUAL MWO 2800 Nabo

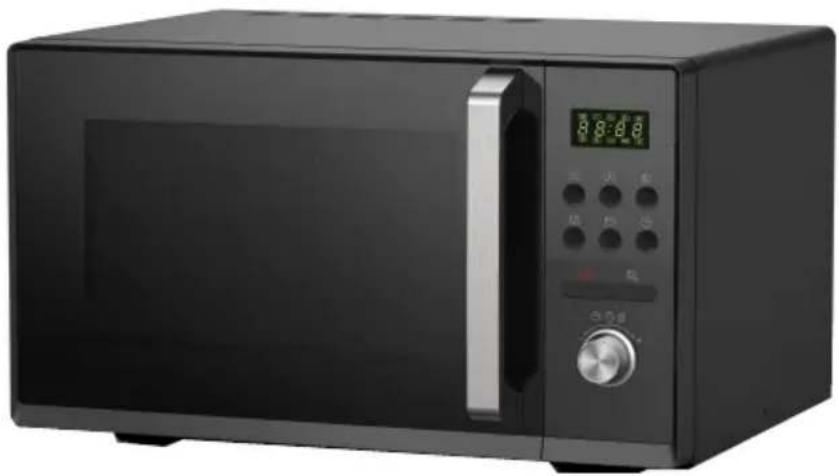

Black microwave oven with digital display and control panel (no visible text or symbols)

Microwave Oven INSTRUCTION MANUAL

MODEL: MWO 2800

Black microwave oven with digital display and control knob (no visible text or symbols)

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

Baytronic HandelsgmbH, Harterfeldweg 4; A-4481 Asten I www.nabo.at

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	MWO 2800
Rated Voltage:	230V~50Hz
Rated Input Power(Microwave):	1450W
Rated Output Power(Microwave):	900 W
Rated Input Power(Grill):	1000W

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Children less than 8 years of age shall be kept away unless continuously supervised.

3. Keep the appliance and its cord out of reach of children less than 8 years.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.( For appliance with type Y attachment)

5. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

6. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

7. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. Only use utensils that are suitable for use in microwave .ovens
10. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
11. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
12. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
13. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
14. The oven should be cleaned regularly and any food deposits removed.

15. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

16. The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)

17. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

18. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

19. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)

20. This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-by clients in hotels, motels and other residential type environments;

-farm houses;

-bed and breakfast type environments.

1. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

2. Metallic containers for food and beverages are not allowed during microwave cooking.

3. The appliance shall not be cleaned with a steam cleaner.

4. The appliance is intended to be used freestanding.

5. The rear surface of appliances shall be placed against a wall.

6. Steam cleaner is not to be used.

7. Surface of a storage drawer can get hot.
8. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
9. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
10. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
11. WARNING: Accessible parts may become hot during use. Young children should be kept away.
12. WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
13. Appliances are not intended to be operated by means of an external timer or separate remote-control system.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

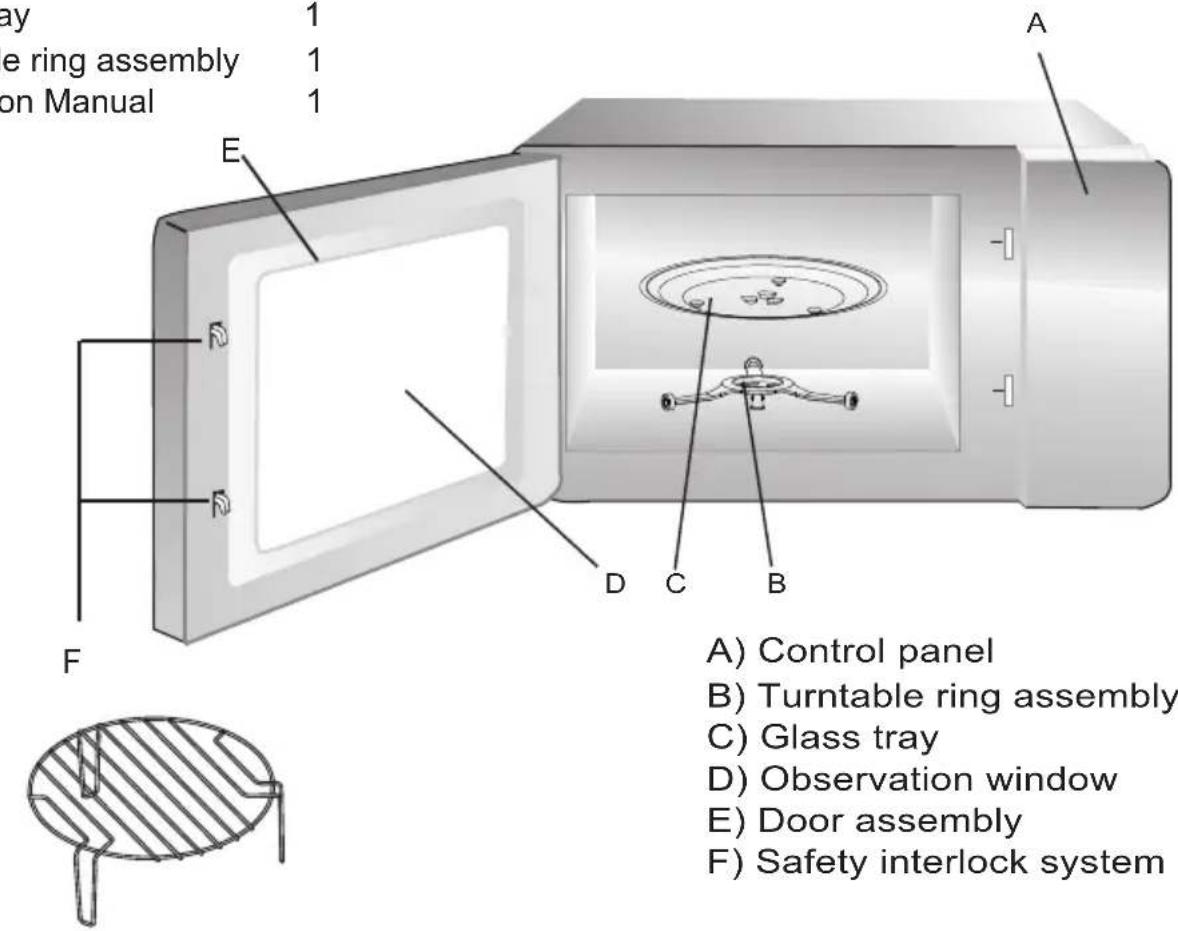

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

Grill Rack( Can not be used in microwave function and must be placed on the glass tray )

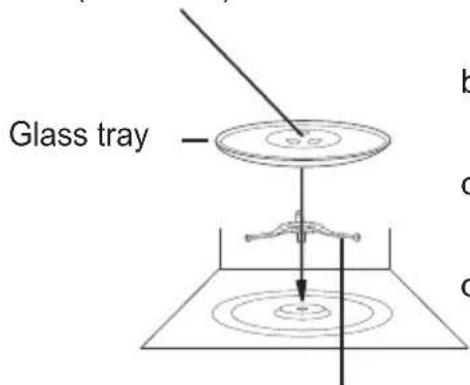

Turntable Installation

Hub (underside)

Turntable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. Ifglass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

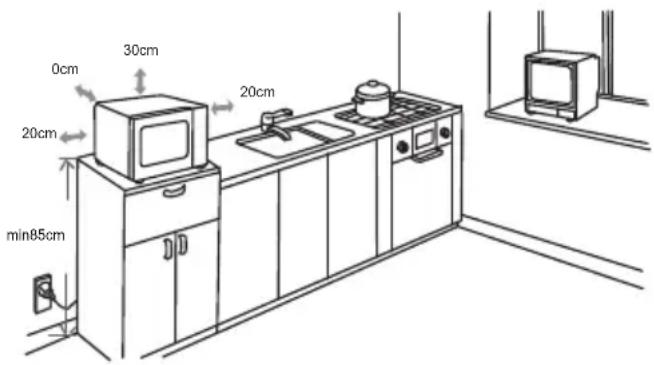

Installation

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

(1) The minimum installation height is 85cm.
(2) The rear surface of appliance shall be placed against a wall.

Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.

(3) Do not remove the legs from the bottom of the oven.
(4) Blocking the intake and/or outlet openings can damage the oven.

(5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be

void.

The accessible surface may be hot during open

Warning symbol of a steam inside a triangle (no text or numbers)

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

1. Clock Setting

When the microwave oven is electrified, the screen will display "0:00", buzzer will ring once.

1) In waiting state, press " twice, the screen displays "0:00" and the hour figure will flash.
2) Turn " 🔍 " to adjust the hour figures. The input time should be within 0--23.
3) Press " L ", the minute figures will flash.
4) Turn " 🔍 " to adjust the minute figures. e input time should be within Th-59.
5) Press " Ⓛ " to finish clock setting.

Note: 1) The clock will not work if it is not set when powered.

2) After step 4, if you do not press "L" within 1 minutes, the oven will go back to the previous status automatically.

2. Kitchen Timer

1) In waiting state, press " " once, the screen displays "00:00".
2) Turn " "to set the kitchen timer. (The maximum cooking time is 95 minutes.)
3) Press " ▶+30S" to confirm setting.
4) When the kitchen time is reached, The buzzer will ring 5 times.

If the clock has been set(24-hour system), the screen will display the current time.

Note: The kitchen Timer is different from 24-hour system, Kitchen Timer is a timer.

3.Microwave Cooking

1) Press " once, " P100 " will flash on the screen.
2) Press "repeatedly or turn " to select microwave power from P100 to P10.
3) Press the " ▶ +30S " to confirm the power.
4) Turn " " to adjust the cooking time. (The maximum cooking time is 95 minutes.)
5) Press the " ▶+30S key to start cooking.

NOTE: the step quantities for the adjustment time of the coding switch are as follow:

Microwave Power Chart

Level	High	M.High	Med	M.Low	Low
Power	P100	P80	P50	P30	P10

4.Grill Cooking

1) Press " ∪" once, " G " will flash on the screen.
2) Turn " " to adjust the cooking time. (The maximum cooking time is 95 minutes.)
3) Press the " ▶+30S" key to start cooking.

5. Combi. Cooking

1) Press " ∪ once, " C-1 " will flash on the screen. 2) Press " ∪ " r e peatedly or turn " combinatiselectode from Ce1 C-2.
3) Press the " ▶ +305 " to confirm the selection.
4) Turn " " to adjust the cooking time. (The maximum cooking time is 95 minutes.)
5) Press the " ▶+30S" key to start cooking.

Note: Combination instructions

Instructions	Display	Microwave	Grill
1	C-1	55%	45%
2	C-2	35%	65%

6. Defrost by W.T.

1) In waiting state, press "
" once, the screen displays01".
2) Turn " " to select the weight of food. The weight should be 100g-2000g.
3) Press " (_+305) " key to start defrosting.

7. Defrost by Time

1) In waiting state, press "
the screen displays "d 02".
2) Turn " 🔍 " to adjust cooking time. (The maximum cooking time is 95 minutes.)
3) Press " (_+305) " key to start defrosting.

The defrost power is P30, and it cannot be changed.

8. Multi-Stage Cooking

Two stages can be maximally set. If one stages is defrosting, it should be put in the first stage automatically. The buzzer will ring once after each stage and the next stage will begin. Note: Kitchen Timer, Auto menu or Preheating cannot be set as one of the multi-stage.

Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

1) Press " *L" once, the screen will display "d02";
2) Turn " 🔍 " to adjust the defrost time of 5 minutes;
3) Press " once, " P100 " will flash on the screen.
4) Turn " " to choose 80% microwave power till "P80" display;
5) Press " _+30S " to confirm;
6) Turn " 🔍 " to adjust the cooking time of 7 minutes;
7) Press " ▶ +30S " to start cooking.

9. Quick Microwave cooking

1) In standby state, press " +305 to start cooking with 100 % power for 30 seconds, each added press will increase 30 seconds cooking time up minutes.
2) In standby state, turn " "left to choose cooking time directly then press " +30S" key to cook with 100% microwave power.

Note: During the auto menu and weight defrost process, cooking time cannot be increased by pressing " ▶ +30S " button.

10. Lock-out Function for Children

Lock: In waiting state, press "11×" for 3 seconds, there will be a long beep denoting entering the children-lock state and the oven will display current time or "0:00".

Lock quitting: In locked state, press " [1] " for 3 seconds, there will be a long "beep" denoting that the lock is released.

11. Inquiring Fuction

1) In states of microwave, grill and combination cooking, press " ≈", " ∪" or " ∪", the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state;
2) In cooking state, press " L " to inquire the time and the time will flash for 3 seconds.

12. Auto Menu

1) In waiting state, turn " right to choose the menu, and "A1" to "A8" will display.
2) Press " ▶+305 " to confirm the menu you need.
3) Turn " " to choose the weight of menu, and "g" indicator will light.
4) Press " ▶ +30S " to start cooking.

Auto menu Chart

Menu	Weight	Display
A1REHEAT	200g	200
	400g	400
A2MEAT	250g	250
	350g	350
	450g	450
A3Vegetable	200g	200
	300g	300
	400g	400
A4PASTA	50g(with | water 450g)	50
	100g(with | water 800g)	100
A5POTATO	1	1
	2	2
	3	3
A6FISH	250g	250
	350g	350
	450g	450
A7Beverage	1(about 120ml)	1
	2(about 240ml)	2
	3(about 36ml)	3
A8Popcorn	50g	50
	100g	100

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside.It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

PN 0000 P 002532255
