Brand	Nabo
Model	MWO 2900
Product Type	Countertop Microwave
Capacity	20 Liters
Power Output	800 Watts
Power Consumption	1200 Watts
Dimensions (W x D x H)	455 x 340 x 262 mm
Weight	11.5 kg
Controls	Mechanical Dial and Push Button
Display	LED Digital Timer
Power Levels	5 Levels
Defrost Function	Yes, by Weight or Time
Turntable	Glass, 270 mm Diameter
Interior Light	Yes
Child Safety Lock	Yes
Door Opening	Side Opening with Handle
Material	Stainless Steel and Plastic
Power Supply	220-240 V, 50 Hz
Cleaning	Wipe with damp cloth; avoid abrasives
Maintenance	Check door seals; clean turntable
Spare Parts Availability	Turntable, Glass Plate, Waveguide Cover
Repairability Index	7.0 / 10
Manual Languages	English, French, German, Spanish, Italian
Warranty	1 Year Limited

Frequently Asked Questions - MWO 2900 Nabo

How do I set the cooking time on my Nabo MWO 2900?

Turn the timer dial clockwise to the desired time in minutes. The microwave will start automatically after setting.

How can I defrost food using the MWO 2900?

Select the defrost function by pressing the 'Defrost' button, then enter the weight of the food using the dial. The microwave will automatically set the correct time.

What power levels are available on this microwave?

The MWO 2900 has 5 power levels: Low, Medium Low, Medium, Medium High, and High. Adjust using the power level button before setting time.

How do I clean the interior of the microwave?

Wipe the interior with a damp cloth and mild detergent. Do not use abrasive cleaners. Ensure the turntable is removed for thorough cleaning.

Why does the turntable not rotate?

Check if the turntable is properly placed on the support. Ensure the glass plate is centered and the roller ring is clean. If still not rotating, the motor may be faulty.

Can I use metal containers in the microwave?

No, metal containers can cause sparks and damage the microwave. Use microwave-safe glass, ceramic, or plastic containers.

How do I activate the child safety lock?

Press and hold the 'Stop' button for 3 seconds until a beep sounds. The control panel will lock. Repeat to unlock.

What should I do if the microwave stops working?

Check the power supply and fuse. Ensure the door is fully closed. If the problem persists, contact Nabo customer service.

How do I replace the interior light bulb?

Unplug the microwave. Remove the turntable and back cover. The bulb is a standard 20W screw-in type. Replace with same type and reassemble.

Is the Nabo MWO 2900 suitable for built-in installation?

No, this model is designed for countertop use only. Ensure at least 20cm clearance above for ventilation.

USER MANUAL MWO 2900 Nabo

Simple line drawing of a round table with diagonal hatching and two legs (no text or symbols)

Circular diagram with concentric rectangular patterns and radial lines, no text or symbols present

Warning symbol with steam inside a triangle (no text or numbers)

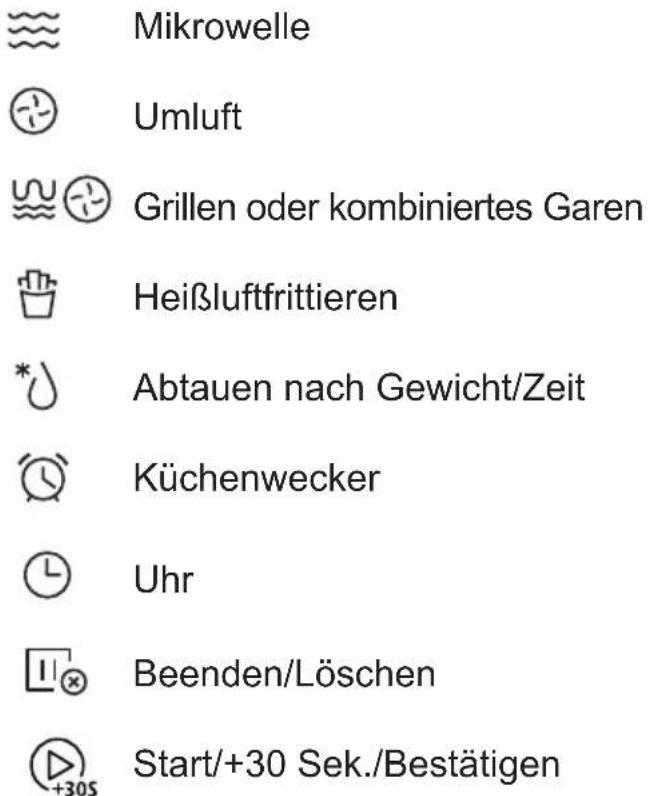

Bedienfeld

1 C-1	●		●
2 C-2	●	●
3 C-3		●	●
4 C-4	●	●	●

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

Baytronic Handels GmbH, Harterfeldweg 4; A-4481 Asten

www.nabo.at

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	MWO 2900
Rated Voltage:	230V 50Hz
Rated Input Power(Microwave):	550W 1
Rated Output Power(Microwave):	1000W
Rated to Power(Grill):	000W 1
Rated Output Power(Convection):	0W 210

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Children less than 8 years of age shall be kept away unless continuously supervised.

3. Keep the appliance and its cord out of reach of children less than 8 years.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.( For appliance with type Y attachment)

5. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

6. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

7. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. Only use utensils that are suitable for use in microwave .ovens
10. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
11. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
12. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
13. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
14. The oven should be cleaned regularly and any food deposits removed.

15. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

16. The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)

17. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

18. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

19. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)

20. This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-by clients in hotels, motels and other residential type environments;

-farm houses;

-bed and breakfast type environments.

1. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

2. Metallic containers for food and beverages are not allowed during microwave cooking.

3. The appliance shall not be cleaned with a steam cleaner.

4. The appliance is intended to be used freestanding.

5. The rear surface of appliances shall be placed against a wall.

6. Steam cleaner is not to be used.

7. Surface of a storage drawer can get hot.
8. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
9. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
10. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
11. WARNING: Accessible parts may become hot during use. Young children should be kept away.
12. WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
13. Appliances are not intended to be operated by means of an external timer or separate remote-control system.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

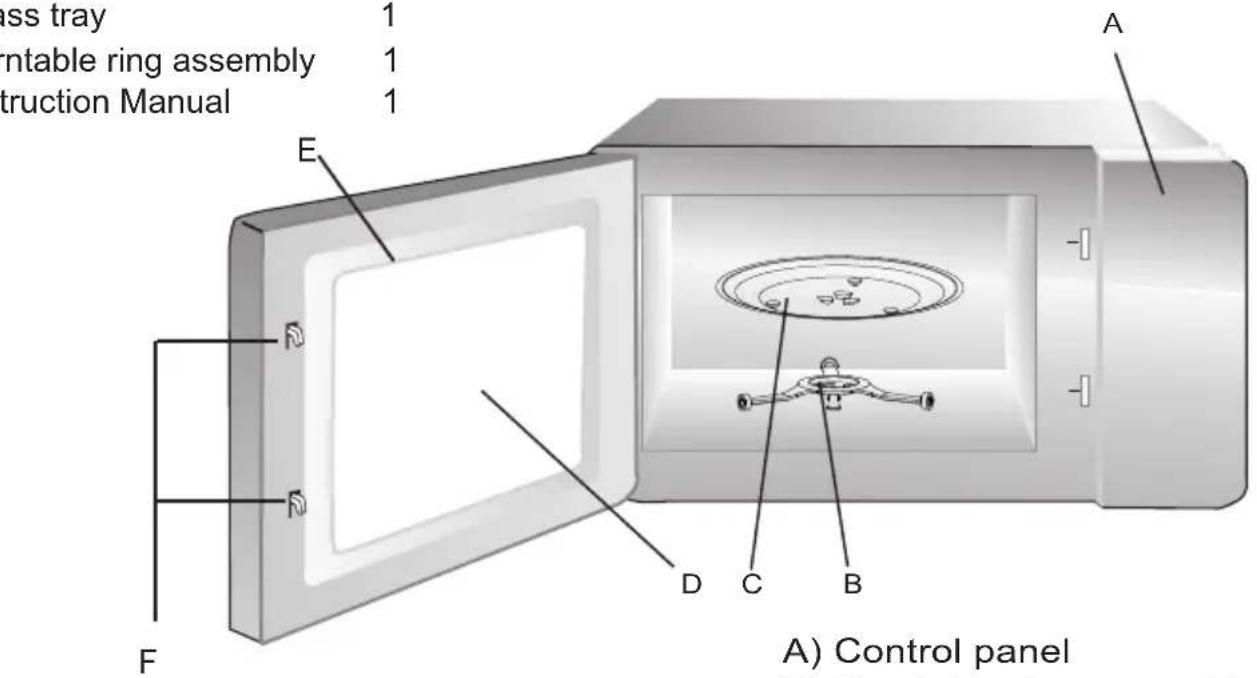

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1 Turntable ring assembly 1 Instruction Manual 1

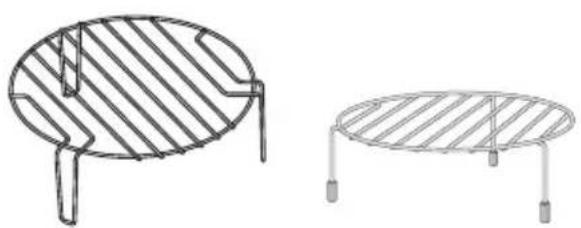

Two simple furniture illustrations: a circular table with diagonal hatching and a side table with vertical supports (no text or symbols)

Grill Rack( Can not be used in microwave function and must be placed on the glass tray )

A) Control panel
B) Turntable ring assembly
C) Glass tray
D) Observation window
E) Door assembly
F) Safety interlock system

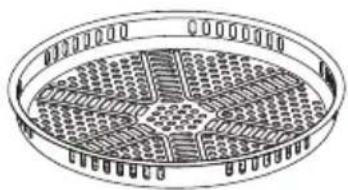

Technical line drawing of a circular tray with internal patterns and no visible text or symbols

Bake Tray (Cannot be used in conjunction with microwave function and can be placed on the bake rack)

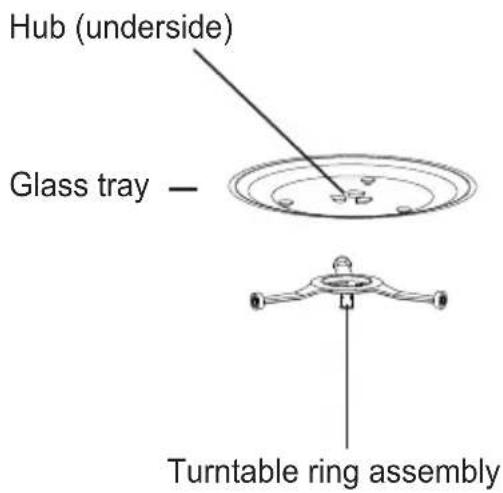

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

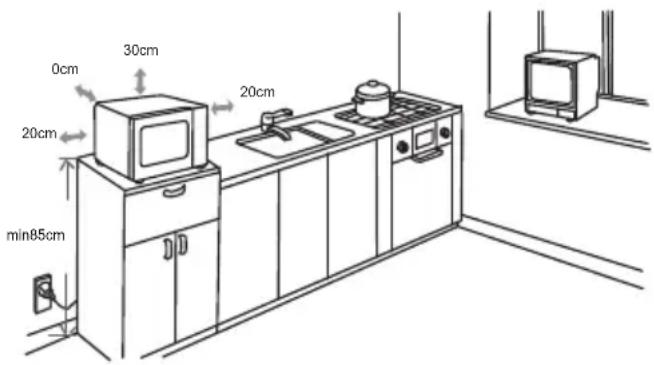

Installation

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

(1) The minimum installation height is 85cm.
(2) The rear surface of appliance shall be placed against a wall.

Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.

(3) Do not remove the legs from the bottom of the oven.
(4) Blocking the intake and/or outlet openings can damage the oven.

(5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be

void.

The accessible surface may be hot during open

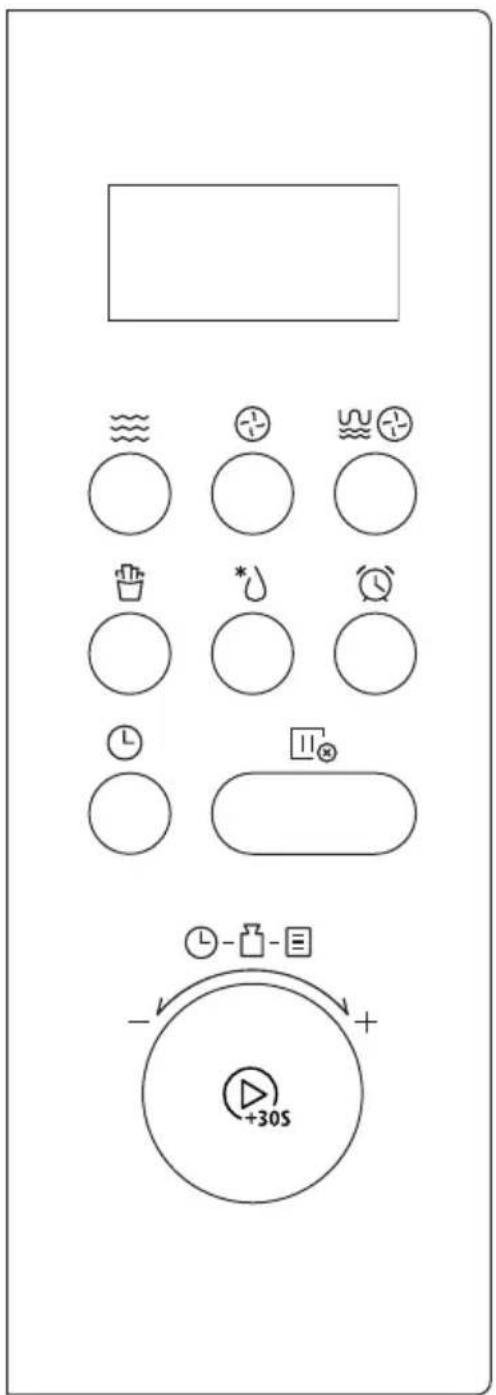

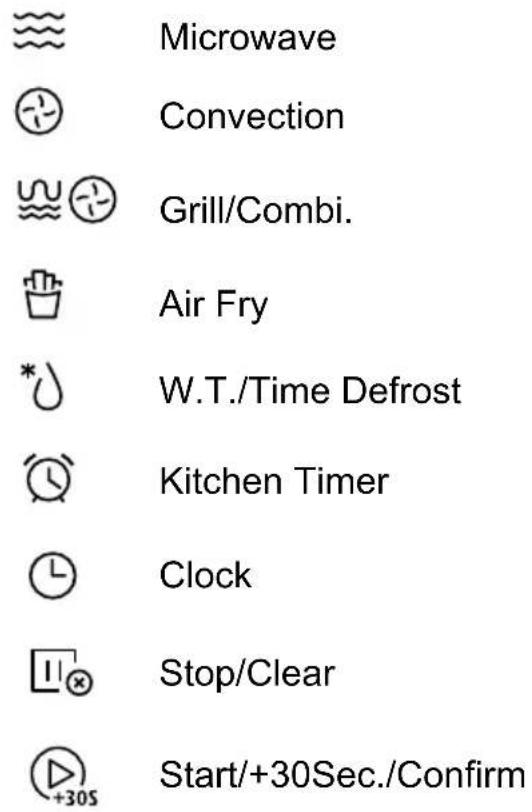

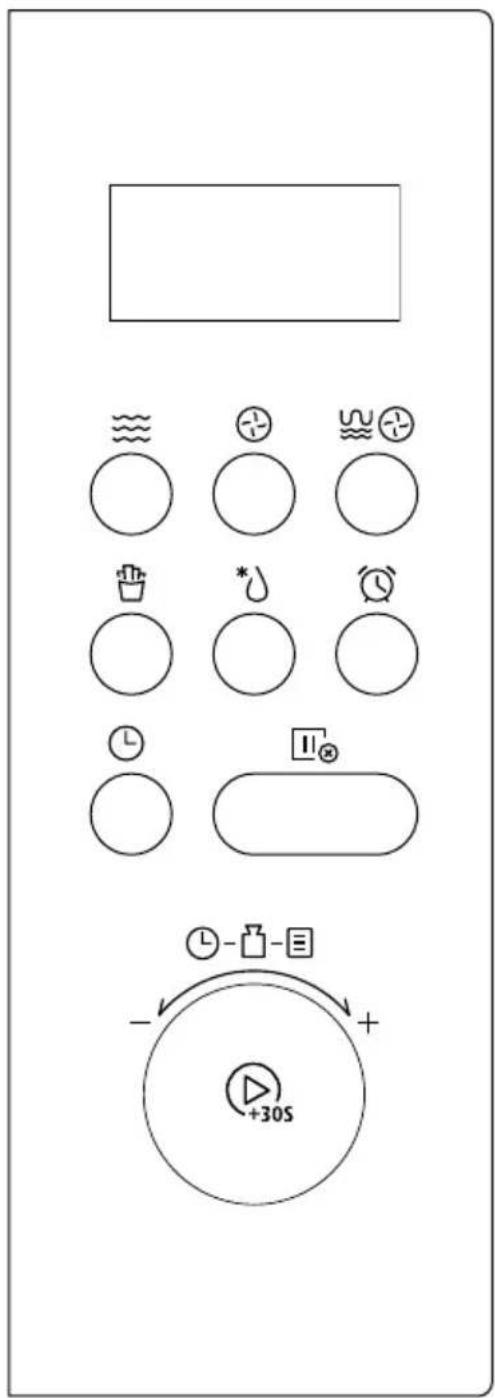

Control Panel

This microwave oven uses modern electronic controls to meet your cooking needs.

1. Clock Setting

When the microwave oven is Powered On, the oven will display "0:00", and the buzzer will ring once.

1) Press "Clock" 'once."00:00" displays.
2) Turn " 🔍 " to adjust the hour figures, the input time should be within 0--23(24-hour).
3) Press "Clock", the minute figures will flash.
4) Turn " 🔍 " to adjust the minute figures, the input time should be within 0--59.
5) Press "Clock" to finish clock setting. ":" will flash.

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you press "Stop/Clear", the oven will go back to the previous status automatically.

2. Kitchen Timer

1) Press " Kitchen Timer once, the screen will display 00:00.
2) Turn " " to enter the correct timer. (The maximum cooking time is 95 minutes.)
3) Press " Start/+30Sec./Confirm " to confirm setting.
4) When the kitchen time is reached, the buzzer will ring 5 times.

If the clock has been set to the (24-hour system), the screen will display the current time.

Note: The kitchen Time is different from 24-hour system. Kitchen Timer is a timer.

3. Microwave Cooking

Press "Microwave" once, the screen will display "P100". Press "Microwave" repeatedly to choose the power you want, and "P100", "P 80" "P 50", "P 30" or "P 10" will display for each added press. Then press "Start/+30Sec./Confirm" to confirm, and turn " [icon] " to adjust the cooking time. (The maximum cooking time is 95 minutes.)

Press" Start/+30Sec./Confirm " again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven with the following steps.

1) Press " Microwave " once, the screen displays "P100".
2) Press "Microwave" once again to choose 80% microwave power.
3) Press " Start/+30Sec./Confirm " to confirm, and the screen displays "P 80".
4) Turn " 🔍 " to adjust the cooking time until the oven displays "20:00".
5) Press " Start/+30Sec./Confirm " to start cooking.

NOTE: The step quantities for the adjustment time of the coding switch are as follow:

Microwave Power Chart

Press	Once	Twice	Thrice	4 times	5 times
Microwave Power	100%	80%	50%	30%	10%

4. Grill or Combi. Cooking

Press "Grill/Combi." once, the screen will display "G-1", and press "Grill/Combi." repeatedly or turn the " 🔍" to choose the power you want, and "G-1", "C-1", "C-2", "C-3" or "C-4" will display for each added press. Then press " Start/+30Sec./Confirm " to confirm, and turn " 🔍" to adjust the cooking time. (The maximum setting time is 95 minutes.) Press " Start/+30Sec./Confirm " again to start cooking.

Example: If you want to use grill power to cook for 10 minutes, you can operate the oven as the following steps.

1) Press " Grill/Combi." once, the screen displays "G-1".
2) Press " Start/+30Sec./Confirm " to confirm.
3) Turn " 🔍 " to adjust the cooking time until the oven displays "10:00".
4) Press " Start/+30Sec./Confirm " to start cooking.

Note: If half the grill time passes, the oven sounds twice, and this is normal.

In order to have a better effect of grilling food, you should turn the food over, close the door, and press " Start/+30Sec./Confirm " to continue cooking. If no operation the oven will continue cooking.

Note: Combination instructions

Instructions	Display	Microwave	Grill	Convection
1	C-1
2	C-2
3	C-3
4	C-4

5. Convection Cooking (With preheating function)

The convection cooking can let you to cook the food as a traditional oven. Microwave is not used. It is recommended that you should preheat the oven to the appropriate temperature before placing the food in the oven.

1) Press the "Convection" key once, "150" flash.
2) Keep pressing "Convection" or turn " [icon] " to select the convection temperature.
Note: The temperature can be chosen from 150 degrees to 240 degrees.

3) Press the "Start/+30Sec./Confirm" to confirm the temperature.

4) Press the "Start/+30Sec./Confirm" to start preheating. When the preheating temperature arrives, the buzzer will sound twice to remind you to put the food into the oven. And the preheated temperature is displayed and flashes.

5) Put the food into the oven and close the door.

Turn " 🔍 " to adjust the cooking time. (The maximum setting time is 95 minutes.)

6) Press the "Start/+30Sec./Confirm" key to start cooking.

Note: a. Cooking time cannot be input until the preheating temperature arrives.

If the temperature arrives, door must be opened to input the cooking time.

b. If the time not input in 5 minutes, the oven will stop preheating. The buzzer sounds five times and turn back to waiting state.

6. Convection Cooking (Without pre-heating function)

1) Press the "Convection" key once, "150" flash.
2) Keep pressing " Convection " or turn " " to select the convection temperature.
Note: The temperature can be chosen from 150 degrees to 240 degrees.

3) Press the "Start/+30Sec./Confirm" to confirm the temperature.

4) Turn " 🔍 " to adjust the cooking time. (The maximum setting time is 95 minutes.)

5) Press the "Start/+30Sec./Confirm" key to start cooking.

7. Multi-Stage Cooking

Two stages can be maximally set. If one stage is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin.

Note: Auto menu and preheating cannot be set as one of the multi-stage.

Example: If you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

1) Press "W.T./Time Defrost" twice, the screen will display "d-2";
2) Turn " 🔍 " to adjust the defrost time of 5 minutes;
3) Press "Microwave" once, "P100" will display;
4) Press "Microwave" again to choose 80% microwave power till "P 80" displays;
5) Press "Start/+30Sec./Confirm" to confirm;
6) Turn " " to adjust the cooking time of 7 minutes;
7) Press "Start/+30Sec./Confirm" to start cooking.

8. Speedy Cooking

1) In waiting state, press "Start/+30Sec./Confirm" key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.
2) During microwave, grill, convection and combination states, cooking time can be increased by pressing "Start/+30Sec./Confirm". Each press can increase 30 seconds.

Note: This function cannot work under weight defrost, multi-stage and auto menu cooking.

Auto menu Chart

Menu	Weight(g)	Display	Power
A-1 Auto Reheat	150	150	100%
	250	250
	350	350
	450	450
	600	600
A-2 Potato	1	1	100%
	2	2
	3	3
A-3 Meat	150	150	80%
	300	300
	450	450
	600	600
A-4 Vegetable	150	150	100%
	350	350
	500	500
A-5 Fish	150	150	80%
	250	250
	350	350
	450	450
	650	650
A-6 Pasta	50(with water450g)	50	80%
	100(with water800g)	100
	150(with water 1200g)	150
A-7 Soup	200ml	200	100%
	400ml	400
	600ml	600
A-8 Cake	475	475	Preheat at 180 degrees
A-9 Pizza	200	200	C-4
	300	300
	400	400
A-10 Chicken	500	500	C-4
	750	750
	1000	1000
	1200	1200

9. Auto Menu

1) In waiting state, turn " " right to choose the function wanted, and "A1", "A2", "A3"...."A10" will be displayed.
2) Press "Start/+30Sec./Confirm" to confirm the menu you need.
3) Turn " " to choose the weight of menu, and "g" indicator will light.
4) Press " Start/+30Sec./Confirm " to start cooking.

Note: When you choose cake, please do not put the cake into the oven at the beginning. The oven needs to be preheated to 180 degree first. After several minutes, the buzzer sounds twice to remind you to put the cake into the oven. After putting the cake in the oven, please press start again. The timer will count down, and the cake will be cooked perfectly.

2) When roast chicken is selected and 2/3 of the time has passed, it will ring twice to tell you to turn over the food. You can just leave it continue. For better result, turn the food over, close the door, and then press "Start/+30Sec./Confirm " to continue cooking.

10. Speedy Microwave Cooking

In waiting state, turn " " left to choose cooking time directly then press " Start/+30Sec./Confirm " key to cook with 100% microwave power.

This program can be set as the first one of multi-stage.

11. Defrost by W.T.

1) Press " W.T./Time Defrost " pad once, the oven will display "d -1".
2) Turn " 🔍 " to select the weight of food. At the same time, "g" will light. The weight should be within 100-2000g.
3) Press "Start/+30Sec./Confirm" key to start defrosting.

12. Defrost by Time

1) Press " W.T./Time Defrost " key twice, the oven will display "d-2".
2) Turn " 🔍" to select the cooking time. The maximum setting time is 95 minutes.
3) Press " Start/+30Sec./Confirm " key to start defrosting. The defrost power is P30, and it can not be changed.

13. Inquiring Function

1) During cooking state, press "Clock" to check the current time. It will be displayed for 3 seconds.
2) In cooking state, press "Microwave ", " Grill/Combi. " or " Convection ", the current power or temperature will be displayed for 3 seconds.

14Child Lock

Lock: In waiting state, press "Stop/Clear" for 3 seconds, there will be a long "beep" denoting entering into the children-lock state and "→" indicator will light. The screen will display current time or "【::】".

Unlock: In locked state, press "Stop/Clear" for 3 seconds, there will be a long "beep" denoting that the lock is released, and "→" indicator will disappear.

15. Specification

1) The buzzer will sound once when turning the knob at the beginning.
2) "Start/30 Secs/Cond/continue cooking if the door is opened during cooking.
3) Once the cooking programmer has been set, "Start/+30Sec./Confirm" is not pressed in 5 minutes. The current time will be displayed. The setting will be cancelled.
4) The buzzer sounds once by efficient press, inefficient press will be no response.
5) The buzzer will sound five times to remind you when cooking is finished.

16. Air Fry

1) Press "Air Fry" once, and the screen will display "H1".
2) Keep pressing "Air Fry" or turn " [icon] " to select the menu you prefer (H1 to H9).
3) Press "Start/+30Sec./Confirm" to confirm the menu.
4) Turn " " to choose the weight of menu.
5) Press " Start/+30Sec./Confirm " to start cooking.

Air Fry Chart

NO MENU WEIGHT (g)		DISPLAY
H1 Frozen french fries		300	300
H2 Frozen potato croquettes		350	350
H3	Frozen squid	250	250
H4 Frozen onion rings		250	250
H5	Frozen chicken nuggets	350	350
H6	Escalope	400	400
H7 Shrimp		250	250
H8	Vegetable	200	200
H9	Spring rolls	300	300

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside.It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

Importeur / Hersteller:

Baytronic Handels GmbH I Harterfeldweg 4; A-4481 Asten I www.nabo.at
