Radio CD MP3 WMA Bahamas MP46

1 On/Off button Short press: Mutes the device (Mute). Long press: Switches the device off.

button to open the flip-release control. button (Eject) for removing a CD from the device. ENGLISH Controls 3 Volume control 4 SOURCE button to switch sources between Radio, CD, CD changer (if connected) and AUX. 5 AUDIO button to adjust bass, treble, middle, sub-out, balance and fader plus selecting an equaliser presetting. 6 BND•TS button Short press: Selects the FM memory banks and AM wavebands. Long press: Starts the Travelstore function. 7 X-BASS button for setting the X-BASS function. 8 DISPL button Short press: Briefly displays alternative display contents (e.g. time). Long press: Changes display contents. 9 MENU button Short press: Calls up the menu for basic settings. Long press: Starts the Scan function.

• Notes and accessories p. 6
• International telephone information p. 6
• Installation p. 6
• Accessory p. 6
• Optional equipment p. 6
• Detachable control panel p. 7
• Theft protection p. 7
• Detaching the control panel p. 7
• Attaching the control panel p. 7
• Switch-off time (OFF TIMER) p. 8
• Switching on/off p. 8
• Adjusting the volume p. 9
• Setting the power-on volume p. 9
• Quickly reducing the volume (Mute) p. 9
• Telephone Audio/Navigation Audio p. 10
• Switching the confirmation beep on/off p. 10
• Automatic Sound p. 11
• Radio mode p. 11
• Adjusting the tuner p. 11
• Switching to radio mode p. 11
• Selecting the waveband/ memory bank p. 12
• Tuning into a station p. 12
• Setting the sensitivity of station seek tuning p. 12
• Storing stations p. 13
• Storing stations automatically (Travelstore) p. 13
• Listening to stored stations p. 13
• Scanning receivable stations (SCAN) p. 13
• Setting the scanning time p. 13
• Configuring the display p. 14
• CD mode p. 14
• Switching to CD mode p. 14
• Selecting tracks p. 15
• Fast track selection p. 15
• Fast searching (audible) p. 15
• Random track play (MIX) p. 15
• Scanning tracks (SCAN) p. 15
• Repeating tracks (REPEAT) p. 16
• Interrupting playback (PAUSE) p. 16
• Configuring the display p. 16
• Displaying CD text p. 16
• Ejecting a CD p. 17
• MP3/WMA mode p. 17
• Preparing an MP3 CD p. 17
• Switching to MP3 mode p. 19
• Configuring the display p. 19
• Configuring the MP3 scrolling texts p. 19
• Selecting a directory p. 20
• Selecting tracks/files p. 21
• Fast search (not available in MP3 Browse Mode) p. 21
• Random track play – MIX (not available in MP3 Browse Mode) p. 21
• Scanning tracks – SCAN (not available in MP3 Browse Mode) p. 21
• Repeated playback of individual tracks or entire directories – REPEAT (not available in MP3 Browse Mode) p. 22
• Interrupting playback (PAUSE) p. 22
• CD-changer mode p. 23
• Switching to CD-changer mode p. 23
• Selecting CDs p. 23
• Selecting tracks p. 23
• Fast searching (audible) p. 23
• Repeating individual tracks or whole CDs (Repeat) p. 23
• Random track play (MIX) p. 23
• Scanning all tracks on all CDs (SCAN) p. 24
• Interrupting playback (PAUSE) p. 24
• Clock time p. 24
• Displaying the time p. 24
• Setting the time p. 24

• Selecting 12/24-hour clock mode p. 25
• Displaying the time continuously when the device is off and the ignition is on p. 25
• Briefly displaying time with switched-off device p. 25
• Sound p. 26
• Adjusting the bass p. 26
• Adjusting the middle p. 26
• Adjusting the treble p. 26
• Setting the left/right volume distribution (Balance) p. 27
• Adjusting the front/rear volume distribution (Fader) p. 27
• Preamplifier output (Preamp-Out/ Sub-Out) p. 27
• Adjusting the sub-out level p. 27
• Adjusting the sub-out cutoff frequency p. 27
• X-BASS p. 28
• Adjusting the X-BASS boost p. 28
• Equalizer presettings (Presets) p. 29
• Adjusting the display settings p. 29
• Entering a switch-on message p. 29
• Adjusting the display brightness p. 30
• Setting the viewing angle p. 30
• Setting a positive or negative display p. 30
• Setting the display illumination colour p. 31
• External audio sources p. 32
• Switching the AUX input on/off p. 32
• Adjusting the AUX preamplification p. 33
• Technical Data p. 34
• Amplifier p. 34
• Tuner p. 34
• CD p. 34
• Pre-amp Out p. 34
• Input sensitivity p. 34
• Installation instructions ENGLISH Contents p. 195

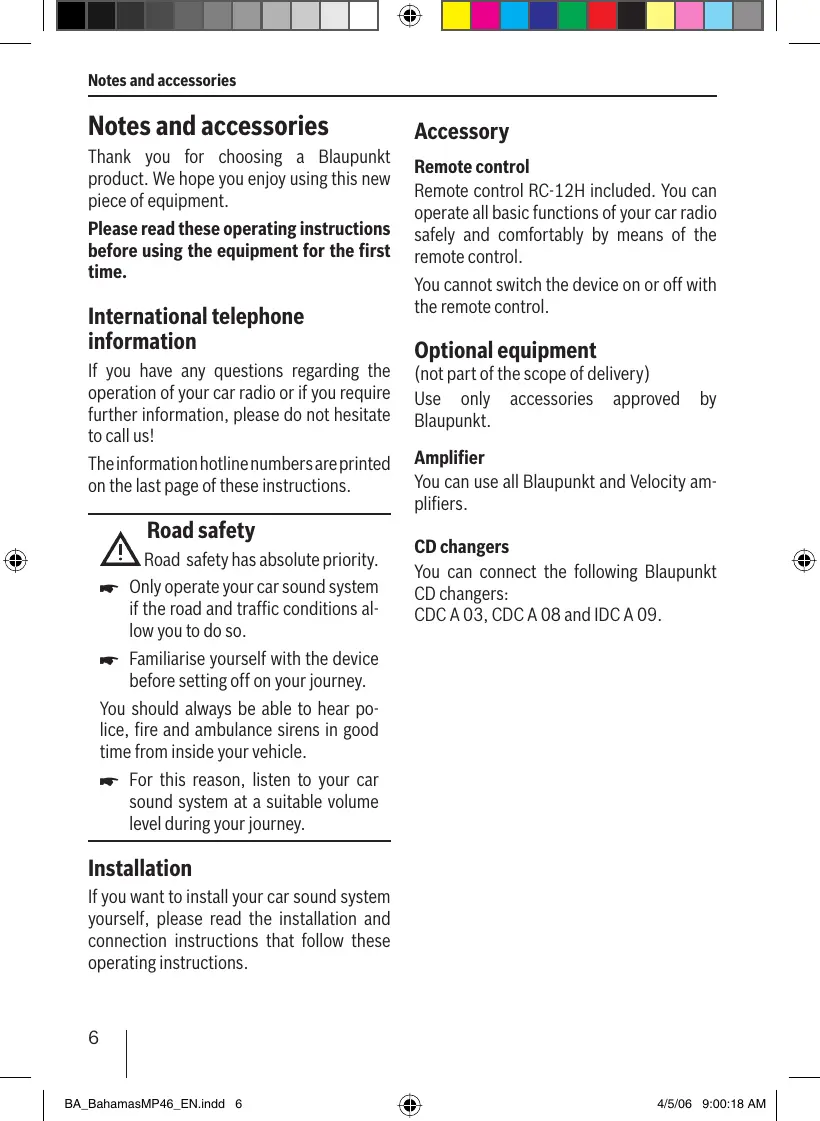

Notes and accessories Notes and accessories Thank you for choosing a Blaupunkt product. We hope you enjoy using this new piece of equipment. Please read these operating instructions before using the equipment for the first time. International telephone information If you have any questions regarding the operation of your car radio or if you require further information, please do not hesitate to call us! The information hotline numbers are printed on the last page of these instructions. Road safety Road safety has absolute priority. 쏅 Only operate your car sound system if the road and traffic conditions allow you to do so. 쏅 Familiarise yourself with the device before setting off on your journey. You should always be able to hear police, fire and ambulance sirens in good time from inside your vehicle. 쏅 For this reason, listen to your car sound system at a suitable volume level during your journey. Accessory Remote control Remote control RC-12H included. You can operate all basic functions of your car radio safely and comfortably by means of the remote control. You cannot switch the device on or off with the remote control. Optional equipment (not part of the scope of delivery) Use only accessories approved Blaupunkt.

Amplifier You can use all Blaupunkt and Velocity amplifiers. CD changers You can connect the following Blaupunkt CD changers: CDC A 03, CDC A 08 and IDC A 09. Installation If you want to install your car sound system yourself, please read the installation and connection instructions that follow these operating instructions.

Detachable control panel Theft protection The device is equipped with a detachable control panel (Flip-Release Panel) as a way of protecting your equipment against theft. The device is worthless to a thief without this control panel. Protect your device against theft by taking the control panel with you whenever you leave your vehicle. Do not leave the control panel inside your vehicle - not even in a hiding place. Notes:

• Never drop the control panel.
• Never expose the control panel to direct sunlight or other heat sources.
• Avoid direct skin contact with the control panel’s electrical contacts. If necessary, please clean the contacts with a lint-free cloth moistened with cleaning alcohol. Detaching the control panel 쏅 Press the button 2. The control panel opens out towards you. 쏅 Hold the control panel by its right side and then pull the control panel straight out of the bracket. Notes:
• The device is switched off after a time preset by you. For instructions, please read the section “Switch-offtime (OFF TIMER)” in this chapter.
• All the current settings are saved.
• Any CD already inserted in the device remains there. Attaching the control panel 쏅 Hold the control panel approximately at a right angle to the device. 쏅 Slide the control panel into the device’s guides that are positioned on the left and right at the lower edge of the housing. Push the control panel carefully into the bracket until it clicks into place. 쏅 Carefully flip up the control panel until it clicks into place.

If the device was still switched on when you detached the control panel, it will automatically switch on with the last setting activated (Radio, CD, CD changer or AUX) when the panel is replaced.

Switch-off time (OFF TIMER) Switching on/off After opening the control panel, the device is switched off after an adjustable time. You can set this time from 0 to 30 seconds. 쏅 Press the MENU button 9. 쏅 Press the or button : repeatedly until “VARIOUS MENU” appears on the display. button : to open the 쏅 Press the menu. 쏅 Press the or button : repeatedly until “OFF TIMER” appears on the display. 쏅 Adjust the time by pressing the or buttons :. When you have finished making your changes, 쏅 Press the MENU button 9 three times. There are various ways of switching the device on/off: Note: If you set the switch-off time to 0 seconds, the device is switched off immediately after opening the control panel. Switching on/off using button 1 쏅 To switch on the device, press button The device switches on. 쏅 To switch off the device, press and hold down button 1 for longer than 2 seconds. The device switches off. Switching on/off using the vehicle ignition The device will switch on/off simultaneously with the ignition if the device is correctly connected to the vehicle’s ignition as shown in the installation instructions and you did not switch the device off by pressing button Switching the device on/off using the detachable control panel 쏅 Detach the control panel. The devices switches off after the time set in the “OFF TIMER” menu. 쏅 Attach the control panel again. The device switches on. The last setting (Radio, CD, CD changer or AUX) is reactivated. Note: To protect the vehicle battery, the device will switch off automatically after one hour if the ignition is off.

Adjusting the volume You can adjust the volume in increments from 0 (off) to 66 (maximum). To increase the volume, 쏅 Turn the volume control 3 clockwise. To decrease the volume, 쏅 Turn the volume control 3 counterclockwise. Setting the power-on volume Note: The device features a time-out function (time window). For example, if you press the MENU button 9 and select a menu item, the device switches back after approx. 8 seconds after the last button activation. The settings performed are saved. You can set the power-on volume. 쏅 Press the MENU button 9. 쏅 Press the or button : repeatedly until “VOLUME MENU” appears on the display. button : to open the 쏅 Press the menu. 쏅 Press the or button : repeatedly until “ON VOLUME” appears on the display. 쏅 Adjust the power-on volume with the or button :. To help you adjust the setting more easily, the device will increase or decrease the volume as you make your changes. If you enable “LAST VOL”, the volume which was set the last time you switched off the device is re-enabled. Note: To protect your hearing, the power-on volume is limited to the value “38”. If the volume before switching off was higher and the “LAST VOL” setting was selected, the device switches on again with the value “38”. When you have finished making your changes, 쏅 Press the MENU button 9 three times. ENGLISH Volume Quickly reducing the volume (Mute) You can quickly reduce the volume to a preset level (Mute). 쏅 Briefly press button 1. “MUTE” appears on the display. Cancelling mute To return to your previously set volume level, 쏅 Briefly press button 1 again. Adjusting the mute level You can adjust the mute level. 쏅 Press the MENU button 9. 쏅 Press the or button : repeatedly until “VOLUME MENU” appears on the display. button : to open the 쏅 Press the menu. 쏅 Press the or button : repeatedly until “MUTE LVL” appears on the display. 쏅 Adjust the mute level by pressing the or button :.

When you have finished making your changes 쏅 Press the MENU button 9 three times. Telephone Audio/Navigation Audio If your car sound system is connected with a cell phone or navigation system, the car sound system is muted when you “pick up” the phone or during a voice output of the navigation and the call or the voice output is played back via the car sound speaker system. For this purpose, the cell phone or the navigation system must be connected to the car sound system as described in the installation instructions. Your Blaupunkt dealer can provide you with the information which navigation system can be used with your car sound system. You can adjust the volume with which you switch on the telephone calls or the voice output of the navigation. 쏅 Press the MENU button 9. 쏅 Press the or button : repeatedly until “VOLUME MENU” appears on the display. button : to open the 쏅 Press the menu. 쏅 Press the or button : repeatedly until “TEL VOL” appears on the display. 쏅 Set the desired volume with the or button :. When you have finished making your changes, 쏅 Press the MENU button 9 three times. Note: Using the volume control 3, you can adjust the volume for telephone calls and voice output directly during the playback. Switching the confirmation beep on/off The system will output a confirmation beep for some functions if you keep a button pressed down for longer than 2 seconds, for instance, when assigning a radio station to a station preset button. You can switch the beep on or off. 쏅 Press the MENU button 9. 쏅 Press the or button : repeatedly until “VOLUME MENU” appears on the display. button : to open the 쏅 Press the menu. 쏅 Press the or button : repeatedly until “BEEP ON” or “BEEP OFF” appears on the display. 쏅 Switch the BEEP ON or OFF with the or button :. When you have finished making your changes, 쏅 Press the MENU button 9 twice.

This function automatically adjusts the volume of the car sound system to the vehicle speed. For this purpose, the car sound system must be connected as described in the installation instructions. You can adjust the automatic sound in 6 increments from (0 - 5). 쏅 Press the MENU button 9. 쏅 Press the or button : repeatedly until “VOLUME MENU” appears on the display. button : to open the 쏅 Press the menu. 쏅 Press the or button : repeatedly until “AUTO SD” appears on the display. 쏅 Set the automatic sound 0 - 5 with the or button :. When you have finished making your changes, 쏅 Press the MENU button 9 three times. Note: Your optimal setting of 0 - 5 of the speed-dependent sound adjustment depends upon the driving noise development of your vehicle. Determine the perfect value for your vehicle using trial and error. Radio mode ENGLISH Automatic Sound Radio mode Adjusting the tuner To ensure proper functioning of the tuner, the device must be set for the region in which it is being operated. You can select among Europe (EUROPE), America (USA), South America (S-AMERICA), and Thailand (THAI). The tuner is factory-set to the region in which it was sold. If you experience problems with your radio reception, please check this setting. The radio functions described in these operating instructions refer to the tuner setting America (USA). 쏅 Switch off the device by pressing button 1. 쏅 Hold the 1 and 5 buttons ; pressed at the same time and switch on the device again with the button 1. “TUNER” is displayed. 쏅 Select your tuner region with the or button :. To save the setting, 쏅 Switch the device off and on again or wait approx. 8 seconds. The radio starts playing with the last setting selected (Radio, CD, CD changer or AUX). Switching to radio mode If you are in CD, CD changer or AUX mode, 쏅 Press the BND•TS button 6. 쏅 Press the SOURCE button 4 repeatedly until the memory bank, e.g. “FM1”, appears on the display.

Selecting the waveband/memory bank Setting the sensitivity of station seek tuning This device can receive programmes broadcast over the FM and AM frequency ranges. There are three memory banks available for the FM waveband (FM1, FM2 and FMT) and one for the AM waveband. Six stations can be stored in each memory bank. To switch between the memory banks FM1, FM2 and FMT and the AM waveband, 쏅 Briefly press the BND•TS button 6. You can choose whether the radio should only tune into stations providing good reception or whether it can also tune into those with a weak reception. 쏅 Press the MENU button 9. 쏅 Press the or button : repeatedly until “TUNER MENU” appears on the display. button : to open the 쏅 Press the menu. 쏅 Press the or button : repeatedly until “SENS HI” or “SENS LO” appears on the display. “SENS HI”means a high sensitivity setting and “SENS LO”means a low sensitivity setting. 쏅 Set the desired sensitivity level using the or button :. When you have finished making your changes, 쏅 Press the MENU button 9 twice. Tuning into a station There are various ways of tuning into a station. Automatic station seek tuning 쏅 Press the or button :. The radio tunes into the next receivable station. Tuning into stations manually You can also tune into stations manually. To change the set frequency in small increments, 쏅 Briefly press the or button :. To change the set frequency quickly, 쏅 Press and hold down the or button : for a longer period of time. Note: The device will store the sensitivity setting selected in FM and AM waveband.

Storing stations Storing stations manually 쏅 Select the desired memory bank (FM1, FM2, FMT) or the wavebands AM. 쏅 Tune into the desired station. 쏅 Press and hold down one of the station 1–6 buttons ; for longer than 2 seconds to assign the station to that button. Storing stations automatically (Travelstore) You can automatically store the six stations offering the strongest reception in the region. The stations are stored in the FMT or AM memory bank, depending on preset waveband. Note: Any stations that were previously stored in this memory bank are deleted in the process. 쏅 Choose the frequency range, for which you would like to set up a Travelstore. 쏅 Press and hold down the BND•TS button 6 for longer than 2 seconds. The storing procedure begins. “FM TRAVELSTORE” or “AM TRAVELSTORE” appears on the display. After the process has completed, the radio will play the station stored in memory location 1 of the previously selected memory bank. Listening to stored stations 쏅 Select the memory bank or waveband. 쏅 Press one of the station 1 - 6 buttons

The stored station is played if it can be received. Scanning receivable stations (SCAN) ENGLISH Radio mode You can use the scan function to play all the receivable stations briefly. You can set the scanning time in the menu to between 5 and 30 seconds. Starting SCAN 쏅 Press and hold down the MENU button 9 for longer than 2 seconds. Scanning begins. “SCAN” appears briefly in the display followed by a flashing display of the current station name or frequency. Cancelling the SCAN and continuing to listen to a station 쏅 Press the MENU button 9. Scanning stops and the radio continues playing the station that it tuned into last. Setting the scanning time 쏅 Press the MENU button 9. 쏅 Press the or button : repeatedly until “VARIOUS MENU” appears on the display. button : to open the 쏅 Press the menu. 쏅 Press the or button : repeatedly until “SCAN TIME” appears on the display. 쏅 Set the desired scan time using the or button :.

When you have finished making your changes, 쏅 Press the MENU button 9 three times. Note: The defined scanning time is also applied by the system to scanning carried out in CD and CD changer mode. Configuring the display In radio mode, you can display the time on the display in an enlarged format. 쏅 Press and hold DISPL button 8 longer than 2 seconds to switch the display mode. After 2 seconds the display automatically switches back to the previous display. CD mode CD mode You can use this device to play standard Audio-CDs, CD-Rs and CD-RWs with a diameter of 12 cm. To avoid problems when playing self-burned CDs, you should not burn CDs at speeds greater than 16speed. Risk of severe damage to the CD drive! CD singles with a diameter of 8 cm and noncircular contoured CDs (shape CDs) must not be used. We accept no responsibility for any damage to the CD drive that may occur as a result of the use of unsuitable CDs. To ensure proper functioning, use only CDs with the Compact-Disc logo. Copy-protected CDs can cause playback problems. Blaupunkt cannot guarantee the proper functioning of copy-protected CDs! Besides being able to play audio CDs on this device, you can also play CDs containing MP3/WMA music files. For further information, please read the chapter entitled “MP3/ WMA mode”. Switching to CD mode If there is no CD inserted in the drive, 쏅 Press the button 2. The control panel opens. 쏅 Gently insert the CD with its printed side uppermost into the drive until you feel some resistance.

The drive draws in the CD automatically. You must not hinder or assist the drive as it draws in the CD. 쏅 Gently close the control panel whilst exerting a little pressure until you feel it click into place. The CD starts playing and “CD” appears on the display. Note: If the vehicle ignition was switched off prior to inserting the CD, you must switch the device on first with the button 1 to start the playback. If a CD is already inserted in the drive, 쏅 Press the SOURCE button 4 repeatedly until “CD” appears on the display. Playback begins from the point at which it was last interrupted. Selecting tracks 쏅 Press one of the arrow buttons : to select the next or previous track. If you press the or button : once, the player will play the current track again from the beginning. Fast track selection To quickly select tracks backwards or forwards, 쏅 Press and hold down the or button : until fast track selection backwards / forwards begins. Fast searching (audible) To fast search backwards or forwards, 쏅 Press and hold down the or button : until fast searching backwards / forwards begins. ENGLISH CD mode Random track play (MIX) 쏅 Press the 5 MIX button ;. “MIX DISC” appears briefly on the display and the MIX symbol is displayed. The next randomly selected track will then be played. Cancelling MIX 쏅 Press the 5 MIX button ; again. “MIX OFF” appears briefly on the display and the MIX symbol disappears. Scanning tracks (SCAN) You can scan (briefly play) all the tracks on the CD. 쏅 Press the MENU button 9 for longer than 2 seconds. “SCAN DISC” apears briefly on the display, and the next track will then be scanned. Note: You can set the scanning time. For further information, please read the section entitled “Setting the scanning time” in the “Radio mode” chapter.

Cancelling Scan and continuing listening to a track To end the scanning process, 쏅 Press the MENU button 9. The currently scanned track will then continue to be played normally. Repeating tracks (REPEAT) If you want to repeat a track, 쏅 Press the 4 RPT button ;. “REPEAT TRACK” appears briefly on the display and “REPEAT” is displayed.The track is repeated until you deactivate Repeat. Cancelling repeat If you want to cancel the repeat function, 쏅 Press the 4 RPT button ; again. “REPEAT OFF” appears briefly on the display and “REPEAT” disappears. Normal playback is then resumed. Interrupting playback (PAUSE) 쏅 Press the 3 button ;. “PAUSE DISC” appears on the display. Cancelling pause 쏅 During the pause, press the 3 button ;. Playback is continued. Configuring the display You can select from several display types for CD mode:

• “Normal Mode”: First line: Track number and playing time
• “Info Mode”: First line: Track number and playing time Second line: CD-Text
• “Clock Mode”: First line: Track number and playing time Second line: CD text and time Notes:
• You can decide via Menu, whether the CD text should be displayed. For more information please read the section “Displaying CD text”.
• The CD text can only be displayed if the relevant information is available on the CD. To switch between displays, button 8 either 쏅 Press the DISPL once or repeatedly, until the display of your choice appears. Displaying CD text Some CDs include so called CD text. This text may include data like the name of the artist, the album or the title of the track. CD text is displayed in the second line of the display. CD text is displayed in running text at every track change.

Switching CD text on/off 쏅 Press the MENU button 9. 쏅 Press the or button : repeatedly, until “VARIOUS MENU”appears on the display. button : to open the 쏅 Press the menu. 쏅 Press the or button : repeatedly, until “CD TEXT”appears on the display. button : to open the 쏅 Press the menu. 쏅 Choose the option “CD TEXT ON”or “CD TEXT OFF”by pressing button :. Once you have completed your settings, 쏅 Press the MENU button 9 three times. Ejecting a CD 쏅 Press the button 2. The control panel opens out towards you. 쏅 Press the eject button < next to the CD tray. The CD is ejected. 쏅 Remove the CD and close the control panel. Notes:

• If a CD is ejected, the drive will automatically draw it back in again after 10 seconds.
• You can also eject CDs whilst the device is switched off or whilst another audio source is activated. MP3/WMA mode MP3/WMA mode You can also use this car sound system to play CD-Rs and CD-RWs that contain MP3 music files. You can also play WMA files. The operation for playing MP3 and WMA files is identical. ENGLISH CD mode Notes:
• WMA files with Digital Rights Management (DRM) from online music shops cannot be played with this device.
• WMA files can only be played back safely if they were created with Windows Media-Player version 8. Preparing an MP3 CD The various combinations of CD burners, CD burning software and CD blanks may lead to problems arising with the device’s ability to play certain CDs. If problems occur with your own burned CDs, you should try another brand of CD blank or choose another colour of CD blank. The format of the CD must be ISO 9660 Level 1/Level 2 or Joliet. Other formats cannot be played reliably. You can create a maximum of 252 directories on a CD. You can use this device to access directories individually. Regardless of the number of directories on the CD, the device can handle up to 999 MP3 files on a single CD, with a maximum of 255 files in one directory.

This device supports as many subdirectories as your burner software can create despite the fact that the maximum directory depth defined by the ISO 9660 standard is only 8. D01

D02 D03 T001 T002 T003 T004 T005 T001 T002 T003 T004 T005 T006 D04 T001 T002 T003 T004 T005 T006 T007 T008 T009 T010 T011

A Directories B Title · Files You can name each directory using a PC. The device is capable of displaying the directory name. Name the directories and tracks/files using your CD burner software. The software’s instruction manual will provide details on how to do this. Note: When naming directories and tracks/ files you should avoid using accents and special characters. If you like your files to be in the correct order, you should use burner software that places files in alphanumerical order. If your software does not provide this feature you also have the option of sorting the files manually. For this purpose, you must enter a number in front of each file name, e.g. “001”, “002”, etc. The leading zeros must also be entered. MP3 tracks can contain additional information such as the artist, album and track names (ID3 tags). This device can display ID3 tags (version 1). When creating (encoding) MP3 files from audio files, you should use bit rates up to a maximum of 256 Kbit/sec. This device can only play MP3 files that have the “.MP3” file extension. Notes: To ensure uninterrupted playback,

• Do not try changing the file extension to “.MP3” of any files other than MP3 files and then attempt to play them! The device will ignore these invalid files during playback.
• Do not use “mixed” CDs containing both non-MP3 data and MP3 tracks (the device only reads MP3 files during MP3 playback).
• Do not use mix-mode CDs containing both CD-audio tracks and MP3 tracks. If you try playing a mix-mode CD, the device will only play the CDaudio tracks.

Switching to MP3 mode MP3 mode is activated in the same way as normal CD mode. For further information, please read the section entitled “Switching to CD mode” in the “CD mode” chapter. Configuring the display Configuring the default display You can display various types of information on the current track:

1. Normal Mode:

First line: Track name Second line: MP3 data Note: MP3 data content depends on the settings in the menu “MP3 DISP”.

2. Info Mode:

First line: Track name Second line: Directory number, track number and playing time

3. Clock Mode:

First line: Track name Second line: Directory number, track number and clock Note: MP3 ID tags version 1 can be displayed, if they were stored with the MP3 data files. For more information please read the instructions regarding your MP3 software for PC or your CD burning software.

4. MP3 Browse Mode:

First line: Track name 1 Second line: Track name 2 Third line: Track name 3 Note: Use the MP3 Browse Mode to quickly and easily locate MP3 data files on your CD. The functions fast forward search, MIX, SCAN and REPEAT are not available in MP3 Browse Mode. To choose between display options, button 8, once 쏅 Press the DISPL or repeatedly, until the display of your choice appears. ENGLISH MP3/WMA mode Configuring the MP3 scrolling texts One of the following scrolling texts is shown once on the display with every track change. Afterwards, the configured standard display is shown. The available scrolling texts are:

• Directory name (“DIR NAME”)
• Name of the track (“SONG NAME”)
• Name of the album (“ALBM NAME”)
• Name of the artist (“ARTIST”)
• File name (“FILE NAME”) Note: Artist, track and album name are part of the MP3-ID tag of version 1 and can only be displayed if they have been saved with the MP3 files. For further information, please read the instructions that came with your PC’s MP3 software or burner software.

To switch between the different display options, 쏅 Press the MENU button 9. 쏅 Press the or button : repeatedly until “VARIOUS MENU” appears on the display. button : to open the 쏅 Press the menu. 쏅 Press the or button : repeatedly until “MP3 DISP” appears on the display. button : to open the 쏅 Press the menu. 쏅 Select the desired MP3 scrolling text with the or button :. When you have finished making your changes, 쏅 Press the MENU button 9 three times. Note: The “MP3 DISP” menu item is available only during the playback of a CD with MP3/WMA files. Selecting a directory Select directory by pressing the arrow buttons (Normal, Clock and Info Mode) To move up or down to another directory, 쏅 Press the or button : once or several times. Note: All directories that do not contain MP3 data files will be skipped automatically. The device corrects the number of available directories to display, which may not correspond to the number of directories you originally created. Selecting a directory in Browse Mode The current directory and the next directories can be displayed in the three lines of the display. The directories are displayed with the names you created at the time of CD burning. During registry display mode, you may browse through all available directories and select the one of your choice by pressing the arrow up or arrow down button. button 8 쏅 Press the DISPL repeatedly during MP3 playback, until MP3 Browse Mode appears on the display. The list of tracks in the current directory is displayed. 쏅 Press the button :, to switch to directory level. 쏅 Press the or button :, to display the directories on the CD. When you want to select a directory, 쏅 Press the button :. The directory you selected opens. The directory title is displayed in Browse Mode.

Selecting tracks/files Selecting tracks/data files with the arrow button (Normal, Clock, and Info Mode) To move up or down to another track/file in the current directory, 쏅 Press the or button : once or several times. If you press the button : once, the current track is played again from the beginning. Selecting a track in Browse Mode You can view all available tracks in a directory in Browse Mode and select a track of your choice. 쏅 Press the DISPL button 8 in MP3 Playback Mode repeatedly, until MP3 Browse Mode is displayed. 쏅 Press the or button : to display all tracks in the directory in sequence. If you wish to select the currently displayed track, 쏅 Press the button :. Fast search (not available in MP3 Browse Mode) To fast search backwards or forwards, 쏅 Press and hold down the or button : until fast searching backwards / forwards begins. Random track play – MIX (not available in MP3 Browse Mode) To play the tracks in the current directory in random order, 쏅 Briefly press the 5 MIX button ;. “MIX DIRECTORY” appears on the display and “MIX” is displayed. To play the tracks contained in all the directories on the inserted MP3-CD in random order, 쏅 Press the 5 MIX button ; for longer than 2 seconds. “MIX DISC” appears on the display and “MIX” is displayed. ENGLISH MP3/WMA mode Cancelling MIX To cancel MIX, 쏅 Briefly press the 5 MIX button ;. “MIX OFF” appears on the display and “MIX” disappears. Scanning tracks – SCAN (not available in MP3 Browse Mode) You can scan (briefly play) all the tracks on the CD. 쏅 Press the MENU button 9 for longer than 2 seconds. The next track will then be scanned. “SCAN TRACK” briefly appears on the display. Then the directory number and track number are displayed. The track number flashes.

Note: You can set the scanning time. For further information on setting the scanning time, please read the section entitled “Setting the scanning time” in the “Radio mode” chapter. Cancelling Scan and continuing listening to a track 쏅 Briefly press the MENU button 9. The currently scanned track will then continue to be played normally. Interrupting playback (PAUSE) 쏅 Press the 3 button ;. “PAUSE DISC” appears on the display. Cancelling pause 쏅 During the pause, press the 3 button ;. Playback is continued. Repeated playback of individual tracks or entire directories – REPEAT (not available in MP3 Browse Mode) To play the current track repeatedly, 쏅 Briefly press the 4 RPT button ;. “REPEAT TRACK” and REPEAT appear briefly on the display. To repeat the whole directory, 쏅 Press the 4 RPT button ; for longer than 2 seconds. “REPEAT DIRECTORY” appears briefly on the display and “REPEAT” is displayed. Cancelling repeat To stop the current track or current directory from being repeated, 쏅 Briefly press the 4 RPT button ;. “REPEAT OFF” appears briefly on the display and “REPEAT” disappears.

CD-changer mode Note: Information on handling CDs, inserting CDs and operating the CD changer can be found in the operating instructions supplied with your CD changer. Switching to CD-changer mode 쏅 Press the SOURCE button 4 repeatedly until “CHANGER” appears on the display. The device starts playing the first CD that the CD changer detects. Selecting CDs To move up or down to another CD, 쏅 Press the or button : once or several times. Note: The device will ignore empty CD slots in the changer and slots containing invalid CDs. Selecting tracks To move up or down to another track on the current CD, 쏅 Press the or button : once or several times. Fast searching (audible) To fast search backwards or forwards, 쏅 Press and hold down the or button : until fast searching backwards / forwards begins. Repeating individual tracks or whole CDs (Repeat) To repeat the current track, 쏅 Briefly press the 4 RPT button ;. “REPEAT TRACK” appears briefly and REPEAT lights up on the display. To repeat the current CD, 쏅 Press and hold down the 4 RPT button ; for longer than 2 seconds. “REPEAT DISC” appears briefly and REPEAT lights up on the display. ENGLISH Cancelling repeat To stop the current track or current CD from being repeated, 쏅 Briefly press the 4 RPT button ;. “REPEAT OFF” appears and REPEAT disappears on the display. Random track play (MIX) To play the tracks on the current CD in random order, 쏅 Briefly press the 5 MIX button ;. “MIX DISC” appears briefly and MIX lights up on the display. To play the tracks on all inserted CDs in random order, 쏅 Press and hold down the 5 MIX button ; for longer than 2 seconds. “MIX ALL” appears briefly and MIX lights up on the display.

Cancelling MIX 쏅 Briefly press the 5 MIX button ;. “MIX OFF” appears and MIX on the display disappears. Scanning all tracks on all CDs (SCAN) To scan (briefly play) all the tracks on all the inserted CDs in ascending order, 쏅 Press the MENU button 9 for longer than 2 seconds. “SCAN TRACK” appears on the display, CD number and track number are displayed, and the number of the current track flashes. Stopping Scan To stop scanning, 쏅 Briefly press the MENU button 9. The currently played track will then continue to be played normally. Note: You can set the scanning time. For further information, please read the section entitled “Setting the scanning time” in the “Radio mode” chapter. Interrupting playback (PAUSE) 쏅 Press the 3 button ;. “PAUSE DISC” appears on the display. Cancelling pause 쏅 During the pause, press the 3 button ;. Playback is continued. Clock time Clock time Displaying the time To briefly display the time, 쏅 Press the DISPL button 8 for more than 2 seconds. The time is briefly displayed. Setting the time To set the time, 쏅 Press the MENU button 9. 쏅 Press the or button : repeatedly until “CLOCK MENU” appears on the display. button : to open the 쏅 Press the menu. 쏅 Press the or button : repeatedly until “CLOCK SET” appears on the display. button : to open the 쏅 Press the menu. The time appears on the display. The hours and seconds can be adjusted. 쏅 Set the time with the button :. To switch between hours and minutes, 쏅 Press the or button :. When you have finished making your changes, 쏅 Press the MENU button 9 three times.

Selecting 12/24-hour clock mode 쏅 Press the MENU button 9. 쏅 Press the or button : repeatedly until “CLOCK MENU” appears on the display. button : to open the 쏅 Press the menu. 쏅 Press the or button : repeatedly, until “24 HR MODE” or “12 HR MODE” appears on the display. 쏅 Press the or button :, to switch between the modes. When you have finished making your changes, 쏅 Press the MENU button 9 twice. When you have finished making your changes, 쏅 Press the MENU button 9 twice. ENGLISH Clock time Briefly displaying time with switched-off device To briefly display the time when the device is switched off, 쏅 Press the DISPL button 8. The time appears on the display for approx. 8 seconds. Displaying the time continuously when the device is off and the ignition is on To display the time when the device is off and the vehicle ignition is on, 쏅 Press the MENU button 9. 쏅 Press the or button : repeatedly until “CLOCK MENU” appears on the display. button : to open the 쏅 Press the menu. “CLOCK OFF” or “CLOCK ON” appears on the display. 쏅 Press the or button :, to switch the display between ON and OFF.

Adjusting the middle You can perform the sound settings (Bass, Middle, Treble and Sub-out) separately for every source (Radio, CD, CD changer, AUX, Telephone/Navigation). The volume distribution settings (Balance and Fader) apply to all the audio sources. You can select 1 of 4 centre frequencies (500 Hz, 1 kHz, 2 kHz, 3 kHz). In addition, you can adjust the level between ±7 for the selected centre frequency. Note: The settings of the sound for traffic announcements and telephone/ navigation can only be made during a telephone call/voice output. Adjusting the bass You can select 1 of 4 centre frequencies (60 Hz, 80 Hz, 100 Hz, 200 Hz). In addition, you can adjust the level between ±7 for the selected centre frequency. Adjusting centre frequency and level 쏅 Press the AUDIO button 5. “BASS” appears on the display. 쏅 Press the or button : once to reach the BASS submenu. 쏅 Press the or button : repeatedly until the desired centre frequency appears on the display. 쏅 Press the or button :, to adjust the level between ±7. 쏅 Press the AUDIO button 5 twice to exit the menu. Adjusting centre frequency and level 쏅 Press the AUDIO button 5. “BASS” appears on the display. 쏅 Press the or button : repeatedly until “MIDDLE” appears on the display. 쏅 Press the or button : once to reach the MIDDLE submenu. 쏅 Press the or button : repeatedly until the desired centre frequency appears on the display. 쏅 Press the or button : to adjust the level between ±7. 쏅 Press the AUDIO button 5 twice to exit the menu. Adjusting the treble You can select 1 of 4 centre frequencies (10 kHz, 12 kHz, 15 kHz, 17 kHz). In addition, you can adjust the level between ±7 for the selected centre frequency. Adjusting centre frequency and level 쏅 Press the AUDIO button 5. “BASS” appears on the display. 쏅 Press the or button : repeatedly until “TREBLE” appears on the display. 쏅 Press the or button : once to reach the TREBLE submenu.

쏅 Press the or button : repeatedly until the desired centre frequency appears on the display. 쏅 Press the or button : to adjust the level between ±7. 쏅 Press the AUDIO button 5 twice to exit the menu. Setting the left/right volume distribution (Balance) To adjust the left/right volume distribution (Balance), 쏅 Press the AUDIO button 5. “BASS” appears on the display. 쏅 Press the or button : repeatedly until “BAL” appears on the display with the current setting. 쏅 Press the or button : to adjust the balance (right/left). 쏅 Press the AUDIO button 5 to exit the menu. Adjusting the front/rear volume distribution (Fader) To adjust the front/rear volume distribution (Fader), 쏅 Press the AUDIO button 5. “BASS” appears on the display. 쏅 Press the or button : repeatedly until “Fader” appears on the display with the current setting. 쏅 Press the or button : to adjust the volume distribution front/rear. 쏅 Press the AUDIO button 5 to exit the menu. Preamplifier output Preamplifier output (Preamp-Out/Sub-Out) You can use the preamplifier outputs (Preamp-Out) of the car sound system to connect external amplifiers. In addition, you can connect an amplifier for operating a subwoofer to the integrated dynamic lowpass filter of the device (level and cutoff frequency can be adjusted). For this purpose, the amplifiers must be connected as described in the installation instructions. ENGLISH Sound Adjusting the sub-out level The sub-out level can be adjusted in 8 increments (0 to +7). 쏅 Press the AUDIO button 5. “BASS” appears on the display. 쏅 Press the or button : repeatedly until “SUBOUT” appears on the display. 쏅 Press the or button : to adjust a value between 0 and +7. When you have finished making your changes, 쏅 Press the AUDIO button 5 twice. Adjusting the sub-out cutoff frequency You can select 1 of 4 settings: 0 Hz, 80 Hz, 120 Hz and 160 Hz. 쏅 Press the AUDIO button 5. “BASS” appears on the display.

쏅 Press the or button : repeatedly until “SUBOUT” appears on the display. 쏅 Press the or button : once. 쏅 Press the or button : repeatedly until the desired frequency appears on the display. When you have finished making your changes, 쏅 Press the AUDIO button 5 twice. X-Bass X-BASS X-Bass allows you to increase the bass at low volume. The selected X-Bass setting is effective for all audio sources (Radio, CD, CD changer or AUX). The X-BASS increase can be set in increments of 1 to 3. “XBASS OFF” means that the X-BASS function is switched off. Adjusting the X-BASS boost 쏅 Press the X-BASS button 7. “X-BASS” appears on the display. 쏅 Press the or button : repeatedly until the desired setting appears on the display. When you have finished making your changes, 쏅 Press the X-BASS button 7 once.

This device features an equaliser in which the settings for the music genres “ROCK”, “POP” and “CLASSIC” are already programmed. To select an equalizer setting, 쏅 Press the AUDIO button 5. “BASS” appears on the display. 쏅 Press the or button : repeatedly until “POP”, “ROCK”, “CLASSIC” or “EQ OFF” appears on the display. 쏅 Press the or button : to select one of the settings or select “EQ OFF” to switch off the equalizer. The selected setting is permanently shown on the display. When you have finished making your changes, 쏅 Press the AUDIO button 5. Adjusting the display settings ENGLISH Equalizer presettings (Presets) Display Entering a switch-on message If you switch on the device, a brief message is shown on the display. The text “BLAUPUNKT” is preset at the factory. Instead, you can enter your own text of up to 9 characters. 쏅 Press the MENU button 9. 쏅 Press the or button : repeatedly until “VARIOUS MENU” appears on the display button : to open the 쏅 Press the menu. 쏅 Press the or button : repeatedly until “ON MESSAGE” appears on the display button : to open the 쏅 Press the menu. The display shows the standard text for the switch-on message. The input mark is at the beginning of the line and flashing. Note: You can delete the entire line by button : for pressing the longer than 2 seconds. To input a different text, 쏅 Select a letter with the or button 쏅 Move the selection mark with the or button :. After entering the message, 쏅 Press the MENU button 9 three times.

Adjusting the display brightness If your car sound system is installed as described in the installation instructions and your vehicle features the corresponding connection, the display brightness is switched with the driving lights. The display brightness can be adjusted separately for day and night in increments from 1 - 9. In addition, you can select the “AUTO DIM” setting for the night dimmer (DIM NIGHT). After selecting the “AUTO DIM” setting, the illumination of the car sound system is adjusted together with the brightness adjustment of the instrumentation lighting if the vehicle lighting is switched on. 쏅 Press the MENU button 9. 쏅 Press the or button : repeatedly until “DISPLAY MENU” appears on the display. button : to open the 쏅 Press the menu. 쏅 Press the or button : repeatedly until “DIM DAY” or “DIM NIGHT” appears on the display. button : to open the 쏅 Press the menu. 쏅 Press the or button : to select among the brightness settings. When you have finished making your changes, 쏅 Press the MENU button 9 twice. To enable “AUTO DIM”, 쏅 Press the or button : repeatedly until “DIM NIGHT” appears on the display. button :, until “AUTO 쏅 Press the DIM” is displayed. When you have finished making your changes, 쏅 Press the MENU button 9 three times. Setting the viewing angle You can set the viewing angle to adjust the device to the mounting position within your vehicle. 쏅 Press the MENU button 9. 쏅 Press the or button : repeatedly until “DISPLAY MENU” appears on the display. button : to open the 쏅 Press the menu. 쏅 Press the or button : repeatedly until “VIEW ANGLE” appears on the display. button : to open the 쏅 Press the menu. 쏅 Press or button : to set up the viewing angle. When you have finished making your changes, 쏅 Press the MENU button 9 three times. Setting a positive or negative display You can decide, whether display contents should be viewed in positive or negative mode. 쏅 Press the MENU button 9.

쏅 Press the or button : repeatedly until “DISPLAY MENU” appears on the display. button : to open the 쏅 Press the menu. 쏅 Press the or button : repeatedly until “POSITIVE” or “NEGATIVE” appears on the display. 쏅 Press the or button : to switch between the modes. When you have finished making your changes, 쏅 Press the MENU button 9 twice. Setting the display illumination colour For the display illumination, you can mix a colour from the RGB spectrum (red green blue) or select a colour during a colour seek. Mixing a colour for the display illumination To customise the display illumination to suit your tastes you can mix a colour yourself using the three primary colours red, green and blue. 쏅 Press the MENU button 9. 쏅 Press the or button : repeatedly until “DISPLAY MENU” appears on the display button : to open the 쏅 Press the menu. button : 쏅 Press the repeatedly until “DISP COL” appears on the display. button : to open the 쏅 Press the menu. The menu for mixing your own colour is displayed. “R”, “G”, and “B” are displayed with the current values. The “R” setting is activated. 쏅 Press the or button : repeatedly until the desired colour value is displayed. 쏅 Press the or button : to move the selection mark behind the other colours. 쏅 Adjust the other colour components to suit your preferences. When you have finished making your changes, 쏅 Press the MENU button 9 three times. ENGLISH Display Selecting a display illumination during a colour scan 쏅 Press the MENU button 9. 쏅 Press the or button : repeatedly until “DISPLAY MENU” appears on the display button : to open the 쏅 Press the menu. 쏅 Press the or button : repeatedly until “COL SCAN” appears on the display. 쏅 Press the or button :, to start the colour seek. The device starts changing the display illumination colour. If you want to adopt the currently set colour, 쏅 Press the MENU button 9 once.

To start the seek tuning again, 쏅 Press the or button :. If you found the desired colour, 쏅 Press the MENU button 9 twice. External audio sources External audio sources If no CD changer is connected to the device, you can connect an external audio source. Audio sources can, for example, be portable CD players, MiniDisc players or MP3 players. If you want to connect an external audio source, you will need an adapter cable. You can obtain this cable (Blaupunkt no.: 7 607 897 093) from your Blaupunkt dealer. The AUX input must be activated in the menu. Note: If no CD changer is connected to the device, the AUX menu item cannot be selected. Switching the AUX input on/off 쏅 Press the MENU button 9. 쏅 Press the or button : repeatedly until “AUX MENU” appears on the display button : to open the 쏅 Press the menu. 쏅 Press the or button : repeatedly until “AUX OFF” or “AUX ON” appears on the display. 쏅 Use the or button : to select between the options “AUX ON” and “AUX OFF”. When you have finished making your changes, 쏅 Press the MENU button 9 twice.

External audio sources ENGLISH Note: If the AUX input is switched on, you can select it by pressing the SOURCE button 4. Adjusting the AUX preamplification To be able to adjust for differences in volume, the level adjustment of the AUX input can be adjusted in 4 increments (0 to 3). 쏅 Press the MENU button 9. 쏅 Press the or button : repeatedly until “AUX MENU” appears on the display button : to open the 쏅 Press the menu. 쏅 Press the or button : repeatedly until “AUX LVL” appears on the display. button : to open the 쏅 Press the menu. 쏅 Press the or button : to adjust the level adjustment. When you have finished making your changes, 쏅 Press the MENU button 9 three times.

Technical Data Amplifier Output power: 18W RMS x 4ch @ 14.4V @ 4ohm @ 1% THD Tuner Frequency ranges USA: FM:

87.5 - 107.9 MHz (200 kHz step)

530 - 1710 kHz (10 kHz step)

Frequency ranges Europe: FM:

87.5 - 108 MHz (100 kHz step auto/50 kHz manual)

531 - 1602 kHz (9 kHz step)

Frequency ranges Thailand: FM:

87.5 - 108 MHz (50 kHz step auto/25 kHz step manual)

531 - 1602 kHz (9 kHz step)

Frequency ranges South America: FM:

87.5 - 107.9 MHz (100 kHz step auto/50 kHz step manual)

530 - 1710 kHz (10 kHz step)

FM mono sensitivity: 17 dbf FM frequency response:

35 - 16,000 Hz

20 - 20,000 Hz

Pre-amp Out 4 channels:

2 V / 6 kΩ Subject to changes!

D02 D03 T001 T002 T003 T004 T005 T001 T002 T003 T004 T005 T006 D04 T001 T002 T003 T004 T005 T006 T007 T008 T009 T010 T011

D02 D03 T001 T002 T003 T004 T005 T001 T002 T003 T004 T005 T006 D04 T001 T002 T003 T004 T005 T006 T007 T008 T009 T010 T011

Regular o volume D02 D03 T001 T002 T003 T004 T005 T001 T002 T003 T004 T005 T006 D04 T001 T002 T003 T004 T005 T006 T007 T008 T009 T010 T011

Regular os médios (Middle) 18W RMS x 4ch @ 14.4V @ 4ohm @ 1% THD 쏅 ਛढਬ̟ϩᕽ੝ࡱුૡ֙ 3 Ą D02 D03 T001 T002 T003 T004 T005 T001 T002 T003 T004 T005 T006 D04 T001 T002 T003 T004 T005 T006 T007 T008 T009 T010 T011

D02 D03 T001 T002 T003 T004 T005 T001 T002 T003 T004 T005 T006 D04 T001 T002 T003 T004 T005 T006 T007 T008 T009 T010 T011

18W RMS x 4채널 @ 14.4V @ 4옴 @ 1% THD When carrying out installation work and making connections please observe the following safety instructions:

• Disconnect the negative terminal of the battery! When doing so, please observe the vehicle manufacturer’s safety instructions.
• Make sure you do not damage vehicle components when drilling any holes.
• The cross sections of the positive and negative cables must not be less than 1.5 mm2.
• Do not connect the vehicle’s plug connectors to the radio!
• You can obtain the adapter cable required for your vehicle type from any BLAUPUNKT dealer.
• Depending on the model, your vehicle may differ from the description provided here. We accept no responsibility for any damages due to incorrect installation or connection or for any consequential damages. If the information provided here is not suitable for your specific installation requirements, please contact your Blaupunkt dealer, your vehicle manufacturer or our telephone hotline.

Safety instructions When installing an amplifier or changer, you must first connect the device earth connections before connecting the plugs for the line-in or line-out jacks. Earth connection of external devices may not be connected to earth of car sound system (housing).

Installation instructions ENGLISH Preamp,/Sub,/Center - out cable

Speaker out RR+ Speaker out RRSpeaker out RF+ Speaker out RFSpeaker out LF+ Speaker out LFSpeaker out LR+ Speaker out LR- PORTUGUÊS

ENGLISH C-1 FRANÇAIS

Line Out LR Line Out RR Line Out / Ground Line Out LF Line Out RF +12V Amplifier Equalizer

CDC-Data - In CDC-Data - Out Permanent +12V +12V Bus / GND AF / GND CDC Line In - L CDC Line In - R

Amplifier Optional (Remote Control Eye) CD-Changer

12V +12V Amplifier Relais +12V

Country: Germany Austria Belgium Denmark Finland France Great Britain Greece Ireland Italy Luxembourg Netherlands Norway Portugal Spain Sweden Switzerland Czech. Rep. Hungary Poland Turkey USA Brasil (Mercosur) Malaysia (Asia Pacific) Phone: Fax: WWW: (D) (A) (B) (DK) (FIN) (F) (GB) (GR) (IRL) (I) (L) (NL) (N) (P) (E) (S) (CH) (CZ) (H) (PL) (TR) (USA) 0180-5000225 01-610 39 0 02-525 5444 09-435 991 01-4010 7007 01-89583 8880 01-46 66 700 02-369 62331

08-7501850 01-8471644 02-6130 0446 0800-118922 0212-335 06 71 800-950-2528 05121-49 4002 01-610 39 391 02-525 5263 44-898 644 09-435 99236 01-4010 7320 01-89583 8394 01-46 66 706 02-369 62464

08-7501810 01-8471650 02-6130 0514 022-8771260 0212-346 00 40 708-6817188 http://www.blaupunkt.com (BR)

+55-19 3745 2773 (MAL) +604-6382 474 +604-6413 640 Passport Name:
