USER MANUAL CMPE-64ABL Infiniton

Line drawing of a kitchen interior with a double-lit air duct system (no text or symbols)

Model: CMPE-64ABL

ean: 8445639003879

Índice

Español

Illustration of a lamp illuminating a wall-mounted device with a black X mark (no text or symbols)

HACER SIEMPRE

Technical diagram of a mechanical ventilation system with airflow arrows and component layout (no text or labels)

Cross-sectional diagram of a mechanical ventilation system with airflow arrows and internal components (no text or labels)

Simple line drawing of a rectangular device with a circular light source symbol on the front panel (no text or labels)

Simple line drawing of a rectangular device with two vertical slots and a central circle (no text or symbols)

Illustration of a hand interacting with a tablet device (no text or symbols visible)

Technical line drawing of a mechanical fan assembly (no text or symbols)

Exploded view diagram of a refrigerator internal compartments (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawings of two mechanical components with no visible text or symbols

Servicio

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Line drawing of a kitchen air conditioner unit with oven, microwave, and cabinet (no text or symbols)

Model: CMPE-64ABL

ean: 8445639003879

Content	English
Safety instructions	17
Installation	19
How to use	22
Troubleshooting	23
Manteinance and cleaning	24

Tips on how to get the most out of your new cooker hood

The operation of an Infiniton cooker hood is very simple thanks to the technology we have created to make your day-to-day life easier. Follow these simple tips and enjoy your kitchen.

Turn it on a few minutes before you start cooking, a small gesture that helps to keep the air clean of impurities. Do not turn it off just after cooking, leave it running for a few more minutes until it completes its function of purifying the cooking vapours.

Protect the stainless steel surface easily

To preserve the original appearance of your new Infiniton stainless steel cooker hood, it is advisable to treat it with a clean cloth impregnated with a specific product that prevents fingerprints and marks. There are baby oils and professional products that treat stainless steel to prevent dust, lint and dirt in general from sticking to it.

What is the recommended distance between the hob and the hood?

It will always depend on each model, although the minimum distance between the cooking zone and the extraction zone is generally

extraction zone will generally be 55 cm for vitro-ceramic or induction hobs. If the hob is a gas hob, the recommended distance will be slightly greater, 65 cm.

For built-in modules, this minimum distance should always be 50 cm for electric hobs and 65 cm for gas hobs.

In extra-flat hood models, the distance may be reduced to 43 cm if a glass-ceramic or induction hob is used.

Prevents odours

Our engineering team recommends using the extended run function, if the hood does not have this function, you can leave it running for 5 to 10 minutes manually to absorb the rest of the vapours given off during cooking.

Preventing odours while the hood is operating

When this happens, your filter is probably saturated and cannot absorb any more grease. If this happens, the solution is simple: clean it and if it is in bad condition, you will have to replace it.

Grease filters should be cleaned once a month, either by hand or in your dishwasher. In the latter case, try to do it at a low temperature. Place the filters of your cooker hood carefully on the grilles and not next to other pieces of crockery. If you do it by hand, we recommend that you soak them in hot soapy water for a couple of hours and then brush the filters, wash them again and leave them to drain.

How to clean the metallic filters of a cooker hood?

The filters can be cleaned by hand or in the dishwasher. Tips for washing by hand: soak the filters in hot soapy water, clean them and rinse them thoroughly, then just drain them well.

then just drain them well. To do this in the dishwasher, be careful not to wash them together with the crockery or cutlery if they are excessively greasy. Treat them beforehand with a concentrated degreaser to remove the most stubborn grease.

This manual explains the correct installation and use of your cooker hood, please read it carefully before use, even if you are familiar with the product. Please read it carefully before use, even if you are familiar with the product. The manual should be kept in a safe place for future reference.

CAUTION! The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision.

- There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.

- There is a fire risk if cleaning is not carried out in accordance with the instructions.

- Regulations concerning the discharge of air have to be fulfilled.

- Clean your appliance periodically by following the method given in the chapter MAINTENANCE.

- For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.

- Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.

- Cleaning and user maintenance shall not be made by children without supervision.

- When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).

WARNING! Danger of fire: do not store items on the cooking surfaces.

WARNING!

A steam cleaner is not to be used.

WARNING! NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

NEVER TO DO

- Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy!

- Do not install above a cooker with a high level grill.

• Do not leave frying pans unattended during use because overheated fats or oils might catch fire.

- Never leave naked flames under the cooker hood

• If the cooker hood is damaged, do not attempt to use.
• Do not flambé under the cooker hood.
• CAUTION: Accessible parts may become hot when used with cooking appliances.
• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65 cm)

- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. Range hoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or other fuels (including those in other rooms) due to back flow of combustion gases. These gases can potentially result in carbon monoxide poisoning. After installation of a range hood or other cooking fume extractor, the operation of open flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur.

Illustration of a lamp illuminating a small lamp with a cross symbol (no text or labels)

ALWAYS TO DO

IMPORTANT! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.

• The cooker hood must be installed in accordance with the installation instructions and all measurements followed.
• All installation work must be carried out by a competent person or qualified electrician.
• Please dispose of the packing material carefully. Children are vulnerable to it.
  • Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.
• Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood.

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards

WARNING! Before obtaining access to terminals, all supply circuits must be disconnected.

• Always put lids on pots and pans when cooking on a gas cooker.
- When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam.
• Cooker hood is for domestic use only

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

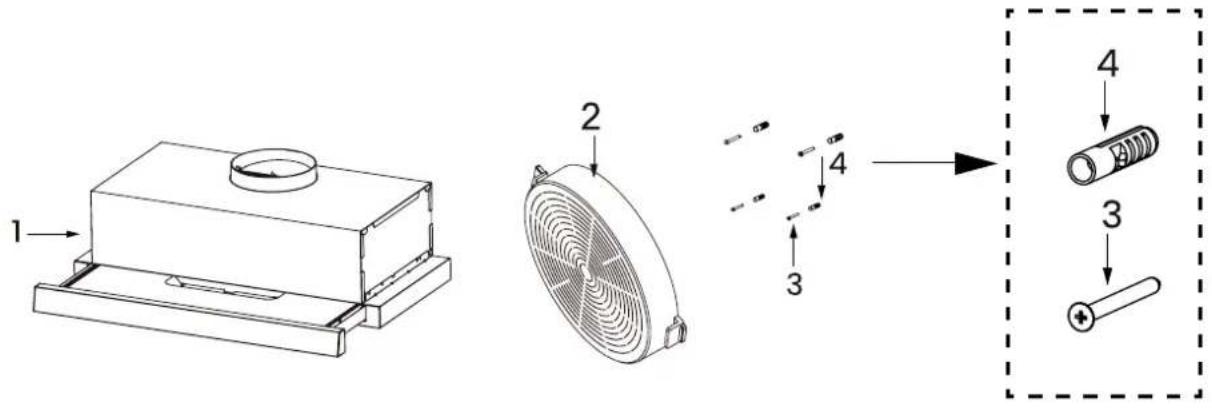

Parts name

1 Hood body (Controls, LED light, fan and filter)

2 Active carbon filter (Optional)

3 Screws 5x50

4 Wall plugs for screws

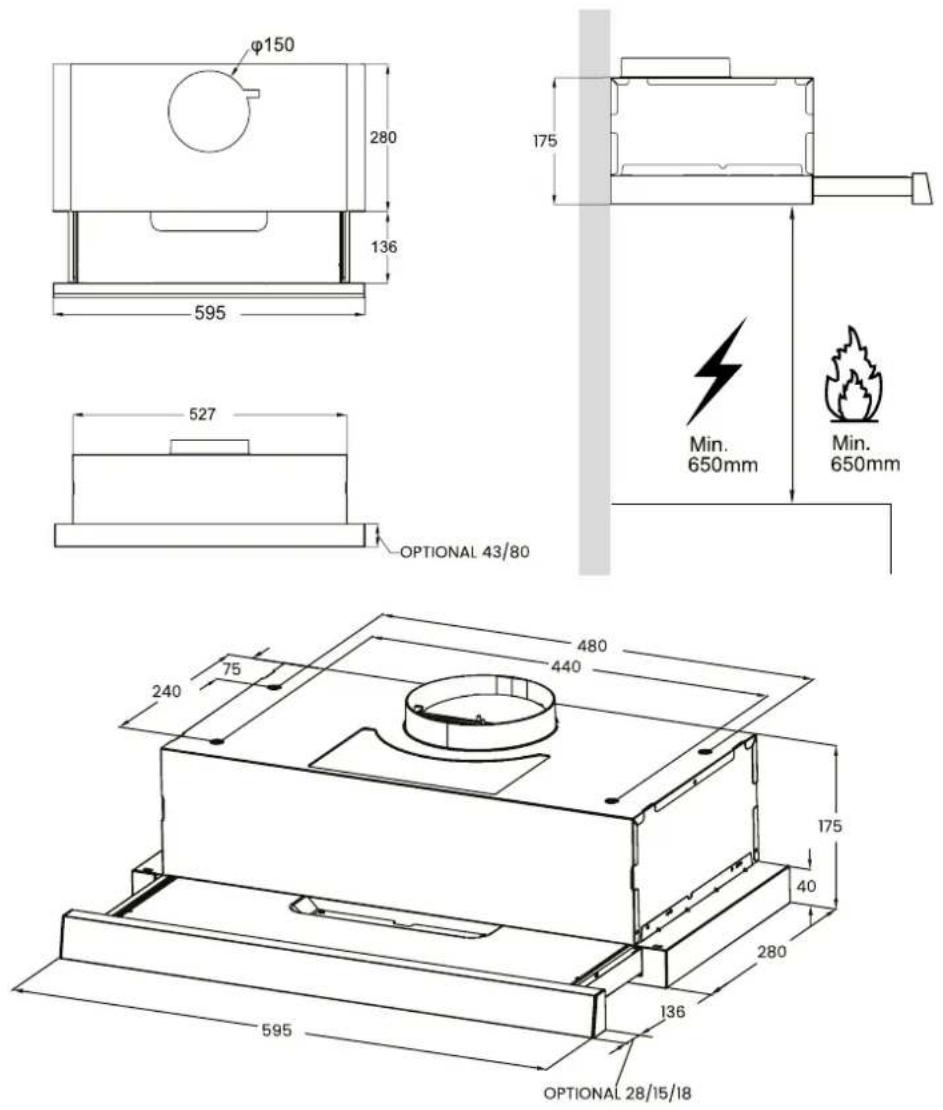

Product dimmensions

Installation method 1

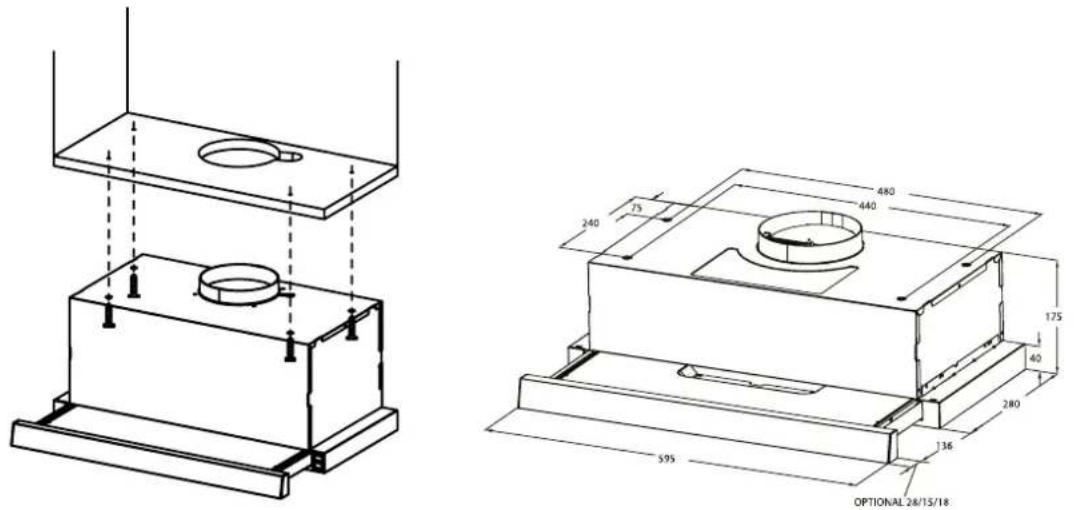

Fix the position of the hood in the recess as shown in the figure. The holes in the cabinet must match the holes in the top of the hood. Insert the screws into the hood according to the relative position of the holes in the top of the hood. The length of the screws must be sufficient for the following installation to be carried out correctly.

Hang the hood with the screws inserted in the narrow part of the holes. The screws must be tightened firmly, making sure that the joint between the hood and its casing is sufficient. Insert the screws into the safety holes, so that the movement of the hood forwards or backwards is more secure.

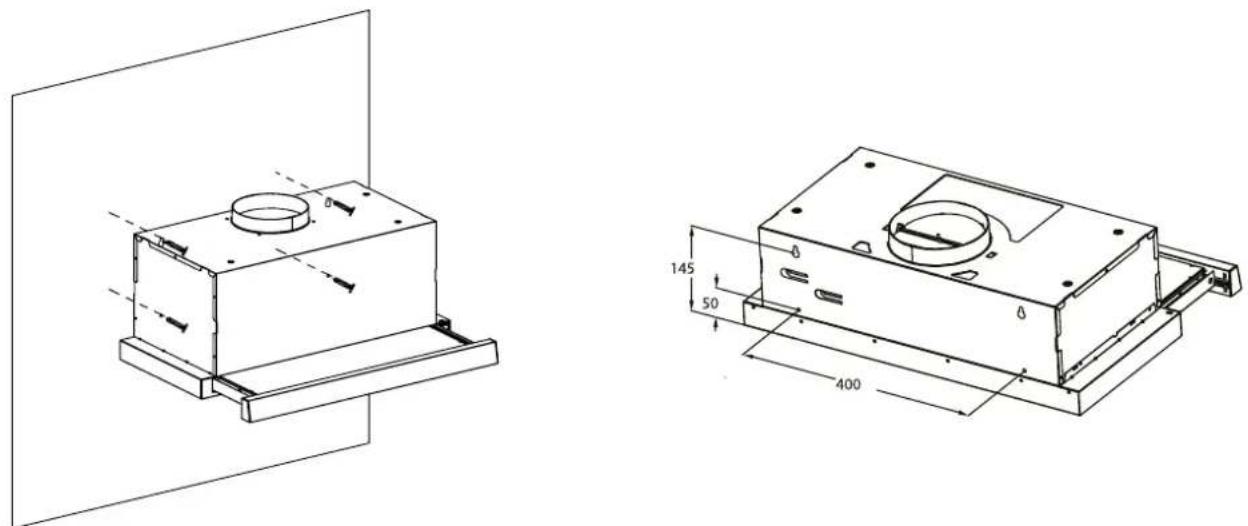

Installation method 2

If the installation surface does not suit the installation of the hood, then, according to the figure, fix the position of the hood on the wall.

Fix two of the supplied screws to the wall, according to the relative position of the 2 fixing holes on the back of the hood.

The length of the screws must be suitable for the installation below. Also install screws in the safety holes at the rear of the extractor hood to make it safer to move the extension tray forwards or backwards. The installation of built-in extractor hoods in wall units is carried out in the same way as in the previous method.

The extractor hood must not be installed or connected to flues in which other non-electrically powered appliances (water heaters, cookers, cookers, etc.) are installed.

Choose the right ventilation

There are two ventilation modes: Extract air mode and recirculation mode, so choose one of them before installation.

Extract mode

Air is exhausted out of the dwelling through a pipe.

Recirculation mode

The air is purified and exhausted into the house.

The wall unit requires an air outlet.

An active carbon filter must always be used in the hood. Please note that using activated carbon filters will reduce the suction capacity of the hood.

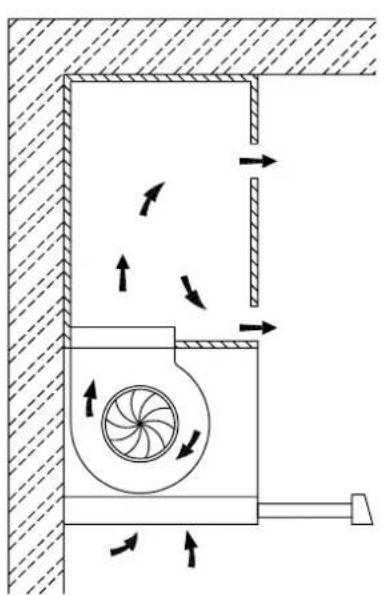

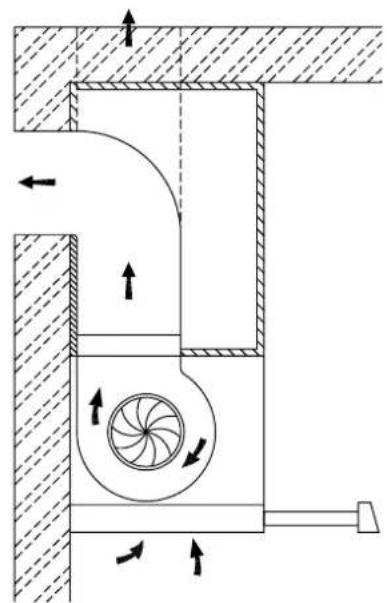

Recirculation mode Extraction mode

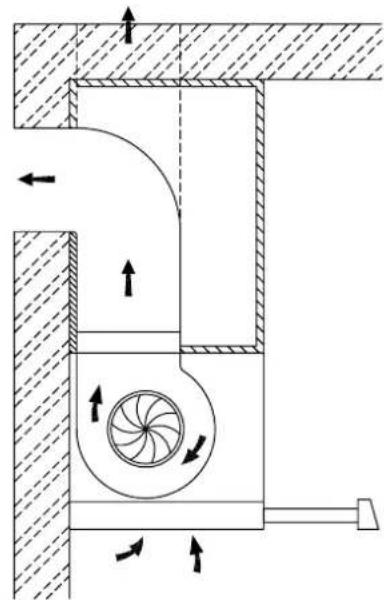

Technical diagram of a mechanical ventilation system with airflow arrows and fan-like components (no text or labels)

Cross-sectional diagram of a mechanical ventilation system with airflow arrows and internal components (no text or labels)

Check the safety condition of the appliance:

Check for visible defects.

Check that all parts of the appliance are correctly installed.

On the right-hand side of the cooker hood:

There are 2 speeds for the motor and for switching off the light.

Safety switch for operation.

Use of the LED light

[ ] Off

Engine operation

[ ] Power off

[1] Low power

[Ⅱ] High power

Simple line drawing of a rectangular device with a circular light source symbol on the front panel (no text or labels)

Simple line drawing of a rectangular device with two vertical slots and a central circle (no text or symbols)

Whenever there is a problem with the appliance, check if you can solve it by following the tables below. If the problem persists, please contact customer support.

PROBLEM POSSIBLE	CAUSE SOLUTION
Light on, but motor does not work	Fan switch turned offFan switch failedMotor failed	Select a fan switch position.Contact service center.Contact service center.
Light does not work, motor does not work	House fuses blownPower cord loose or disconnected	Reset/Replace fuses.Refit cord to power outlet.Switch power outlet on.
Oil leakage	One way valve and the outlet are not tightly sealedLeakage from the connection of chimney and cover	Take down the one way valve and seal with sealant.Take chimney down and seal.
Lights not working Broken/Faulty globes	Replace globes as per this	instruction.
Insufficient suction	The distance between the cooker hood and the gas top is too far	Refit the cooker hood to the correct distance.

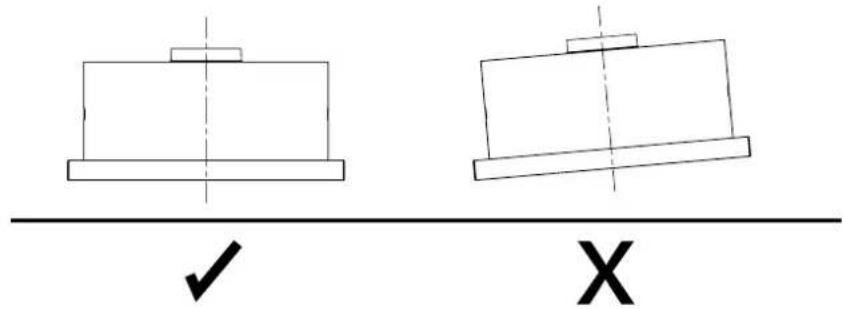

The Cooker hood inclines The fixing screw not tight enough		Tighten the hanging screw and make it horizontal.

Note: Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

CAUTION! Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the mains power supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed.

Note External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instruction to ensure the best possible result is achieved without damage.

General

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemonjuice, vinegar etc.) on the surfaces.

Stainless steel

The stainless steel must be cleaned regularly (e.g.weekly) to ensure a long life expectancy.Dry with a clean soft cloth. A specialized stainlesssteel cleaning fluid may be used.

Note: Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns fromappearing.

Control panel surface

The inlay control panel can be cleaned using warmsoapy water. Ensure the cloth is clean and well wrungbefore cleaning. Use a dry soft cloth to remove anyexcess moisture left after cleaning.

⚠️ Important! Using neutral detergents and avoid using harsh cleaning chemicals, stronghousehold detergents or products containing abrasives, as this will affect the appearance of the appliance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee.

Grease mesh filters

The mesh filters can be cleaned by hand. Soak them for about 3 minutes in water with a mild detergent and then brush it gently with a soft brush. Do not apply too much pressure so as to avoid any damage to it. (Leave to dry naturally out of direct sun light)

Filters should be washed separately to crockery and kitchen utensils. It is advisable not to use rinseaid.

Illustration of a hand interacting with a tablet device (no text or symbols visible)

Installing grease mesh filters

To install filters for the following four steps:

1. Angle the filter into the slots at the back of the hood.
2. Push the button on the handle of the filter.
3. Release the handle once the filter fits into a resting position.
4. Repeat to install all filters.

Carbon filter - not supplied

Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed every 3 to 6 months according to your cooking habits. The installation procedure of activated carbon filter is as below:

1. Before installing or replacing the carbon filters, disconnect the mains power to the unit.
2. Press the filter lock and remove the mesh filter.

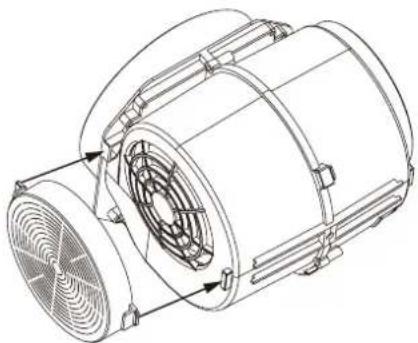

3. Turn the carbon filter on both sides of the motor anti-clockwise.
   Replace thecarbon filters with the new carbon filters.
4. Place the mesh filter.
5. Connect the power supply to the wall socket.

Technical line drawing of a mechanical fan assembly with no visible text or symbols

Note: Make sure the filter is securely locked. Otherwise, it would loosen and cause danger. When activated carbon filter attached, the suction power will be lowered.

Bulb replacement

IMPORTANT!

The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons.

Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it has completely cooled down before any direct contact with hands.

When handling bulbs hold with a cloth or gloves to ensure perspiration does not come in contact with the bulb as this can reduce the life of the bulb.

Note: Before changing the lights, make sure that the appliance is turned off and unplugged.

Protect against danger when changing lights, such as wearing gloves.

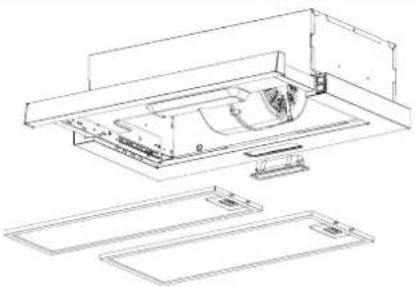

1. Disconnect the appliance from the mains or turn off the circuit breaker.
2. Remove the metal filters (see Cleaning and replacing filters).
3. Remove the light by pulling its connector out of the housing body (this may require pressure or force) and disconnect the connector from the light.
4. Replace the light with a new light of the same type, making sure to connect the light correctly to the light cable.

5. Fit the metal filter in place.

6. The ILCOS D-code for this lamp is DSR-1.5-S-33.2/120.

7. LED modules - round lamp
8. Maximum power: 1×1,5W
9. Rated voltage: 220V-240V
10. Dimensions: Square/Diameter: 33.2 x 120mm

Exploded view diagram of a refrigerator internal compartments (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawings of two mechanical components with internal mechanisms (no text or symbols)

Service & Disposal

• Any electrical work required to service the appliance must be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorised Service Centre, and only original spare parts must be used.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

This symbol on the product or on its packaging indicates that this product must not be treated as household waste. Instead, it must be taken to the appropriate collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local authorities, your household waste disposal service or the shop where you purchased the product.

Packing materials

Materials with the symbol 🎨 are recyclable. Dispose of the packaging in a suitable collection container for recycling.

Disposal of the device

1. Disconnect the plug from the socket.
2. Cut the power cord and discard it.

Energy saving

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).

1. Install the cooker hood in a proper place where there is efficient ventilation.
2. Clean the cooker hood regularly so as not to block the airway.
3. Remember to switch off the cooker hood light after cooking.
4. Remember to switch off the cooker hood after cooking.

INFINITON

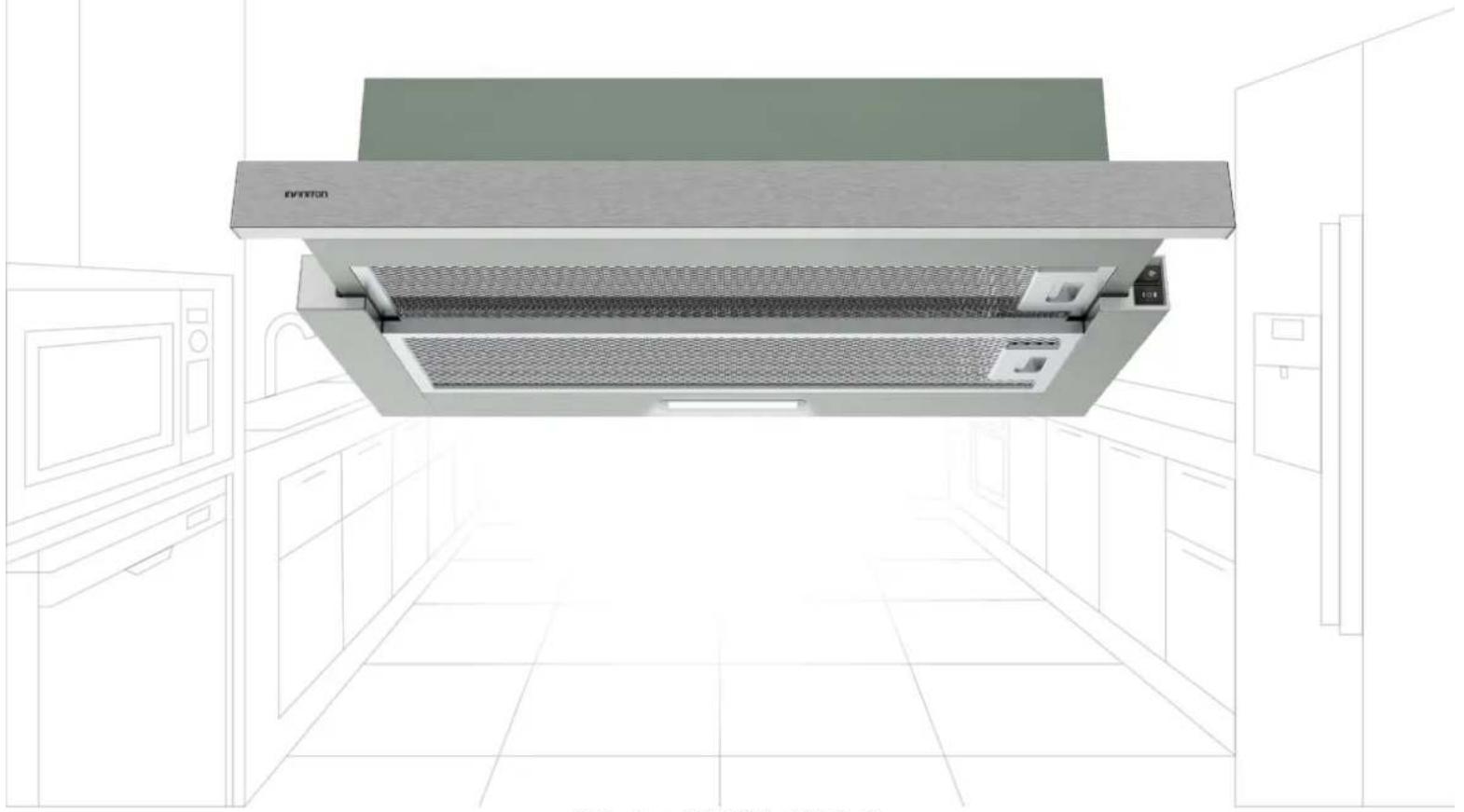

COOKER HOOD

Line drawing of a kitchen air conditioner unit with oven, microwave, and cabinet (no text or symbols)

Model: CMPE-64ABL

ean: 8445639003879

Índice

Português

Illustration of a lamp illuminating a coffee cup with a crossed-out black X mark (no text or symbols)

SEMPRE FAZER

Technical diagram of a mechanical ventilation system with airflow arrows and fan components (no text or labels)

Cross-sectional diagram of a mechanical ventilation system with airflow arrows and internal components (no text or labels)

Simple line drawing of a rectangular device with a circular light source symbol on the front panel (no text or labels)

Simple line drawing of a rectangular device with internal symbols (no text or labels)

Illustration of a hand using a handheld device to interact with a tablet (no text or symbols visible)

Technical line drawing of a mechanical fan assembly (no text or symbols)

Exploded view diagram of a computer chassis showing internal components and casing (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawings of two mechanical components with no visible text or symbols

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or restriction (no text present)

¿Necesitas ayuda?

Silhouette icon of a person wearing a headset with a wrench inside (no text or symbols)

INFINITON

TÉRMINOS Y REGISTRO DE GARANTÍA
