UHF-200 BP - Uncategorized Omnitronic - Free user manual and instructions

Product Type	Pocket Transmitter with Lavalier Microphone
Brand	Omnitronic
Model	UHF-200 BP
Frequency Band	UHF (Carrier frequencies: 310 MHz, 342 MHz, 430 MHz, 499 MHz)
Transmission Power	10 mW
Modulation Method	F3F
Frequency Response	40 Hz - 18 kHz
Signal-to-Noise Ratio	>105 dB
Selectivity	>80 dB
Total Harmonic Distortion	<0.5% at 1 kHz
Microphone Connection	3.5 mm jack
Battery Type	2 x 1.5 V AA batteries
Battery Life	Approx. 10 hours
Coverage Range	Approx. 50 m (line-of-sight)
Dimensions	200 x 650 x 25 mm
Weight	75 g
Included Accessories	Lavalier microphone
Controls	Power on/off, mute switch, gain control
Indicators	Battery LED (lights continuously when batteries need replacement)
Cleaning	Use soft, lint-free, damp cloth; no solvents or alcohol
Battery Safety	Remove batteries if not used for 1-2 weeks; dispose properly
Environmental Protection	Keep away from rain and moisture; operating temperature -5°C to +45°C
Approvals	CE, R&TTE; license-free in EU

Frequently Asked Questions - UHF-200 BP Omnitronic

What type of batteries does the UHF-200 BP use and how long do they last?

The transmitter uses 2 x 1.5 V AA batteries. With new batteries, it operates for approximately 10 hours.

What is the transmission range of the UHF-200 BP?

The range is approximately 50 meters under optimal line-of-sight conditions. Actual range may vary due to obstacles and interference.

Is the UHF-200 BP compatible with any receiver?

It is designed to work with Omnitronic receivers that have the same carrier frequency, specifically models UHF-201, UHF-202, and UHF-204.

How do I mute the transmitter during use?

Set the sliding switch to the 'MUTE' position (center). This stops audio transmission without turning off the transmitter.

What should I do if the battery indicator lights up continuously?

If the LED stays on during operation, the batteries are low and need to be replaced as soon as possible.

Can I use a different microphone with the UHF-200 BP?

Yes, you can connect any microphone with a 3.5 mm jack. The included lavalier microphone is optimized for this unit.

How do I clean the UHF-200 BP?

Use a soft, lint-free, damp cloth. Never use alcohol, solvents, or allow water to enter the device.

Is the UHF-200 BP license-free?

Yes, it is approved and license-free in all EU member states. In some non-EU countries, approval may be required.

What are the available frequency options for the UHF-200 BP?

There are four models with different carrier frequencies: 310 MHz (Red), 342 MHz (Yellow), 430 MHz (Green), and 499 MHz (Blue).

Can the UHF-200 BP be repaired by the user?

No, there are no user-serviceable parts inside except batteries. Maintenance should only be carried out by authorized dealers.

USER MANUAL UHF-200 BP Omnitronic

1. SAFETY INSTRUCTIONS 9

2.1 Batteries 9

1. OPERATING DETERMINATIONS....9

3.1 Approval 9

1. OPERATING ELEMENTS AND CONNECTIONS 10

2. SETTING INTO OPERATION.... 11

5.1 Inserting batteries.... 11

5.2 Fastening the pocket transmitter and connecting the microphone 11

1. OPERATION 12

2. CLEANING AND MAINTENANCE 12

3. TECHNICAL SPECIFICATIONS.... 12

This user manual is valid for the article numbers: 13063217, 13063218, 13063219, 13063220

Diagram of a U-shaped device with sensor and antenna, showing internal components and a downward arrow (no text or symbols)

Keep this device away from rain and moisture!

For your own safety, please read this user manual carefully before you initially start-up.

Every person involved with the installation, operation and maintenance of this device has to

• be qualified
• follow the instructions of this manual
• consider this manual to be part of the total product
• keep this manual for the entire service life of the product
• pass this manual on to every further owner or user of the product
• download the latest version of the user manual from the Internet

1. INTRODUCTION

Thank you for having chosen the OMNITRONIC pocket transmitter UHF-200. If you follow the instructions given in this manual, we are sure that you will enjoy this device for a long period of time. Unpack the device.

1.1 Features

Pocket transmitter with lavalier microphone

• Pocket transmitter as UHF PLL system, matching receivers with the same carrier frequency
  • Operation in the low-interference UHF band
  • Incl. lavalier microphone
  • Transmitting power 10 mW
• Sensitivity adjustable
• Power LED
• Mute switch
  • Operation via 2 x 1.5 V batteries, type AA
  • License-free and approved in the EU

2. SAFETY INSTRUCTIONS

This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.

Important:

Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems.

Maintenance and service operations are only to be carried out by authorized dealers. Damage caused by manual modifications on this device is not subject to warranty. If the device is used for other purposes than originally intended or if it is not correctly connected, the product may suffer damages and the guarantee becomes void.

Protect the device against humidity and heat. The ambient temperature must always be between -5^ C and +45^ C. The relative humidity must not exceed 50 % with an ambient temperature of 45^ C.

Never put any liquids on the device or close to it. Should any liquid enter the device nevertheless, have it checked by a qualified service technician before you operate it again. Any damage caused by liquids having entered the device is not subject to warranty!

For cleaning, only use a soft lint-free and moistened cloth. Make sure not to allow any water to enter and never use any solvent cleansers.

2.1 Batteries

Batteries are hazardous waste which need to be disposed of appropriately. If the device is to be disposed, the batteries have to be removed first. Make sure that the poles are correct when inserting the battery. Never let batteries lying around openly as there is the danger that these can be swallowed by children or domestic animals. Immediately consult a doctor when batteries are swallowed!

Leaking or damaged batteries can cause irritations when getting into contact with the skin. In this case use appropriate protective gloves. Make sure that the batteries cannot be short-circuited, thrown into the fire and be charged. There is a danger of explosion. Never spill any liquids on the device. Should any liquid enter the device nevertheless, remove the batteries immediately. Please let the device be checked by a qualified service technician before you operate it again. Any damages caused by liquids having entered the device are not subject to warranty!

3. OPERATING DETERMINATIONS

The UHF-200 pocket transmitter makes up a wireless audio transmission system together with the UHF-201, UHF-202 and UHF-204 receivers. A lavalier microphone is included in the delivery. The pocket transmitter is available for four different transmission frequencies. The transmission range is approx. 50 m and depends on the local conditions.

The transmitter is allowed to be operated with two 1.5 V mignon batteries (type AA) and was designed for indoor use only. Never remove the serial barcode from the device as this would make the guarantee void.

3.1 Approval

This wireless system was tested in accordance with the European standards EN 301489-1, EN 301489-3 and EN 60065. Consequently, this product adheres to the R&TTE directive of the European Union and does not need an individual EC type examination of every member state. The system falls into equipment Class 1. The notified body is €1622. In all EU member countries, the operation of this wireless system is generally approved by the national telecom regulatory authority. The system is license-free. In some countries outside the EU, the operation of this wireless system may needs to be approved by the national telecoms regulatory authority.

4. OPERATING ELEMENTS AND CONNECTIONS

OVERVIEW

UHF-200

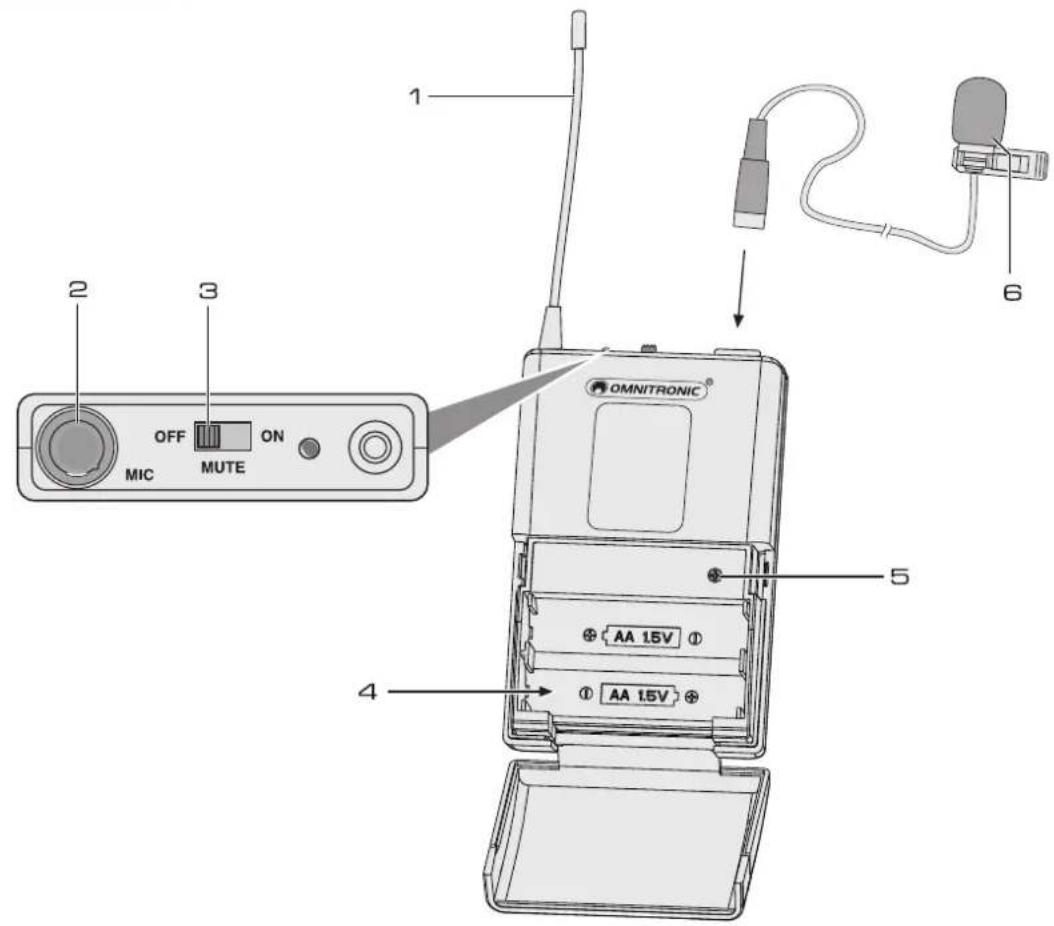

1 Transmission antenna

2 Microphone connection

3.5 mm jack for connecting the included lavalier microphone.

3 Power on/off with battery indicator

• lower position: off
  • center position: mute
  • upper position: on
  The indicator shortly flashes when switching on; if the indicator lights up continuously during operation, the inserted batteries must be replaced.

4 Battery compartment for two AA batteries

5 Gain control

For matching the input sensitivity.

6 Lavalier microphone

5. SETTING INTO OPERATION

5.1 Inserting batteries

1 For operation, the transmitter requires two 1.5 V AA batteries. Fold up the cover of the battery compartment and insert two batteries as indicated in the compartment.
2 With new batteries, the transmitter can be operated for approx. 10 hours. The battery indicator shortly lights up after switching on. If the indicator lights up continuously during operation the inserted batteries are going flat and have to be replaced.
3 If the transmitter is not used for a longer period (approx. 1-2 weeks), please remove the batteries to prevent damage in case of battery leakage. Please refer to further explanations in chapter Safety Instructions.

CAUTION!

Danger of explosion when battery is replaced improperly. Only replace by the same type or similar types recommended by the manufacturer. Remove empty battery in accordance with the instructions of the manufacturer.

BATTERY DISPOSAL NOTICE

Please dispose of discharged batteries properly. Batteries are hazardous waste and should not be disposed of with regular domestic waste! Please take discharged batteries to a collection center near you.

5.2 Fastening the pocket transmitter and connecting the microphone

Diagram of a U-shaped device with a sensor and antenna, showing internal components and a downward arrow (no text or symbols)

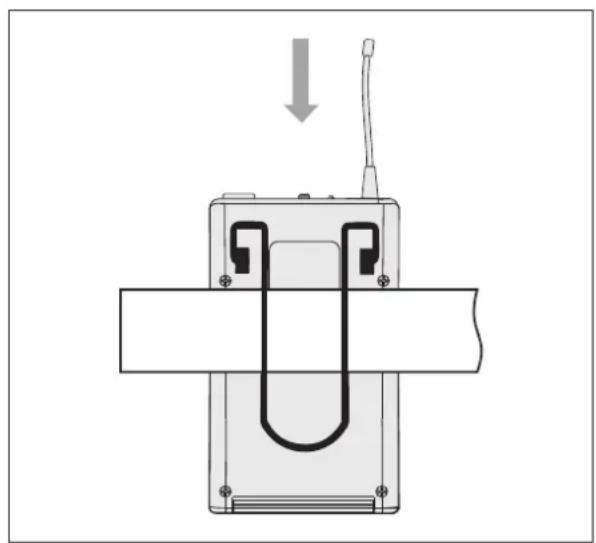

1 Attach the transmitter with the belt clip to your clothing or strap on your instrument.

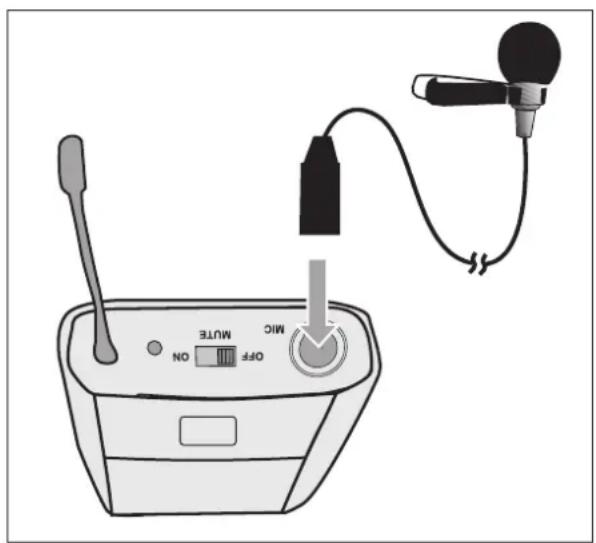

2 Connect the included microphone to the microphone input and attach it to your clothing.

6. OPERATION

1 Set the sliding switch to "ON" to switch on the transmitter. The battery indicator shortly lights up. After switching on the transmitter, a radio connection to the receiver is set up. The reception indicator RF on the receiver indicates that a connection exists to the transmitter.

2 Speak into the microphone. The volume level can be adjusted by changing the sensitivity with the gain control in the battery compartment. Use a small screwdriver to turn the selector switch to another position. Reduce the sensitivity if the volume of the transmitter signal is too high and thus distorted. Increase the sensitivity if the volume is too low and a poor S/N ratio results. The AF indicator on the receiver lights up when an audio signal from the microphone is received.

3 To mute the transmitter during operation, set the sliding switch to "MUTE". Then no sound will be transmitted.
4 To switch off the transmitter, set the sliding switch to "OFF".

7. CLEANING AND MAINTENANCE

We recommend a frequent cleaning of the device. Please use a soft lint-free and moistened cloth. Never use alcohol or solvents!

There are no serviceable parts inside the device except for the batteries. Maintenance and service operations are only to be carried out by authorized dealers.

Should you need any spare parts, please use genuine parts. Should you have further questions, please contact your dealer.

8. TECHNICAL SPECIFICATIONS

Item Carrier frequency	Color code
13063217 UHF-200 86	3.010 MHz Red
13063218 UHF-200 86	3.420 MHz Yellow
13063219 UHF-200 86	4.300 MHz Green
13063220 UHF-200 86	4.990 MHz Blue
Coverage:	50 m (with line-of-sight)
RF power output:	10 mW
Modulation method: F3F
Frequency response: 40 Hz - 18 KHz
S/N ratio:	>105 dB
Selectivity:	>80 dB
T.H.D.:	<0.5 % at 1 kHz
Connection:	3.5 mm jack
Battery::	2 x 1.5 V battery, type AA
Battery life	approx. 10 hours
Dimensions:	200 x 650 x 25 mm
Weight:	75 g

Please note: Every information is subject to change without prior notice. 14.01.2015 ©
