Product type	Motherboard
Form factor	uATX (244 mm × 244 mm)
Socket	LGA1700
Chipset	Intel B760
CPU support	12th/13th Gen Intel Core i9/i7/i5/i3, Pentium, Celeron
Memory	4× DDR4 DIMM, dual-channel, up to 128 GB, 1866–4600+ MHz (OC)
Storage	2× M.2 (PCIe 4.0 x4 NVMe), 8× SATA III (6 Gb/s)
LAN	Realtek RTL8125B 2.5 GbE
Audio	ALC897 7.1-channel HD Audio, Hi-Fi (front)
USB rear	3× USB 3.2 Gen1, 2× USB 2.0
USB internal	1× USB 3.2 Gen2 Type-C, 2× USB 3.2 Gen1, 6× USB 2.0
Expansion slots	1× PCIe 4.0 x16, 3× PCIe 3.0 x1
Display outputs	1× HDMI, 1× DP, 1× VGA
M.2 Wi-Fi slot	1× M.2 (E Key) for Wi-Fi/BT, card not included
PS/2 port	1× combo keyboard/mouse
Debug LEDs	CPU, DRAM, VGA, BOOT
BIOS	UEFI with BIO-Flasher and BIOS Update Utility

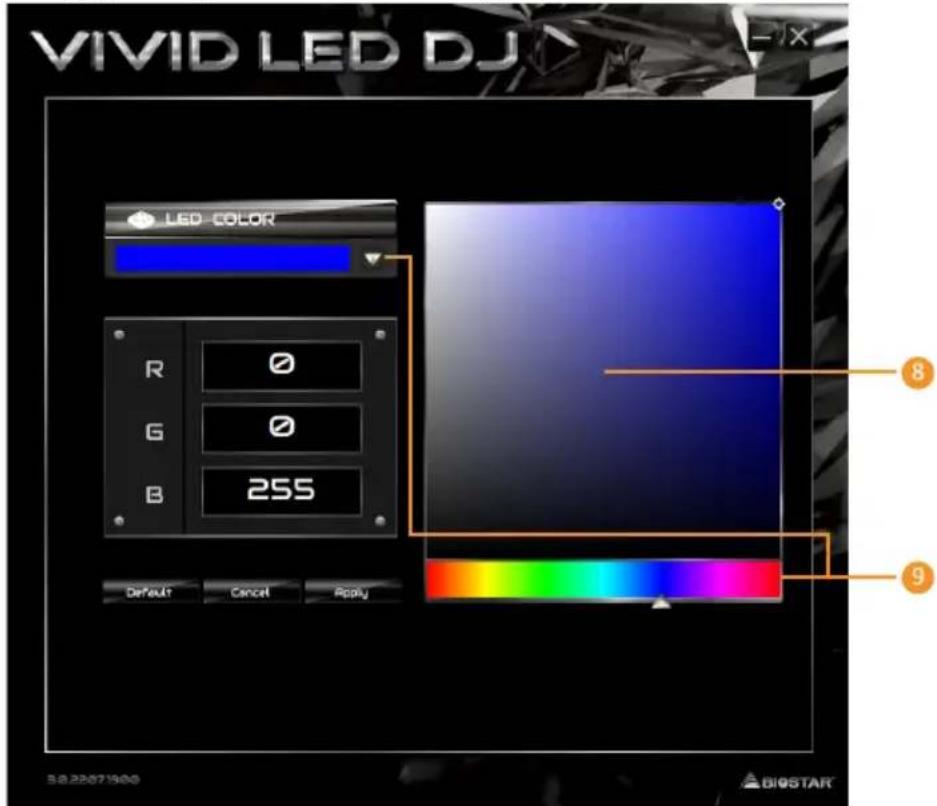

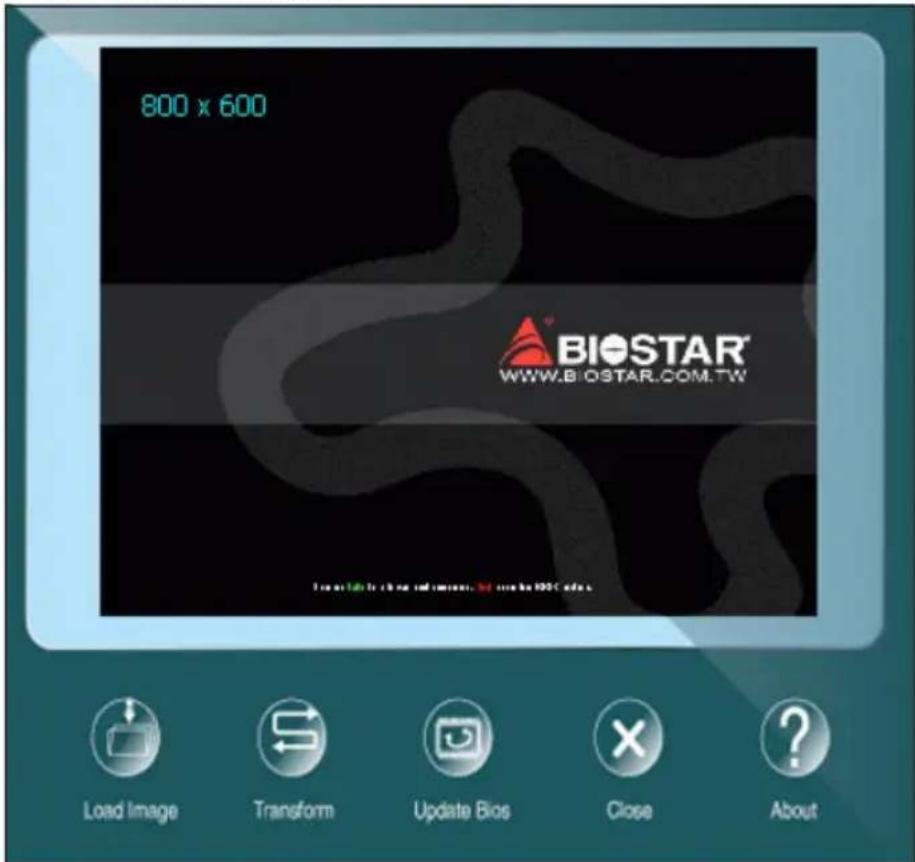

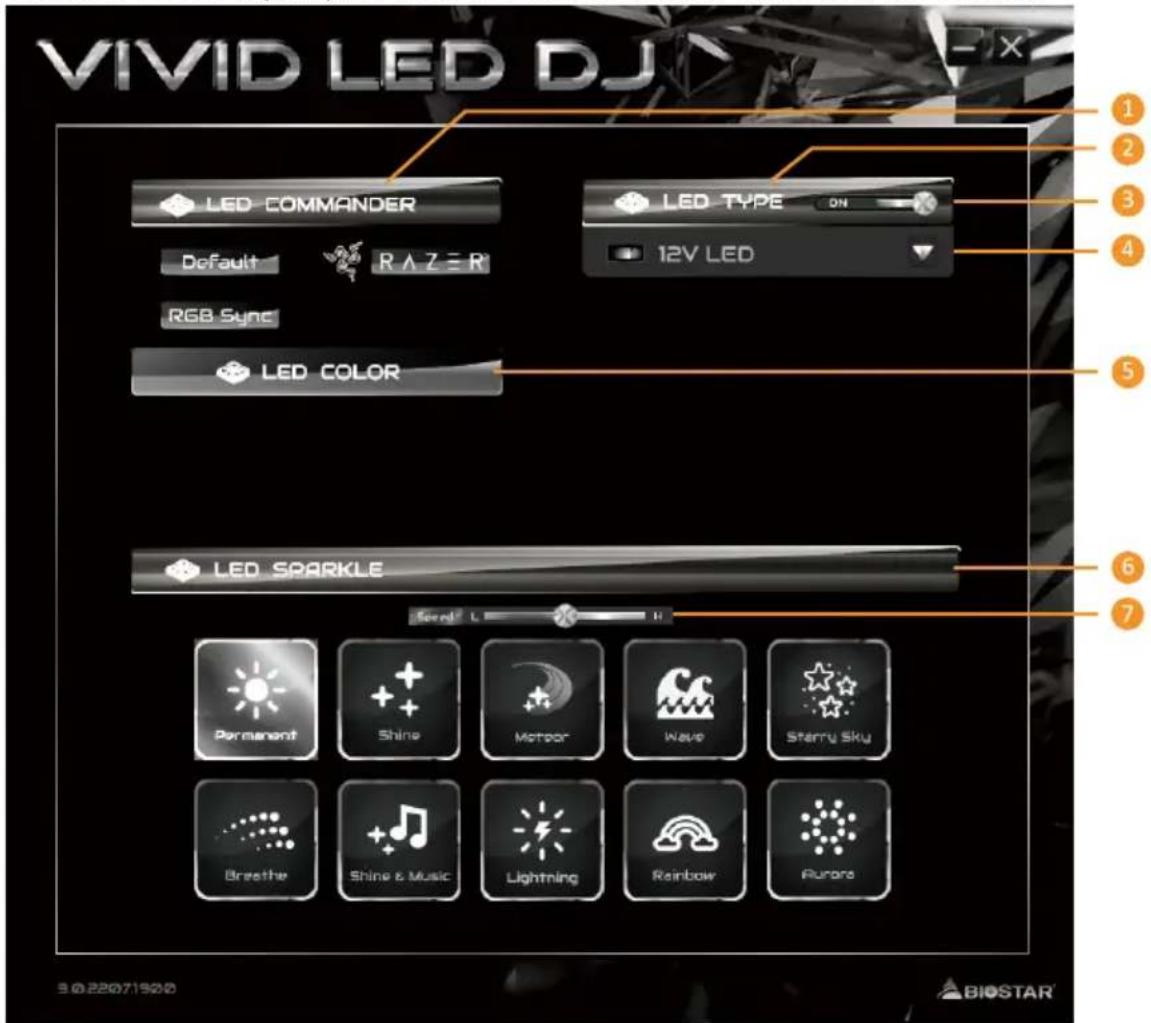

Software	BIOScreen (logo change), Vivid LED DJ (RGB control)
Supported OS	Windows 10 (64-bit), Windows 11 (64-bit)
Net weight	Approx. 0.7 kg (with accessories, estimated)

Frequently Asked Questions - B760MX2-E PRO D4 BIOSTAR

What CPU does the B760MX2-E PRO D4 support?

It supports Intel 12th/13th Gen Core i9/i7/i5/i3, Pentium, and Celeron processors in the LGA1700 package. Check the official CPU support list on Biostar's website for specific models.

What type of RAM is compatible?

DDR4 memory modules from 1866 MHz up to 4600+ MHz (overclocked). It has four slots supporting dual-channel configuration, with a maximum capacity of 128 GB (non-ECC). Verify memory compatibility on Biostar's memory support list.

Does this motherboard support M.2 SSDs?

Yes, it has two M.2 slots. One (M2M_CPU) supports PCIe 4.0 x4 NVMe drives in 2280 size. The other (M2M_SB) supports PCIe 4.0 x4 NVMe drives in 2242/2260/2280 sizes. Both support AHCI and NVMe.

How many SATA ports are there?

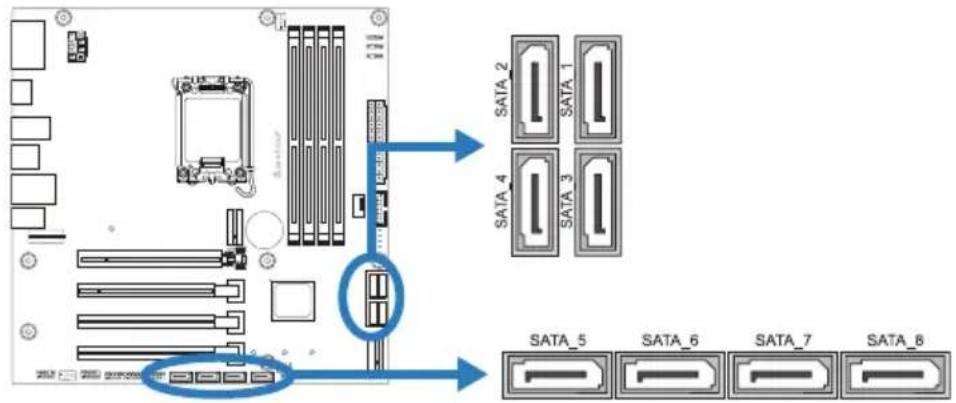

Eight SATA III ports (6 Gb/s) are available. SATA ports 1-4 support RAID 0,1,5,10, while ports 5-8 do not support RAID.

Does it have built-in Wi-Fi?

No, but it includes an M.2 (E Key) slot for a Wi-Fi/BT card (not provided). Also included are Wi-Fi antenna accessories in the package.

What is the form factor?

It is uATX (micro ATX) with dimensions 244 mm by 244 mm. Ensure your case supports this form factor.

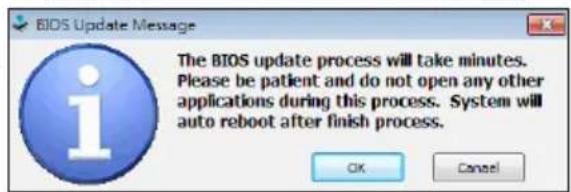

How do I update the BIOS?

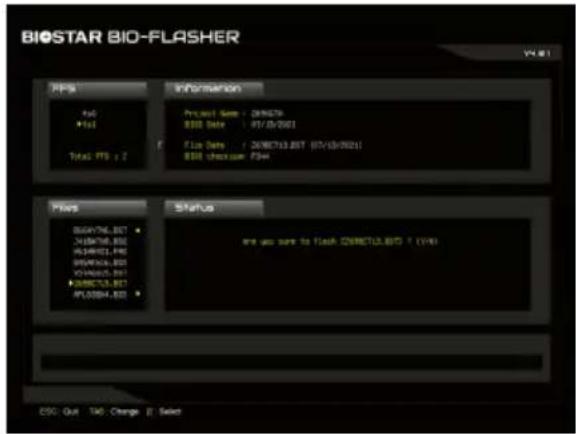

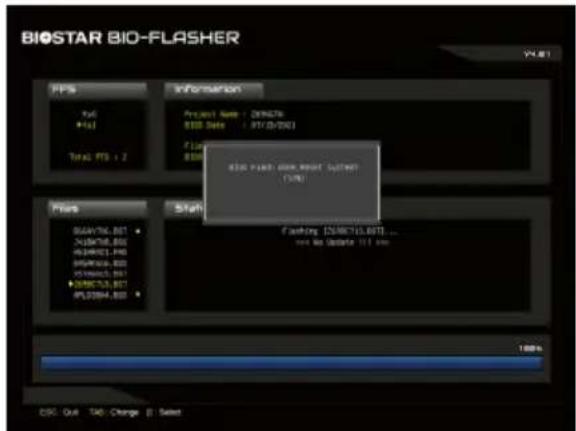

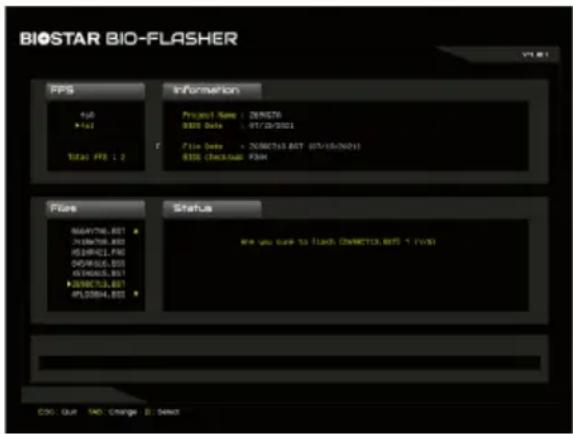

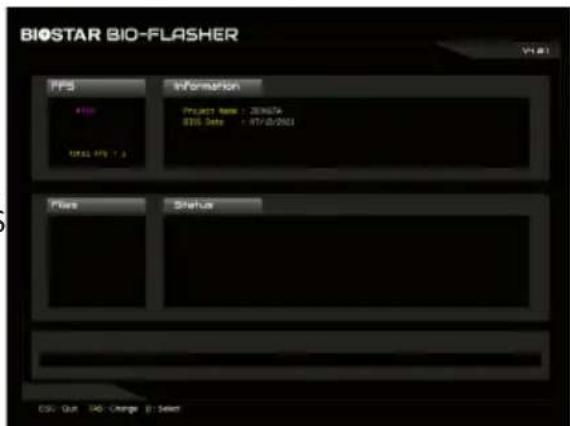

You can update via BIO-Flasher (from a USB drive in BIOS) or BIOS Update Utility in Windows. Download the latest BIOS from Biostar's website and follow the manual instructions.

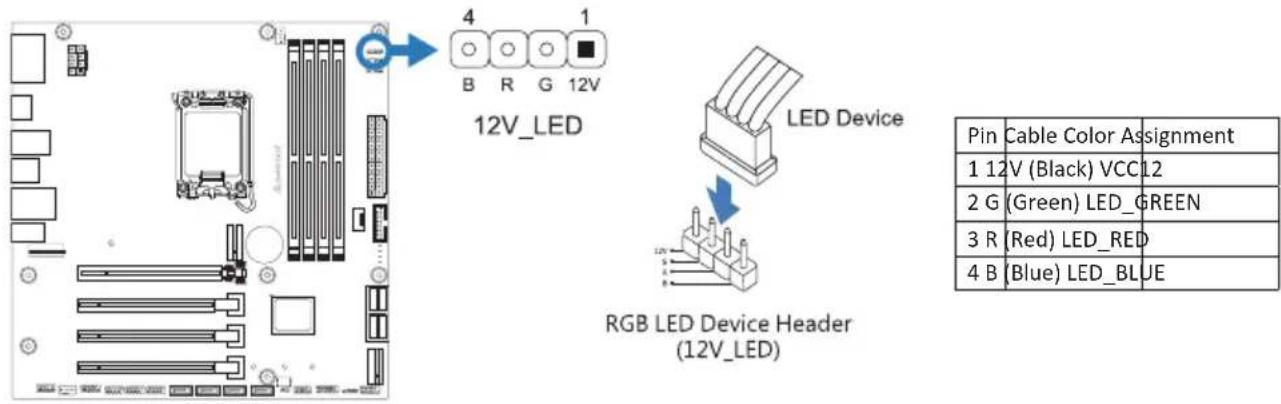

Are there RGB headers?

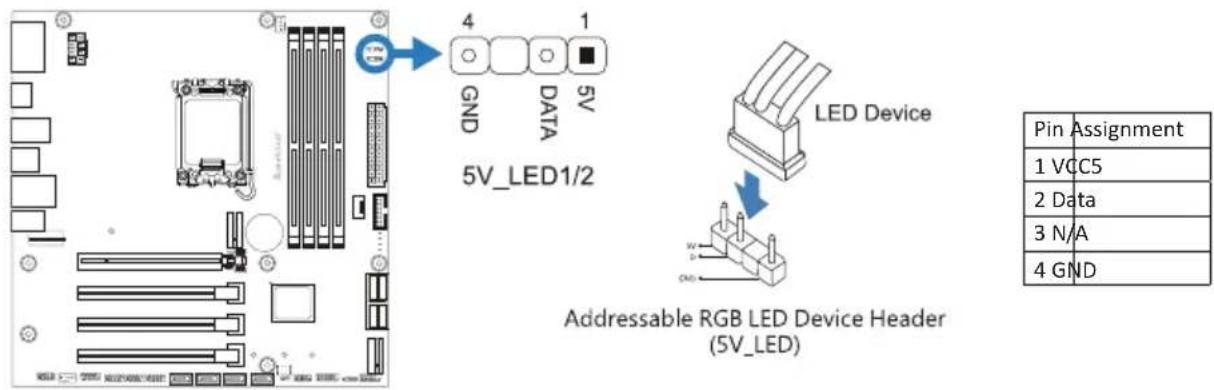

Yes: one 12V RGB header (5050) and two 5V addressable RGB headers (WS2818B). Use Vivid LED DJ software to control lighting.

Can I use this motherboard for gaming?

Yes, it supports high-speed DDR4, PCIe 4.0 x16 for graphics cards, and 2.5 Gb LAN. Suitable for mid-range gaming builds with 12th/13th Gen Intel CPUs.

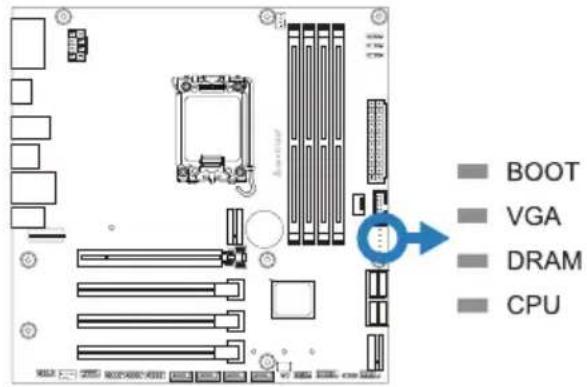

What does the debug LED indicate?

Four LEDs (CPU, DRAM, VGA, BOOT) help diagnose issues. During POST, they light sequentially. If a component fails, the corresponding LED stays on until the problem is resolved.

USER MANUAL B760MX2-E PRO D4 BIOSTAR

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the contents here and specially disclaims any implied warranties of merchantability or fitness for any purpose. Further the vendor reserves the right to revise this publication and to make changes to the contents here without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first obtaining the vendor's approval in writing.

The content of this user's manual is subject to be changed without notice and we will not be responsible for any mistakes found in this user's manual. All the brand and product names are trademarks of their respective companies.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Table Of Contents

FCC Information and Copyright 1

Chapter 1: Introduction....3

1.1 Before You Start 3
1.2 Package Checklist.... 3
1.3 Specifications....4
1.4 Rear Panel Connectors....6
1.5 Motherboard Layout 7

Chapter 2: Hardware installation....9

2.1 Install Central Processing Unit (CPU) 9
2.2 Install a Heatsink....11
2.3 Connect Cooling Fans 12
2.4 Install System Memory 13
2.5 Expansion Slots 15
2.6 Jumper & Switch Setting 18
2.7 Headers & Connectors....19
2.8 LEDs 25

Chapter 3: UEFI BIOS & Software....26

3.1 UEFI BIOS Setup 26

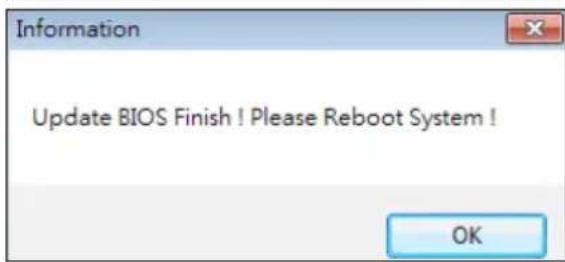

3.2 BIOS Update 26
3.3 Software.... 30

Chapter 4: Useful help....33

4.1 Driver Installation 33
4.2 AMI BIOS Beep Code 34
4.3 Troubleshooting.... 34

APPENDIX: Specifications in Other Languages 35

Arabic....35
German 37
Spanish 39
Thai 41
Japan 43

Chapter 1: Introduction

1.1 Before You Start

Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below:

• Prepare a dry and stable working environment with sufficient lighting.
• Always disconnect the computer from power outlet before operation.
- Before you take the motherboard out from anti-static bag, ground yourself properly by touching any safely grounded appliance, or use grounded wrist strap to remove the static charge.
- Avoid touching the components on motherboard or the rear side of the board unless necessary. Hold the board on the edge, do not try to bend or flex the board.
- Do not leave any unfastened small parts inside the case after installation. Loose parts will cause short circuits which may damage the equipment.
- Keep the computer from dangerous area, such as heat source, humid air and water.
- The operating temperatures of the computer should be 0 to 45 degrees Celsius.
• To avoid injury, be careful of:
Sharp pins on headers and connectors
Rough edges and sharp corners on the chassis
Damage to wires that could cause a short circuit

1.2 Package Checklist

• Serial ATA Cable x2
  • Rear I/O Panel for ATX Case x1
  • WIFI antenna accessories x1
• Quick Installation Guide x1
  • Fully Setup Driver DVD x1
• M.2 Anchor x1

Note

» The package contents may be different due to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

1.3 Specifications

Specifications
CPU Support	Support for 12th/13th Generation Intel® CoreTM i9/ i7/ i5/ i3 processors and Intel® Pentium® processors/Intel® Celeron® processors in the LGA1700 package* Please refer to www.biostar.com.tw for CPU support list.
Chipset Intel® B760
Memory	Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3733(OC)/ 3800(OC)/3866(OC)/ 4600+(OC)4x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB MemoryEach DIMM supports non-ECC 4/8/16/32GB DDR4 moduleSupport Intel® Extreme Memory Profile (XMP) memory modules* Please refer to www.biostar.com.tw for Memory support list.
Storage	-- Total supports 2x M.2 socket and 8x SATA III (6Gb/s) portsIntel 12th/13th Processors1x M.2 (M Key) Socket (M2M_CPU):Supports M.2 Type 2280 SSD moduleSupports PCIe 4.0 x4 (64Gb/s) - NVMe SSDIntel B760 Chipset1x M.2 (M Key) Socket (M2M_SB):Supports M.2 Type 2242/2260/2280 SSD moduleSupports PCIe 4.0 x4 (64Gb/s) - NVMe SSD8x SATA III Connector (6Gb/s) :Supports AHCI, RAID 0, 1, 5, 10 & Intel® Rapid Storage Technology (Only SATA 1~4)
LAN	Realtek® RTL8125B10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability
Audio Codec	ALC8977.1 Channels, High Definition Audio, Hi-Fi(Front)
USB	1x USB 3.2 (Gen2) Type-C port (1 via internal headers)5x USB 3.2 (Gen1) Port (3 on rear I/Os and 2 via internal headers)8x USB 2.0 port (2 on rear I/Os and 6 via internal headers)
Expansion Slots	B760MXC2 PRO D4Intel 12th/13th Processors1x PCIe 4.0 x16 Slot (x16 mode)Intel B760 Chipset3x PCIe 3.0 x16 Slot (x1 mode)
	B760MX2-E PRO D4Intel 12th/13th Processors1x PCIe 4.0 x16 Slot (x16 mode)Intel B760 Chipset3x PCIe 3.0 x1 Slot (x1 mode)
Rear I/Os	2x WIFI Antenna Port1x PS/2 Keyboard/ Mouse Port1x HDMI1x DP1x VGA Port3x USB 3.2(Gen1) port2x USB 2.0 port1x LAN port3x Audio Jack
Internal I/Os	8x SATA III Connector (6Gb/s)1x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel® CNVi3x USB 2.0 Header (each header supports 2 USB 2.0 ports)1x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)1x USB 3.2 (Gen2) Type-C Header1x 8-Pin Power Connector1x 24-Pin Power Connector1x CPU Fan Connector1x System Fan Connector1x Front Panel Header1x Front Audio Header1x Internal Stereo Speaker Header1x Clear CMOS Header1x COM Port Header1x TPM Header2x LED Header (5V)1x LED Header (12V)* M.2 (E Key) Wi-Fi card is not provided
Form Factor uATX Form Factor, 244 mm x 244 mm
OS Support	Windows 10(64bit) / Windows 11(64bit)* Biostar reserves the right to add or remove support for any OS with or without notice.

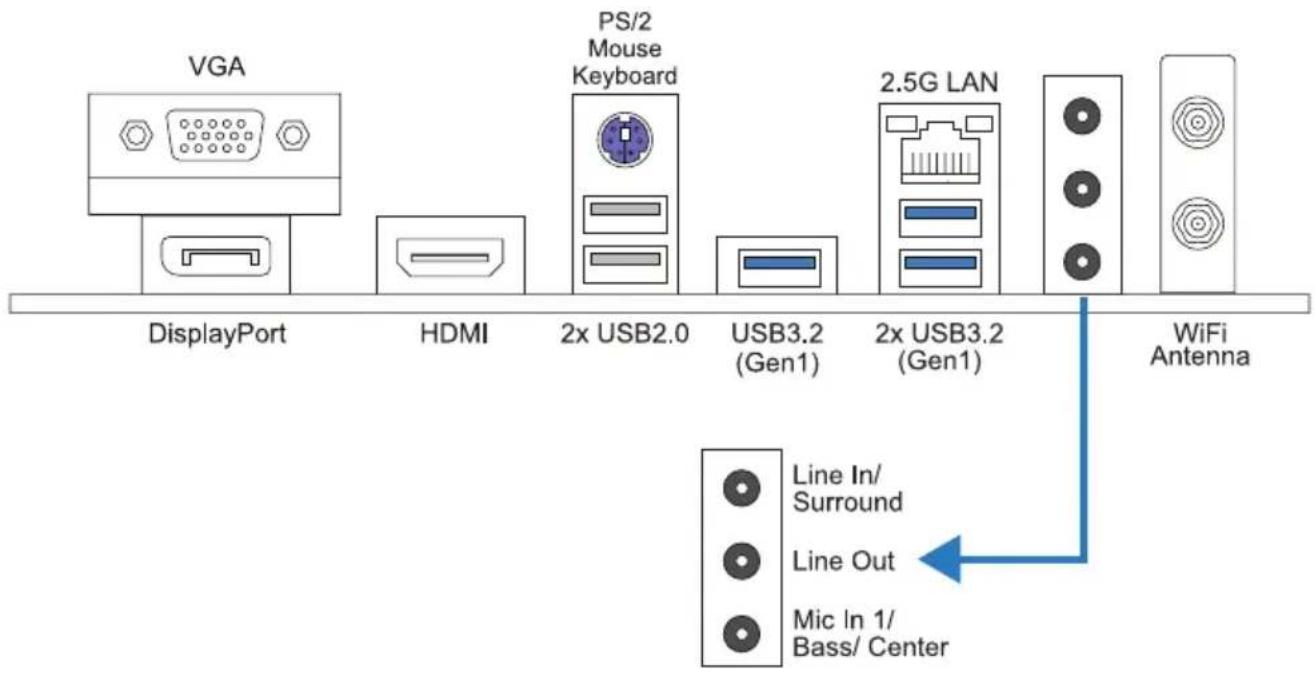

1.4 Rear Panel Connectors

Note

» VGA/ HDMI/ DP ports only work with an Intel® integrated Graphics Processor.
» Maximum resolution

HDMI: 4096 x 2160 @24Hz

VGA: 1920 x 1200 @60Hz

DP: 4096 x 2160 @60Hz

» The mainboard supports three onboard display outputs at same time and the display output configuration can be selected in Intel graphics driver utility.
» When using the front HD audio jack and plug in the headset / microphone, the rear sound will be automatically Disabled.
» The WiFi antenna port allows you to connect to the E Key module and use the WiFi & Bluetooth function.

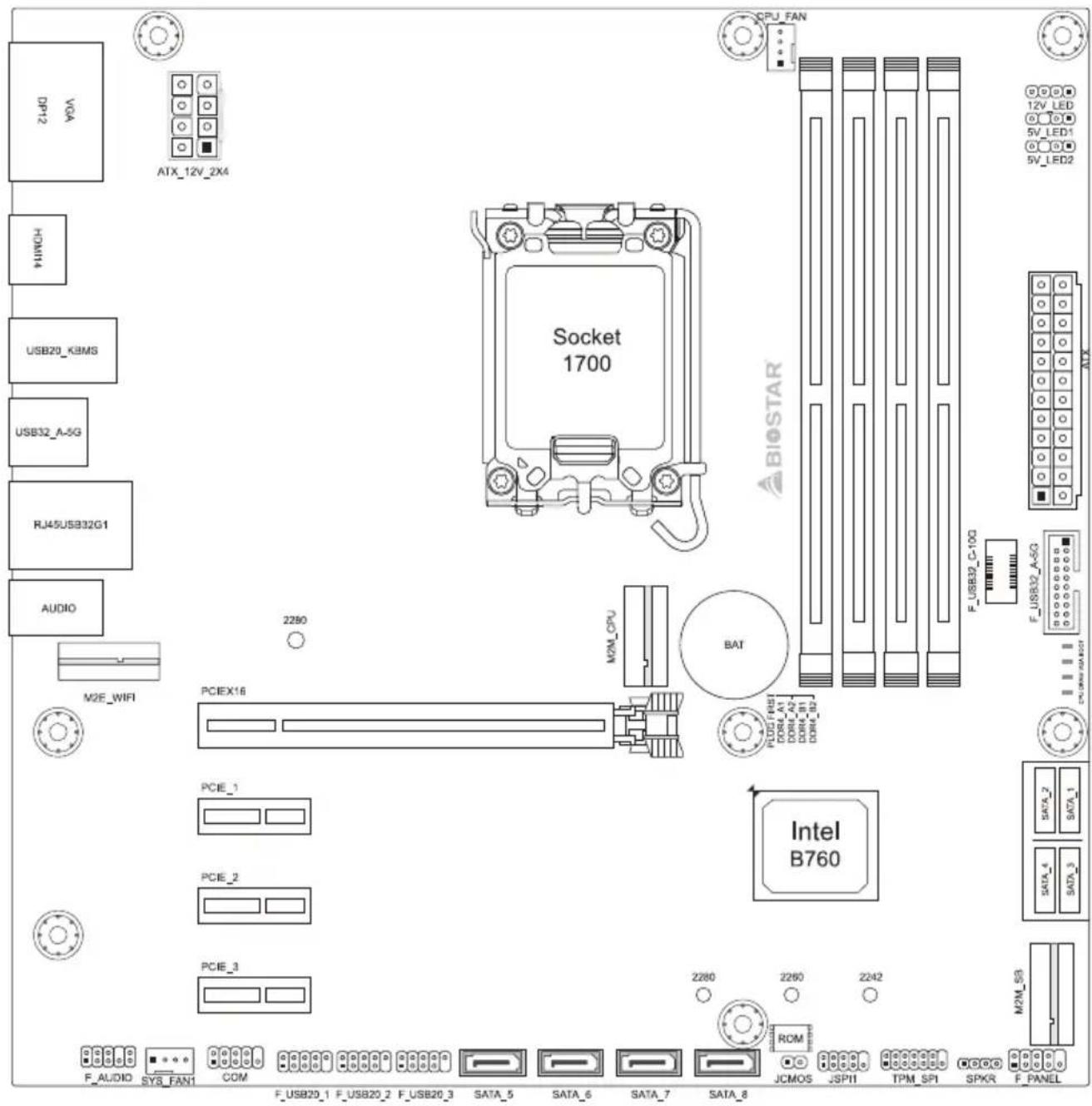

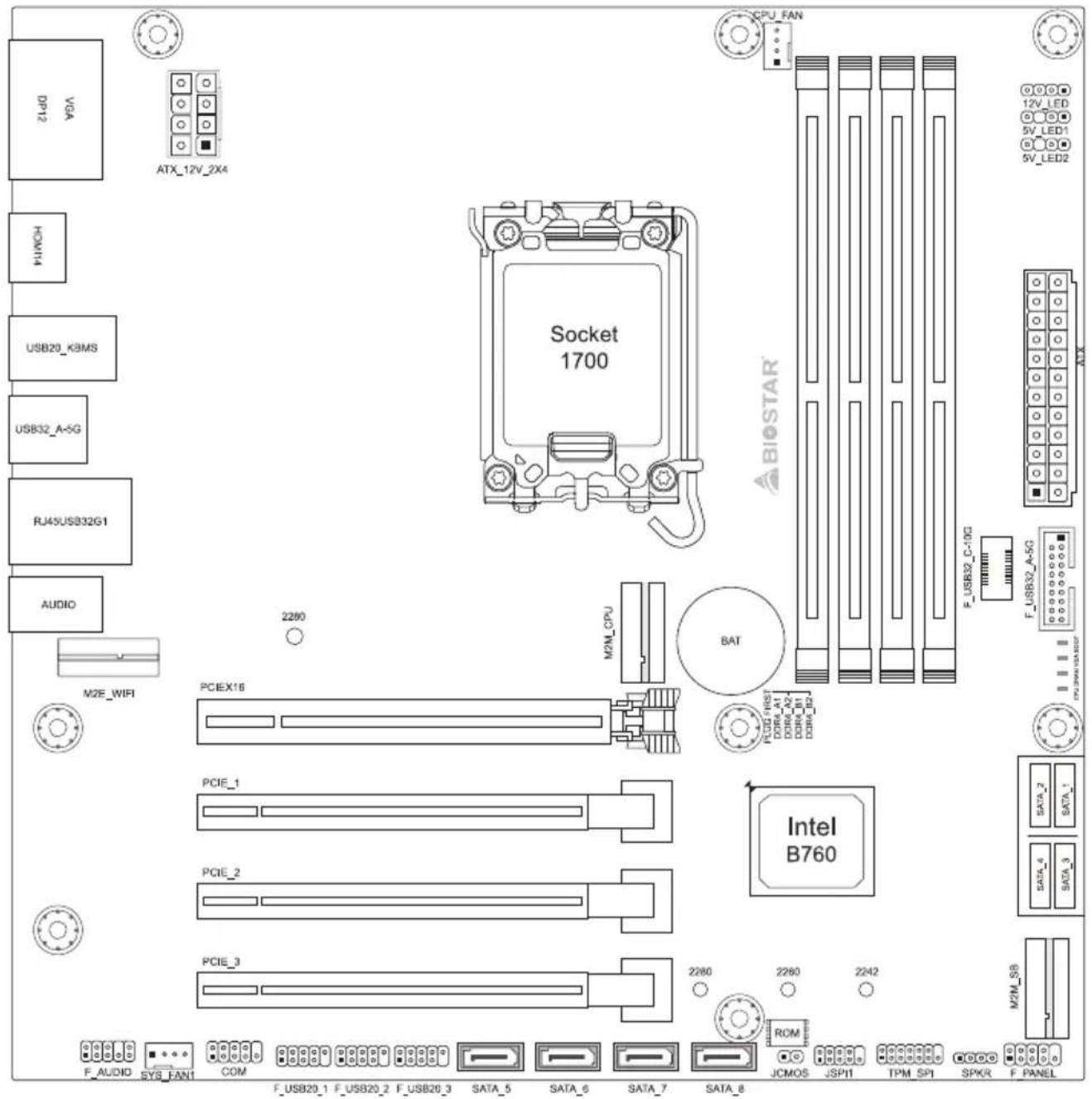

1.5 Motherboard Layout

B760MXC2 PRO D4

Note

» ■ represents the 1st pin.

B760MX2-E PRO D4

Note

» ■ represents the 1st pin.

Chapter 2: Hardware installation

2.1 Install Central Processing Unit (CPU)

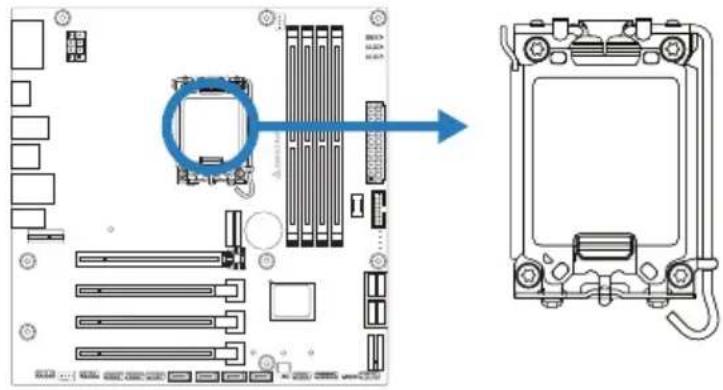

Step 1: Locate the CPU socket on the motherboard

Note

» Remove pin cap before installation, and make good preservation for future use. When the CPU is removed, cover the pin cap on the empty socket to ensure pin legs won't be damaged.
» The motherboard might equip with two different types of pin cap. Please refer below instruction to remove the pin cap.

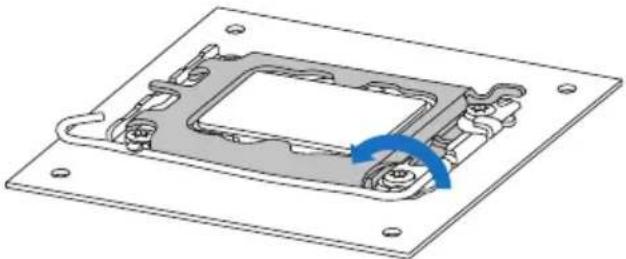

Step 2: Open ILM Lever and then load plate using finger tab.

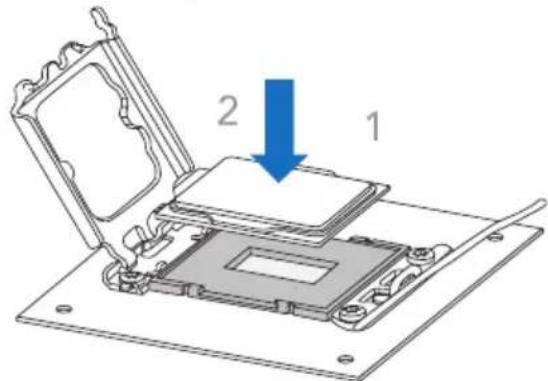

Step 3: Align and seat processor package on socket.

Step 4: Close the load plate.

Technical line drawing of a mechanical component with mounting flanges and internal components (no text or symbols)

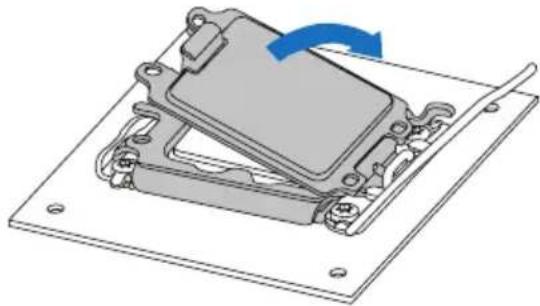

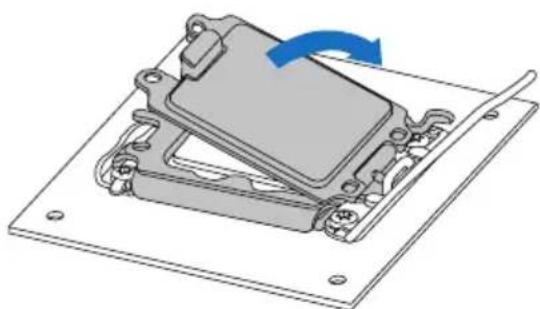

Step 5: Remove and save cover.

Mechanical assembly diagram showing a component being rotated with a blue arrow (no text or symbols present)

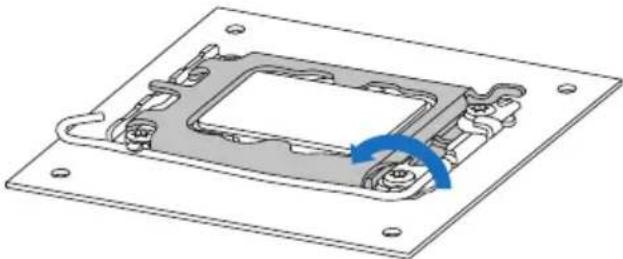

Step 6: Close ILM Lever and latch

Technical diagram of a mechanical component with mounting holes and a blue rotation arrow (no text or symbols)

Note

» Ensure that you install the correct CPU designed for LGA1700 socket.
» The CPU fits only in one correct orientation. Do not force the CPU into the socket to prevent damaging the CPU.

2.2 Install a Heatsink

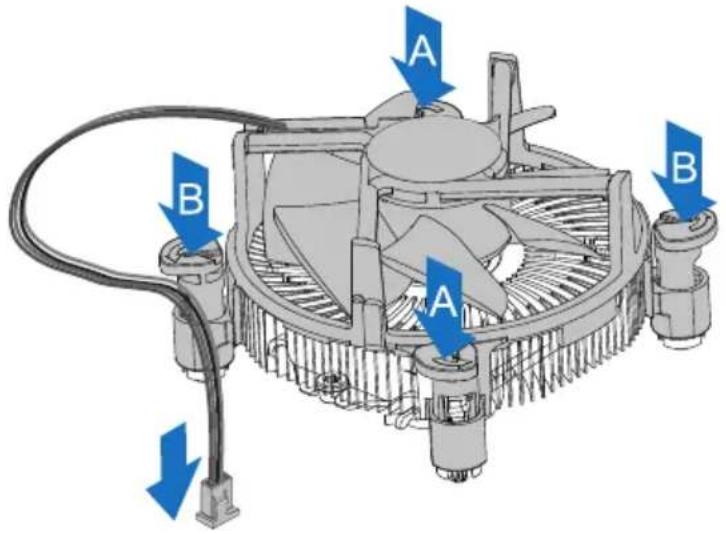

Step 1: Place the CPU fan assembly on top of the installed CPU and make sure that the four fasteners match the motherboard holes. Orient the assembly and make the fan cable is closest to the CPU fan connector.

Step 2: Press down two fasteners at one time in a diagonal sequence to secure the CPU fan assembly in place. As each fastener locks into position a click should be heard.

Note

» Apply the thermal interface material on the CPU before heatsink installation, if necessary.
» Do not forget to connect the CPU fan connector.
» For proper installation, please kindly refer to the installation manual of your CPU heatsink.

2.3 Connect Cooling Fans

These fan headers support cooling-fans built in the computer. The fan cable and connector may be different according to the fan manufacturer.

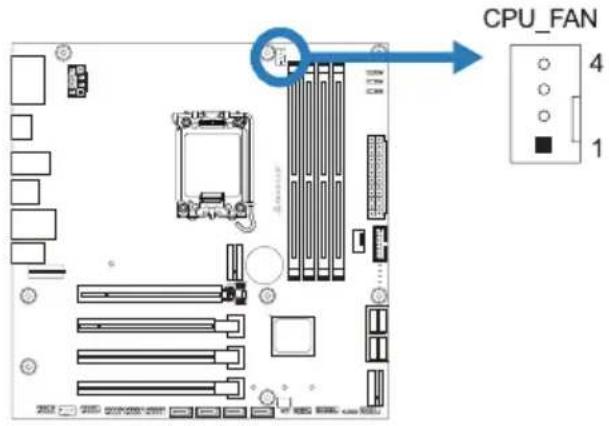

CPU_FAN: CPU Fan Header

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

4 Al Fan Control

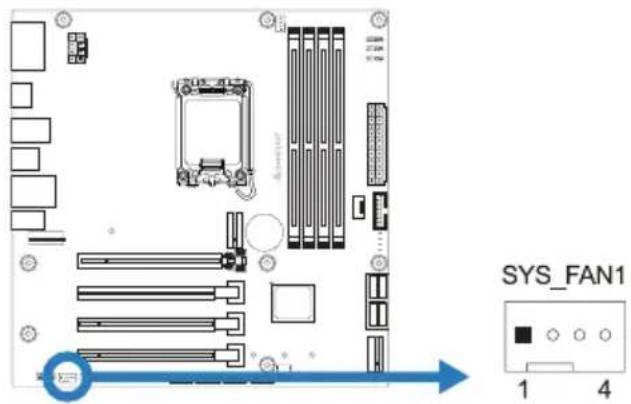

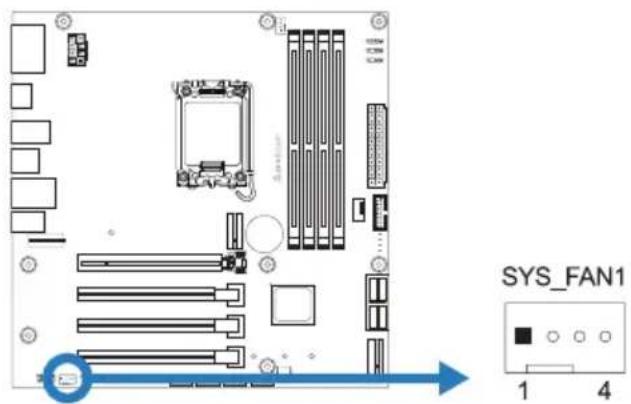

SYS_FAN1: System Fan Header

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

4 Al Fan Control

Note

» CPU_FAN, SYS_FAN1 support 4-pin and 3-pin head connectors. When connecting with wires onto connectors, please note that the red wire is the positive and should be connected to pin#2, and the black wire is Ground and should be connected to pin#1(GND).

2.4 Install System Memory

DDR4 Modules

Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot such that the notch on the DIMM matches the break on the slot.

Technical line drawing of a computer RAM module with mounting bracket and clamping mechanism (no text or symbols)

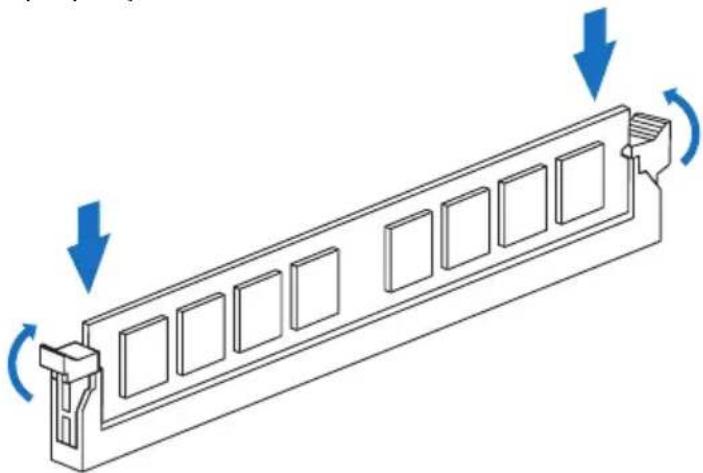

Step 2: Insert the DIMM vertically and firmly into the slot until the retaining clips snap back in place and the DIMM is properly seated.

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Note

» If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

Memory Capacity

DIMM Socket Location DDR4 Module Total Memory Size
DDR4_A1 4GB/8GB/16GB/32GB	Max is 128GB.
DDR4_A2 4GB/8GB/16GB/32GB
DDR4_B1 4GB/8GB/16GB/32GB
DDR4_B2 4GB/8GB/16GB/32GB

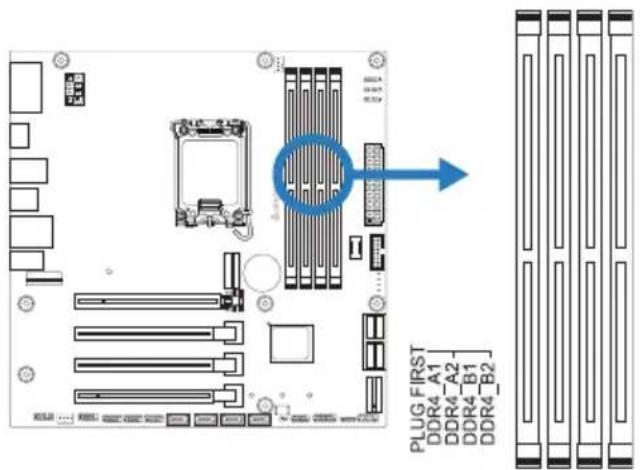

Dual Channel Memory Installation

Please refer to the following requirements to activate Dual Channel function: Install memory module of the same density in pairs, shown in the table.

Dual Channel Status DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2
Enabled O X O X
Enabled X O X O
Enabled O O O O

(O means memory installed, X means memory not installed.)

Note

» When installing more than one memory module, we recommend to use the same brand and capacity memory on this motherboard.

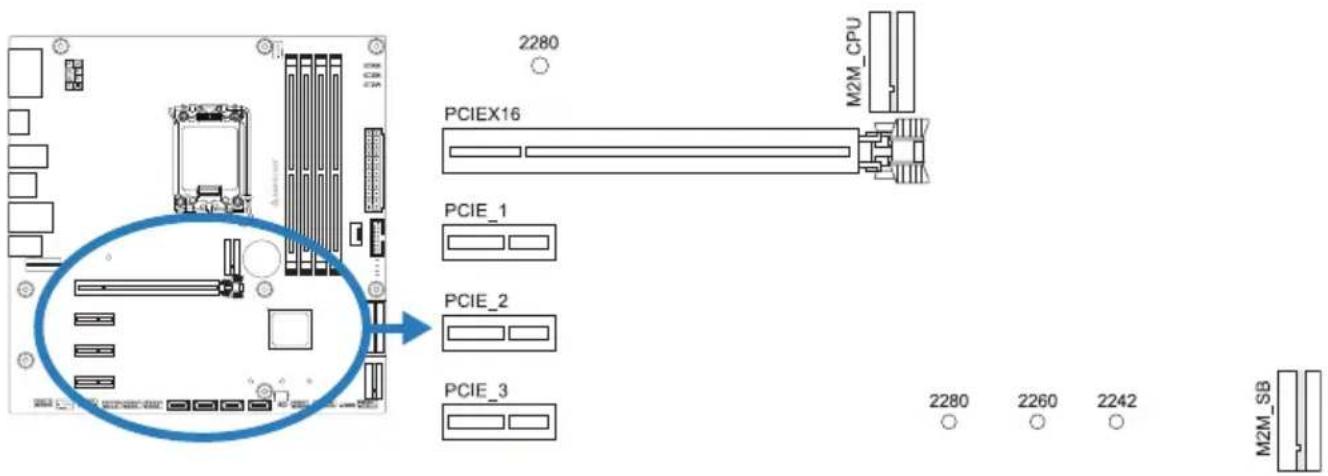

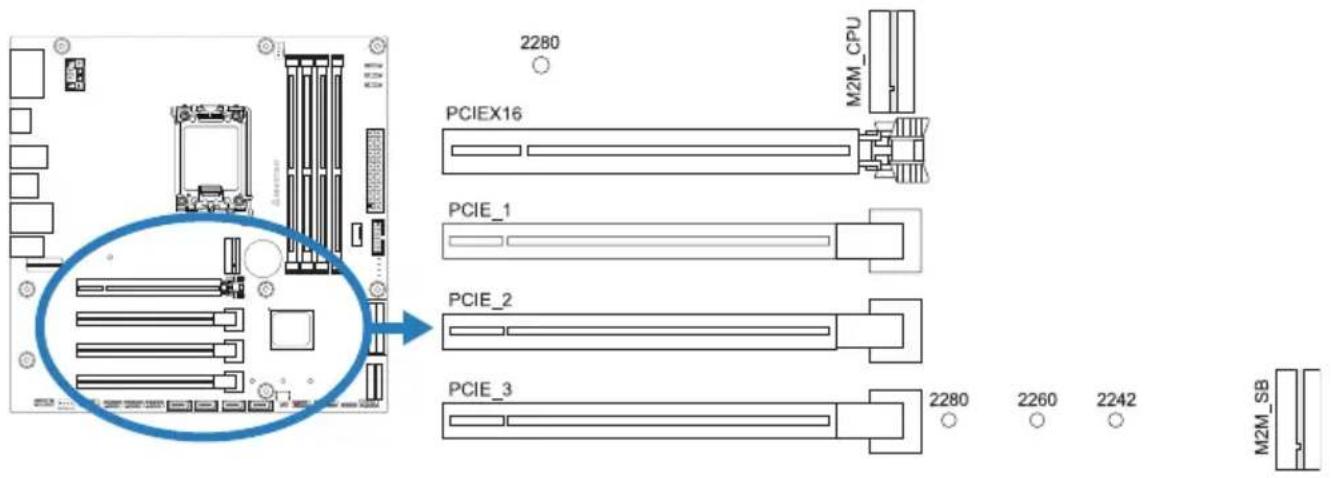

2.5 Expansion Slots

B760MXC2 PRO D4

B760MX2-E PRO D4

PCIEX16: PCI-Express Gen4 x16 Slots (x16 mode)

• PCI-Express 4.0 compliant.
• The maximum bandwidth of the PCIe slot is 64GB/s.

PCIE\_1/ PCIE\_2/ PCIE\_3: PCI-Express Gen3 x1 Slots

• PCI-Express 3.0 compliant.
• Data transfer bandwidth up to 2GB/s per direction; 4GB/s in total

M2M\_CPU: M.2 (M Key) Socket

• The M.2 slot supports M.2 Type 2280 SSD module. When installing M.2 SSD module, please place the screw and hex pillar to correct position.
  • Supports M.2 PCI Express.

M2M\_SB: M.2 (M Key) Socket

• The M.2 slot supports M.2 Type 2242/ 2260/ 2280 SSD module. When installing M.2 SSD module, please place the screw and hex pillar to correct position.
  • Supports M.2 PCI Express module up to Gen4 x4 (64Gb/s) - NVMe & AHCI SSD.

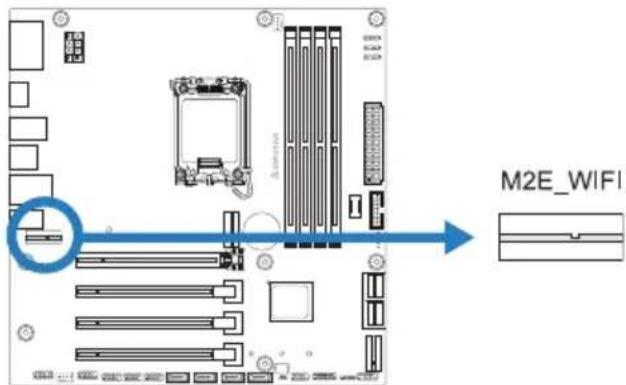

M2E\_WIFI: M.2 (E Key) Socket (M.2 (E Key) Wi-Fi card is not provided)

• Support M.2 socket 2230 type module.
• Supports WiFi/ Bluetooth module and Intel® CNVi (Integrated WiFi/ BT).

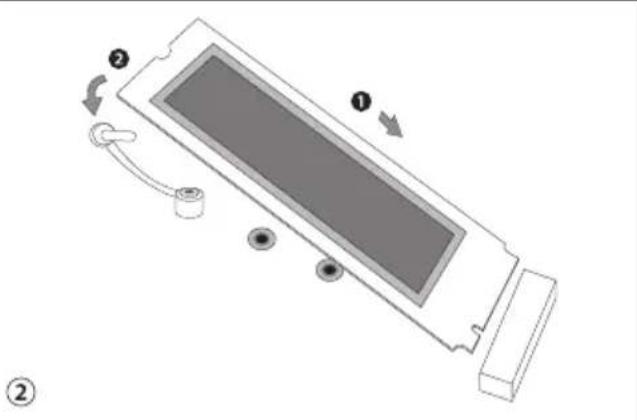

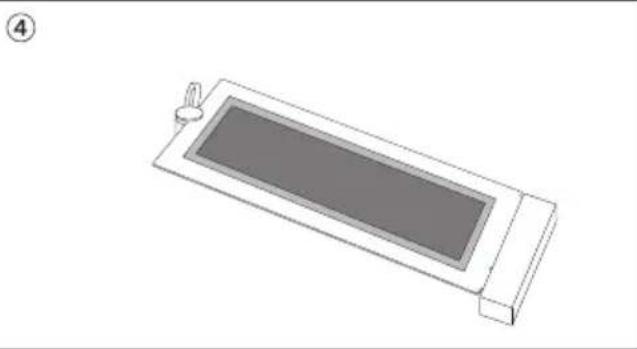

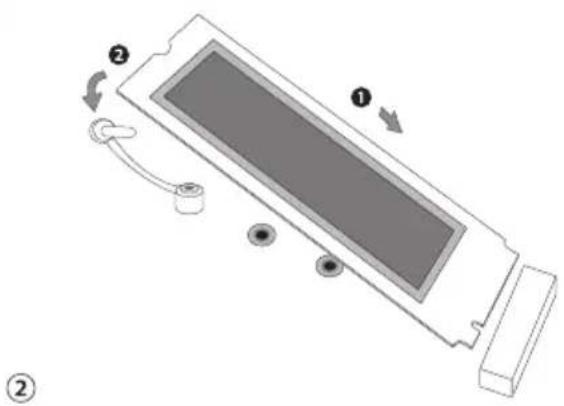

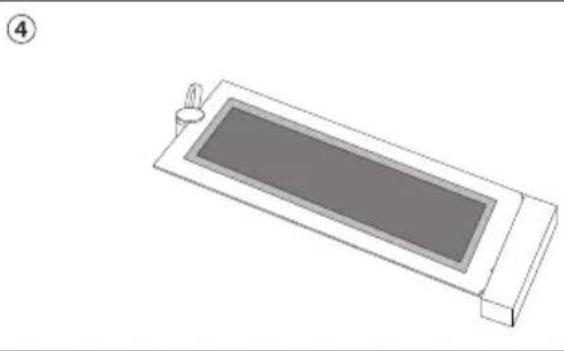

Install M.2 Anchor

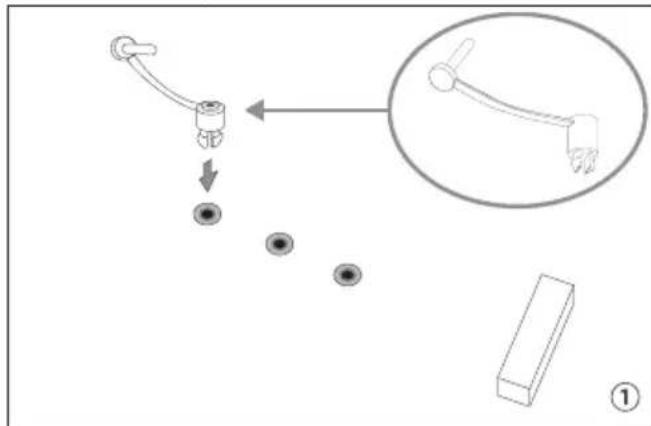

1. Lock the M.2 Anchor into the motherboard hole which you use for type of M.2 SSD.

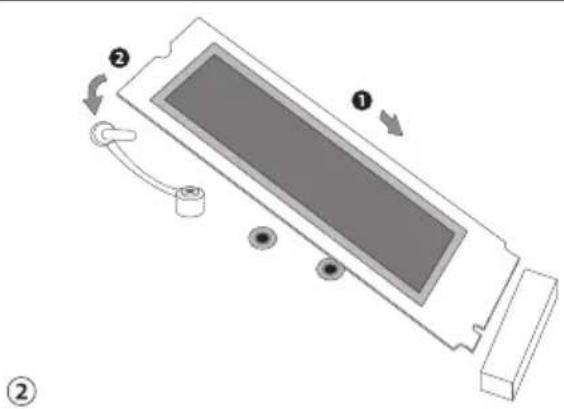

2. Insert the M.2 SSD into the M.2 socket.

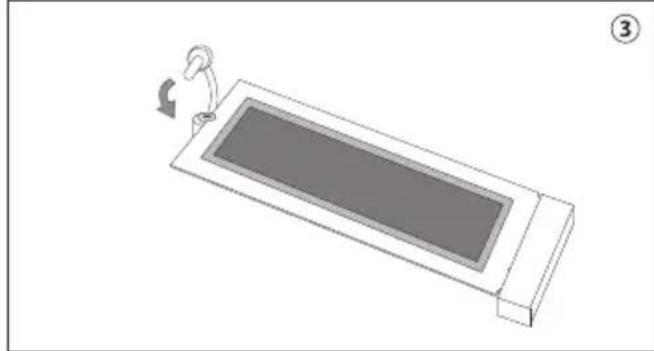

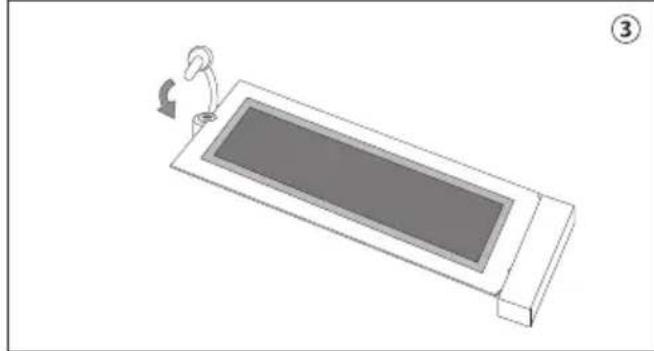

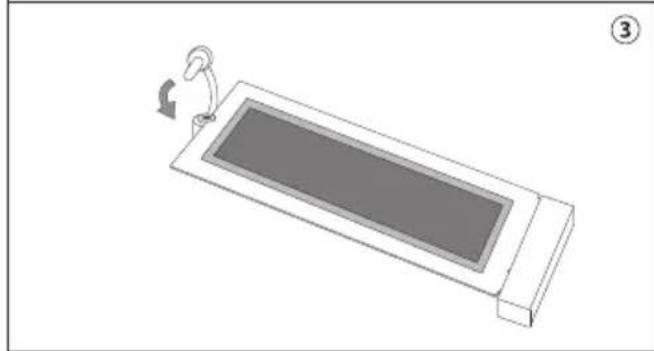

3. Insert the pin on the M.2 Anchor into the hole on itself.

3D diagram of a rectangular device with a curved handle and a hanging hook, no text or symbols present

3D diagram of a rectangular object with a central gray section and a small protrusion at the top (no text or symbols)

Install an Expansion Card

You can install your expansion card by following steps:

• Read the related expansion card's instruction document before install the expansion card into the computer.
• Remove your computer's chassis cover, screws and slot bracket from the computer.
• Place a card in the expansion slot and press down on the card until it is completely seated in the slot.
• Secure the card's metal bracket to the chassis back panel with a screw. (This step is only
  • for installing a VGA card.).
• Replace your computer's chassis cover.
  • Power on the computer, if necessary, change BIOS settings for the expansion card.
  • Install related driver for the expansion card.

Note

» Please be note that you will need to use M2 type screwdriver if you want to install or uninstall the screw. It is recommended not to use a screwdriver that does not meet the specifications, otherwise the screw may be damaged.

2.6 Jumper & Switch Setting

The illustration shows how to set up jumpers. When the jumper cap is placed on pins, the jumper is "close", if not, that means the jumper is "open".

Pin opened Pin closed Pin 1-2 closed

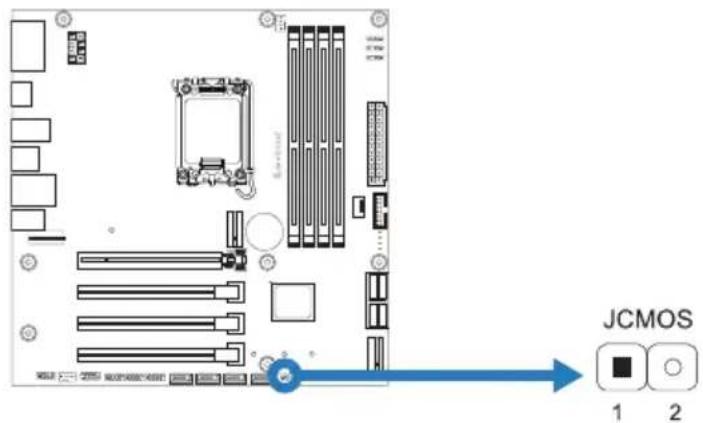

JCMOS: Clear CMOS Jumper

The jumper allows users to restore the BIOS safe setting and the CMOS data. Please carefully follow the procedures to avoid damaging the motherboard.

Pin 1-2 Open: Normal Operation (Default)

Pin 1-2 Short: Clear CMOS data

Clear CMOS Procedures:

1. Remove AC power line.
2. Set the jumper to "Pin 1-2 short", you can use a metal object like a screwdriver to touch the two pins.
3. Wait for five seconds.
4. After clearing the CMOS values, be sure the jumper is "Pin 1-2 open".
5. Power on the AC.
6. Load Optimal Defaults and save settings in CMOS.

2.7 Headers & Connectors

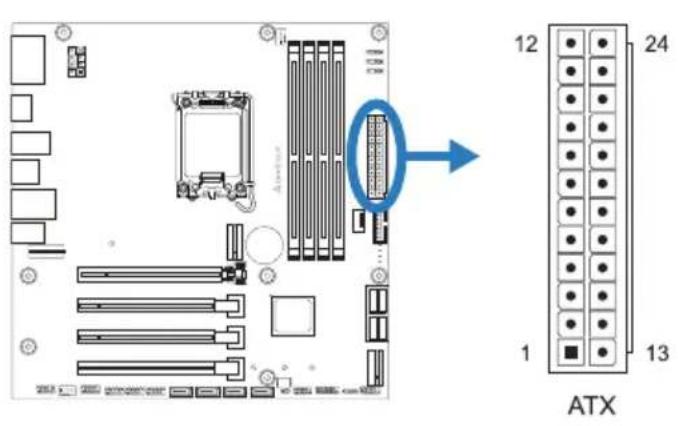

ATX: ATX Power Source Connector

For better compatibility, we recommend to use a standard ATX 24-pin power supply for this connector. Make sure to find the correct orientation before plugging the connector.

Pin Assignment Pin A	Assignment
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground 3 Ground
16 PS_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 NC 8 PW_OK
21 +5V 9 Standby Vol	tage+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V

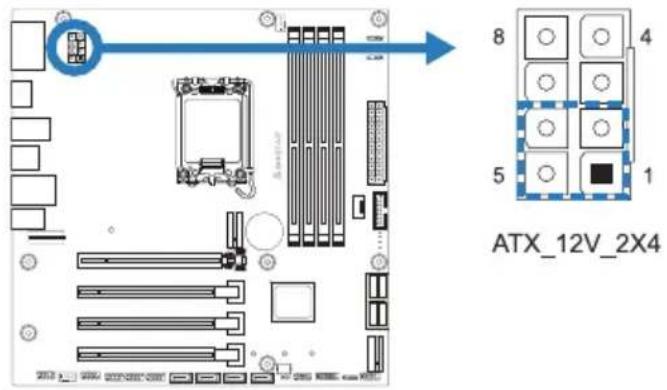

ATX\_12V\_2X4: ATX Power Source Connector

The connector provides +12V to the CPU power circuit. If the CPU power plug is 4-pin, please plug it into Pin 1-2-5-6 of ATX_12V_2X4.

Pin Assignment

1 +12V

2 +12V

3 +12V

4 +12V

5 Ground

6 Ground

7 Ground

8 Ground

Note

» Before you power on the system, please make sure that both ATX, ATX_12V_2X4 and connectors have been plugged-in.
» Insufficient power supplied to the system may result in instability or the peripherals not functioning properly. Use of a PSU with a higher power output is recommended when configuring a system with more power-consuming devices.

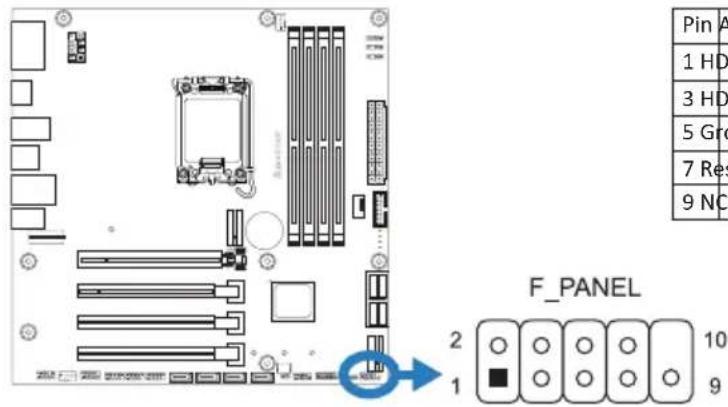

F\_PANEL: Front Panel Header

This 10-pin header includes Power-on, Reset, HDD LED, Power LED connection.

Pin	Assignment Function Pin	Assignment Function
1 HDD LED(+)	HDDLED (-)	2 Power LED (+)	PowerLED
3 HDD LED(-) 4 PowEDED
5 Ground	ResetButton	6 Power Button	Power-OnButton
7 Reset Control 8
9 NC NC 10 NA NA

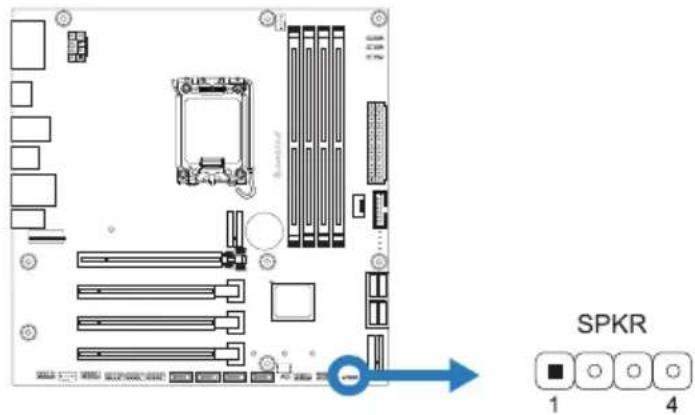

SPKR: Chassis Speaker Header

Please connect the chassis speaker to this header.

Pin	Assignment
1 +5V
2 N/A
3 N/A
4 Speaker

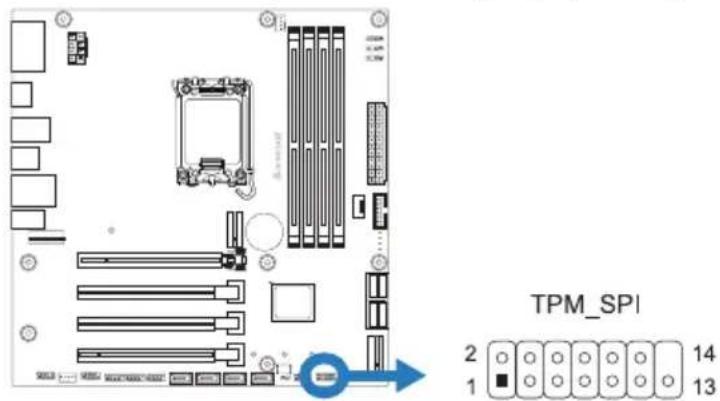

TPM\_SPI: Trusted Platform Module Header

This header allows you to store cryptographic keys that protect information.

Pin	Assignment	Pin	Assignment
1 VCCSPI 2 S_SPI_TPM_IRQ#
3	S_PLTRST#	4	S_SPI_TPM_CS2#
5	NC	6	F_BIOS_WP#_R
7 +3V_SPI 8 GND
9 F_SPI_CS0#_R 10 T_SPI_CLK
11 T_SPI_MISO 12 T_SPI_MOSI
13 F_SPI_HOLD#_R 14 N/A

SATA\_1/ SATA\_2/ SATA\_3/ SATA\_4/ SATA\_5/ SATA\_6/ SATA\_7/ SATA\_8: Serial ATA 6.0 Gb/s Connectors

These connectors connect to SATA hard disk drives via SATA cables.

Pin Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

7 Ground

Note

» SATA_5, SATA_6, SATA_7, SATA_8, does not support SATA RAID Mode.

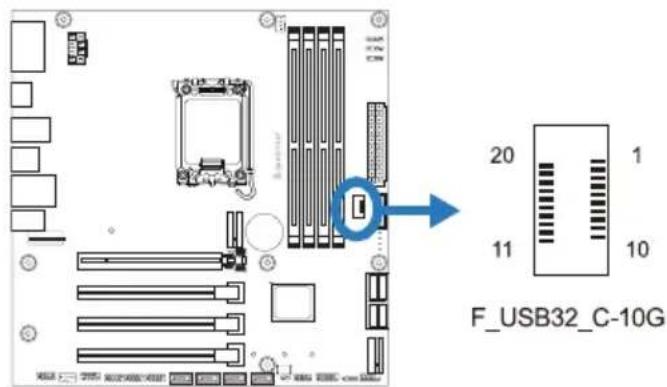

F\_USB32\_C-10G: Header for USB 3.2 (Gen2) Ports at Front Panel

This USB type-C header allows user to add additional USB ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin Assignment Pin Assignment
1 VBUS 11 VBUS
2 SSTX1+ 12 SSTX2+
3 SSTX1- 13 SSTX2-
4 Ground 14 Ground
5 SSRX1+ 15 SSRX2+
6 SSRX1- 16 SSRX2-
7 VBUS 17 Ground
8 CC1 18 D-
9 SBU 1 19 D+
10 SBU2 20 CC2

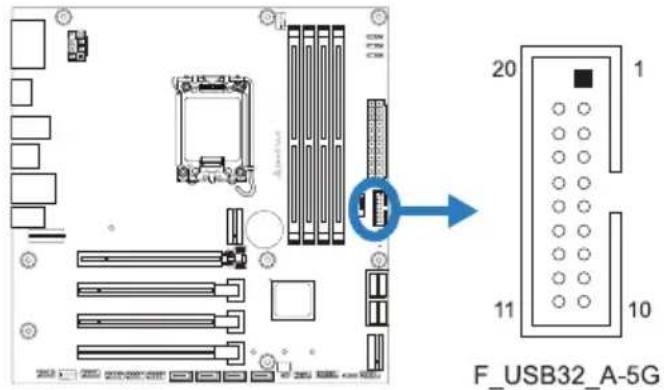

F\_USB32\_A-5G: Header for USB 3.2 (Gen1) Ports at Front Panel

This header allows user to add additional USB ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin Assignment Pin Assignment
1 VBUS0 11 D2+
2 SSRX1- 12 D2-
3 SSRX1+ 13 Ground
4 Ground 14 SSTX2+
5 SSTX1- 15 SSTX2-
6 SSTX1+ 16 Ground
7 Ground 17 SSRX2+
8 D1- 18 SSRX2-
9 D1+ 19 VBUS1
10 ID	20 Key

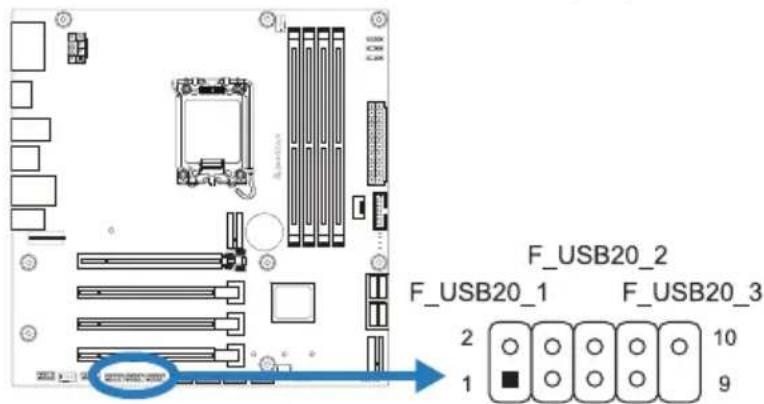

F\_USB20\_1/ F\_USB20\_2/ F\_USB20\_3: Header for USB 2.0 Ports at Front Panel

This header allows user to add additional USB ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin Assignment
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 Ground
8 Ground
9 Key
10	NC

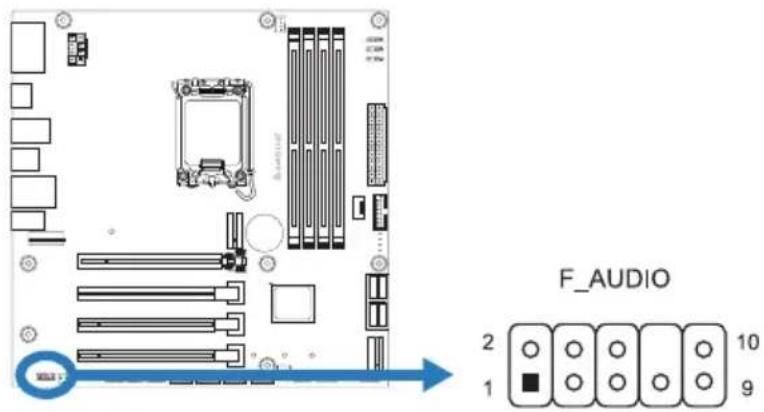

F\_AUDIO: Front Panel Audio Header

This header allows user to connect the chassis-mount front panel audio I/O which supports HD.

HD Audio

Pin Assignment

1 Mic Left in

2 Ground

3 Mic Right in

4 GP O

5 Right line in

6 Jack Sense

7 Front Sense

8 Key

9 Left line in

10 Jack Sense

Note

» When using the front HD audio jack and plug in the headset, the rear sound will be automatically Disabled.
» It is recommended that you connect a high-definition front panel audio module to this connector to avail of the motherboard's high definition audio capability.

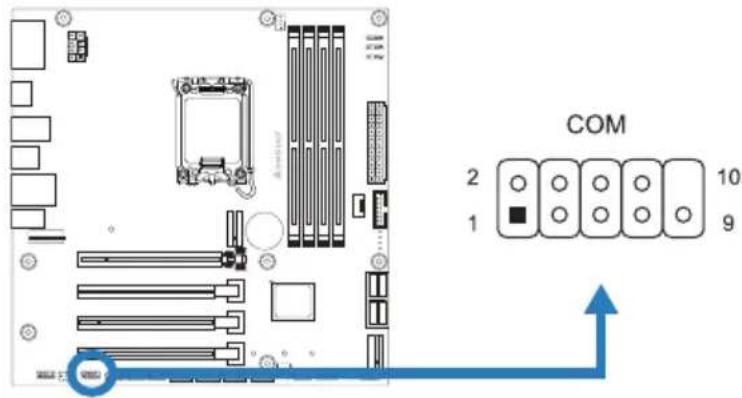

COM: Serial Port Header

The motherboard has a serial port header for connecting RS-232 Port.

Pin Assignment

1 Carrier detect

2 Received data

3 Transmitted data

4 Data terminal ready

5 Signal ground

6 Data set ready

7 Request to send

8 Clear to send

9 Ring indicator

10 Key

12V\_LED: RGB LED Device (5050 SMD) Header

This header providers 12V power and RGB control pins for RGB LED Device (5050 SMD).

5V\_LED1/ 5V\_LED2: Addressable RGB LED Device (WS2818B) Header

This header providers 5V power and Data control pins for RGB LED Device (WS2818B).

Note

» Ensure proper pin connecting to your LED device, wrong connection may damage your LED device or motherboard.
» The 12V_LED connector supports to 5050 RGB LED strips with the maximum power rating of 3A (12V).
» The 5V_LED connector supports up to 300 LEDs WS2818B individually Addressable RGB LED strips with the maximum power rating of 3A (5V).
» Please use the Vivid LED DJ software to control the LEDs. For detailed software setting information, refer to chapter 3.3.

2.8 LEDs

Debug LED: Debug LED Indicators

This LEDs indicate the status of the motherboard.

BOOT - indicates booting device is not detected or fail.

VGA - indicates GPU is not detected or fail.

DRAM - indicates DRAM is not detected or fail.

CPU - indicates CPU is not detected or fail.

Note

» After starting the computer, the LED indicators will light up in the following order:
» When the computer is ready, the LED indicator will show where the error occurred and will stay on until the problem is solved.
» After the computer is started, the Debug LED will not light up if there is no abnormality detected.

$$ C P U \rightarrow D R A M \rightarrow V G A \rightarrow B O O T $$

Chapter 3: UEFI BIOS & Software

3.1 UEFI BIOS Setup

• The BIOS Setup program can be used to view and change the BIOS settings for the computer. The BIOS Setup program is accessed by pressing the key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins.
• For further information of setting up the UEFI BIOS, please refer to the UEFI BIOS Manual on our website.

3.2 BIOS Update

The BIOS can be updated using either of the following utilities:

• BIOSTAR BIO-Flasher: Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM.
• BIOSTAR BIOS Update Utility: It enables automated updating while in the Windows environment. Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM, or from the file location on the Web.

BIOSTAR BIO-Flasher

Note

» This utility only allows storage device with FAT32/16 format and single partition.
» Shutting down or resetting the system while updating the BIOS will lead to system boot failure.

Updating BIOS with BIOSTAR BIO-Flasher

1. Go to the website to download the latest BIOS file for the motherboard.
2. Then, copy and save the BIOS file into a USB flash (pen) drive.(Only supported FAT/FAT32 format)
3. Insert the USB pen drive that contains the BIOS file to the USB port.

4. Power on or reset the computer and then press during the POST process.

5. After entering the POST screen, the BIO-FLASHER utility pops out. Choose to search for the BIOS file.

1. Select the proper BIOS file, and a message asking if you are sure to flash the BIOS file. Click "Yes" to start updating BIOS.

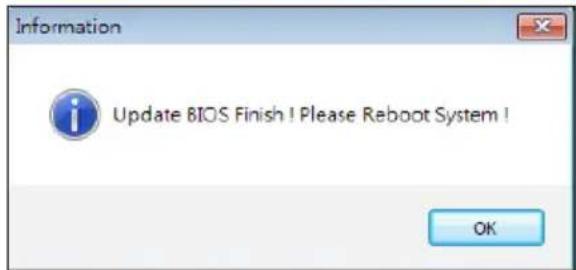

1. A dialog pops out after BIOS flash is completed, asking you to restart the system. Press the key to restart system.

1. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the , using the function to load Optimized Defaults, and select to restart the computer. Then the BIOS Update is completed.

BIOS Update Utility (through the Internet)

1. Installing BIOS Update Utility from the DVD Driver.

2. Please make sure the system is connected to the internet before using this function.

3. Launch BIOS Update Utility and click the "Online Update" button on the main screen.

1. An open dialog will show up to request your agreement to start the BIOS update. Click "Yes" to start the online update procedure.

1. If there is a new BIOS version, the utility will ask you to download it. Click "Yes" to proceed.

2. After the download is completed, you will be asked to program (update) the BIOS or not. Click "Yes" to proceed.

3. After the updating process is finished, you will be asked you to reboot the system. Click "OK" to reboot.

1. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the , using the function to load Optimized Defaults, and select and to restart the computer. Then, the BIOS Update is completed.

BIOS Update Utility (through a BIOS file)

1. Installing BIOS Update Utility from the DVD Driver.

2. Download the proper BIOS from http://www.biostar.com.tw/

3. Launch BIOS Update Utility and click the "Update BIOS" button on the main screen.

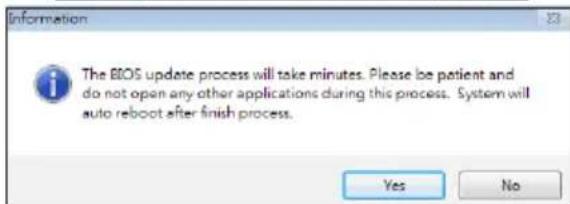

4. A warning message will show up to request your agreement to start the BIOS update. Click "OK" to start the update procedure.

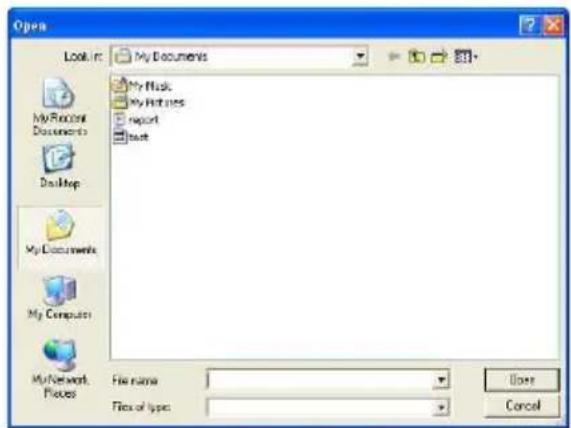

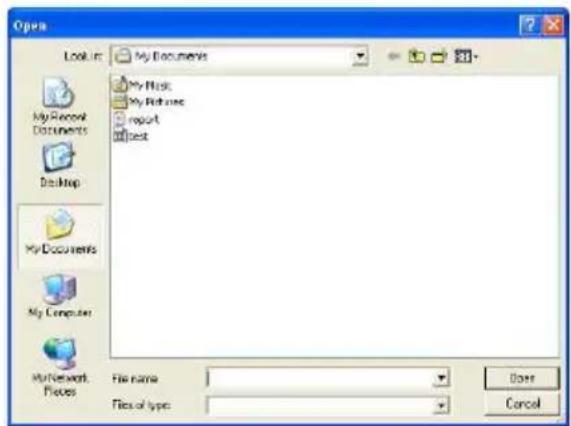

1. Choose the location for your BIOS file in the system. Please select the proper BIOS file, and then click on "Open". It will take several minutes, please be patient.

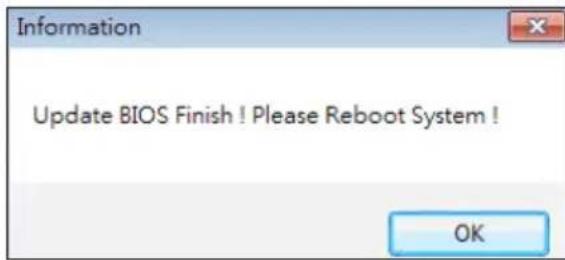

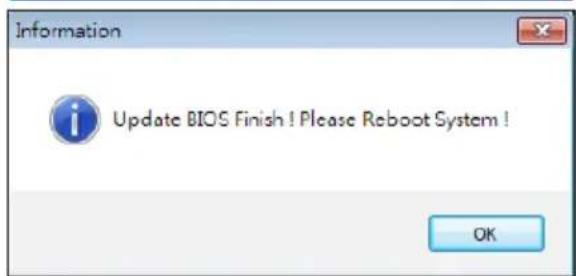

2. After the BIOS Update process is finished, click on "OK" to reboot the system.

3. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the , using the function to load Optimized Defaults, and select to restart the computer. Then, the BIOS Update is completed.

Backup BIOS

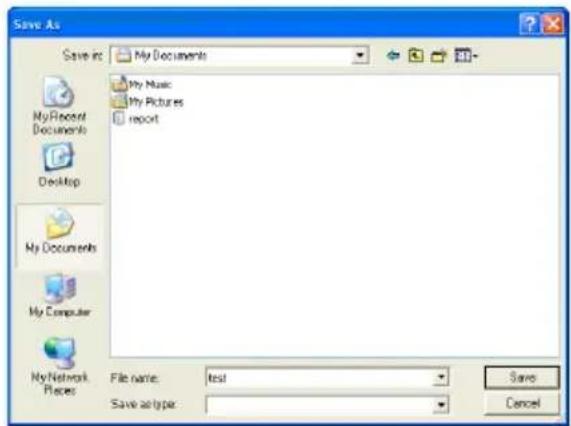

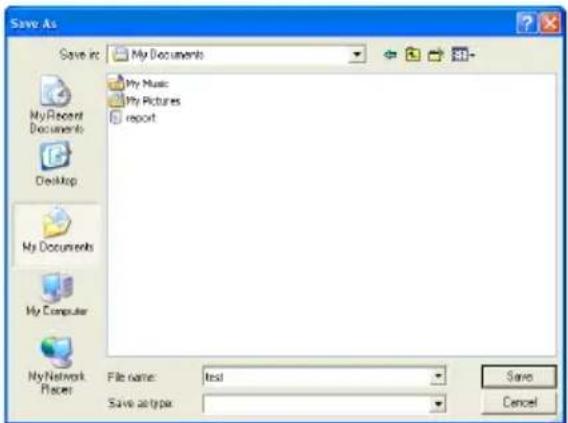

Click the Backup BIOS button on the main screen for the backup of BIOS, and select a proper location for your backup BIOS file in the system, and click "Save".

3.3 Software

Installing Software

1. Insert the Setup DVD to the optical drive. The driver installation program would appear if the Auto-run function has been enabled.
2. Select Software Installation, and then click on the respective software title.
3. Follow the on-screen instructions to complete the installation.

Launching Software

After the installation process is completed, you will see the software icon showing on the desktop. Double-click the icon to launch it.

Note

» All the information and content about following software are subject to be changed without notice. For better performance, the software is being continuously updated.
» The information and pictures described below are for your reference only. The actual information and settings on board may be slightly different from this manual.

BIOScreen Utility

This utility allows you to personalize your boot logo easily. You can choose BMP as your boot logo so as to customize your computer.

Please follow the step-by-step instructions below to update boot logo:

• Load Image: Choose the picture as the boot logo.
• Transform: Transform the picture for BIOS and preview the result.
• Update Bios: Write the picture to BIOS Memory to complete the update.

Vivid LED DJ

Vivid LED DJ can adjust your color scheme of ARMOR GEAR, RGB LED Device.

1. LED COMMANDER: Allows you to select the LED mode.

2. Default: Default LED illuminations. (Blue light)

3. RAZER: Allows you to connect to the RAZER app to sync the motherboard lights.
   » When using RAZER mode, turn off SILVER LIGHTNING Software and LED illumination will return to the default state.
   » RAZER mode is to achieve LED illumination synchronization through the connection with RAZER software.
   » RAZER software must be installed to use RAZER mode. RAZER ICON will appear after the software is installed.
   » When using RAZER mode, it must be used with RAZER related devices and peripheral devices.
   » RAZER related information please go to RAZER official website download.

4. RGB Sync : Allows you to synchronize the LED Type item settings.

5. LED Type: Select the LED lighting blocks.

• System : System LED illuminations. (SILVER ARMOR)
• 12V LED : The 12V LED illumination. (12V_LED Device)
- 5V LED: The 5V LED illumination. (5V_LED Device)
• Memory Sync : The RGB Audio LED illumination. (Memory LED)

1. ON/OFF: To enable or disable VIVID LED function.

2. ON/OFF: Allows you to enable or disable LED of a single item.

3. LED COLOR: LEDs change the Color Palette and LED Brightness.

4. LED SPARKLE: Allows to you choose sparkle of the LEDs.

• Permanent: LEDs are constantly lit.

• Shine: LEDs flash at a specific frequency.
- Breath: LEDs gradually flash on and off.
- Shine & Music: LEDs will flash according the music played on your system.

» Please make sure your speaker or earphone is properly connected to audio jack before using SILVER LIGHTNING program.

• Meteor: LEDs slide at a specific frequency.
  • Wave: LEDs are presented in a water wave rhythm.
  • Starry sky: LEDs flicker at a specific rhythm.
  • Lightning: LEDs flash and slide at a specific frequency.
• Rainbow: LEDs lights to dazzling colorful rhythm.
• Aurora: LEDs shows soft light and flickers lightly.
  • Starry night: LEDs two-color flashing.
• Colourful Permanent: LEDs are constantly lit with colorful loop.
• Colourful Shine: LEDs flash at a specific frequency with colorful loop.

• Colourful Breathe: LEDs gradually flash on and off with colorful loop.

• High/Low Speed Switch: Allows you to control the flicker speed.

1. LED Brightness Bar: Allows you to adjust the LED brightness.
2. Color Palette: Allows to you choose specific color of the LEDs.

Note

» With VIVID LED DJ users can control the four LED light zones independently with different flashing modes (LED SPARKLE).

Chapter 4: Useful help

4.1 Driver Installation

After you installed your operating system, please insert the Fully Setup Driver DVD into your optical drive and install the driver for better system performance.

You will see the following window after you insert the DVD

The setup guide will auto detect your motherboard and operating system.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will list the compatible driver for your motherboard and operating system. Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide will list the software available for your system, click on each software title to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver DVD. Click on the Manual icon to browse for available manual.

Note

» If this window didn't show up after you insert the Driver DVD, please use file browser to locate and execute the file SETUP.EXE under your optical drive.
» You will need Acrobat Reader to open the manual file. Please download the latest version of Acrobat Reader software from http://get.adobe.com/reader/
» The motherboard used in the illustrations may not resemble the actual board. these illustrations are for reference only.

4.2 AMI BIOS Beep Code

Boot Block Beep Codes

Number of Beeps Description

Continuing Memory sizing error or Memory module not found

POST BIOS Beep Codes

Number of Beeps Description
1 Success booting.
8 Display memory error	(system video adapter)

4.3 Troubleshooting

CPU Overheated

If the system shutdown automatically after power on system for seconds, that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown automatically to avoid a damage of the CPU, and the system may not power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.

2. CPU fan is rotated normally.

3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection function.

1. Remove the power cord from power supply for seconds.

2. Wait for seconds.

3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data. (See "Close CMOS Header: JCMOS1" section)

2. Wait for seconds.

3. Power on the system again.

APPENDIX: Specifications in Other Languages

Arabic

Примечание

Technical illustration of a mechanical component with mounting flanges and a central housing (no text or symbols)

3D diagram of a mechanical assembly with a rotating component and mounting base (no text or symbols)

3D diagram of a mechanical component with a blue arrow indicating rotation or movement (no text or symbols)

Примечание

Pin Assignment

1 Ground

2+12V

3FAN RPM rate sense

4AI Fan Control

Pin Assignment

1 Ground

2+12V

3FAN RPM rate sense

4Al Fan Control

Примечание

Technical line drawing of a computer RAM module with scroll and clamping mechanism (no text or symbols)

Isometric line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Примечание

3D diagram of a rectangular electronic device with a curved arm and label (no text or symbols)

3D diagram of a rectangular tray with a handle and a small protrusion, no text or symbols present

Pin Assignment

1 +12V

2+12V

3+12V

4+12V

5 Ground

6Ground

7Ground

8 Ground

Примечание

Pin	Assignment Function Pin	Assignment Function
1 HDD LED(+)	HDDLED (-)	2Power LED (+)	PowerLED
3HDD LED(-) 4PowerLED (-)
5 Ground	Reset Button	6Power Button	Power-OnButton
7Reset Control 8 G
9NC NC 10 NA NA

Pin	Assignment
1 +5V
2N/A
3N/A
4Speaker

HD Audio
Pin	Назначение
1 Mic Left in
2Ground
3Mic Right in
4GPIO
5 Right line in
6Jack Sense
7Front Sense
8 Key
9Left line in
10 Jack Sense

Примечание

Pin Assignment

1 Carrier detect

2Received data

3Transmitted data

4Data terminal ready

5 Signal ground

6Data set ready

7Request to send

8 Clear to send

9Ring indicator

10 Key

Diagram of a computer motherboard showing CPU socket and internal components, with no readable text or symbols.

주의

Technical line drawing of a mechanical component with mounting base and internal components (no text or symbols)

5 플라스틱 보호덮개를 제거합니다.

3D mechanical assembly diagram showing a component mounted on a base plate with a blue arrow indicating rotation (no text or symbols)

3D technical diagram of a mechanical component with mounting flanges and a blue rotation arrow (no text or symbols)

주의

핀	배열
1 Ground
2 + 12V
3 FAN RPM rate sense
4 A Fan Control

SYS_FAN1: 시스템 팬 헤더

핀	배열
1 Ground
2 +12V
3 FAN RPM rate sense
4 A Fan Control

주의

Technical line drawing of a RAM module with mounting bracket and clamping mechanism (no text or symbols)

Isometric line drawing of a mechanical component with multiple slots and directional arrows indicating motion (no text or symbols)

주의

3D diagram of a rectangular device with a curved handle and a small loop attached, no text or symbols present

3D diagram of a rectangular object with a small protrusion and label (4), no text or symbols present.

확장 카드 설치

Pin opened Pin closed Pin 1-2 closed

JCMOS: CMOS 클리어 점퍼

핀	배열
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7Ground

주의

HD Audio
핀	배열
1 Mic Left in
2 Ground
3 Mic Right in
4 GPIO
5 Right line in
6 Jack Sense
7Front Sense
8 Key
9 Left line in
10 Jack Sense

주의

5V\_LED1/5V\_LED2: Addressable RGB LED 장치 (WS2818B) 헤더

3.3 소프트웨어

소프트웨어의 설치

注意

步驟 4: 將 CPU 保護蓋蓋上。

3D technical illustration of a mechanical component with mounting flanges and internal parts (no text or symbols)

步驟 5: 取下塑膠保護殼。

Mechanical assembly diagram showing a clamping mechanism with a blue arrow indicating rotation (no text or symbols present)

步驟 6: 將 ILM 拉桿完全閉合。

3D technical diagram of a mechanical component with mounting flanges and a blue rotation arrow (no text or symbols)

注意

Technical line drawing of a computer RAM module with mounting bracket and scroll wheel (no text or symbols)

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

注意

雙通道狀態 DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2
Enabled O X O X
Enabled X O X O
Enabled O O O O

3D diagram of a rectangular device with a curved arm and label (③), no text or symbols present.

3D diagram of a rectangular tray with a small cup on top, no text or symbols present

安裝擴充卡

請參照以下步驟安裝擴充卡：

3.3 軟體

安裝軟體
