USER MANUAL Mellanox ConnectX-6 NVIDIA
NVIDIA Mellanox ConnectX-6 InfiniBand/VPI Adapter Cards User Manual
Table of Contents
Table of Contents 2
Introduction......9
Product Overview 9
ConnectX-6 PCIe x8 Card....10
ConnectX-6 PCIe x16 Card.... 11
ConnectX-6 Socket Direct™ Cards 11
ConnectX-6 Dual-slot Socket Direct Cards (2x PCIe x16) 12
ConnectX-6 Single-slot Socket Direct Cards (2x PCIe x8 in a row) 13
Package Contents 14
ConnectX-6 PCIe x8/x16 Adapter Cards.... 14
ConnectX-6 Socket Direct Cards (2x PCIe x16).... 14
Features and Benefits.... 15
Operating Systems/Distributions 17
Connectivity 17
Manageability 17
Interfaces....18
InfiniBand Interface....18
Ethernet QSFP56 Interfaces 18
PCI Express Interface 18

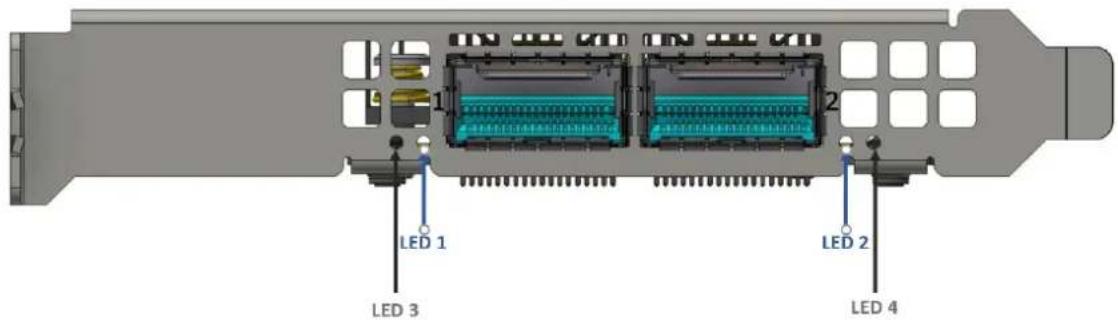

LED Interface....18
Heat Sink Interface.... 19
SMBus Interface 20
Voltage Regulators 20
Hardware Installation 21
Safety Warnings....21
Installation Procedure Overview....21
System Requirements....22
Hardware Requirements 22
Airflow Requirements 22
Software Requirements 23
Safety Precautions 23
Pre-Installation Checklist....24
Bracket Replacement Instructions 24
Installation Instructions.... 25
Cables and Modules 25
Identifying the Card in Your System 26
ConnectX-6 PCIe x8/16 Installation Instructions.... 27
Installing the Card....27
Uninstalling the Card 29
ConnectX-6 Socket Direct (2x PCIe x16) Installation Instructions 30
Installing the Card....31
Uninstalling the Card 37
Driver Installation 39
Linux Driver Installation....39
Prerequisites 39
Downloading Mellanox OFED 39
Installing Mellanox OFED 41
Installation Script....41
Installation Procedure 42
Installation Results 44
Installation Logs....44
openibd Script....44
Driver Load Upon System Boot 45
mlnxofedinstall Return Codes.... 45
Uninstalling MLNX_OFED....46
Installing MLNX_OFED Using YUM 46
Setting up MLNX_OFED YUM Repository....46
Installing MLNX_OFED Using the YUM Tool ....47
Uninstalling MLNX_OFED Using the YUM Tool 48
Installing MLNX_OFED Using apt-get Tool.... 48
Setting up MLNX_OFED apt-get Repository ....48
Installing MLNX_OFED Using the apt-get Tool....48
Uninstalling MLNX_OFED Using the apt-get Tool.... 49
Updating Firmware After Installation.... 49
Updating the Device Online....49
Updating the Device Manually ....50
Updating the Device Firmware Automatically upon System Boot ....50
UEFI Secure Boot....51
Enrolling Mellanox's x.509 Public Key on Your Systems....51
Removing Signature from kernel Modules 51
Performance Tuning 52
Windows Driver Installation....52
Software Requirements 53
Downloading Mellanox WinOF-2 Driver 53
Attended Installation 54
Unattended Installation....58
Installation Results 59
Uninstalling Mellanox WinOF-2 Driver....60
Attended Uninstallation 60
Unattended Uninstallation....60
Extracting Files Without Running Installation 60
Firmware Upgrade 63
VMware Driver Installation 63
Hardware and Software Requirements.... 63
Installing Mellanox NATIVE ESXi Driver for VMware vSphere 64
Removing Earlier Mellanox Drivers....64
Firmware Programming....65
Updating Adapter Firmware 66
Troubleshooting....67
General Troubleshooting 67
Linux Troubleshooting 67
Windows Troubleshooting....68
Specifications 69
MCX651105A-EDAT Specifications 69
MCX653105A-HDAT Specifications....70
MCX653106A-HDAT Specifications....71
MCX653105A-ECAT Specifications 73
MCX653106A-ECAT Specifications 74
MCX654105A-HCAT Specifications.... 75
MCX654106A-HCAT Specifications....77
MCX654106A-ECAT Specifications 78
MCX653105A-EFAT Specifications....80
MCX653106A-EFAT Specifications....81

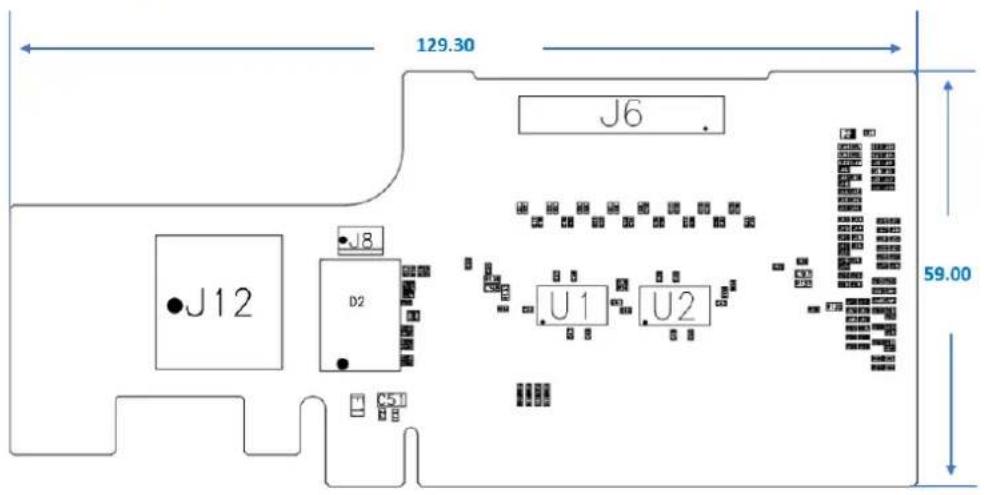

Adapter Card and Bracket Mechanical Drawings and Dimensions.... 82
ConnectX-6 PCIe x16 Adapter Card 83
ConnectX-6 PCIe x8 Adapter Card 83
Auxiliary PCIe Connection Card 84
Tall Bracket 84
Short Bracket 84
PCIe Express Pinouts Description for Single-Slot Socket Direct Card....85
Finding the GUID/MAC on the Adapter Card 86
Document Revision History 88
About This Manual
This User Manual describes NVIDIA® Mellanox® ConnectX®-6 InfiniBand/VPI adapter cards. It provides details as to the interfaces of the board, specifications, required software and firmware for operating the board, and relevant documentation.
Ordering Part Numbers
The table below provides the ordering part numbers (OPN) for the available ConnectX-6 InfinIBand/VPI adapter cards.
| OPN Marketing Description | |
| MCX654106A-ECAT ConnectX®-6 VPI adapter card | 100Gb/s (HDR100, EDRInfiniBand and 100GbE), dual-port QSFP56, Socket Direct 2x PCIe 3.0/4.0 x16, tall bracket |
| MCX653105A-EFAT ConnectX®-6 VPI adapter card | 100Gb/s (HDR100, EDR IB and 100GbE), single-port QSFP56, PCIe3.0/4.0 Socket Direct 2x8 in a row, tall bracket |
| MCX653106A-EFAT ConnectX®-6 VPI adapter card | 100Gb/s (HDR100, EDRIBand100GbE), dual-port QSFP56, PCIe3.0/4.0 Socket Direct 2x8 in a row, tall bracket |
| MCX651105A-EDAT ConnectX®-6 VPI adapter card | 100Gb/s (HDR100, EDR IB and 100GbE, single-port QSFP56, PCIe4.0 x8, tall bracket |
| MCX653105A-ECAT ConnectX®-6 VPI adapter card | 100Gb/s (HDR100, EDR IB and 100GbE), single-port QSFP56, PCIe3.0/4.0 x16, tall bracket |
| MCX653106A-ECAT ConnectX®-6 VPI adapter card | 100Gb/s (HDR100, EDR IB and 100GbE), dual-port QSFP56, PCIe3.0/4.0 x16, tall bracket |
| MCX653105A-HDAT | ConnectX®-6 VPI adapter card, HDR IB (200Gb/s) and 200GbE, single-port QSFP56, PCIe3.0/4.0 x16, tall bracket |
| MCX653106A-HDAT ConnectX®-6 VPI adapter card | HDR IB (200Gb/s) and 200GbE, dual-port QSFP56, PCIe3.0/4.0 x16, tall bracket |
| MCX654105A-HCAT | ConnectX®-6 VPI adapter card, HDR IB (200Gb/s) and 200GbE, single-port QSFP56, Socket Direct 2x PCIe3.0/4.0x16, tall bracket |
| MCX654106A-HCAT ConnectX®-6 VPI adapter card | HDR IB (200Gb/s) and 200GbE, dual-port QSFP56, Socket Direct 2x PCIe3.0/4.0x16, tall bracket |
Intended Audience
This manual is intended for the installer and user of these cards.
The manual assumes basic familiarity with InfiniBand and Ethernet network and architecture specifications.
Technical Support
Customers who purchased Mellanox products directly from Mellanox are invited to contact us through the following methods:
- URL: http://www.mellanox.com > Support
• E-mail: support@mellanox.com
• Tel: +1.408.916.0055
Customers who purchased Mellanox M-1 Global Support Services, please see your contract for details regarding Technical Support.
Customers who purchased Mellanox products through a Mellanox approved reseller should first seek assistance through their reseller.
Related Documentation
| Mellanox OFED for Linux User Manual and Release Notes | User Manual describing OFED features, performance, band diagnostic, tools content and configuration. See Mellanox OFED for Linux Documentation. |
| WinOF-2 for Windows User Manual and Release Notes | User Manual describing WinOF-2 features, performance, Ethernet diagnostic, tools content and configuration. See WinOF-2 for Windows Documentation. |
| Mellanox VMware for Ethernet User Manual | User Manual describing the various components of the Mellanox ConnectX® NATIVE ESXi stack. See http://www.mellanox.com Products > Software > Ethernet Drivers > VMware Driver > User Manual |
| Mellanox VMware for Ethernet Release Notes | Release notes for Mellanox ConnectX® NATIVE ESXi stack. See http://www.mellanox.com Software > Ethernet Drivers > VMware Driver > Release Notes |
| Mellanox Firmware Utility (mlxup) User Manual and Release Notes | Mellanox firmware update and query utility used to update the firmware. See http://www.mellanox.com > Products > Software > Firmware Tools > mlxup Firmware Utility |
| Mellanox Firmware Tools (MFT) User Manual | User Manual describing the set of MFT firmware management tools for a single node. See MFT User Manual. |
| IEEE Std 802.3 Specification | IEEE Ethernet specification at http://standards.ieee.org |
| PCI Express 3.0/4.0 Specifications | Industry Standard PCI Express Base and Card Electromechanical Specifications at https://pcisig.com/specifications |
| Mellanox LinkX Interconnect Solutions | Mellanox LinkX InfiniBand cables and transceivers are designed to maximize the performance of High-Performance Computing networks, requiring high-bandwidth, low-latency connections between compute nodes and switch nodes. Mellanox offers one of industry's broadest portfolio of QDR/FDR10 (40Gb/s), FDR (56Gb/s), EDR/HDR100 (100Gb/s) and HDR (200Gb/s) cables, including Direct Attach Copper cables (DACs), copper splitter cables, Active Optical Cables (AOCs) and transceivers in a wide range of lengths from 0.5m to 10km. In addition to meeting IBTA standards, Mellanox tests every product in an end-to-end environment ensuring a Bit Error Rate of less than 1E-15. Read more at https://www.mellanox.com/products/interconnect/infiniband-overview.php |
Document Conventions
When discussing memory sizes, MB and MBytes are used in this document to mean size in mega Bytes. The use of Mb or Mbits (small b) indicates size in mega bits. IB is used in this document to mean InfiniBand. In this document PCIe is used to mean PCI Express.
Revision History
A list of the changes made to this document are provided in Document Revision History.
Introduction
Product Overview
This is the user guide for Mellanox technologies VPI adapter cards based on the ConnectX®-6 integrated circuit device. ConnectX-6 connectivity provides the highest performing low latency and most flexible interconnect solution for PCI Express Gen 3.0/4.0 servers used in enterprise datacenters and high-performance computing environments.
ConnectX-6 Virtual Protocol Interconnect® adapter cards provide up to two ports of 200Gb/s for InfiniBand and Ethernet connectivity, sub-600ns latency and 200 million messages per second, enabling the highest performance and most flexible solution for the most demanding High-Performance Computing (HPC), storage, and datacenter applications.
ConnectX-6 is a groundbreaking addition to the Mellanox ConnectX series of industry-leading adapter cards. In addition to all the existing innovative features of past ConnectX versions, ConnectX-6 offers a number of enhancements that further improve the performance and scalability of datacenter applications.
ConnectX-6 adapter cards are offered in a variety of PCIe configurations, as described in the below table.
Make sure to use a PCIe slot that is capable of supplying the required power and airflow to the ConnectX-6 as stated in Specifications.
| Configuration OPN Marketing Description | ||
| ConnectX-6 PCIe x8 Card MCX651105A | -EDAT ConnectX®-6 VPI adapter card, 100Gb/s(HDR100, EDR IB and 100GbE, single-port QSFP56, PCIe4.0 x8, tall bracket | |
| ConnectX-6 PCIe x16 Card | MCX653105A-HDAT ConnectX®-6 VPI adapter card, HDR IB(200Gb/s) and 200GbE, single-port QSFP56, PCIe4.0 x16, tall bracket | |
| MCX653106A-HDAT ConnectX®-6 VPI adapter card, HDR IB(200Gb/s) and 200GbE, dual-port QSFP56, PCIe3.0/4.0 x16, tall bracket | ||
| MCX653105A-ECAT ConnectX®-6 VPI adapter card, 100Gb/s(HDR100, EDR IB and 100GbE), single-port QSFP56, PCIe3.0/4.0 x16, tall bracket | ||
| MCX653106A-ECAT ConnectX®-6 VPI adapter card, 100Gb/s(HDR100, EDR IB and 100GbE), dual-port QSFP56, PCIe3.0/4.0 x16, tall bracket | ||
| ConnectX-6 Dual-slot Socket Direct Cards (2x PCIe x16) | MCX654105A-HCAT ConnectX®-6 VPI adapter card kit, HDR IB(200Gb/s) and 200GbE, single-port QSFP56, Socket Direct 2x PCIe3.0 x16, tall brackets | |
| MCX654106A-HCAT ConnectX®-6 VPI adapter card, HDR IB(200Gb/s) and 200GbE, dual-port QSFP56, Socket Direct 2x PCIe3.0/4.0x16, tall bracket | ||
| MCX654106A-ECAT ConnectX®-6 VPI adapter card, 100Gb/s (HDR100, EDR InfiniBand and 100GbE), dual-port QSFP56, Socket Direct 2x PCIe3.0/4.0 x16, tall bracket | ||
| ConnectX-6 Single-slot Socket Direct Cards (2x PCIe x8 in a row) | MCX653105A-EFAT ConnectX®-6 VPI adapter card, 100Gb/s (HDR100, EDR IB and 100GbE), single-port QSFP56, PCIe3.0/4.0 Socket Direct 2x8 in a row, tall bracket | |
| MCX653106A-EFAT ConnectX®-6 VPI adapter card, 100Gb/s (HDR100, EDR IBand100GbE), dual-port QSFP56, PCIe3.0/4.0 Socket Direct 2x8 in a row, tall bracket | ||

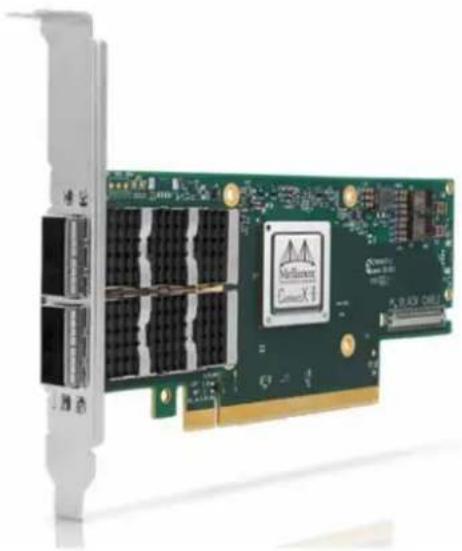

ConnectX-6 PCIe x8 Card
ConnectX-6 with a single PCIe x8 slot can support a bandwidth of up to 100Gb/s in a PCIe Gen 4.0 slot.


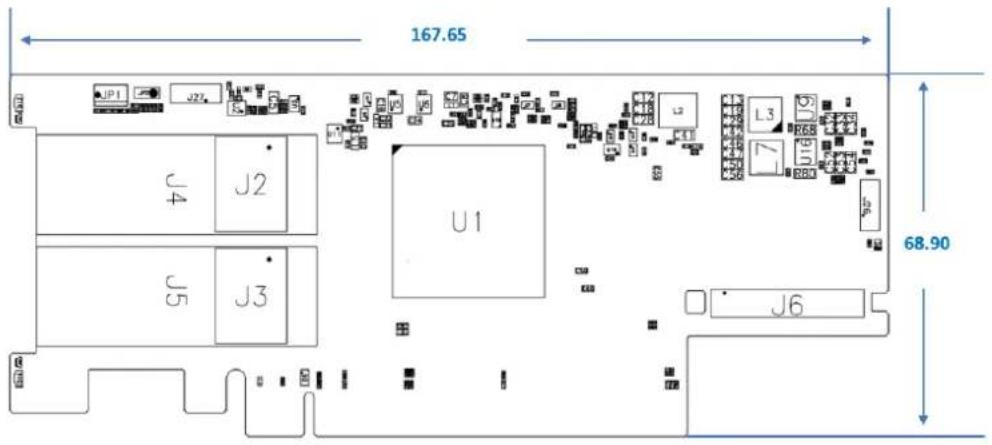

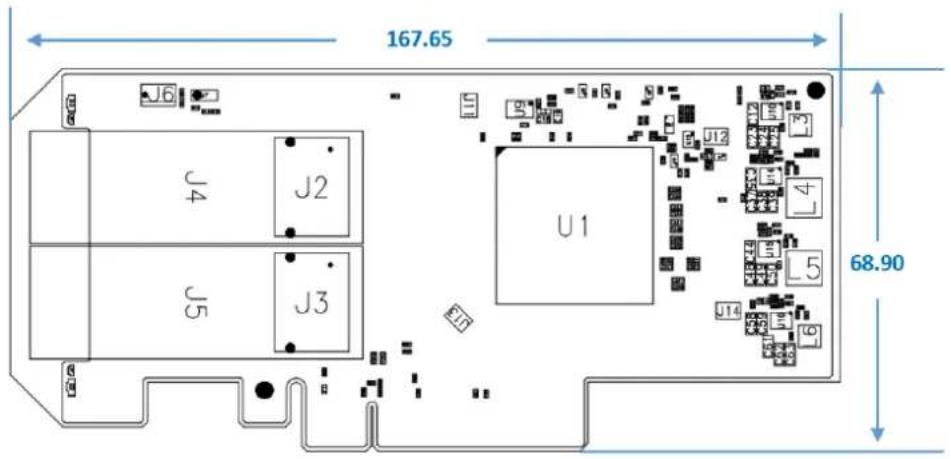

| Form Factor/Dimensions PCIe Half Height, Half Length / 167.65mm x 68.90mm | |
| Data Transmission Rate Ethernet: 10/25/40/50/100 Gb/sInfiniBand: SDR, DDR, QDR, FDR, EDR, HDR100 | |
| Network Connector Type Single-port QSFP56 | |
| PCIe x8 through Edge Connector PCIe Gen 3.0 / 4.0 SERDES @ 8.0GT/s / 16.0GT/s | |
| RoHS RoHS Compliant | |
| Adapter IC Part Number MT28908A0-XCCF-HVM | |

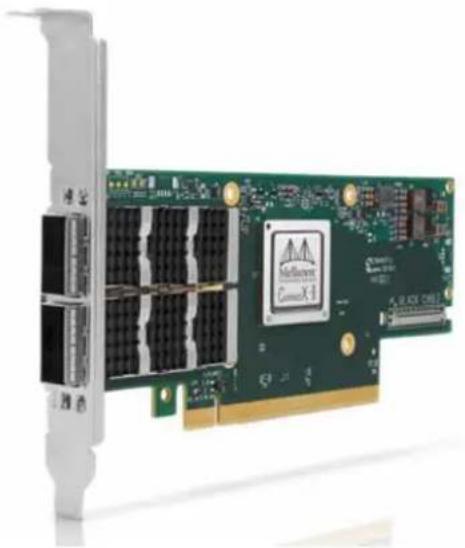

ConnectX-6 PCIe x16 Card
ConnectX-6 with a single PCIe x16 slot can support a bandwidth of up to 100Gb/s in a PCIe Gen 3.0 slot, or up to 200Gb/s in a PCIe Gen 4.0 slot.
| Form Factor/Dimensions PCIe Half Height, Half Length / 167.65mm x 68.90mm | ||||
| Data Transmission Rate Ethernet: | 10/25/40/50/100 Gb/sInfiniBand: SDR, DDR, QDR, FDR, EDR, HDR100 | Ethernet: 10/25/40/50/100/200 Gb/sInfiniBand: SDR, DDR, QDR, FDR, EDR, HDR100, HDR | ||
| Network Connector Type Single-portQSFP56 | Dual-portQSFP56 | Single-portQSFP56 | Dual-port QSFP56 | |
| PCIe x16 through Edge Connector | PCIe Gen 3.0 / 4.0 SERDES @ 8.0GT/s / 16.0GT/s | |||
| RoHS RoHS Compliant | ||||
| Adapter IC Part Number MT28908A0-XCCF-HVM | ||||
ConnectX-6 Socket Direct™ Cards
The Socket Direct technology offers improved performance to dual-socket servers by enabling direct access from each CPU in a dual-socket server to the network through its dedicated PCIe interface.
Please note that ConnectX-6 Socket Direct cards do not support Multi-Host functionality (i.e. connectivity to two independent CPUs). For ConnectX-6 Socket Direct card with Multi-Host functionality, please contact Mellanox.
ConnectX-6 Socket Direct cards are available in two configurations: Dual-slot Configuration (2x PCIe x16) and Single-slot Configuration (2x PCIe x8).
ConnectX-6 Dual-slot Socket Direct Cards (2x PCIe x16)
In order to obtain 200Gb/s speed, Mellanox offers ConnectX-6 Socket Direct that enable 200Gb/s connectivity also for servers with PCIe Gen 3.0 capability. The adapter's 32-lane PCIe bus is split into two 16-lane buses, with one bus accessible through a PCIe x16 edge connector and the other bus through an x16 Auxiliary PCIe Connection card. The two cards should be installed into two PCIe x16 slots and connected using two Cabline SA-II Plus harnesses, as shown in the below figure.
| Part Number MCX654105A- | HCAT | MCX654106A-HCAT | MCX654106A-ECAT |
| Form Factor/Dimensions Adapter | Card: PCIe Half Height, Half Length / 167.65mm x 68.90mmAuxiliary PCIe Connection Card: 5.09 in. x 2.32 in. (129.30mm x 59.00mm)Two 35cm Cabline CA-II Plus harnesses | ||
| Data Transmission Rate Ethernet: | 10/25/40/50/100/200Gb/sInfiniBand: SDR, DDR, QDR, FDR,EDR, HDR100, HDR | Ethernet: 10/25/40/50/100 Gb/sInfiniBand: SDR, DDR, QDR, FDR, EDR,HDR100 | |
| Network Connector Type Single-portQSFP56 | Dual-port QSFP56 | ||
| PCIe x16 through Edge Connector | PCIe Gen 3.0 / 4.0SERDES@ 8.0GT/s / 16.0GT/s | ||
| PCIe x16 through Auxiliary Card | PCIe Gen 3.0SERDES@ 8.0GT/s | ||
| RoHS RoHS Compliant | |||
| Adapter IC Part Number MT28908A0-XCCF-HVM | |||

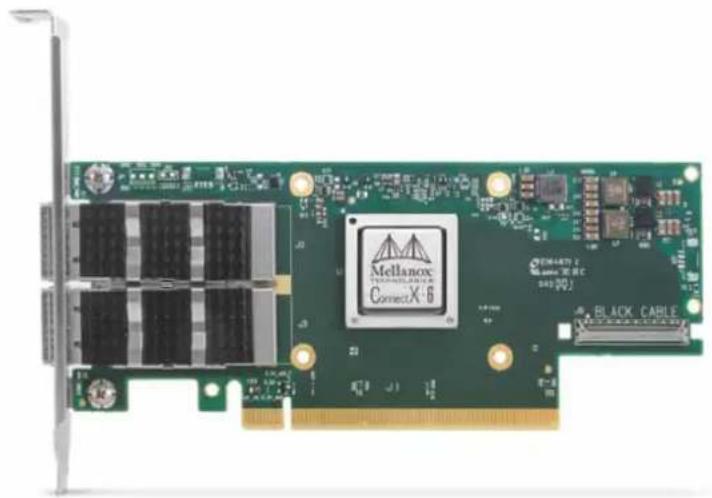

ConnectX-6 Single-slot Socket Direct Cards (2x PCIe x8 in a row)
The PCIe x16 interface comprises two PCIe x8 in a row, such that each of the PCIe x8 lanes can be connected to a dedicated CPU in a dual-socket server. In such a configuration, Socket Direct brings lower latency and lower CPU utilization as the direct connection from each CPU to the network means the interconnect can bypass a QPI (UPI) and the other CPU, optimizing performance and improving latency. CPU utilization is improved as each CPU handles only its own traffic and not traffic from the other CPU.
A system with a custom PCI Express x16 slot that includes special signals is required for installing the card. Please refer to PCIe Express Pinouts Description for Single-Slot Socket Direct Card for pinout definitions.
| Form Factor/Dimensions PCIe Half Height, Half Length / 167.65mm x 68.90mm | |
| Data Transmission Rate Ethernet: 10/25/40/50/100 Gb/sInfiniBand: SDR, DDR, QDR, FDR, EDR, HDR100 | |
| Network Connector Type Single-port QSFP56 Dual-port QSFP56 | |
| PCIe x16 through Edge Connector | PCIe Gen 3.0 / 4.0 SERDES @ 8.0GT/s / 16.0GT/s Socket Direct 2x8 in a row |
| RoHS RoHS Compliant | |
| Adapter IC Part Number MT28908A0-XCCF-HVM | |
Package Contents
ConnectX-6 PCIe x8/x16 Adapter Cards
Applies to MCX651105A-EDAT, MCX653105A-ECAT, MCX653106A-ECAT, MCX653105A-HDAT, MCX653106A-HDAT, MCX653105A-EFAT, MCX653106A-EFAT.
| Category Qty Item | ||
| Cards 1 ConnectX-6 adapter card | ||
| Accessories 1 Adapter card short bracket | ||
| 1 Adapter card tall bracket (shipped assembled on the card) | ||
ConnectX-6 Socket Direct Cards (2x PCIe x16)
Applies to MCX654105A-HCAT, MCX654106A-HCAT and MCX654106A-ECAT.
| Category Qty. Item | ||
| Cards 1 ConnectX-6 adapter card | ||

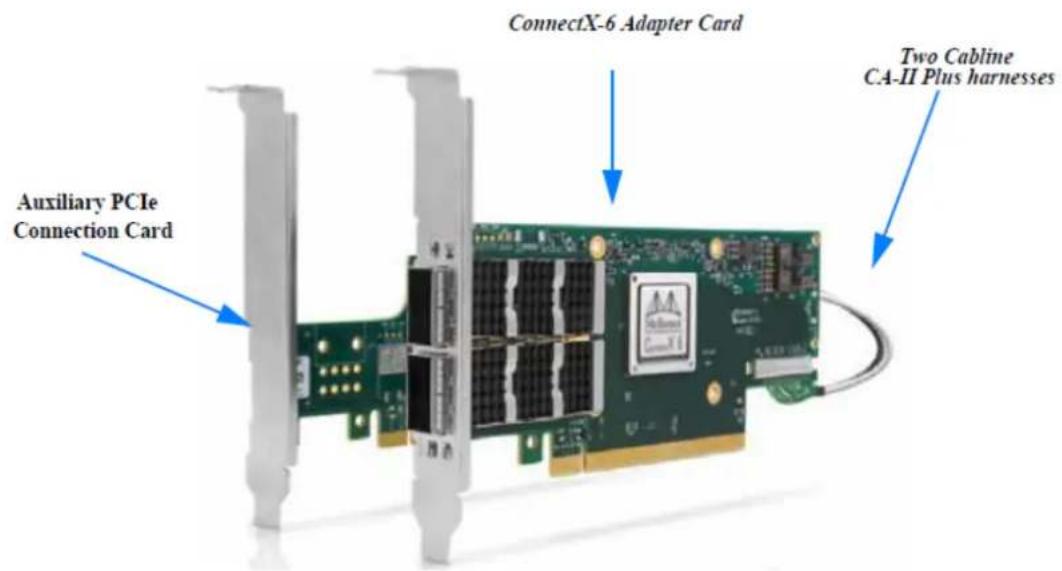

| 1 PCIe Auxiliary Card | ||

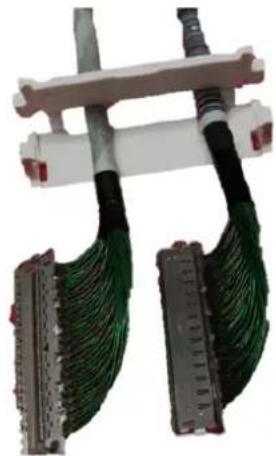

| Harnesses 1 35cm Cabline CA-II Plus harness (white) | ||
| 1 35cm Cabline CA-II Plus harness (black) | ||
| Accessories | 2 Retention Clip for Cablline harness (optional accessory) | |
| 1 Adapter card short bracket | ||
| 1 Adapter card tall bracket (shipped assembled on the card) | ||
| 1 PCIe Auxiliary card short bracket | ||
| 1 PCIe Auxiliary card tall bracket (shipped assembled on the card) |
Features and Benefits
Make sure to use a PCIe slot that is capable of supplying the required power and airflow to the ConnectX-6 cards as stated in Specifications.
| PCIExpress (PCIe) | Uses the following PCIe interfaces:PCIe x8/x16 configurations:PCIe Gen 3.0 (8GT/s) and Gen 4.0 (16GT/s) through an x8/x16 edge connector.2x PCIe x16 configurations:PCIe Gen 3.0/4.0 SERDES @ 8.0/16.0 GT/s through Edge ConnectorPCIe Gen 3.0 SERDES @ 8.0GT/s through PCIe Auxiliary Connection Card |
| 200Gb/sVirtual Protocol Interconnect (VPI) Adapter | ConnectX-6 offers the highest throughput VPI adapter, supporting HDR 200b/s InfiniBand and 200Gb/s Ethernet and enabling any standard networking, clustering, or storage to operate seamlessly over any converged network leveraging a consolidated software stack. |
| InfiniBand Architecture Specification v1.3 compliant | ConnectX-6 delivers low latency, high bandwidth, and computing efficiency for performance-driven server and storage clustering applications. ConnectX-6 is InfiniBand Architecture Specification v1.3 compliant. |
| Up to 200 Gigabit Ethernet | Mellanox adapters comply with the following IEEE 802.3 standards:200GbE / 100GbE / 50GbE / 40GbE / 25GbE / 10GbE / 1GbE- IEEE 802.3bj, 802.3bm 100 Gigabit Ethernet- IEEE 802.3by, Ethernet Consortium25, 50 Gigabit Ethernet, supporting all FEC modes- IEEE 802.3ba 40 Gigabit Ethernet- IEEE 802.3by 25 Gigabit Ethernet- IEEE 802.3ae 10 Gigabit Ethernet- IEEE 802.3ap based auto-negotiation and KR startup- IEEE 802.3ad, 802.1AX Link Aggregation- IEEE 802.1Q, 802.1P VLAN tags and priority- IEEE 802.1Qau (QCN)- Congestion Notification- IEEE 802.1Qaz (ETS)- IEEE 802.1Qbb (PFC)- IEEE 802.1Qbg- IEEE 1588v2- Jumbo frame support (9.6KB) |
| InfiniBand HDR100 | A standard InfiniBand data rate, where each lane of a 2X port runs a bit rate of 53.125Gb/s with a 64b/66b encoding, resulting in an effective bandwidth of 100Gb/s. |
| InfiniBand HDR | A standard InfiniBand data rate, where each lane of a 4X port runs a bit rate of 53.125Gb/s with a 64b/66b encoding, resulting in an effective bandwidth of 200Gb/s. |
| Memory Components | SPI Quad - includes 256Mbit SPI Quad Flash device (MX25L25645GXDI-08G device by Macronix)FRU EEPROM - Stores the parameters and personality of the card. The EEPROM capacity is 128Kbit. FRU I2C address is (0x50) and is accessible through the PCIe SMBus. |
| Overlay Networks | In order to better scale their networks, datacenter operators often create overlay networks that carry traffic from individual virtual machines over logical tunnels in encapsulated formats such as NVGRE and VXLAN. While this solves network scalability issues, it hides the TCP packet from the hardware offloading engines, placing higher loads on the host CPU. ConnectX-6 effectively addresses this by providing advanced NVGRE and VXLAN hardware offloading engines that encapsulate and de-capsulate the overlay protocol. |
| RDMA and RDMA over Converged Ethernet (RoCE) | ConnectX-6, utilizing IBTA RDMA (Remote Data Memory Access) and RoCE (RDMA over Converged Ethernet) technology, delivers low-latency and high-performance over InfiniBand and Ethernet networks. Leveraging datacenter bridging (DCB) capabilities as well as ConnectX-6 advanced congestion control hardware mechanisms, RoCE provides efficient low-latency RDMA services over Layer 2 and Layer 3 networks. |
| Mellanox PeerDirectTM | PeerDirectTM communication provides high efficiency RDMA access by eliminating unnecessary internal data copies between components on the PCIe bus (for example, from GPU to CPU), and therefore significantly reduces application run time. ConnectX-6 advanced acceleration technology enables higher cluster efficiency and scalability to tens of thousands of nodes. |
| CPU Offload | Adapter functionality enabling reduced CPU overhead allowing more available CPU for computation tasks.Flexible match-action flow tablesOpen VSwitch (OVS) offload using ASAP2(TM)Tunneling encapsulation / decapsulation |
| Quality of Service (QoS) | Support for port-based Quality of Service enabling various application requirements for latency and SLA. |
| Hardware-based I/O Virtualization | ConnectX-6 provides dedicated adapter resources and guaranteed isolation and protection for virtual machines within the server. |
| Storage Acceleration | A consolidated compute and storage network achieves significant cost-performance advantages over multi-fabric networks. Standard block and file access protocols can leverage:RDMA for high-performance storage accessNVMe over Fabric offloads for target machineErasure CodingT10-DIF Signature Handover |
| SR-IOV | ConnectX-6 SR-IOV technology provides dedicated adapter resources and guaranteed isolation and protection for virtual machines (VM) within the server. |
| High-Performance Accelerations | Tag Matching and Rendezvous OffloadsAdaptive Routing on Reliable TransportBurst Buffer Offloads for Background Checkpointing |
Operating Systems/Distributions
ConnectX-6 Socket Direct cards 2x PCIe x16 (OPNs: MCX654105A-HCAT, MCX654106A-HCAT and MCX654106A-ECAT) are not supported in Windows and WinOF-2.
- OpenFabrics Enterprise Distribution (OFED)
- RHEL/CentOS
- Windows
- FreeBSD
- VMware
- OpenFabrics Enterprise Distribution (OFED)
- OpenFabrics Windows Distribution (WinOF-2)
Connectivity
- Interoperable with 1/10/25/40/50/100/200 Gb/s InfiniBand/VPI and Ethernet switches
• Passive copper cable with ESD protection - Powered connectors for optical and active cable support
Manageability
ConnectX-6 technology maintains support for manageability through a BMC. ConnectX-6 PCIe stand-up adapter can be connected to a BMC using MCTP over SMBus or MCTP over PCIe protocols as if it is a standard Mellanox PCIe stand-up adapter. For configuring the adapter for the specific manageability solution in use by the server, please contact Mellanox Support.
Interfaces
InfiniBand Interface
The network ports of the ConnectX®-6 adapter cards are compliant with the InfiniBand Architecture Specification, Release 1.3. InfiniBand traffic is transmitted through the cards' QSFP56 connectors.
Ethernet QSFP56 Interfaces
The adapter card includes special circuits to protect from ESD shocks to the card/server when plugging copper cables.
The network ports of the ConnectX-6 adapter card are compliant with the IEEE 802.3 Ethernet standards listed in Features and Benefits. Ethernet traffic is transmitted through the QSFP56 connectors on the adapter card.
PCI Express Interface
ConnectX®-6 adapter cards support PCI Express Gen 3.0/4.0 (1.1 and 2.0 compatible) through x8/x16 edge connectors. The device can be either a master initiating the PCI Express bus operations, or a slave responding to PCI bus operations.
The following lists PCIe interface features:
- PCIe Gen 3.0 and 4.0 compliant, 2.0 and 1.1 compatible
• 2.5, 5.0, 8.0, or 16.0 GT/s link rate x16/x32
• Auto-negotiates to x32, x16, x8, x4, x2, or x1
• Support for MSI/MSI-X mechanisms
LED Interface
The adapter card includes special circuits to protect from ESD shocks to the card/server when plugging copper cables.
There are two I/O LEDs per port:
- LED 1 and 2: Bi-color I/O LED which indicates link status. LED behavior is described below for Ethernet and InfiniBand port configurations.
• LED 3 and 4: Reserved for future use.
LED1 and LED2 Link Status Indications (Physical and Logical) - Ethernet Protocole:
| LED Color and State Description | |
| Off A link has not been established | |
| Blinking amber 1 Hz Blinking amber occurs due to running a beacon command for locating the adapter card4 Hz blinking amber indicates a problem with the physical link | |
| Solid green Indicates a valid link with no active traffic | |
| Blinking green Indicates a valid logical link with active traffic |
LED1 and LED2 Link Status Indications (Physical and Logical) - InfiniBand Protocole:
| LED Color and State Description | |
| Off A physical link has not been established | |
| Solid amber Indicates an active physical link | |
| Blinking amber 1 Hz Blinking amber occurs due to running a beacon command for locating the adapter card4 Hz blinking amber indicates a problem with the physical link | |
| Solid green Indicates a valid logical (data activity) link with no active traffic | |
| Blinking green Indicates a valid logical link with active traffic |
Heat Sink Interface
The heatsink is attached to the ConnectX-6 IC in order to dissipate the heat from the ConnectX-6 IC. It is attached either by using four spring-loaded push pins that insert into four mounting holes, or by screws.
ConnectX-6 IC has a thermal shutdown safety mechanism which automatically shuts down the ConnectX-6 card in cases of high-temperature event, Improper thermal coupling or heatsink removal. For the required airflow (LFM) per OPN, please refer to Specifications.
SMBus Interface
ConnectX-6 technology maintains support for manageability through a BMC. ConnectX-6 PCIe stand-up adapter can be connected to a BMC using MCTP over SMBus or MCTP over PCIe protocols as if it is a standard Mellanox PCIe stand-up adapter. For configuring the adapter for the specific manageability solution in use by the server, please contact Mellanox Support.
Voltage Regulators
The voltage regulator power is derived from the PCI Express edge connector 12V supply pins. These voltage supply pins feed on-board regulators that provide the necessary power to the various components on the card.
Hardware Installation
Installation and initialization of ConnectX-6 adapter cards require attention to the mechanical attributes, power specification, and precautions for electronic equipment.
Safety Warnings
Safety warnings are provided here in the English language. For safety warnings in other languages, refer to the Adapter Installation Safety Instructions document available on mellanox.com.
Please observe all safety warnings to avoid injury and prevent damage to system components. Note that not all warnings are relevant to all models.
Unable to render include or excerpt-include. Could not retrieve page.
Installation Procedure Overview
The installation procedure of ConnectX-6 adapter cards involves the following steps:
| Step Procedure Direct Link | |
| 1 Check the system's hardware and software requirements. | System Requirements |
| 2 Pay attention to the airflow consideration within the host system | Airflow Requirements |
| 3 Follow the safety precautions Safety Precautions | _ |
| 4 Unpack the package Unpack the package | _ |
| 5 Follow the pre-installation checklist Pre-Installation Checklist | _ |
| 6 (Optional) Replace the full-height mounting bracket with the supplied short bracket | Bracket Replacement Instructions |
| 7 Install the ConnectX-6 PCIe x8/x16 adapter card in the system | ConnectX-6 PCIe x8/x16 Adapter Cards Installation Instructions |

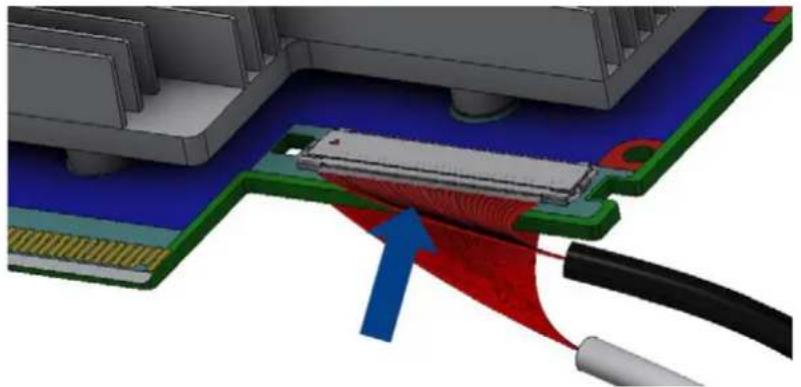

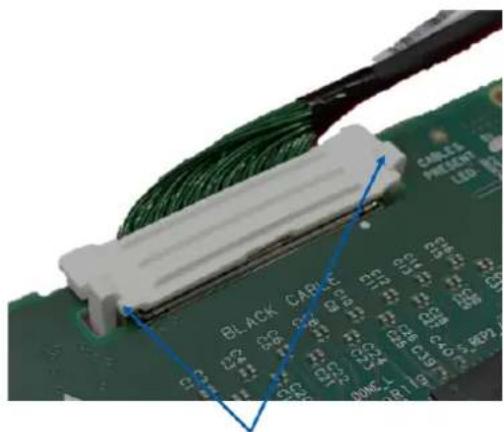

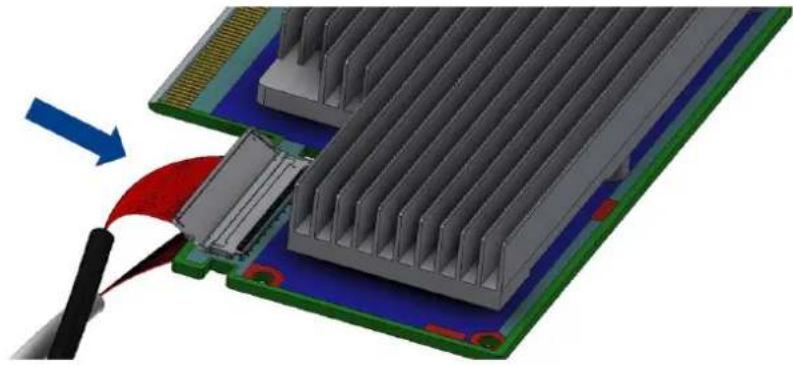

| Install the ConnectX-6 2x PCIe x16 Socket Direct adapter card in the system | |
| 8 Connect cables or modules to the card Cables and Modules | _ |
| 9 Identify ConnectX-6 in the system Identifying Your Card | _ |
System Requirements
Hardware Requirements
Unless otherwise specified, Mellanox products are designed to work in an environmentally controlled data center with low levels of gaseous and dust (particulate) contamination. The operating environment should meet severity level G1 as per ISA 71.04 for gaseous contamination and ISO 14644-1 class 8 for cleanliness level.
For proper operation and performance, please make sure to use a PCIe slot with a corresponding bus width and that can supply sufficient power to your card. Refer to the Specifications section of the manual for more power requirements.
Please make sure to install the ConnectX-6 cards in a PCIe slot that is capable of supplying the required power as stated in Specifications.
| ConnectX-6 Configuration Hardware Requirements | |
| PCIe x8/x16 A system with a PCI Express x8/x16 slot is required for installing the card. | |
| Socket Direct 2x PCIe x8 in a row (single slot) A system with a custom PCI Express x16 slot (four special pins) is required for installing the card. Please refer to PCIe Express Pinouts Description for Single-Slot Socket Direct Card for pinout definitions. | |
| Socket Direct 2x PCIe x16 (dual slots) A system with two PCIe x16 slots is required for installing the cards. |
Airflow Requirements
ConnectX-6 adapter cards are offered with two airflow patterns: from the heatsink to the network ports, and vice versa, as shown below.
Please refer to the Specifications section for airflow numbers for each specific card model.

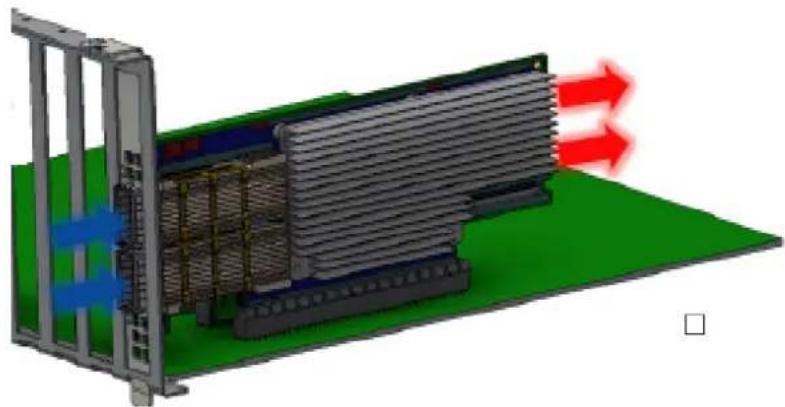

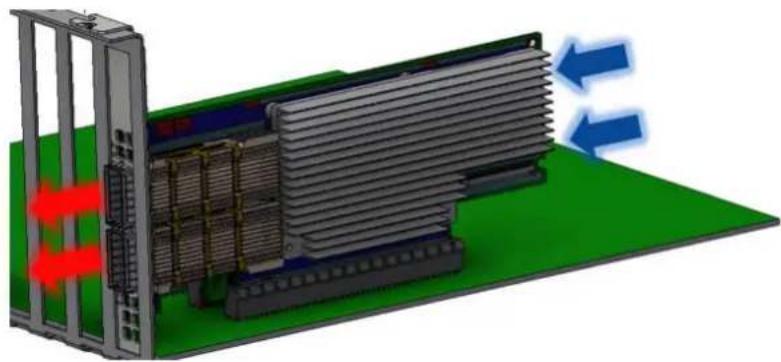

Airflow from the heatsink to the network ports:
Software Requirements
• See Operating Systems/Distributions section under the Introduction section.
- Software Stacks - Mellanox OpenFabric software package MLNX_OFED for Linux, WinOF-2 for Windows, and VMware. See the Driver Installation section.
Safety Precautions
The adapter is being installed in a system that operates with voltages that can be lethal. Before opening the case of the system, observe the following precautions to avoid injury and prevent damage to system components.
- Remove any metallic objects from your hands and wrists.
• Make sure to use only insulated tools. - Verify that the system is powered off and is unplugged.
- It is strongly recommended to use an ESD strap or other antistatic devices.
Pre-Installation Checklist
- Unpack the ConnectX-6 Card; Unpack and remove the ConnectX-6 card. Check against the package contents list that all the parts have been sent. Check the parts for visible damage that may have occurred during shipping. Please note that the cards must be placed on an antistatic surface. For package contents please refer to Package Contents.
Please note that if the card is removed hastily from the antistatic bag, the plastic ziplock may harm the EMI fingers on the networking connector. Carefully remove the card from the antistatic bag to avoid damaging the EMI fingers.
- Shut down your system if active; Turn off the power to the system, and disconnect the power cord. Refer to the system documentation for instructions. Before you install the ConnectX-6 card, make sure that the system is disconnected from power.
- [Optional] Check the mounting bracket on the ConnectX-6 or PCIe Auxiliary Connection Card; If required for your system, replace the full-height mounting bracket that is shipped mounted on the card with the supplied low-profile bracket. Refer to Bracket Replacement Instructions.
Bracket Replacement Instructions

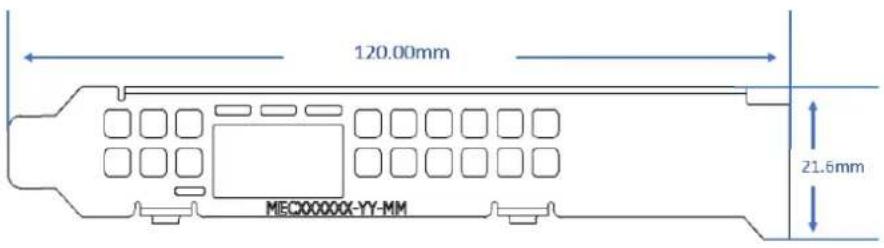

The ConnectX-6 card and PCIe Auxiliary Connection card are usually shipped with an assembled high-profile bracket. If this form factor is suitable for your requirements, you can skip the remainder of this section and move to Installation Instructions. If you need to replace the high-profile bracket with the short bracket that is included in the shipping box, please follow the instructions in this section.
Due to risk of damaging the EMI gasket, it is not recommended to replace the bracket more than three times.
To replace the bracket you will need the following parts:
• The new brackets of the proper height
• The 2 screws saved from the removal of the bracket
Removing the Existing Bracket

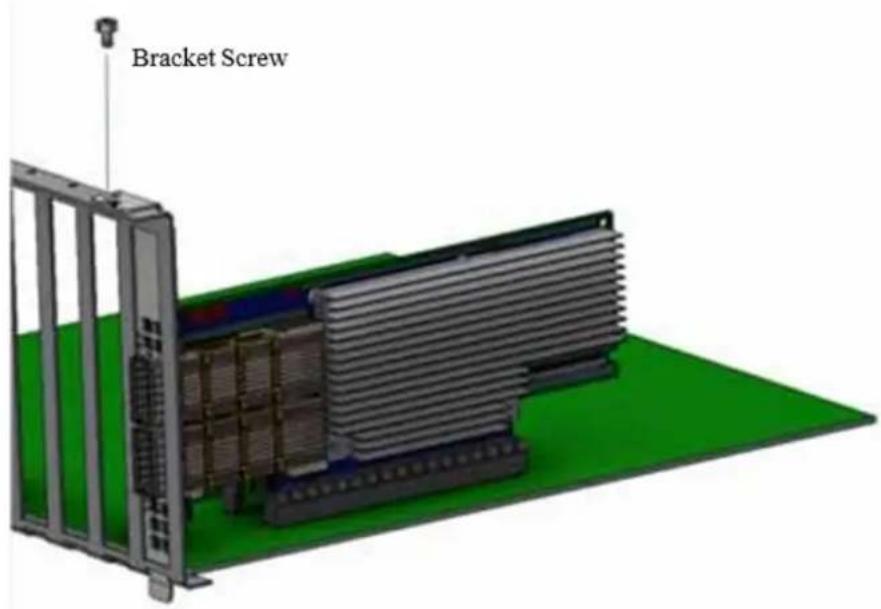

- Using a torque driver, remove the two screws holding the bracket in place.
- Separate the bracket from the ConnectX-6 card.
Be careful not to put stress on the LEDs on the adapter card.
- Save the two screws.
Installing the New Bracket
- Place the bracket onto the card until the screw holes line up.
Do not force the bracket onto the adapter card.
- Screw on the bracket using the screws saved from the bracket removal procedure above.
Use a torque driver to apply up to 2 lbs-in torque on the screws.
Installation Instructions
This section provides detailed instructions on how to install your adapter card in a system.
Choose the installation instructions according to the ConnectX-6 configuration you have purchased.
| OPNs Installation Instructions | |
| MCX651105A-EDAT | ConnectX-6 (PCIe x8/x16) Adapter Card |
| MCX653105A-HDAT | |
| MCX653106A-HDAT | |
| MCX653105A-ECAT | |
| MCX653106A-ECAT | |
| MCX653105A-EFAT | |
| MCX653106A-EFAT | |
| MCX654105A-HCAT | ConnectX-6 Socket Direct (2x PCIe x16) Adapter Card |
| MCX654106A-HCAT | |
| MCX654106A-ECAT |
Cables and Modules
To obtain the list of supported Mellanox cables for your adapter, please refer to the Cables Reference Table at http://www.mellanox.com/products/interconnect/cables-configurator.php.
Cable Installation
- All cables can be inserted or removed with the unit powered on.
- To insert a cable, press the connector into the port receptacle until the connector is firmly seated.
a. Support the weight of the cable before connecting the cable to the adapter card. Do this by using a cable holder or tying the cable to the rack.
b. Determine the correct orientation of the connector to the card before inserting the connector. Do not try and insert the connector upside down. This may damage the adapter card.
c. Insert the connector into the adapter card. Be careful to insert the connector straight into the cage. Do not apply any torque, up or down, to the connector cage in the adapter card.
d. Make sure that the connector locks in place.
When installing cables make sure that the latches engage.
Always install and remove cables by pushing or pulling the cable and connector in a straight line with the card.
-
After Inserting a cable into a port, the Green LED Indicator will light when the physical connection is established (that is, when the unit is powered on and a cable is plugged into the port with the other end of the connector plugged into a functioning port). See LED Interface under the Interfaces section.
-
After plugging in a cable, lock the connector using the latching mechanism particular to the cable vendor. When data is being transferred the Green LED will blink. See LED Interface under the Interfaces section.
- Care should be taken as not to impede the air exhaust flow through the ventilation holes. Use cable lengths which allow for routing horizontally around to the side of the chassis before bending upward or downward in the rack.
- To remove a cable, disengage the locks and slowly pull the connector away from the port receptacle. LED Indicator will turn off when the cable is unseated.
Identifying the Card in Your System
On Linux
Get the device location on the PCI bus by running lspci and locating lines with the string "Mellanox Technologies":
| ConnectX-6 Card Configuration | Ispci Command Output Example |
| Single-port Socket Direct Card (2x PCIe x16) | |
| Dual-port Socket Direct Card (2x PCIe x16) | |
| [root@nftga-009 ~]# Ispci |grep mellanox -i a3:00.3 Infiniband controller: Mellanox Technologies MT28908 Family [ConnectX-6] e3:00.3 Infiniband controller: Mellanox Technologies MT28908 Family [ConnectX-6] | |
| In the output example above, the first two rows indicate that one card is installed in a PCI slot with PCI Bus address 05 (hexadecimal), PCI Device number 00 and PCI Function number 0 and 1. The other card is installed in a PCI slot with PCI Bus address 82 (hexa-decimal), PCI Device number 00 and PCI Function number 0 and 1.Since the two PCIe cards are installed in two PCIe slots, each card gets a unique PCI Bus and Device number. Each of the PCIe x16 busses sees two network ports; in effect, the two physical ports of the ConnectX-6 Socket Direct adapter are viewed as four net devices by the system. | |
| Single-port PCIe x8/ x16 Card | |
| Dual-port PCIe x16 Card |
On Windows

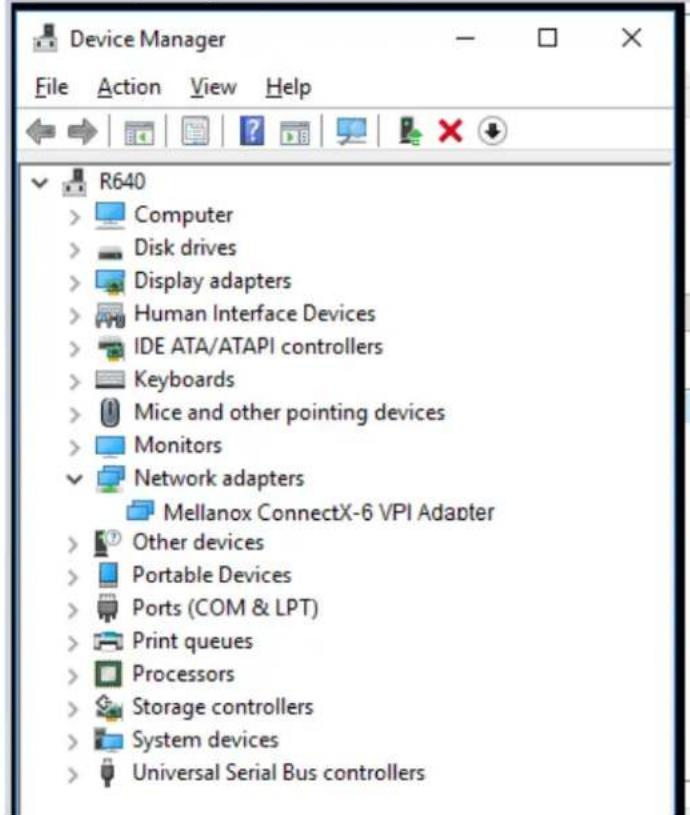

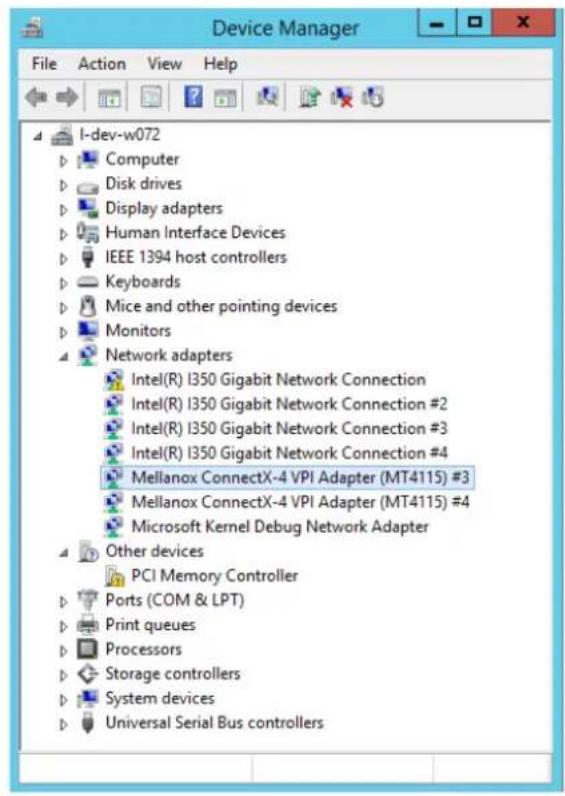

- Open Device Manager on the server. Click Start => Run, and then enter devmgmt.msc.
- Expand System Devices and locate your Mellanox ConnectX-6 adapter card.
- Right click the mouse on your adapter's row and select Properties to display the adapter card properties window.
- Click the Details tab and select Hardware Ids (Windows 2012/R2/2016) from the Property pull-down menu.
PCI Device (Example)
- In the Value display box, check the fields VEN and DEV (fields are separated by '&'). In the display example above, notice the sub-string "PCI\VEN_15B3&DEV_1003": VEN is equal to 0x15B3 - this is the Vendor ID of Mellanox Technologies; and DEV is equal to 1018 (for ConnectX-6) - this is a valid Mellanox Technologies PCI Device ID.
If the PCI device does not have a Mellanox adapter ID, return to Step 2 to check another device.
The list of Mellanox Technologies PCI Device IDs can be found in the PCI ID repository at http://pci-ids.ucw.cz/read/PC/15b3.
ConnectX-6 PCIe x8/16 Installation Instructions

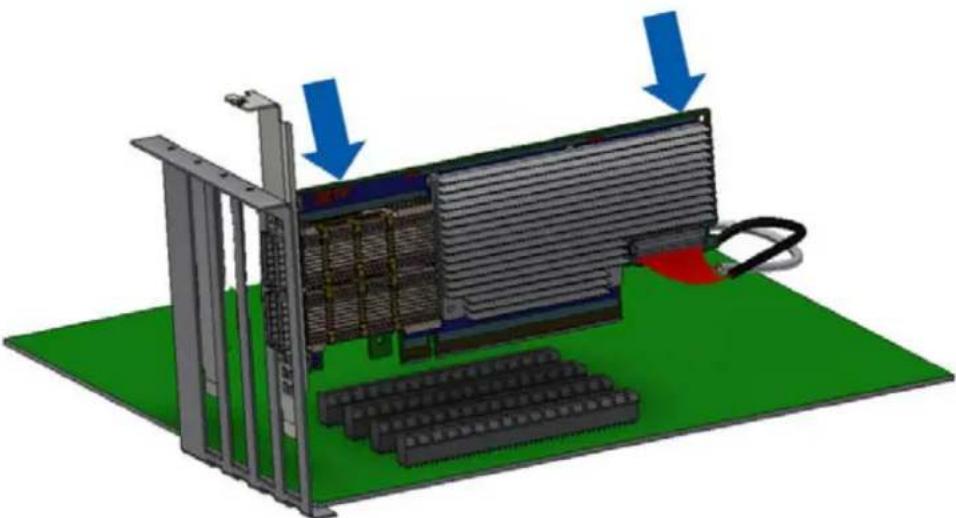

Installing the Card

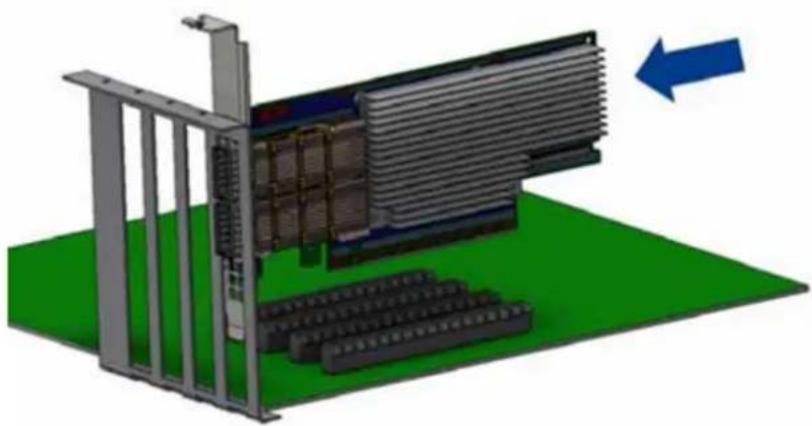

Applies to MCX651105A-EDAT, MCX654105A-HCAT, MCX654106A-HCAT and MCX654106A-ECAT.
Please make sure to install the ConnectX-6 cards in a PCIe slot that is capable of supplying the required power and airflow as stated in Specifications.

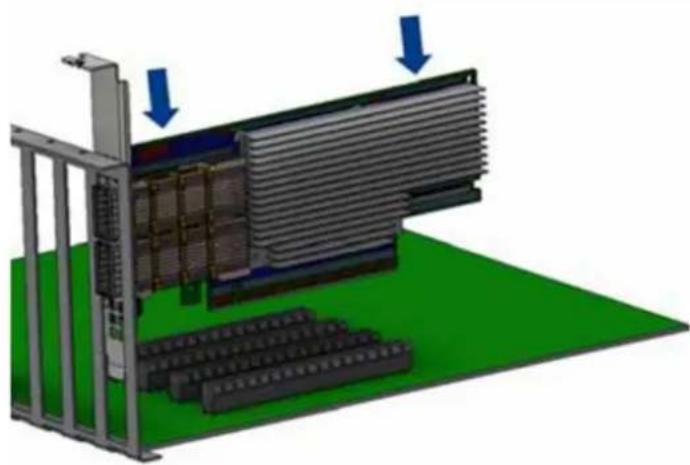

Connect the adapter Card in an available PCI Express x16 slot in the chassis.
Step 1: Locate an available PCI Express x16 slot and insert the adapter card to the chassis.
Do not use excessive force when seating the card, as this may damage the chassis.
Secure the adapter card to the chassis.
Step 1: Secure the bracket to the chassis with the bracket screw.
Uninstalling the Card
Safety Precautions
The adapter is installed in a system that operates with voltages that can be lethal. Before uninstalling the adapter card, please observe the following precautions to avoid injury and prevent damage to system components.
- Remove any metallic objects from your hands and wrists.
- It is strongly recommended to use an ESD strap or other antistatic devices.
- Turn off the system and disconnect the power cord from the server.
Card Removal
i Please note that the following images are for illustration purposes only.
- Verify that the system is powered off and unplugged.
- Wait 30 seconds.

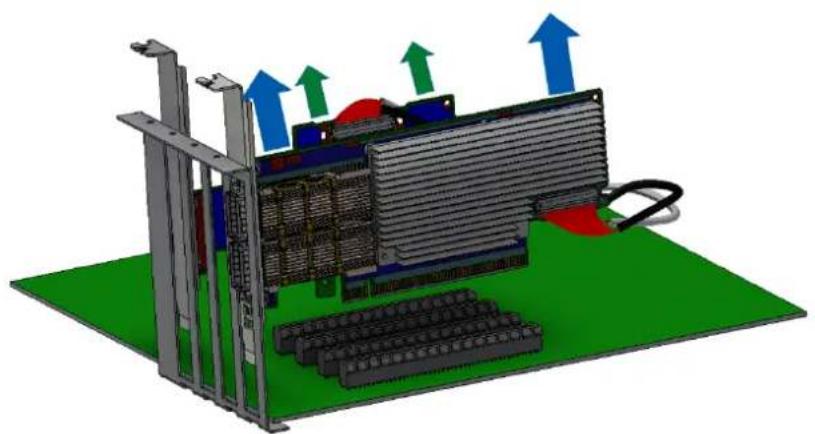

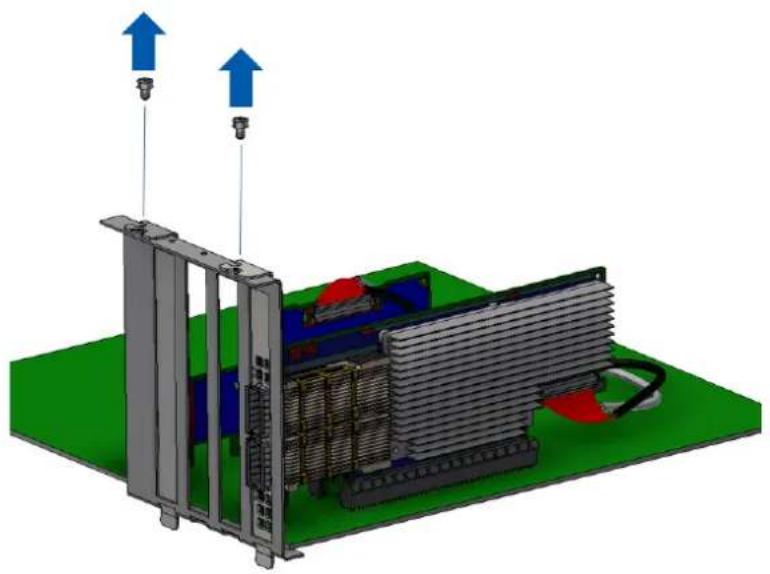

- To remove the card, disengage the retention mechanisms on the bracket (clips or screws).
The hardware installation section uses the terminology of white and black harnesses to differentiate between the two supplied cables. Due to supply chain variations, some cards may be supplied with two black harnesses instead. To clarify the difference between these two harnesses, one black harness was marked with a "WHITE" label and the other with a "BLACK" label.

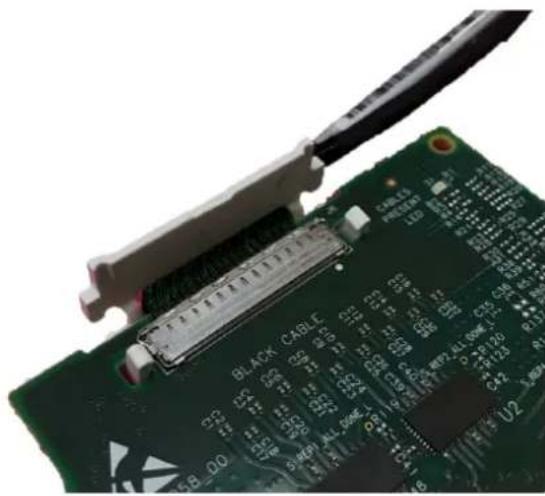

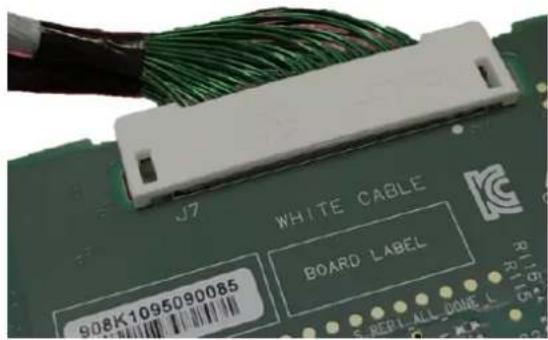

The Cabline harness marked with "WHITE" label should be connected to the connector on the ConnectX-6 and PCIe card engraved with "White Cable" while the one marked with "BLACK" label should be connected to the connector on the ConnectX-6 and PCIe card engraved with "Black Cable".
The harnesses' minimal bending radius is 10[mm].
Installing the Card
Applies to MCX654105A-HCAT, MCX654106A-HCAT and MCX654106A-ECAT.
The installation instructions include steps that involve a retention clip to be used while connecting the Cabline harnesses to the cards. Please note that this is an optional accessory.
Please make sure to install the ConnectX-6 cards in a PCIe slot that is capable of supplying the required power and airflow as stated in Specifications.

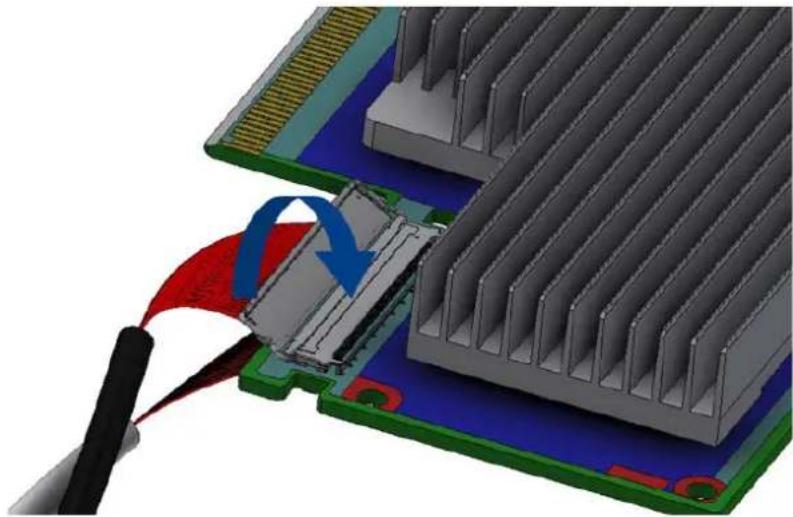

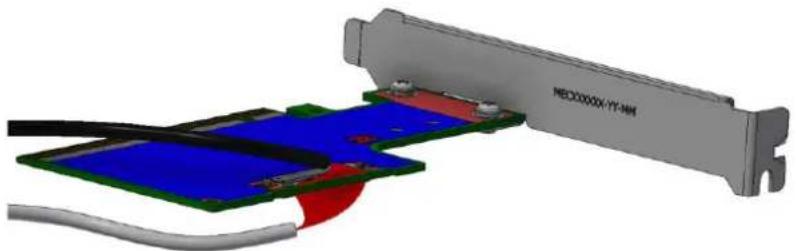

Connect the adapter card with the Auxiliary connection card using the supplied Cabline CA-II Plus harnesses.

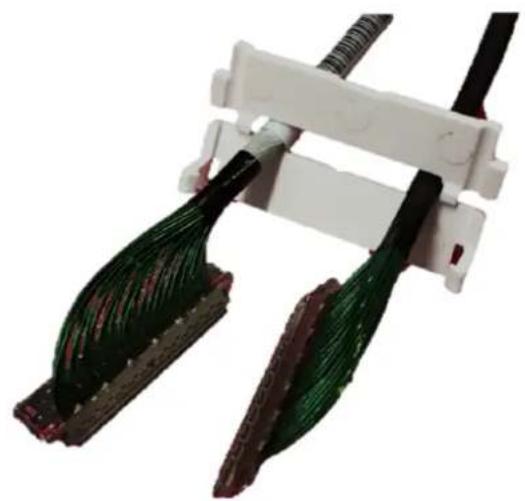

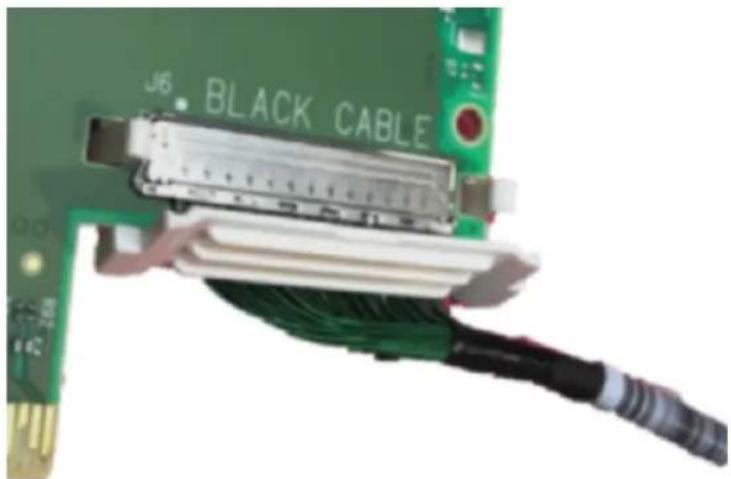

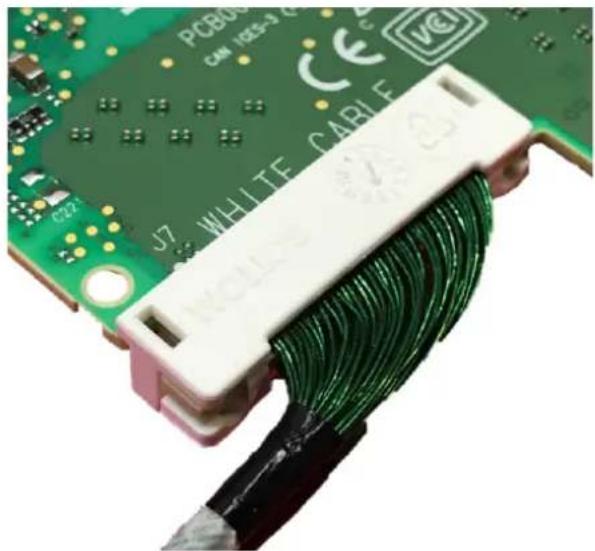

Step 1: Slide the black and white Cabline CA-II Plus harnesses through the retention clip while making sure the clip opening is facing the plugs.


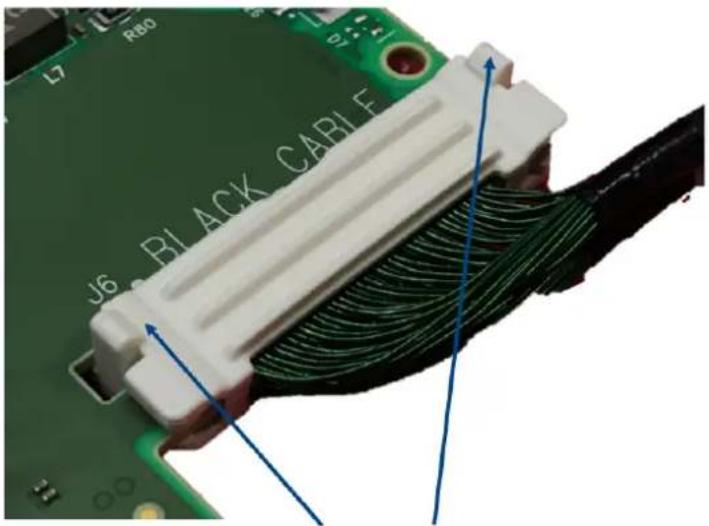

Verify that both latches are firmly snapped


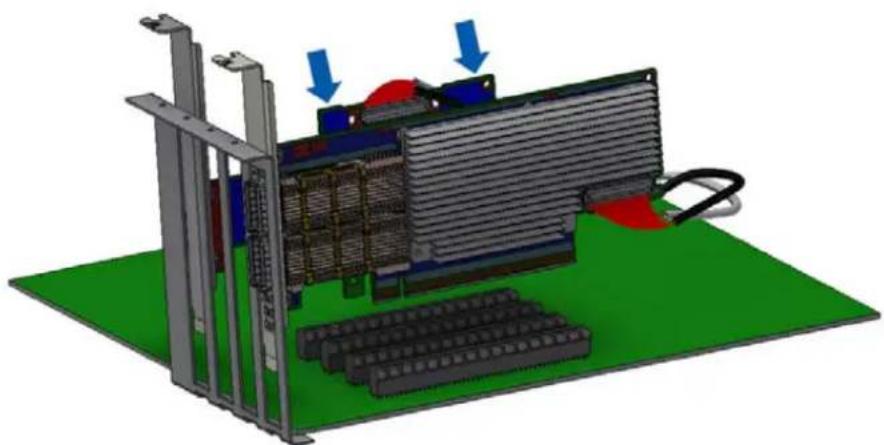

Connect the ConnectX-6 adapter and PCIe Auxiliary Connection cards in available PCI Express x16 slots in the chassis.
Step 1: Locate two available PCI Express x16 slots.
Step 2: Applying even pressure at both corners of the cards, insert the adapter card in the PCI Express slots until firmly seated.
Do not use excessive force when seating the cards, as this may damage the system or the cards.
Step 3: Applying even pressure at both corners of the cards, insert the Auxiliary Connection card in the PCI Express slots until firmly seated.


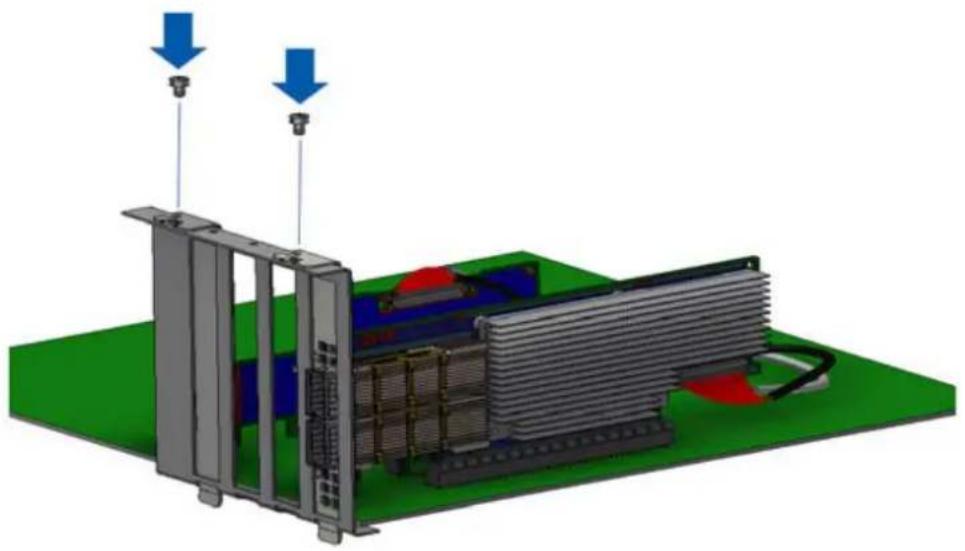

Secure the ConnectX-6 adapter and PCIe Auxiliary Connection Cards to the chassis.
Step 1: Secure the brackets to the chassis with the bracket screw.
Safety Precautions
The adapter is installed in a system that operates with voltages that can be lethal. Before uninstalling the adapter card, please observe the following precautions to avoid injury and prevent damage to system components.
- Remove any metallic objects from your hands and wrists.
- It is strongly recommended to use an ESD strap or other antistatic devices.
- Turn off the system and disconnect the power cord from the server.
Card Removal
i Please note that the following images are for illustration purposes only.
- Verify that the system is powered off and unplugged.
- Wait 30 seconds.
- To remove the card, disengage the retention mechanisms on the bracket (clips or screws).
Please use the relevant driver installation section.
ConnectX-6 Socket Direct cards 2x PCIe x16 (OPNs: MCX654106A-HCAT and MCX654106A-ECAT) are not supported in Windows and WinOF-2.
• Linux Driver Installation
• Windows Driver Installation
• VMware Driver Installation
Linux Driver Installation
This section describes how to install and test the Mellanox OFED for Linux package on a single server with a Mellanox ConnectX-5 adapter card installed.
Prerequisites
| Requirements Description | |
| Platforms A server platform with a ConnectX-6 InfiniBand/VPI adapter card installed. | |
| Required Disk Space for Installation 1GB | |
| Device ID For the latest list of device IDs, please visit the Mellanox website at http://www.mellanox.com/page/firmware_HCA_FW_identification. | |
| Operating System Linux operating system. | For the list of supported operating system distributions and kernels, please refer to the Mellanox OFED Release Notes file. |
| Installer Privileges The installation requires administrator (root) privileges on the target machine. | |
Downloading Mellanox OFED
- Verify that the system has a Mellanox network adapter installed by running lscpi command. The below table provides output examples per ConnectX-6 card configuration.
| ConnectX-6 CardConfiguration | |
| Single-port SocketDirect Card (2x PCIe x16) | [root@mftga-00 -]# lspci |grep mellanox -ia3:00.0 infiniband controller: Mellanox Technologies MT28908 Family [ConnectX-6]e3:00.0 Infiniband controller: Mellanox Technologies MT28908 Family [ConnectX-6] |
| Dual-port SocketDirect Card (2x PCIe x16) | [root@mftga-00 -]# lspci |grep mellanox -ia05:00.0 infiniband controller: Mellanox Technologies MT28908A0 Family [ConnectX-6]05:00.1 Infiniband controller: Mellanox Technologies MT28908A0 Family [ConnectX-6]62:00.0 Infiniband controller: Mellanox Technologies MT28908A0 Family [ConnectX-6]62:00.1 Infiniband controller: Mellanox Technologies MT28908A0 Family [ConnectX-6] |
| In the output example above, the firsttwo rows indicate that one card is installed in a PCI slot with PCI Bus address 05 (hexadecimal), PCI Device number 00 and PCI Function number 0 and 1.The other card is installed in a PCI slot with PCI Bus address 82 (hexadecimal),PCI Device number 00 and PCI Function number 0 and 1.Since the two PCIe cards are installed in two PCIe slots, each card gets a unique PCI Bus and Device number. Each of the PCIe x16 busses sees twonetwork ports; in effect, the two physical ports of the ConnectX-6 Socket Directadapter are viewed as four net devices by the system. | |
| Single-port PCIe x16Card | [root@mftga-00 -]# lspci |grep mellanox -ia3:00.0 infiniband controller: Mellanox Technologies MT28908 Family [ConnectX-6] |
| Dual-port PCIe x16Card | [root@mftga-00 -]# lspci |grep mellanox -ia66:00.0 Network controller: Mellanox Technologies MT28908A0 Family [ConnectX-6]66:00.1 Network controller: Mellanox Technologies MT28908A0 Family [ConnectX-6] |
- Download the ISO image to your host.
The Image's name has the format MLNX_OFED_LINUX-
a. Scroll down to the Download wizard, and click the Download tab.
b. Choose your relevant package depending on your host operating system.
c. Click the desired ISO/tgz package.
d. To obtain the download link, accept the End User License Agreement (EULA).
- Use the md5sum utility to confirm the file integrity of your ISO Image. Run the following command and compare the result to the value provided on the download page.
m5sum MLNX_CFED_LINUX-<ver>-<OS label>.iso
Installing Mellanox OFED
Installation Script
The installation script, mlnxofedinstall, performs the following:
• Discovers the currently installed kernel
- Uninstalls any software stacks that are part of the standard operating system distribution or another vendor's commercial stack
- Installs the MLNX_OFED_LINUX binary RPMs (If they are available for the current kernel)
- Identifies the currently installed InfiniBand and Ethernet network adapters and automatically upgrades the firmware.
Note: The firmware will not be updated if you run the install script with the --without-fw-update' option.
Note: If you wish to perform a firmware upgrade using customized FW binaries, you can provide a path to the folder that contains the FW binary files, by running --fw-image-dir. Using this option, the FW version embedded in the MLNX_OFED package will be ignored. Example:
./mlnxofedinstall --fw-image-dir /tmp/my_fw_bin_files
Usage
./mnt/minxofedinstall [OPTIONS]
Pre-existing configuration files will be saved with the extension ".conf.rpmsave".
The installation script removes all previously installed Mellanox OFED packages and re-installs from scratch. You will be prompted to acknowledge the deletion of the old packages.
- If you need to install Mellanox OFED on an entire (homogeneous) cluster, a common strategy is to mount the ISO image on one of the cluster nodes and then copy it to a shared file system such as NFS. To install on all the cluster nodes, use cluster-aware tools (such as pdsh).
- If your kernel version does not match with any of the offered pre-built RPMs, you can add your kernel version by using the "mlnx_add_kernel_support.sh" script located inside the MLNX_OFED package.
On Redhat and SLES distributions with errata kernel installed there is no need to use the mlnx_add_kernel_support.sh script. The regular installation can be performed and weak updates mechanism will create symbolic links to the MLNX_OFED kernel modules.
The "mlnx_add_kernel_support.sh" script can be executed directly from the mlnxofedinstall script. For further information, please see '--add-kernel-support' option below.
On Ubuntu and Debian distributions drivers installation use Dynamic Kernel Module Support (DKMS) framework. Thus, the drivers' compilation will take place on the host during MLNX_OFED installation. Therefore, using "mlnx_add_kernel_support.sh" is irrelevant on Ubuntu and Debian distributions.
Example
The following command will create a MLNX_OFED_LINUX ISO image for RedHat 6.3 under the /tmp directory.
<h1 id="mlnx_ofed_linux-xx-x-rhe163-x86_64mlnx_add_kernel_supportsh-m-tmpmlnx_ofed_linux-xx-x-rhe163-x86_64-make-tgz">./MLNX_OFED_LINUX x.x x-rhe16.3 x86_64/mlnx_add_kernel_support.sh -m /tmp/MLNX_OFED_LINUX x.x x-rhe16.3 x86_64/ --make-tgz</h1>
Note: This program will create MLNX_OFED_LINUX TGZ for rhel6.3 order /tmp directory.
All Mellarox, ORM, OPED, or Distribution TR packages will be removed.
Do you want to continue?y/N]:y
See log file /tmp/MLNX_ofed_iso.21642.log
Building OFED RPMs. Please wait...
Removing OFED RPMs...
Created /tmp/MLNX_OFED二十五-x.x-x-rhe16.3-x06_64-ext.tgz
- The script adds the following lines to /etc/security/limits.conf for the userspace components such as MPI:
• * soft memlock unlimited
• * hard memlock unlimited
- These settings set the amount of memory that can be pinned by a user space application to unlimited. If desired, tune the value unlimited to a specific amount of RAM.
For your machine to be part of the InfiniBand/VPI fabric, a Subnet Manager must be running on one of the fabric nodes. At this point, Mellanox OFED for Linux has already installed the OpenSM Subnet Manager on your machine.
For the list of installation options, run:
./mInxofedinstali --h
The DKMS (on Debian based OS) and the weak-modules (RedHat OS) mechanisms rebuild the initrd/initramfs for the respective kernel in order to add the MLNX_OFED drivers. When installing MLNX_OFED without DKMS support on Debian based OS, or without KMP support on RedHat or any other distribution, the initramfs will not be changed. Therefore, the Inbox drivers may be loaded on boot. In this case, openbd service script will automatically unload them and load the new drivers that come with MLNX_OFED.
Installation Procedure
- Login to the installation machine as root.
- Mount the ISO image on your machine.
<h1 id="mount-o-ro-loop-mcnx_ofrd_ltnjx-ver-cs-label-cpu-archiso-mnt">mount -o ro, loop MCNX_OFRD_LTNJX-<ver>--<CS label>--<CPU arch>.iso /mnt</h1>
- Run the installation script.
/mnt/mlnxofodinstall
Logs dir: /Lmp/MLNX_OFED_LINUX x.x x.logs
This program will install the MLNX_OFED_LINUX package on your machine.
Note that all other Hollanox, OEM, OPED, RDXA or Distribution IB packages will be removed.
Those packages are removed due to conflicts with MTNX_OFED_LINUX, do not reinstall them.
Starting MTNX_OFED_LINUX x.x.x installation ...
...
Installation finished successfully.
Attempting to perform Firmware update...
Querying Hollanox devices firmware ...
For unattended installation, use the --force installation option while running the MLNX_OFED installation script:
/mnt/mlnxofedinstall --force
MLNX_OFED for Ubuntu should be installed with the following flags in chroot environment:
./mlnxofedinstall --without-dkms --add-kernel-support --kernel
For example:
./mlnxofedinstall --without-dkms --add-kernel-support --kernel
3.13.0-85-generic --without-fw-update --force
Note that the path to kernel sources (--kernel-sources) should be added if the sources are not in their default location.
In case your machine has the latest firmware, no firmware update will occur and the installation script will print at the end of installation a message similar to the following:
Device #1:
Device Type: ConnectX-6
Part Number: MCX654106A-HCAT
Description: ConnectX®-6 VPI adapter card, HDR TB (200Gb/s) and 200GbE, dual-port QSFP56, Socket Direct 2x PCIe3.0 x16, tall bracket
PSID: MT_2190110032
PCI Device Name: 0b:00.0
Base MAC: 0000e41d2d5cf810
Versions: Current Available
FW 16.22.0228 16.22.0228
Status: Up to date
In case your machine has an unsupported network adapter device, no firmware update will occur and one of the following error messages below will be printed. Please contact your hardware vendor for help on firmware updates.
Error message 1:
Device #1:
Device Type: ConnectX-6
Part Number: MCX654106A-HCAT
Description: ConnectX®-6 VPI adapter card, HDR TB (200Gb/s) and 200GbE, dual-port QSFP56, Socket Direct 2x PCIe3.0 x16, tall bracket
PSID: MT_2190110032
PCI Device Name: 0b:00.0
Base MAC: 0000e41d2d5cf810
Versions: Current Available
FW 16.22.0228 N/A
Status: No matching image found
Error message 2:
The firmware for this device is not distributed inside Mellanox driver: 0000:01:00.0 (PSTD: IBM2150110033)
To obtain firmware for this device, please contact your HW vendor.
- If the installation script has performed a firmware update on your network adapter, complete the step relevant to your adapter card type to load the firmware:
ConnectX-6 Socket Direct - perform a cold reboot (power cycle)
Otherwise, restart the driver by running: /etc/init.d/openibd restart
After installation completion, information about the Mellanox OFED installation, such as prefix, kernel version, and installation parameters can be retrieved by running the command /etc/infiniband/info.
Most of the Mellanox OFED components can be configured or reconfigured after the installation, by modifying the relevant configuration files. See the relevant chapters in this manual for details.
The list of the modules that will be loaded automatically upon boot can be found in the /etc/infiniband/openib.conf file.
Installation Results
| Software Most of MLNX_OFED packages are installed under the "/usr" directoryexcept for the following packages which are installed under the "/opt" directory:fca and ibutilsThe kernel modules are installed under/lib/modules/`uname -r`/updates on SLES and Fedora Distributions/lib/modules/`uname -r`/extra/mlnx-ofa_kernel on RHEL and other Red Hat like Distributions |
| Firmware The firmware of existing network adapter devices will be updated if the following two conditions are fulfilled:The installation script is run in default mode; that is, without the option --without-fw-update'The firmware version of the adapter device is older than the firmware version included with the Mellanox OFED ISO image Note: If an adapter's flash was originally programmed with an Expansion ROM image, the automatic firmware update will also burn an Expansion ROM image.In case that your machine has an unsupported network adapter device, no firmware update will occur and the error message below will be printed.The firmware for this device is not distributed inside Mellanox driver:0000:01:00.0 (PSID: IBM2150110033)To obtain firmware for this device, please contact your HW vendor. |
Installation Logs
While installing MLNX_OFED, the install log for each selected package will be saved in a separate log file. The path to the directory containing the log files will be displayed after running the installation script in the following format: "Logs dir: /tmp/MLNX_OFED_LINUX-
Example:
Logs dir: /tmp/ELNX_OFED_LINUX-4.4-1.0.0.0.63414.logs
openibd Script
As of MLNX_OFED v2.2-1.0.0 the openibd script supports pre/post start/stop scripts: This can be controlled by setting the variables below in the /etc/infiniband/openibd.conf file.
OPEN1BD_PRE_START
OPEN1BD_POST_START
OPENTBD_PRE_STOP
OPENTBD_POST_STOP
Example:
OPENTBD_POST_START=/sbin/openibd_post.start.sh
An example of OPENIBD_POST_START script for activating all interfaces is provided in the MLNX_OFED package under the docs/scripts/openibd-post-start-configure-interfaces/folder.
Driver Load Upon System Boot
Upon system boot, the Mellanox drivers will be loaded automatically.
To prevent automatic load of the Mellanox drivers upon system boot:
- Add the following lines to the "/etc/modprobe.d/mlnx.conf" file.
blacklist mlx4_core
blacklist mlx4_en
blacklist mlx5_core
blacklist mlx5_ib
- Set "ONBOOT=no" in the "/etc/infiniband/openib.conf" file.
- If the modules exist in the initramfs file, they can automatically be loaded by the kernel. To prevent this behavior, update the initramfs using the operating systems' standard tools. Note: The process of updating the initramfs will add the blacklists from step 1, and will prevent the kernel from loading the modules automatically.
mlnxofedinstall Return Codes
The table below lists the mlnxofedinstall script return codes and their meanings.
| Return Code Meaning | |
| 0 The installation ended successfully | |
| 1 The installation failed | |
| 2 No firmware was found for the adapter device | |
| 22 Invalid parameter | |
| 28 Not enough free space | |
| 171 Not applicable to this system configuration. This can occur when the required hardware is not present on the system. | |
| 172 Prerequisites are not met. For example, missing the required software installed or the hardware is not configured correctly. | |
| 173 Failed to start the mst driver | |
Uninstalling MLNX\_OFED
Use the script /usr/sbin/ofed_uninstall.sh to uninstall the Mellanox OFED package. The script is part of the ofed-scripts RPM.
Installing MLNX\_OFED Using YUM
This type of installation is applicable to RedHat/OL, Fedora, XenServer Operating Systems.
Setting up MLNX\_OFED YUM Repository
- Log into the installation machine as root.
- Mount the ISO Image on your machine and copy its content to a shared location in your network.
<h1 id="mount-o-roloop-mlnx_ofed_linjx-ver-os-label-cpu-archiso-mnt">mount -o ro,loop MLNX_OFED_LINJX-<ver>-<OS label>-<CPU arch>.iso /mnt</h1>
- Download and install Mellanox Technologies GPG-KEY: The key can be downloaded via the following link: http://www.mellanox.com/downloads/ofed/RPM-GPG-KEY-Mellanox
wget http://www.mellanox.com/downloads/ofed/RPM-GPG-KEY-Mellanox
--2014-04-20 13:57:30 -- hLp://www.mellanox.com/downloads/ofed/RPM-GPG-KEY-Mellanox
Rosolving www.mellanox.com... 72.3.194.0
Connecting to www.mellanox.com|72.3.194.01:83... connected.
HTTP request sent, awaiting response... 200 OK
Length: 1354 (1.3K) [text/plain]
Saving to: ?RPM-GPG-KEY-Mellanox?
100%[----> ] 1,354 --K/s in 3s
2014-04-20 13:52:30 (247 Mb/s) - ?RPM-CPC-Key-Mellanox? saved [1354/1354]
- Install the key.
<h1 id="sudo-rpm-import-rpm-gpg-key-mellanox">sudo rpm --import RPM-GPG-KEY-Mellanox</h1>
warning: rpmts_HidrfromPdo: Header v3 DSA/SHAL Signature, Key ID 6224c050; NOKEY
Relrifying key from file:///repos/MLNX_OFED/<MLNX_OFED file>/RPX-GPG-KEY-Mellanox
Importing GPG key 0x6224C050:
Userid: "Mellanox Technologies (Mellanox Technologies - Signing Key v2) <support@mellanox.com>"
From : /repos/MLNX_OFED/<MLNX_OFED file>/RPX-GPG-KEY-Mellanox
Is this ok [y/N]:
- Check that the key was successfully imported.
ll rpri -q gpg pubkey --qf '%{NAME}-%{VERSTON}-%{RELEASE}\L%{SUMMARY}\n' | grep Mellanox gpg pubkey-a9e/b643 520791ba gpg(Mellanox Technologies <support@mellanox.com>)
- Create a yum repository configuration file called "/etc/yum.repos.d/mlnx_ofed.repo" with the following content:
[mlnx_ofed]
name=MLNX_OFED Repository
baseurl=file:///path to extracted MLNX_OFED package>/APMS
cnabic=1
gpg&key=file:///path to the downloaded key RPM-GPC-ALY-Mollanox>
gpgcheck-1
- Check that the repository was successfully added.
<h1 id="yum-repolist">yum repolist</h1>
Loaded plugins: product-id, security, subscription-manager
This system is not registered to Red Hat. Subscription Management.. You can use subscription-manager to register.
repo id repo name status
mlnx_ofed MLNX_OTED Repository 108
rpmforge RUEL 6Server - RPMforge.net - dag 4,597
repolist: 8,351
Installing MLNX\_OFED Using the YUM Tool
After setting up the YUM repository for MLNX_OFED package, perform the following:
- View the available package groups by invoking:
<h1 id="yum-search-minx-ofed">yum search minx ofed</h1>
mlnx-ofed-all.noarch : MLNX_OFED all installer package (with KMP support)
mlnx-ofed-basic.noarch : MLNX_OFED basic installer package (with KMP support)
mlnx-ofed-guest.noarch : MLNX_OFED guest installer package (with KMP support)
mlnx-ofed-hpc.noarch : MLNX_OFED hpc installer package (with KMP support)
mlnx-ofed hypervisor.noarch : MLNX_CFED hypervisor installer package (with KMP support)
mlnx-ofed-vma.noarch : MLNX_OFED vma installer package (with KMP support)
mlnx-ofed-vma-eth.noarch : MLNX_CFED vma-eth installer package (with KMP support)
mlnx-ofed-vma-vpi.noarch : MLNX_CFED vma-vpi installer package (with KMP support)
Where:
mlnx-ofed-all Installs all available packages in MLNX_OFED.
mlnx-ofed-basic Installs basic packages required for running Mellanex cards.
mlnx-ofed-guest Installs packages required by guest OS.
mlnx-ofed-hpc Installs packages required for HPC.
mlnx-ofed-hypervisor Installs packages required by hypervisor OS.
mlnx-ofed-vma Installs packages required by VMA.
mlnx-ofed-vma-cth Installs packages required by VMA to work over Ethernet.
mlnx-ofed-vma-vpi Installs packages required by VMA to support VPT.
Note: MLNX_OFED provides kernel module RPM packages with KMP support for RHEL and SLES. For other operating systems, kernel module RPM packages are provided only for the operating systems' default kernel. In this case, the group RPM packages have the supported kernel version in their package's name.
Example:
mlnx-ofed-all-3.17.4-301.fc21.x86_64.noarch : MLNX_OFED all installer package for kernel 3.17.4-301.fc21.x86_64 (without KMP support)
mlnx-ofed-basic-3.17.4-301.fc21.x86_64.noarch : MLNX_OFED basic 'installer' package for kernel 3.17.4-301.fc21.x86_64 (without KMP support)
mlnx-ofed-guest-3.17.4-301.fc21.x86_64.noarch : MLNX_OFED guest installer package for kernel 3.17.4-301.fc21.x86_64 (without KMP support)
mlnx-ofed-hpc-3.17.4-301.fc21.x86_64.noarch : MLNX_OFED hpc installer package for kernel 3.17.4-301.fc21.x86_64 (without KMP support)
mlnx-ofed-hypervisor-3.17.4-301.fc21.x86_64.noarch : MLNX_OFED hypervisor installer package for kernel 3.17.4-301.fc21.x86_64 (without KMP support)
mlnx-ofed-vma-3.17.4-301.fc21.x86_64.noarch : MLNX_OFED vma installer package for kernel 3.17.4-301.fc21.x86_64 (without KMP support)
mlnx-ofed-vma-eth-3.17.4-301.fc21.x86_64.noarch : MLNX_OFED vma-eth installer package for kernel 3.17.4-301.fc21.x86_64 (without KMP support)
mlnx-ofed-vma-vpi-3.17.4-301.fc21.x86_64.noarch : MLNX_OFED vma-vpi installer package for kernel 3.17.4-301.fc21.x86_64 (without KMP support)
If you have an operating system different than RHEL or SLES, or you have installed a kernel that is not supported by default in MLNX_OFED, you can use the mlnx_add_kernel_support.sh script to build MLNX_OFED for your kernel.
The script will automatically build the matching group RPM packages for your kernel so that you can still install MLNX_OFED via yum.
Please note that the resulting MLNX_OFED repository will contain unsigned RPMs, therefore, you should set 'gpgcheck=0' in the repository configuration file.
- Install the desired group.
<h1 id="yum-install-mlnx-ofed-all">yum install mlnx-ofed-all</h1>
Loaded plugins: langpacks, product-id, subscription-manager
Resolving Dependencies
--> Running Transaction check
--> Package mlnx ofed all.search 0:3.1 0.1.2 will be installed
--> Processing Dependency: kmod-isort = 1.0-OFED.3.1.0.1.2.1.g832a737.rhel7ul for package:
mlnx-ofed-all-3.1-0.1.2.march
qport.x86_64 0:0.4.9-9
rds-devel.x86_64 0:2.0.7-1.12
rds-tools.x86_64 0:2.0.7-1.12
sdpnetstat.x86_64 0:1.60 26
srptools.x86_64 0:1.0.2-12
Complete!
Uninstalling MLNX\_OFED Using the YUM Tool
Use the script /usr/sbin/ofed_uninstall.sh to uninstall the Mellanox OFED package. The script is part of the ofed-scripts RPM.
Installing MLNX\_OFED Using apt-get Tool
This type of installation is applicable to Debian and Ubuntu operating systems.
Setting up MLNX\_OFED apt-get Repository
- Log into the installation machine as root.
- Extract the MLNX_OFED pacakge on a shared location in your network. You can download it from http://www.mellanox.com > Products > Software> Ethernet Drivers.
- Create an apt-get repository configuration file called "/etc/apt/sources.list.d/mlnx_ofed.list" with the following content:
<h1 id="deb-filepath-to-extracted-klfx_ofed-packagedebs">deb file:/<path to extracted KLFX_OFED package>/DEBS ./</h1>
- Download and install Mellanox Technologies GPG-KEY.
<h1 id="wget-q0-httpwwwnellanoxcomdownloadsofcdrpm-cpc-key-mellanox-sudo-apt-key-add">wget -q0 - http://www.nellanox.com/downloads/ofcd/RPM-CPC-KEY-Mellanox | sudo apt-key add -</h1>
- Check that the key was successfully imported.
<h1 id="apt-key-list">apt-key list</h1>
pub 1024D/A9F4R643 2013-38-11
uid Mellanox Technologies <support@mellanox.com>
sub 1024g/09FCC269 2013-38-11
- Update the apt-get cache.
<h1 id="sudo-apt-get-update">sudo apt-get update</h1>
Installing MLNX\_OFED Using the apt-get Tool
After setting up the apt-get repository for MLNX_OFED package, perform the following:
- View the available package groups by invoking:
<pre># apt-cache search mlnx-ofed-
mlnx-ofed-vma-cth - MLNX_OFED vma-cth installer package (with DKMS support)
mlnx-ofed-hpc - MLNX_OFED hpc installer package (with DKMS support)
mlnx-ofed vma-vpi MLNX_OFED vma-vpi installer package (with DKMS support)
mlnx-ofed basic MLNX_OFED basic installer package (with DKMS support)
mlnx-ofed-vma - MLNX_OFED vma installer package (with DKMS support)
mlnx-ofed-all - MLNX_OFED all installer package (with DKMS support)
Where:
mlnx-ofed-all MLNX_OFED all installer package.
mlnx_ofed basic MLNX_OFED basic installer package.
mlnx-ofed-vma MLNX_OFED vma installer package.
mlnx-ofed-hpc MLNX_OFED HFC installer package.
mlnx-ofed-vma-eth MLNX_OFED vma-eth installer package.
mlnx-ofed-vma-vpl MLNX_OFED vma-vpl installer package.
2. Install the desired group.
<h1 id="apt-get-install-group-name">apt-get install '<group name>'</h1>
Example:
<h1 id="apt-get-install-minx-oted-all">apt-get install minx-oted-all</h1>
Installing MLNX_OFED using the "apt-get" tool does not automatically update the firmware. To update the firmware to the version included in MLNX_OFED package, run: # apt-get install mlnx-fw-updater Or, update the firmware to the latest version available on Mellanox Technologies' Web site as described in Updating Adapter Firmware.
Uninstalling MLNX\_OFED Using the apt-get Tool
Use the script /usr/sbin/ofed_uninstall.sh to uninstall the Mellanox OFED package. The script is part of the ofed-scripts package.
Updating Firmware After Installation
The firmware can be updated either manually or automatically (upon system boot), as described in the sections below.
Updating the Device Online
To update the device online on the machine from the Mellanox site, use the following command line:
mlxtxmanager --online -u -d <device>
Example:
mlxfwmanager --online -u -d 0000:09:00.0
Querying Mellanox devices firmware ...
Device #1:
Device Type: ConnectX 5
Part Number:
Description:
PSTD: WT_1020120019
PCI Device Name: 0000:09:00.0
Port1 GUD: 0002c9000100d051
Port2 MAC: 0002c9000002
Versions: Current Available
FW 2.32.5000 2.33.5000
Status: Update required
----.
found 1 device(s) requiring firmware update. Please use -u flag to perform the update.
Updating the Device Manually
To update the device manually, please refer to the OEM Firmware Download page at http://www.mellanox.com/page/firmware_table_dell?mtag=oem_firmware_download.
In case that you ran the mlnxofedinstall script with the --without-fw-update' option or you are using an OEM card and now you wish to (manually) update firmware on your adapter card(s), you need to perform the steps below. The following steps are also appropriate in case that you wish to burn newer firmware that you have downloaded from Mellanox Technologies' Web site (http://www.mellanox.com > Support > Firmware Download).
- Get the device's PSID.
mlxfmanager_pci | grep PSID
PSID: MT_1210110019
-
Download the firmware BIN file from the Mellanox website or the OEM website.
-
Burn the firmware.
mixfmanager_pci -i <fw_file.bin>
- Reboot your machine after the firmware burning is completed.
Updating the Device Firmware Automatically upon System Boot
As of MLNX_OFED v3.1-x.x.x, firmware can be automatically updated upon system boot. The firmware update package (mlnx-fw-updater) is installed in the "/opt/mellanox/mlnx-fw-updater" folder, and openibd service script can invoke the firmware update process if requested on boot.
If the firmware is updated, the following message is printed to the system's standard logging file:
fw_updater: Firmware was updated. Please reboot your system for the changes to take effect.
Otherwise, the following message is printed:
fw_updater: Didn't detect new devices with old firmware.
Please note, this feature is disabled by default. To enable the automatic firmware update upon system boot, set the following parameter to "yes" "RUN_FW_UPDATER_ONBOOT=yes" in the openlbd service configuration file "/etc/infiniband/openib.conf".
You can opt to exclude a list of devices from the automatic firmware update procedure. To do so, edit the configurations file "/opt/mellanox/mlnx-fw-updater/mlnx-fw-updater.conf" and provide a comma
separated list of PCI devices to exclude from the firmware update. Example:
MLNX_EXCLUDE_DEVICES="00:05.0,00:07.0"
UEFI Secure Boot
All kernel modules included in MLNX_OFED for RHEL7 and SLES12 are signed with x.509 key to support loading the modules when Secure Boot is enabled.
Enrolling Mellanox's x.509 Public Key on Your Systems
In order to support loading MLNX_OFED drivers when an OS supporting Secure Boot boots on a UEFI-based system with Secure Boot enabled, the Mellanox x.509 public key should be added to the UEFI Secure Boot key database and loaded onto the system key ring by the kernel. Follow these steps below to add the Mellanox's x.509 public key to your system:
Prior to adding the Mellanox's x.509 public key to your system, please make sure that (1) The 'mokutil' package is installed on your system, and (2) The system is booted in UEFI mode.
- Download the x.509 public key.
<h1 id="wget-httpwwwmellanoxcomdownloadsofedmlnx_signing_key_pubder">wget http://www.mellanox.com/downloads/ofed/mlnx_signing_key_pub.der</h1>
- Add the public key to the MOK list using the mokutil utility.
<h1 id="mokutil-import-mlnx_signing_key_pubder">mokutil --import mlnx_signing_key_pub.der</h1>
- Reboot the system.
The pending MOK key enrollment request will be noticed by shim.efi and it will launch MokManager.efi to allow you to complete the enrollment from the UEFI console. You will need to enter the password you previously associated with this request and confirm the enrollment. Once done, the public key is added to the MOK list, which is persistent. Once a key is in the MOK list, it will be automatically propagated to the system key ring and subsequent will be booted when the UEFI Secure Boot is enabled.
To see what keys have been added to the system key ring on the current boot, install the 'keyutils' package and run: #keyctl list %:.system_keyring#
Removing Signature from kernel Modules
The signature can be removed from a signed kernel module using the 'strip' utility which is provided by the 'binutils' package. The strip utility will change the given file without saving a backup. The operation can be undo only by resigning the kernel module. Hence, we recommend backing up a copy prior to removing the signature.
To remove the signature from the MLNX\_OFED kernel modules:
- Remove the signature.
<h1 id="rpm-qa-grep-e-kernel-ibmlnx-ofa_kernelisersrpknemmlnx-rdsmlnx-nfsrdmamlnx-nvmemlnx-rdma-rxe-xargo-rpm-ql-grep-kcs-xargo-strip-g">rpm -qa | grep -E "kernel-ib|mlnx-ofa_kernel|iser|srp|knem|mlnx-rds|mlnx-nfsrdma|mlnx-nvme|mlnx-rdma-rxe" | xargo rpm -ql | grep ".kcs" | xargo strip -g</h1>
After the signature has been removed, a massage as the below will no longer be presented upon module loading:
"Request for u-known module key 'Mellanox Technologies signing keys: 61feb0747c/292f958419386ffdd9d5ca999e403' err -11"
However, please note that a similar message as the following will still be presented:
"my_module: module verification failed: signature and/or required key missing - tailing kernel"
This message is only presented once, upon first module boot that either has no signature or whose key is not in the kernel key ring. Therefore, this message may go unnoticed. Once the system is rebooted after unloading and reloading a kernel module, the message will appear. (Note that this message cannot be eliminated.)
- Update the initramfs on RHEL systems with the stripped modules.
rkinitrd /bool./initramfs-(uname -r).ing(uname -r) --force
Performance Tuning
Depending on the application of the user's system, it may be necessary to modify the default configuration of network adapters based on the ConnectX® adapters. In case that tuning is required, please refer to the Performance Tuning Guide for Mellanox Network Adapters at https://community.mellanox.com/docs/DOC-2489.
- MT4123 ConnectX®-6 (VPI, IB, EN) (firmware: fw-ConnectX6)
a3:00.0 Infiniband controller: Mellanox Technologies MT28908 Family [ConnectX-6]
e3:00.0 Infiniband controller: Mellanox Technologies MT28908 Family [ConnectX-6]
Windows Driver Installation

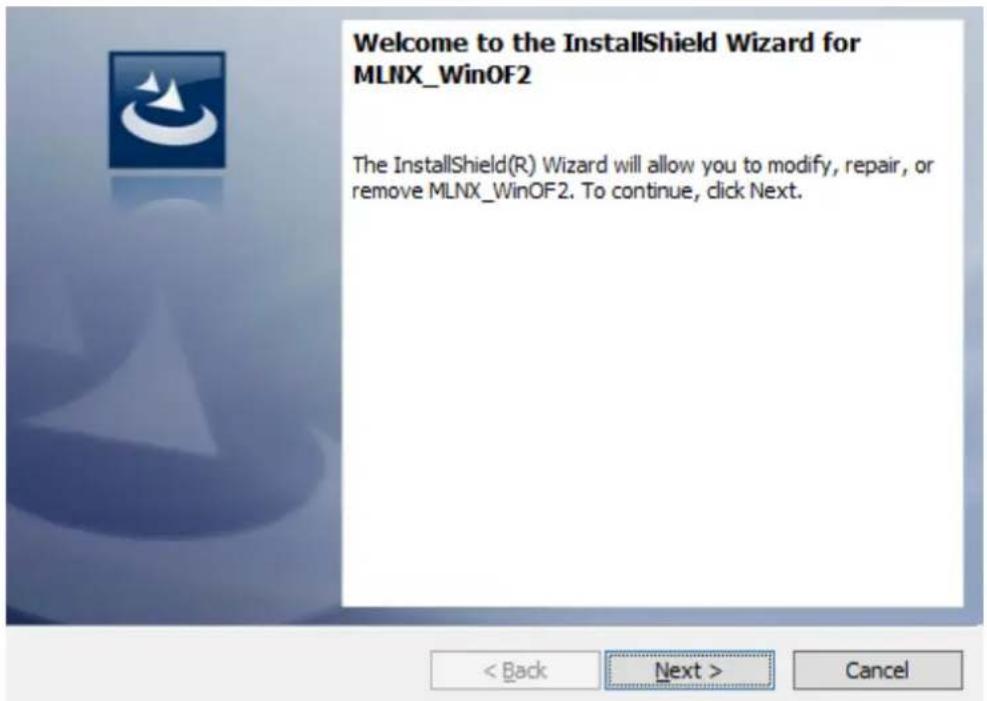

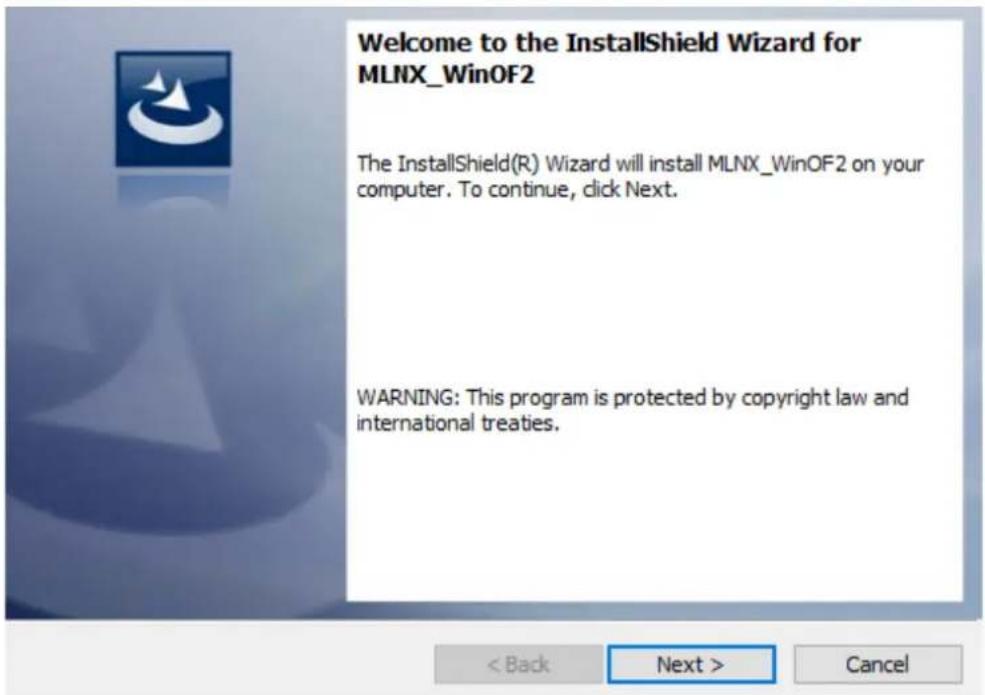

For Windows, download and install the latest Mellanox WinOF-2 for Windows software package available via the Mellanox web site at: http://www.mellanox.com > Products > Software > Ethernet Drivers > Download. Follow the installation instructions included in the download package (also available from the download page).
Windows driver is currently not supported in the following ConnectX-6 OPNs:
- MCX654106A-HCAT
- MCX654106A-ECAT

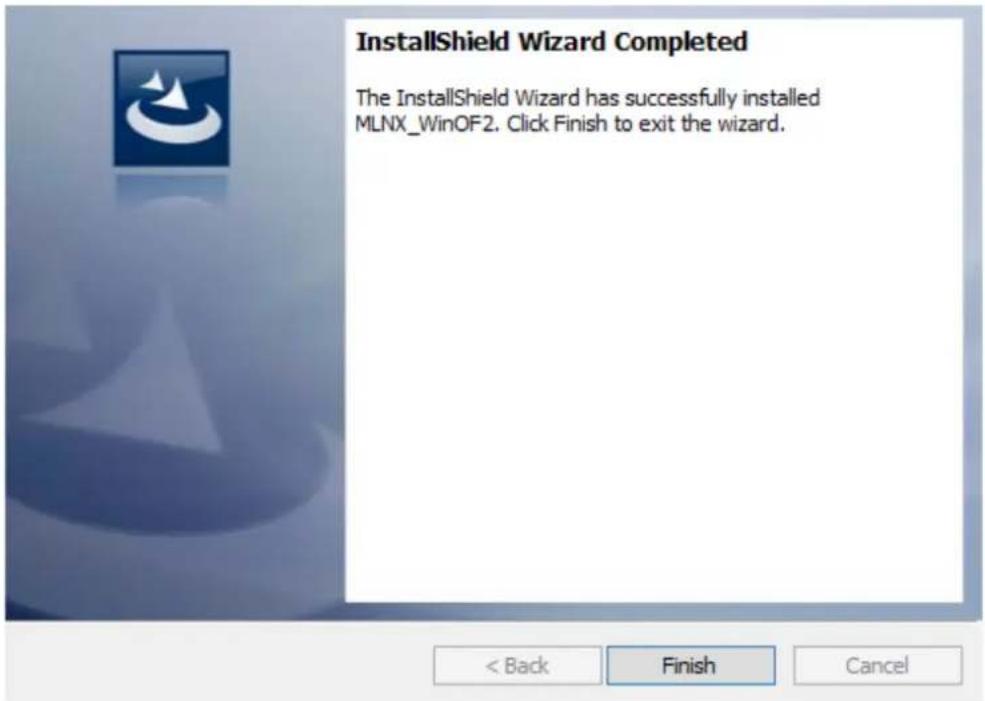

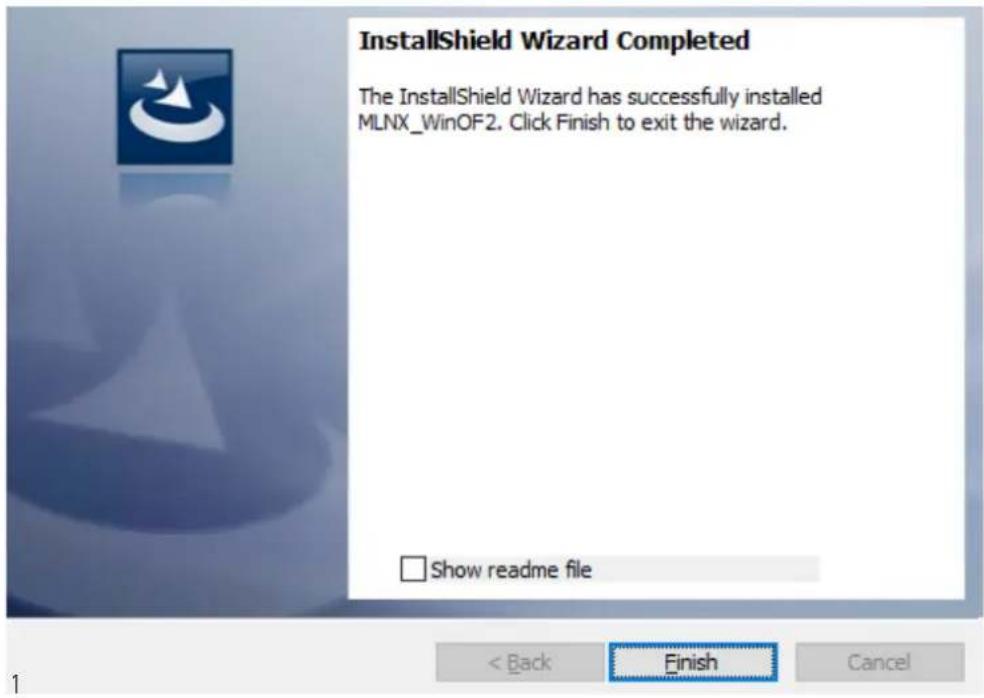

The snapshots in the following sections are presented for illustration purposes only. The installation interface may slightly vary, depending on the operating system in use.
Software Requirements
| Description Package | |
| Windows Server 2012 R2 MLNX_WinOF2-2_10_All_x64.exe | |
| Windows Server 2012 | |
| Windows Server 2016 | |
| Windows Server 2019 | |
| Windows 8.1 Client (64 bit only) | |
| Windows 10 Client (64 bit only) |
Note: The Operating System listed above must run with administrator privileges.
Downloading Mellanox WinOF-2 Driver
To download the .exe file according to your Operating System, please follow the steps below:
- Obtain the machine architecture.
a. To go to the Start menu, position your mouse in the bottom-right corner of the Remote Desktop of your screen.
b. Open a CMD console (Click Task Manager-->File --> Run new task and enter CMD).
c. Enter the following command.
echo &PROCESSOR_ARCHITECTURES
On an x64 (64-bit) machine, the output will be "AMD64".
- Go to the Mellanox WinOF-2 web page at: http://www.mellanox.com > Products > InfinIBand/VPI Drivers => Windows SW/Drivers.
- Download the .exe image according to the architecture of your machine (see Step 1). The name of the .exe is in the following format: MLNX_WinOF2-
_ .exe.
Installing the incorrect .exe file is prohibited. If you do so, an error message will be displayed. For example, if you install a 64-bit .exe on a 32-bit machine, the wizard will display the following (or a similar) error message: "The installation package is not supported by this processor type. Contact your vendor"
Installing Mellanox WinOF-2 Driver
The snapshots in the following sections are for illustration purposes only. The installation interface may slightly vary, depending on the used operating system.
This section provides instructions for two types of installation procedures, and both require administrator privileges:
- Attended Installation - An installation procedure that requires frequent user intervention.
- Unattended Installation - An automated installation procedure that requires no user intervention.
Both Attended and Unattended installations require administrator privileges.
Attended Installation
The following is an example of an installation session.
- Double click the .exe and follow the GUI instructions to install MLNX_WinOF2.
- [Optional] Manually configure your setup to contain the logs option (replace "LogFile" with the relevant directory):
MLNX_WinOF2-[Driver/version]_<revision_version>_All_Arch.exe /v"/l*vx [LogFile]*
- [Optional] If you do not want to upgrade your firmware version. (Note: MT_SKIPFWUPGRD default value is False.)
MLNX_WinOF2-2_10_50000_All_x64.exe /v"/1*vx HyLog.txt=1"
- Click Next in the Welcome screen.
- Read and accept the license agreement and click Next.
License Agreement
Please read the following license agreement carefully.
Copyright (c) 2005-2019, Mellanox Technologies All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
● I accept the terms in the license agreement
○ I do not accept the terms in the license agreement
InstallShield
< Back
Next >
Cancel
- Select the target folder for the installation.
Destination Folder
Click Next to install to this folder, or click Change to install to a different folder.
Install MLNX_WinOF2 to:
C:\Program Files\Mellanox\MLNX_WinOF2\
Change...
InstallShield
< Back
Next >
Cancel
-
The firmware upgrade screen will be displayed in the following cases:
-
If the user has an OEM card. In this case, the firmware will not be displayed.
- If the user has a standard Mellanox card with an older firmware version, the firmware will be updated accordingly. However, if the user has both an OEM card and a Mellanox card, only the Mellanox card will be updated.
Firmware Upgrade
√ Upgrade the HCA's firmware version (Recommended). Upgrading the firmware version will reboot your machine.
Note: One or more of your HCA adapters has an old firmware version. We recommend upgrading to a newer firmware version to enable improved functionality and support driver's capabilities.
InstallShield
< Back
Next >
Cancel
- Select a Complete or Custom installation, follow Step a onward.
Setup Type
Choose the setup type that best suits your needs.
Please select a setup type.
Complete
All program features will be installed. (Requires the most disk space.)
Custom
Choose which program features you want installed and where they will be installed. Recommended for advanced users.
InstallShield
< Back
Next >
Cancel
a. Select the desired feature to install:
- Performances tools - Install the performance tools that are used to measure performance in user environment
- Documentation - contains the User Manual and Release Notes
- Management tools - installation tools used for management, such as mlxstat
- Diagnostic Tools - installation tools used for diagnostics, such as mlx5cmd
b. Click Next to install the desired tools.
Custom Setup
Select the program features you want installed.
Click on an icon in the list below to change how a feature is installed.
Performance Tools
Documentation
Management tools
Diagnostic Tools
Feature Description
Install tools used to measure performance through bandwidth and latency over various configurations (Network Direct, InfiniBand).
This feature requires 60KB on your hard drive.
Install to:
C:\Program Files\Mellanox\MLNX_WinOF2\Performance tools\
Change...
InstallShield
Help
Space
< Back
Next >
Cancel
- Click Install to start the installation.
Ready to Install the Program
The wizard is ready to begin installation.
Click Install to begin the installation.
If you want to review or change any of your installation settings, click Back. Click Cancel to exit the wizard.
InstallShield
< Back
Install
Cancel
- In case firmware upgrade option was checked in Step 7, you will be notified if a firmware upgrade is required (see
Installing MLNX\_WinOF2
The program features you selected are being installed.
Please wait while the InstallShield Wizard installs MLNX_WinOF2. This may take several minutes.
Status:
Firmware upgrade is required. This may take several minutes.
InstallShield
< Back
Next >
Cancel
- Click Finish to complete the installation.
Unattended Installation
If no reboot options are specified, the installer restarts the computer whenever necessary without displaying any prompt or warning to the user. To control the reboots, use the /norestart or /forcerestart standard command-line options.
The following is an example of an unattended installation session.
- Open a CMD console-> Click Start-> Task Manager File-> Run new task-> and enter CMD.
- Install the driver. Run:
MINX_WinOF2-[Driver/Version]_<revision_version>_All_Arch.exe /S /v/qn
- [Optional] Manually configure your setup to contain the logs option:
_All_Arch.exe /S /v/qn /v"/l*vx [Log-File]"" v:shapes="_x0000_s1026">
- [Optional] If you wish to control whether to install ND provider or not (i.e., MT_NDPROPERTY default value is True).
MLNX_WinOP2-[Driver/Version]_<revision_version>_All_Arch.exe /vKT_NDPROPERTY=1
- [Optional] If you do not wish to upgrade your firmware version (i.e., MT_SKIPFWUPGRD default value is False).
MINX_WinOF2-[Driver/Version]_<revision_version>_All_Arch.exe /vMT_SKTPFWUPGRD-1
Installation Results
Upon installation completion, you can verify the successful addition of the network card(s) through the Device Manager. The Inf files can be located at:
%ProgramFiles%\Mellanox\MLNX_WinOF2\Drivers\
To see the Mellanox network adapters, display the Device Manager and pull down the "Network adapters" menu.
Uninstalling Mellanox WinOF-2 Driver
Attended Uninstallation
To uninstall MLNX_WinOF2 on a single node:
- Click Start > Control Panel > Programs and Features > MLNX_WinOF2 > Uninstall. (NOTE: This requires elevated administrator privileges)
Unattended Uninstallation
To uninstall MLNX_WinOF2 in unattended mode:
- Open a CMD console. (Click Task Manager > File > Run new task, and enter CMD.)
- To uninstall the driver, run:
MINX_WinOF2-2_0_A11_x64.exe /S /x /v"/q"
Extracting Files Without Running Installation
To extract the files without running installation, perform the following steps:
- Open a CMD console-> Click Start-> Task Manager-> File-> Run new task-> and enter CMD.
- Extract the driver and the tools:
MLNX_WinOF2-2_0_<revision_version>_All_x64 /a
To extract only the driver file
MLNX_WinOF2-2_0_<revision_version>_All_x64 /a /vMT_DRIVERS_ONLY=1
- Click Next to create a server image.
- Click Change and specify the location in which the files are extracted to.
Network Location
Specify a network location for the server image of the product.
Enter the network location or click Change to browse to a location. Click Install to create a server image of MLNX_WinOF2 at the specified network location or click Cancel to exit the wizard.
Network location:
N:\
Change...
InstallShield
< Back
Install
Cancel
- Click Install to extract this folder, or click Change to install to a different folder.
Network Location
Specify a network location for the server image of the product.
Enter the network location or click Change to browse to a location. Click Install to create a server image of MLNX_WinOF2 at the specified network location or click Cancel to exit the wizard.
Network location:
F1
Change...
InstallShield
< Back
Install
Cancel
- To complete the extraction, click Finish.
Firmware Upgrade
If the machine has a standard Mellanox card with an older firmware version, the firmware will be automatically updated as part of the WinOF-2 package installation.
For information on how to upgrade firmware manually, please refer to the MFT User Manual at www.mellanox.com >Products > Ethernet Drivers > Firmware Tools.
VMware Driver Installation
This section describes VMware Driver Installation.
Hardware and Software Requirements
| Requirement Description | |
| Platforms A server platform with an adapter | card based on one of the following Mellanox Technologies' devices:ConnectX®-6 (InfiniBand/VPI/EN) (firmware: fw-ConnectX6) |
| Device ID For the latest list of device IDs, please visit Mellanox website. | |
| Operating System ESXi 6.5 | |
| Installer Privileges The installation requires | administrator privileges on the target machine. |
Installing Mellanox NATIVE ESXi Driver for VMware vSphere
Please uninstall all previous Mellanox driver packages prior to installing the new version. See Removing Earlier Mellanox Drivers for further information.
To install the driver:
- Log into the ESXi server with root permissions.
- Install the driver.
#> ccxcli software vib install -d <path>/<bundle_tile>
Example:
#> esxcli software vib install -d /tmp/HLNX-NATIVE-ESX-ConnectX-4-5_4.16.8.8-10EM-650.0.0.4240417.zipesxcli
- Reboot the machine.
- Verify the driver was installed successfully.
esxc i software vib list | grep nmx
nmlx5-core 4.16.8.8-10FM,6x0.0.0.4240417 MRL PartnerSupported 2017-01-31
nmlx5-rdna 4.16.8.8-10LM,650.0.0.4240417 MLL PartnerSupported 2017-01-31
After the installation process, all kernel modules are loaded automatically upon boot.
Removing Earlier Mellanox Drivers
Please unload the previously installed drivers before removing them.
To remove all the drivers:
- Log into the ESXi server with root permissions.
- List all the existing NATIVE ESXi driver modules. (See Step 4 In Installing Mellanox NATIVE ESXi Driver for VMware vSphere.)
- Remove each module:
#> esxcli software vib remove -n nmlx5-rdma
#> esxcli software vib remove -n nmlx5-core
To remove the modules, you must run the command in the same order as shown in the example above.
- Reboot the server.
Firmware Programming
- Download the VMware bootable binary images v4.6.0 from the Mellanox Firmware Tools (MFT) site.
a. ESXi 6.5 File: mft-4.6.0.48-10EM-650.0.0.4598673.x86_64.vib
b. MD5SUM: 0804cffe30913a7b4017445a0f0adbe1
- Install the image according to the steps described in the MFT User Manual.
The following procedure requires custom boot image downloading, mounting and booting from a USB device.
Updating Adapter Firmware
Each adapter card is shipped with the latest version of qualified firmware at the time of manufacturing. However, Mellanox issues firmware updates occasionally that provide new features and bug fixes. To check that your card is programmed with the latest available firmware version, download the mlxup firmware update and query utility. The utility can query for available Mellanox adapters and indicate which adapters require a firmware update. If the user confirms, mlxup upgrades the firmware using embedded images. The latest mlxup executable and documentation are available from http://www.mellanox.com > Products > Software > Firmware Tools.
Firmware Update Example
[scrvcrl]# ./nlxup
Querying Mellanox devices firmware ...
Device Type: ConnectX-6
Part Number: MCX654106A-HCAI
Description: ConnectX®-6 VP adaptor card, HDR _B (200Gb/s) and 200GbE, dual-port QSTP56, Socket Direct 2x
PCTe3.0 x16, tal bracket
PSTD: MT_2190110032
PCI Device Name: 0000:06:00.0
Base GUD: c41d2d0300fd8b8a
Versions: Current Available
FW 16.23.1020 16.24.1000
Status: Update required
Device Type: ConnectLX 6
Part Number: MCX654106A-HCAI
Description: ConnectX®-6 VPI adapter card, HDR IB (200Gb/s) and 200GbE, dual-port QSTP56, Socket Direct 2x
PCTe3.0 x16, tal bracket
PSID: MT_2170110021
PCI Device Name: 0000:07:00.0
Basic MAC: 0000c41d2da206d4
Versions: Current Available
FW 16.24.1030 16.24.1000
Status: Up to date
Perform FW update? [y/N]: y
Device #1: Up to date
Device #2: Updating FW ... Done
Restart needed for updates to take effect.
Log File: /var/log/mlxup/mlxup-yyyymmdd.log
Troubleshooting
General Troubleshooting
| Server unable to find the adapter Ensure that the adapter is placed correctlyMake sure the adapter slot and the adapter are compatibleInstall the adapter in a different PCI Express slotUse the drivers that came with the adapter or download the latestMake sure your motherboard has the latest BIOSTry to reboot the server |
| The adapter no longer works Reseat the adapter in its slot or a different slot, if necessaryTry using another cableReinstall the drivers for the network driver files may be damaged or deletedReboot the server |
| Adapters stopped working after installing another adapterTry removing and re-installing all adaptersCheck that cables are connected properlyMake sure your motherboard has the latest BIOS |
| Link indicator light is off Try another port on the switchMake sure the cable is securely attachedCheck you are using the proper cables that do not exceed the recommended lengthsVerify that your switch and adapter port are compatible |
| Link light is on, but with no communication establishedCheck that the latest driver is loadedCheck that both the adapter and its link are set to the same speed and duplex settings |
Linux Troubleshooting
| Environment Information cat /etc/issue | uname -acat /proc/cupinfo | grep ‘model name’ | uniqofed_info -sifconfig -aip link showthtool <interface>ethtool -i <interface_of_Mellanox_port_num>ibdev2netdev |
| Card Detection lspci | grep -i Mellanox | |
| Mellanox Firmware Tool (MFT) Download and install MFT: http://www.mellanox.com/content/pages.php?pg=management_tools&menu_section=34Refer to the User Manual for installation instructions.Once installed, run:mst startmst statusflint -dq | |
| Ports Information ibstat | ibv_devinfo |
| Firmware Version Upgrade To download the latest firmware version refer to http://www.mellanox.com/supportdownloader | |
| Collect Log File cat /var/log/messages | dmesg >> system.logjournalctl (Applicable on new operating systems)cat /var/log/syslog |
Windows Troubleshooting
| Environment Information From the Windows desktop choose the Start menu and run:msinfo32To export system information to a text file, choose the Export option from the File menu.Assign a file name and save. | ||
| Mellanox Firmware Tool (MFT) Download and install MFT:http://www.mellanox.com/content/pages.php?pg=management_tools&menu_section=34Refer to the User Manual for installation instructions.Once installed, open a CMD window and run:WinMFTmst startmst statusflint -dq | ||
| Ports Information vstat | ||
| Firmware Version Upgrade Download the latest firmware version using the PSID/boardID:http://www.mellanox.com/supportdownloader/flint -d-ib | ||
| Collect Log File Event log viewer | MST device logs:mst startmst statusflint -ddc>dump_configuration.logmstdumpdc>mstdump.log | |
Specifications
MCX651105A-EDAT Specifications
Please make sure to install the ConnectX-6 card in a PCIe slot that is capable of supplying the required power and airflow as stated in the below table.
| Physical Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm) | |||
| Protocol Support | InfiniBand: IBTA v1.3aAuto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), HDR (50Gb/s per lane) port | ||
| Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR | |||
| Data Rate InfiniBand SDR/DDR/QDR/FDR/EDR/HDR100 | |||
| PCI Express Gen3/4: SERDES @ 8.0GT/s/16GT/s, x8 lanes (2.0 and 1.1 compatible) | |||
| Adapter Card Power | Voltage: 12V, 3.3VAUX | ||
| Power Cable | |||
| Typical Power^b | Passive Cables 11.0W | ||
| Maximum Power | Please refer to ConnectX-6 VPI Power Specifications (requires MyMellanox login credentials) | ||
| Voltage: 3.3AuxMaximum current: 100mA | |||
| Maximum power available through QSFP56 port: 5W | |||
| Environmental | Temperature Operational 0°C to 55°C | ||
| Humidity: 90% relative humidity ^c | |||
| Airflow (LFM) / Ambient Temperature | Cable Type | Airflow Direction | ||
| Heatsink to Port Port to Heatsink | ||||
| Passive Cables TBD | TBD | |||
| Mellanox Active W Cables | TBD TBD | |||
| Regulatory Safety: CB / cTUVus / CE | ||||
MCX653105A-HDAT Specifications
Please make sure to install the ConnectX-6 card in a PCIe slot that is capable of supplying the required power and airflow as stated in the below table.
| Physical | Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm) | ||
| Connector: Single QSFP56 InfiniBand and Ethernet (copper and optical) | |||
| Protocol Support | InfiniBand: IBTA v1.3aAuto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), HDR (50Gb/s per lane) port | ||
| Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR | |||
| Data Rate InfiniBand SDR/DDR/QDR/FDR/EDR/HDR100/HDR | |||
| PCI Express Gen3/4: SERDES @ 8.0GT/s/16GT/s, x16 lanes (2.0 and 1.1 compatible) | |||
| Adapter Card Power | Voltage: 12V, 3.3VAUX | ||
| Power Cable | |||
| Typical Powerb | Passive Cables 19.3W | ||
| Maximum Power | Please refer to ConnectX-6 VPI Power Specifications (requires MyMellanox login credentials) | ||
| Voltage: 3.3AuxMaximum current: 100mA | ||||
| Maximum power available through QSFP56 port: 5W | ||||
| Environmental | Temperature Operational 0°C to 55°C | |||
| Humidity: 90% relative humidityc | ||||
| Airflow (LFM) / Ambient Temperature | Cable Type | Airflow Direction | ||
| Heatsink to Port Port to Heatsink | ||||
| Passive Cables 350 LFM / 55°C 250 | LFM / 35°C | |||
| Mellanox Active 4.7W Cables | 500 LFM / 55°Cd | 250 LFM / 35°C | ||
| Regulatory | Safety: CB / cTUVus / CE | |||
| EMC: CE / FCC / VCCI / ICES / RCM / KC | ||||
| RoHS: RoHS Compliant | ||||
Notes: a. The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another Mellanox InfiniBand product.
b. Typical power for ATIS traffic load.
c. For both operational and non-operational states.
d. For engineering samples - add 250LFM
MCX653106A-HDAT Specifications
Please make sure to install the ConnectX-6 card in a PCIe slot that is capable of supplying the required power and airflow as stated in the below table.
| Physical Adapter | Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm) | |||
| Connector: Dual QSFP56 InfiniBand and Ethernet (copper and optical) | ||||
| Protocol Support | InfiniBand: IBTA v1.35 ^a Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), HDR (50Gb/s per lane) port | |||
| Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR | ||||
| Data Rate InfiniBand | SDR/DDR/QDR/FDR/EDR/HDR100/HDR | |||
| Ethernet 1/10/25/40/50/100/200 Gb/s | ||||
| PCI Express Gen3/4: SERDES @ 8.0GT/s/16GT/s, x16 lanes (2.0 and 1.1 compatible) | ||||
| Adapter Card Power | Voltage: 12V, 3.3VAUX | |||
| Power Cable | ||||
| Typical Power^b | Passive Cables 23.6W | |||
| Maximum Power | Please refer to ConnectX-6 VPI Power Specifications (requires MyMellanox login credentials) | |||
| Voltage: 3.3Aux Maximum current: 100mA | ||||
| Maximum power available through QSFP56 port: 5W | ||||
| Environmental | Temperature Operational 0°C to 55°C | |||
| Non-operational -40°C to 70°C | ||||
| Humidity: 90% relative humidity^c | ||||
| Airflow (LFM) / Ambient Temperature | Cable Type | Airflow Direction | ||
| Heatsink to Port Port to Heatsink | ||||
| Passive Cables 400 | LFM / 55°C 300 LFM / 35°C | |||
| Mellanox Active 4.7W Cables | 950 LFM / 55°C 600 LFM / 48°Cd | 300 LFM / 35°C | ||
| Regulatory Safety | CB / cTUVus / CE | |||
| EMC: CE / FCC / VCCI / ICES / RCM / KC | ||||
| RoHS: RoHS Compliant | ||||
Notes: a. The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another Mellanox InfiniBand product.
b. Typical power for ATIS traffic load.
c. For both operational and non-operational states.
MCX653105A-ECAT Specifications
Please make sure to install the ConnectX-6 card in a PCIe slot that is capable of supplying the required power and airflow as stated in the below table.
| Physical Adapter | Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm) | |||
| Connector: Single QSFP56 InfiniBand and Ethernet (copper and optical) | ||||
| Protocol Support | InfiniBand: IBTA v1.3aAuto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane) | |||
| Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR | ||||
| Data Rate InfiniBand | SDR/DDR/QDR/FDR/EDR/HDR100 | |||
| Ethernet 1/10/25/40/50/100 Gb/s | ||||
| PCIe Gen3/4: SERDES @ 8.0GT/s/16GT/s, x16 lanes (2.0 and 1.1 compatible) | ||||
| Adapter Card Power | Voltage: 12V, 3.3VAUX | |||
| Power Cable | ||||
| Typical Powerb | Passive Cables 15.6W | |||
| Maximum Power | Please refer to ConnectX-6 VPI Power Specifications (requires MyMellanox login credentials) | |||
| Voltage: 3.3AuxMaximum current: 100mA | ||||
| Maximum power available through QSFP56 port: 5W | ||||
| Environmental Temperature | Operational 0°C to 55°C | |||
| Non-operational -40°C to 70°C | ||||
| Humidity: 90% relative humidityc | ||||
| Airflow (LFM) / Ambient Temperature | Cable Type | Airflow Direction | ||
| Heatsink to Port Port to Heatsink | ||||
| Passive Cables 300 | LFM / 55°C 200 LFM / 35°C | |||
| Mellanox Active2.7W Cables | 300 LFM / 55°C 200 LFM / 35°C | |||
| Regulatory Safety: CB / cTUVus / CE | ||||
Notes: a. The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another Mellanox InfiniBand product.
b. Typical power for ATIS traffic load.
c. For both operational and non-operational states.
MCX653106A-ECAT Specifications
Please make sure to install the ConnectX-6 card in a PCIe slot that is capable of supplying the required power and airflow as stated in the below table.
For power specifications when using a single-port configuration, please refer to MCX653105A-ECAT Specifications
| Physical Adapter | Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm) | |||
| Connector: Dual QSFP56 InfiniBand and Ethernet (copper and optical) | ||||
| Protocol Support | InfiniBand: IBTA v1.3aAuto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane) port | |||
| Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR | ||||
| Data Rate InfiniBand | SDR/DDR/QDR/FDR/EDR | |||
| Ethernet 1/10/25/40/50/100 Gb/s | ||||
| Gen3/4: SERDES @ 8.0GT/s/16GT/s, x16 lanes (2.0 and 1.1 compatible) | ||||
| Adapter Card Power | Voltage: 12V, 3.3VAUX | |||
| Power Cable | ||||
| Typical Powerb | Passive Cables 21.0W | |||
| Maximum Power | Please refer to ConnectX-6 VPI Power Specifications (requires MyMellanox login credentials) | |||
| Voltage: 3.3AuxMaximum current: 100mA | ||||
| Maximum power available through QSFP56 port: 5W | ||||
| Environmental Temperature | Operational 0°C to 55°C | |||
| Non-operational -40°C to 70°C | ||||
| Humidity: 90% relative humidityc | ||||
| Airflow (LFM) / Ambient Temperature | Cable Type | Airflow Direction | ||
| Heatsink to Port Port to Heatsink | ||||
| Passive Cables 350 LFM / 55°C 250 LFM / 35°C | ||||
| Mellanox Active 2.7W Cables | 550 LFM / 55°C 250 LFM / 35°C | |||
| Regulatory Safety: CB / cTUVus / CE | ||||
Notes: a. The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another Mellanox InfiniBand product.
b. Typical power for ATIS traffic load.
c. For both operational and non-operational states.
MCX654105A-HCAT Specifications
Please make sure to install the ConnectX-6 card in a PCIe slot that is capable of supplying the required power and airflow as stated in the below table.
| Physical Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm)Auxiliary PCIe Connection Card Size: 5.09 in. x 2.32 in. (129.30mm x 59.00mm)Two Cabline CA-II Plus harnesses (white and black) Length: 35cm |
| Connector: Single QSFP56 InfiniBand and Ethernet (copper and optical) |
| Protocol Support | InfiniBand: IBTA v1.3a | |||
| Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), HDR (50Gb/s per lane) port | ||||
| Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR | ||||
| Data Rate InfiniBand SDR/DDR/QDR/FDR/EDR/HDR100/HDR | ||||
| Ethernet 1/10/25/40/50/100/200 Gb/s | ||||
| Gen3: SERDES @ 8.0GT/s/, x16 lanes (2.0 and 1.1 compatible) | ||||
| Adapter Card Power Voltage: 12V, 3.3VAUX | ||||
Notes: a. The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another Mellanox InfiniBand product.
b. Typical power for ATIS traffic load.
c. For both operational and non-operational states.
d. For engineering samples - add 250LFM
MCX654106A-HCAT Specifications
Please make sure to install the ConnectX-6 card in a PCIe slot that is capable of supplying the required power and airflow as stated in the below table.
For power specifications when using a single-port configuration, please refer to MCX654105A-HCAT Specifications
| Physical Low Profile Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm)Auxiliary PCIe Connection Card Size: 5.09 in. x 2.32 in. (129.30mm x 59.00mm)Two Cabline CA-II Plus harnesses (white and black) Length: 35cm | |||
| Protocol Support | InfiniBand: IBTA v1.3aAuto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), HDR (50Gb/s per lane) port | ||
| Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBAConnectX-6SE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR | |||
| Data Rate InfiniBand | SDR/DDR/QDR/FDR/EDR/HDR100/HDR | ||
| Ethernet 1/10/25/40/50/100/200 Gb/s | |||
| Gen3: SERDES @ 8.0GT/s, x16 lanes (2.0 and 1.1 compatible) | |||
| Adapter Card Power Voltage: 12V, 3.3VAUX | |||
| Active Auxiliary PCIe Connection Card Power | Typical Power 3.0W | |||
| Maximum Power 4.0W | ||||
| Environmental | Temperature | Operational 0°C to 55°C | ||
| Non-operational -40°C to 70°C | ||||
| Humidity: 90% relative humidityc | ||||
| Airflow (LFM) / Ambient Temperature | Cable Type | Airflow Direction | ||
| Heatsink to Port Port to | Heatsink | |||
| Passive Cables 700 LFM / 55°C 400 LFM / 35°C | ||||
| Mellanox Active 4.7W Cables | 1050 LFM / 55°C 600 LFM / 48°C | 400 LFM / 35°C | ||
| Regulatory Safety: CB / cTUVus / CE | ||||
Notes: a. The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another Mellanox InfiniBand product.
b. Typical power for ATIS traffic load.
c. For both operational and non-operational states.
MCX654106A-ECAT Specifications
Please make sure to install the ConnectX-6 card in a PCIe slot that is capable of supplying the required power and airflow as stated in the below table.
| Physical Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm)Auxiliary PCIe Connection Card Size: 5.09 in. x 2.32 in. (129.30mm x 59.00mm)Two Cabline CA-II Plus harnesses (white and black) Length: 35cm |
| Connector: Dual QSFP56 InfiniBand and Ethernet (copper and optical) |
| Protocol SupportInfiniBand: IBTA v1.3aAuto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane) |
| Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR | ||||
| Data Rate InfiniBand SDR/DDR/QDR/FDR/HDR100/EDR | ||||
| Gen3: SERDES @ 8.0GT/s, x16 lanes (2.0 and 1.1 compatible) | ||||
| Adapter Card Power Voltage: 12V, 3.3VAUX | ||||
Notes: a. The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another Mellanox InfiniBand product.
b. Typical power for ATIS traffic load.
c. For both operational and non-operational states.
MCX653105A-EFAT Specifications
Please make sure to install the ConnectX-6 card in a PCIe slot that is capable of supplying the required power and airflow as stated in the below table.
| Physical Adapter | Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm) | ||
| Connector: Single QSFP56 InfiniBand and Ethernet (copper and optical) | |||
| Protocol Support | InfiniBand: IBTA v1.3aAuto-Negotiation: 1X/2X/4X SDR [2.5Gb/s per lane], DDR [5Gb/s per lane], QDR [10Gb/s per lane], FDR10 (10.3125Gb/s per lane), FDR [14.0625Gb/s per lane], EDR [25Gb/s per lane] port, HDR100 (2 lane x 50Gb/s per lane) port | ||
| Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR | |||
| Data Rate InfiniBand | SDR/DDR/QDR/FDR/EDR/HDR100 | ||
| Ethernet 1/10/25/40/50/100 Gb/s | |||
| Gen3/4: SERDES @ 8.0GT/s/16GT/s, x16 lanes, Socket Direct 2x8 in a row (2.0 and 1.1 compatible) | |||
| Adapter Card Power | Voltage: 12V, 3.3VAUX | ||
| Power Cable | |||
| Typical Power^b | Passive Cables 19.4W | ||
| Maximum Power | Please refer to ConnectX-6 VPI Power Specifications (requires MyMellanox login credentials) | ||
| Voltage: 3.3AuxMaximum current: 100mA | |||
| Maximum power available through QSFP56 port: 5W | |||
| Environmental Temperature | Operational 0°C to 55°C | ||
| Non-operational -40°C to 70°C | |||
| Humidity: 90% relative humidity^c | |||
| Airflow (LFM) / Ambient Temperature | Cable Type | Airflow Direction | ||
| Heatsink to Port Port to Heatsink | ||||
| Passive Cables 300 / | 55°C 200 / 35°C | |||
| Mellanox Active 2.75W Cables | 300 / 55°C 200 / 35°C | |||
| Regulatory Safety: CB / cTUVus / CE | ||||
Notes: a. The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another Mellanox InfiniBand product.
b. Typical power for ATIS traffic load.
c. For both operational and non-operational states.
MCX653106A-EFAT Specifications
Please make sure to install the ConnectX-6 card in a PCIe slot that is capable of supplying the required power and airflow as stated in the below table.
For power specifications when using a single-port configuration, please refer to MCX653105A-EFAT Specifications.
| Physical Adapter | Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm) | |||
| Connector: Dual QSFP56 InfiniBand and Ethernet (copper and optical) | ||||
| Protocol Support | InfiniBand: IBTA v1.3 ^a Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane) port | |||
| Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR | ||||
| Data Rate InfiniBand | SDR/DDR/QDR/FDR/EDR, HDR100 | |||
| Ethernet 1/10/25/40/50/100 Gb/s | ||||
| Gen3/4: SERDES @ 8.0GT/s/16GT/s, x16 lanes, Socket Direct 2x8 in a row (2.0 and 1.1 compatible) | ||||
| Adapter Card Power | Voltage: 12V, 3.3VAUX | |||
| Power Cable | ||||
| Typical Power^b | Passive Cables 21.6W | |||
| Maximum Power | Please refer to ConnectX-6 VPI Power Specifications (requires MyMellanox login credentials) | |||
| Voltage: 3.3Aux Maximum current: 100mA | ||||
| Maximum power available through QSFP56 port: 5W | ||||
| Environmental Temperature | Operational 0°C to 55°C | |||
| Non-operational -40°C to 70°C | ||||
| Humidity: 90% relative humidity^c | ||||
| Airflow (LFM) / Ambient Temperature | Cable Type | Airflow Direction | ||
| Heatsink to Port Port to Heatsink | ||||
| Passive Cables 350 LFM / 55°C 250 LFM / 35°C | ||||
| Mellanox Active 2.75W Cables | 550 LFM / 55°C 250 LFM / 35°C | |||
| Regulatory Safety | CB / cTUVus / CE | |||
| EMC: CE / FCC / VCCI / ICES / RCM / KC | ||||
| RoHS: RoHS Compliant | ||||
Notes: a. The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another Mellanox InfiniBand product.
b. Typical power for ATIS traffic load.
c. For both operational and non-operational states.
Adapter Card and Bracket Mechanical Drawings and Dimensions
All dimensions are in millimeters. The PCB mechanical tolerance is +/- 0.13mm.
For the 3D Model of the card, please refer to http://www.mellanox.com/page/3d_models.
ConnectX-6 PCIe x16 Adapter Card
ConnectX-6 PCIe x8 Adapter Card
Auxiliary PCIe Connection Card
Tall Bracket

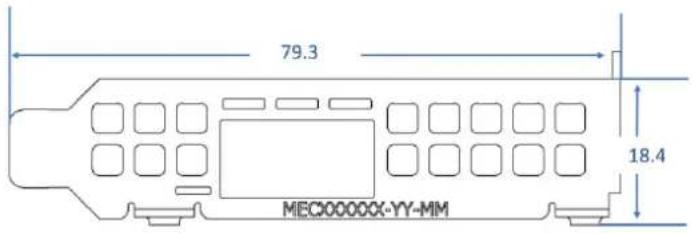

Short Bracket
PCIe Express Pinouts Description for Single-Slot Socket Direct Card
This section applies to ConnectX-6 single-slot cards (MCX653105A-EFAT and MCX653106A-EFAT).
ConnectX-6 single-slot Socket Direct cards offer improved performance to dual-socket servers by enabling direct access from each CPU in a dual-socket server to the network through its dedicated PCIe interface. The PCIe x16 interface is split into two PCIe x8 in a row, such that each of the PCIe x8 lanes can be connected to a dedicated CPU in a dual-socket server. In such a configuration, Socket Direct brings lower latency and lower CPU utilization as the direct connection from each CPU to the network means the Interconnect can bypass a QPI (UPI) and the other CPU, optimizing performance and improving latency. CPU utilization is improved as each CPU handles only its own traffic and not traffic from the other CPU.
In order to allow this capability, a system with a special PCI Express x16 slot is required. Table 31 provides the pin definitions of the required four special PCIe pins.
| PCIe pin # | Server Connection for 2x PCIe x8 mode Server | Connection for 1x PCIe x16 mode | Comments |
| B82 | 1Kohm pull up to 3.3VAUX Either leave | unconnected or pulled to GND | Configure the card to work at 2x PCIe x8 or 1x PCIe x16 modes |
| A32 | P signal of differential PCIe clock (100MHz nominally) of the CPU which connects to PCIe lanes 15-8 of the PCIe connector | Not Connected | PCIe clock for ConnectX-6 PCIe bus lanes [15:8] |
| A33 | N signal of differential PCIe clock (100MHz nominally) of the CPU which connects to PCIe lanes 15-8 of the PCIe connector | Not Connected | |
| A50 | PERST signal from the CPU which connects to PCIe lanes 15-8 of the PCIe connector | Not Connected PERST (PCIe Reset) for ConnectX-6 PCIe bus lanes [15:8] | |
Finding the GUID/MAC on the Adapter Card
Each Mellanox adapter card has a different identifier printed on the label: serial number and the card MAC for the Ethernet protocol and the card GUID for the InfiniBand protocol. VPI cards have both a GUID and a MAC (derived from the GUID).
The product revisions indicated on the labels in the following figures do not necessarily represent the latest revisions of the cards.
MCX651105A-EDAT Board Label MCX653105A-HDAT Board Label
Model: CX653105A
ConnectX-6 HDR 200GbE
P/N: MCX653105A-HDAT
S/N: MT0806X01504
GUID: 00 02 C9 03 00 27 05 1C
MAC: 00 02 C9 27 05 1C
Made in Israel
2019-06-24
Rev: A6
MCX653106A-HDAT Board Label MCX653105A-ECAT Board Label
Model: CX653106A
ConnectX-6 HDR 100GbE
P/N: MCX653106A-EFAT
Rev: A2
2018-10-22
Made in Israel
S/N: MT0806X01504
GUID: 00 02 C9 03 00 27 05 10
SD1:00 02 C9 27 05 10
SD2:00 02 C9 27 05 14
SD3:00 02 C9 27 05 18
SD4:00 02 C9 27 05 1C
Model: CX653105A
ConnectX-6 EDR/HDR100/100GbE
P/N: MCX653105A-ECAT
S/N: MT0806X01504
GUID: 00 02 C9 03 00 27 05 1C
MAC: 00 02 C9 27 05 1C
Made in Israel
2018-10-22
Rev: A2
MCX653106A-ECAT Board Label MCX654105A-HCAT Board Label
Model: CX653105A
ConnectX-6 EDR/HDR100/100GbE
P/N: MCX653105A-ECAT
S/N: MT0806X01504
GUID: 00 02 C9 03 00 27 05 1C
MAC: 00 02 C9 27 05 1C
Made in Israel
2018-10-22
Rev: A2
Model: CX654105A
ConnectX-6 HDR/200GbE
P/N: MCX654105A-HCAT
S/N: MT0806X01504
GUID: 00 02 C9 03 00 27 05 10
SD1: 00 02 C9 27 05 10
SD2: 00 02 C9 27 05 12
Rev: A6
2019-06-24
Made in Israel
MCX654106A-HCAT Board Label MCX654105A-ECAT Board Label
Model No: CX654106A
ConnectX-6 HDR/200GbE
P/N: MCX654106A-HCAT
S/N: MT0806X01504
GUID: 00 02 C9 03 00 27 05 10
SD1: 00 02 C9 27 05 10
SD2: 00 02 C9 27 05 14
Rev: A7
2019-04-17
Made in Israel
Model: CX653105A
ConnectX-6 EDR/HDR100/100GbE
P/N: MCX653105A-ECAT
S/N: MT0806X01504
GUID: 00 02 C9 03 00 27 05 1C
MAC: 00 02 C9 27 05 1C
Made in Israel
2018-10-22
Rev: A2
MCX654106A-ECAT Board Label MCX653106A-EFAT Board Label
Model: CX653106A
ConnectX-6 EDR/HDR100/100GbE
P/N: MCX653106A-ECAT
S/N: MT0806X01504
GUID: 00 02 C9 03 00 27 05 1C
MAC: 00 02 C9 27 05 1C
Made in Israel
2018-10-22
Rev: A1
Model: CX653106A
ConnectX-6 HDR 100GbE
P/N: MCX653106A-EFAT
S/N: MT0806X01504
GUID: 00 02 C9 03 00 27 05 10
SD1: 00 02 C9 27 05 10
SD2: 00 02 C9 27 05 14
SD3: 00 02 C9 27 05 18
SD4: 00 02 C9 27 05 1C
Rev: A2
2018-10-22
Made in Israel
Document Revision History
| Date Revi | sion | Comments/Changes |
| Mar. 2020 2.7 Added MCX651105A-EDAT support across the document. | ||
| Sep. 2019 2.6 Added a note to the hardware installation instructions. | ||
| Aug. 2019 2.5 Updated "Package Contents" and "Hardware Installation" | ||
| Aug. 2019 2.4 Updated "PCI Express Pinouts Description" | ||
| Aug. 2019 2.3 Updated "Hardware Installation" | ||
| Jul. 2019 2.2 Updated "Linux Driver" and "Identifying the card in the system" to include lspci command output examples. | ||
| Jun. 2019 2.1 Added MCX653105A-HBAT and MCX654105A-HCAT to the UM. • Updated "LED Interfaces". | ||
| Jun. 2019 2.0 Added a note to "Windows Driver Installation". • Added short and tall brackets dimensions. | ||
| May. 20.19 1.9 Added mechanical drawings to "Specifications". • Updated PCB mechanical tolerance in "Specifications". | ||
| May. 2019 1.8 Updated "LEDs Interface" specifications. • Updated PCB mechanical tolerance in "Specifications". | ||
| Apr. 2019 1.7 Migrated to on-line format; minor reorganization. • Added a note to "Introduction" | ||
| Feb. 2019 1.6 Updated "Specifications" | ||
| Feb. 2019 1.5 Updated "Specifications" | ||
| Jan. 2019 1.4 Updated "Airflow Specifications" • Added a note to "Installation Instructions" | ||
| Dec. 2018 1.3 Updated "Airflow Specifications" | ||
| Dec. 2018 1.2 Updated "Hardware Requirements" • Updated "Product Overview" | ||
| Nov. 2018 1.1 Updated "Hardware Requirements" | ||
| Oct. 2018 1.0 First release | ||
Notice
This document is provided for information purposes only and shall not be regarded as a warranty of a certain functionality, condition, or quality of a product. Neither NVIDIA Corporation nor any of its direct or indirect subsidiaries (collectively: "NVIDIA") make any representations or warranties, expressed or implied, as to the accuracy or completeness of the information contained in this document and assumes no responsibility for any errors contained herein. NVIDIA shall have no liability for the consequences or use of such information or for any infringement of patents or other rights of third parties that may result from its use. This document is not a commitment to develop, release, or deliver any Material (defined below), code, or functionality.
NVIDIA reserves the right to make corrections, modifications, enhancements, improvements, and any other changes to this document, at any time without notice.
Customer should obtain the latest relevant information before placing orders and should verify that such information is current and complete.
NVIDIA products are sold subject to the NVIDIA standard terms and conditions of sale supplied at the time of order acknowledgement, unless otherwise agreed in an individual sales agreement signed by authorized representatives of NVIDIA and customer ("Terms of Sale"). NVIDIA hereby expressly objects to applying any customer general terms and conditions with regards to the purchase of the NVIDIA product referenced in this document. No contractual obligations are formed either directly or indirectly by this document.
NVIDIA products are not designed, authorized, or warranted to be suitable for use in medical, military, aircraft, space, or life support equipment, nor in applications where failure or malfunction of the NVIDIA product can reasonably be expected to result in personal injury, death, or property or environmental damage. NVIDIA accepts no liability for inclusion and/or use of NVIDIA products in such equipment or applications and therefore such inclusion and/or use is at customer's own risk.
NVIDIA makes no representation or warranty that products based on this document will be suitable for any specified use. Testing of all parameters of each product is not necessarily performed by NVIDIA. It is customer's sole responsibility to evaluate and determine the applicability of any information contained in this document, ensure the product is suitable and fit for the application planned by customer, and perform the necessary testing for the application in order to avoid a default of the application or the product. Weaknesses in customer's product designs may affect the quality and reliability of the NVIDIA product and may result in additional or different conditions and/or requirements beyond those contained in this document. NVIDIA accepts no liability related to any default, damage, costs, or problem which may be based on or attributable to: (I) the use of the NVIDIA product in any manner that is contrary to this document or (II) customer product designs.
No license, either expressed or implied, is granted under any NVIDIA patent right, copyright, or other NVIDIA intellectual property right under this document. Information published by NVIDIA regarding third-party products or services does not constitute a license from NVIDIA to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property rights of the third party, or a license from NVIDIA under the patents or other intellectual property rights of NVIDIA.
Reproduction of information in this document is permissible only if approved in advance by NVIDIA in writing, reproduced without alteration and in full compliance with all applicable export laws and regulations, and accompanied by all associated conditions, limitations, and notices.
THIS DOCUMENT AND ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS, AND OTHER DOCUMENTS (TOGETHER AND SEPARATELY, "MATERIALS") ARE BEING PROVIDED "AS IS." NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY, OR OTHERWISE WITH RESPECT TO THE MATERIALS, AND EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT WILL NVIDIA BE LIABLE FOR ANY DAMAGES, INCLUDING WITHOUT LIMITATION ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES, HOWEVER CAUSED AND REGARDLESS OF THE THEORY OF LIABILITY, ARISING OUT OF ANY USE OF THIS DOCUMENT, EVEN IF NVIDIA HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Notwithstanding any damages that customer might incur for any reason whatsoever, NVIDIA's aggregate and cumulative
liability towards customer for the products described herein shall be limited in accordance with the Terms of Sale for the product.
Trademarks
NVIDIA, the NVIDIA logo, and Mellanox are trademarks and/or registered trademarks of Mellanox Technologies Ltd. and/or NVIDIA Corporation in the U.S. and in other countries. Other company and product names may be trademarks of the respective companies with which they are associated. For the complete and most updated list of Mellanox trademarks, visit http://www.mellanox.com/page/trademarks
Copyright
© 2020 Mellanox Technologies Ltd. All rights reserved.
- NVIDIA Mellanox ConnectX-6 InfiniBand/VPI Adapter Cards User Manual
- Table of Contents
- Table of Contents 2
- Introduction......9
- Interfaces....18
- Hardware Installation 21
- Driver Installation 39
- Updating Adapter Firmware 66
- Troubleshooting....67
- Specifications 69
- About This Manual
- Ordering Part Numbers
- Intended Audience
- Technical Support
- Document Conventions
- Revision History
- Introduction
- Product Overview
- ConnectX-6 PCIe x8 Card
- ConnectX-6 PCIe x16 Card
- ConnectX-6 Socket Direct™ Cards
- ConnectX-6 Dual-slot Socket Direct Cards (2x PCIe x16)
- ConnectX-6 Single-slot Socket Direct Cards (2x PCIe x8 in a row)
- Package Contents
- ConnectX-6 PCIe x8/x16 Adapter Cards
- ConnectX-6 Socket Direct Cards (2x PCIe x16)
- Features and Benefits
- Operating Systems/Distributions
- Connectivity
- Manageability
- Interfaces
- InfiniBand Interface
- Ethernet QSFP56 Interfaces
- PCI Express Interface
- LED Interface
- Heat Sink Interface
- SMBus Interface
- Voltage Regulators
- Hardware Installation
- Safety Warnings
- Installation Procedure Overview
- System Requirements
- Hardware Requirements
- Airflow Requirements
- Software Requirements
- Safety Precautions
- Pre-Installation Checklist
- Bracket Replacement Instructions
- Removing the Existing Bracket
- Installing the New Bracket
- Installation Instructions
- Cables and Modules
- Cable Installation
- Identifying the Card in Your System
- On Linux
- On Windows
- ConnectX-6 PCIe x8/16 Installation Instructions
- Installing the Card
- Uninstalling the Card
- Card Removal
- ConnectX-6 Socket Direct (2x PCIe x16) Installation Instructions
- Driver Installation
- Linux Driver Installation
- Downloading Mellanox OFED
- Installing Mellanox OFED
- Installation Script
- Usage
- Example
- Installation Procedure
- Installation Logs
- openibd Script
- Driver Load Upon System Boot
- To prevent automatic load of the Mellanox drivers upon system boot:
- mlnxofedinstall Return Codes
- Uninstalling MLNX\_OFED
- Installing MLNX\_OFED Using YUM
- Setting up MLNX\_OFED YUM Repository
- Installing MLNX\_OFED Using the YUM Tool
- Where:
- Example:
- Uninstalling MLNX\_OFED Using the YUM Tool
- Installing MLNX\_OFED Using apt-get Tool
- Setting up MLNX\_OFED apt-get Repository
- Installing MLNX\_OFED Using the apt-get Tool
- Install the desired group.
- Uninstalling MLNX\_OFED Using the apt-get Tool
- Updating Firmware After Installation
- Updating the Device Online
- Updating the Device Manually
- Updating the Device Firmware Automatically upon System Boot
- UEFI Secure Boot
- Enrolling Mellanox's x.509 Public Key on Your Systems
- Removing Signature from kernel Modules
- To remove the signature from the MLNX\_OFED kernel modules:
- Performance Tuning
- Windows Driver Installation
- Downloading Mellanox WinOF-2 Driver
- To download the .exe file according to your Operating System, please follow the steps below:
- Installing Mellanox WinOF-2 Driver
- Attended Installation
- License Agreement
- Destination Folder
- Firmware Upgrade
- Setup Type
- Complete
- Custom
- Custom Setup
- Ready to Install the Program
- Installing MLNX\_WinOF2
- Installation Results
- Uninstalling Mellanox WinOF-2 Driver
- Attended Uninstallation
- Unattended Uninstallation
- Extracting Files Without Running Installation
- Network Location
- VMware Driver Installation
- Installing Mellanox NATIVE ESXi Driver for VMware vSphere
- Removing Earlier Mellanox Drivers
- Firmware Programming
- Updating Adapter Firmware
- Troubleshooting
- Specifications
- MCX651105A-EDAT Specifications
- MCX653105A-HDAT Specifications
- MCX653106A-HDAT Specifications
- MCX653105A-ECAT Specifications
- MCX653106A-ECAT Specifications
- MCX654105A-HCAT Specifications
- MCX654106A-HCAT Specifications
- MCX654106A-ECAT Specifications
- MCX653105A-EFAT Specifications
- MCX653106A-EFAT Specifications
- Adapter Card and Bracket Mechanical Drawings and Dimensions
- PCIe Express Pinouts Description for Single-Slot Socket Direct Card
- Finding the GUID/MAC on the Adapter Card
- Notice
- Trademarks
- Copyright
Brand : NVIDIA
Model : Mellanox ConnectX-6
Category : Network card / adapter
