USER MANUAL VAPORELLA INOX 3500 R POLTI

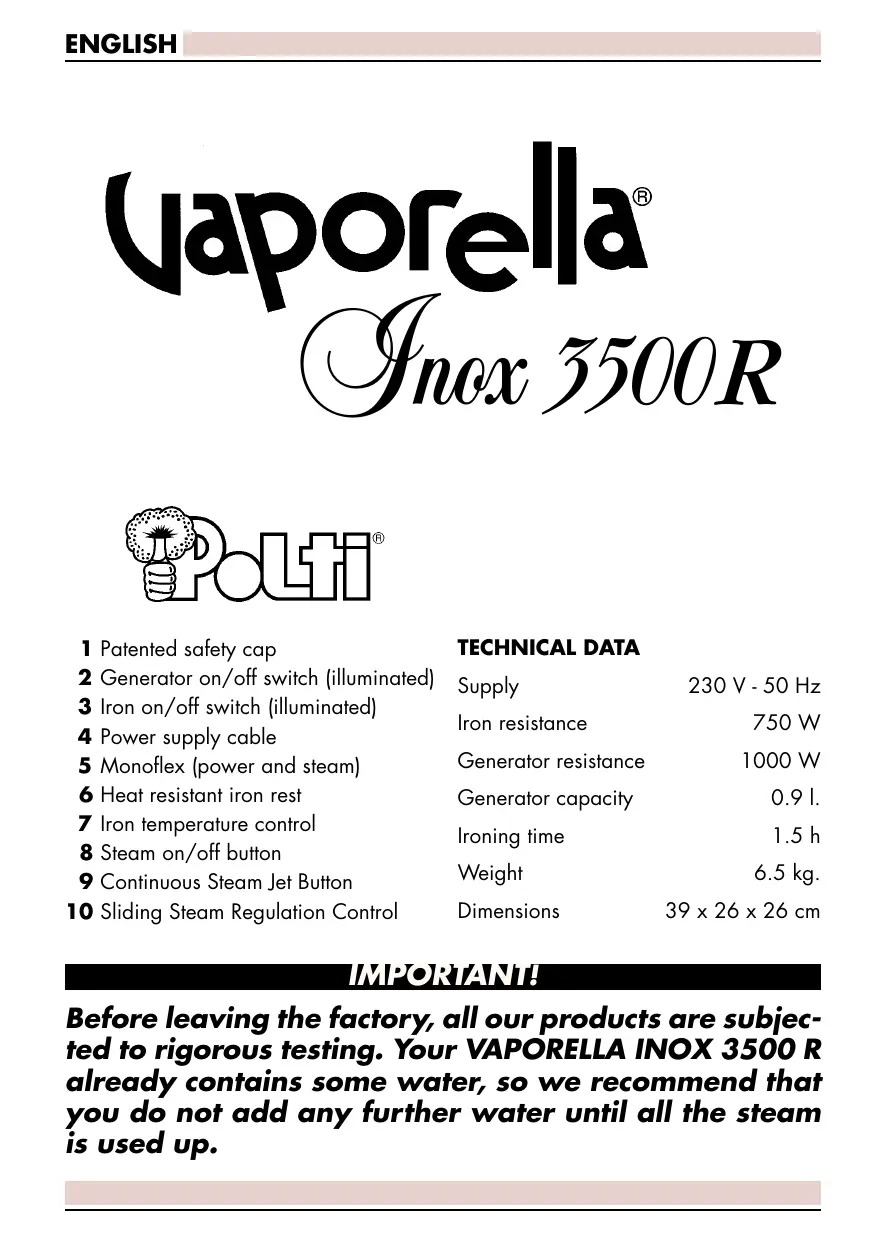

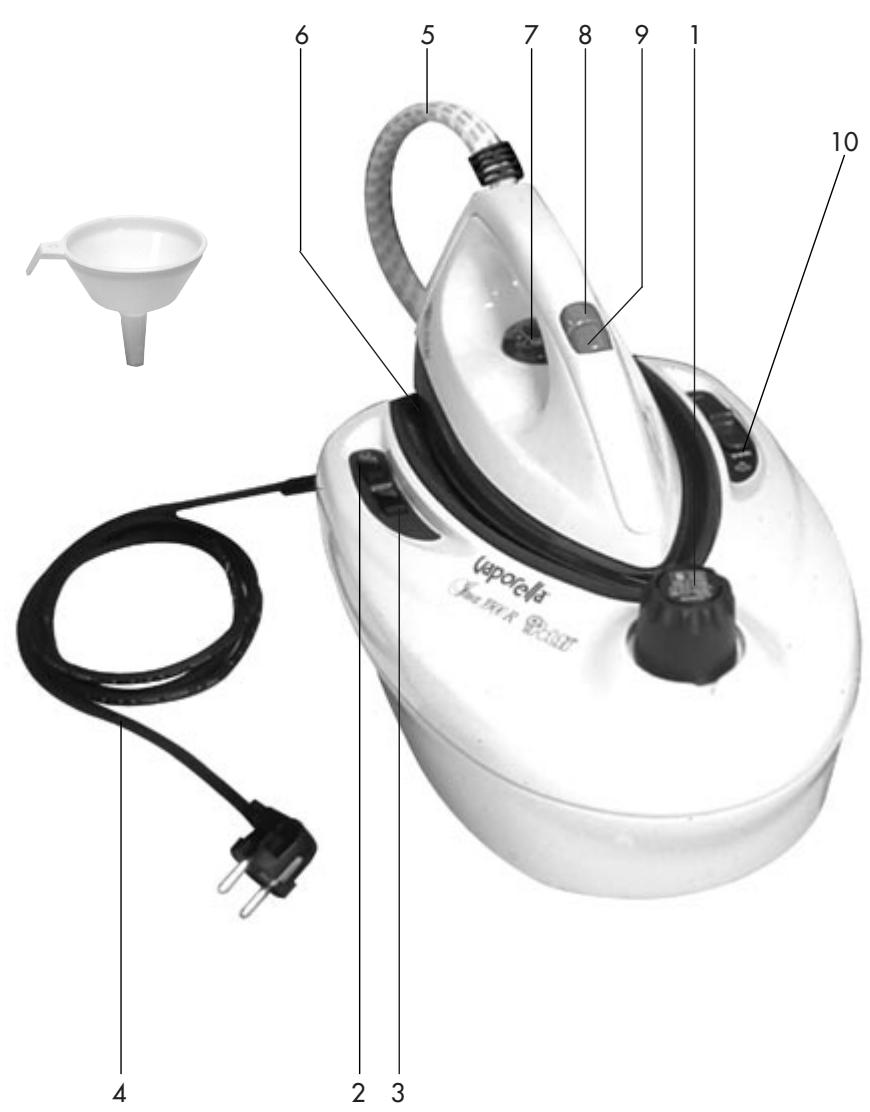

Patented safety cap Generator on/off switch (illuminated) Iron on/off switch (illuminated) Power supply cable Monoflex (power and steam) Heat resistant iron rest Iron temperature control Steam on/off button Continuous Steam Jet Button Sliding Steam Regulation Control TECHNICAL DATA Supply Iron resistance Generator resistance 230 V - 50 Hz 750 W 1000 W Generator capacity

0.9 l.

1.5 h

6.5 kg.

39 x 26 x 26 cm IMPORTANT! Before leaving the factory, all our products are subjected to rigorous testing. Your VAPORELLA INOX 3500 R already contains some water, so we recommend that you do not add any further water until all the steam is used up. ENGLISH OPERATION

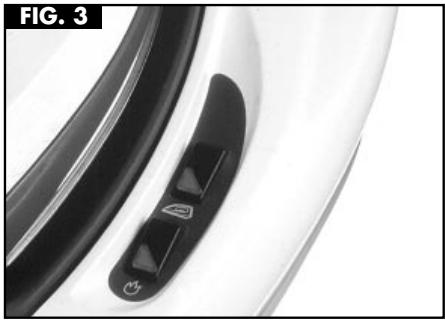

3) Plug in the plug, switch on the iron

on/off switch (3) and the boiler switch (2), checking that they light up when pressed down (Fig. 3).

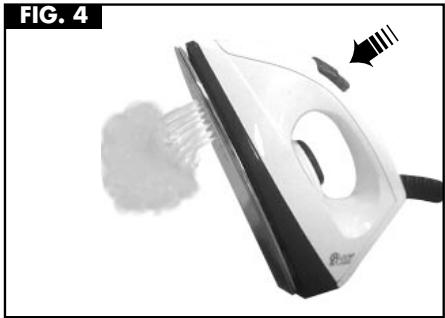

4) Wait for the Generator on/off

switch (2) to go out (about 8 minutes). Push button (8) on the iron to release bursts of steam from the holes on the soleplate. Release the button and the steam will stop. Push button (9) for a continuous jet of steam, which will continue even after button (9) has been released. To stop the steam press 0,9 l FIG. 2 FIG. 3 FIG. 4

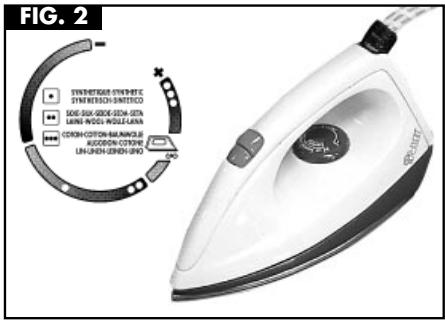

2) Set the iron temperature to the

“cotton-linen” steam position (fig. 2), by turning the knob (7). All types of fabric can be ironed at this temperature. When dry ironing, set the knob (7) to the required temperature for the fabric, shown on the rotating indicator. FIG. 1

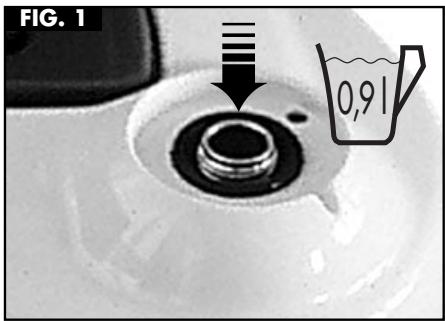

1) Unscrew the patented safety cap

(1) and fill the boiler with about

0.9 litres of ordinary tap water

using the special funnel, making sure that it does not overflow (Fig. 1). Retighten the cap fully and carefully. ENGLISH

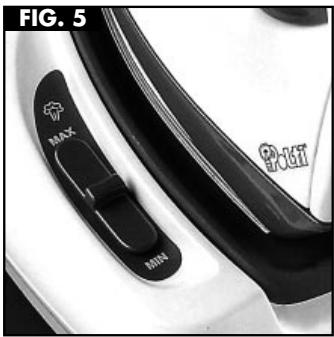

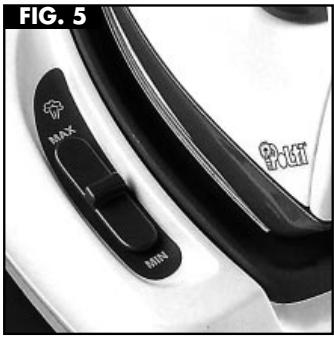

5) By moving the slide control (10), the quality of steam can be varied according to

the type of textile to be ironed (more or less delicate). FIG. 5 IMPORTANT

• If during use the generator switch (2) light up, you can continue ironing, as this indicates correct functioning.
• When the iron is no longer delivering steam, switch off the boiler switch (2), open the patented safety cap (1), wait 2-3 minutes for the boiler to cool down, and then refill.
• During initial operation of the iron, a few drops of water mixed with steam may come out of the soleplate until the temperature stabilises. It is advisable to direct the first jets of steam onto an old cloth.
• Ensure the patented safety cap is fully and correctly screwed on, otherwise you may experience steam escaping from around the cap. WARNINGS
• Never have the appliance unattended when it is plugged in.
• Always unplug before filling.
• The appliance is fitted with a safety thermostat, which should only be replaced by an authorised technician.
• When repairing or replacing any component, and in particular the special safety cap, only use original parts.
• If the patented safety cannot be opened for cold filling of the device, plug in the power cable plug (4), switch on the iron switch (3) and press the button (8) to eliminate any residual pressure in the boiler.

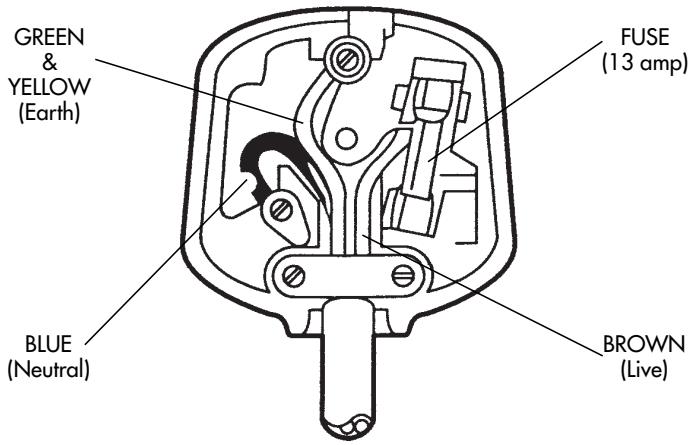

• If replacement of the power supply cable (4) should become necessary, please be sure to consult only a qualified electrician or your Polti Service Center. ENGLISH FOR YOUR OWN SAFETY READ FOLLOWING INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO CONNECT THIS UNIT TO THE MAINS. M A I N S ( A C ) O P E R AT I O N ( o n l y U . K . ) This unit is designed to operate on 240V, 50 Hz current only. Connecting it to other power sources may damage the unit. WARNING - This appliance must be earthed. This appliance may be fitted with a non rewirable plug, if it is necessary to change the fuse in a non rewirable plug the fuse cover must be refitted. If the fuse cover is lost or damaged, the plug must not be used until a replacement, available from the appliance manufacturer, is obtained. It is important that the colour of the replacement fuse cover corresponds with the colour marking on the base of the plug. If the plug requires to be changed because it is not suitable for your socket, or becomes damaged, it should be cut off and an appropriate plug fitted following the wiring instruction (below). The plug removed must be disposed of safely as insertion into a 13A socket is likely to cause an electrical hazard. GREEN YELLOW (Earth) FUSE (13 amp) BLUE (Neutral) BROWN (Live) IMPORTANT This wires in this mains lead are coloured in accordance with the following code.
• Green-and-yellow: Earth
• Brown: Live As the colours of the wires in the mains leads of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with the letter “E” or by the earth symbol or green-and-yellow. The wire which is coloured blue must be connected to the terminal which is marked with the letter “N” or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter “L” or coloured red. ENGLISH

HOW TO ACHIEVE PERFECT IRONING

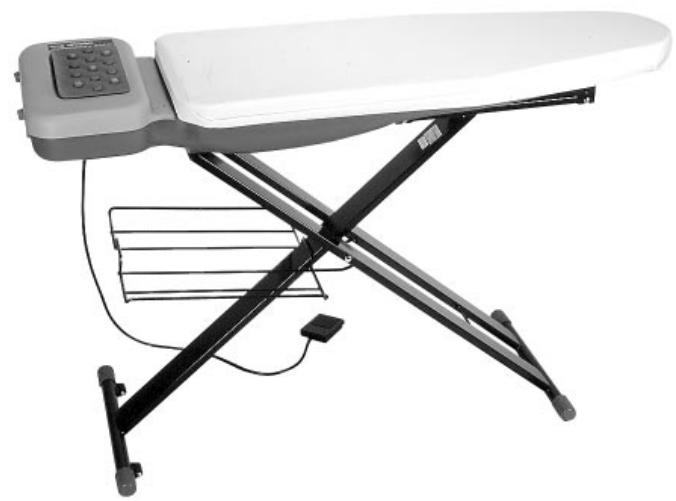

To achieve perfect ironing using conventional irons, you have to iron the fabric several times with the hot iron to dry all residual moisture. The Stiro Professional Vaporella, The revolutionary New-Concept professional ironing board by Polti, is heated and incorporates a vacuum-press for effortless professional results. Perfect ironing is dependent on these two characteristics: the suction which locks the garment on the board, so preventing the formation of annoying wrinkles which are so difficult to eliminate on conventional ironing boards, and the heated board which dries the fabrics and makes ironing easier, faster and less laborious. The Stiro Professional Vaporella offers high comfort during ironing:

• a solid, strong, height adjustable metal structure
• a large working surface
• a space-saving boiler holder under the board
• minimum dimensions when folded. ASK YOUR LOCAL DEALER FOR A DEMONSTRATION OF STIRO PROFESSIONAL VAPORELLA - HE’LL BE GLAD TO INTRODUCE YOU TO PERFECT IRONING. NEDERLANDS Inox 3500R
