USER MANUAL CMP-3000 Sonel

Illustration of a digital clamp meter with orange and black casing (no text or symbols)

INSTRUKCJA OBSŁUGI 1

USER MANUAL 35

MANUAL DE USO 69

UWAGA!

CMP-3000 True RMS multimeter is intended for measuring direct and alternating voltage, direct and alternating current, resistance, capacitance, frequency, duty cycle (filling) and temperature and for testing diodes and circuit continuity.

The most important features of CMP-3000 include:

• non-contact voltage detector,
- Bluetooth wireless communication used for transmitting the measurement results to mobile devices with Android OS,
• automatic and manual range setting,
- REL function for relative measurements,
- MAX/MIN function for displaying maximum, minimum and average values,

- PEAK function for displaying the peak value,

- the INRUSH function captures the starting current precisely in the beginning of 106-millisecond period when the device is just started,

- HOLD function used to maintain the read-pot on the meter screen,

- backlight of the screen to read the measurement results in poor light,

• built-in flashlight for lighting the measurement location,

• sound signal for circuit continuity,

- AUTO-OFF function,

- 5-digit display (read-out 50.000).

CONTENTS

1 Introduction.... 39

2 Safety 40

2.1 General rules....40
2.2 Safety symbols....41

3 Preparing the meter for operation.... 42

4 Functional Description.... 44

4.1 Measuring terminals and functions ....44
4.2 Display 47
4.3 Leads....48

5 Measurements.... 49

5.1 Current measurement....49

5.1.1 Range of 3000 A....49
5.1.2 Range of 1000 A....50

5.2 Non-contact voltage detector....51
5.3 Voltage measurement 52
5.4 Frequency measurement....53
5.5 Measurement % of duty cycle (pulse filling indicator) .....53
5.6 Measurement of resistance ....53
5.7 Circuit continuity test 54
5.8 Diode test....54
5.9 Measurement of capacitance....55
5.10 Temperature measurement 56

6 Special features 57

6.1 Button HOLD 57

6.1.1 HOLD function 57
6.1.2 Display backlight 57

6.2 Button INRUSH/PEAK....57

6.2.1 PEAK function....57
6.2.2 INRUSH function....58

6.3 REL/Hz button....58

6.3.1 REL function 58
6.3.2 Hz function....59

6.4 MAX/MIN button....59
6.5 / button....60

6.5.1 Flashlight 60

6.5.2 Wireless communication 60

6.6 Auto-Off....60

7 Replacing the battery 61
8 Maintenance and care 62
9 Storage 63
10 Dismantling and disposal 63
11 Technical data.... 64

11.1 Basic data....64

11.2 Operating data 67

12 Manufacturer....68

1 Introduction

Thank you for purchasing Sonel multimeter. CMP-3000 meter is a modern, easy and safe measuring device. Please acquaint yourself with this manual in order to avoid measuring errors and prevent possible problems in operation of the meter.

This manual contains three types of warnings. They are presented as a framed text describing the possible risks for the user and the device. Texts ⚠ WARNING describe situations, which may endanger user's life or health, when instructions are not followed. Texts ⚠ CAUTION! begin a description of a situation, which may result in device damage, when instructions are not followed. Indication of possible problems is preceded by symbol 🧿️

WARNING

• CMP-3000 meter is designed to measure the current and AC/DC voltage, frequency, resistance, capacitance, as well as to test the circuit continuity and diodes. Any application that differs from those specified in the present manual may result in a damage to the device and constitute a source of danger for the user.
• CMP-3000 meter must be operated only by appropriately qualified personnel with relevant certificates authorising the personnel to perform works on electric systems. Unauthorized use of the meter may result in its damage and may be a source of serious hazard to the user.
• Before operating the device, read thoroughly this manual and observe the safety regulations and guidelines provided by the producer. Failure to follow instructions specified in this manual may result in a damage to the device and be a source of serious hazard to the user.

2 Safety

2.1 General rules

In order to provide conditions for correct operation and the correctness of the obtained results, the following recommendations must be observed:

• before using the meter read carefully this manual,
• the meter should be operated only by qualified persons that have passed health and safety training,
• be very careful when measuring voltages exceeding (as per IEC 61010-1:2010/AMD1:2016):

Normal locations	Wet locations
60 V DC	35 V DC
30 V AC RMS	16 V RMS
42.4 V AC of peak value	22.6 V AC of peak value

as they generate a potential risk of electric shock,

• do not exceed the maximum limits of the input signal,
• during the voltage measurements do not switch the device in the current or resistance measuring mode and vice versa,
• when changing ranges, always disconnect the test leads from the tested circuit,
• hold the measuring probes by the spot provided, restricted by a special barrier to avoid accidental contact with exposed metal parts,
• If during the measurement symbol OL appears on the screen, it indicates that the measured value exceeds the measurement range,

- It is unacceptable to operate:

⇒ a damaged meter which is completely or partially out of order,
⇒ a device with damaged insulation of test leads,
⇒ a meter stored for an excessive period of time in disadvantageous conditions (e.g. excessive humidity).

- repairs may be carried out only by an authorised service point.

WARNING

• Never start the measurements if you have wet or damp hands.
• Do not perform measurements in explosive atmosphere (e.g. in the presence of flammable gases, vapours, dusts, etc.). Using the meter in such conditions may result in sparking and cause an explosion.

The limit values of the input signal
Function	The maximum input value
3000 A AC	3000 A AC
1000 A AC/DC	1000 A AC/DC
V DC, V AC	1000 V DC/AC RMS
Resistance, continuity, diode test, capacitance, frequency, duty cycle	250 V DC/AC RMS
Temperature	30 V DC, 24 V AC

2.2 Safety symbols

This symbol located near another symbol or terminal, indicates that the user should read the further information contained in the manual.

This symbol located near the terminal, indicates that in normal use there is a possibility of dangerous voltages.

Protection class II – double insulation

Terminals with this marking cannot be connected to a circuit where the voltage to ground exceeds the maximum safe voltage of the device.

3 Preparing the meter for operation

After purchasing the meter, check whether the content of the package is complete.

Before performing the measurement:

• make sure that the battery level is sufficient for measurements,
• check whether the meter casing and insulation of the test leads are not damaged,
• to ensure consistent measurement results it is recommended to connect black lead to COM terminal and red lead to other terminals,
• when the meter is not in use, set the function switch in OFF position.

The device has the AUTO-OFF function triggered after approx. 30 minutes of user inactivity. To turn the meter on again, set the function switch to OFF position and then set it at the desired function.

WARNING

• Connecting wrong or damaged leads may cause electric shock.
• The meter must not be connected to the voltage source when it is set to current or resistance measurement or to diode test. Failure to observe this precaution may damage the meter!

When using the meter, be sure to:

• discharge capacitors in the tested power sources,
- disconnect the power supply when measuring the resistance and diode tests,
- turn off the meter and disconnect test leads before removing the back cover to replace the battery.

WARNING

Do not use the meter if the cover of battery compartment is removed.

It is possible that in certain low ranges of AC or DC voltage, when the meter is not connected to the leads, the screen will show random and variable readings. This is a normal phenomenon, which results from the input sensitivity with high input resistance. When connected to a circuit, the read-out will stabilize and the meter will provide the correct value.

4 Functional Description

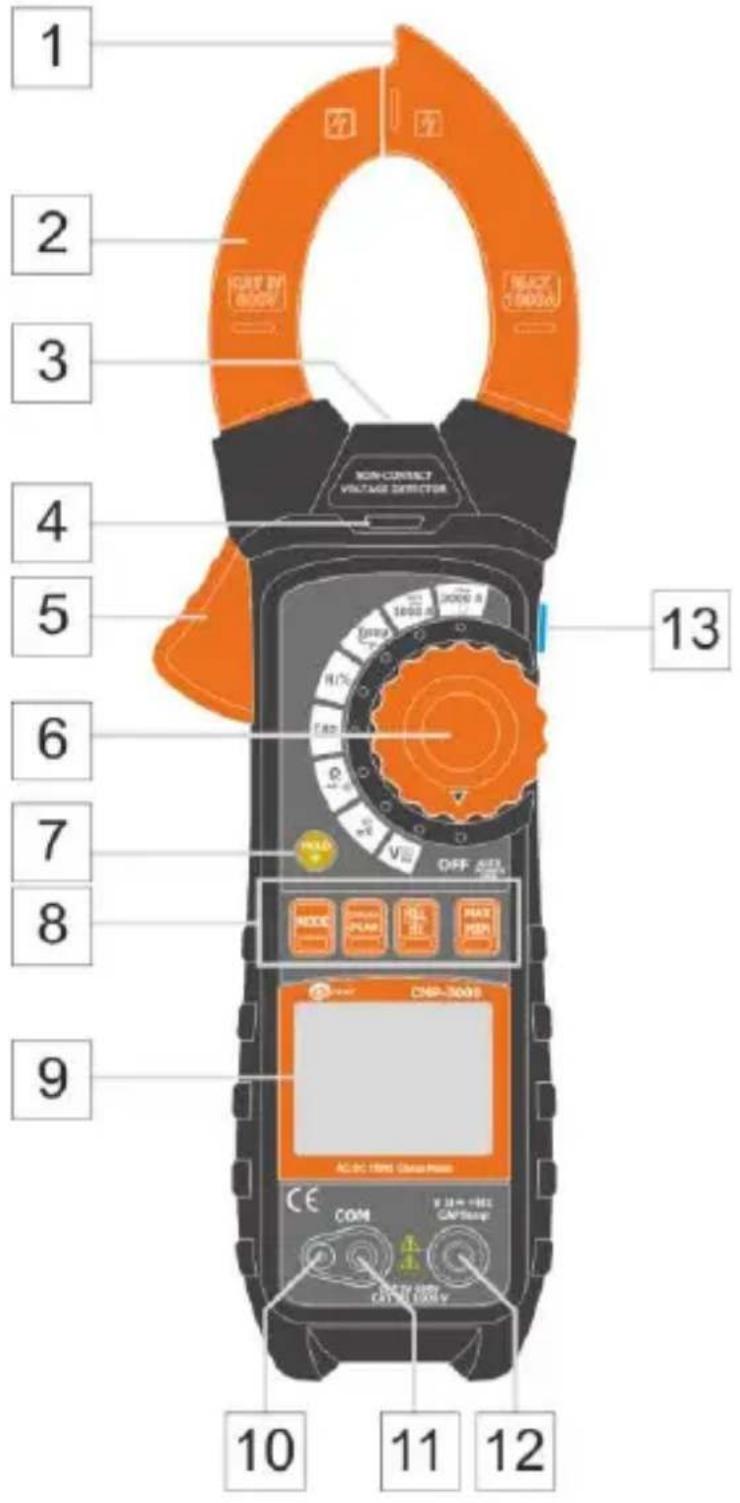

4.1 Measuring terminals and functions

1 Non-contact voltage detector
2 Current clamp
3 Flashlight
4 Indicator light of the non-contact voltage detector
5 Clamp-opening trigger
6 Rotary switch

Function selection:

• OFF – the meter is switched off
• V ≈ Hz – measurement of direct and alternating voltage, from 500.00 mV to 1000.0 V
• mV ≈ - measurement of direct and alternating voltage, up to 500.0 mV
• – measurement of resistance, continuity, diode test
  • CAP – capacitance measurement
• Hz% – measurement of frequency and duty cycle
• Temp °C °F – temperature measurement
• ≈1000A – measurement of direct and alternating current, up to 1000 A
• \~3000A measurement of alternating current, up to 3000 A - only with flexible probe

7 HOLD button

• Freezing the measurement results on the display (press briefly)
• Activating the backlight of the display (press and hold)

8

Function buttons

• MODE button – changing the measurement mode in functions: V / mV / resistance / continuity / diode test / frequency / duty cycle / temperature measurement / 1000A (press briefly)
  • INRUSH / PEAK button

○ Displays inrush current (press briefly)
○ Displays peak value of the measured signal (press and hold)

- REL / Hz button

○ REL mode – press briefly

⇒ Zeroing the result (DC current measurement)
⇒ Displaying the measurement result related to the reference value (other measurement functions)

○ HZ mode – press and hold

⇒ Displaying the frequency of the measured signal
⇒ Displaying the duty cycle (additional mode – press briefly again)

- MAX / MIN button – displaying the highest / lowest value from those currently recorded.

○ To enable the function - press briefly
○ Selection of maximum or minimum value - press briefly
○ To disable the function - press and hold for approx. 1 sec

9

LCD display

10

Flexible probe terminal – measurement of current up to 3000 A

11

COM measuring terminal

Measuring input, common for all measuring functions excluding current.

12

Measurement terminal VΩ Hz%CAPTemp

Measuring input for measurements other than current measurement.

13

/著button

• Flashlight mode (press briefly)
• Switching wireless communication mode Bluetooth (press and hold)

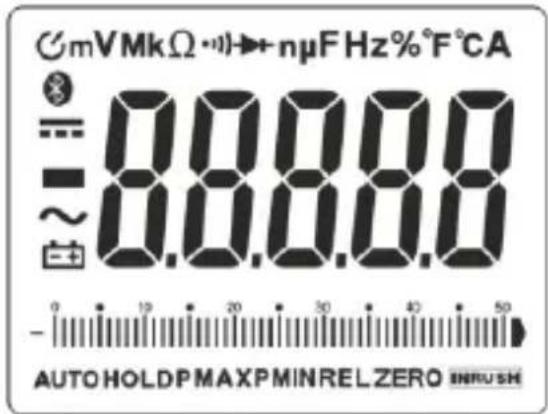

4.2 Display

V	Voltage measurement
A	Current measurement
~	Alternating signal
---	Constant signal
-	Negative read-out value
Ω	Measurement of resistance
●	Continuity test
▶	Diode test
F	Measurement of capacitance
Hz	Measurement of frequency
%	Duty cycle measurement
°F / °C	Temperature measurement in Fahrenheit / Celsius degrees
n / μ / m / k / M	The prefix of multiple measurement unit
OL	Exceeded measurement range
	Auto-off mode
	Low battery
AUTO	Automatic range setting
HOLD	HOLD function activated
MAX / MIN	Maximum / Minimum value
P	Peak value
REL	Reading relative to the reference value
INRUSH	Inrush current
	Bluetooth wireless transmission

4.3 Leads

The manufacturer guarantees the correctness of read-outs only when original test leads are used.

WARNING

Connecting wrong leads may cause electric shock or measurement errors.

• The probes are equipped with additional removable tip guards.
• The probes must be stored in a designated area.

5 Measurements

The content of this chapter should be thoroughly read and understood since it describes methods of measurements and basic principles of interpreting measurement results.

5.1 Current measurement

WARNING:

Disconnect the test leads before measuring current using clamp.

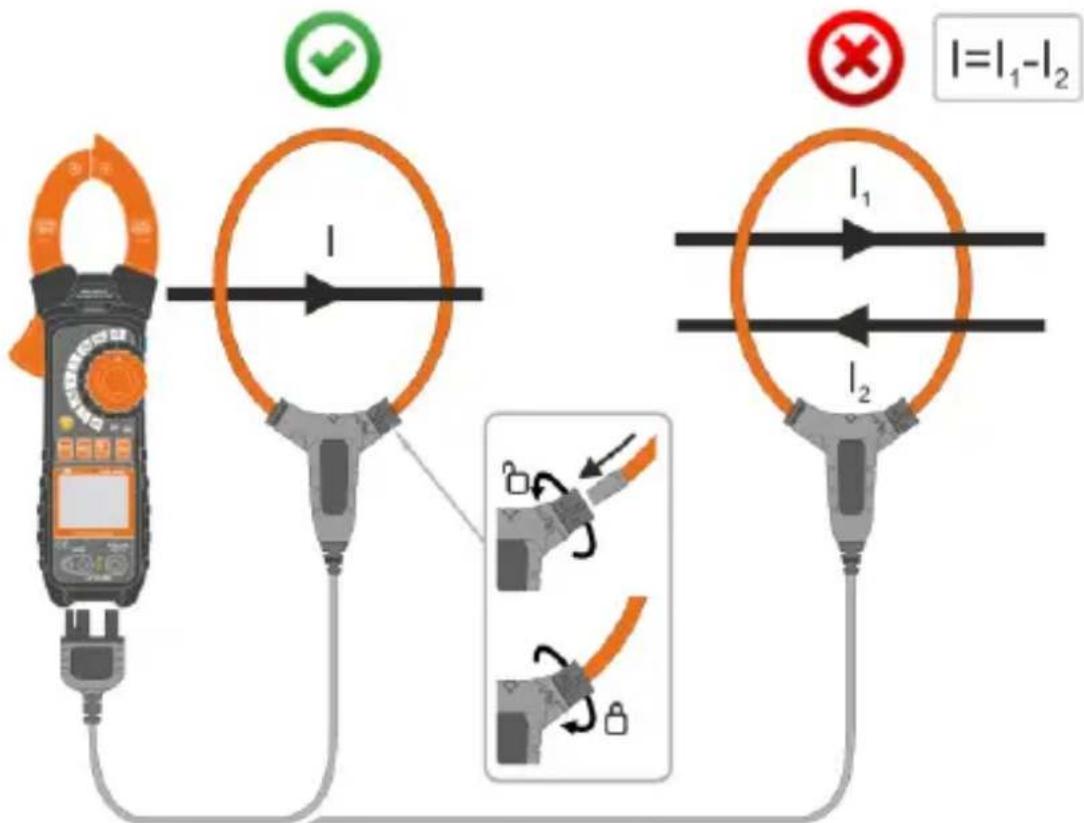

5.1.1 Range of 3000 A

To perform the current measurement:

• set the rotary switch at 3000A,
• connect flexible clamp to COM and VΩ →●Hz%CAPTemp sockets,
• fasten the clamp around the tested conduit. Only one conduit must be within the testing range of the clamp,
• read the measurement result on the display.

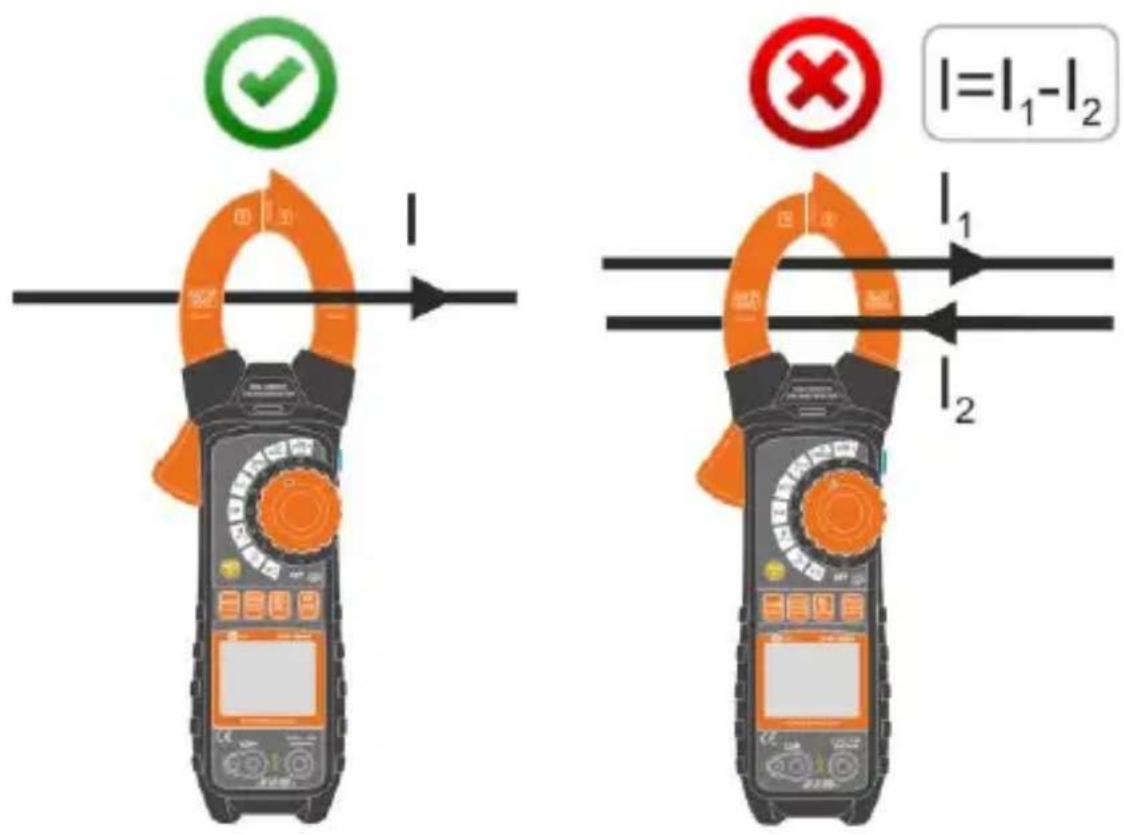

5.1.2 Range of 1000 A

To perform the current measurement:

• set the rotary switch at 1000A,
• press MODE button to display the following symbol:
  ⇒ , if you are measuring alternating current,
  ⇒ , if you are measuring direct current,

- use the clamp-opening trigger and attach the clamps on the tested conduit. Only one conduit must be within the testing range of the clamps,

- read the measurement result on the display.

If DC current is measured and the meter is not attached to the tested circuit, but it still indicates a non-zero value, then you must reset it by briefly pressing REL/Hz button.

5.2 Non-contact voltage detector

WARNING

• The detector is designed to detect the presence of a voltage, not for determining its absence.
• Electric shock hazard. Before using the tester, check if its operational by testing it on a known AC voltage (i.e. next applicable socket with live voltages).

To activate the detector:

• set the rotary switch at any position,
• touch the tip of the detector to the tested object.
  If the AC voltage is present, the indicator light will glow red.

• The wires in the extension cords are often twisted. For best results, move the tip of the detector along the wire to locate the live line.
• The indicator has a high sensitivity. It can be randomly actuated by static electricity or other energy sources. This is normal.
• The type and thickness of the insulation, distance from the power source, shielded cables and other factors may affect the operation of the tester. If you are unsure about the test result, check the presence of voltage in a different way.

5.3 Voltage measurement

WARNING

• Electric shock hazard. The ends of measuring probes, due to their length, may not reach the live parts inside some network connections of low-voltage electrical equipment, because the contacts are arranged inside the sockets. In such a case, the read-out will be 0 V with the simultaneous presence of voltage in the socket.
• Before acknowledging the absence of voltage in the socket make sure that the ends of the probe touch the metal contacts inside the socket.

CAUTION!

Do not measure the voltage when an electric motor located within the circuit is being switched on or off. Resulting voltage spikes may damage the meter.

To perform AC voltage measurement:

• set the rotary switch at V ≈ Hz or ≈ mV,
• press MODE button to display the following symbol:
  ⇒ , if an alternating voltage is to be measured,
  ⇒ , if a constant voltage is to be measured,
• connect black test lead to COM terminal, and red test lead to VΩ →Hz%CAPTemp terminal,
• contact the tips of test probes to the points of measurement,
• read the measurement result on the display.

5.4 Frequency measurement

To perform frequency measurement:

• set the rotary switch at Hz% ,
• connect black test lead to COM terminal, and red test lead to VΩ→Hz%CAPTemp terminal,
• contact the tips of test probes to the points of measurement,
• read the measurement result on the display.
  See also sec. 6.3.2.

5.5 Measurement % of duty cycle (pulse filling indicator)

To perform the measurement:

• set the rotary switch at Hz% ,
• press MODE button, until symbol % is shown on the display,
• connect black test lead to COM terminal, and red test lead to VΩ→Hz%CAPTemp terminal,
• contact the tips of test probes to the points of measurement,
• read the measurement result on the display.

5.6 Measurement of resistance

WARNING

Do not perform measurements on the circuit under the voltage. Before the measurement disconnect the power and discharge capacitors.

To perform measurement of resistance:

• set the rotary switch at
• connect black test lead to COM terminal, and red test lead to VΩ →Hz%CAPTemp terminal,
• contact the tips of test probes to the points of measurement; the best solution is to disconnect one side of the tested element, to prevent the remaining part of the circuit interfere with the read-out of the resistance value,
• read the measurement result on the display.

5.7 Circuit continuity test

WARNING

Do not perform measurements on the circuit under the voltage. Before the measurement disconnect the power and discharge capacitors.

To perform the continuity test:

• set the rotary switch at
• connect black test lead to COM terminal, and red test lead to VΩ-Hz%CAPTemp terminal,
• press MODE button, to display on the screen,
• contact the tips of test probes to the points of measurement,
• read the measurement result on the display; the beep will be activated when resistance values are below approx. 50 Ω.

5.8 Diode test

WARNING

Do not perform measurements on the circuit under the voltage. Before the measurement disconnect the power and discharge capacitors. Do not test the diode under voltage.

To perform the diode test:

• set the rotary switch at
• connect black test lead to COM terminal, and red test lead to VΩ-Hz%CAPTemp terminal,
• press MODE button, to display and V on the screen,
• contact the tips of test probes to the diode. The red test probe should contact the anode and the black should contact cathode,
• read the test result on the display – the forward voltage is displayed.
  ⇒ For a typical silicon rectifier diode, it is approx. 0.7 V, and for a germanium diode it is approx. 0.3 V
  ⇒ For LEDs with a low power, typical voltage value is in the range of 1.2...5.0 V depending on the colour.

⇒ If the diode is polarized in the reverse direction, or there is a break in the circuit, the display will show OL.
⇒ When the diode is shorted, the meter will show a value near 0 V,

- after completing the measurements, remove test leads from the terminals of the meter.

5.9 Measurement of capacitance

WARNING

Risk of electric shock. Disconnect the power supply from the tested capacitor and discharge all capacitors before any starting capacity measurements.

To perform the measurement:

• set the rotary switch at CAP,
• connect black test lead to COM terminal, and red test lead to VΩ →Hz%CAPTemp terminal,
• contact the probe tips to the tested capacitor,
• read the measurement result on the display.

5.10 Temperature measurement

To perform the measurement:

• set the rotary switch at Temp °C °F,
• to change the unit, press MODE,

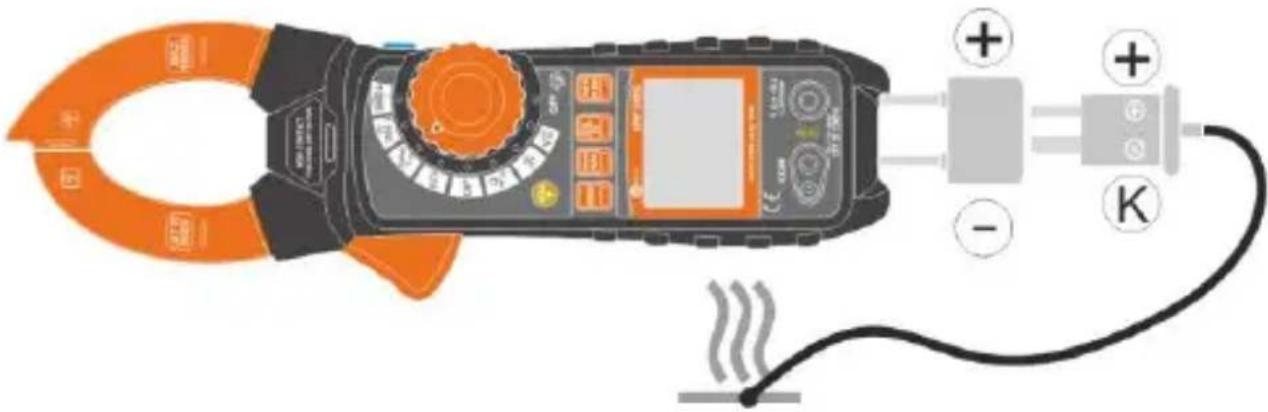

- place the adapter of the temperature probe in COM terminal (black leg) and VΩ -Hz CAPTemp (red leg):

- place the temperature probe in the adapter, as shown in the figure:

⇒ thin pin of the probe (marked as +) fits to terminal +;
⇒ thick pin of the probe (marked as K) fits to terminal –;
⇒ reversed connection of the probe is mechanically impossible,

- contact the head of the temperature probe to the device under test. Maintain the contact of the probe head with the part of the device under test, until the reading stabilizes.

- read the measurement result on the display,

- after completing the measurements, disconnect the probe from the meter.

CAUTION!

Risk of burns. The temperature probe heats up, adapting to the temperature of tested object.

6 Special features

6.1 Button HOLD

6.1.1 HOLD function

This function is used to 'freeze' the measurement result on the display. To do this, shortly press HOLD 🎨 button. When the function is enabled, the display shows symbol HOLD.

To return to the normal operation mode of the device, press HOLD button again.

6.1.2 Display backlight

Pressing and holding HOLD 🔊 button for 2 seconds will turn ON/OFF the display backlight function.

6.2 Button INRUSH/PEAK

6.2.1 PEAK function

PEAK function is intended to measure peak values and it is different from MAX function, which measures maximum values, by the duration of recorded event. In case of PEAK function, it is 1 ms. This allows user to record very short alternating voltage surges.

The meter will update the display each time a lower negative, or higher positive peak occurs. Auto Power Off feature will be disabled automatically in this mode.

• To enable the mode press and hold INRUSH/PEAK button for approx. 3 seconds.
• To disable the mode, press and hold INRUSH/PEAK button.

• This function is available only when measuring AC voltage and current.
• While PEAK is active, autoranging is disabled, therefore it is advised to start the function after connecting test leads to the measurement point. Running PEAK before that may cause overrange symbols to appear.

6.2.2 INRUSH function

The INRUSH function captures the starting current precisely in the beginning of 106-millisecond period when the device is just started, To perform the measurement:

• activate the AC measurement,
• briefly press INRUSH/PEAK button,
• fasten the clamp on the cord supplying power to the tested object,
• turn ON the tested object,
• read the results.

6.3 REL/Hz button

6.3.1 REL function

This mode enables a measurement relative to a reference value.

• To enable the mode, press REL/Hz. Then, the displayed readout value is taken as the reference value, and the readout will be reset.
• From this moment, the readings will be presented as the ratio of the measured value to the reference value.
• To enable the mode, press REL/Hz.

The displayed main result is the difference between the reference value (read-out at the moment of activating REL mode) and the current read-out. Example: if the reference value is 20 A, and the current reading is 12.5 A, then the main result on the display will be

-7.5 A. If the new reading is identical to the reference value, then the result will be zero.

• When the function is activated, the automatic adjustment of the measuring range is not available.
• If the reading is outside the measurement range, symbol OL is displayed In this situation, turn off the function and manually switch to a higher range.
• This function is not available for diode test.

6.3.2 Hz function

For some functions, you can display the frequency of the measured signal. For this purpose:

• enable one of the functions: V ≈ Hz, ≈ 1000A or \~3000A,
• long press REL/Hz button,
• another long press activates the measurement of the pulse filling indicator.

The measurement of the frequency and filling indicator, activated by REL/Hz button, has the same sensitivity as the active measuring function.

6.4 MAX/MIN button

• To enable the mode, press MAX/MIN.
• Press MAX/MIN button to switch between the extreme values of the on-going measurement.

Symbol MAX symbol - the meter displays the highest value out of existing measurement readings.
MIN symbol - the meter displays the lowest value out of existing measurement readings.

- To disable the function, press and hold MAX/MIN button for approx. 1 second. The following message is displayed as a confirmation: RPO d

• When the function is activated, the automatic adjustment of the measuring range is not available.
• If the reading is outside the measurement range, symbol OL is displayed.
• This function is not available for measuring frequency, duty cycle and temperature.

6.5 ✉ button

6.5.1 Flashlight

Shortly press ⚙️, to turn on or off the flashlight mode.

6.5.2 Wireless communication

The multimeter is equipped with a wireless data transfer mode for devices with installed Sonel Multimeter Mobile software. To enable the mode, long press 📋 button. The meter will be visible in the Bluetooth manager of any receiver device as CMP-3000.

Details of cooperation with the mobile application are provided in Sonel Multimeter Mobile manual.

6.6 Auto-Off

The meter automatically shuts off after 30 minutes of user inactivity. Symbol in the upper left corner of the display indicates activated function.

Auto-off function may be temporarily disabled. For this purpose:

• set the rotary switch at OFF position,
• press and hold MODE button,
• set the rotary switch at the desired measuring function,
• wait until the meter reaches the measurement readiness,
• release MODE button. When the automatic shutdown is deactivated, the display does not show icon Ⓐ

Each pass of the rotary switch through "OFF" position with non-pressed MODE button, will activate again the Auto-Off function.

7 Replacing the battery

WARNING

To avoid electric shock, do not use the meter if the battery compartment cover is not in place or is not properly fastened.

CMP-3000 is powered by one 6LR61 9 V battery. It is recommended to use alkaline batteries.

To replace the battery:

• set the rotational function selector at OFF,
• remove test leads from the terminals of the meter.
• unscrew 1 screw fixing the compartment cover,
• remove the cover,
• remove the battery and insert a new one, observing the polarity,
• put on the cover and tighten the fixing screw.

• While performing the measurements with the battery symbol displayed, the user must be aware of additional measurement uncertainties or unstable operation of the device.
• If the meter does not work properly, check the battery in order to ensure that it is in proper condition and properly installed in the device.

8 Maintenance and care

The digital multimeter has been designed for many years of reliable use, provided that the following recommendations are observed for its maintenance and care:

1. THE METER MUST BE DRY. Wipe the dampened meter.
2. THE METER MUST BE USED AND STORED IN NORMAL TEMPERATURES. Extreme temperatures may shorten the life of electronic components and distort or melt plastic parts.
3. THE METER MUST BE HANDLED CAREFULLY AND GENTLY. Dropping the meter may damage its electronic elements or the housing.
4. THE METER MUST BE KEPT CLEAN. From time to time wipe the housing with a damp cloth. DO NOT use chemicals, solvents or detergents.
5. USE ONLY NEW BATTERIES OF RECOMMENDED SIZE AND TYPE. Remove the old or discharged batteries from the meter to avoid leakage and damage.
6. IF THE METER IS TO BE STORED FOR LONGER THAN 60 DAYS, remove the batteries and keep them separately.

The electronic system of the meter does not require maintenance.

9 Storage

During the storage of the device, the following recommendations must be observed:

• disconnect the test leads from the meter,
• make sure that the meter and accessories are dry,
• when the device is to be stored for longer time, remove the battery.

10 Dismantling and disposal

Worn-out electric and electronic equipment should be gathered selectively, i.e. it must not be placed with waste of another kind.

Worn-out electronic equipment should be sent to a collection point in accordance with the law of waste electrical and electronic equipment.

Before the equipment is sent to a collection point, do not dismantle any elements.

Observe local regulations concerning disposal of packages, waste batteries and accumulators.

11 Technical data

11.1 Basic data

⇒ "m.v." means a standard measured value.

True RMS measurement for AC current

Range	Resolution	Accuracy
1000.0 A	0.1 A	± (2.8% m.v. + 8 digits)
3000.0 A*

* Measurement with the use of flexible clamp
- All AC current ranges are specified from 5% to 100% of range
• Frequency range: 50 Hz...400 Hz

DC current measurement

Range	Resolution	Accuracy
1000.0 A	0.1 A	± (2.5% m.v. + 5 digits)

True RMS voltage measurement

Range	Resolution	Accuracy
500.00 mV	0.01 mV	± (1.0% m.v. + 9 digits)
5.0000 V	0.0001 V
50.000 V	0.001 V
500.00 V	0.01 V
1000.0 V	0.1 V

• All AC voltage ranges are specified from 5% to 100% of range
• Input impedance: 10 MΩ
  • Frequency range: 50 Hz...1000 Hz
  • Overload protection: 1000 V DC/AC RMS

DC voltage measurement

Range	Resolution	Accuracy
500.00 mV	0.01 mV	± (0.1% m.v. + 4 digits)
5.0000 V	0.0001 V
50.000 V	0.001 V
500.00 V	0.01 V
1000.0 V	0.1 V	± (0.2% m.v. + 5 digits)

• Input impedance: 10 MΩ
  • Overload protection: 1000 V DC/AC RMS

Resistance measurement

Range	Resolution	Accuracy
400.00 Ω	0.01 Ω	± (1.0% m.v. + 9 digits)
4.0000 kΩ	0.0001 kΩ	± (1.0% m.v. + 4 digits)
40.000 kΩ	0.001 kΩ
400.00 kΩ	0.01 kΩ
4.0000 MΩ	0.0001 MΩ	± (2.0% m.v. + 9 digits)
40.000 MΩ	0.001 MΩ	± (3.0% m.v. + 10 digits)

• Overload protection: 250 V DC/AC RMS

Capacitance measurement

Range	Resolution	Accuracy
500.00 nF	0.01 nF	± (3.5% m.v. + 40 digits)
5.0000 μF	0.0001 μF	± (3.5% m.v. + 9 digits)
50.000 μF	0.001 μF
500.00 μF	0.01 μF
5.0000 mF	0.0001 mF	± (5.0% m.v. + 9 digits)

• Overload protection: 250 V DC/AC RMS

Frequency measurement

Range	Resolution	Accuracy
50.000 Hz	0.001 Hz	± (0.3% m.v. + 2 digits)
500.00 Hz	0.01 Hz
5.0000 kHz	0.0001 kHz
50.000 kHz	0.001 kHz
500.00 kHz	0.01 kHz
5.0000 MHz	0.0001 MHz
50.000 MHz	0.001 MHz

- Sensitivity:

- >0.8 V RMS for 20...80% of duty cycle and <100 kHz - >5 V RMS for 20...80% of duty cycle and >100 kHz

• Overload protection: 250 V DC/AC RMS

Duty cycle measurement

Range	Resolution	Accuracy
5.0... 95.0%	0.1%	± (1.0 % m.v. + 2 digits)

• Sensitivity: >0.8 V RMS
• Pulse width: 0.1 ms...100 ms
  • Frequency: 10 Hz...10 kHz
  • Overload protection: 250 V DC/AC RMS

Temperature measurement

Range	Resolution	Accuracy
-100.0...+1000°C	0.1 or 1°C	± (1.0% m.v. + 2°C)
-148.0...+1832°F	0.1 or 1°F	± (1.0% m.v. + 3.6°F)

• The accuracy of the temperature probe is not taken into account
  • Overload protection: 30 V DC / 24 V AC

11.2 Operating data

a) measurement category according to IEC 61010-1.... CAT IV 600 V (III 1000 V)

b) type of insulation ....double, Class II

c) housing type ....double-composite

d) degree of housing protection acc. to EN 60529 IP40

e) pollution degree 2

f) opening of measurement clamp....48 mm (1.9")

g) power supply of the meter....6LR61 9 V battery

h) diode test I = 0.3 mA, U₀ < 2.8 V DC

i) continuity test ....acoustic signal for R < 50 Ω ....measuring current <0.5 mA

j) indication for range exceeding ....OL symbol

k) low battery indication .... symbol - +

I) measurement rate ....2 measurements per second

m) INRUSH function ■ sampling time .... 37.5 Hz (RMS), 2.4576 MHz (clock)

- integration time.... 106 ms

n) crest factor for 50/60 Hz and indications in the range of 5...100% - range of 40 A and 400 A....3.0

- range of 1000 A....1.4

o) range of the non-contact voltage detector 10...1000 V AC (50/60 Hz)

p) response time for PEAK function 1 ms

q) temperature sensor ....type K thermocouple

r) input impedance 10 MΩ (V AC/DC)

s) AC read-out ....True RMS (A AC and V AC)

t) AC bandwidth ....50...1000 Hz

u) display....5 digit LCD with backlit ....50.000 counts with function indicators

v) dimensions....230 x 76 x 40 mm

w) flexible clamp dimensions 140 x 180 mm

x) meter weight 501 g

y) meter weight (without batteries) 456 g

z) operating temperature ....+5..+40°C

aa) operating humidity ....../< 80%

bb) storage temperature ....-20..+60°C

cc) storage humidity ....../< 80%

dd) drop test....2 m

ee) maximum operating altitude 2000 m

ff) Auto-Off function ....approx. 30 min

gg) compliance with the requirements of the following standards....EN 61010-1 ....EN 61010-2-032, EN 61010-2-033 ....EN 61326

hh) quality standard ....ISO 9001

SONEL S.A. hereby declares that the radio device type CMP-3000 complies with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following website address: https://sonel.pl/en/download/declaration-of-conformity/

Bluetooth specification

Version v4.0+EDR
Frequency range....2400 MHz...2483.5 MHz (ISM band)
Guard band 2 MHz < f < 3.5 MHz
Modulation method ...... GFSK, 1 Mbps, 0.5 gauss
Receiving signal range ...... -82...-20 dBm
Transmission power minimum....-18...+4 dBm

12 Manufacturer

The provider of guarantee and post-guarantee services is:

SONEL S.A.

Wokulskiego 11

58-100 Świdnica

Poland

tel. [phone] (Customer Service)

e-mail: [e-mail]

web page: www.sonel.com

CAUTION!

Service repairs must be performed only by the manufacturer

MANUAL DE USO

MEDIDOR DE PINZA DIGITAL AC/DC

CMP-3000

CE

¡ATENCIÓN!

VORSICHT!
