ECH-ECN-2000 M EEC - Heating ELECTROLUX - Free user manual and instructions

Product Type	Electric Convection Heater
Model	ECH-ECN-2000 M EEC
Brand	Electrolux
Rated Power Consumption	1800-2000 W
Rated Current	8.18-8.33 A
Rated Voltage	220-240 V~50-60 Hz
Heating Area	18-20 m² (indicative)
Appliance Dimensions (W×H×D)	800 × 405 × 95 mm
Packing Dimensions (W×H×D)	830 × 445 × 145 mm
Net Weight	5.25 kg
Gross Weight	6.28 kg
Ingress Protection	IP20
Electrical Protection Class	Class I
Control Type	Mechanical thermostat with on/off button and temperature knob
Functions	Overheating protection, automatic shut-off, standby mode
Installation	Floor-standing with included wheeled chassis; also suitable for wall mounting
Care & Cleaning	Wipe with soft damp cloth; no abrasive cleaners; removable for wall cleaning
Safety Features	Overheat automatic switch, tip-over protection (not explicitly stated but implied), child supervision warning
Operating Temperature Range	-25°C to +30°C
Storage Temperature Range	-20°C to +80°C
Recommended Humidity	40% to 90%
Warranty	2 years from purchase date
Included Accessories	Fastener set, operation manual, chassis set with wheels

Frequently Asked Questions - ECH-ECN-2000 M EEC ELECTROLUX

How do I set the desired temperature on the Electrolux ECH-ECN-2000 M EEC?

Turn the heater on at full power by rotating the thermostat knob to the maximum (right). When the room reaches a comfortable temperature, slowly turn the knob left until you hear a click. That temperature is now set and will be maintained automatically.

What should I do if the heater emits a burning smell when first turned on?

This is normal due to oil burning off the heating elements. Run the heater in a well-ventilated area for 10-20 minutes. The smell will disappear after a few minutes of operation.

Can I use this heater in a bathroom?

No. The IP20 rating means it is not protected against water ingress. It should only be used in dry indoor locations, away from splashing water.

How do I clean the heater?

Unplug the heater before cleaning. Wipe the body with a soft, lint-free cloth or damp sponge. Do not use abrasive or foaming detergents. For wall-mounted units, press the two latches on the back to remove the heater for wall cleaning.

What is the maximum heating area for this model?

The recommended heating area is 18-20 m². This is indicative and may vary depending on insulation and room conditions.

Does the heater have an automatic shut-off feature?

Yes. The heater has an 'Overheating protection' function that automatically switches it off if the temperature exceeds the upper limit. It will turn back on once the overheating source is eliminated.

How do I install the floor-standing chassis?

Carefully turn the heater upside down. Attach one chassis to the landing area on the right or left side of the convector, ensuring it fits snugly. Secure it with the supplied mount. Repeat for the second chassis.

Can I leave the heater unattended while operating?

It is recommended to supervise the heater, especially around children. Always ensure the inlet and outlet vents are unobstructed and the heater is placed away from flammable materials like curtains.

What does the power indicator light mean?

When the plug is inserted into the outlet, the power indicator lights up and stays on, indicating the heater is connected to the mains. The heater will then operate according to the thermostat setting.

What is the warranty period for this heater?

The warranty period is two years from the date of purchase. It covers defects in materials and workmanship. The warranty does not cover misuse, poor maintenance, or unauthorized repairs.

USER MANUAL ECH-ECN-2000 M EEC ELECTROLUX

GB · Electric convection heater · User's manual

Fill your life with comfort

Get quick access to instructions, additional product information and support at our website home-comfort.com

1. ENGLISH....4
2. SHQIP 14
3. POLSKI 24
4. ROMÂNĂ....34

4 www.home-comfort.com

CONTENT

1. INTRODUCTION......5
2. SAFETY REGULATIONS 5
3. PURPOSE OF THE DEVICE....5
4. GENERAL VIEW OF THE DEVICE....5
5. CONTROL UNIT DEVICE 5
6. PREPARATION FOR WORK....6
7. TURNING ON THE DEVICE....6
8. SETTING THE TEMPERATURE....6
9. FUNCTION......6
10. INSTALLATION OF THE DEVICE....6
11. CARE 7
12. TROUBLESHOOTING 7
13. SPECIFICATIONS 8
14. COMPLETING UNITS 8
15. STORING THE APPLIANCE 8
16. RECYCLING......8
17. WARRANTY....8
18. DATE OF PRODUCTION 9

WE THINK ABOUT YOU

Thank you for purchasing an Electrolux appliance. You have chosen a product, backed by decades of professional experience and innovations. Unique and stylish, it was created with care for you. Therefore, whenever you use it, you can be sure that the results will always be excellent. Welcome to Electrolux!

On our website you can:

Find product recommendations, user manuals, maintenance information: www.home-comfort.com/support/

Buy a product in your city: www.home-comfort.com/search/find-a-store/

While selling this device, dealer must fill "Product details" section located on the inside of the back cover of this manual.

Designation

Caution/Important safety information

i Common information and recommendations

Warranty service is performed according to the terms specified in the "Warranty" section.

Note:

In the text of this manual, the electric convector may have such technical names as appliance, device, vehicle etc.

This product is only suitable for well insulated spaces or occasional use.

Introduction

Please read and strictly follow the requirements contained in this manual. Please keep the manual and documents confirming the date of purchase of the device in a safe place for easy retrieval and use.

The device is intended for air heating in household premises.

Safety regulations

Caution! Non-following the manual can cause serious injury or serious equipment damage.

When using the device, observe the general safety rules when using electrical devices. Failure to follow safety instructions and instructions can result in electric shock, fire and/or serious injury. Before using the device, carefully read the following safety rules:

• When the heater is turned on for the first time, a characteristic smoke smell may occur due to the burning of oil in the heating elements. It is recommended to turn on the heater for 10-20 minutes in a well-ventilated area before installation.
• Any electrical appliance should be supervised, especially if there are children nearby. Make sure that children do not touch the device with their hands.
• Do not use the convector with damaged and/or damaged or frayed power cable.
• The mains cable must be positioned so that it is not stepped on, that it is not abraded, torn, kinked or otherwise damaged.
• Do not allow foreign objects or liquids to enter the inside of the device.
• Always place the appliance in such a way in such a way as to prevent the possibility of ignition of flammable materials (for example, curtains). Make sure nothing is blocking the inlet and outlet ducts. To avoid fire, do not put clothing or other items on the device.
• Make sure that the bodies of the device and its heating element have cooled down, before the device is dismantled and packed for long-term storage.
• Do not use the device in open spaces

outdoors.

ENGLISH

- Make sure that the mains voltage corresponds to that indicated on the label of the device.

- Do not try to repair the device yourself. Please contact your dealer.

- Unplug the device from the mains when not in use and before cleaning.

Purpose of the device

The device is designed for heating air in the household premises.

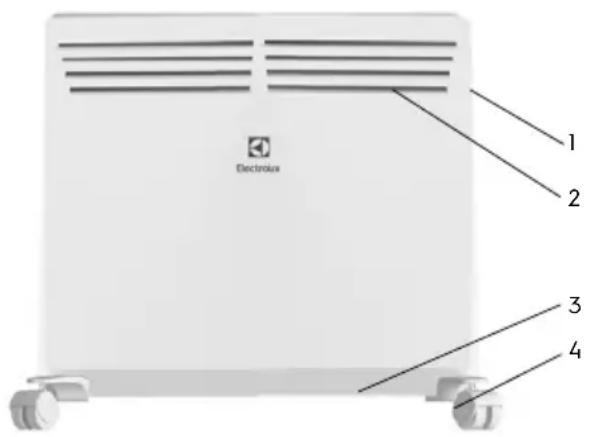

General view of the device

Figure 1

1. Control unit
2. Ventilation vents
3. Ventilation inlets
4. Set of the chassis with the rollers.

Control unit device

Figure. 2 Control unit

1. Minimum temperature
2. Temperature regulator
3. Maximum temperature
4. On / Off

Preparation for work

1. Carefully remove the heater from the cardboard box.
2. Remove the colored stickers from the front panel before use.
3. At the first start-up, some odor may appear, which will disappear after the con-vector starts to work.
4. Fix the device in a stable position according to the assembly and installation instructions.
5. After installing the convector, plug it into a power outlet. It is not recommended to use the same electrical outlet for simultaneous plugging in heater and other high power electrical appliance.

Turning on the device

Insert the plug into a power outlet, the power indicator will light up and stay on. Set the on / off button on the control unit to the mode, or turn the thermostat control knob on the top panel to the right, so that the device starts working and you can select the required heating temperature. If the ambient temperature is lower than the set one, the convector starts to work, if the ambient temperature becomes higher than the set one, the device automatically turns off and goes into standby mode, and then turns on again when the room temperature drops.

Setting the temperature

To set the required heating temperature and maintain a constant room / premises temperature, turn on the device at full power, turn the thermostat control knob to the right to the maximum value.

When the room / premises temperature reaches a comfortable level for you, slowly turn the thermostat control knob to the left until you hear a click. Thus, the device will remember the temperature that is comfortable for you and will maintain it by automatically switching on and off.

The difference between the on / off temperatures for the set value can be

between 0.1 °C and 3 °C, depending on the volume and thermal insulation of the room / premises. We recommend that when operating the device in large rooms / premises subject to rapid cooling, set the temperature 2 - 3 °C higher than the desired one for more efficient operation of the heater.

"Overheating protection" function

The device is equipped with an automatic switch that is activated when the upper temperature limit is reached. The heater switches off automatically in case of overheating. After eliminating the source of overheating, the heater will turn on automatically.

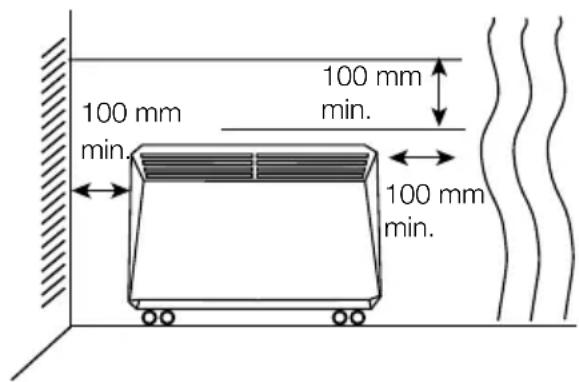

Installation of the device

The device must be fixed in accordance with the regulations.

The switch and other mechanisms must stay away from splashing water. It is strictly forbidden to cover or plug the air inlets or outlets (grilles), due to the risk of accident or damage to the device. Do not place behind curtains, doors, wall or air vents. Observe the minimum installation distances on floors, surfaces, furniture, etc (Figure. 3).

Using the chassis (supplied separately), having previously studied the mounting scheme (Fig. 6), install the device on the floor:

1. Carefully turn the convector upside down (Fig. 4).
2. Take one of the chassis and attach to the landing area on the right or left side of the

convector so that it fits snugly against the convector body.

1. Secure the chassis using the supplied mount (Fig. 5).
2. Repeat the same procedure for attaching the second chassis.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Figure. 4 Figure. 5

Care

The convector does not require any special maintenance. Before servicing (leaving) the

convector must be disconnected from the power supply.

The body of the device should be periodically wiped with a soft, lint-free cloth or damp sponge. Never use abrasive, foaming detergents or solvents. It is quite easy to clean the space behind a wall-mounted heater.

Press down the two latches on the back of the heater and pull the heater forward. After it is removed, you can wash the wall on which it was installed.

After finishing cleaning, put the heater back in its normal operating position.

Recommended indoor temperature and humidity:

a) for the convector operation: from -25^ to +30^ , humidity from 40% to 90%;
b) for the storage of the convector: from -20^ to +80^ , humidity from 40% to 90%.

Troubleshooting

Malfunction symptom	Cause of malfunction Troubleshooting steps
No heating	1) There is no power supply.2) The convector is in standby mode.3) The actual room temperature is higher than the thermostat setting.	1) Establish a reliable connection.2) Set the convector to operating mode.3) Adjust the temperature mode of the convector.
Smell of burnt dust when first turned on	Not a malfunction	The smell disappears after a few minutes of convector operation

If after trying all the troubleshooting steps, the problem is not resolved, contact an authorized service center in your area or your sales representative.

Specifications

Model	ECH/ECN-1000 M EEC	ECH/ECN-1500 M EEC	ECH/ECN-2000 M EEC
Rated power consumption, W 900-1000 1350-1500 1800-2000
Rated current, A 4.09-4.16 6.14-6.25 8.18-8.33
Rated voltage, V~Hz 220-240~50-60 220-240~50-60 220-240~50-60
Ingress protection class IP20 IP20 IP20
Electrical protection class	I	I	I
Heating area, m^2*	10-12	13-15	18-20
Appliance size (W×H×D), mm	480×405×95	640×405×95	800×405×95
Packing size (W×H×D), mm	510×445×145	670×445×145	830×445×145
Net weight, kg	3.30	4.15	5.25
Gross weight, kg	4.00	5.00	6.28

* Indicated is a guideline value and may differ depending on actual conditions of use

The convector is supplied with a sticker on the front panel. Remove it before using the device.

Completing units

1. Electric heater
2. Aset of fasteners
3. Operation manual
4. Chassis set with wheels

Storing the appliance

Make sure the heater is cool before storing it. It is recommended to clean the heater and store (preferably in the original packaging) in a cool dry place in case you plan not to use device for a long time.

Recycling

The time-expired appliance can't be disposed with household waste (2012/19/EU).

Warranty

Warranty service is performed according to the terms specified in the "Warranty" section.

Warranty:

• Warranty period for the item is two years from the purchase date. If any defects occur due to defects in materials and/or workmanship during this two-year warranty period, the item should be repaired or replaced.
• Free maintenance or replacement is possible only in case if convincing evidence is provided, for example a stub, which confirms that the day when the service is requested, is within the warranty period.
• The warranty does not cover products and/or parts of the product that are subjects to deterioration, may be considered as expendable supplies or which are made of glass.
• The warranty is void if the defect is caused by damage ensuing by misuse, poor maintenance (for example, a failure occurred due to ingress of foreign objects or liquids) or if changes or repairs were performed by persons not authorized by the Manufacturer.
• For the correct use of the product, the user must strictly follow all included in the manual instructions, and also must avoid any action or manipulation described as unwanted or indicated so in this manual.
  • These warranty restrictions do not affect your statutory rights.

Support:

The support during and after the warranty period is available in all countries where

the product is officially distributed. Please contact your dealer for help.

Date of manufacture

The date of manufacture is indicated on a sticker on the body of the appliance, and also encrypted in Code-128. The date of manufacture is determined as follows:

month and year of production

Do not remove and keep safe the serial number on the device's body. If the serial number sticker is lost or damaged, it will not be possible to restore the production date if necessary.

Importer:

Manufacturer: CladSwiss AG, Bahnhofstrasse 27, 6300 Zug, Switzerland. E-mail: [e-mail]

Made in PRC.

Electrolux is a registered trademark used under license from AB Electrolux (publ.).

The manufacturer reserves the right to modify the design and characteristics of the device.

This manual may contain technical and typing errors. Changes to technical characteristics and assortment are subject to change without notice.

Mistakes and typing errors may be permitted in texts and numeric notations.

Product design and technical data may vary from the one pictured on the packaging.

Please refer to a sales consultant for more detailed information.

Information requirement for the electric local space heaters
Model identifier(s): ECH/ECN-1000 M EEC
Item Symbol Value Unit Item Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	0.9-1.0 kW		manual heat charge control, with integrated thermostat	NO
Minimum heat output (indicative)	Pmin	0.81 kW		manual heat charge control with room and/or outdoor temperature feedback	NO
Maximum continuous heat output	Pmax,c	1.05 kW		electronic heat charge control with room and/or outdoor temperature feedback	NO
Auxiliary electricity consumption fan assisted				heat output NO
At nominal heat output	elmax	0 kW		Type of heat output/room temperature control (select one)
At minimum heat output	elmin	0 kW		single stage heat output and no room temperature control	NO
In standby mode	elsB	0 kW		two or more manual stages, no room temperature control	NO
				with mechanic thermostat room temperature control	YES
				with electronic room temperature control NO
				electronic room temperature control plus day timer	NO
				electronic room temperature control plus week timer	NO
				Other control options (multiple selections possible)
				room temperature control, with presence detection	NO
				room temperature control, with open window detection	NO
				with distance control option NO
				with adaptive start control	NO
				with working time limitation	NO
				with black bulb sensor	NO
Contact details	Manufacturer: CladSwiss AG, Bahnhofstrasse 27, 6300 Zug, Switzerland. E-mail: [e-mail]
Model identifier(s): ECH/ECN-1500 M EEC
Item Symbol Value Unit Item Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1.35-1.5 kW		manual heat charge control, with integrated thermostat	NO
Minimum heat output (indicative)	P_min	1.215 kW		manual heat charge control with room and/or outdoor temperature feedback	NO
Maximum continuous heat output	P_max,c	1.575 kW		electronic heat charge control with room and/or outdoor temperature feedback	NO
Auxiliary electricity consumption fan assisted				heat output NO
At nominal heat output	el_max	0 kW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min	0 kW		single stage heat output and no room temperature control	NO
In standby mode	el_SB	0 kW		two or more manual stages, no room temperature control	NO
				with mechanic thermostat room temperature control	YES
				with electronic room temperature control NO
				electronic room temperature control plus day timer	NO
				electronic room temperature control plus week timer	NO
				Other control options (multiple selections possible)
				room temperature control, with presence detection	NO
				room temperature control, with open window detection	NO
				with distance control option NO
				with adaptive start control	NO
				with working time limitation	NO
				with black bulb sensor	NO
Contact details	Manufacturer: CladSwiss AG, Bahnhofstrasse 27, 6300 Zug, Switzerland.E-mail: [e-mail]
Model identifier(s): ECH/ECN-2000 M EEC
Item Symbol Value Unit Item Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1.8-2.0	kW	manual heat charge control, with integrated thermostat	NO
Minimum heat output (indicative)	P_min	1.62	kW	manual heat charge control with room and/or outdoor temperature feedback	NO
Maximum continuous heat output	P_max,c	2.1	kW	electronic heat charge control with room and/or outdoor temperature feedback	NO
Auxiliary electricity consumption fan assisted				heat output NO
At nominal heat output	el_max	0 kW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min	0 kW		single stage heat output and no room temperature control	NO
In standby mode	el_SB	0 kW		two or more manual stages, no room temperature control	NO
				with mechanic thermostat room temperature control	YES
				with electronic room temperature control NO
				electronic room temperature control plus day timer	NO
				electronic room temperature control plus week timer	NO
				Other control options (multiple selections possible)
				room temperature control, with presence detection	NO
				room temperature control, with open window detection	NO
				with distance control option NO
				with adaptive start control NO
				with working time limitation NO
				with black bulb sensor NO
Contact details	Manufacturer: CladSwiss AG, Bahnhofstrasse 27, 6300 Zug, Switzerland.E-mail: [e-mail]

PERMBAJTJE

1. HYRJE 15
2. RREGULLAT E SIGURISË 15
3. QËLLIMI I PAJISJES....15
4. PAMJA E PËRGJITHSHME E PAJISJES 15
5. BLLOKU | KONTROLLIT....15
6. FILLIMI 16
7. NDIZNI PAJISJEN 16
8. PËRZGJEDHJA E TEMPERATURËS 16
9. FUNKSIONI 16
10. INSTALIMI DHE MONTIMI ....16
11. MIRËMBAJTJA 17
12. ZGJIDHJA E DEFEKTEVE 17
13. SPECIFIKIMET....18
14. PËRMBAJTJA E PAKETIMIT 18
15. RUAJTJE E PAJISJES ....18
16. RICIKLIMI....18
17. DETYRIMET E GARANCISË....18
18. DATA E PRODHIMIT....19

NE MENDOJMË PËR JU

Technical line drawing of a mechanical component with no visible text or symbols

Fig. 4 Fig. 5

Technical line drawing of a mechanical component with no visible text or symbols

Mirëmbajtja

Bahnhofstrasse 27, 6300 Zug, Zvicër.

E-mail: [e-mail]

E prodhuar në Kinë.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Rys. 4 Rys. 5

Obstuga

Technical line drawing of a mechanical component with no visible text or symbols

Fig. 4

Technical line drawing of a mechanical component with no visible text or symbols

Fig. 5

Îngrijire

You can get additional information about this and other products directly from the Seller or through our information lines:

About the equipment purchase and cooperation:

Tel: [phone]

E-mail: [e-mail]

For technical and service issues:

Tel. [phone]

E-mail: [e-mail]

Internet address: www.home-comfort.com

Product Details (populated upon sale) · Detajet e produktit (të populluara pas shitjes)

• Szczegóły produktu (wypełniane w momencie sprzedaży) • Informații despre articol (se completează la vânzare) • Информация за продукта (попълва се при продажба)
• Informace o produktu (vyplní se při prodeji) • Információ az áruról (eladáskor kitöltendő)
• Detalji o proizvodu (popunjeni prilikom prodaje) • Podaci o proizvodu (popunjava se prilikom prodaje) • Informacije o izdelku (izpolnite ga ob prodaji) • Informácie o produkte (vyplni sa pri predaji) • Информации за производот (што треба да се пополнат кога производот се продава) • Плнрофорíес για το προϊόν (να συμπληρωθούν κατά την πώληση)

Model · Modelul · Модел

• Modell • Movtélo

Electrolux is a registered trademark used under license from AB Electrolux (publ.).

This manual may contain technical and typing errors. Changes to technical characteristics and assortment are subject to change without notice.

CE ⊕ RoHS IP20

Abstract graphic with recycling symbol, waste bin icon, and pink square (no text or labels)
