Ginger - Fan Argoclima - Free user manual and instructions

Type de produit	Table fan
Marque	Argoclima
Modele	Ginger
Alimentation	220-240 V~, 50 Hz
Nombre de vitesses	3 (1-2-3)
Minuterie	40/80/120 minutes
Oscillation	Left/right swing via lever
Inclinaison	Reglable manuellement
Nombre de pales	5
Type de commande	Boutons poussoirs
Dimensions (approx.)	Hauteur: 40 cm, Largeur: 30 cm, Profondeur: 30 cm
Poids (approx.)	2 kg
Couleur	Blanc
Utilisation prevue	Interieur uniquement
Nettoyage	Chiffon humide, aspirateur pour grilles
Securite	Arret automatique? Non; Deconnexion recommandee
Pieces detachees	Grille, pale, ecrou, base
Garantie	Standard du fabricant
Contenu du carton	Ventilateur, base, vis, manuel

Frequently Asked Questions - Ginger Argoclima

How to assemble the Ginger table fan?

Insert the rear grille onto the motor shaft, secure with the nut. Attach the blade and tighten the nut. Join the front and rear grilles using the ring and tighten the screw. Finally, connect the base to the body with the included screws.

How do I set the timer?

Press the timer button to select 40, 80, or 120 minutes. The fan will operate for the selected time and then turn off automatically.

How to adjust the fan speed?

Use the speed buttons: 1 (low), 2 (medium), 3 (high). Press 0 to switch off.

How to activate oscillation?

Pull up or down on the lever located on the back of the motor housing to enable or disable left/right oscillation.

How to clean the fan?

Always unplug before cleaning. Use a soft cloth slightly dampened with mild detergent (below 50°C). For the grilles, use a vacuum cleaner to remove dust. Do not immerse in water or use abrasive cleaners.

Can I use the fan outdoors?

No, the fan is designed for indoor use only. Do not operate in humid, dusty, or flammable environments.

The fan makes a strange noise or smell. What should I do?

Immediately switch off and unplug the fan. Do not attempt to repair it yourself; contact a qualified technician or the after-sales service.

How to store the fan when not in use?

Disconnect the power cord and store the fan in its original packaging in a cool, dry place. Keep the manual for future reference.

Is the fan suitable for children?

This fan is not a toy. Children should be supervised to ensure they do not play with the appliance. It is not intended for use by persons with reduced capabilities without supervision.

What is the warranty?

The fan comes with a standard manufacturer's warranty. Contact the retailer or Argoclima for details. Keep the proof of purchase.

USER MANUAL Ginger Argoclima

White desktop fan with five blades, no visible text or symbols

Ginger

White outdoor fan with a mesh fan and five blades, mounted on a stand (no visible text or symbols)

Tulip

OPERATING

INSTRUCTIONS

Read the instructions carefully before operating the appliance or carrying out maintenance operations. Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or damage. Keep these instructions in a safe place for future reference.

GENERAL SAFETY INFORMATION

• Use this fan only as outlined in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to people.
• Ensure that the mains power complies with the voltage specified on the fan's data plate (220-240V\~/50Hz).
• This product is not a toy. Children should be adequately supervised to ensure that they do not play with the appliance.
• This appliance is not suitable for use by people (including children) with reduced physical, sensory or mental abilities, or without the necessary experience and knowledge, unless they have been adequately supervised and instructed concerning use of the appliance by a person responsible for their safety.
• Do not restrict the air inlet and outlet grilles.
• Disconnect the mains power when the appliance is not used or for cleaning operations.
• Do not place anything on the appliance, use the appliance to dry clothing.
• Avoid placing fingers or foreign objects in the air inlet/outlet grilles, as this may lead to electric shock or fire and may damage the appliance.
• To avoid the risk of fire, do not block the grilles or tamper with them in any way while the fan operates.
• Do not use the appliance if the cord or plug are damaged. If the power supply cord is damaged, it must be replaced by the manufacturer, dealer or a similarly qualified person so as to avoid any safety risks.
• Do not operate the appliance if it has fallen from a height or has suffered damage in any way. Contact qualified technical personnel to examine the appliance or perform any electrical or mechanical repairs.
• The most common cause of overheating is the build-up of dust in the appliance. Remove dust deposits by unplugging the appliance and cleaning the air outlets and grilles with the aid of a vacuum cleaner.
• Do not use abrasive detergents for cleaning this appliance. Clean the appliance with the aid of a damp (not wet) cloth rinsed in hot soapy water. Always remove the plug from the mains socket before cleaning.
• To disconnect the fan, push the switch to OFF and remove the plug from the socket. Pull on the plug only. Avoid pulling on the cord when disconnecting the fan.
• Do not place any objects on the cord and do not bend it.
• It is not advisable to use extension cords, as these may overheat and cause the risk of fire. Do not use a single extension cord to operate multiple appliances.
• Do not immerse the cord, plug or any other element of the appliance in water or other liquids.
• Do not touch the plug with wet hands.
• Do not place the fan above or near another heat source.
• Do not connect the appliance to the mains power before it has been properly assembled and positioned.
• Do not run the cord under carpets. Do not cover the cord with blankets, carpets or similar materials. Place the cord far away from busy areas or where it cannot be accidentally pulled-out.
• Do not position the fan below a socket outlet.
• Do not operate the appliance outdoors.

WARNING: DO NOT DEPEND ON THE ON/OFF BUTTON SWITCH AS THE SOLE MEANS OF DISCONNECTING POWER. WHEN SERVICING OR MOVING THE FAN, ALWAYS UNPLUG THE POWER CORD.

• A fan has hot and arcing or sparkling parts inside. It must not be used in potentially dangerous locations such as flammable, explosive, chemical-laden or wet atmosphere.
• Do not place the fan on soft surfaces, like a bed, where openings may become blocked. Always place the fan on a stable, flat, level surface when operating, to avoid the chance of the overturning. Locate the power cord so the fan or other objects are not resting on it.
  • Always unplug the fan when not in use.
  • In order to avoid accidents turn unit off if unattended.
• In the event of any problems (abnormal noise or a strange smell) switch off the appliance immediately, do not attempt to repair it and take it to your local after sales service.

Ginger - TABLE FAN - DESCRIPTION OF PARTS

1. Front grille
2. Nut
3. Blade
4. Swing control
5. Body
6. Control panel
7. Base

Tulip - STAND FAN - DESCRIPTION OF PARTS

1. Front grille
2. Nut
3. Blade
4. Ring
5. Body
6. Control panel
7. Inner rod
8. Height adjustment ring
9. Base
   10.Handle
10. Motor housing
    12.Screw
    13.Real grille

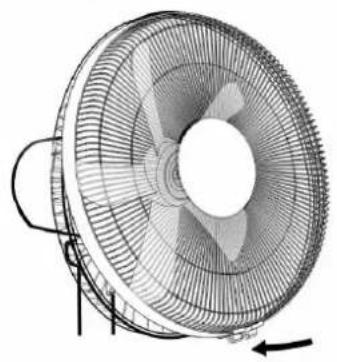

TABLE & STAND FAN - ASSEMBLY INSTRUCTIONS

Open the box and remove the parts of the appliance.

Motor shaft. Insert the rear grill on the motor shaft

in the proper position (handle upward).

Screw the nut in order to fasten the rear grill firmly.

Set the blade on the motor shaft.

Illustration of a multi-free fan with visible blades and central hub, mounted on a stand (no text or symbols)

Tighten the nut on the motor shaft

Technical line drawing of a mechanical component with a curved blade and a screwdriver (no text or symbols)

With the aid of the ring join front and rear grill and tighten the screw on the ring

Ginger - TABLE FAN - ASSEMBLY INSTRUCTIONS OF THE BASE

Diagram showing two mechanical or structural components with downward and upward arrows indicating motion (no text or symbols)

Connecting the base to the body using the included screws.

The appliance does not need to be installed.

Position the unit on a flat, stable surface.

To move the fan use the handle on the back.

Tulip - STAND FAN - ASSEMBLY INSTRUCTIONS OF THE BASE

Open the box and remove the parts of the appliance.

CONNECT THE ROD TO THE BASE USING THE SUPPLIED LOCKING LEVER AND FOLLOW THESE INSTRUCTIONS:

Close-up of a metallic cylindrical container with a handle, mounted on a wall (no visible text or symbols)

1. The fan is supplied with the locking lever included into the outer rod.

Close-up of a black cylindrical device with a circular base and a flat top, mounted on a stand (no visible text or symbols)

1. Loose the locking lever. 3. Remove the locking lever.

Close-up of a hand holding a metal bracket with a cylindrical rod, against a plain wall background (no text or symbols visible)

1. The base is inserted.

Line drawing of a mechanical support with a circular base and vertical shaft (no text or symbols)

4 Insert the base below the outer rod.

Circular pattern with concentric rings and a central dot, no visible text or symbols

Circular mechanical component with a central shaft, no visible text or symbols

Line drawing of a stand with a black handle and base (no text or symbols)

7. Unscrew the ring for adjusting the height and pull out the inner rod.

1. Tighten the locking lever.


Simple line drawing of a stand with a vertical panel and cable, no text or symbols present

1. Mount the part with the fan.

Diagram of a mounted device with a stand and cable, showing no text or symbols

1. Screw the screw.

The appliance does not need to be installed. Position the unit on a flat, stable surface. To move the fan use the handle on the back.

HOW TO USE THE APPLIANCE

Connect the power cord to a suitable power socket (220-240 V\~).

Do not use this fan in an area with high humidity, rich of dust or water.

Tilt adjustment: to regulate the air flow upward or downward, after switching off the units, push gently the motor housing and adjust the angle of inclination.

ON/OFF operating TIMER :

- 40-80-120: operation timer – the fan works respectively for 40-80-120 minutes.

Fan speed regulation :

The buttons for fan speed selection allows you to adjust the fan speed from the lowest (1) to the highest (3).

0 button switches off the device.

Left/right swinging :

To activate / deactivate the swing, pull up or down on the lever on the engine, on the back of the unit.

MAINTENANCE AND STORAGE

ALWAYS UNPLUG THE APPLIANCE BEFORE CLEANING OR MAINTENANCE. IMPORTANT: DO NOT SUBMERGE THE FAN IN WATER.

Cleaning the outside surface of the appliance

Turn the switch off and unplug before carrying out any maintenance work or moving the appliance.

Use a soft cloth to remove any dust from the fan.

If the fan is excessively dirty, use a soft cloth moistened with water and a mild detergent at a temperature lower than 50°C.

Let the fan dry completely before use.

Do not use corrosive detergents or solvents such as petrol. Do not wash the appliance with water. Do not use oils, chemical substances or other items to clean that may damage the surface.

Use a vacuum cleaner to remove dust from the air inlet/outlet grilles.

STORAGE

If the appliance is not used for prolonged periods, disconnect the power cord and store the appliance with this manual in its original packaging, in a cool and dry place.

INFORMATION FOR THE CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EUROPEAN DIRECTIVE 2012/19/EU

This appliance may not be scrapped with domestic waste at the end of its life cycle. We call your attention to the crucial role played by the consumer in the re-use, recycling and other forms of recovery of such waste.

The appliance must be scrapped by a sorted waste disposal centre or by returning it to the retailer (no charge is levied for this service), when you purchase a new equivalent appliance.

Sorted disposal of electric and electronic equipment prevents the negative effects on the environment and human health resulting from improper scrapping, and also allows the materials from which it is made to be recovered and recycled, with significant savings in terms of energy and resources.

The sorted disposal requirement is indicated by the crossed waste bin label affixed to the appliance.
