Brand	Panasonic
Model	EH-KA31
Product Type	Hair Styler (Multi-Styler)
Dimensions (Main Body)	48 mm (W) x 195 mm (D) x 48 mm (H)
Power Supply Voltage	110 V (60 Hz), 220 V (50-60 Hz), 230 V (50-60 Hz), 240 V (50-60 Hz) depending on region
Power Consumption	600 W (110 V), 550 W (220 V), 600 W (230 V), 650 W (240 V)
Speed/Heat Settings	0 (Off), 1 (Cool mode), 2 (Set mode), 3 (Dry mode)
Included Attachments	Blow Brush, Roller Brush, Air Iron
Safety Features	Automatic overheating protection (cold air generated), residual current device (RCD) recommended for bathroom use
Maintenance	Clean air inlets and outlets monthly; removable filter for cleaning
Cord	Detachable? Not specified; do not wrap around device
Hang Ring	Yes, for storage
Intended Use	Drying and styling human hair only
Manufacturer	Panasonic Electric Works (Thailand) Co., Ltd.
Country of Origin	Thailand

Frequently Asked Questions - EH-KA31 PANASONIC

What attachments are included with the Panasonic EH-KA31?

The EH-KA31 comes with three attachments: Blow Brush (for natural style), Roller Brush (for straight hair or big curls), and Air Iron (for spiral curls).

Can I use the EH-KA31 in a bathroom?

Yes, but with caution. Always unplug the styler after use in a bathroom. For added safety, install a residual current device (RCD) rated at 30 mA or less. Never use near water or with wet hands.

How do I clean the hair styler?

Clean the air inlets and outlets at least once a month. Turn off and unplug, then remove the filter by turning it counterclockwise. Brush away dust and hair. Reattach the filter by aligning the groove and twisting.

What do the different power settings mean?

The power switch has four positions: 0 (Off), 1 (Cool mode), 2 (Set mode – medium heat), and 3 (Dry mode – high heat). Use cool mode for setting styles.

Is the EH-KA31 suitable for all hair types?

Yes, it can be used on all hair types. Adjust the heat setting according to your hair thickness and texture. Use lower heat for fine or damaged hair.

How do I prevent hair from tangling in the roller brush?

Take only a small amount of hair when rolling, keep the roller at a right angle (90°) to your head, and do not do more than two rolls at a time. Unroll at the same angle.

What voltage does the EH-KA31 support?

The styler supports multiple voltages: 110 V (60 Hz), 220 V (50-60 Hz), 230 V (50-60 Hz), and 240 V (50-60 Hz). Check the local voltage before use. The appropriate voltage is indicated on the device.

What should I do if the styler overheats?

If overheating occurs, the styler will automatically produce cold air. Unplug immediately, let it cool for a few minutes, and ensure no fluff or hair is blocking the air inlets/outlets before restarting.

Can I use the styler on wet hair?

Yes, but it is designed for drying and styling. It is safe to use on damp or towel-dried hair. Avoid using on soaking wet hair to prevent damage.

How do I attach or remove the attachments?

Align the attachment groove with the hook on the main body, push until it clicks. To remove, press the attachment release button and pull the attachment off.

USER MANUAL EH-KA31 PANASONIC

Line drawing of a hairbrush with comb and brush head (no text or symbols)

Panasonic

Operating Instructions

사용 설명서

使用説明書

คำแนะนำการใช้งาน

Hướng dẫn thao tác

Before operating this hair styler, please read these instructions completely and save this manual for future use.

Please read the safety instructions before using this hair styler. The safety instructions explained here are to help you use this hair styler safely and correctly, and also to prevent you from injuring yourself or others.

WARNING: Not following the instructions below may cause fire, burns, explosion, short circuiting or electric shock.

Electrical Conditions

WARNING: This symbol on the hair styler means “Do not use this hair styler near water”. Do not use this hair styler near bathtubs, showers, basins or other vessels containing water.

1. Always switch off the hair styler ("0" position) after use and before unplugging it from the power socket. Unplug it from the power socket when not in use. Always grasp the plug while unplugging. Failure to do so may lead to fire and/or an accident.
2. Before connecting the hair styler, check that the voltage of the hair styler corresponds to the local voltage.
3. Do not cut, damage or modify the cord. Do not pull, twist or bend the cord with unnecessary force. Do not place heavy objects on the cord or allow it to get pinched in between objects. Do not wrap the cord around the hair styler as it may cause fire and/or electric shock. If the cord is damaged or becomes hot, stop using it immediately.

4. When the hair styler is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the hair styler is switched off.

5. For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.

●Using the Hair Styler

1. Stop using it immediately if the hair styler does not produce air constantly and the cord or plug is damaged or becomes hot, or the plug fits loosely in the outlet.
2. Never insert foreign objects into either the air inlet or outlet.
3. Do not use the hair styler near inflammable material such as benzine, paint thinner, sprays, etc.
4. Do not use the hair styler while your hands are wet.
5. Do not use or place the hair styler in an area with high humidity. Do not submerge the hair styler in water.
6. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

●Repairing the Hair Styler

1. Do not attempt to repair, disassemble or modify the hair stylist by yourself.
2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
3. If the cord or plug is damaged, stop using it immediately and contact an authorized Panasonic service center.

CAUTION

1. Do not put your hands on the air outlets or use them if they are damaged. You may get burned.
2. Only use the hair styler for drying and styling human hair. Do not use it for children.

3. Do not use the hair styler if it is damaged.

4. Do not touch the attachments as they become hot during and after use.

5. Make sure hair does not get sucked into the air inlets.
6. Do not use thinner, benzine or any other solvent to clean the hair styler.
7. This hair styler is equipped with an automatic overheating protective device. If the hair styler overheats, it will generate cold air. Unplug it from the power socket. Allow it to cool down for a few minutes before using it again. Check that no fluff, hair etc. is in the air inlets and outlets before switching it on again.

Parts Identification

① Main Body
② Attachment Release Button
③ Air Outlet
④ Hang Ring
⑤ Air Inlet
⑥ Cord
⑦Power Switch/Speed Selector

0: Off

1: Cool mode
2: Set mode
3: Dry mode

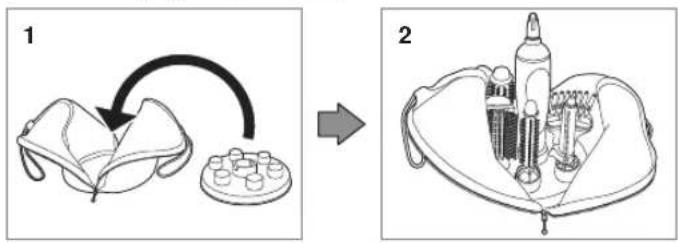

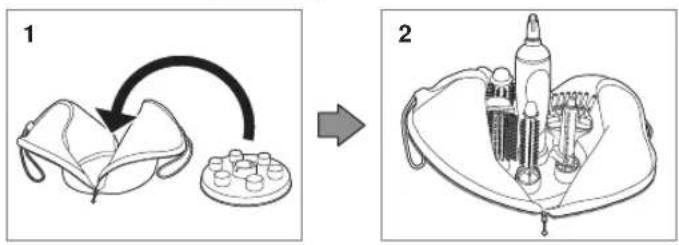

How to use the pouch EH-KA81

How to Use the Hair Styler Fixing the Attachment

• Align the attachment with the hair styler as shown. Ensure that the groove of the attachment and the hook of the body are aligned with each other. Insert the hair styler in the attachment until it clicks.
• Press the attachment release button and pull out the attachment to remove it.

Technical line drawing of a pipe fitting with mounting holes and a dashed centerline (no text or symbols)

Do the following to prevent tangled hair while using the Roller Brush.

• Take only a small amount of hair when rolling and roll the hair at a right angle (90°) as shown.
- Do not do more than two rolls at a time.
- Keep the roller as far away as possible from your head and unroll the roller at the same angle as your hair.
- Do not roll or unroll your hair at an incline angle.

Introduction of the Attachments Blow Brush

Use for a natural hair style.

EH-KA81 EH-KA71 EH-KA31

Illustration of a woman holding a curling iron (no text or symbols)

Take a small amount of hair and brush from the inside pulling it down gently. Use your free hand to support the motion.

Slim Roller Brush

Use for volume and waves or curls.

EH-KA81

Illustration of a person holding a tool, no text or symbols present

Illustration of a woman with long hair and a numbered circle (3) pointing to the left side, no text or symbols present.

Take a small amount of hair and curl from the end of the hair.

Roller Brush

Use for natural straight hair or big curls.

EH-KA81 EH-KA71 EH-KA31

Illustration of a person with hand on chin, no text or symbols present

Illustration of a person holding a pen, with a numbered circle and ellipsis (no text or symbols)

Illustration of a human head with short hair and facial features, no text or symbols present

Blow dry the hair from the roots to the end and then curl the end of the hair.

Air Iron

Use for beautiful spiral curl.

EH-KA81 EH-KA71 EH-KA31

Illustration of a person cutting hair with a knife, showing a downward arrow (no text or symbols)

Illustration of a person with long hair and a decorative swirl (no text or symbols)

Illustration of a woman with long hair and decorative hair accessory (no text or symbols)

Take a small amount of hair and place it under the clamp. Roll it tightly around the iron in the desired direction. Depending on the desired types of curls, the hair can be curled inwards or outwards to create different directional curls.

Allow the hot air to set the hair for 10 seconds before unrolling.

Volume Lifter

Use for creating volume.

EH-KA81 EH-KA71

Apply warm air gently at the roots to lift bangs.

Brush hair towards the top for added body on the sides.

Diagram of airflow around a curved surface with streamlines and directional arrows (no text or labels)

For added body from the roots up, use the lifting comb while applying warm air.

Hair Clips

EH-KA81 EH-KA71

Nozzle

Use for overall drying.

EH-KA81 EH-KA71

Line drawing of a woman with long hair and a collared garment (no text or symbols)

Maintaining the Hair Styler

Clean the air inlets and outlets to prevent blockages that may cause overheating.

The hair styler should be cleaned at least once a month.

To clean the hair styler, turn the power switch to [0] and unplug the hair styler from the power outlet.

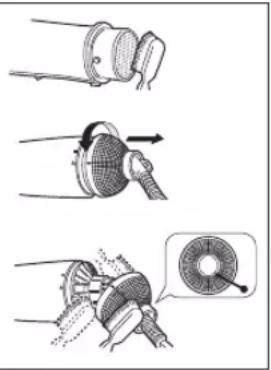

• Clean the air outlet using a brush as shown.
• To clean the air inlet, remove the filter by turning it counterclockwise direction and pull the filter towards your direction.
• Remove dust or hair by using a brush.
• To re-attach the filter, ensure that the groove of the connector and the projection of the filter are in line. Twist to fit.

Specifications

Model No.: EH-KA81

Voltage	110 V60 Hz*	220 V50-60 Hz	230 V50-60 Hz	240 V50-60 Hz
Output 600	W 550	W 600 W 650	W
Dimensions	48 (W) × 195 (D) × 48 (H) mm (Main Body)
Accessories	Blow Brush, Slim Roller Brush, Roller Brush, Air Iron, Volume Lifter, Nozzle, Hair Clips, Pouch

Model No.: EH-KA71

Voltage	110 V60 Hz*	220 V50-60 Hz	230 V50-60 Hz	240 V50-60 Hz
Output 600	W 550	W 600 W 650	W
Dimensions	48 (W) × 195 (D) × 48 (H) mm (Main Body)
Accessories	Blow Brush, Roller Brush, Air Iron, Volume Lifter, Nozzle, Hair Clips

Model No.: EH-KA31

Voltage	110 V60 Hz*	220 V50-60 Hz	230 V50-60 Hz	240 V50-60 Hz
Output 600	W 550	W 600 W 650	W
Dimensions	48 (W) × 195 (D) × 48 (H) mm (Main Body)
Accessories	Blow Brush, Roller Brush, Air Iron

*Only available in Taiwan.

안전 지침

헤어 스타일러 사용법

부착물 고정

Technical line drawing of a pipe fitting with mounting holes and a dashed centerline (no text or symbols)

Line drawing of a woman holding a brush (no text or symbols)

Illustration of a person holding a tool, no text or symbols present

Illustration of a woman with long hair and a numbered circle (3) pointing to the left side, no text or symbols present.

Illustration of a person with long hair, hand near face, no text or symbols present

Illustration of a person holding a pen, with a numbered circle and ellipsis indicating continuation (no text or symbols on the figure itself)

Illustration of a person using a tool to cut hair, showing a downward arrow (no text or symbols)

Illustration of a person with long hair and flowing hair, no text or symbols present

Illustration of a person with long hair and a wavy line, no text or symbols present

Diagram of airflow around a curved surface with directional arrows indicating flow direction (no text or symbols)

빗에 걸린 머리카락을

두피에서 들어올릴 때

온풍을 쇼면서 올림빗을

사용하십시오.

헤어 클럽

EH-KA81 EH-KA71

노졸

진체적으로 말릴 때 사용합니다.

EH-KA81 EH-KA71

Line drawing of a woman with long hair (no text or symbols)

헤어 스타일러 관리

Illustration of a hairdryer with a prohibition symbol (no text or labels)

如何使用整髮器

固定附件

Technical line drawing of a pipe fitting with two circular components and mounting holes (no text or symbols)

Illustration of a person holding a hairpin (no text or symbols)

Illustration of a person holding a tool, no text or symbols present

Illustration of a woman with long hair and a numbered circle (3) pointing to the left side, no text or symbols present.

抓取少量頭髮，然後從髮尾開始捲髮。

捲髮梳

適用於自然直髮或大捲髮。

EH-KA81

EH-KA71

EH-KA31

Line drawing of a person with long hair, hand resting on chin, no text or symbols present

Illustration of a person holding a pen, with a numbered circle and ellipsis (no text or symbols)

Line drawing of a woman's face with a numbered circle (3) and ellipsis indicating continuation (no text or symbols on the figure itself)

Illustration of a person holding a tool, with a downward arrow indicating motion (no text or symbols)

Illustration of a person with long hair and a decorative swirl (no text or symbols)

Illustration of a person with long hair and a wavy line, no text or symbols present

Diagram of airflow around a curved surface with directional arrows indicating flow direction (no text or symbols)

Three-step diagram illustrating mechanical assembly or tool path (no text or symbols)

規格
型號：EH-KA81

電壓	*110 V60 Hz	220 V50-60 Hz	230 V50-60 Hz	240 V50-60 Hz
輸出 600 W 5	50 W 600 W	650 W
尺寸	48(寬)×195(長)×48(高)mm (主體)
附件	吹風梳,細捲髮梳,捲髮梳,浸髮夾,蓬鬆髮梳,吹風嘴,髮夾,收納袋

型號：EH-KA71

電壓	*110 V60 Hz	220 V50-60 Hz	230 V50-60 Hz	240 V50-60 Hz
輸出 600 W 560 W 600 W			650 W
尺寸	48(寬)×195(長)×48(高)mm (主體)
附件 吹風梳,捲髮梳,燙髮夾,蓬鬆髮梳,吹風嘴,髮夾

型號：EH-KA31

電壓	*110 V60 Hz	220 V50-60 Hz	230 V50-60 Hz	240 V50-60 Hz
輸出 600 W 560 W 600 W			650 W
尺寸	48(寬)×195(長)×48(高)mm(主體)
附件 吹風梳,捲髮梳,燙髮夾

*僅限於台灣適用。

製造商：Panasonic Electric Works (Thailand) Co., Ltd.

生產國別：泰國

Technical line drawing of a pipe fitting with two components, no text or symbols present

Line drawing of a woman holding a tool, no text or symbols present

Illustration of a person holding a tool, no text or symbols present

2

3

Illustration of a person cutting a piece of scissors with a downward arrow (no text or symbols)

Illustration of a person with long hair and a flowing ribbon (no text or symbols)

Diagram of airflow or heat transfer through a curved pipe with streamlines (no text or symbols)

Line drawing of a woman with long hair (no text or symbols)

ตัวหนีบผม

EH-KA81 EH-KA71

Line drawing of a woman with long hair and a decorative top (no text or symbols)

Three-step diagram showing mechanical assembly steps: winding, press, and fan (no text or symbols)

ข้อมูลจำเพาะ

Technical line drawing of a pipe fitting with two circular components and mounting holes (no text or symbols)

Illustration of a person holding a brush, no text or symbols present

Diagram of airflow around a curved surface with directional arrows indicating flow direction (no text or symbols)

Technical line drawing of a pipe fitting with mounting holes and a dashed centerline (no text or symbols)

Illustration of a woman holding a brush, no text or symbols present

Illustration of a person styling their hair with a bandage, labeled with number 1 (no text or symbols on the diagram itself)

Illustration of a woman with long hair and a numbered circle (3) pointing to the left side, no text or symbols present.

Illustration of a person using a tool to cut a piece of hair, with a downward arrow indicating the motion (no text or symbols present)

Illustration of a person with long hair and a decorative swirl (no text or symbols)

Illustration of a woman with long hair and decorative hair accessory (no text or symbols)

Diagram of airflow or heat transfer through a curved pipe with streamlines and directional arrows (no text or labels)

Line drawing of a woman with long hair and a decorative hair accessory (no text or symbols)

नॉजल

Illustration of three stages of a mechanical device with arrows indicating motion (no text or symbols)

तकनीकी विवरण

मॉडल नं.: EH-KA81

Diagram of airflow around a curved surface with directional arrows indicating flow direction (no text or symbols)

Illustration of a person with long hair and a decorative swirl (no text or symbols)

Illustration of a woman with wavy hair and a numbered circle (3) in the top right corner (no text or symbols on the figure itself)

Illustration of a person holding a small object with an arrow symbol (no text or labels)

Illustration of a person holding a tool, no text or symbols present

Technical line drawing of a pipe fitting with mounting holes and a dashed centerline (no text or symbols)

Line drawing of a medical device with a bulb and attached tubing (no text or symbols)

Diagram showing a bag being placed on a tray with a circular arrangement of objects, no text or symbols present.

Diagram of airflow around a curved surface with directional arrows indicating flow direction (no text or symbols)

Illustration of a woman with long hair and a wavy hair accessory (no text or symbols)

1

Illustration of a person with long hair and a decorative swirl (no text or symbols)

Illustration of a person cutting hair with scissors, showing a downward arrow (no text or symbols)

Illustration of a person holding a brush, no text or symbols present

برس گرد کوچک

Technical line drawing of a pipe fitting with two circular components and mounting holes (no text or symbols)

شناسایی قطعات

①بدنه اصلی

Line drawing of a medical device with a bulb and multiple tubes, placed on a cushion (no text or symbols)

Diagram showing a bag being placed on a tray with a small object nearby (no text or symbols)

استفاده از سشوار

Line drawing of a hairbrush with comb and brush head, shown in an oval frame (no text or symbols)

Panasonic

دُفْتَرِجِه راهنما

تعليمات التشفيل

سشوار حالت دهنده мо

مصف الشعر

⑤ EN, KO, TW, THAI, VN, INDO, AR, PER

Printed in Thailand

0000000000 X0009-0
