Product Type	Cordless Cyclonic Vacuum Cleaner
Brand	Innoliving
Model	INN-662
Power Source	Rechargeable Lithium-Ion Battery (22.2 V, 2200 mAh)
Charger Input	100-240 V ~ 50/60 Hz
Charger Output	26.0 V, 0.5 A, 13 W
Charger Model	YNY12WA-260050DE
Filtration System	HEPA Filter (Washable)
Suction Speeds	2 (Minimum and Maximum)
Dust Container Capacity	Approximately 0.6 L (based on typical cyclonic design)
Dimensions (Approx.)	Width: 25 cm, Depth: 15 cm, Height: 110 cm (assembled)
Weight (Approx.)	1.8 kg (including battery)
Accessories Included	Foldable tube, floor brush, 2-in-1 crevice tool, brush compartment
Special Features	Cyclonic separation, LED indicator, hook for hanging, battery release button
Operating Temperature	5 °C to 35 °C
Safety Class	Class III (Very low safety voltage)
Usage	Domestic use only, not for industrial or professional
Battery Disposal	Rechargeable Li-ion battery must be disposed of separately at end of life
Warranty	Standard manufacturer warranty (refer to manual for details)

Frequently Asked Questions - INN-662 Innoliving

How long does it take to fully charge the battery?

The first charge requires approximately 4-5 hours. Subsequent charges may vary based on usage, but typical charging time is about 4 hours. Always ensure the vacuum is turned off while charging.

What is the running time on a full charge?

The runtime depends on the speed setting. On minimum speed, it lasts about 20-25 minutes; on maximum speed, about 10-15 minutes. Actual runtime may vary with floor type and attachments used.

How do I empty the dust container?

Hold the vacuum over a rubbish bin, press the dust release lever downward to open the bottom of the container. Shake out the dust. For thorough cleaning, remove the HEPA filter by turning it anticlockwise and clean the filter separately.

Can I wash the HEPA filter?

Yes, the HEPA filter is washable. Rinse it under running water, but ensure it is completely dry (allow at least 24 hours) before reinstalling. Do not use detergents or heat sources to dry.

How often should I replace the HEPA filter?

It is recommended to replace the HEPA filter once a year or when cleaning becomes difficult. Replacement ensures optimal suction and air quality.

Why is the suction power low?

Low suction often indicates a full dust container or a clogged filter. Empty the container and clean the HEPA filter. Also check the hose and brush for blockages.

Can I use the vacuum to pick up liquids?

No, this vacuum is designed for dry pickup only. Using it on wet surfaces or sucking up liquids can damage the appliance and increase risk of electric shock.

How do I remove the battery for disposal?

First, run the vacuum until the battery is completely discharged. Then press the battery release button to remove it. Dispose of the Li-ion battery at a designated recycling point according to local regulations.

Can I use a different charger?

No, only use the supplied charger model YNY12WA-260050DE. Using a different charger may damage the battery or create a safety hazard.

Is the vacuum suitable for pet hair?

Yes, the cyclonic suction and floor brush are effective on pet hair. Regularly clean the brush compartment and check for hair tangles to maintain performance.

USER MANUAL INN-662 Innoliving

innoliving easy tech, easy life

ASPIRAPOLVERE CICLONICO SENZA FILI RICARICABILE

Thank you for purchasing the Innoliving Rechargeable cordless cyclonic Vacuum Cleaner INN-662.

We recommend that you read this instruction manual carefully before use and keep it safe for future reference.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic safety precautions must be observed, including:

• Before using the appliance, carefully read the instructions for use and in particular the safety warnings and comply with them. Keep this manual, for the entire life of the appliance, for consultation purposes. Failure to follow the instructions could cause accidents and void the guarantee, relieving the manufacturer from any liability.
• Before connecting the appliance, check that the mains voltage data shown on the data label correspond to those of the local electricity network. The data label is located on the appliance itself.
• Packing elements (plastic bags, cardboard, polystyrene, etc.) must not be left within the reach of children as they are potential sources of danger and must be disposed of in accordance with current regulations.
• After removing the appliance from the packaging, check for any transport damage and the integrity of the supply based on the drawing. In the event of damage or doubts as to its actual integrity, do not use the appliance and contact the authorized assistance service.
• Disconnect the plug from the mains when the product is not in use.
  • To reduce the risk of electric shock, do not use this product

outdoors or on wet surfaces.

- To protect against electric shock, do not immerse the appliance or cord in water or other liquids. Do not let the cord touch hot surfaces.

- This product can be used by children aged 8 and over and by people with reduced physical, mental or sensory capabilities, or lack of experience and knowledge only if supervised or if they have received instructions regarding the safe use of the equipment and understand the risks associated with its use

- Cleaning and maintenance operations must not be carried out by children without supervision.

- This product is not a toy. Make sure that children do not play with the appliance.

- This product has been designed for DOMESTIC use only, it has not been designed for industrial or professional use.

- In the event of a breakdown or malfunction of the appliance, switch it off and do not tamper with it. For any repairs, contact only an authorized technical assistance centre.

- Do not pull the power cable to lift, carry or remove the plug from the socket.

• Make sure that the cable has no knots or bends.

- Check the condition of the electric cable. Damaged or entangled cords increase the risk of electric shock.

- Do not use the plug or cord with wet or damp hands or feet.

- Do not insert any foreign object into the product.

- Keep hair, fabrics and other objects away from the slots of the product as they may block it.

- Turn off the vacuum cleaner using the appropriate switch before disconnecting the electrical outlet.

• Keep away from flammable liquids or products.
• Do not use the appliance to suck up lit cigarettes or still hot ash.
• Do not use the appliance without first placing the filter in the space provided.
• Do not direct the appliance towards people or animals while it is in operation.
  • Always use the vacuum cleaner with the appropriate filter.
• ATTENTION: The appliance must only be powered at a very low safety voltage corresponding to the marking on the appliance.
• Charge the product using only the power supply provided by the manufacturer. During the recharging phase, the power supply will feel hot to the touch, this is completely normal and does not constitute a defect of the appliance.
• It is advisable to use, store and recharge the appliance at a temperature between 5°C and 35°C.
• Make sure you have turned off the device before proceeding with recharging the battery.
• The batteries used by this device, at the end of their useful life, must be disposed of in the appropriate containers. Find out about local regulations regarding separate collection of batteries.
• Before carrying out cleaning and maintenance operations, switch off and disconnect the product from the power supply.

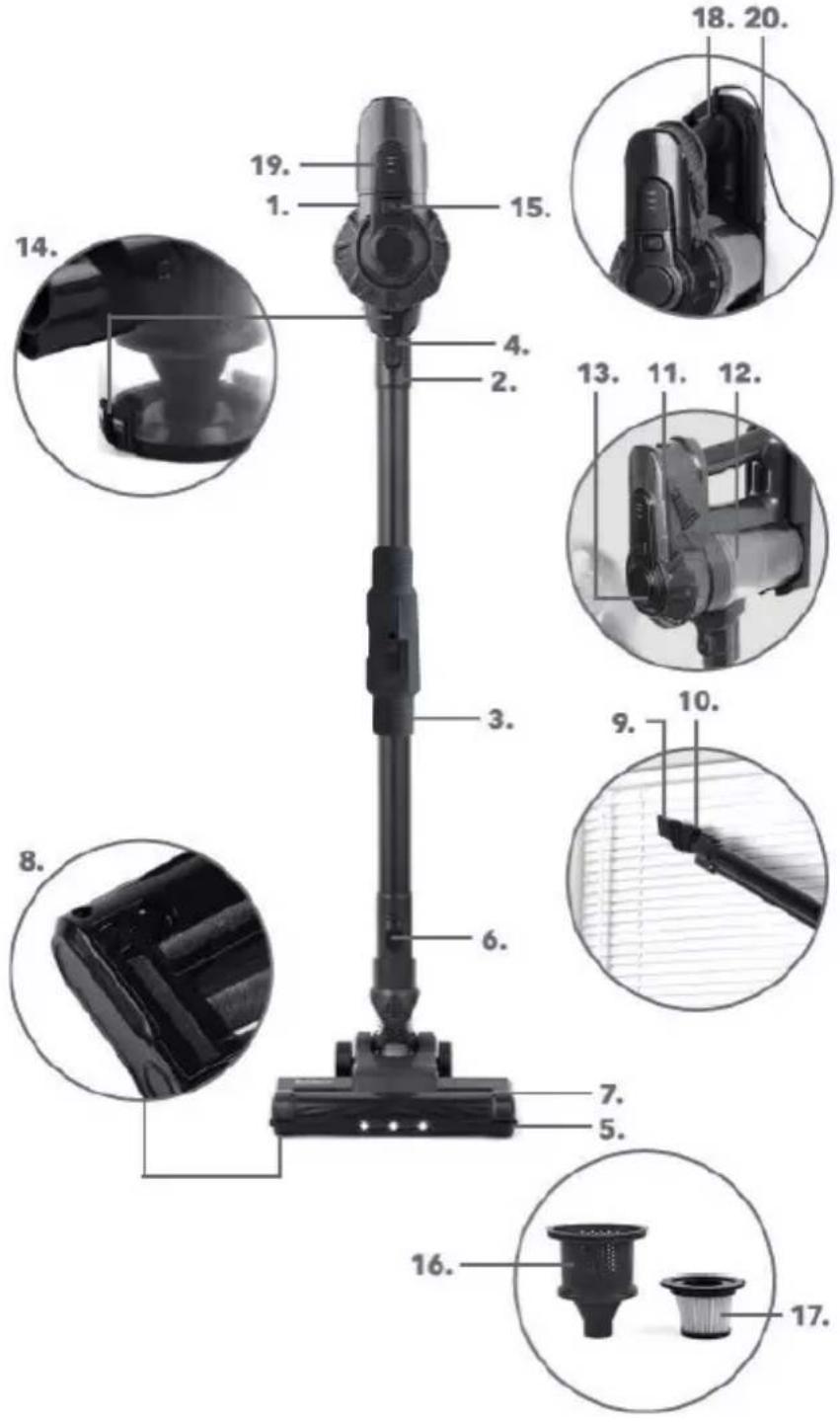

PRODUCT DESCRIPTION

1. Engine unit
2. Hose coupling
3. Foldable tube
4. Hose release button
5. Floor brush
6. Floor brush release button
7. Brush compartment
8. Brush release tab
9. 2-in-1 crevice tool
10. Release button
11. ON/OFF button
12. Dust container
13. Dust container lid
14. Base closure of the container
15. Battery and case release button
16. Filter cone
17. HEPA filter
18. Charging port
19. LED indicator
20. Hook for hanging

FIRST USE

Before using the vacuum cleaner for the first time, clean the external surface with a soft, damp cloth and dry thoroughly. Do not immerse the vacuum cleaner in water or other liquids.

Load the vacuum cleaner

Before using the vacuum cleaner for the first time, the vacuum cleaner battery must be fully charged. Subsequent charging times vary depending on usage.

1. Make sure the vacuum cleaner is turned off.
2. Connect the mains power adapter to the charging port on the vacuum cleaner.
3. Connect the mains power adapter to the mains.

How to use

1. Turn on the vacuum cleaner by pressing the power button, press once for minimum speed, a second time for maximum.
2. To turn off the vacuum cleaner, press the off button.

CLEANING AND MAINTENANCE

ATTENTION: Do not clean the appliance during the recharging phase. Disconnect the power supply from the mains before proceeding with any cleaning and maintenance operation.

The motor body can be cleaned using a soft cloth moistened with water. Do not immerse the motor body in water or other liquids.

HOW TO EMPTY THE DUST CONTAINER

Empty the dust container as often as possible or whenever you notice a drop in suction power.

Hold the appliance over a rubbish bin, press the dust release lever downwards, in this way the lower part of the appliance opens and the dirt container can be emptied.

Continue cleaning by removing the HEPA filter from the container, just turn it anticlockwise.

Extract the Hepa filter from its support and remove the excess dust. If necessary, the Hepa filter can be cleaned with running water. Make sure the filter is completely dry before placing it back into the container.

REPLACING THE HEPA FILTER

It is recommended to replace the hepa filter once a year or if cleaning the filter is difficult.

1. Remove the filter from the dust container.
2. Gently remove the Hepa filter from its holder
3. Insert the new filter.
4. Reposition the filter inside the dust container, fastening it correctly to the appliance.

Disposal of rechargeable batteries

Rechargeable Li-ion batteries can explode if exposed to high temperatures or fire.

Only remove the battery from the device if it is completely discharged. It is advisable to let the vacuum cleaner run until the battery is completely discharged to remove it from the motor body.

RATING LABEL

POWER SUPPLY

Manufacturer: Dongguan YiNuoYuan Technology Co., Ltd.

Model: YNY12WA-260050DE

Input voltage: 100-240V \~

Input frequency: 50/60Hz

Output: 26,0V

Output current: 0,5A

Output power: 13W

Average active efficiency: 75,44%

Power consumption under no-load condition: 0,42W

Innoliving Spa

Via Merloni 2/B-60131 Ancona - Italy

INN-662 ASPIRAPOLVERE CICLONICO RICARICABILE CYCLONIC RECHARGEABLE VACUUM CLEANER

Usare solo con l'alimentatore mod. YNY12WA-260050DE Use only with the adaptor model YNY12WA-260050DE

Input: 26.0 V = 0.5A - + Battery Li ion 22.2 V DC 2200 mAh

Lot n.

MADE IN CHINA

This product complies with all the applicable EU directives

Read carefully the instruction manual

Class III Appliance

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should,

therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014

The batteries used in this device, at the end of its useful life, must be disposed of in the appropriate binders. Inquire about local regulations regarding separate collection of batteries. Proper disposal of batteries avoids negative consequences for the environment and health.

innoliving easy tech, easy life

Innoliving Spa Via Merloni, 2/B 60131 Ancona Italy Tel [phone] www.innoliving.it

MADE IN CHINA

CE
