INN-650 - Vacuum Cleaner Innoliving - Free user manual and instructions

Product Type	Vacuum Cleaner
Brand	Innoliving
Model	INN-650
Dimensions (L x W x H)	30 x 25 x 40 cm
Weight	3.5 kg
Power Consumption	800 W
Dust Capacity	1.5 L
Cord Length	5 m
Noise Level	75 dB
Filter Type	HEPA Washable
Bagless	Yes
Cleaning Type	Dry
Accessories Included	Crevice Tool, Dusting Brush
Power Supply	AC 220-240V, 50/60Hz
Color	Black/Red
Warranty	2 Years

Frequently Asked Questions - INN-650 Innoliving

How do I empty the dustbin?

Press the release button on the dustbin and pull it out. Empty the contents into a trash bin and rinse the dustbin with water if needed. Allow it to dry completely before reattaching.

How often should I clean the filter?

Clean the HEPA filter every 1-2 months, or when the suction power decreases. Tap it gently to remove dust or wash it with cold water and let it air dry for 24 hours before reuse.

Can I use the vacuum to pick up liquids?

No, this is a dry vacuum only. Using it on liquids can damage the motor and void the warranty.

What is the maximum cord length?

The power cord is 5 meters long, allowing a cleaning radius of approximately 8 meters from the outlet.

How do I change the vacuum cleaner bag?

This model is bagless. There are no bags to replace. Simply empty the dustbin and clean the filter.

The vacuum is losing suction. What should I check?

Check if the dustbin is full, the filter is clogged, or there is a blockage in the hose or brush head. Clean or replace the filter, and remove any obstructions.

Is the vacuum suitable for pet hair?

Yes, the powerful suction and included brush tool can pick up pet hair from carpets and upholstery. Regularly clean the brush to prevent hair tangles.

How do I rewind the power cord?

Press the cord rewind button (usually on the top or back of the vacuum) while holding the plug to guide it. Do not let the plug snap back.

What type of filter does the INN-650 use?

It uses a washable HEPA filter that traps fine dust particles and allergens. Ensure it is completely dry before reinstalling.

Can I use an extension cord?

Yes, but ensure the extension cord is rated for at least 10 amps and fully unwound to avoid overheating. Do not use a damaged cord.

USER MANUAL INN-650 Innoliving

innoliving easy tech, easy life

ASPIRACENERE ELETTRICO

MANUALE D'ISTRUZIONE

Thank you for purchasing Innoliving Ash Vacuum Cleaner INN-650.

Please read the following instruction carefully before using the product and keep this manual safe for future references.

NORME GENERALI DI SICUREZZA

ATTENTION!

• Read all the instruction carefully and follow them.
• This product has been designed to only remove the ash. When using the ash vacuum cleaner, you must observe some safety precautions including the followings:
• Read all the instructions carefully before use.
• To reduce risk of electric shock, never immerse the cable in water and never connect it in case of water or other liquids.
• The use of accessories not recommended by the manufacturer may cause injuries.

WARNINGS

• Keep the product out of reach of children
• Never leave the appliance unattended when in use.
• Only use the appliance as explained in the following instruction manual, that is as ash vacuum cleaner for household use; any other use is considered improper and therefore dangerous.
• This product has been conceived for household use only, do not use outdoors.
• The manufacturer cannot be held responsible for damage resulting from improper use or maintenance of the appliance.
• Do not attempt to repair the appliance by yourself. If the appliance, the cord or the plug are damaged, they must be repaired by the manufacturer or by the authorized after sales service.
• To avoid electrical shock, do not use the appliance if the product or switch is faulty.
• The appliance and the power cord should not be immersed in liquids or exposed to rain or moisture.
• Do not use the appliance with wet or damp hands, if the floor is wet or if the appliance itself is wet.

• Never touch the socket with wet or damp hands.

• Check the cable and plug regularly to ensure they are not damaged. Do not use the appliance if the cord or plug is damaged or if the product has fallen to the ground.

• Unplug the power cord before cleaning or replacing accessories or other parts.
• Avoid pulling the cord when removing the plug from the socket.
• Never lift or transport the appliance using the cable.
• Keep the power cable out of reach of hot and sharp objects.
• When the appliance is not in use, it must be disconnected and stored in a dry place and out of reach of children.
• Do not use for vacuuming hot ashes, cigarette butts, hard or sharp objects, flammable materials (petrol, solvents, etc.) or fumes.
• Do not use to vacuum dust of harmful substances.
• Do not obstruct the intake openings. Keep clothes, hair, fingers and other ends away from the suction inlet.
• Never tilt the ash cleaner, if full.
• Avoid passing over the power cord with the ashtray.
• Do not use on animals or people.
• This product can be used by children from 8 years old and persons with reduced physical, mental or sensory abilities, or lack of experience and knowledge only if under supervision or if they received instructions regarding the safe use of the appliance and understand the risks associated with its use. Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and maintenance operation must not be performed by children without supervision.

PRODUCT DESCRIPTION

1. Metal pipe
2. Metal flexible hose
3. Hose connector for Blowing function
4. Lock tab
5. Lid
6. On/off Switch
7. Base (Tank)
8. Flat pipe
9. HEPA armored filter
10. Suction connector

HOW TO USE

• Put the lid over the base (5) and fix it on the tank with the special locking tabs (4).
• Connect the metal pipe (1) with the metal flexible hose(2) and insert the hose connector into the appropriate inlet (10), making sure that the protuberance on the pipe matches with the groove in the suction inlet. Turn the connector clockwise to lock it in place.
• Insert the plug into the power outlet, making sure that the appliance voltage corresponds to the one of the local network. The appliance power supply data can be found on the label on the lid.
• To turn the ash vacuum cleaner on, move the switch (6) to the "I" position.
• To turn the ash vacuum cleaner, move the switch to the "O" position.
• To activate the "Blowing" function, in order to remove the ash and blow it away, it is necessary to insert the flexible hose in the other hole on the lid (3). Move the switch (6) to the "I" position. To stop the "Blowing" function, move the switch to the "O" position.

It is advisable to empty the bin from the ash before activating the "Blowing" function.

Cleaning and maintenance

If the suction force decreases during use, turn off the ash vacuum and hold the nozzle and the pipe in a vertical position in order to let the ash freely fall into the container and then proceed by emptying the container itself: remove the suction pipe (2), unlock the lid with the locking tabs and empty the container following the instructions below:

Loosen the two buckles

Hold the handle and take out the head

Turn the head over and hold it over the dustbin, carefully clean the dust filter with a brush, if necessary, you can also brush the filter net, to clean its surface from dust.

If necessary, remove the filter and clean it from inside to outside using clean water, the filter cannot be reused until it is dry.

Drop the dust into the bin and clean the inside wall of the barrel from dust. If necessary, a wet cloth can be used to clean the surface of the barrel.

After cleaning the filter, reassemble it, following the instructions provided below. Then secure the lid on the tank by locking it with the appropriate hooks. Finally fix the flexible hose in the appropriate hole, making sure that the protuberance at the base of the hose matches with the groove inside the base, turn it clockwise to fix it.

Removing and replacing the filters

Remove the lid from the bin and proceed following the instructions in the table below:

Unscrew the filter nut counterclockwise

Remove the fixed lid from the filter.

Remove the filter.

Then insert the clean filter, by lightly pressing it downwards.

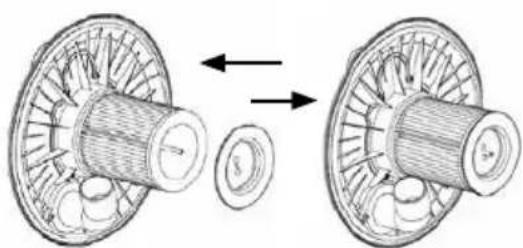

To assemble again the lid to its filter, place the lid on the screw inside the central cavity, press it lightly in order to fix it.

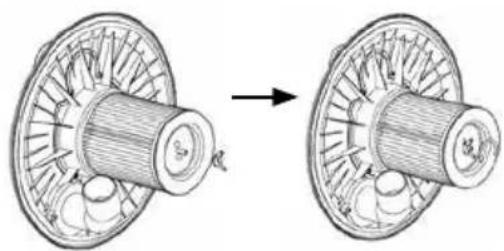

Place the nut on the lid's central screw and tighten it firmly clockwise.

Filter cleaning

Wash the filter with clean and lukewarm water, if necessary, you can use a mild detergent for washing. Let the filter dry in the open air before inserting it back into the product and proceed with normal use. As for the appliance itself, it is possible to clean its surfaces with a damp cloth. Do not immerse the product in water.

RATING LABEL

innoliving — — easy tech, easy life

Innoliving Spa

Via Merloni 9 - 60131 Ancona - Italy

INN-650 ASPIRACENERE-ASH CLEANER

220-240V\~50/60Hz 800-1200W

MADE IN CHINA

Lot n.

This product complies with all the applicable EU directives

Read carefully the instruction manual

Class II insulated electrical appliance

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)". The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste.

The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014

innoliving - easy tech, easy life

Innoliving Spa

Via Merloni, 9

60131 Ancona Italy

Tel [phone]

www.innoliving.it

MADE IN CHINA

CE
