INN-653 - Vacuum Cleaner Innoliving - Free user manual and instructions

Product Type	Vacuum Cleaner
Brand	Innoliving
Model	INN-653
Dimensions (L x W x H)	30 x 30 x 50 cm
Weight	5 kg
Power Supply	1200 W, 220-240 V, 50/60 Hz
Bagless Type	Cyclonic with transparent dust cup
Dust Capacity	1.5 L
Filtration System	HEPA washable filter
Cord Length	5 m
Noise Level	75 dB
Main Functions	Dry vacuuming on carpets and hard floors
Accessories Included	Crevice tool, upholstery brush, combination brush
Maintenance	Empty dust cup after each use; wash filter every 3 months
Safety Features	Overheating protection
Spare Parts Available	Filter, brush roller
Repairability	User-replaceable parts; authorized service centers available
Energy Class	A++

Frequently Asked Questions - INN-653 Innoliving

Is the Innoliving INN-653 bagless?

Yes, it is a bagless vacuum cleaner with a transparent dust cup that collects dirt and can be emptied easily.

How do I clean the filter?

Remove the filter from the unit and tap it gently to remove loose dust. Wash it under running water and let it dry completely for at least 24 hours before reinstalling.

What is the dust capacity of the INN-653?

The dust cup holds up to 1.5 liters of debris. Empty it when it reaches the max fill line.

Can I use this vacuum on hardwood floors?

Yes, the INN-653 is suitable for both carpets and hard floors. Use the combination brush for hard surfaces to avoid scratches.

Does it come with a crevice tool?

Yes, it includes a crevice tool for tight spaces, an upholstery brush for furniture, and a combination brush for general use.

How long is the power cord?

The power cord measures 5 meters, allowing you to cover a large area without frequently changing outlets.

Is the filter washable?

Yes, the HEPA filter is washable and reusable. Regular cleaning maintains suction power.

Where can I get spare parts?

Spare parts such as filters and brush rollers are available from authorized Innoliving service centers or online retailers.

What is the noise level?

The vacuum operates at 75 dB, which is typical for a household vacuum cleaner.

Does it have overheating protection?

Yes, the INN-653 is equipped with automatic overheating protection that shuts off the motor to prevent damage.

USER MANUAL INN-653 Innoliving

innoliving easy tech, easy life

ASPIRAPOLVERE CICLONICO VERTICALE

INN-653

MANUALE D'USO

USER MANUAL

ASSEMBLAGGIO

FIG.2

MODO D'USO

FIG.3

FIG.13

FIG.15

FIG.16

ENERGY LABEL

ETICHETTA DATI

Innoliving Spa

Via Merloni 9 - 60131 Ancona - Italy

INN-653 ASPIRAPOLVERE - VACUUM CLEANER

220-240V\~50/60Hz 600W

Thank you for purchasing the Innoliving Vacuum Cleaner for general use INN-653.

We recommend that you read this instruction manual carefully before use and keep it safe for future reference.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic safety precautions must be observed, including:

- Before using the appliance, carefully read the instructions for use and in particular the safety warnings and follow them. Keep this manual for the entire duration of the appliance's useful life, for consultation purposes. Failure to follow the instructions could cause accidents and void the warranty, relieving the manufacturer of all liability.

- Before connecting the appliance, check that the mains voltage data shown on the data label correspond to those of the local power supply. The rating label is located on the device itself.

- The packaging elements (plastic bags, cardboard, polystyrene, etc.) must not be left within reach of children as they are potential sources of danger and must be disposed of in accordance with current regulations.

- After removing the device from the packaging, check for transport damage and the integrity of the supply according to the drawing. In case of damage or doubts as to its actual integrity, do not use the appliance and contact an authorized service center.

- Disconnect the plug from the mains when the product is not in use.

- To reduce the risk of electric shock, do not use the product outdoors or on wet surfaces.

• To protect yourself from electric shock, do not immerse the appliance or the cord in water or other liquids. Do not allow the cord to come in contact with hot surfaces.
• This product can be used by children from 8 years old and by persons with reduced physical, mental or sensory abilities, or without experience and knowledge only if under supervision or if they have received instructions regarding the safe use of the product and understand the risks associated with its use.
• Cleaning and maintenance must not be performed by children without supervision.
• This product is not a toy. Make sure that children do not play with the appliance.
• This product has been designed for DOMESTIC use only, it has not been designed for industrial or professional use.
• In case of failure or malfunction of the appliance, switch it off and do not tamper with it. For any repairs, contact only an authorized technical assistance center.
• Do not pull the mains cable to lift, carry or remove the plug from the socket.
• Make sure that the cable does not have knots or bends.
• Check the condition of the electric cable. Damaged or knotted cables increase the risk of electric shock.
• If the power cord is damaged, it must be replaced by the manufacturer or by a service agent or qualified personnel in order to avoid hazards.

• Do not use the plug or cord with wet or damp hands or feet.

• Do not insert any foreign objects into the product.

• Keep hair, fabrics and other objects away from the product openings as they may cause filter clogging.
• Deactivate the vacuum cleaner using the specific switch before disconnecting it from the power socket.
• Keep away from liquids or flammable products.
• Do not use the appliance to vacuum cigarettes or still hot ashes.
• Do not use the appliance without having first put the filter into the specific space.
• Never point the unit in use at persons or pets.

ATTENTION: If the suction opening of the unit is obstructed, switch off the appliance, disconnect the plug from the mains and remove anything that prevents the appliance from operating correctly before reactivating it.

CAUTION:

DO NOT use the appliance to suction water, wet objects, liquids, ashes, hot coals, cigarette or any other object that is burning or smoking.

DO NOT suction flammable or combustible materials (volatile liquids, gasoline, kerosene, etc.). The use of the vacuum cleaner in the presence of explosive liquids is not recommended.

DO NOT use to suck up toxic material (chlorine, bleach, ammonia, detergent for drains, etc.)

DO NOT suck up Toner (for laser printer, copier, etc.) as there is a risk of fire and explosion.

DO NOT suck up plaster, cement, etc. which could obstruct the appliance.

DO NOT use the vacuum cleaner without first inserting all the appropriate filters.

DO NOT store or use the appliance near heat sources.

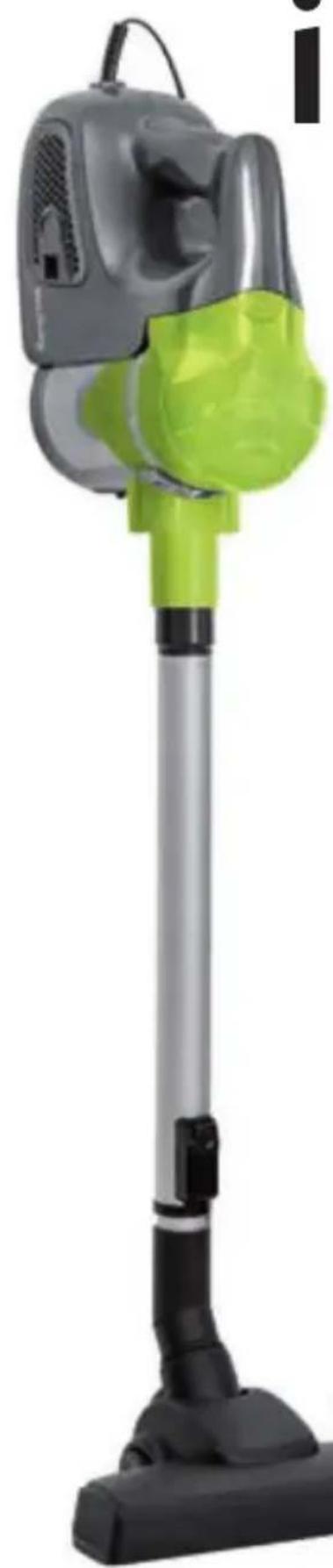

PRODUCT DESCRIPTION

1. ON/OFF Button
2. Handle
3. Air filter nozzle
4. Power cable
5. Connector for accessories
6. Telescopic Tube
7. Floor brush
8. 2 in 1 nozzle
9. Lever for opening the tank
10. Filter
11. Suction valve
12. Dust container release button

ASSEMBLY

Note: Before assembling, please make sure you have all the components listed above and make sure to disconnect the appliance from the power supply before proceeding with any cleaning or maintenance operation.

1. Insert the accessory connector (5) into the valve (11) of the main unit.
2. Connect the telescopic tube (6) to the connector (5).
3. Insert the floor brush (7) into the end of the telescopic tube.

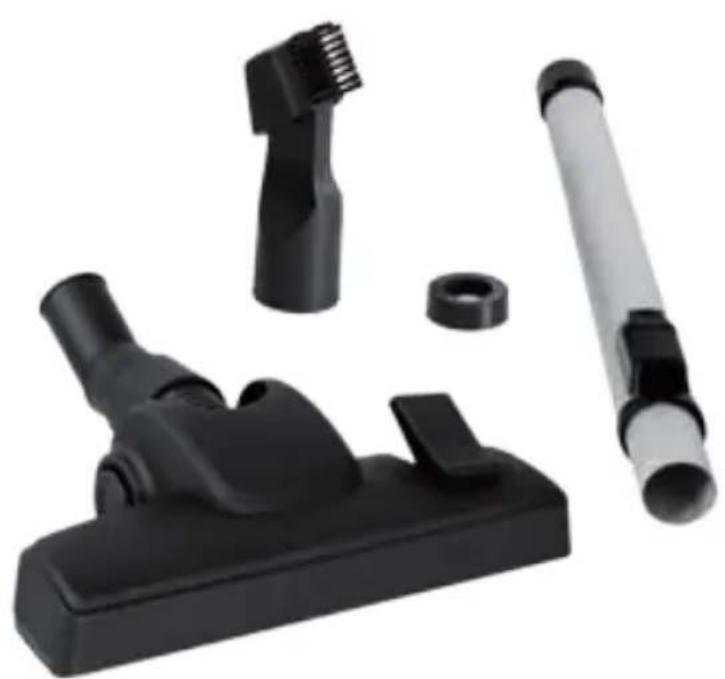

ACCESSORIES

All accessories must be connected to the connector (5) inserted in the valve of the main body (11) (FIG.2).

FIG.2

• 2 IN 1 NOZZLE: The crevice nozzle should be used to clean the sides of the sofas and corners. The crevice nozzle with brush should be used to clean grilles and fans, etc.

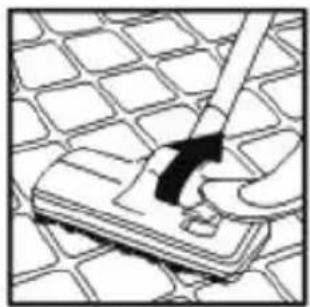

  • DUAL POSITION FLOOR / CARPET BRUSH:

Position 1: extended bristles, for floors

Position 2: retracted bristles, for carpets

HOW TO USE

• After assembling the appliance with the necessary accessories, insert the plug into the electrical socket
• Press the On / Off button to start using the vacuum cleaner
• After use, remove the plug from the socket and rewind the cable.

CLEANING AND MAINTENANCE

• Filters must be cleaned regularly to obtain a better suction performance and to prevent overheating and damage to the vacuum cleaner.
• It is advisable to clean the dust container after having emptied it.

WARNING: Never use the vacuum cleaner with wet or damp filters or without any filter inside.

• Wash the filters in lukewarm water with neutral soap, rinse them thoroughly under the jet of cold and clean water and leave to dry completely in the air for at least 24 hours.
• Rinse the filter under warm water and let it dry completely.
• Clean the motor body and other accessories using a soft cloth moistened with water.
• Do not use solvents or chemical detergents.

CAUTION:

Do not use the hair dryer to dry the filters.

Do not clean the vacuum cleaner, components or accessories using gasoline or any other flammable liquid or solvent, etc.

How to empty the dust container

ATTENTION: Remove the plug from the socket before proceeding with any cleaning and maintenance operation.

Empty the dust container frequently or when you notice a decrease in suction power. You can choose one of two methods for emptying the container:

I Emptying Method:

Keep the appliance over a bin and press the dust release lever downwards, in this way the bottom part of the appliance opens and it is possible to empty the container (FIG 3).

FIG.3

II Emptying Method:

• Remove the dust container from the product by pressing the dust container release button (12) as shown in pictures 4 and 5.
• Hold the dust container over a rubbish bin, press the dust release lever downwards, in this way the bottom part of the appliance opens and it is possible to empty the dirt container (FIG.6)
• Once the dust has been removed, close the bottom of the container by pressing the base upwards until a click is heard.
• Replace the dust container in the product.

How to clean the filter

• Remove the dust container from the product.
• Turn the cover clockwise (FIG 7), pull off the filter (FIG.8) and the filtering net (FIG 9)

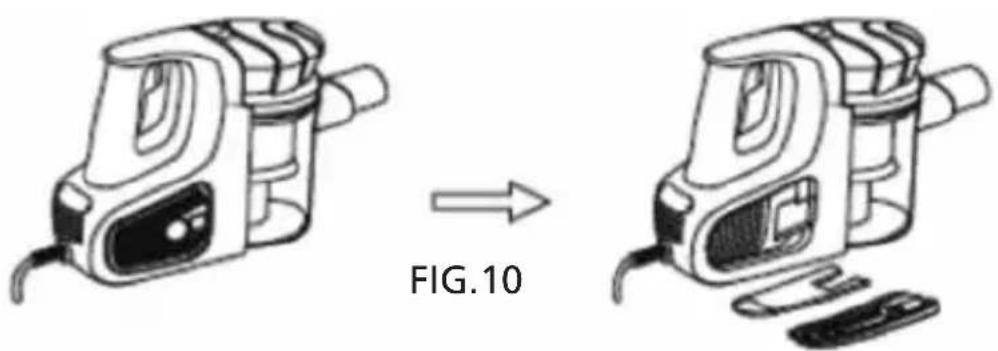

Remove the air filter (FIG.10).

The air filter can be reached and cleaned by removing the nozzle (3)

- Clean the filter under running water and let it completely dry before using the appliance.

CAUTION: After cleaning the filters, make sure that they are completely dry before reinserting them into the appliance. We recommend leaving the filters to dry for at least 24 hours.

How to reinsert the filters and the filtering net

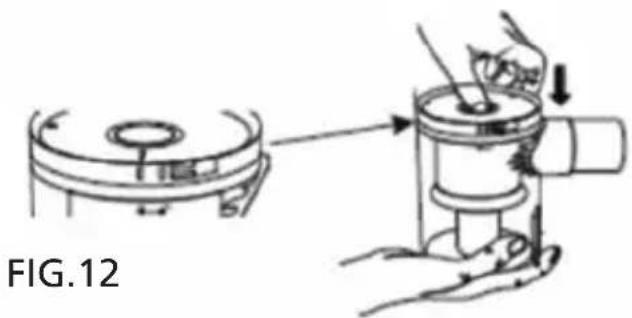

- Replace the filtering net in the container, matching the projections with the grooves on the sides of the container. (FIG.12)

- Place the filter on the filtering net (FIG.13), then close the lid aligning the triangle mark (located on the side of the cover) with the symbol 🔒 and turning the lid clockwise until the triangle matches the symbol 🔒 (FIG.14).

FIG.13

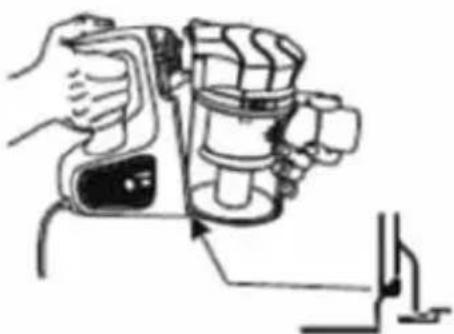

- Reinsert the powder container in the motor body, to do this it is sufficient to align the base of the dust container with the hook on the motor body (Figure 15) and bring the upper part close until it locks in place with a click (Figure 16).

FIG.15

FIG.16

ENERGY LABEL

RATING LABEL

Innoliving Spa

Via Merloni 9 - 60131 Ancona - Italy

INN-653 ASPIRAPOLVERE - VACUUM CLEANER 220-240V\~50/60Hz 600W

This product complies with all the applicable EU directives

Read carefully the instruction manual

Class II insulated electrical appliance

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014
