| Product Type | DMX Lighting Controller |
| Brand | Eliminator Lighting |
| Model | MBDMX-PLUS |
| DMX Channels | 512 |
| Dimensions | 19" x 1U x 7" (rackmount), or 48.3 x 4.4 x 17.8 cm |
| Weight | 2.5 kg (5.5 lbs) |
| Power Supply | 9V DC 500mA via external adapter |
| Display | LED backlit LCD, 2 lines |
| Control Interface | Faders, buttons, encoder wheel |
| Built-in Programs | Static, chase, fade, sound-activated |
| Memory | Store up to 100 scenes/chases |
| MIDI Compatibility | MIDI in/out (5-pin DIN) |
| Audio Input | 3.5mm jack for sound activation |
| DMX Connectors | 3-pin XLR male/female, 5-pin XLR optional |
| Operating Temperature | 0°C to 40°C |
| Features | Blackout, hold, manual override, flash buttons |
| Maintenance | Clean with dry cloth; do not use solvents |
| Safety | Use only supplied power adapter; avoid moisture; no user-serviceable parts inside |
| Spare Parts | Power adapter, DMX cables, rackmount ears (included) |
| General Information | Full manual available in PDF; support via Eliminator Lighting website |
Frequently Asked Questions - MBDMX-PLUS Eliminator Lighting
How do I connect the MBDMX-PLUS to my lighting fixtures?

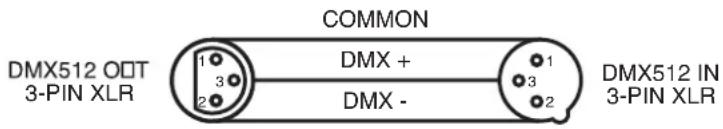

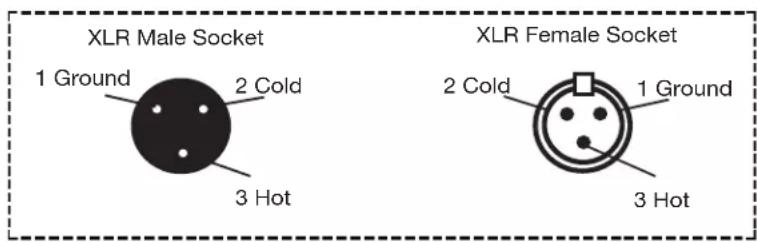

Use a standard 3-pin DMX cable (or 5-pin with adapter). Connect the DMX OUT of the controller to the DMX IN of the first fixture, then daisy-chain to other fixtures. Ensure proper termination with a 120Ω resistor at the last fixture.
What is the maximum number of DMX channels I can control?
The MBDMX-PLUS controls up to 512 DMX channels (one universe). You can assign each channel to a fixture or parameter via the address settings.

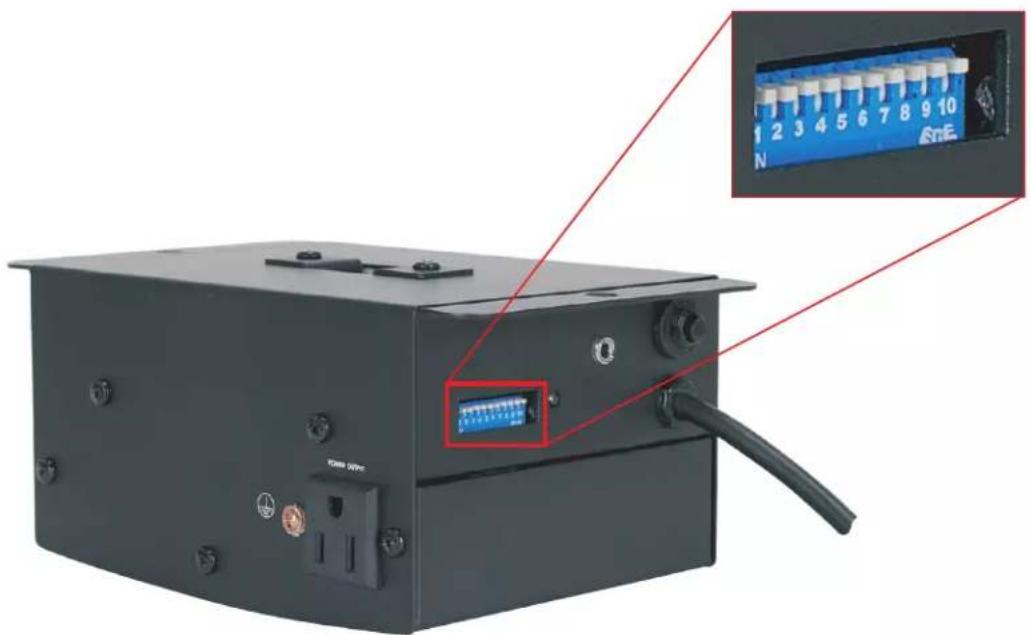

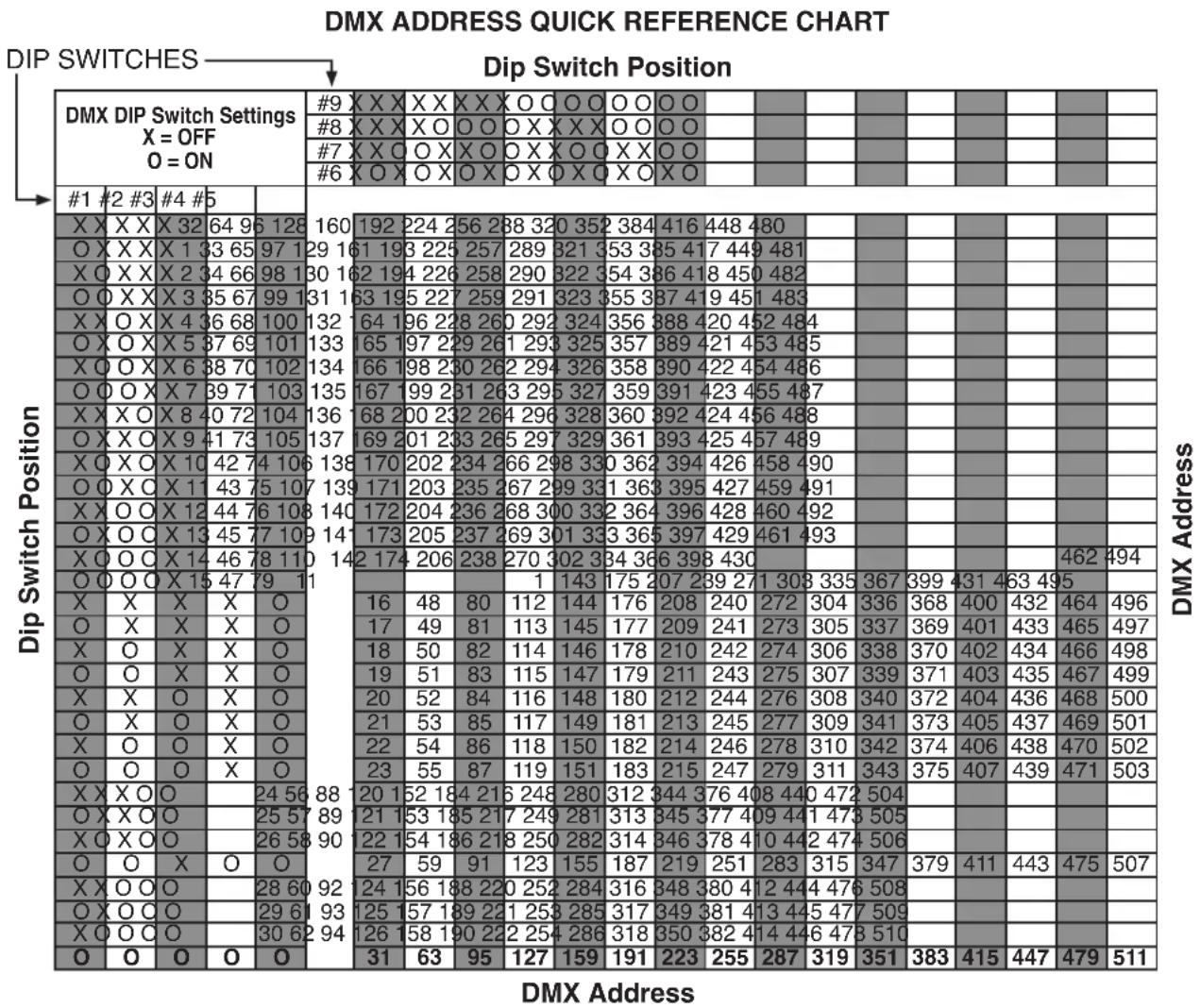

How do I set the DMX address of a connected fixture?
On the controller, press the MENU button, navigate to DMX Address, and use the encoder wheel to set the starting address. The fixture's own address must match the corresponding channel on the controller.
Can I use MIDI to control the MBDMX-PLUS?
Yes, the unit has MIDI IN and MIDI OUT ports. You can send note or control change messages to trigger scenes or chases. Refer to the manual for MIDI implementation details.
How do I record a scene?
Set the faders and buttons to desired levels, then press and hold the RECORD button. Use the SCENE buttons to select a memory location, then release RECORD to save. You can store up to 100 scenes.
Why are my lights not responding?
Check DMX cable connections and that the controller is powered on. Verify the fixture's DMX address is correct and that it is in DMX mode. Ensure the controller is not in Blackout mode (press BLACKOUT to toggle).
How do I reset the controller to factory settings?
Press and hold both MENU and ENTER buttons while powering on the unit. Continue holding until the display shows 'Factory Reset'. Confirm by pressing ENTER.
Can I use the controller without a sound source for sound-activated chases?
Yes, the built-in microphone picks up ambient sound. Adjust sensitivity via the SOUND menu. Alternatively, connect an external audio source to the 3.5mm jack for more precise triggering.
What power adapter should I use?
Only use the supplied 9V DC 500mA adapter. Using a different adapter may damage the unit. The center pin is positive. The power input is a 2.1mm barrel jack.
How do I clean the MBDMX-PLUS?
Disconnect power. Gently wipe the surface with a soft, dry cloth. Do not use any liquids or solvents. For connections, ensure dust-free with compressed air if needed.
