Product Type	Tumble Dryer
Brand	Corbero
Model	CSBCM810W
Installation Type	Freestanding
Drying Capacity	8 kg
Drying Type	Condenser
Energy Efficiency Class	B (typical)
Dimensions (W x D x H)	60 x 60 x 85 cm
Net Weight	Approx. 40 kg
Rated Power	2000 W
Power Supply	220-240 V ~ 50 Hz
Programs	Cotton, Synthetics, Delicates, Quick 30 min, etc.
Key Functions	Anti-crease, delay start, child lock, sensor drying
Noise Level	Approx. 65 dB(A)
Condenser Cleaning	Regular cleaning of filter and condenser recommended
Safety Features	Child lock, overheating protection, door lock
Spare Parts Availability	Parts available via Corbero service network
Repairability Index	Score 7.5/10 (typical for this category)
Color	White

Frequently Asked Questions - CSBCM810W CORBERO

How do I install the Corbero CSBCM810W tumble dryer?

Place the dryer on a stable, level floor. Ensure adequate ventilation. Remove the transport bolts before first use. Connect the drain hose if using continuous drainage, or empty the water container after each cycle. Refer to the installation manual for detailed steps.

What is the maximum load capacity of this dryer?

The maximum load capacity is 8 kg for cotton programs. For synthetics and delicates, reduce the load to about 4 kg to ensure efficient drying.

How do I clean the lint filter and condenser?

Clean the lint filter after every cycle by removing it and rinsing under water. For the condenser, access it from the lower front panel and clean with a brush or vacuum every few months to maintain optimal performance.

Why is my dryer not heating or taking too long to dry?

Possible causes: clogged lint filter or condenser, overloading, or incorrect program selection. Check and clean the filter and condenser. Ensure the load is appropriate for the program. If issue persists, the heating element may need service.

Can I use fabric softener sheets in this tumble dryer?

No, fabric softener sheets are not recommended for tumble dryers. They can leave residue on the lint filter and reduce airflow. Instead, use dryer sheets specifically designed for dryers if desired, but always check the manual.

How do I activate the child lock?

Press and hold the Child Lock button (usually marked with a padlock icon) for 3-5 seconds until an indicator lights up. To deactivate, repeat the same process.

What programs are available on the CSBCM810W?

Common programs include: Cotton, Synthetics, Delicates, Quick 30 min, Mix, Bed & Bath, and Anti-crease. Adjust settings like time or temperature as needed.

How do I drain the water manually?

If not using continuous drainage, pull out the water container located in the lower front panel. Empty it after each cycle or when the water tank full indicator lights up.

What does the 'Anti-crease' function do?

The Anti-crease function periodically rotates the drum after the drying cycle ends to prevent wrinkles from setting in. It lasts up to 2 hours but can be stopped by opening the door.

Where can I find spare parts for my Corbero dryer?

Spare parts are available through Corbero's authorized service centers or online retailers. Use the model number CSBCM810W to ensure compatibility. Common parts include door seals, belts, and heating elements.

USER MANUAL CSBCM810W CORBERO

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a U-shaped pipe or support structure with no text or symbols

Three identical line drawings of a washing machine with a cross mark, shown from different angles (no text or symbols)

Arrasamiento

Diagram of a washing machine with a tool inserted, showing a close-up of the component (no text or symbols present)

Conexión eléctrica

Line drawing of hands installing or adjusting a mechanical component (no text or symbols)

Line drawing of a toilet with water flowing from a sink (no text or symbols)

¡Aviso!

Technical diagram of a mechanical component with cross-sectional view and detail inset (no text or symbols)

Nota!

Line drawing of a front-loading washing machine with a hand inserting a circular component (no text or symbols)

Read all instructions and explanations before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the appliance is sold or passed on then ensure that the new owner always receives these operation instructions.

SAFETY INSTRUCTIONS

■ Safety Instructions 2

INSTALLATION

■ Product Description 9

■ Installation 9

OPERATION

■ Quick Start 12

■ Before each Drying 13

■ Control Panel 15

■ Option.... 16

■ Display.... 17

■ Programmes.... 18

■ Drying Programmes Table 19

■ Consumption Data.... 20

MAINTENANCE

■ Cleaning and Care 21

■ Trouble Shooting 24

■ Technical Specifications 26

This symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.

■ Safety Instructions

CAUTION: RISK OF FIRE!

⚠ Warning!

To prevent any damages to your and others' life or property, you have to follow the safety notes.

Intended use

• This heat pump dryer is intended for drying typical amounts of household laundry, which have been washed with water. It has been designed solely for private use and is not suitable for commercial or shared use (i.e. by several families in an apartment building).
• Use this appliance only as described in this user manual.
  • This appliance is for indoor use only.
• Any other use is deemed improper and may result in damage to property or even personal injury.
• The manufacturer accepts no liability for damage caused by improper use.

Safety Instructions

- The appliance corresponds to protection class I and may only be connected to a plug with a protective conductor that has been installed properly. When connecting the appliance to the mains, make sure that the mains voltage is correct. You can find more information about this on the rating plate.

- The electrical safety of this tumble dryer can only be guaranteed when correctly earthed. It is essential that this standard safety requirement is met. If in any doubt, please have the household wiring system tested by a qualified electrician. The manufacturer cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).

⚠ Warning!

Electric shock hazard

- Before connecting the tumble dryer, ensure that the connection parameter on the rating plate (fuse rating, voltage and frequency) match the mains electricity supply. If in any doubt, consult a qualified electrician.

- The electrical safety of this tumble dryer can only be guaranteed when correctly earthed. It is essential that this standard safety requirement is met. If in any doubt, please have the household wiring system tested by a qualified electrician. The manufacturer cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).

- Do not pull the power cord forcefully. Please grasp the mains plug instead

- Do not plug/draw the mains plug with wet hands.

- Do not bend, clamp or damage the power cord and the power plug.

- If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Warning: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.
• Do not connect the appliance to the mains electricity supply by an extension lead, multi-socket adapter or similar.
• The accessibility of the plug must always be ensured, in order to disconnect the tumble dryer from the mains.
• If the appliance appear high temperature abnormally, please draw the mail plug immediately.

Injury danger

• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.
• Do not disassemble or install the dryer without any instruction or supervision.
• Do not stack this dryer on washing machine without stacking kits. (If you want to stack this dryer on a washing machine, please purchase the independent parts. Installation shall be done by the manufacturer, its service agent or similarly qualified persons to avoid any hazards.)
• Do not lean on the opened door of the dryer.
• Condensed water is not drinking water. It can cause health problems in both people and animals if consumed.

Damage danger

- Do not put more load than rated in this user manual. See the related chapter in the user manual.

• Do not operate the dryer without the door filter.
• Do not dry the clothes before being spun.
• Do not expose the dryer directly under the sun.
• Do not install the dryer in humid and drenching environment.
• While cleaning and maintenance, please do remember to pull out the power plug and do not directly spray the dryer with water.
• The appliance should not be overturned during normal use or maintenance.

CAUTION: RISK OF FIRE!

Explosion & Fire danger

• Please do not dry the clothes with any flammable substances such as kerosene or alcohol. Otherwise, there may be explosion.
• The appliance contains an environmentally friendly but flammable R290 refrigerant. Keep away from open flame and other sources of ignition.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• Do not dry unwashed items in the tumble dryer.

• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.
• Remove all objects from pockets such as lighters and matches.
• If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products be placed in a tumble dryer they should first be washed in hot water with extra detergent. This will reduce, but not eliminate, the hazard.
• WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
• Openings must not be obstructed.
• The lint trap has to be cleaned frequently.
• Lint must not to be allowed to accumulate around the tumble dryer.

Safety with children

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.
• Children should be supervised to ensure that they do not play with the appliance.
• Children of less than 3 years should be kept away unless continuously supervised.

• Always close the door after use. In this way you will avoid the danger of:

• Children climbing onto or into the dryer or hiding things in it.

• Pets or other small animals climbing into it.

Correct Disposal of this product:

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Disposal of packaging material

- The packaging is designed to protect the appliance from damage during transportation. The packaging materials are environmentally friendly and should be recycled. Recycling the packaging can reduce the use of raw materials in the manufacturing process and the amount of waste in landfill sites.

Model	Rated capacity
CSBCM810W	8.0kg

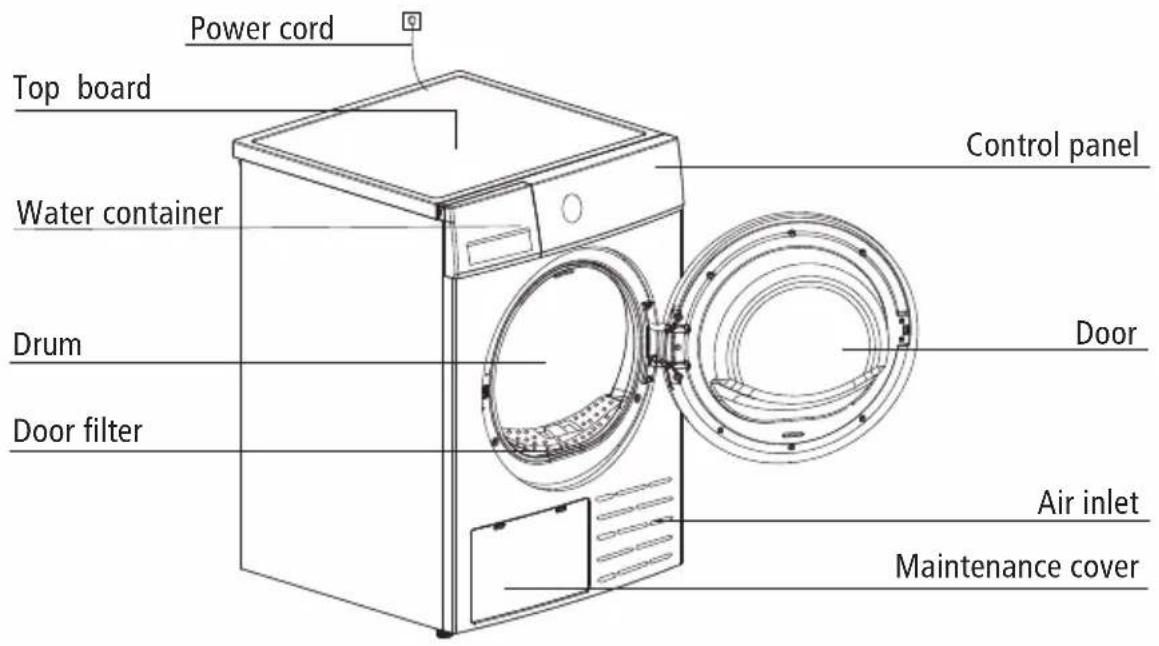

■ Product Description

Note: The actual model you purchased might differ. Please see the product you purchased in kind prevail.

Accessories

The following parts are optional for specific models. If your dryer has following parts, please wear gloves to them install as per the instruction below.

Simple line drawing of a U-shaped mechanical component with no text or symbols

Hose holder

Condensing drain hose Connector

Installation

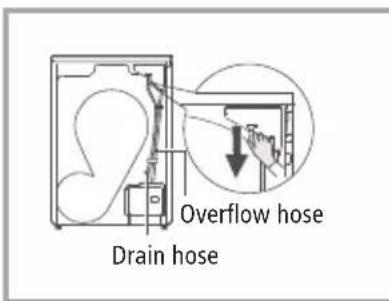

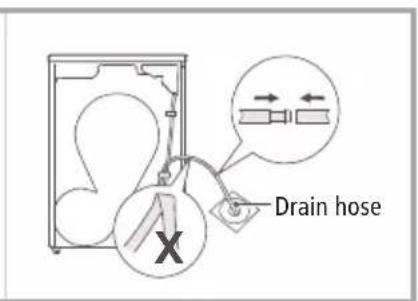

Pull out the upper drain hose

Put the external drain hose into the floor drain (be careful not to bend the external drain hose)

Transport

Move cautiously. Do not grasp any salient parts of machine. The machine door cannot be used as the handle for transport. If the dryer can't be transported erectly, the dryer can be tilted to right less than 30^ .

Risk of injury and damage!

Improper handling of the appliance may result in injury.

• The appliance is very heavy. Never transport or carry the appliance alone; always with the assistance of another person.
• Remove all obstacles on the transport route and from the installation location, e.g. open doors and clear away objects lying on the floor.
• Do not use the open door as a handhold.
• Remove all package material before using the appliance.
• Before setting up the tumble dryer, check it for any externally visible damage. Do not install or use a damaged tumble dryer.
• Do not install the tumble dryer in a room where there is a risk of frost occurring. At temperatures around freezing point the tumble dryer may not be able to operate properly. There is a risk of damage if the condensed water is allowed to freeze in the pump and hoses.

Installation Position

⚠ Warning!

• Children can become entangled in the packaging film or swallow small parts and suffocate. Do not allow children to play with the packaging.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.

• Do not restrict the floor clearance through deep pile carpets, strips of wood or similar. This might cause heat built-up which would interfere with the operation of the appliance.

• It is recommended that, for your convenience, the machine is positioned close to your washing machine.

• Do not stack this dryer on washing machine without stacking kits. (If you want to stack this dryer on a washing machine, please purchase the independent parts. Installation shall be done by the manufacturer, its service agent or similarly qualified persons to avoid any hazards.)

• The tumble dryer must be installed in a clean place, where dirt does not accumulate. Air must be able to circulate freely around the appliance. Do not obstruct the front air inlet or the air intake grilles at the back of the machine.

• To keep vibration and noise within minimum level when the dryer is in use, it must be placed on a firm and level surface.

• The feet must never be removed.

Simple line drawing of a washing machine with a cross symbol, surrounded by scattered clothes (no text or symbols)

Simple line drawing of a washing machine with a cross symbol on its side, placed on a hatched base (no text or labels)

Simple line drawing of a washing machine with a cross symbol on the floor, no text or symbols present.

Level Adjusting

Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, adjust the feet by hand or using a tool.

Diagram of a washing machine with a tool and a red-handled button, no text or symbols present

Power Supply Connection

1. Make sure that the voltage of the power supply is the same as the electric specification.
2. Do not connect the dryer with the power connection board, a universal plug or socket, do not use multi-plug adapters and extension cables.

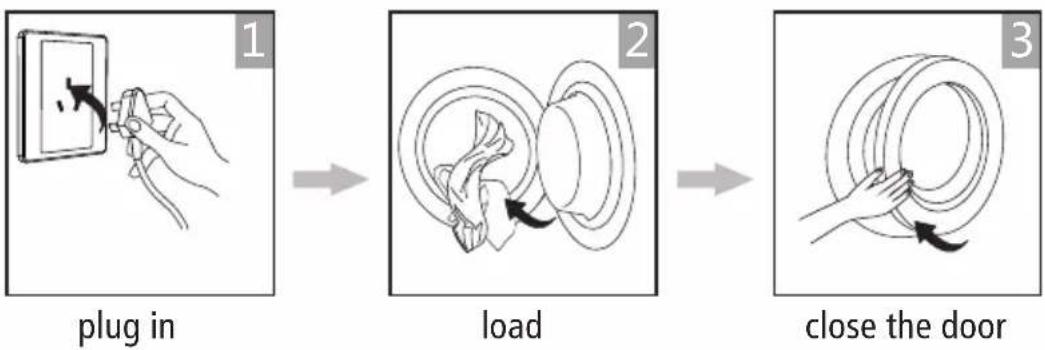

Quick Start

Note!

Before using, make sure the tumble dryer is installed correctly.

Before Drying

Drying

on

select program

select function or default

start

After Drying

Buzzer beep and "End" on display.

open the door and take out laundry

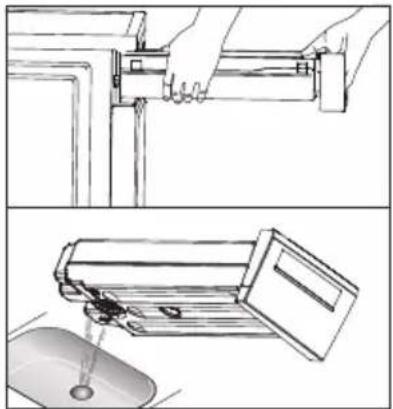

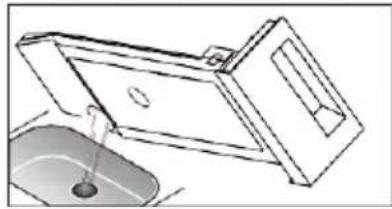

pull out the container

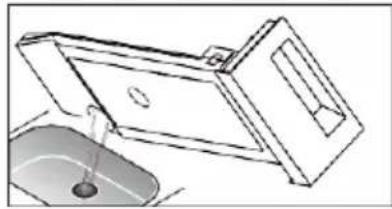

pour out condensate water

clean the filter power off

Note!

- If the socket with a switch is used, please press the switch to turn off the power directly.

■ Before Each Drying

Note!

• Leave it to stand for 2 hours after transporting. Before first use, please use the soft fabric to clean the inside drum.

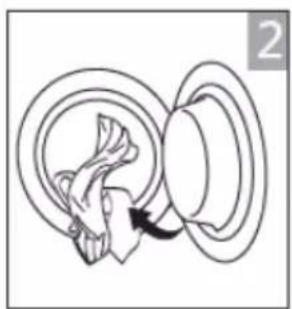

• Put some clean rags into the drum.
• Plug the power, press 【On/Off】
• Select the 【Refresh】 Programme, press 【Start/Pause】 button
• After finishing this programme, please follow the "cleaning and care" (refer to page 21) to clean the door filter.

• During drying, the compressor and the water will generate some noise which is entirely normal.

• Before drying, thoroughly spin the laundry in washing machine. High spin speed shortens the drying time and saves energy.

• For uniform drying result, sort the laundry according to fabric type and select the appropriate drying programme.
• Before drying, please close zips, hooks and eyelets, button, tie fabric belts, etc.
• Remove all objects from pockets such as lighters and matches.
• Sew in or remove underwiring from bras.
• Close duvet covers and pillow cases to prevent small items from being rolled up inside them.
  7.Leave jackets open and undo any long zips so that textiles dry evenly.
• Do not over dry the clothes, because over dried clothes can easily get creases.
• Do not dry the articles containing rubber or similar elastic materials.
• Keep the area around the tumble dryer clean. Coal dust or flour may cause an explosion.
• The door shall be opened only after the programme of the tumble dryer is finished to avoid being scalded by hot steam or over heated drying machine.

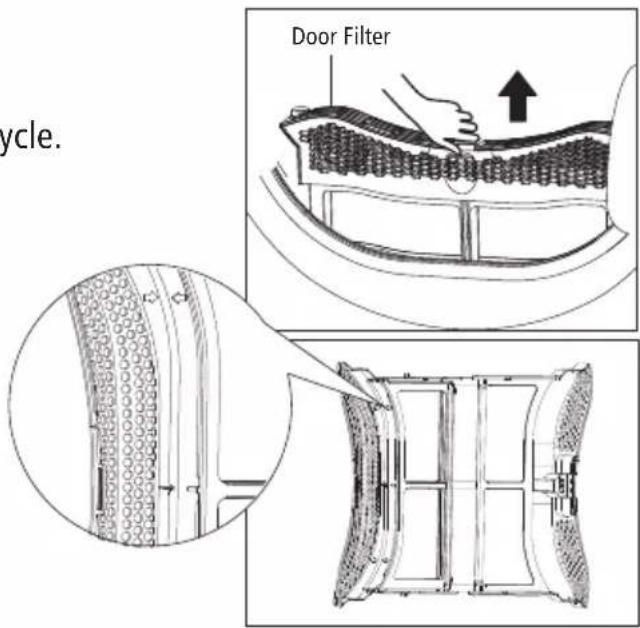

• Clean the lint filter and empty water container after each use to avoid extension of drying time and increase of energy consumption.
• Do not dry clothes after dry-clean process.

The reference weight of dry clothes (weight per item)

	Sweater(mixed 800g)		Jacket(800g)cotton		Jeans(800g)		Bath Towel(900g)cotton
	Single bedsheet(600g)cotton		Work clothes(1120g)		Pyjamas(200g)		Shirt(300g)cotton
	T-Shirt(180g)cotton		Underwear(70g)cotton		Socks(50g)mixed-weave

Note!

• Do not put more load than rated.
• Do not dry dripping wet laundry. The dryer might get damaged

Only dry laundry suitable for tumble drying. Regard the laundry care labels:

Suitable for tumble drying

Normal drying process: Drying in the tumbler is possible under normal load and temperature 80^ C.

Mild drying process: Caution is appropriate when tumble drying. Select mild process with reduced thermal action.

Do not tumble dry: Articles unsuitable for drying in the tumbler.

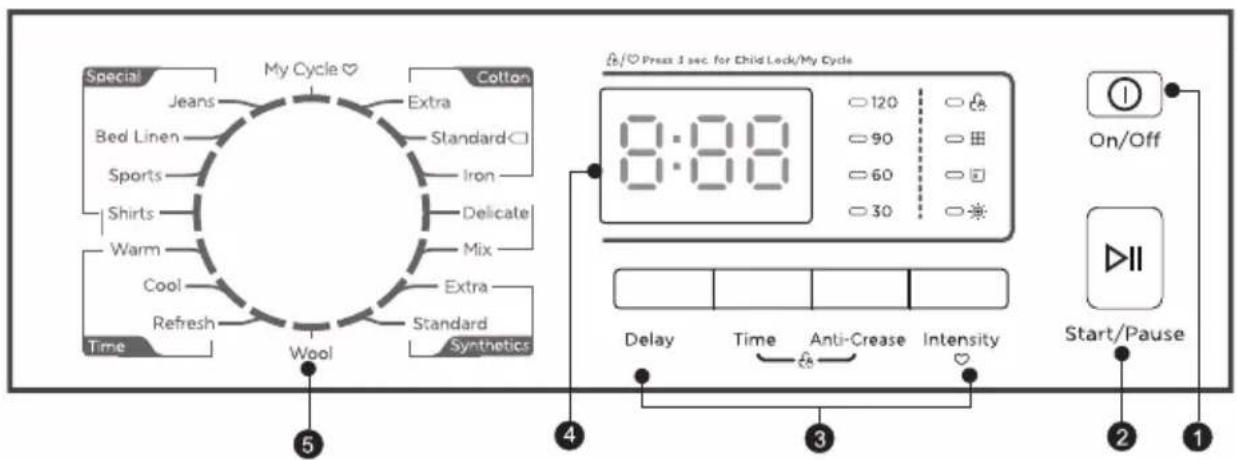

Control Panel

1 On/Off

Product is switched on or off.

2 Start/Pause

Press the button to start or pause the drying cycle.

3 Option

These buttons are used for setting additional functions.

4 Display

The display shows the setting, estimated program time remaining and status messages of your dryer.

5 Programmes

Different drying cycles can be selected according to the users need and the type of laundry to be dried.

Option

Delay

Delay

This function is used for delaying the start of the drying programme up to 24 hours. When the delayed programme starts, the time starts to countdown on the display.

1. Load your laundry and make sure the machine door is closed.
2. Press the 【On/Off】button, then use the programme selector knob to select the desired programme.
3. You can additionally select the 【Anti-Crease】 functions according to your need.
4. Press the 【Delay】 button.
5. Repeatedly to press the 【Delay】button to select the desired delay time.
6. After the 【Start/Pause】 button is pressed, the Dryer is at the running condition. The drying procedure will be automatically performed when the delay time is over.
7. If you press the 【Start/Pause】 button again, the delay function will be paused.
8. If you want to cancel the "Delay" function, please press the 【On/Off】 button.

Time

Time

When the 【Time】 programme is selected, the 【Time】 button can be used to adjust the drying time in 10 min. steps.

Intensity

Intensity

You can adjust the dryness level of the laundry by pressing the 【Intensity】 button.

1. The intensity function can be activated only before the programme starts.
2. Press the 【Intensity】 button repeatedly to adjust the drying grade.
3. Except the 【Cotton Iron】, 【Delicate】, 【Wool】, 【Warm】, 【Cool】, 【Refresh】 programme, all the other programmes can be adjusted with the 【Intensity】 function.

Anti-Crease	Anti-CreaseAt the end of the drying cycle, the anti-crease time is 30 minutes (default) or 120 minutes (selected).This function prevents the laundry from creases. The laundry can be removed during the anti-crease phase.Except【Cool】, 【Wool】and【Refresh】, all the other programmes have this function.
My Cycle	My CycleUsed to define and save your favourite programme, which is used frequently.1. Select the desired programme and other drying functions.2. Press and hold the【Intensity】for 3 seconds until the beep sounds and the desired programme has been saved.3. Turn the programme selector to the【My Cycle】position, then you can start your favourite programme. If you want to change the【My Cycle】settings, repeat the steps (1) and (2).
Child Lock	Child Lock1. This machine incorporates a special child safety lock, which can prevent children from carelessly pressing buttons or making the faulty operation.2. When the drying cycle is running, press the【Anti-Crease】and【Time】button for 3 seconds to start child lock function.3. When child lock function is set, the display will show Child lock icon and all button are deactivated, except【On/Off】button.4. To deactivate the child lock function, the【Anti-Crease】and【Time】button shall be pressed at the same time for 3 seconds.

■ Display

	Child lock
8:88	Remaining Time indicator/Error message
	Clean filters (warning)
	Empty water container (warning)
	Intensity
	My Cycle

Programmes

Programme selector

1. When the LED display screen brightens up, rotate the programme knob to select the desired programme.
2. Select the 【Delay】, 【Time】, 【Intensity】, 【Anti-Crease】 functions for additional options.
3. Press the 【Start/Pause】 button.
4. Press the 【On/Off】 button after the programme has comlpeted.

Programme start

The drum will rotate after the programme starts.

The remaining programme time will be displayed.

Programme end

1. The drum will stop rotating after the programme ends. The display will show "End" and related LED will illuminate. The dryer will start 【Anti-Crease】 function if user doesn't remove the load. (Refer to page 17).
   Please press 【On/Off】 button after unloading the tumble dryer to cut off power and pull out the plug.
2. Deal with the problems according to "Trouble Shooting" section, if there is an unexpected stop during the drying procedure or the dryer shows an Error Code (Refer to page 24).

■ Drying Programmes Table

Programme		Max Load	Application/Properties	Delay	Time
Cotton	Extra	8.0kg	For single or multi-layer cotton laundry to be dried completely direct storage.for	Y	N
	Standard
	Iron		For single layer cotton laundry to remain damp ironing.for
Delicate		1.0kg	For delicate laundry that is suitable for drying or laundry to be hand washed at low temperature.advised	Y	Y
Mix		3.5kg	For mixed fabrics from cotton and synthetics.	Y	N
Synthetics	Extra	3.5kg	For thick or multi-layer synthetic to be dried completely .fabrics	Y	N
	Standard		To dry thin synthetic textiles, which are not ironed, such as easy care shirts, baby cloths or socks.
Wool		1.0kg	To refresh you wool items and make them more fresh and fluffy.	Y	N
Special	Jeans	4.0kg	To dry jeans or leisure clothes that are spun at high speed in the washing machine.	Y	N
	Bed Linen	4.0kg	To dry bed linen, bed sheets or other large items.
	Sports	3.0kg	To dry sportswear and thin fabrics from polyester, which are not ironed.
	Shirts	1.0kg	For easy care laundry, such as shirts and blouses equipped with anti-crease functionality to minimize the ironing effort. Place clothes loosely in the dryer. Once dried, remove quickly and hang it on a clothes hanger.
My Cycle		—	Define and save your favourite programme.	Y	—
Time	Warm	—	To dry individual items or complete the drying process of multi-layer fabrics with different drying behavior, such as jackets, pillows or voluminous items. Min 10 min. to max. 150 min.(in 10 min.steps)	Y	Y
	Cool	—	To air items without heating. Min. 10 min to max. 30 min.(in 10 min. steps)
	Refresh	1.0kg	To refresh clothes kept at closed environment for a long time or to remove odors. Min. 20 min to max. 220 min.(in 10 min. steps)

• Note for Test Institutes:

Test programme in accordance with Regulation 392/2012/EU for energy labelling, measured in accordance with EN 61121 and suitable for drying normal cotton load at rated load capacity.

■ Consumption Data 1

Model	Program	Capacity	Spin Speed / Residual Humidity	Drying Time	Energy Consumption
CSBCM810W	Cotton Standard	8kg	1000rpm / 60%	210min	1.90kWh
	Cotton Standard	4kg	1000rpm / 60%	125min	1.10kWh
	Synthetic Standard	3.5kg	800rpm / 40%	60min	0.60kWh

Note!

• Thick or multi-layered fabrics, e.g. jackets etc., are not easy to dry. You had better choose Cotton Extra programme or use "Intensity" function.
• As uneven material, thick and multi-layered clothes are not easy to dry, it is better to choose the appropriate time drying programme to completely dry them if some parts of the clothes are still damp after programme finishes.

1 All data are measured in accordance with EN 61121.

The actual consumption may differ from the values given in the table, depending on the amount of the laundry, type of fabric, residual moisture and any additional functions selected.

■ Cleaning and Care

Empty the water container

1. Pull out and hold the water container with two hands.
2. Tilt the water container, pour out the condensate water into the basin.
3. Install the water container.

Technical line drawings showing hands operating a mechanical component and pouring liquid into a container (no text or symbols)

Warning!

• Empty the water container after each use. Once the water container is filled completely, the programme will be paused and the " " will light on the display. After the container is emptied, the dryer can be restarted by pressing 【Start/Pause】button.
• Do not drink the condensate water.
• Do not use the dryer without the water container.

Clean the filters

This dryer has a primary door lint filter.

Make sure you clean the door filter after each cycle.

Note!

- To ensure the double-layer filter can be closed smoothly, the arrows at both ends need to be aligned, and the middle slot and the rib need to be aligned.

Clean the filter door

1. Open the door.
2. Take out the door filter.
3. Open the filter and remove the fluff on the filter, You can clean it in running water.
4. Dry the door filter thoroughly before installing it back.

Note!

• Take notice of the correct orientation before to insert the door filter.

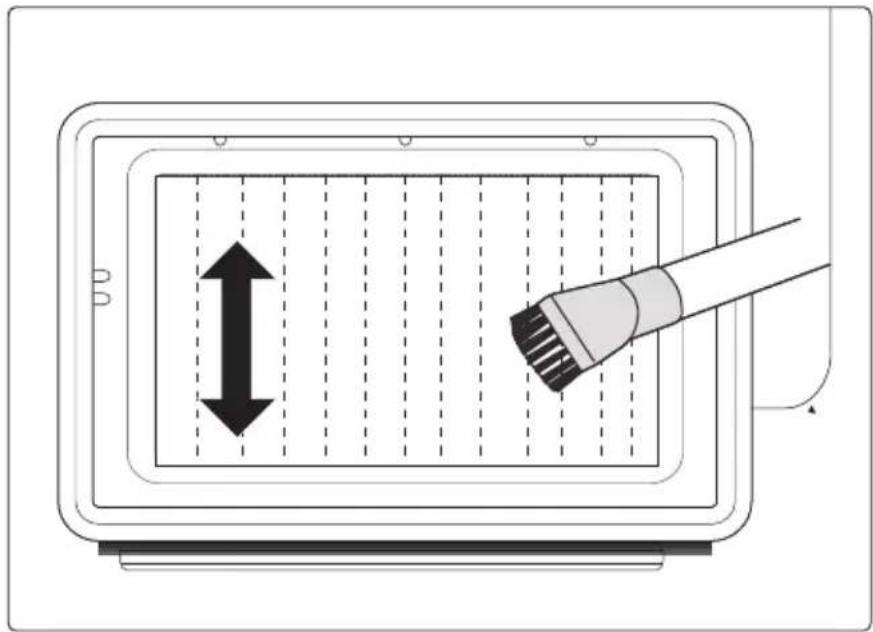

Clean the heat exchanger

Warning!

Do not touch the heat exchanger with your hand, which may cause an injury.

• As necessary, approx. once every 3 months, remove the fluff from the heat exchanger using a vacuum cleaner with a dusting brush attached.
• Clean the heat exchanger without applying any pressure. Otherwise the heat exchanger could be damaged. The dryer will not dry if the cooling fins are damaged or bent.

Diagram showing a device with a brush applying a black arrow to a grid-patterned screen (no text or symbols)

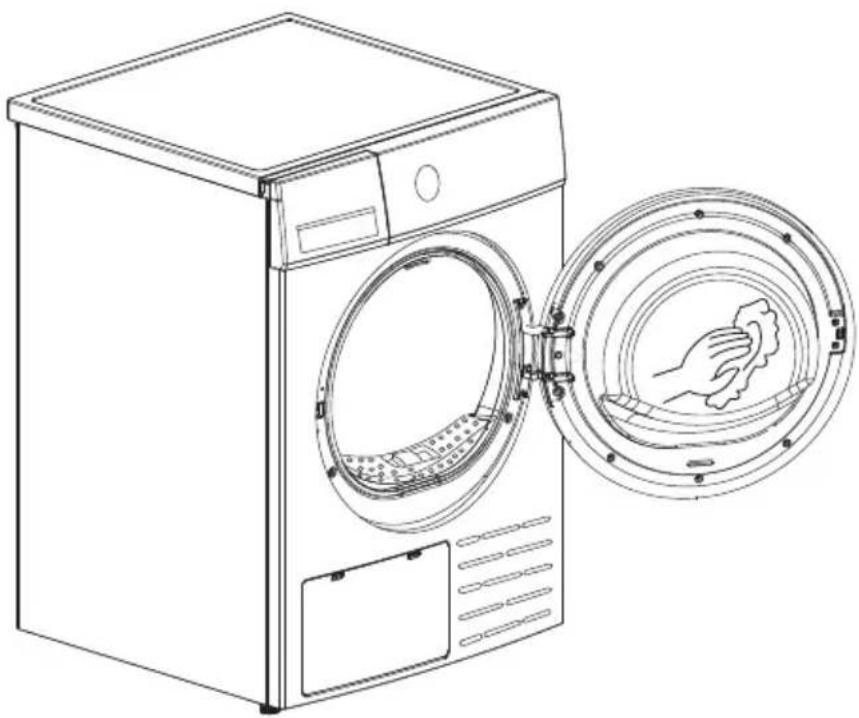

Clean Tumble dryer

Warning!

• Disconnect the power cord before cleaning!
• Clean the dryer with a wet cloth which is only damped by clean water.
• Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaners. These could damage plastic surfaces and other parts.
• Please wear gloves when cleaning.

Line drawing of a front-loading washing machine with a hand cleaning the door (no text or symbols)

• Prepare a wet cloth damped by clean water.
- Clean the door, especially the inside window.
- Clean the sealing around the door opening.
- Clean the humidity sensor inside the drum.
• Take out all the filters, clean the sealing and air flow openings.
- Before starting the dryer, dry all parts with a soft cloth.

■ Trouble Shooting

Many malfunctions and faults that might occur in daily operation can be easily remedied. Time and money will be saved because a service call won't be needed. The following guide may help you to find the reason for a malfunction and correct it.

Display	Reason	Solutions
" " E32	Humidity sensor error	Please contact your local service center if the problem occurs.
" "E33	Temperature sensor error
" "E82	Communication error

Warning!

• Only authorised technicians can carry out repairs.
• If the LED displays other prompt and the dryer does not work, please call the service.

Note!

Before you call the service, please check if you have dealt with the problems yourself consulting the user instructions.

Problem	Solution
•Display is not on	• Check if the power supply works.• Check if the mains plug is inserted.• Check the selected programme .• Press the 【On/Off】 button.
• “” is lighting	• Check the water container. If it's full, please pour out the condensate water and restart the dryer.• If the container is not full please restart the dryer directly.• If the “ ” icon is still lighting after you have finished the first two steps, please call the service.
•“” is inglight	• Clean the lint filter.
•Dryer does not start	• Connect the tumble dryer to the mains.• Turn on the tumble dryer.• Check the the door is closed.• Check the programme is set.• Press the 【Start/Pause】 button.
•Degree of dryness was not reached or drying time too long	• Clean lint filter and . heat exchanger• Empty the water container.• Check the drain hose.• Check installation place is appropriate.• Keep the air inlet clean.• Use higher drying intensity level programme or time programme.
•There are humming noises	• The compressor is operating. These noises are quite normal and do not indicate a fault.
•The dryer switches off at the end of the programme	• The dryer switches off automatically for energy saving. This is not an error but a normal function.

Warning!

If you cannot deal with the problems by yourself and need help:

• Press the 【On/Off】button.
• Pull out the mains plug and call the service.

■ Technical Specifications

Model Parameter	CSBCM810W
Dimension(L*W*H)	595*600*845(mm)
Ambient temperature	+ 5°C ~ +35°C
Rated input power	800W
Rated voltage	220-240V~
Rated frequency	50Hz
Refrigerant	R290
Weight of product	41kg
Rated capacity	8.0kg
GWP	3
CO2-eq	0.00t
Quantity of refrigerant	120g

Note!

• The rated capacity is the maximum capacity to be dried at one time. Make sure that the dry clothes which are loaded into the appliance do not exceed the rated capacity.
• Do not install the tumble dryer in a room when there is a risk of frost occurring. At temperatures around freezing point the tumble dryer may not be able to operate properly.
• There is a risk of damage if the condensate water is allowed to freeze in the pump, hoses and / or condensate water container.

Product Fiches

Model	CSBCM810W
Rated Capacity	8.0kg
Dryer Type	Condenser
Energy efficiency class	A++
Weighted annual energy consumption (AE) _c	235.0kWh/year
Automatic or non-automatic	Automatic
EU Ecolabel	N/A
Energy consumption of the standard cotton programme
Weighted energy consumption of the standard cotton programme at full and partial load	1.44kWh
Energy consumption of the standard cotton programme at full load	1.90kWh
Energy consumption of the standard cotton programme at partial load	1.10kWh
Power consumption of the off-mode (Po)	0.5W
Power consumption of the left-on mode (PI)	0.8 W
Duration of the left-on mode	10 min
Programme time of the 'standard cotton programme'
Weighted programme time of the standard cotton programme at full and partial load	162min
Programme time of the standard cotton programme at full load	210min
Programme time of the standard cotton programme at partial load	125min
Condensation efficiency class A (most efficient) to G (least efficient)	B
Average condensation efficiency of the standard cotton programme at full load	81%
Average condensation efficiency of the standard cotton programme at partial load	81%
Weighted condensation efficiency for the standard cotton programme at full and partial load	81%
Sound power level for the standard cotton programme at full load	65dB

Remarks:

1 Energy consumption per year, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used The programme 'Cotton Standard' used at full and partial load is the standard drying programme to which the information in the label and the fiche relates. This programme is suitable for drying normal wet cotton laundry and it is the most efficient programme in terms of energy consumption for cotton.

Corberó

MODELO:CSBCM810W

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a U-shaped pipe or support structure (no text or symbols)

Retire o tubo de esgoto
Ligue o tubo de esgoto á mangueira fornecida

Three identical line drawings of a washing machine with a cross mark, shown from different angles (no text or symbols)

Nivelamento

Diagram of a washing machine with a tool inserted, showing a close-up of the component (no text or symbols present)

Ligação elétrica

Hand holding a small electrical socket with a pointer, no text or symbols present

Ligue a ficha

Diagram of a mechanical or fluidic component with a curved arrow indicating rotation (no text or symbols)

Coloque a roupa

Hand holding a coiled rope with an arrow indicating rotation (no text or symbols)

Fecha a porta

Secar

Ligue

Abstract curved line diagram with an upward arrow, no text or symbols present

Limpe o filtro

Simple line drawing of an electrical outlet with a cable and arrow indicating direction (no text or symbols)

Desligue a ficha

1 Nota!

Line drawing of hands installing or adjusting a mechanical component (no text or symbols)

Line drawing of a toilet with a drain and sink (no text or symbols)

Aviso!

Technical diagram of a mechanical component with cross-sectional view and detail inset (no text or symbols)

L Nota!

Limpeza do Secador

Aviso!

Line drawing of a front-loading washing machine with a hand inserting a circular component (no text or symbols)

The presentation of the purchase invoice accompanied by this guarantee certificate is essential.

Covered Risks.

This appliance is guaranteed against any malfunction, provided that it is intended for domestic use, proceeding to its repair within the warranty period and only by the authorized SAT network.

Our Corberó appliances have the manufacturer's legal warranty that covers any breakdown or defect for 36 months, from the invoice date of January 1, 2022. If necessary, we take care of any possible incident whenever it is due to a defective component or manufacturing fault. Warranty Exceptions

Warranty Exceptions

• That the date of the certificate does not coincide with the date of sale of the original invoice.
  • Faults produced by blow, by fall or any other cause of force majeure.
  • If the device has been manipulated by unauthorized personnel.
• Faults produced or derived as a consequence of improper use, installation defects, or modifications to the device that alter its operation.

- Start-up, maintenance, cleaning, components subject to wear, lamps, aesthetic parts, oxidation, plastics, rubbers, housings and crystals.

- Microwave ovens (with the exception of built-in ones) and tabletop ovens in the event of any incident of operation, they must be taken to the nearest technical service by the customer. They are not collected or repaired at home.

- Electric thermos guarantee. 3-year warranty including travel and labor costs that correspond to the repair of the product, having to have maintenance once every 12 months. Especially if you have installed a gas appliance, keep in mind as the owner of the installation, the obligation to carry out a complete review of the equipment, (according to Royal Decree 238 / 2013, of April 5. RITE. IT3, M. Lo thermos electrical and boilers that include hot water storage tanks, for the benefit of the Guarantee to apply, it is mandatory that the magnesium anode is operational and that it performs the protection function adequately. For this, it is recommended that the anode be checked biannually by the Official Service and is renewed when necessary Periodicity that must be annual in those areas with critical waters (CaCO3 content greater than 200mg/L, that is, from 20°fH of hardness) Deposits without the correct state of the protection anode are not covered by the warranty Regardless of the type of tank or product, all heating or DHW overpressure valves must be channeled to avoid damage and n the house due to water discharges. The product warranty does not cover damages caused by not channeling the water spilled by this valve.

- Guarantee of pellet stoves, Gas Stoves, it is necessary to have the start-up accreditation from Corberó SAT, to benefit from the 3-year guarantee service.

"THESE EXCEPTIONS VOID THE WARRANTY, THE REPAIR BEING CHARGED TO THE CUSTOMER"

Period covered in devices according to the law of guarantees in the sale of consumer goods Current law is "RD 7/2021"

Official Technical Service:

911 08 08 08

CERTIFICADO DE GARANTIA
