Product Type	Bluetooth Body Analyser Scale
Brand	Grundig
Model	PS 7010 BT
Power Supply	4 x 1.5V AAA batteries (included)
Max Weight Capacity	180 kg / 400 lb
Min Weight Capacity	5.0 kg
Accuracy	100 g / 0.2 lb increments
Measurement Method	Bioelectrical Impedance Analysis (BIA) - 4-point measurement
Measured Metrics	Weight, Body Fat Percentage, Body Water Percentage, Muscle Mass, Bone Mass
Connectivity	Bluetooth 4.2 (BLE only)
Compatible App	HomeWhiz (iOS and Android)
Display	LCD
Auto Off	After approx. 20 seconds of inactivity
Unit Switch	lb/kg (rear switch)
Operating Temperature	5°C to 35°C
Frequency Band	2402 - 2480 MHz
Max Transmission Power	2.6 dBm
Electrical Insulation Class	III
Material	Glass plate, plastic pedestal
Cleaning	Damp cloth; do not use cleaning products
Safety	Not for use with pacemakers or implanted medical devices; not for pregnant women or persons under 18 for body fat analysis
Compliance	WEEE, RoHS, CE
User Recognition	Auto user recognition via first weight data

Frequently Asked Questions - PS 7010 BT GRUNDIG

How do I connect the scale to my phone?

Turn on Bluetooth on your phone, open the HomeWhiz app, create an account or log in, go to 'Devices' and tap 'Add Device'. Follow the instructions to pair with 'Grundig Smart Scale'.

Why does the scale show 'Lo' on the display?

'Lo' indicates low battery. Replace the 4 AAA batteries with new ones.

Can I use the scale on carpet?

No, the scale must be placed on a hard, flat floor for accurate measurements. Carpet or soft surfaces can cause incorrect readings.

How do I change the weight unit from kg to lb?

Locate the unit switch at the bottom of the scale and slide it to your preferred unit (lb or kg). The display will update accordingly.

Why does the scale show 'Err' during measurement?

'Err' may appear if your feet are too dry or have thick calluses, preventing proper contact with the electrodes. Ensure your bare feet are clean, dry, and fully contacting the electrodes.

Is the scale safe for people with pacemakers?

No, the scale uses BIA technology which sends a harmless signal through the body. It should not be used by persons with pacemakers or other implanted medical devices. Consult your doctor if unsure.

How do I clean the scale?

Clean the scale with a damp cloth only. Do not use any cleaning products, and never immerse the scale in water.

What does the blinking Bluetooth symbol mean?

The blinking Bluetooth symbol indicates that the scale is not connected to your phone. Ensure your phone's Bluetooth is on and the HomeWhiz app is open and paired.

Can the scale measure body fat for children?

The fat measurement function is not suitable for children under 10 years of age or adults over 100. Pregnant women and persons under 18 should also not use the body fat analysis.

How do I reset the scale?

To reset, remove the batteries, wait a few seconds, and reinsert them. This will restore normal operation after a disturbance.

USER MANUAL PS 7010 BT GRUNDIG

Simple geometric icon of a box with a rectangular top (no text or symbols)

PS 7010 BT

EN - TR

ENGLISH 04-13

TÜRKÇE 14-27

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damage due to improper use! Failure to follow these instructions voids any grant-ed warranty.

• These scales are only intended for domestic use.
- Do not use the scales on a rug or carpet.
- Always use the scales on the same flat and hard floor. This ensures constant measurements.
- When you stand on the scales, please leave a gap of 2 cm from the edge of the scales. Take care when doing this.
- First center your body weight in the middle of the scales before removing your foot from the scales. Always make sure that the scales do not tip (risk of injury).
- Do not step onto the scales with wet feet. Risk of slipping!
- Never use the scales outdoors.

• Do not use the scales if they malfunction.
• Do not use the scales if the glass plate shows cracks or breaks.
• Do not place objects on the glass plate of the scales.
• If the scales stop working, remove the batteries and then replace them.
• Never jump on or off the scales.
• If the scales are used in the bathroom, you must ensure that they do not come into contact with water.
• The scales must not be immersed in water.

• Do not expose the scales to direct sunlight, high temperatures or long-term high humidity.
• Keep the scales away from children.
  Do not use the scales if they are visibly damaged.

Never open up the scales. In case of damage due to improper tampering, any claims for guarantee are lost.

Caution

The scales should not be used by the following persons:

This device can be used by children over 8 years of age and by persons with reduced physical, sensory, or mental abilities or a lack of experience and/or knowledge if they are supervised or instructed in the safe use of the device and have understood the resulting risks. Children must not play with the device. Children should not clean or maintain the device unless they are supervised.

The scales determine your body fat ratio using Bioelectrical Impedance Analysis (BIA). In doing this, a harmless signal is transmitted through the body. The scales are therefore not suitable for persons with a heart pacemaker or other surgically implanted medical device. If in doubt, please contact your doctor.

• Pregnant women and persons under the age of 18 should not use the scales for analysis (in these cases, no accurate body fat value can be determined).
• Your device works with complex electronic algorithms. External electromagnetic influences near the device may therefore effect the results. In this case, first remove the source of the electromagnetic disturbance, then repeat the measurement.
• In the case of extreme electromagnetic disturbance, the device switches to safety mode for its own protection. To return to normal operation, remove the source of the disturbance, remove the batteries from the device and then replace them.

Dear Customer,

congratulations on purchasing the Bluetooth Body Analyser Scales PS 7010 BT.

Please read the following user guide for the scales carefully to ensure that you have many years of enjoyment from your quality Grundig product at home.

About the body fat scale

The product is a smart body fat scale with a high-pre-cision strain gauge sensor, which can help you to store and keep track of your weight on smart phone. This scale can transmit your weight data to your smart phone via Bluetooth technology, as well as make graph of your weight results, from which you are able to keep track of the trend anytime. Download the App on your phone to use Bluetooth scale, you will start your first step of weight control.

Caution

- The product PS 7010 BT is a wellness product, not a medical product. Thus no medical recommendation can be given based on the use/displayed results.

Meanings of the symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Electrical insulation class.

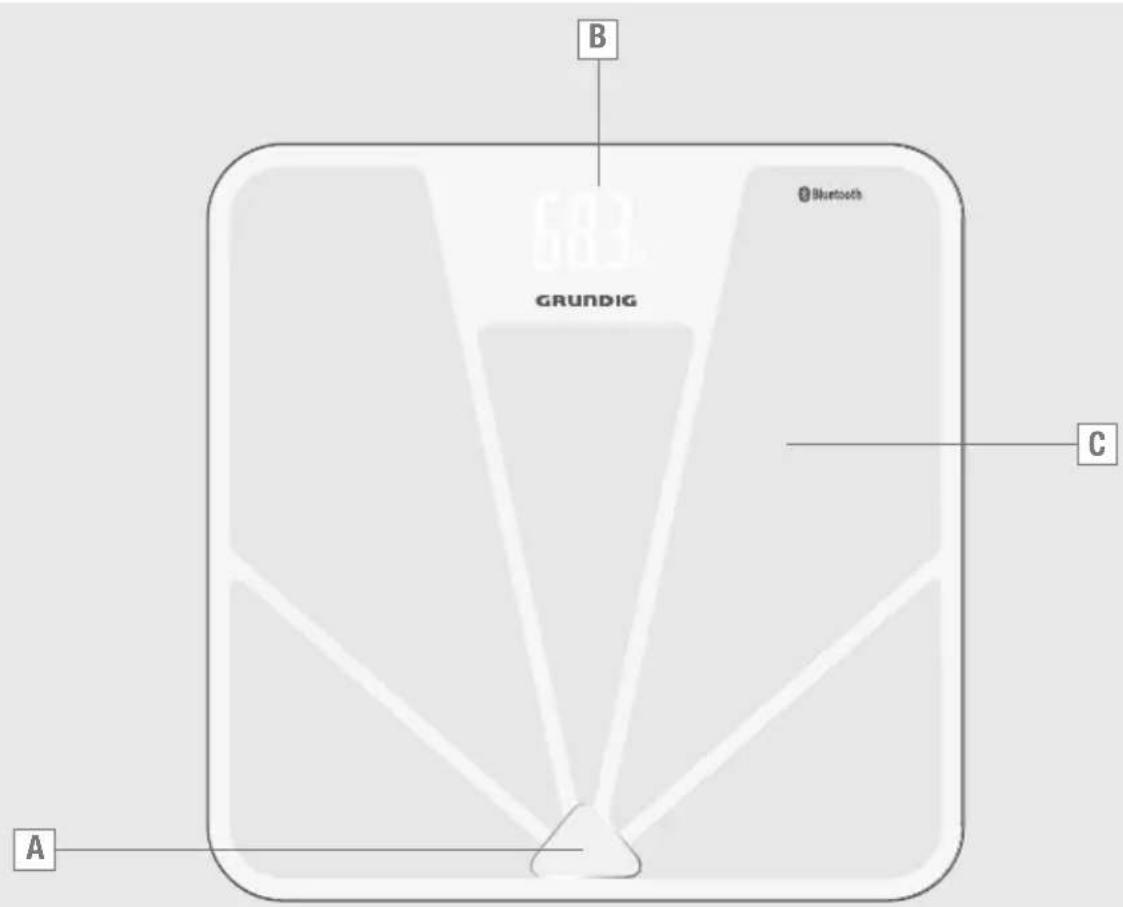

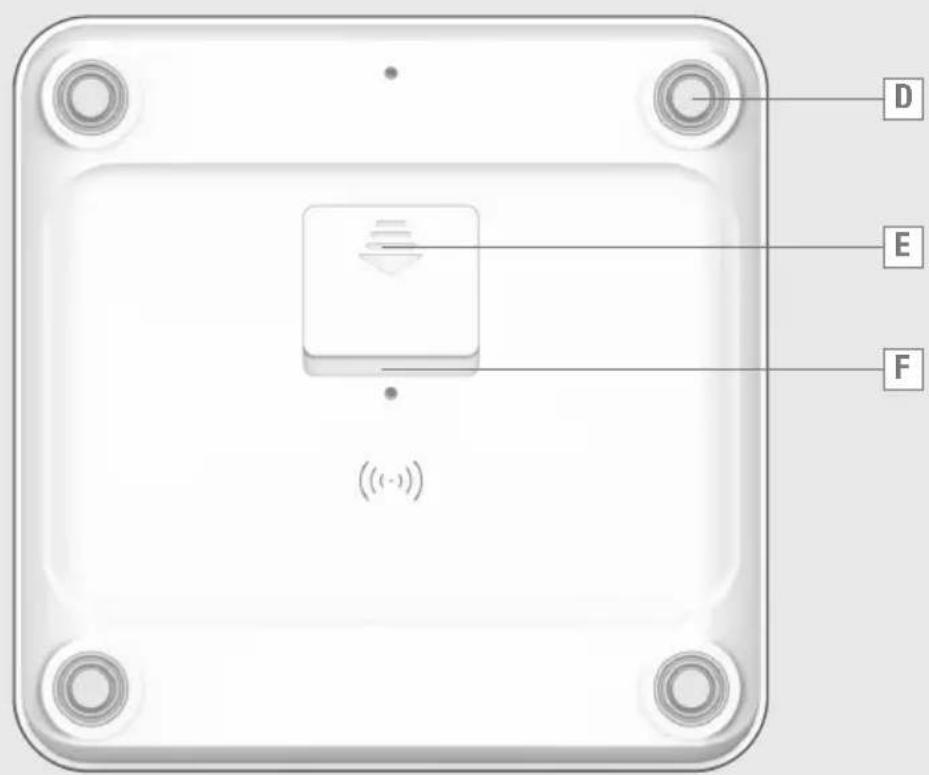

Operating elements

Please see the illustrations on page 3.

A Measurement electrodes
B Display
C Glass plate
D Pedestal
Battery compartment
F Unit selection switch (lb, kg)

This product has been produced in environmentally-friendly, state-of-the-art facilities.

Installing and using our app

Downloading the free app

1 Go to the "App Store" or "Google Play" and search for our app "HomeWhiz" to download it.
2 Or scan the QR code:

HomeWhiz-AppStore and Google Play

Power supply

You operate the scales with 4X1.5V AAA batteries (total 6 V).

1 Open the cover of the battery compartment E.
2 Insert the 1.5V LR3/AAA batteries. Pay attention to the poles marked on the base of the battery compartment.
3 Close the cover of the battery compartment E.

Notes

• Do not expose the battery to extreme heat, for example sunlight, radiators, fire, etc.
• When the batteries are becoming flat, the display shows » Lα. Replace the batteries immediately.
• Remove the batteries if they are used up or if you do not use the device for a long time. We do not assume liability for damage caused by leaked batteries.

Environmental note

The batteries, even those free from heavy metals, must not be disposed of as domestic waste. Used batteries must be discarded in used battery collection containers found at commercial or public waste management services.

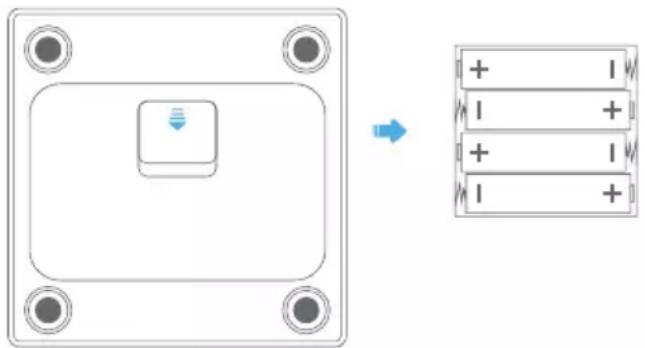

Battery Installation

Open the battery cover on the back of the scale as shown in the following picture, and then install the batteries according to the polarity mark in the battery case.

Operating the scales

Notes

• No data needs to be entered for measuring the body weight.
• The scales measure your body weight in 100 g intervals.
• The very accurate 4-point measurement is used as the measurement method.

1 Use the switch F (at the rear) to specify whether you want to use Anglo-Saxon units of measure (lb/in) or European units of measure (kg/cm).
2 Place the scales on a flat and even surface.

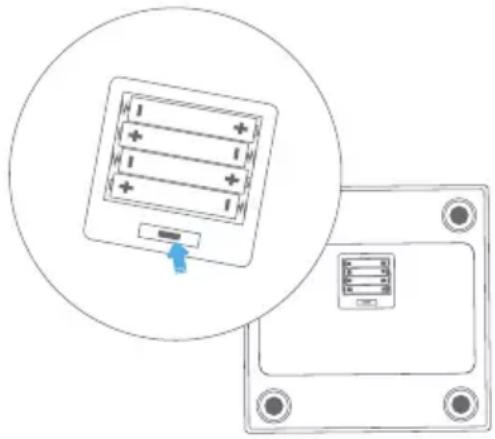

Weight unit conversion

You will find the unit conversion button at the bottom of scale, press or pull it to convert the weight unit, you will see it changed on LCD.

Diagram showing a battery pack with an icon and a magnified view of its internal structure (no text or symbols)

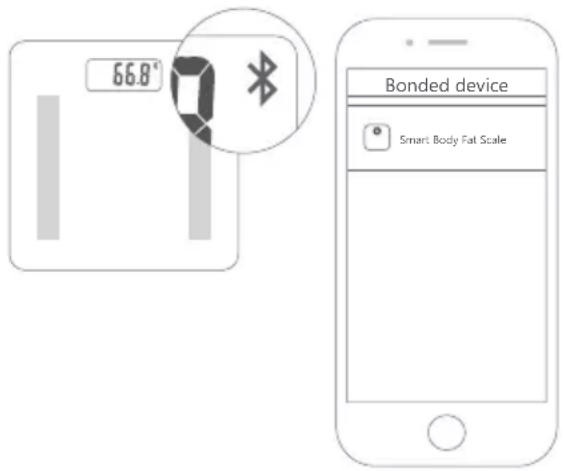

Connect the scale with your phone

Turn on your phone's bluetooth connection, login to HomeWhiz application. If you don't have an account, create a new account, find the "Devices" page and tap on "ADD DEVICE" and follow the instructions for adding products in the app. Make sure that your phone is connected to the scale via bluetooth while performing these operations.

All measurements you taken can be saved in history for detail review anytime anywhere by getting access to your own account.

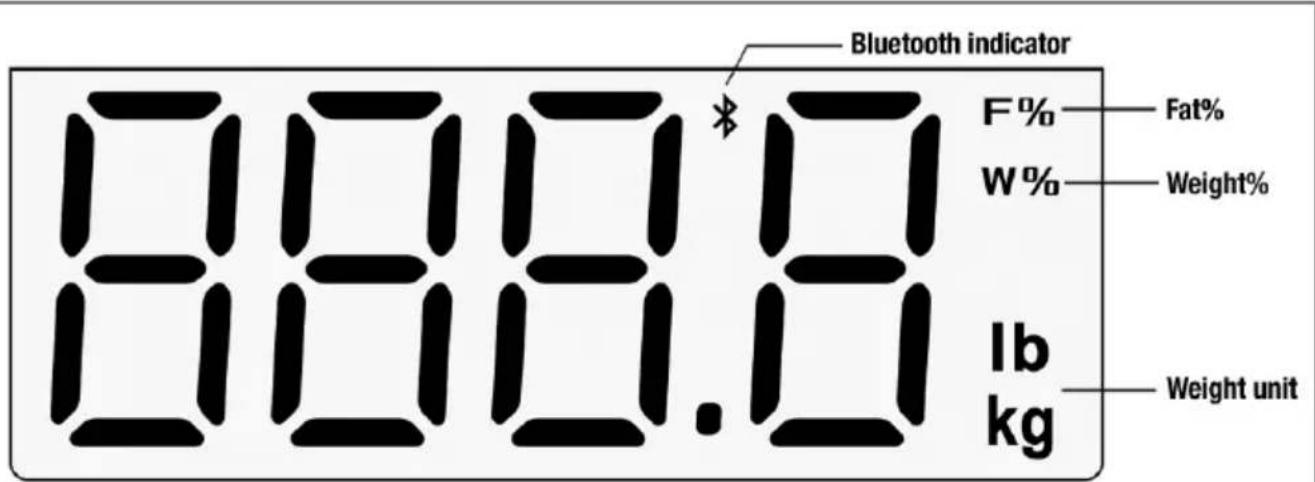

Symbol of connection status:

Fail to be connected: The symbol will be flashing;

Succeed to be connected: The symbol will be on constantly.

Some models may not have connection symbols, please refer to actual product.

Start Measurement

For the first measurement, keep the scale connected with the App, then put it on a solid and flat floor, and step on it for the measurement. Once the weight is stable and flashing, fat measurement will be proceeded. You will review your weight and body fat display on the screen for several time, then the scale will be off automatically.

• Do not put the scale on a carpet or other soft surface, it will lead to a wrong weight measurement.
• The first measurement has to be taken with Bluetooth connection, the first weight data will be reference for next auto user recognition.
• To make a proper measurement of body fat, please keep your bare feet on the electrodes of scale. The scale platform should be clean and dry.
• If you want to review all measurement data, open the App, and check them in detail interface.

Warning indications

0000

Fat Measuring

Fat measurement is in process, please don't step off the scale, and make sure your bare feet is touching with the electrodes.

ErrL

Low Fat% Indication

The Fat% is too low. Please lead a morenutritional diet and take good care of yourself.

Errh

High Fat% Indication

The Fat% is too high. Please watch your diet and do more exercise.

[

Calibration

Error exists, please re-test to get the correct result.

Err

Over-load Indication

The weighing subject on the platform exceeds the maximum capability of scale. Please step off to avoid damage.

lo

Low Battery Indication

The battery power is running low, please replace with a new battery.

User profile creation

After downloading the app Fill the gender, birth date, height, weight and activity frequency parts in the user information section and press continue.

Main screen and goal setting

After filling the parts in the user information section, you can start to monitor your current informations on the main screen. You can also enter your target values as weight, fat ratio, muscle ratio. Furthermore, you can compare them with your historical measurement results.

Measurement moment and Recording:

Open HomeWhiz mobile app and turn on Bluetooth on your mobile device. Make sure that "Grundig Smart Scale" is connected to mobile application. Then place the scale on a hard and flat surface and step on it for measurement.

When the measurement value is stabilized on the smart scale display, you will see measurement screen on your mobile application as well. This measurement details can be viewed by logging into your account. The detailed review is stored in the history to view anytime anywhere

History view and removing/sharing the data

You can view all the scaling results you have made in the paste as long as you do not delete them. Among these results, you can move the ones you want to delete to the left and the ones you want to share to the right.

NOTES ON THE MEASUREMENT VALUES

Notes

- The following table contains guideline values which will help you to assess your body fat and body water percentages. There are no guidelines for muscle mass and bone mass.

- It is more important to observe the changes in your body fat percentage, body water percentage, muscle mass and bone mass over a longer period than to concentrate on your body weight.

- Ensure that your bare feet are always in contact with the measurement electrodes. Very dry skin or thick callouses can influence the analysis result. In this case, the scales show » Err.

- To achieve accurate measurement results, do not use the scales immediately after consuming coffee, beer, wine or other alcoholic drinks. The same applies to physical exercise. These factors reduce the percentage of water in the body tissue (dehydration). In such cases, wait for several hours.

Body fat percentage

It is particularly important to monitor your body fat percentage. A body fat percentage that is too high can lead to high blood pressure, high cholesterol, heart problems and other physical problems. The following recommendations for body fat have been given by the American College of Sports Medicine:

Notes

- It is best to measure the body weight, body fat percentage and body water percentage at the same time each time, ideally during the evening.

- If possible, use the scales when undressed. This gives more accurate measurement results.

- The measurement results are not suitable for drawing medical conclusions. If in doubt, please contact your doctor.

- Your feet should always be clean and dry when you use the scales.

	Body fat (women) Body fat (men)
Age Slim N	Normal Slightly		over-weight	Over-weight	Slim Normal	Slightly	over-weight	Over-weight
19 - 39 <	20%	20-32 %	33-38%	>38% <12%	12-20%	21-25% >	25%
40 - 55 <	23%	23-35 %	36-41%	>41% <13%	13-21%	22-26% >	26%
56 - 85 <	24%	24-36 %	37-42%	>42% <14%	14-22%	23-27% >	27%

	Body water (women) Body water (men)
Age	Low	Normal	High	Low	Normal	High
17 - 39	47	47-57	57	53	53-67	67
40 - 55	42	42-52	52	47	47-61	61
56 - 85	37	37-47	47	42	42-56	56

Notes on operation and maintenance

• To prolong battery life, the scales are equipped with an automatic Off function. They switch off automatically if operation is interrupted for approx. 20 seconds.
• Clean the scales with a damp cloth. Do not use cleaning products.
• Do not use the scale in humid, overheat environment. (Temperature range from 5°C to 35°C.)
• Stand on the scale steadily and touch the electrodes on the platform with your bare feet. Tip over will lead to a fall when you step on the edge of one side of the scale.
• Do not drop, shock or strike the scale as it is a precise instrument.
• Do not use the scale on the place with intense shake. Keep standing firmly on scale when in use.
• To ensure the accuracy of the data, it is recommended that each measurement be carried out at the same time of day.
• Fat measurement is not available for children under 10 years of age and adults over 100 years of age.
• When the battery runs out, please remove the battery in time to prevent leakage of the battery lead scale body corrosion;
• The use of a fat measurement function is not permitted for pacemakers or other implanted medical devices.

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Information on Waste Batteries

This symbol on rechargeable batteries/batteries or on the packaging indicates that the rechargeable battery/battery may not be disposed of with regular house hold rubbish. For certain recchargeable batteries/batteries, this symbol may be supplemented by a chemical symbol. Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable batteries/batteries contain more than 0,0005 % mercury or more than 0,004 % lead.

Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations. Make enquiries about the applicable disposal regulations where you live.

Conformity declaration for CE

Arçelik A.Ş. hereby declares that this appliance complies with Directive 2014/53/EU.

The complete text of the EU declaration of conformity is available in the following internet address: grundig.com.tr

Technical Information

Power supply: 4X1.5V AAA (included)

Max. load: 180kg/400lb, d=100g/0.2lb

Min. load: 5.0 kg

Ambient temperature: 20^ C ± 15 °C

Electrical insulation class: III

Frequency Band: 2402 - 2480 MHz

Max. Transmission Power: 2.6 dBm

Network supported: Bluetooth 4.2 (only support BLE mode)

Technical and design modifications reserved!
