Product Type	Corded Drill
Brand	Graphite
Model	58G791
Power	600 W
Rated Speed	0 – 2800 RPM
Chuck Type	13 mm Keyless
Drilling Capacity (Steel)	10 mm
Drilling Capacity (Wood)	25 mm
Weight	1.6 kg
Voltage / Frequency	230 V / 50 Hz
Cable Length	2.5 m
Features	Variable speed trigger, forward/reverse, lock-on button, LED light
Safety	Double insulation, safety clutch
Included Accessories	Auxiliary handle, depth stop, chuck key, carrying case
Maintenance	Clean after use, check carbon brushes every 50 hours
Spare Parts Availability	Carbon brushes, chuck, switch

Frequently Asked Questions - 58G791 Graphite

How do I change the drill bit?

Turn the chuck counterclockwise by hand to open the jaws. Insert the bit, then tighten clockwise by hand. For a secure grip, use the chuck key if needed.

What is the maximum drilling capacity in concrete?

The 58G791 is designed for wood and steel. For concrete, use a hammer drill; this model is not recommended for masonry.

Can I use the drill for screwdriving?

Yes, the variable speed trigger allows controlled screwdriving. Use the forward/reverse switch to tighten or remove screws.

Why is the drill not starting?

Check that the power cord is plugged in and the socket is live. Ensure the forward/reverse switch is not in the middle lock position.

How do I clean the drill?

Unplug the drill. Wipe the exterior with a dry cloth. Do not use water or solvents. Clean the chuck and vents with compressed air.

What type of lubricant should I use?

Use a light machine oil for the chuck. Apply a drop to the chuck jaws periodically to maintain smooth operation.

How often should I replace the carbon brushes?

Inspect every 50 hours of use. Replace if worn below 5 mm. Use only original Graphite replacement brushes.

Is the drill double-insulated?

Yes, the 58G791 is double-insulated for safety. No grounding is required.

What is the purpose of the safety clutch?

The safety clutch disengages the drive if the bit jams, reducing torque reaction and protecting the user from injury.

Where can I find spare parts?

Spare parts like carbon brushes and chucks are available from authorized Graphite service centers or online retailers.

USER MANUAL 58G791 Graphite

Line drawing of a GRAPHITE drill putter with no text or symbols on the body

PL WIERTARKO-WKRĘTARKA SIECIOWA

GB ELECTRIC DRILL DRIVER

DE NETZBOHRSCHRAUBER

58G791

PL INSTRUKCJA OBSŁUGI 6
GB INSTRUCTION MANUAL 11
DE BETRIEBSANLEITUNG. 14
RU РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ ..... 17
UA ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ ..... 21
HU HASZNÁLATI UTASÍTÁS. 24
RO INSTRUCTIUNI DE DESERVIRE ..... 27
© INSTRUKCE K OBSLUZE. 30
SK NÁVOD NA OBSLUHU 33
SL NAVODILA ZA UPORABO 36
LT APTARNAVIMO INSTRUKCIJA. 39
LV LIETOŠANAS INSTRUKCIJA 42
EE KASUTUSJUHEND 45
BG ИНСТРУКЦИЯ ЗА ОБСЛУЖВАНЕ ..... 48
HR UPUTE ZA UPOTREBU. 51
SR UPUTSTVO ZA UPOTREBU 54
GR OΔΗΓΙΕΣ ΧΡΗΣΗΣ 57
ES INSRUCCIONES DE USO 60
⑪ MANUALE PER L'USO 63

INSTRUKCJA ORYGINALNA (OBSŁUGI)

WKRETARKA SIECIOWA

58G791

UWAGA: PRZED PRZYSTĄPIENIEM DO UŻYTKOWANIA URZĄDZENIA NALEŻY UWAŻNIE PRZECZYTAĆ NINIEJSZĄ INSTRUKCJĘ I ZACHOWAĆ JĄ DO DALSZEGO WYKORZYSTANIA.

SZCZEGÓŁOWE PRZEPISY BEZPIECZEŃSTWA

TRANSLATION OF THE ORIGINAL INSTRUCTIONS

ELECTRIC SCREWDRIVER

58G791

CAUTION: BEFORE USING THE POWER TOOL READ THIS MANUAL CAREFULLY AND KEEP IT FOR FUTURE REFERENCE.

DETAILED SAFETY REGULATIONS

- Use ear protection when operating the screwdriver. Noise hazards may cause hearing loss.

CAUTION! This device is designed to operate indoors.

The design is assumed to be safe, protection measures and additional safety systems are used, nevertheless there is always a small risk of operational injuries.

CONSTRUCTION AND USE

Electric screwdriver is a hand-operated power tool with insulation class II. It is driven by single-phase commutator motor with rotational speed reduced with gear transmission. Power tools of this type are widely used for screwing and unscrewing screws, making holes in wood and wood-like materials. Range of use covers repair and building works, woodworking and any work from the scope of individual, amateur activities (tinkering). Screwdriver can be used with various sockets, driver bits of various lengths with hexagonal 1/4" shanks. Although the tool is designed mainly as a screwdriver, it can also be used with drills with hexagonal 1/4" shanks for light-duty drilling tasks (e.g. making pilot holes).

Use the power tool according to the manufacturer's instructions only.

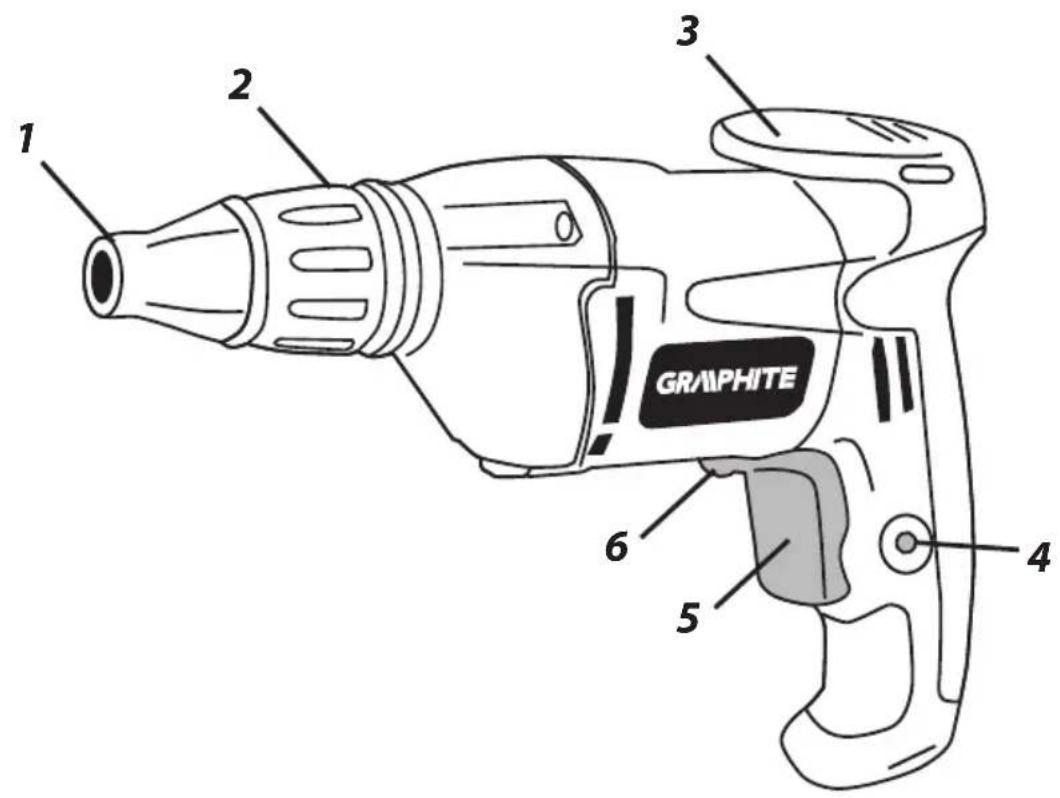

DESCRIPTION OF DRAWING PAGES

Below enumeration refers to the device elements depicted on the drawing pages of this manual.

1. Holder
2. Ring for drill depth control
3. Screwdriver body hook
4. Switch lock button
5. Switch button
6. Direction selector switch

* Differences may appear between the product and drawing

MEANING OF SYMBOLS

CAUTION

WARNING

ASSEMBLY/SETTINGS

INFORMATION

EQUIPMENT AND ACCESSORIES

1. Magnetic bit holder - 1 pce
2. Driver bits - 5 pcs
3. Transport case - 1 pce

SWITCHING ON / SWITCHING OFF

The mains voltage must match the voltage on the label of the screwdriver.

Switching on - press the switch button (6) and hold in this position.

Switching off – release pressure on the switch (6).

Locking the switch (continuous operation)

Switching on:

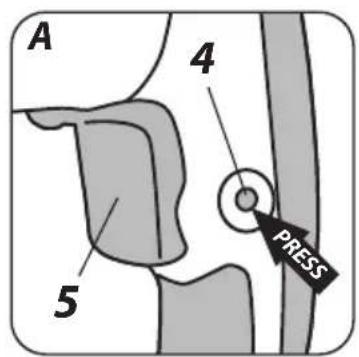

• Press the switch button (5) and hold in this position (fig. A).
• Press the switch lock button (4).
• Release pressure on the switch button (5).

Switching off:

- Press and release the switch (6).

Rotational speed of the spindle is controlled with pressure on the switch button (6). Screwdriver transmits drive to the working bit only after it is pressed against processed material or a screw head.

LEFT - RIGHT DIRECTION OF ROTATION

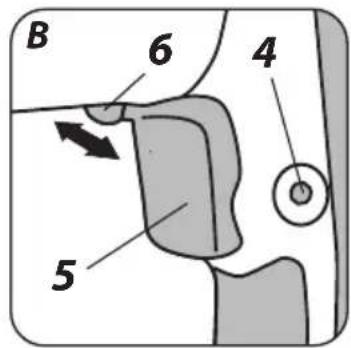

Choose direction of the screwdriver spindle rotation with the direction selector switch (6) (fig. B).

Right rotation - move the switch (6) to the extreme right position. Left rotation - move the switch (6) to the extreme left position.

* The possibility is reserved that in certain cases position of the switch relating to rotation direction may be different than specified. Please refer to graphic signs placed on the switch or tool body.

Do not change direction of rotation when the spindle of the screwdriver is rotating. Ensure the position of the selector switch is correct before starting the tool.

SCREWING DEPTH CONTROL

With control ring (2) you can set up the depth of the screw head sinking into material.

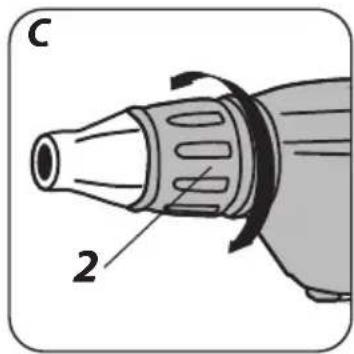

- Set required screwing depth by turning the control ring (2) (fig. C).

• turning clockwise – increases the screwing depth
• turning counter-clockwise – decreases the screwing depth.

It is best to set correct screwing depth by test screwing in waste material. Screw is held by universal magnetic holder. Press the screw tip against material it is to be screwed into until the depth limiter reaches the material, and the screwing tip disconnects. To unscrew screws set the switch lever (6) to the extreme left position.

SCREWDRIVER BODY HOOK

Screwdriver body hook (3) is very useful when working, during breaks it allows to hang the screwdriver e.g. on a tool belt.

Unplug the power cord from the mains socket before commencing any activities related to installation, adjustment, repair or maintenance.

Screwdriver does not require any additional lubrication or special maintenance. There are no user serviceable parts inside the tool.

Never use water or other chemical liquids for cleaning the screwdriver. Wipe the tool with a dry cloth.

Always keep the screwdriver in a dry place.

Always keep the ventilation holes on the screwdriver body pervious.

In case of power cord damage replace it with a cord with the same specification. Entrust the repair to a qualified specialist or take the screwdriver to a service shop.

CARBON BRUSH REPLACEMENT

Replace immediately worn out (shorter than 5 mm), burnt or cracked motor carbon brushes with the new ones. Always replace both brushes at a time.

Entrust replacement of carbon brushes only to a qualified person. Only original parts should be used

All faults should be repaired by service workshop authorized by the manufacturer.

TECHNICAL PARAMETERS

RATED PARAMETERS

Electrical Screwdriver
Parameter Value
Voltage 230 V AC
Frequency 50 Hz
Power consumption 520 W
Spindle rotational speed with no load 0 - 4500 rpm
Bit holder socket hexagonal 6,35 mm (1/4")
Protection class II
Weight 1,45 kg
Year of production 2021

NOISE LEVEL AND VIBRATION PARAMETERS

Sound pressure: Lp_A=81 dB(A) K=3 dB(A)

Sound power: Lw_A=92 dB(A) K=3 dB(A)

Weighted value of vibration acceleration: a_h=9,1 m/s^2 K=1,5 m/s^2

ENVIRONMENTAL PROTECTION

Do not dispose of electrically powered products with household wastes, they should be utilized in proper plants. Obtain information on wastes utilization from your seller or local authorities. Used up electric and electronic equipment contains substances active in natural environment. Unrecycled equipment constitutes a potential risk for environment and human health.

* Right to introduce changes is reserved.

"Grupa Topex Spółka z ograniczoną odpowiedzialnością" Spółka komandytowa with seat in Warsaw at ul. Pograniczna 2/4 (hereinafter Grupa Topex) informs, that all copyrights to this instruction (hereinafter Instruction), including, but not limited to, text, photographies, schemes, drawings and layout of the instruction, belong to Grupa Topex exclusively and are protected by laws accordingly to Copyright and Related Rights Act of 4 February 2004 (ustawa o prawie autorskim i prawach pokrewnych, Dz. U. 2006 No 90 item 631 with later amendments). Copying, processing, publishing, modifications for commercial purposes of the entire Instruction or its parts without written permission of Grupa Topex are strictly forbidden and may cause civil and legal liability.
