INN-293 - Lighting Innoliving - Free user manual and instructions

Product Type	LED Table Lamp
Model Numbers	INN-293B (Black), INN-293W (White)
Power Supply	5V DC, 2A max (via USB-C)
Power Consumption	1W
Luminous Flux	70 lumens
Battery Type	Lithium-ion, 3.7V 2000mAh (non-removable)
Charging Indicator	Red (charging), Blue (fully charged)
Light Control	Touch switch: press to turn on/off, press to change color, hold to adjust intensity
LED Lifespan	Non-replaceable; replace entire lamp when LED fails
Usage Environment	Indoor, dry locations only
Safety Class	Class III (extra-low voltage)
Compliance	CE, WEEE
Manufacturer	Innoliving Spa, Ancona, Italy
Country of Origin	China
Recommended Cleaning	Damp cloth with mild detergent; avoid abrasive cleaners
Battery Disposal	Dispose according to local regulations for lithium batteries

Frequently Asked Questions - INN-293 Innoliving

How do I turn on the lamp and change light colors?

Press the upper part once to turn on the lamp. Press again to change the light color. Once a color is chosen, press and hold to adjust the lighting intensity. Press again to turn off the lamp.

How do I charge the lamp?

Plug the USB-C cable into the lamp's power hole, connect the USB end to a charger (5V, 2A max), then plug into a power outlet. The indicator is red during charging and turns blue when fully charged.

Can I use a fast charger (more than 5V 2A)?

No, do not use chargers more powerful than 5V =2A. Overvoltage can damage the battery.

How long does the battery last on a full charge?

The manual does not specify exact runtime, but the battery is 2000mAh at 3.7V. Usage time depends on brightness and color settings. When the light dims, recharge to protect the battery.

What should I do if the lamp does not turn on?

First, check if the battery is charged. If not, connect the lamp to a charger via USB. If the problem persists, contact customer support.

Can I replace the LED bulb?

No, the LED light source is not replaceable. When the LED reaches the end of its life, the entire lamp must be replaced.

How do I clean the lamp?

Turn off and disconnect the lamp. Clean the exterior with a damp cloth (except the button) and dry with a soft cloth. Do not use abrasive cleaners or volatile liquids like petrol or thinners. Clean the button with a soft, dry cloth.

Is it safe to use the lamp in a bathroom or near water?

No, use only in dry indoor environments. Do not use near tubs, swimming pools, showers, or other water sources. Avoid contact with water or other liquids.

What safety precautions should I take?

Keep away from children under 8. Do not cover the lamp during use. Place on a flat, stable surface. Avoid dropping or bumping. Do not use if damaged. For repairs, contact authorized service center only.

How do I dispose of the lamp at end of life?

Do not dispose with household waste. Follow local regulations for WEEE (Waste Electrical and Electronic Equipment). Take it to a separate collection center or return to retailer when purchasing new equivalent equipment.

USER MANUAL INN-293 Innoliving

innoliving easy tech, easy life

LAMPADA LED

DA TAVOLO

NERA E BIANCA

INN-293B/W

MANUALE D'USO

USER MANUAL

Solid gray rectangular shape with two vertical lines above it, no text or symbols present.

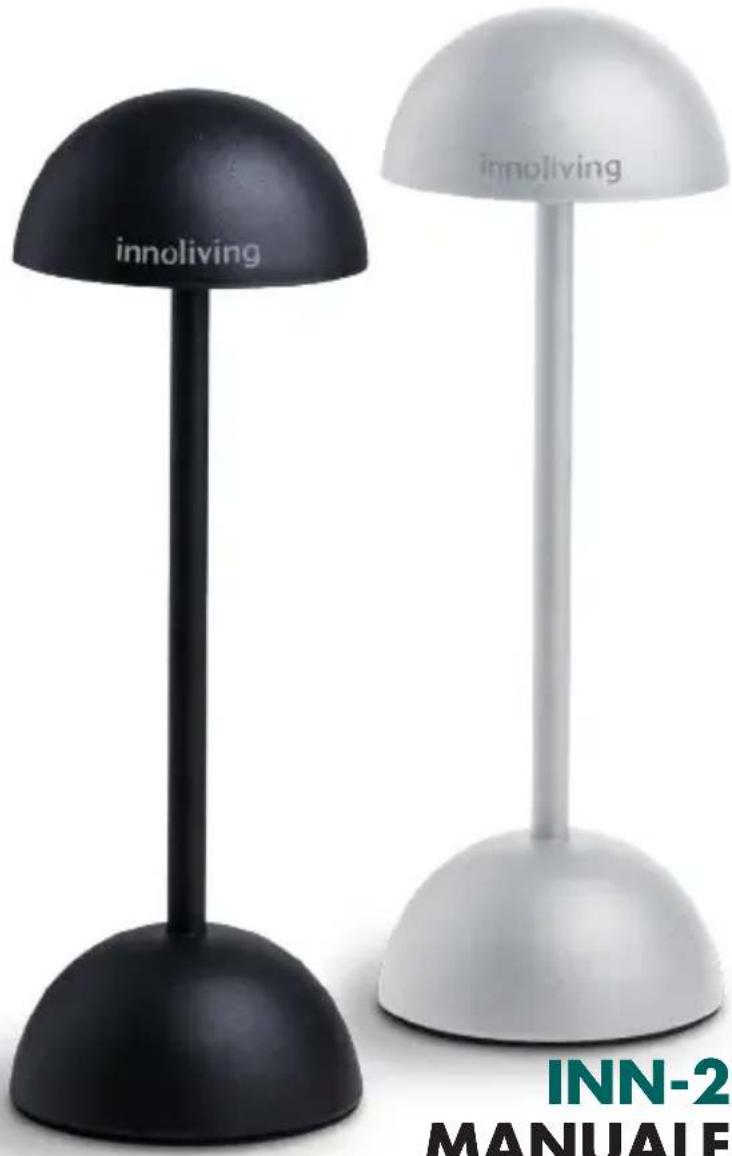

LAMPADA LED DA TAVOLO

INN-293B LAMPADA LED NERA DA TAVOLO TABLE BLACK LED LAMP

INN-293W LAMPADA LED BIANCA DA TAVOLO TABLE WHITE LED LAMP

Thank you for purchasing a LED table lamp "INN-293". Before use, carefully read the following instruction manual and keep it for future consultation.

Before using the appliance, carefully read the instructions for use and in particular the safety warnings, following them. Keep this manual for the entire useful life of the appliance, for consultation purposes. Failure to follow the instructions could cause accidents and void the warranty, relieving the manufacturer of any responsibility.

WARNINGS

• The packaging elements (plastic bags, cardboard, polystyrene, etc.) must not be left within the reach of children as they are potential sources of danger and must be disposed of in accordance with the regulations in force.
• Before use, check that the USB cable does not show any visible damage. If the cable is damaged, replace it with an equivalent one.
• This appliance must be used only for the purpose for which it was designed, that is as a table lamp for domestic use. Any other use is considered non-compliant and therefore dangerous.
  • This appliance can be used by children over 8

years of age and by people with reduced physical sensory or mental abilities or with a lack of experience and knowledge if under supervision or if they have received instructions regarding the use of the appliance safely and if they understand the dangers involved. The cleaning and maintenance operations carried out by the user must not be performed by children, unless they are over 8 years of age and operate under supervision. Keep the appliance and its cable out of the reach of children under the age of 8.

• Make sure that children do not play with the appliance.
- Remove the cable from the USB port when the device is not in use.
• Always make sure that the cable is fully inserted into the USB port, before turning on the product.
- Use the product by placing it only on flat and sbottle surfaces, avoid sloping surfaces.
- Do not use the device near tubs, swimming pools, showers, etc.
- Do not leave the device exposed to direct sunlight for a long period of time.
- Do not use aggressive detergents to clean the product.
- Do not let the appliance and / or the cable come into contact with incandescent surfaces.

- This appliance must only be used for the purpose for which it was designed.

- Avoid dropping the appliance.

- Do not use the product if it has been dropped, if there are visible signs of damage or leakage. Avoid bumps and falls.

- In the event of a breakdown or malfunction of the appliance, turn it off and do not tamper with it. Don't try to fix it yourself. For any repairs, contact an authorized technical assistance center only.

- The appliance must not be placed immediately under or beyond a curtain or the like. Do not cover the appliance with blankets or the like during use.

- Do not place the USB cable under carpets, cloths or the like. Keep cables away from walk-through areas or where there is a risk of tripping or falling.

- Do not place objects on top of the appliance.

- Turn off the device, before disconnecting the cable from the USB port.

- It is recommended to use in dry environments, if using in a humid environment, make sure that water never comes into contact with the appliance.

- Do not place the table lamp near open flames or heat sources.

• Always use the original USB cable supplied in the package.

- Do not touch the cable or the product connected to

the USB port with wet hands.

• Always disconnect the table lamp from the USB port for cleaning and maintenance.
- Do not place the table lamp in passageways, where you could easily trip over the USB cable and / or overturn the device.
- Do not turn the lamp upside down.
- Do not immerse the lamp in water or other liquids.
- The product must be powered only at a very low safety voltage corresponding to the marking on the device.
- Use only indoors.

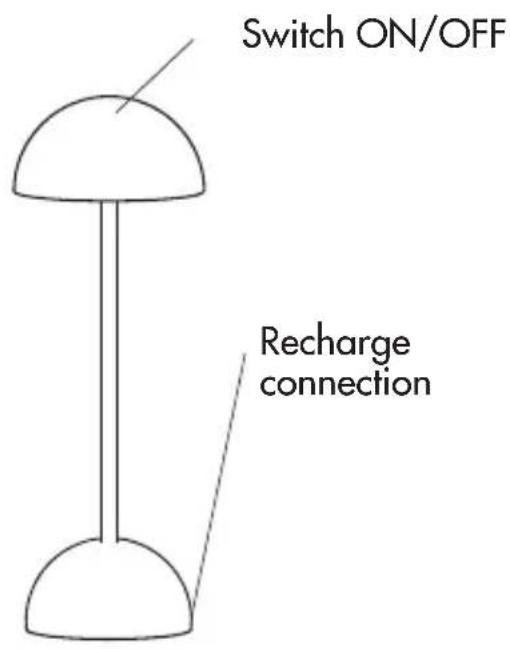

PRODUCT DESCRIPTION

METHOD OF USE

• Do not use chargers more powerful than 5V =2A.
• Press upper part once to turn on the lamp.
• Press again to change light color.
• Once the color is chosen, press and hold to adjust the lighting intensity.
• Press again to turn off the lamp.

CHARGING MODE

Overcharging can cause damage to the battery. To recharge the lamp, plug the USB Type-C cable into the power hole of the lamp and connect the USB cable to the charger, then plug into the power outlet.

The power supply is 5V = 2A. The indicator light is red when charging and blue when fully charged.

When the light dims, to protect the battery, recharge the lamp instead of using it.

Power Factor: 0.518W

Supply Current: 0,498 A

Note: The LED light source of this lamp is not replaceable, and the entire lamp must be replaced when the LED reaches the end of its usable life.

CLEANING AND MAINTENANCE

Before any maintenance or cleaning operation, turn off the appliance, disconnect the plug from the socket or disconnect the power supply. If necessary, wait for the product to cool completely.

Never clean product components with flammable liquids. Vapors could cause fire or explosion. Clean the outside of the device with a damp cloth except for the button and dry with a soft cloth.

Do not use abrasive cleaners. Make sure that the appliance has been dried thoroughly before proceeding again with normal use.

Clean the key with a soft, dry cloth. Do not use highly volatile and highly corrosive liquids (such as petrol, thinners, etc.) to clean the lamp, otherwise the aluminum of the lamp could change color or be damaged. To use this product safely and efficiently, clean and inspect it regularly. (Recommended once every six months).

PROBLEMS AND SOLUTIONS

If the LEDs do not light up, check that the battery is charged, if necessary, connect to the power supply through USB socket to recharge the battery. If the problem persists, contact customer

support.

RATING LABEL

Innoliving Spa

Via Merloni 2/B - 60131 Ancona - Italy

INN-293B LAMPADA LED NERA DA TAVOLO TABLE BLACK LED LAMP

5V---2A 1W - Flusso luminoso: 70 lm

INN-293W LAMPADA LED BIANCA DA TAVOLO TABLE WHITE LED LAMP

5V-2A 1W - Flusso luminoso: 70 lm

This product complies with all the applicable European regulations

III

Class III insulated electrical appliance

The batteries used by this device are not removable by the user, at the end of their useful life, they must be disposed of in the appropriate containers. Find out about local regulations regarding separate collection of batteries.

Correct disposal of batteries helps to avoid negative consequences for the environment and human health.

Voltage and capacity of the lithium battery included: 3,7V 2000mAh

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.

innoliving easy tech. easy life

Innoliving Spa Via Merloni, 2/B 60131 Ancona Italy Tel [phone] www.innoliving.it

MADE IN CHINA

CE

Rev.00_07.2023
