INN-290 - Lighting Innoliving - Free user manual and instructions

Product Type	LED Desk Lamp
Dimensions (L x W x H)	15 x 10 x 30 cm
Weight	0.5 kg
Power Supply	AC 220-240V, 50/60Hz via adapter
Power Consumption	6W
Light Source	Integrated LED (non-replaceable)
Brightness Levels	3 levels (low, medium, high)
Color Temperature	3000K - 6000K adjustable
Dimming	Stepless dimming via touch sensor
Adjustable Arm	Yes, flexible gooseneck
Control Type	Touch control panel
Material	ABS plastic
Color	White / Black
USB Charging Port	Built-in USB output (5V/1A)
Certifications	CE, RoHS
Cleaning	Wipe with dry, soft cloth. Do not use liquids.
Safety Features	Overheat protection, anti-glare diffuser
Spare Parts Available	Adapter only (model INN-290-ADP)
Repairability Index	5.5/10 (integrated LED not user replaceable)

Frequently Asked Questions - INN-290 Innoliving

How do I assemble the INN-290 lamp?

The lamp comes pre-assembled. Simply attach the base by screwing it clockwise until tight, then plug in the adapter.

How do I adjust the brightness?

Touch the brightness icon on the base to cycle through 3 levels. For stepless dimming, long-press the icon.

Can I change the color temperature?

Yes, press the color temperature icon to toggle between warm (3000K), neutral (4500K), and cool (6000K).

How do I clean the lamp?

Always unplug before cleaning. Use a dry, soft cloth to wipe the surfaces. Do not use water or chemical cleaners.

Does the lamp have a USB port?

Yes, there is a USB output (5V/1A) on the base for charging devices like smartphones.

Is the LED bulb replaceable?

No, the LED is integrated and not user-replaceable. If it fails, contact customer service for repair options.

Can I use the lamp with a dimmer switch?

No, the lamp is designed for direct AC power only. Use the built-in touch control for dimming.

What is the warranty period?

The Innoliving INN-290 comes with a 2-year limited warranty against manufacturing defects.

Is the lamp energy efficient?

Yes, it uses 6W LEDs and provides equivalent brightness to a 40W incandescent bulb, saving up to 85% energy.

Where can I find spare parts?

Spare parts such as the power adapter (model INN-290-ADP) are available from authorized Innoliving dealers or the official website.

USER MANUAL INN-290 Innoliving

innoliving easy tech, easy life

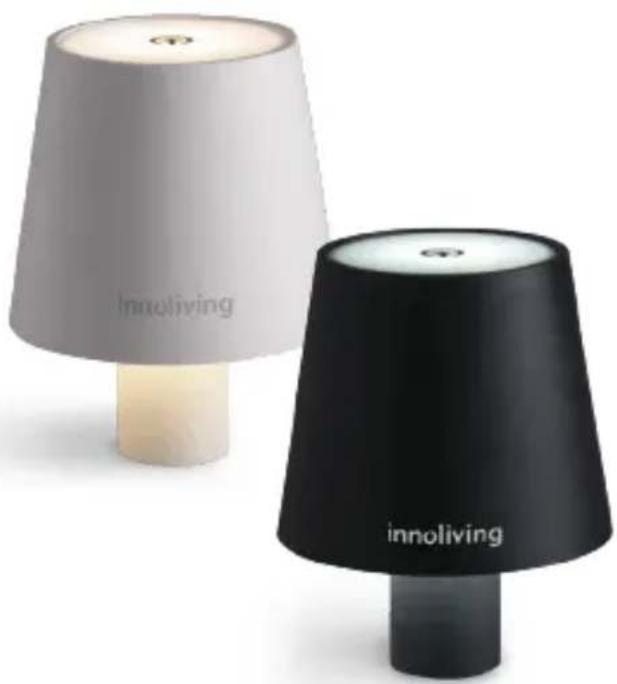

Two stylized conical lamp holders, one light gray and one black, with 'innoliving' branding visible on its side (no additional text or symbols)

LAMPADA LED PER BOTTIGLIA

INN-290W/B

MANUALE D'USO

USER MANUAL

IT

LAMPADA LED PER BOTTIGLIA

IT

INN-290W LAMPADA LED - LED LAMP

5V---2A 2.5W

Flusso luminoso: 150 lm

Temperatura di colore: 3000K-4000K-6000K

INN-290B LAMPADA LED - LED LAMP

5V---2A 2,5W

Flusso luminoso: 150 lm

Temperatura di colore: 3000K-4000K-6000K

Thank you for purchasing a LED lamp "INN-290"

BEFORE USE, CAREFULLY READ THE FOLLOWING INSTRUCTION MANUAL AND KEEP IT FOR FUTURE CONSULTATION.

Before using the appliance, carefully read the instructions for use and in particular the safety warnings, following them. Keep this manual for the entire useful life of the appliance, for consultation purposes.

Failure to follow the instructions could cause accidents and void the warranty, relieving the manufacturer of any responsibility.

WARNINGS

• The packaging elements (plastic bags, cardboard, polystyrene, etc.) must not be left within the reach of children as they are potential sources of danger and must be disposed of in accordance with the regulations in force.
• Before use, check that the USB cable does not show any visible damage. If the cable is damaged, replace it with an equivalent one.
• This appliance must be used only for the purpose for which it was designed, that is as a bottle lamp for domestic use. Any other use is considered non-compliant and therefore dangerous.

GB

- This appliance can be used by children over 8 years of age and by people with reduced physical sensory or mental abilities or with a lack of experience and knowledge if under supervision or if they have received instructions regarding the use of the appliance safely and if they understand the dangers involved. The cleaning and maintenance operations carried out by the user must not be performed by children, unless they are over 8 years of age and operate under supervision. Keep the appliance and its cable out of the reach of children under the age of 8.

• Make sure that children do not play with the appliance.
- Remove the cable from the USB port when the device is not in use.
- Always make sure that the cable is fully inserted into the USB port, before turning on the product.
- Use the product by placing it only on flat and sbottle surfaces, avoid sloping surfaces.
- Do not use the device near tubs, swimming pools, showers, etc.
- Do not leave the device exposed to direct sunlight for a long period of time.
- Do not use aggressive detergents to clean the product.

GB

• Do not let the appliance and / or the cable come into contact with incandescent surfaces.
• This appliance must only be used for the purpose for which it was designed.
• Avoid dropping the appliance.
• Do not use the product if it has been dropped, if there are visible signs of damage or leakage. Avoid bumps and falls.
• In the event of a breakdown or malfunction of the appliance, turn it off and do not tamper with it. Don't try to fix it yourself. For any repairs, contact an authorized technical assistance center only.
• The appliance must not be placed immediately under or beyond a curtain or the like. Do not cover the appliance with blankets or the like during use.
• Do not place the USB cable under carpets, cloths or the like. Keep cables away from walk-through areas or where there is a risk of tripping or falling.
• Do not place objects on top of the appliance.
• Turn off the device, before disconnecting the cable from the USB port.
• It is recommended to use in dry environments, if using in a humid

GB

environment, make sure that water never comes into contact with the appliance.

• Do not place the bottle lamp near open flames or heat sources.
  • Always use the original USB cable supplied in the package.
• Do not touch the cable or the product connected to the USB port with wet hands.
  • Always disconnect the bottle lamp from the USB port for cleaning and maintenance.
• Do not place the bottle lamp in passageways, where you could easily trip over the USB cable and / or overturn the device.
• Do not turn the bottle lamp upside down.
• Do not immerse the bottle lamp in water or other liquids.
• Use either with empty bottles, without liquid inside, or, if full bottles are used, make sure that these are well sealed so as to exclude any contact with the internal liquid.
• The product must be powered only at a very low safety voltage corresponding to the marking on the device.
• Use only indoors.

GB

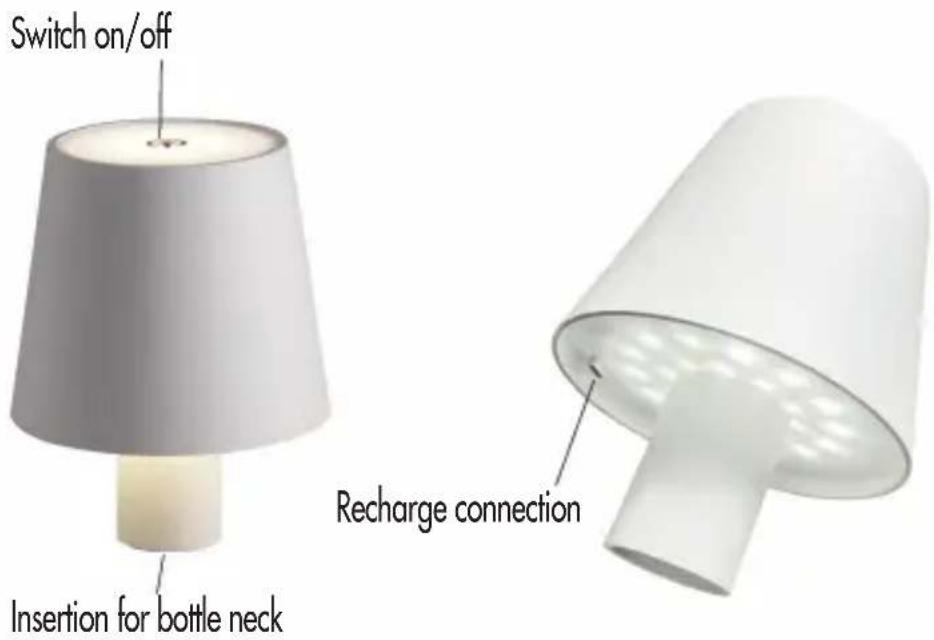

PRODUCT DESCRIPTION

METHOD OF USE

• Do not use chargers stronger than 5V - 2A.
• Press the power button once to turn on the lamp.
• Press again to change light color.

GB

• Once the color is chosen, press and hold to adjust the lighting intensity.
• Press again to turn off the lamp.

CHARGING MODE

Overcharging can cause damage to the battery.

To recharge the lamp, plug the USB Type-C cable into the power hole of the lamp and connect the USB cable to the charger, then plug into the power outlet.

The power supply is 5V-2A, please use the supplied power adapter. The indicator light is red when charging and green when fully charged.

When the light dims, to protect the battery, recharge the lamp instead of using it.

Power Factor: 0.518W

Supply Current: 0.675A

Note:

The LED light source of this lamp is not replaceable, and the entire lamp must be replaced when the LED reaches the end of its usable life.

CLEANING AND MAINTENANCE

Before any maintenance or cleaning operation, turn off the appliance, disconnect the plug from the socket or disconnect the power supply. If necessary, wait for the product to cool completely.

Never clean product components with flammable liquids. Vapors could cause fire or explosion.

Clean the outside of the device with a damp cloth except for the button and dry with a soft cloth. Do not use abrasive cleaners. Make sure that the appliance has been dried thoroughly before proceeding again with

GB

normal use. Clean the key with a soft, dry cloth.

Do not use highly volatile and highly corrosive liquids (such as petrol, thinners, etc.) to clean the lamp, otherwise the aluminum of the lamp could change color or be damaged.

To use this product safely and efficiently, clean and inspect it regularly. (Recommended once every six months).

PROBLEMS AND SOLUTIONS

If the LEDs do not light up, check that the battery is charged, if necessary, connect to the power supply through USB socket to recharge the battery. If the problem persists, contact customer support.

RATING LABEL

Innoliving Spa

Via Merloni 2/B - 60131 Ancona - Italy

INN-290W LAMPADA LED - LED LAMP

5V---2A 2,5W

Flusso luminoso: 150 lm

Temperatura di colore: 3000K-4000K-6000K

INN-290B LAMPADA LED - LED LAMP

5V=2A 2,5W

Flusso luminoso: 150 lm

Temperatura di colore: 3000K-4000K-6000K

This product complies with all the applicable European regulations

Class III insulated electrical appliance

The batteries used by this device are not removable by the user, at the end of their useful life, they must be disposed of in the appropriate containers. Find out about local regulations regarding separate collection of batteries. Correct disposal of batteries helps to avoid negative consequences for the environment and human health.

IINFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.

innoliving - easy tech, easy life

Innoliving Spa Via Merloni, 2/B 60131 Ancona Italy Tel [phone] www.innoliving.it

MADE IN CHINA

CE

Rev.00_03.2023
