INN-292 - Lighting Innoliving - Free user manual and instructions

Product Type	LED Table Lamp
Model	INN-292 (INN-292B / INN-292W)
Color Options	White (INN-292W) / Black (INN-292B)
Power Supply	5V --- 2A via USB Type-C
Power Consumption	2.5W
Luminous Flux	150 lm
Color Temperature	3000K (warm white) / 4000K (neutral white) / 6500K (cool white) – adjustable
Battery Type	Built-in rechargeable lithium battery
Battery Capacity	3.7V 2000mAh
Charging Indicator	Red light while charging, green light when fully charged
Control	Single touch button: press to turn on/off, press to cycle through color temperatures, press and hold to adjust brightness
Light Source Type	LED (non-replaceable)
Safety Class	Class III (low voltage)
Protection Features	Overcharge protection, battery protection when dim
Usage Environment	Indoor dry areas only
Cleaning Instructions	Wipe with a damp cloth, dry thoroughly; do not use abrasive cleaners or volatile liquids
Maintenance Frequency	Recommended every 6 months
Certifications	CE, WEEE
Manufacturer	Innoliving Spa, Via Merloni 2/B, 60131 Ancona, Italy
Country of Origin	Made in China

Frequently Asked Questions - INN-292 Innoliving

How do I turn on the lamp?

Press the power button once to turn on the lamp. Press again to cycle through the three color temperatures (warm white 3000K, neutral 4000K, cool white 6500K). Press and hold the button to adjust the brightness level. Press again to turn off.

How do I charge the lamp?

Connect the USB Type-C cable to the lamp's charging port and plug the other end into a 5V 2A USB charger. The indicator light will be red during charging and turn green when fully charged.

How long does the battery last on a full charge?

The manual does not specify the exact runtime. However, the lamp has a 2000mAh battery and consumes 2.5W at 5V (approx. 0.5A). A rough estimate would be around 4 hours at full brightness, but actual runtime varies with brightness and color temperature settings.

Can I use the lamp while it is charging?

Yes, the lamp can be used while connected to the USB power source. However, note that overcharging can damage the battery, so disconnect once fully charged if not in use.

Is the LED bulb replaceable?

No, the LED light source is built-in and non-replaceable. When the LED reaches the end of its life, the entire lamp must be replaced.

Can I use the lamp outdoors or in humid environments?

No, the lamp is designed for indoor use only in dry environments. Do not use near tubs, showers, swimming pools, or in humid conditions. Ensure no water contacts the lamp.

What should I do if the lamp does not turn on?

First, make sure the battery is charged. Connect the lamp to a USB charger and wait for the indicator to show charging. If it still does not turn on, check the USB cable for damage. If the problem persists, contact customer support.

How do I clean the lamp?

Before cleaning, turn off the lamp and disconnect it from power. Use a soft, damp cloth to wipe the exterior (avoid the button area). Dry thoroughly with a soft cloth. Do not use abrasive cleaners, petrol, thinners, or other volatile liquids as they may damage the finish.

Can I use any USB charger to power the lamp?

It is recommended to use a 5V 2A charger. Do not use chargers with higher voltage or current rating, as overcharging can damage the battery. Always use the original USB cable supplied.

What are the safety precautions for using this lamp?

Keep away from children under 8 years old without supervision. Do not cover the lamp or place it near curtains. Avoid placing the cable where it can cause tripping. Do not touch with wet hands. Only use indoors on stable, flat surfaces. Disconnect when not in use.

USER MANUAL INN-292 Innoliving

innoliving easy tech, easy life

LAMPADA LED DA TAVOLO BIANCA E NERA

INN-292B/W MANUALE D'USO USER MANUAL

Solid gray rectangular shape with two vertical lines above it, no text or symbols present.

LAMPADA LED DA TAVOLO

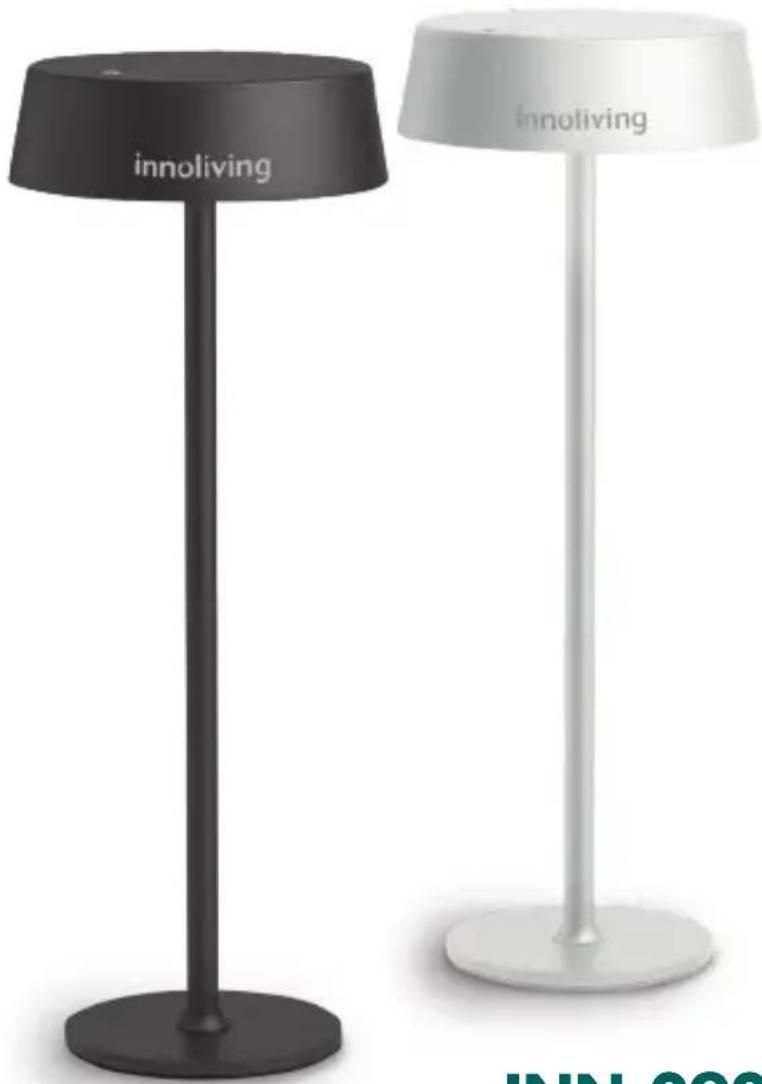

INN-292B LAMPADA LED BIANCA DA TAVOLO TABLE WHITE LED LAMP

5V---2A 2,5W - Flusso luminoso: 150 lm

Temperatura di colore: 3000K-4000K-6500K

INN-292W LAMPADA LED BIANCA DA TAVOLO TABLE WHITE LED LAMP

5V---2A 2,5W - Flusso luminoso: 150 lm

Temperatura di colore: 3000K-4000K-6500K

Thank you for purchasing a LED lamp "INN-292".

Before use, carefully read the following instruction manual and keep it for future consultation.

Before using the appliance, carefully read the instructions for use and in particular the safety warnings, following them. Keep this manual for the entire useful life of the appliance, for consultation purposes.

Failure to follow the instructions could cause accidents and void the warranty, relieving the manufacturer of any responsibility.

WARNINGS

- The packaging elements (plastic bags, cardboard, polystyrene, etc.) must not be left within the reach of children as they are potential sources of danger and must be disposed of in accordance with the regulations in force.

- Before use, check that the USB cable does not show any visible damage. If the cable is damaged, replace it with an equivalent one.

- This appliance must be used only for the purpose for which it was designed, that is as a table lamp for domestic use. Any other use is considered non-compliant and therefore dangerous.

• This appliance can be used by children over 8

years of age and by people with reduced physical sensory or mental abilities or with a lack of experience and knowledge if under supervision or if they have received instructions regarding the use of the appliance safely and if they understand the dangers involved. The cleaning and maintenance operations carried out by the user must not be performed by children, unless they are over 8 years of age and operate under supervision. Keep the appliance and its cable out of the reach of children under the age of 8.

• Make sure that children do not play with the appliance.
- Remove the cable from the USB port when the device is not in use.
• Always make sure that the cable is fully inserted into the USB port, before turning on the product.
- Use the product by placing it only on flat and sbottle surfaces, avoid sloping surfaces.
- Do not use the device near tubs, swimming pools, showers, etc.
- Do not leave the device exposed to direct sunlight for a long period of time.
- Do not use aggressive detergents to clean the product.
- Do not let the appliance and / or the cable come into contact with incandescent surfaces.

- This appliance must only be used for the purpose for which it was designed.

- Avoid dropping the appliance.

- Do not use the product if it has been dropped, if there are visible signs of damage or leakage. Avoid bumps and falls.

- In the event of a breakdown or malfunction of the appliance, turn it off and do not tamper with it. Don't try to fix it yourself. For any repairs, contact an authorized technical assistance center only.

- The appliance must not be placed immediately under or beyond a curtain or the like. Do not cover the appliance with blankets or the like during use.

- Do not place the USB cable under carpets, cloths or the like. Keep cables away from walk-through areas or where there is a risk of tripping or falling.

- Do not place objects on top of the appliance.

- Turn off the device, before disconnecting the cable from the USB port.

- It is recommended to use in dry environments, if using in a humid environment, make sure that water never comes into contact with the appliance.

- Do not place the table lamp near open flames or heat sources.

• Always use the original USB cable supplied in the package.

• Do not touch the cable or the product connected to the USB port with wet hands.
  • Always disconnect the table lamp from the USB port for cleaning and maintenance.
• Do not place the table lamp in passageways, where you could easily trip over the USB cable and / or overturn the device.
• Do not turn the lamp upside down.
• Do not immerse the lamp in water or other liquids.
• The product must be powered only at a very low safety voltage corresponding to the marking on the device.
• Use only indoors.

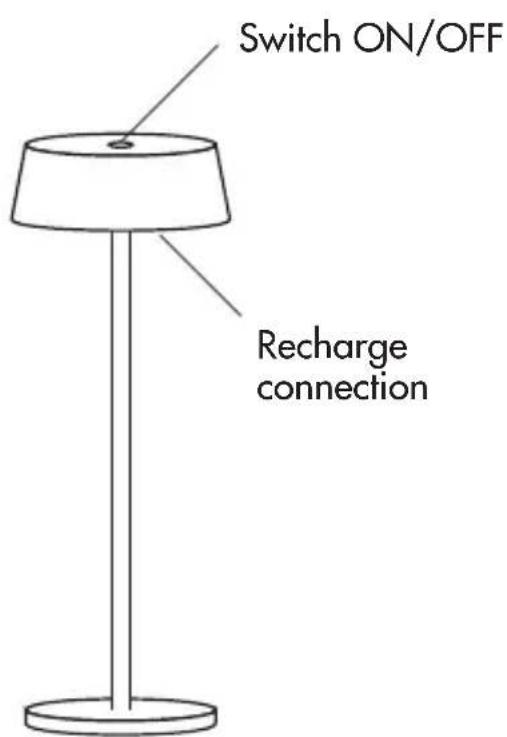

PRODUCT DESCRIPTION

METHOD OF USE

• Do not use chargers more powerful than 5V =2A.
• Press the power button once to turn on the lamp.
• Press again to change light color.
• Once the color is chosen, press and hold to adjust the lighting intensity.
• Press again to turn off the lamp.

CHARGING MODE

Overcharging can cause damage to the battery. To recharge the lamp, plug the USB Type-C cable into the power hole of the lamp and connect the USB cable to the charger, then plug into the power outlet.

The power supply is 5V = 2A. The indicator light is red when charging and green when fully charged.

When the light dims, to protect the battery, recharge the lamp instead of using it.

Power Factor: 0.518W

Supply Current: 0,498 A

Note: The LED light source of this lamp is not replaceable, and the entire lamp must be replaced when the LED reaches the end of its usable life.

CLEANING AND MAINTENANCE

Before any maintenance or cleaning operation, turn off the appliance, disconnect the plug from the socket or disconnect the power supply. If necessary, wait for the product to cool completely.

Never clean product components with flammable liquids. Vapors could cause fire or explosion. Clean the outside of the device with a damp cloth except for the button and dry with a soft cloth.

Do not use abrasive cleaners. Make sure that the appliance has been dried thoroughly before proceeding again with normal use.

Clean the key with a soft, dry cloth. Do not use highly volatile and highly corrosive liquids (such as petrol, thinners, etc.) to clean the lamp, otherwise the aluminum of the lamp could change color or be damaged. To use this product safely and efficiently, clean and inspect it regularly. (Recommended once every six months).

PROBLEMS AND SOLUTIONS

If the LEDs do not light up, check that the battery is charged, if necessary, connect to the power supply through USB socket to recharge the battery. If the problem persists, contact customer support.

RATING LABEL

Innoliving Spa

Via Merloni 2/B - 60131 Ancona - Italy

INN-292B LAMPADA LED BIANCA DA TAVOLO TABLE WHITE LED LAMP

5V---2A 2,5W - Flusso luminoso: 150 lm

Temperatura di colore: 3000K-4000K-6500K

INN-292W LAMPADA LED BIANCA DA TAVOLO TABLE WHITE LED LAMP

5V---2A 2,5W - Flusso luminoso: 150 lm

Temperatura di colore: 3000K-4000K-6500K

This product complies with all the applicable European regulations

Class III insulated electrical appliance

The batteries used in this device cannot be removed by user and must be disposed of in the special bins at the end of their life. Please inform yourself about the local rules on separate collection of batteries. The correct disposal

of batteries helps preventing potentially negative consequences on the environment. Voltage and capacity of the lithium battery included: 3.7V 2000mAh

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.

innoliving easy tech. easy life

Innoliving Spa Via Merloni, 2/B 60131 Ancona Italy Tel [phone] www.innoliving.it

MADE IN CHINA

CE

Rev.00_07.2023
