AR2022 - Toaster Arzum - Free user manual and instructions

Product Type	Toaster
Brand	Arzum
Model	AR2022
Dimensions (W x D x H)	28 x 18 x 20 cm
Weight	1.2 kg
Power Consumption	900 W
Voltage / Frequency	220-240 V ~ 50/60 Hz
Material	Stainless steel and ABS plastic
Number of Slots	2
Functions	Toast, Defrost, Reheat, Cancel
Browning Levels	7
Auto-Centering	Yes
Removable Crumb Tray	Yes
Cord Length	0.8 m
Safety Features	Auto shut-off, cool-touch housing
Cleaning Instructions	Wipe exterior with damp cloth; empty crumb tray regularly
Repairability	Spare parts available via Arzum authorized service
Warranty	2 years
Certifications	CE, RoHS
Color Options	White, Black, Silver

Frequently Asked Questions - AR2022 Arzum

How do I adjust the browning level on my Arzum AR2022 toaster?

Turn the browning control knob to your desired level (1 for light, 7 for dark). Toasting will automatically adjust time accordingly.

Can I use the toaster to defrost frozen bread?

Yes, press the Defrost button after setting the browning level. The toaster will extend the toasting time to thaw and toast frozen bread.

How do I clean the crumb tray of the AR2022?

Unplug the toaster and let it cool. Slide out the crumb tray from the bottom, empty crumbs, wash with warm soapy water, dry thoroughly, and reinsert.

What should I do if the toast gets stuck in the toaster?

Unplug the toaster and allow it to cool. Use the Cancel button to stop toasting, then gently remove the bread with tongs. Do not use metal utensils.

Can I toast bagels in this toaster?

Yes, place the bagel cut side facing the center and use the Bagel function (if available) or lower browning setting. The AR2022 may have a dedicated bagel slot or setting.

How does the auto shut-off feature work?

The toaster automatically shuts off when the toasting cycle completes or if the lever is not pressed down. The cancel button also stops heating immediately.

What is the recommended bread thickness for the AR2022?

The toaster can accommodate standard bread slices up to about 3 cm thick. Thicker slices may require a lower browning setting to avoid burning.

Why does my toaster produce smoke on first use?

New toasters may emit a slight odor or smoke due to manufacturing residues. Run a few toasting cycles without bread to burn off any residue before regular use.

Can I replace the power cord if damaged?

The power cord should only be replaced by an Arzum authorized service center to ensure safety. Contact Arzum support for assistance.

Is the toaster suitable for use in countries with 110V?

No, the AR2022 is designed for 220-240V only. Using it in a 110V outlet will not work properly and may damage the appliance. Use a voltage converter if necessary.

USER MANUAL AR2022 Arzum

Black rectangular electronic device with a central knob and metallic base (no visible text or symbols)

METALIUM AR 2022 IZGARA VE TOST MAKİNESİ

Circular cropped image showing a textured surface with a numbered label (6) above it, no readable text or symbols present.

Close-up of a black electronic device with a circular inset showing its top view (no visible text or symbols)

Simple icon of an integrated circuit chip inside a circle, with a numbered label (8) above it.

Close-up of a metallic circular object with a handle, possibly a pot or fan (no visible text or symbols)

ISI AYARI

Close-up of a metallic circular object with radial grooves, possibly a knob or dial (no text or symbols visible)

Close-up of a grater with two side dishes on a metal grater (no text or symbols visible)

Grilled grater with cutlery and meat pieces on a grater (no text or symbols visible)

Tek Taraflı Izgara

Grilled grill with cutlery and meat pieces on a grater (no text or symbols visible)

NOT:

Close-up of a mechanical component with a black clip and mounting bracket (no visible text or symbols)

Kullanım ömrü 7 yıl

TEKNİK ÖZELLİKLER

220-240 V \~ 50 Hz

2000 W

TAŞIMA VE NAKLİYE SIRASINDA DİKKAT EDİLECEK HUSUSLAR

The Ind. Park (N) of Zhouxiang, 315324 Cixi, Ningbo, Zhejiang prov., P. R. China

Tel: [phone] Fax : [phone]

İthalatçı:

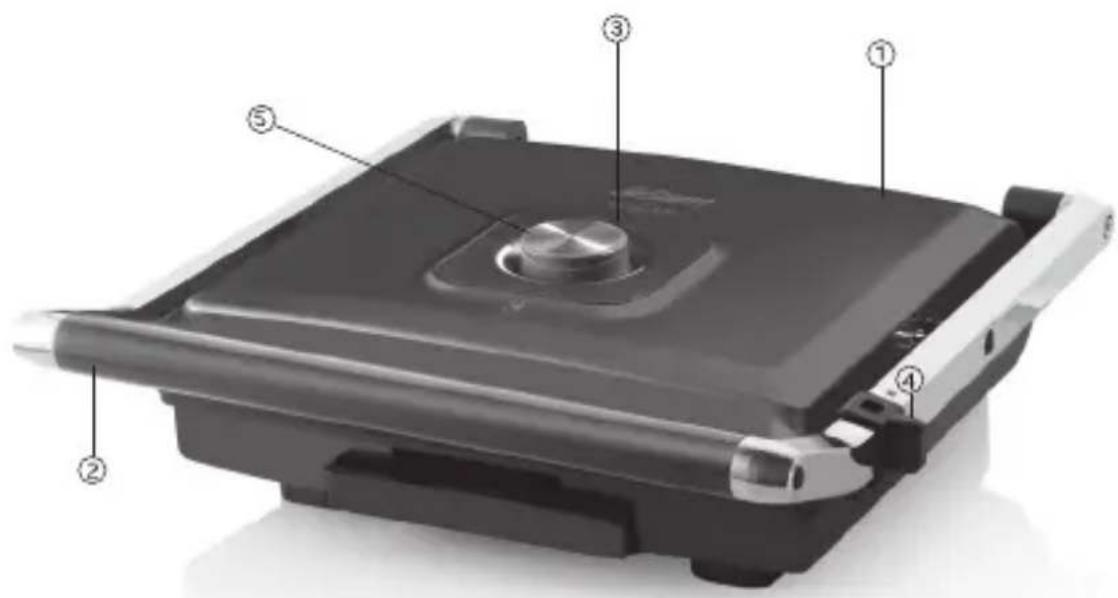

1- 90° rotational top body
2- Cool-touch handle
3- Temperature (ready) indicator light (green) and energy (power/warm up) indicator light (red)

4- Security latch
5- Adjustable temperature button
6- Non-stick cooking plates
7- Oil tray
8- Spatula

Thank you for purchasing Arzum brand Grill and Sandwich Maker. We wish this product to make life easier for you, as with other Arzum products offered to you.

In order to obtain utmost output from your appliance, please read carefully this user's manual and save it for further use.

IMPORTANT SAFEGUARDS

- Make sure that the voltage indicated on the Arzum Metalium Grill and Sandwich Maker corresponds with the mains voltage in your home. Our company shall not be held liable for any failures owing to any discrepancy and such failures shall not be covered by the guarantee.

- Your device is for household use only. Do not use outdoors for commercial or industrial purposes.

- To prevent harming your appliance do not use extension cords that supply insufficient current.

- Keep the appliance away from and out of the reach of children.

- This appliance can be used by childrenaged from 8 years and above persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• NEVER place the Arzum Metalium Grill and Sandwich Maker over or near direct heat sources such as a stove or heating oven.
• Do not let cord hang over edge of a table or counter, or touch any other appliances or hot surfaces.
• Place the unit on a flat and fixed surface, which would be resistant to heat.
  · After having used, remove the mains plug from the wall socket and allow it to cool down; move only after it has completely cooled down.
• When not in use and before cleaning, disconnect the mains plug from power outlet.
• NEVER immerse the appliance into water for cleaning or any other purposes; do not let any water / water steam leak into the unit.
• Do not touch metal parts when in use.
• Avoid actions that may harm or damage the cord or plug of your device. To unplug the appliance, first hold the plug and NEVER pull by the cord.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner, such as by dropping down, etc. Do not attempt to repair it by yourself. Immediately contact a Arzum Authorized Service.
• Use your appliance as recommended.

SUGGESTIONS OF USE

• You can use your Arzum Metalium Grill and Sandwich Maker for various purposes such as warming and cooking foods, grilling, making sandwiches, and toasting.
• Owing to its adjustable temperature setting button and pilot light, this unit operates safely, prevents overheating, and keeps the cooking surface at constant temperature selected, ensuring the proper cooking on time.
• Wipe the non-stick cooking plates of your appliance with a damp cloth and dry with a dry one.
  · We recommend you to oil the surfaces slightly, before using for the first time.
• Connect the mains plug to the power outlet and set the variable temperature button to the maximum level. You may notice a slight smoke or odor. This is normal and will not recur after a while.

Note:

Ensure that the cord is kept away from the cooking plates when in use.

Warm Up and Ready Lights

- Warm up light indicates when the grill / sandwich maker is switched on and heating and the ready light indicates that it is ready to use.

Close-up of a metallic circular object with radial grooves, possibly a fan or knob (no visible text or symbols)

Setting Temperature

- Your turning the temperature setting stages so that they will stand against the temperature indication, according to the process to be made, would be sufficient for you to set the temperature range.

Close-up of a metallic cylindrical object with radial grooves, possibly a knob or dial (no text or symbols visible)

Using Your Grill and Sandwich Maker:

• Connect the mains plug to the power outlet.
• Preheat the appliance until the pilot light (temperature light / green light) goes on.
• You can use your device with the upper cover opened or closed.

- When you have finished cooking unplug the appliance from the power outlet and allow the unit to cool down before cleaning.

Note: Ensure that the cord is kept well from the cooking plates when in use.

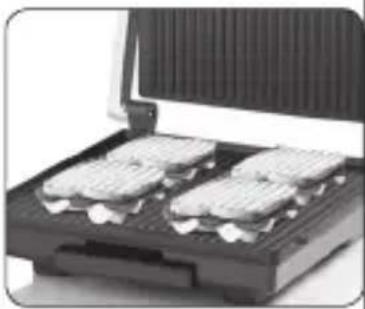

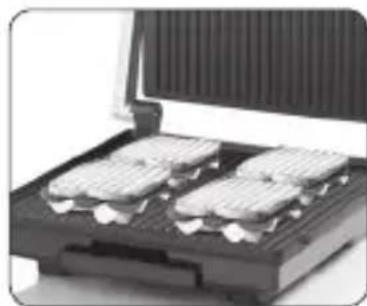

COOKING FUNCTIONS Use as a Sandwich maker

- Connect the mains plug to the power outlet and preheat until the ready light (green light) illuminates before use.

· Always butter the outside of the bread. The sandwich filling will be placed between the unbuttered sides of the bread.

- Place the buttered side of the bread onto the cooking plate, then spoon the recommended quantity of filling onto the bread. Place the top slice of bread on top of the filling with the buttered side facing upwards. Gently close the top plate. The flating hinge system will adjust automatically ensuring that the top cooking plate lies evenly on your sandwiches, for perfect toasting every time.

- The length of cooking time depends on the case, filling and personal taste. Your sandwich maker cooks on both sides at a time.

- It is not necessary to butter the outsides of all breads as the sandwich maker/grill has non-stick cooking plates.

- The cooking plates are coated with durable non-stick coating. Some filing such as cheese may melt and cause the sandwich to stick to the cooking plates. To free the sandwich, use a plastic spatula or wooden spoon. Never use a sharp or metal object, as this will damage the nonstick surface.

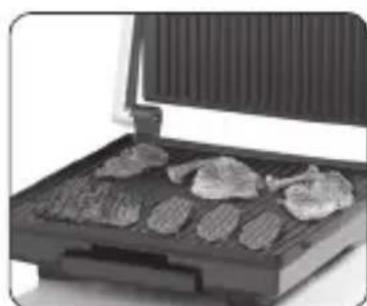

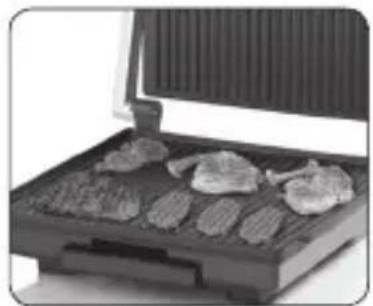

Use as a Grill

- Preheat the unit. When the pilot light (temperature light / green light) goes on, open the lid carefully by "cool-touch handle",

- Place the foods to be cooked on the bottom of cooking plate carefully,

- Close the upper cover and allow food to cook for desired time. The power light will go on

Close-up of a grating machine with two side dishes (no visible text or symbols)

Grilled grill with cutlery and meat pieces on a grater (no text or symbols visible)

indication that the foods are heating.

• You can grill with the upper cover opened, without causing it to touch the upper surface.
• Turn and remove the foods on the cooking plate using a wooden spatula.
• If desired, turn the foods during cooking in order to make upper and bottom of the foods marked with grilling traces.
  · After the desired amount of time, the food should be done.
• Remove the food using plastic or wooden utensils to avoid damaging the non-stick coating. Never use metal tongs, forks or knife as these can damage the

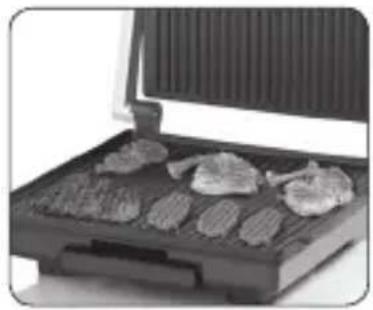

One-Sided Grill

• Connect the mains plug to the power outlet and preheat until the ready light (green light) illuminates before use.
• Place the foods to be cooked in the lower cooking surface.
• Pull the upper cover in the upright position, and open by 90°.
• Grilling may be done with your appliance's upper cover opened and not touching the upper cover.
• Turn and collect the foods in the plate using a wooden spatula.

Grilled grill with six cutlery pieces on a grater (no text or symbols visible)

NOTE:

The warm up (energy) and ready (temperature) lights are thermostatically controlled and will cycle on and off during cooking to ensure that the correct temperature is maintained.

WARNING:

1- Do not touch the outsides of the top sandwich maker/grill, when in use. Ensure you use the handle to open the top grill plate. Avoid touching hot surfaces. This sandwich maker/grill may generate steam from between the grill plates while food is cooking and when the top plate is opened. Take care when removing food from the grill.
2- Remove the food using plastic or wooden utensils to avoid damaging the nonstick coating. Never use metal tongs, forks or knife as these can damage the coating.

CLEANING & CARE

• Before cleaning and care, unplug the appliance from the wall socket and allow it to cool down.
• After each use, wipe cooking plates to protect the cooking surfaces coated with the non-stick material.
• You can wipe the cooking plates with a damp cloth after they cool down.
• Do not use abrasive materials such as metal brush or steel wool as this will scratch the non-stick coating.
  · NEVER immerse the appliance into water or other liquids.
  · Wipe the outer surface of the unit with a soft cloth and wipe dry it.

NEVER use hard and abrasive cleaning agents.

- You can store your Arzum Metalium Grill and Sandwich Maker in the upright position, as the upper and bottom sides will be locked when you close the security latch located on the right side of the metal handle.

Close-up of a mechanical component with a black clip and mounting bracket (no visible text or symbols)

Product life 7 years Technical Specifications 220-240 V \~ 50 Hz 2000 W

HANDLING AND SHIPMENT

• During handling and shipment, your appliance must be kept in original package in order to prevent damages to its parts.
• Keep at normal position during shipment.
• Do not drop the product when transporting and protect from impacts.
  • After delivery of the product, failures and damages that may occur while transporting are not covered by warranty.

The product is in compliance with the WEEE Directives. WEEE

This product contains recyclable materials that compliance with the WEEE directives. Do not dispose this product as unsorted municipal waste. Please contact your local municipality for the nearest collection point.

Manufacturer:

Ningbo Kaibo Group Co., Ltd.

The Ind. Park (N) of Zhouxiang, 315324 Cixi, Ningbo, Zhejiang prov., P. R. China

Tel: [phone] Fax : [phone]

Importer:

Close-up of a metallic circular object with radial grooves, possibly a fan or knob (no visible text or symbols)

Close-up of a metallic circular knob or dial with radial patterns (no text or symbols visible)

Close-up of a grating machine with four rectangular food items on a tray (no visible text or symbols)

Grilled grater on a grater with cutlery, no visible text or symbols

Einseitiger Grill

Grilled grill with six cutlery pieces on a grater (no text or symbols visible)

BEMERKUNG:

Close-up of a mechanical component with a black clip and mounting bracket (no visible text or symbols)
