Altro AR 2014 - Toaster Arzum - Free user manual and instructions

Product Type	Toaster
Model	Altro AR 2014
Brand	Arzum
Power Consumption	900 W
Voltage / Frequency	220-240 V ~ 50 Hz
Temperature Settings	8 levels
Defrost Function	Yes, extends toasting time for frozen bread
Reheat Function	Yes, heats bread for 30 seconds regardless of temperature setting
Cancel Button	Yes, stops toasting and ejects bread
Crumb Tray	Removable, located at the bottom
Exterior Material	Heat-insulated decorative metal coating
Automatic Ejection	Yes, bread ejects automatically when toast level is reached
Safety Features	Heat-insulated body, cancel button for immediate stop, do not immerse in water
Cleaning	Wipe exterior with damp cloth; empty crumb tray regularly
Product Life	7 years
Manufacturer	Ningbo Kaibo Group Co., Ltd, China

Frequently Asked Questions - Altro AR 2014 Arzum

How do I use the defrost function?

Press the Defrost button after lowering the bread. This extends the toasting time to properly toast frozen bread. The defrost time depends on the selected heating level.

How do I clean the crumb tray?

Unplug the toaster and let it cool. Pull out the crumbs tray located at the bottom, empty it over a garbage can, wipe with a damp cloth, and slide it back into place.

What should I do if bread gets stuck in the toaster?

Unplug the appliance and allow it to cool down completely. Use a non-metal tool, such as a wooden spatula, to gently dislodge the bread. Never use a fork or sharp object as it may damage the heating elements or cause injury.

Can I toast frozen bread directly?

Yes, use the Defrost function by pressing the Defrost button after placing the frozen bread in the toaster. This adjusts the toasting cycle to ensure the bread is properly thawed and toasted.

How do I adjust the toasting level?

Turn the temperature adjustment knob to one of 8 levels, from light to dark. Choose a lower number for lightly toasted bread and a higher number for darker, crunchier toast.

Is it safe to leave the toaster unattended?

No, never leave the toaster unattended while in use. The appliance automatically ejects the bread when the set toasting level is reached, but you should always stay nearby to monitor operation.

What is the power rating of the Arzum Altro AR 2014?

The toaster operates at 900 Watts and requires a power supply of 220-240 V ~ 50 Hz.

How do I reheat already toasted bread?

Place the bread in the toaster and press the Reheat button. The toaster will heat the bread for 30 seconds regardless of the temperature setting, effectively warming it without further toasting.

What does the Cancel button do?

Pressing the Cancel button immediately stops the toasting process and releases the bread, causing the carriage to pop up. It is useful if you want to stop toasting before the cycle ends.

Can I use the toaster for foods other than bread?

No, this toaster is designed only for toasting sliced bread. Do not insert oversized slices, foods wrapped in foil, or any utensils, as it creates a risk of fire or electric shock.

USER MANUAL Altro AR 2014 Arzum

Exterior view of a modern silver Arzum ALTRO toaster with handle and control buttons (no text or symbols on body)

ALTRO AR 2014 EKMEK KIZARTMA MAKİNESİ

Close-up of a printer's paper feeding into a plastic clip (no text or symbols visible)

ARZUM ALTRO EKMEK KIZARTMA MAKİNENİZİN ÖZELLİKLERİ

Isı Ayar Düğmesi;

Close-up of a control panel with numbered buttons (1–8) and a central knob, no visible text or symbols beyond numbers.

Close-up of a toaster grater with a rectangular object on top (no visible text or symbols)

Close-up of a rotary switch dial with numbered buttons (1–8) and no visible text or symbols beyond numbers

Close-up of a mechanical component with a vertical arrow and arrow indicating direction (no text or symbols)

Close-up of a printer's paper feeding into a metal holder, with a black arrow indicating the process (no text or symbols visible)

Kullanım ömrü 7 yıl

Teknik Özellikler

220-240 V \~ 50 Hz

900 W

TAŞIMA VE NAKLİYE SIRASINDA DİKKAT EDİLECEK HUSUSLAR

The Northern Industrial Park of Zhouxiang, Cixi, Zhejiang, China

Tel: [phone]

Fax: [phone]

İthalatçı:

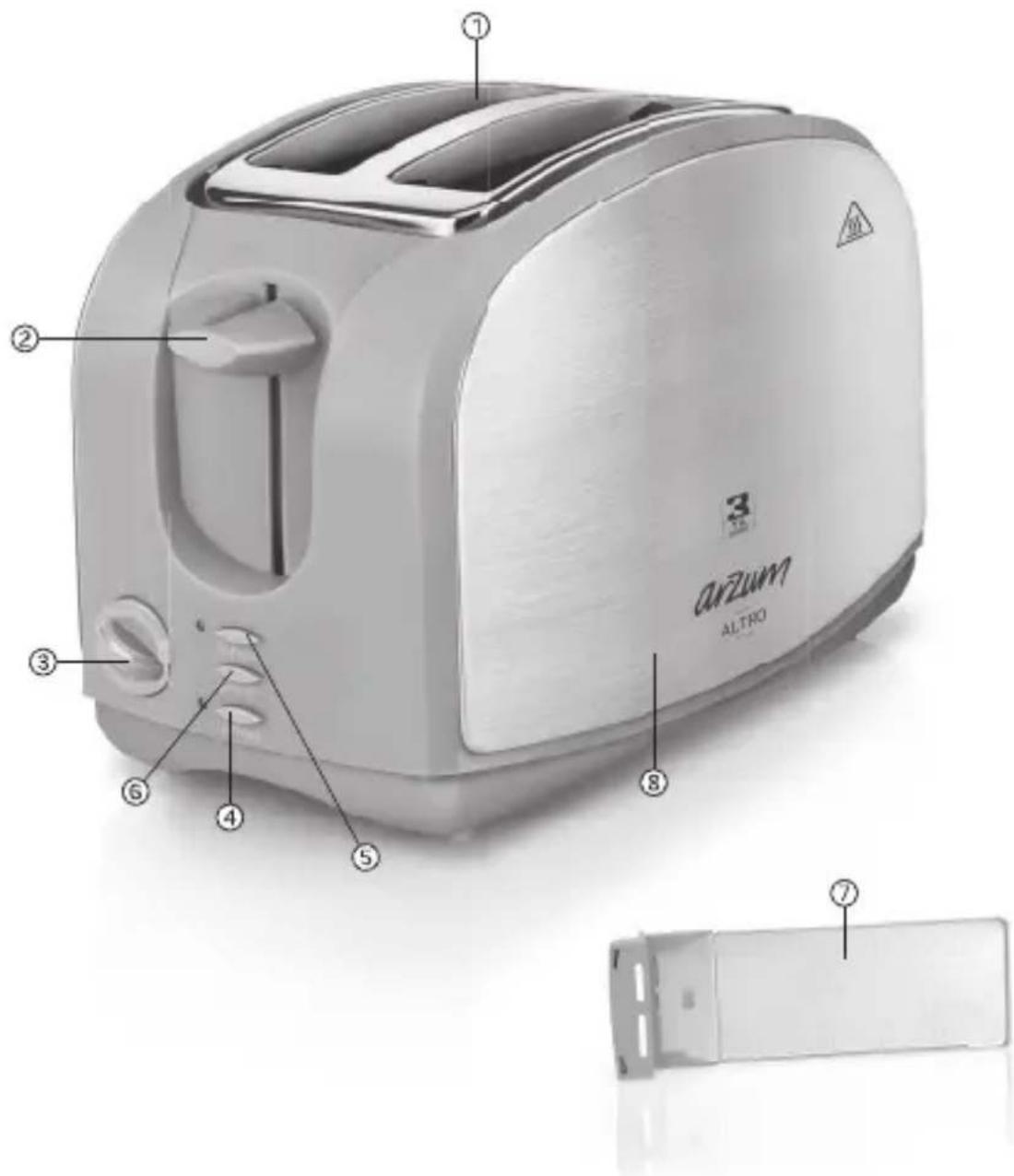

1- Toaster part
2- Operation handle
3-8 level temperature adjustment button
4- Defrost button

5- Reheat button
6- Cancel button
7- Crumbs tray
8- Heat insulated decorative metal coated exterior body

Thank you for purchasing Arzum brand Toaster. We wish this product to make life easier for you, as with other Arzum products do.

In order to obtain utmost output from your appliance, please read carefully this user's manual and save it for further use.

IMPORTANT SAFEGUARDS

• Make sure that the voltage indicated on the Arzum Altro Toaster corresponds with the mains voltage in your home. Our company shall not be held liable for any failures owing to any discrepancy and such failures shall not be covered by the guarantee.

Do not leave the appliance unattended while under operation.

- Your device is for household use only. Do not use outdoors for commercial or industrial purposes. Otherwise, your appliance shall be treated out of the coverage of guarantee.

• To prevent harming your appliance do not use extension cords that supply insufficient current.

- Keep the appliance away from and out of the reach of children.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision of instruction concerning use of the appliance in a safe way and understand the

hazards involved. Children shall not play the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Keep the appliance and its cord out of reach of children less than 8 years.

- Do not place your appliance over or near direct heat sources such as a stove or heating oven.

Do not let cord hang over edge of a table or counter, or touch any other appliances or hot surfaces.

- Place the unit on a flat and fixed surface, which would be resistant to heat.

After having used, remove the mains plug from the wall socket and allow cooling down; move only after it has completely cooled down.

- NEVER immerse the appliance into water for cleaning or any other purposes; do not let any water / water steam leak into the unit

Do not touch metal parts when in use.

- Avoid actions that may harm or damage the cord or plug of your appliance. To unplug the appliance, first hold the plug and NEVER pull by the cord.

Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner, such as by dropping down, etc. Do not attempt to repair it by yourself. Immediately

contact an Arzum Authorized Service.

- If you want to switch the appliance off when in use, first press the cancel button; then disconnect the mains plug from the wall socket.

- NEVER insert oversized bread slices, packages with metal foils, or tools into your unit. It may result in the risk of fire or electric shock.

- When in use, do not cover with such flammable materials as curtains, drapery, wall-paper, and similar materials, nor let them contact with the appliance.

Do not forget to empty the crumbs tray in particular intervals.

- Remove the mains plug

- If a bread slice is left inside of the appliance,

- If the unit malfunctions,

- After each use, and

- Before cleaning and care

• Use your appliance as recommended. Do not use your unit for any purpose other than its intended use.

Close-up of a metallic mechanical component with a clamped part inserted (no visible text or symbols)

PROPERTIES OF THE ARZUM ALTRO TOASTER

Adjustable Temperature Button;

- Your unit has a temperature setting with 8 levels. You can have warming, slightly, medium toasted, middle toasted or highly toasted bread.

Close-up of a circular industrial control knob with numbered slots (1-9) and mounting holes, no visible text or symbols beyond numbers.

Defrost Button;

- If the bread is just taken from the refrigerator, push the Defrost button in order to deice, extending the toaster time.

NOTE: Defrost time length depends on heating level. It takes longer to toast a frozen bread than a thawed bread.

Reheat Button;

- If you want to reheat your bread you can press the Reheat button. This will heat the bread for 30 seconds only, disregarding the adjustable temperature button in any step.

Cancel Button;

- To stop toaster when the unit is on, push the Cancel button and let the bread be ejected from the unit.

USING THE APPLIANCE

• Remove labels on the product if any and clean the body of the appliance by wiping with a damp cloth.
• Place sliced bread in toast compartment.
• Move temperature adjustment knob to desired position and plug in the appliance. After that, push the operation lever down till it locks in its socket.

Close-up of a toaster grater with a piece of food being heated (no visible text or symbols)

Close-up of a circular industrial control knob with numbered segments (no text or symbols visible)

Close-up of a mechanical component with a vertical arrow and arrow indicating direction (no text or symbols)

Thus the bread will be seated in the lower part and toasting will automatically initiate.
- When the selected temperature is reached the slices of bread will be ejected automatically.
- If you want to stop toaster beforehand, push the Cancel button. Thus the operating handle moves up automatically and the toasting process stops. Do not stop your appliance by unplugging from the outlet.
To ensure equal toasting of both sides of the bread, cut it into slices evenly.

NOTE

It is recommended to operate the device in a ventilated room without bread slices in the highest toasting level in the first use. This process will clean the dust that might have accumulated on heating elements and prevent the bad smell that might result during toasting.

If a slice of bread is left inside;

- Disconnect the mains plug from wall socket and allow the unit to cool down, and then remove the jammed bread using non-metal tools.

NOTE

NEVER use a fork or sharp-edged tool to release the jammed bread, as these may cause damage or injuries.

The toasting degree of your bread may vary according to the intensity of the dough and humidity rate of the bread. Change the temperature adjustment of your appliance and then adjust the desired toasting degree again.

Care and Cleaning

Before starting cleaning, turn the appliance off and disconnect the mains plug from power outlet and allow it to cool down.
- Wipe the outside of the appliance with a clean and damp cloth. NEVER use abrasive cleansers.
- NEVER immerse the unit, its cord and plug in water or other liquids.

• To remove the crumbs, pull and take out the crumbs tray located in the lower part of the appliance. We recommend you to make this process over a garbage can.

- Wipe the crumbs tray with a clean and damp cloth, and then slide it onto its place.

Close-up of a printer's paper being inserted with a black arrow indicating the paper's direction (no text or symbols visible)

Product life 7 years Technical Specifications 220-240 V \~ 50 Hz 900 W

HANDLING AND SHIPMENT

• During handling and shipment, your appliance must be kept in original package in order to prevent damages to its parts.
• Keep at normal position during shipment.
• Do not drop the product when transporting and protect from impacts.
  • After delivery of the product, failures and damages that may occur while transporting are not covered by warranty.

The product is in compliance with the EEE Directives. WEEE

This product contains recyclable materials that compliance with the WEEE directives. Do not dispose this product as unsorted municipal waste. Please contact your local municipality for the nearest collection point.

Manufacturer: NINGBO KAIBO GROUP CO.,LTD

The Northern Industrial Park of Zhouxiang, Cixi, Zhejiang, China

Tel: [phone]

Fax: [phone]

Importer:

Close-up of a metallic mechanical component with a clamped part inserted (no visible text or symbols)

DIE EIGENSCHAFTEN IHRES ARZUM ALTRO TOASTERS

Close-up of a circular industrial control knob with numbered slots (1-9) and mounting holes (no text or symbols visible)

Die Defrost-Taste;

Close-up of a toaster grater with a single rectangular object on top (no visible text or symbols)

Close-up of a circular industrial control knob with numbered segments (no text or symbols visible)

Close-up of a mechanical component with a vertical arrow and arrow indicating direction (no text or symbols)

Close-up of a printer's paper being inserted with a black arrow indicating the process (no text or symbols visible)

The Northern Industrial Park of Zhouxiang, Cixi, Zhejiang, China

Tel: [phone] Fax: [phone]

Importeur:

Close-up of a printer's internal structure, showing paper feeding into a plastic sheet (no text or symbols visible)

Close-up of a control knob with numbered dial (no visible text or symbols)

زر عيار الحرارة:

Close-up of a toaster grater with two pieces of bread on top (no text or symbols visible)

Close-up of a circular industrial control knob with numbered segments (1–8) pointing to the knob area (no text or symbols beyond labels)

Close-up of a mechanical component with a vertical line and arrow indicating direction (no text or symbols)

Close-up of a printer's paper feeding into a plastic cover with an arrow indicating the process (no text or symbols visible)

The Northern Industrial Park of Zhouxiang, Cixi, Zhejiang, China

Tel: [phone]

Fax: [phone]

المتج:
