Product Type	Freezer with No-Frost technology
Model	Vestfrost VF 11186 X NoFrost
Overall Dimensions (H x W x D)	1860 x 595 x 650 mm
Space Required in Use (H x W x D)	2010 x 695 x 752.5 mm
Power Supply	220-240 V, 50 Hz
Refrigerant	R600a (environmentally friendly, flammable)
Climate Class	T / SN (10°C - 43°C)
Freezer Temperature Range	-16°C to -24°C (adjustable)
Key Features	No-Frost, Super Freeze mode, Economy mode, Screen Saver mode, Child Lock, Door Open Alarm
Freezing Capacity (max in 24h)	As indicated on appliance label (varies by model)
Accessories	Ice tray
Defrosting	Automatic (No-Frost)
Cleaning	Clean condenser brush twice a year; interior with bicarbonate solution
Safety Warnings	Keep ventilation clear; do not damage refrigerant circuit; use grounded socket; keep away from open flames if R600a leak
Spare Parts Availability	Original spare parts available for at least 7-10 years (depending on component)
Door Reversibility	Not reversible if handles are installed; contact service for models without handles
Energy Saving Tips	Install in cool room, avoid direct sunlight, keep doors closed, cover liquids
Noise Level	Normal compressor, fan, and defrosting noises; cracking, bubbling, air blowing
Warranty	Consumer rights apply; manufacturer not liable for commercial use

Frequently Asked Questions - VF 11186 X NoFrost VESTFROST

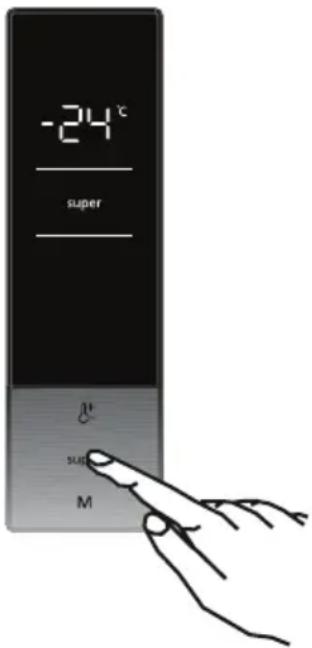

How do I activate Super Freeze mode on my Vestfrost VF 11186 X NoFrost freezer?

Press the Super Freeze button on the control panel. If no button is pressed for 1 second, the mode activates and the super freeze symbol appears. It automatically cancels after 54 hours.

What does the Economy mode do and how do I turn it on?

Economy mode saves energy by optimizing temperature during low usage (e.g., holidays). Press and hold the Mode button until the Economy symbol appears. The freezer segments will show 'E'. Cancel by pressing the same button again.

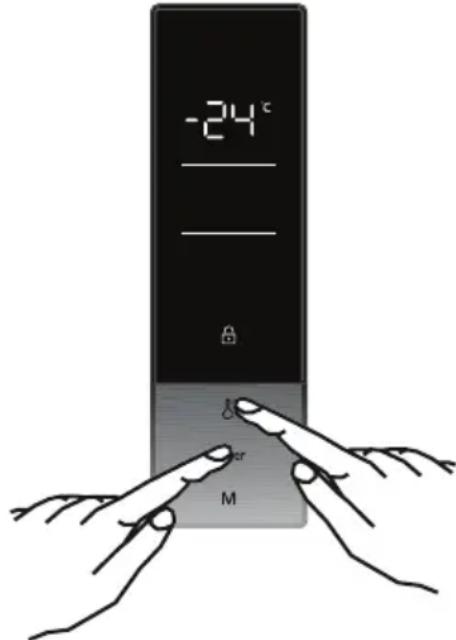

How do I set the child lock on my freezer?

Press and hold the Super and Freezer Temperature Setting buttons simultaneously for 5 seconds. The lock symbol appears on the display. Repeat to deactivate.

Why does the door open alarm sound and how do I stop it?

If the freezer door is left open for more than 2 minutes, a 'beep beep' alarm sounds. Close the door to stop it. The alarm is a safety feature to prevent temperature rise.

What are the recommended temperature settings for my Vestfrost freezer?

For normal use, set between -17°C and -21°C. For maximum freezing, use -22°C to -24°C. For minimum freezing, -16°C is sufficient.

How do I defrost the freezer if it has No-Frost technology?

Your freezer has automatic defrosting. Water from defrosting flows through a spout to an evaporation container behind the appliance and evaporates. Clean the container periodically with soapy water to prevent odours.

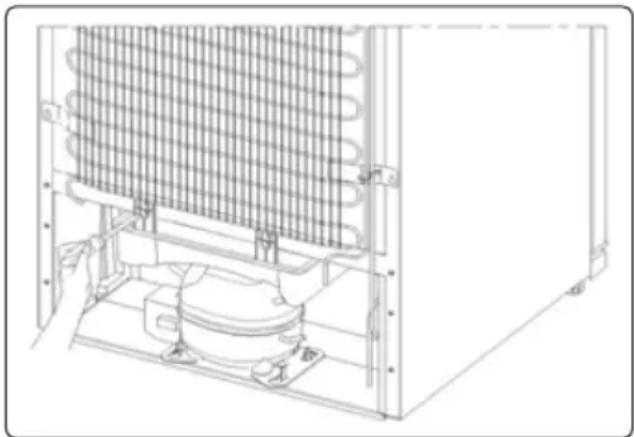

How should I clean the condenser to maintain efficiency?

Clean the condenser with a brush at least twice a year. This helps save energy and improves performance. Always disconnect the power before cleaning.

Why does my freezer make a cracking or bubbling noise?

Cracking noises occur during automatic defrosting or when materials expand/contract. Bubbling is from refrigerant flow. These are normal sounds. Air blowing noise is from the No-Frost fan.

What should I do after a power failure?

The compressor has a 5-minute delay to restart. If the freezer is not cold enough, set a colder temperature or activate Super Freeze. Remove thawed products and do not add fresh food until the correct temperature is restored.

What is the minimum clearance required for installation?

Ensure at least 5 cm clearance at the top and rear. Keep at least 50 cm away from stoves or heaters, and 5 cm from electrical ovens. The distance to the back wall must be a maximum of 75 mm.

USER MANUAL VF 11186 X NoFrost VESTFROST

Simple line drawing of a door with a vertical slot on the left side (no text or symbols)

VF 11186 NoFrost

VF 11186 X NoFrost

DA B	RAND Advarsel; Risiko for brand / brændbare materialer
EN FI	IRE Warning; Risk of fire / flammable materials
SE B	RAND Varning! Brandfara / brandfarligt material
FI TULIPALO Varoitus; Tulipalon / Syttyvien materiaalien vaara
NO BRANN Advarsel: Risiko for brann / brennbare materialer

INDHOLD

1 SIKKERHEDSINSTRUKTIONER 4

1.1 Generelle sikkerhedsadvarsler 4
1.2 Installationsadvarsler....8
1.3 Under brug....8

2 BESKRIVELSE AF APPARATET 10

2.1 Mål....11

3 BRUGSOPLYSNINGER....12

3.1 Oplysninger om No-Frost-teknologi....12
3.2 Display og betjeningspanel....12
3.3 Betjening af fryseren....13
3.3.1 Tilstanden superfrys 13
3.3.2 ∅konomitilstand....13
3.3.3 Pauseskærm 14
3.3.4 Aktivering af børnesikringen 14
3.3.5 Indstilling af fryserens temperatur 15
3.3.6 Åben dør-alarm....15
3.4 Advarsel om temperaturjustering....15
3.5 Tilbehør....15
3.5.1 Isterningbakke 15

4 GUIDE TIL OPBEVARING AF MADVARER....16

5 RENG∅RING OG VEDLIGEHOLDELSE 19

5.1 Afrimning....19

6 TRANSPORT OG FLYTNING 20

-bed & breakfast-lignende miljøer;

-catering og lignende anvendelsesområder uden for detailhandlen.

1.2 Installationsadvarsler

Diagram of two coiled heat exchangers with heat transfer arrows (no text or labels)

Technical line drawing of a door frame with two horizontal bars and a handle (no text or symbols)

Technical diagram of a vertical mechanical or electrical component with curved arrows indicating rotational flow (no text or symbols present)

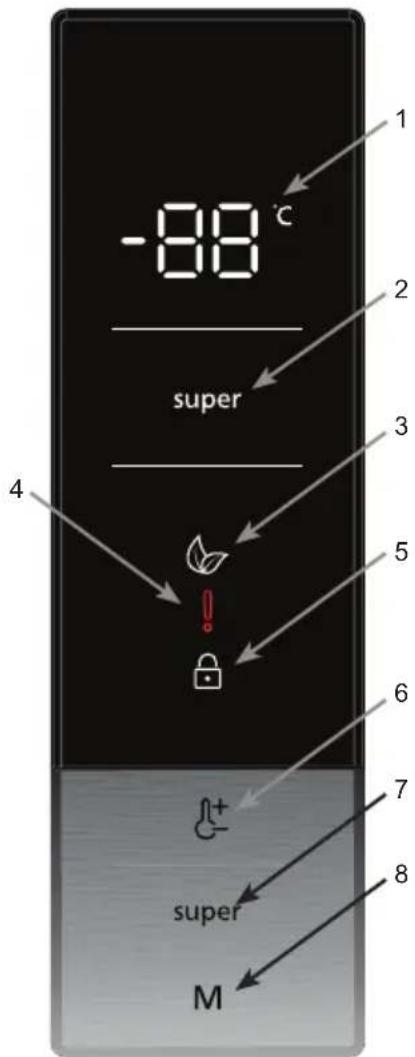

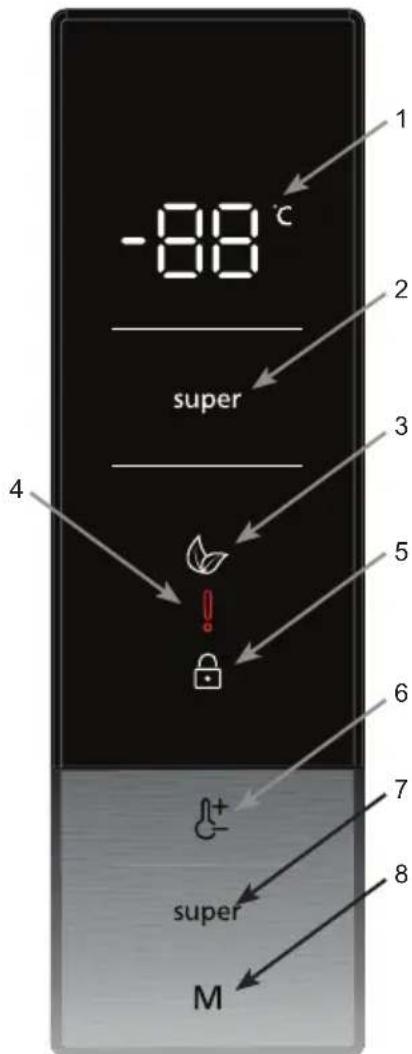

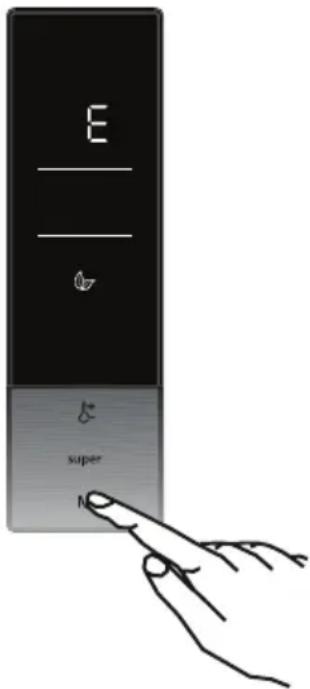

3.2 Display og betjeningspanel

Illustration showing three different hand positions: a keyboard, a grid-patterned rectangle, and a hand holding a cross (no text or symbols)

4 GUIDE TIL OPBEVARING AF MADVARER

Technical line drawing of a refrigerated industrial machine with cooling panel and cooling unit (no text or symbols)

1 SAFETY INSTRUCTIONS ...... 26

1.1 General Safety Warnings ......26
1.2 Installation warnings....30
1.3 During Usage....30

2 DESCRIPTION OF THE APPLIANCE 32

2.1 Dimensions....33

3 USING THE APPLIANCE .... 34

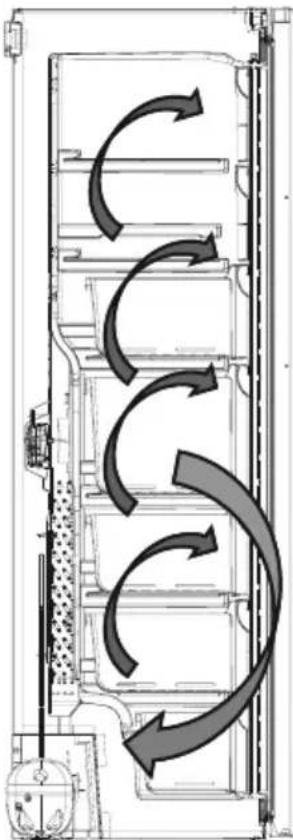

3.1 Information on No-Frost technology .... 34
3.2 Display and Control Panel....34
3.3 Operating Your Freezer 34
3.3.1 Super Freeze Mode....35
3.3.2 Economy Mode....35
3.3.3 Screen Saver Mode....35
3.3.4 The Child Lock Function....36
3.4 Temperature Settings .... 36
3.4.1 Freezer Temperature Settings....36
3.4.2 Door Open Alarm Function....36
3.5 Temperature Adjustment Warnings....37
3.6 Accessories .... 37

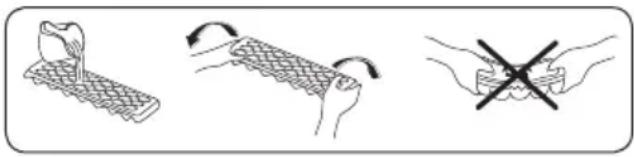

3.6.1 Ice Tray....37

4 FOOD STORAGE 38

5 CLEANING AND MAINTENANCE 41

5.1 Defrosting 42

6 SHIPMENT AND REPOSITIONING....42

6.1 Transportation and Changing Positioning 42

6.2 Repositioning the Door....42

7 BEFORE CALLING AFTER-SALES SERVICE....43

8 TIPS FOR SAVING ENERGY 45

9 TECHNICAL DATA 45

10 INFORMATION FOR TEST INSTITUTES......46

11 CUSTOMER CARE AND SERVICE....46

1 SAFETY INSTRUCTIONS

1.1 General Safety Warnings

Read this user manual carefully.

⚠ WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
⚠ WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
⚠ WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
⚠ WARNING: Do not damage the refrigerant circuit.
⚠ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
⚠ WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
⚠ WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the instructions.
⚠️ If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and

natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to be used in household and domestic applications such as:

-staff kitchen areas in shops, offices and other working environments.

-farm houses and by clients in hotels, motels and other residential type environments.

-bed and breakfast type environments;

-catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 10 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.
• If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

1.2 Installation warnings

Before using your freezer for the first time, please pay attention to the following points:

• The operating voltage for your freezer is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• Your freezer may have an odour when it is operated for the first time. This is normal and the odour will fade when your freezer starts to cool.
• Before connecting your freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.
• Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend you consult a qualified electrician for assistance.
• The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (the name plate is located on the inside left of the appliance).
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Place your freezer where it will not be exposed to direct sunlight.
• Your freezer must never be used outdoors or exposed to rain.
• Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.
• If your freezer is placed next to a deep freezer, there must be at least 2 cm between them to prevent humidity forming on the outer surface.

• Do not cover the body or top of freezer with lace. This will affect the performance of your freezer.

• Clearance of at least 5 cm is required at the top of your appliance. Do not place anything on top of your appliance.

• Do not place heavy items on the appliance.
• Clean the appliance thoroughly before use (see Cleaning and Maintenance).
• Before using your freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the freezer after cleaning.
• Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This must be done before placing food in the appliance.
  • Install the two plastic distance guides (the

parts on the black vanes -condenser- at the rear) by turning it 90° (as shown in the figure) to prevent the condenser from touching the wall.

- The distance between the appliance and back wall must be a maximum of 75 mm.

Diagram of two coiled heat exchangers with heat transfer arrows (no text or labels)

1.3 During Usage

• Do not connect your freezer to the mains electricity supply using an extension lead.
• Do not use damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• Do not use plug adapter.
• This appliance is designed for use by adults. Do not allow children to play with the appliance or hang off the door.
• Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.
• Do not place glass bottles or cans in your freezer as they will burst when the contents freeze.
• Do not place explosive or flammable material in your freezer.

• When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.

• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after they are removed from the ice-making compartment.

• Do not re-freeze thawed frozen food. This may cause health issues such as food poisoning.

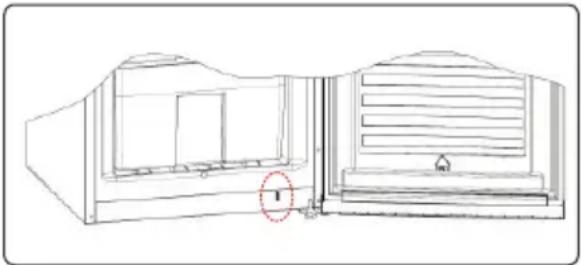

When the door of the freezer is closed, a vacuum seal will form. Wait for 1 minute before reopening it.

This application is optional for easy opening of the door. With this application, a little condensation may occur around this area and you may remove it.

Technical line drawing of a mechanical assembly with internal components and a highlighted section (no text or symbols)

Old and Out-of-order Fridges

• If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

CE Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of your old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be

caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Packaging and the Environment

Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for any losses incurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for any losses incurred by inappropriate usage of the appliance.

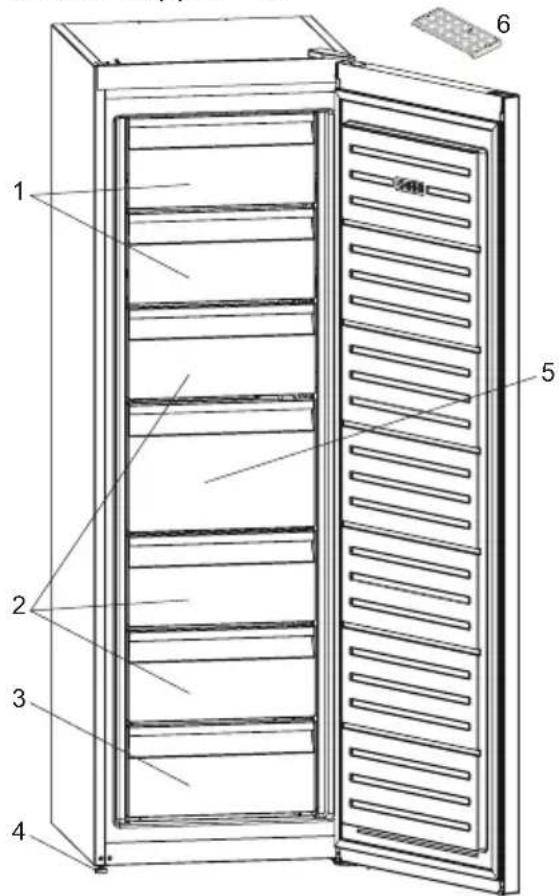

2 DESCRIPTION OF THE APPLIANCE

This appliance is not intended to be used as a built-in appliance.

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1. Freezer flaps
2. Freezer drawers
3. Freezer bottom drawer
4. Levelling feet
5. Freezer big drawer
6. Ice tray

General notes:

Freezer Compartment (Freezer): Most Efficient use of energy is ensured in the configuration with the drawers and bins are on stock position.

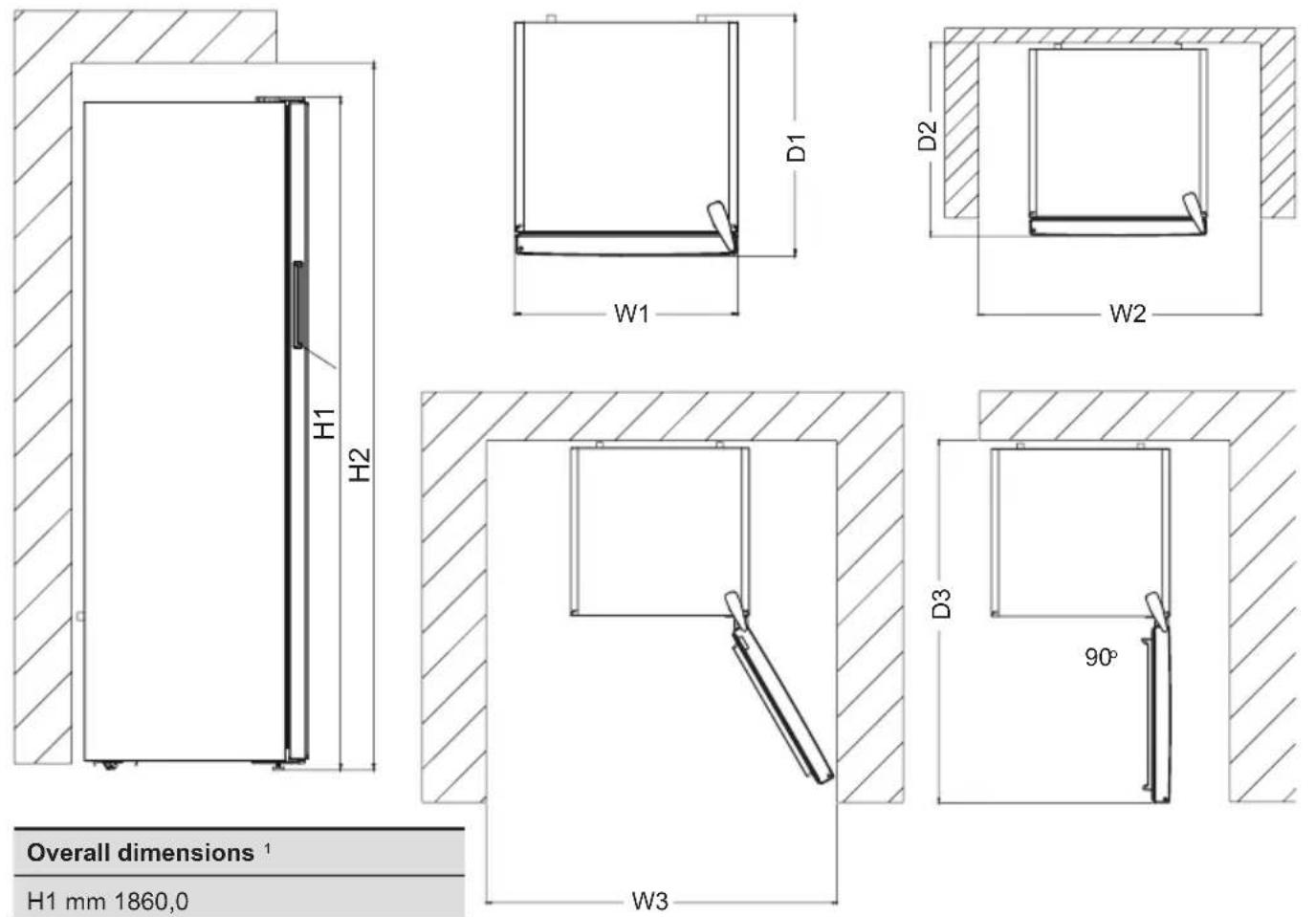

2.1 Dimensions

Overall dimensions1

H1 mm 1860,0

W1 mm 595,0

D1 mm 650,0

1 the height, width and depth of the appliance without the handle.

Space required in use2

H2 mm 2010,0

W2 mm 695,0

D2 mm 752,5

2 the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air.

Overall space required in use3

W3 mm 710,6

D3 mm 1243,5

3 the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air, plus the space necessary to allow door opening to the minimum angle permitting removal of all internal equipment.

3 USING THE APPLIANCE

3.1 Information on No-Frost technology

No-frost freezers differ from other static

freezers in their operating principle. In normal freezers, the humidity entering the freezer due to opening the door and the humidity inherent in the food causes freezing in the freezer compartment. To defrost the frost and ice in the freezer compartment, you are periodically required to turn off the freezer, place the food that needs to be kept frozen in a separately cooled container and remove the ice gathered in the freezer compartment.

The situation is completely different in no-frost freezers. Dry and cold air is blown into the freezer compartment homogeneously and evenly from several points via a blower fan. Cold air dispersed homogeneously and evenly between the shelves cools all of your food equally and uniformly, thus preventing humidity and freezing.

Therefore your no-frost freezer allows you ease of use, in addition to its huge capacity and stylish appearance.

3.2 Display and Control Panel

Using the Control Panel

1. It is freezer set value screen.

2. It is super freeze indicator.

3. It is economy mode symbol.

4. It is alarm symbol.

5. It is child-lock symbol.

6. It enables the setting value of freezer to be modified. Freezer may be set to -16, -17, -18, -19, -20, -21, -22, -23 and -24 °C.

7. It enables the setting super freeze mode.

8. It enables the modes (economy and screen saver...) to be activated if desired.

3.3 Operating Your Freezer

Lighting (If available)

When the product is plugged in for the first time, the interior lights may turn on 1 minute late due to opening tests.

3.3.1 Super Freeze Mode

Purpose

• To freeze a large quantity of food that cannot fit on the fast freeze shelf.
  • To freeze prepared foods.
• To freeze fresh food quickly to retain freshness.

How Would It Be Used?

• Press the super freeze mode button.
• If no button is pressed for 1 second, to activate the super freeze symbol. Buzzer will sound beep beep and mode will be set.
• When this mode is selected, the temperature value that was set before mode selection will be displayed on the freezer temperature indicator.

During This Mode:

• Economy mode cannot be selected.
- You can press the freezer temperature setting button again or press the super button to deactivate super freeze mode.

The maximum amount of fresh food (in kg) that can be frozen in 24 hours is ated on the product label.

For optimum performance that will reach the maximum capacity of

freezer, set the efficient quick freeze mode 24 hours before placing the fresh food.

Super freeze mode will automatically cancel after 54 hours.

3.3.2 Economy Mode

Purpose

Energy savings. During periods of less frequent use (door opening) or absence from home, such as a holiday, Eco program can provide optimum temperature whilst saving power.

How Would It Be Used?

- Press and hold the mode button until Economy mod symbol appears.

- If no button is pressed for 1 second, mode will be set. Eco symbol will blink 3 times. When mode is set, buzzer will sound beep beep.

- Freezer temperature segments will show "E".

• Economy symbol and E will light till mode finishes.

During This Mode:

• Economy mode can be cancelled by the same operation of selecting.
• Super freeze mode can be selected. In this case, economy mode will be cancelled automatically and the selected mode will be activated.

3.3.3 Screen Saver Mode

Purpose

This mode saves energy by switching off all control panel lighting when the panel is left inactive.

How to Use?

- Screen saver mode will be activated automatically after 30 seconds.

- If you press any key while the lighting of the control panel is off, the current machine settings will reappear on the display to let you make any change you wish.

- If you do not cancel the screen saving mode or press any

key for 30 seconds, control panel will remain off.

To deactivate the screen saving mode,

• To cancel the screen saving mode, first of all, you need to press any key to activate the keys and then press and hold the Mode button for 3 seconds.
• To reactivate screen saving mode, press and hold the mode button for 3 seconds.

Notes:

• When screen saver mode is active you can also activate child lock.
• If no button is pressed within 5 seconds after child lock is activated, the lights of the control panel will turn off. You can see latest status of settings or modes after you pres any button. While control panel 's light is on, you can cancel child lock as described in the instruction of this mode.

3.3.4 The Child Lock Function

Purpose

Child lock can be activated to prevent any accidental or unintentional changes being made to the appliance settings.

Activating Child Lock

Press on super and freezer temperature setting buttons simultaneously for 5 seconds.

Deactivating Child Lock

Press on super and freezer temperature setting buttons simultaneously for 5 seconds.

Child lock will also be deactivated if electricity is interrupted or the freezer plugged.

3.4 Temperature Settings

3.4.1 Freezer Temperature Settings

The initial temperature value for the freezer setting indicator is -18^ .

• Press the set freezer temperature set button once.
• When you first push this button, the last set value will blink on the screen.
• Whenever you press this button, a lower temperature will be set (-16, -17, -18, -19, -20, -21, -22, -23 and -24 °C).

- If you continue to press it, it will restart from -16^ .

- The temperature value selected before super freeze mode or economy mode is activated and will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value.

Recommended Temperature Values for Freezer

When to adjust	Inner Temperature
For minimum freezing capacity -16	°C
In normal usage	-17, -18, -19,-20 or -21 °C
For maximum freezing capacity	-22, -23 or-24 °C

3.4.2 Door Open Alarm Function

If freezer door is opened more than 2 minutes, appliance sounds 'beep beep'.

3.5 Temperature Adjustment Warnings

• It is not recommended that you operate your freezer in environments colder than 10^ C in terms of its efficiency.
• Do not start another adjustment while you are already making an adjustment.
• Temperature adjustments should be made according to the frequency of door openings, the quantity of food kept inside the freezer and the ambient temperature in the location of your freezer.
• In order to allow your freezer to reach the operating temperature after being connected to mains, do not open the door frequently or place large quantities of food in the freezer. Please note that, depending on the ambient temperature, it may take 24 hours for your freezer to reach the operating temperature.
• A 5 minute delay function is applied to prevent damage to the compressor of your freezer when connecting or disconnecting to mains, or when an energy breakdown occurs. Your freezer will begin to operate normally after 5 minutes.
• Your appliance is designed to operate in the ambient temperature (T/SN = 10°C - 43°C) intervals stated in the standards, according to the climate class displayed on the information label. We do not recommend operating your appliance out of the stated temperature limits in terms of cooling effectiveness.

Climate class and meaning:

T (tropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C.

ST (subtropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C.

N (temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.

SN (extended temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.

Important installation instructions

This appliance is designed to work in difficult climate conditions (up to 43 degrees C or 110 degrees F) and is powered with ‘Freezer Shield’ technology which ensures that the frozen food in the freezer will not defrost even if the ambient temperature falls as low as -15 °C. So you may then install your appliance in an unheated room without having to worry about frozen food in the freezer being spoilt. When the ambient temperature returns to normal, you may continue using the appliance as usual.

3.6 Accessories

3.6.1 Ice Tray

• Fill the ice tray with water and place in the freezer compartment.
  • After the water has completely frozen, you can twist the tray as shown below to remove the ice cubes.

Illustration showing three different hand positions: a mouse on a keyboard, a hand holding a tray with a black 'X' symbol, and another hand holding a cup (no text or symbols present)

4 FOOD STORAGE

• The freezer is used for storing frozen food, freezing fresh food, and making ice cubes.
• For freezing fresh food; wrap and seal fresh food properly, that is the packaging should be air tight and shouldn't leak. Special freezer bags, aluminum foil polythene bags and plastic containers are ideal.
• Do not store fresh food next to frozen food as it can thaw the frozen food.
• Before freezing fresh food, divide it into portions that can be consumed in one sitting.
• Consume thawed frozen food within a short period of time after defrosting
• Never place warm food in the freezer compartment as it will thaw the frozen food.
• Always follow the manufacturer's instructions on food packaging when storing frozen food. If no information is provided food, should not be stored for more than 3 months from the date of purchase.
• When purchasing frozen food, make sure that it has been stored under appropriate conditions and that the packaging is not damaged.
• Frozen food should be transported in appropriate containers and placed in the freezer as soon as possible.
• Do not purchase frozen food if the packaging shows signs of humidity and abnormal swelling. It is probable that it has been stored at an unsuitable temperature and that the contents have deteriorated.

• The storage life of frozen food depends on the room temperature, the thermostat setting, how often the door is opened, the type of food, and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the packaging and never exceed the maximum storage life indicated.

• The maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.

• To use the maximum capacity of the freezer compartment, use the glass shelves for the upper and middle section, and use the lower basket for the bottom section.
• Use the fast freezing shelf to freeze home cooking (and any other food which needs to be frozen quickly) more quickly because of the freezing shelf's greater freezing power. Fast freezing shelf is the bottom drawer of the freezer compartment.

If you would use maximum freezing capacity of your freezer:

• While freezing fresh foods, the maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.
• For optimum appliance performance to reach maximum freezing capacity, activate Super Freeze (SF) mode 24 hours before placing fresh food into the freezer.
• After placing fresh food into the freezer, 24 hours is generally sufficient for freezing. "Super Freeze" mode will be deactivated automatically in 2-3 days to save energy.

If you would freeze a small amount (up to 3 kg) in your freezer:

• Place your food without touching already frozen food and activate "Fast Freezing" mode. You can put your food next to other frozen food after it is completely frozen (after minimum 24 hours).
• Do not re-freeze frozen food after it has thawed. This may cause health issues, such as food poisoning.
• Allow hot food to completely cool down before placing it in the freezer.
• When buying frozen food ensure that these have been frozen at suitable temperatures and that the packing is intact.

NOTE: If you attempt to open the freezer door immediately after closing it, you will find that it will not open easily. This is normal. Once equilibrium has been reached, the door will open easily.

Important note:

• Never refreeze thawed frozen food.
• The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period of time. Therefore, add small amounts of spices to food to be frozen, or the desired spice should be added after the food has thawed.
• The storage time of food is dependent on the type of oil used. Suitable oils are margarine, calf fat, olive oil and butter. Unsuitable oils are peanut oil and pig fat.
• Food in liquid form should be frozen in plastic cups and other food should be frozen in plastic folios or bags.

The table below is a quick guide to show you the most efficient way to store the major food groups in your freezer compartment.

Meat and fish Preparation		Maximum storage time (months)
Steak Wrap in foil 6 - 8
Lamb meat Wrap in foil 6 - 8
Veal roast Wrap in foil 6 - 8
Veal cubes In small pieces 6 - 8
Lamb cubes In pieces 4 - 8
Minced meat In packaging without using spices 1 - 3
Giblets (pieces) In pieces 1 - 3
Bologna sausage/salami Should be kept packaged even if it has a membrane
Chicken and turkey Wrap in foil 4 - 6
Goose and duck	Wrap in foil 4 - 6
Deer, rabbit, wild boar	In 2.5 kg portions or as fillets	6 - 8
Freshwater fish (Salmon, Carp, Crane, Catfish)	After cleaning the bowels and scales of the fish, wash and dry it. If necessary, remove the tail and head.	2
Lean fish (Bass, Turbot, Flounder)		4
Fatty fishes (Tuna, Mackerel, Bluefish, Anchovy)		2 - 4
Shellfish	Clean and in a bag	4 - 6
Caviar	In its packaging, or in an aluminium or plastic container	2 - 3
Snails	In salty water, or in an aluminium or plastic container 3
NOTE: Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it must not be re-frozen.

Vegetables and Fruits	Preparation	Maximum storage time (months)
String beans and beans	Wash, cut into small pieces and boil in water	10 - 13
Beans	Hull, wash and boil in water	12
Cabbage	Clean and boil in water	6 - 8
Carrot	Clean, cut into slices and boil in water	12
Pepper	Cut the stem, cut into two pieces, remove the core and boil in water	8 - 10
Spinach	Wash and boil in water	6 - 9
Cauliflower	Remove the leaves, cut the heart into pieces and leave it in water with a little lemon juice for a while	10 - 12
Eggplant	Cut into pieces of 2cm after washing	10 - 12
Corn	Clean and pack with its stem or as sweet corn 12
Apple and pear	Peel and slice	8 - 10
Apricot and Peach	Cut into two pieces and remove the stone	4 - 6
Vegetables and Fruits Preparation		Maximum storage time (months)
Strawberry and Blackberry	Wash and hull 8 - 12
Cooked fruits Add 10 % of sugar to the container 12
Plum, cherry, sourberry Wash and hull the stems 8 - 12

	Maximum storage time (months)	Thawing time at room temperature (hours)	Thawing time in oven (minutes)
Bread 4 - 6 2 - 3 4-5 (220-225 °C)
Biscuits 3 - 6 1 - 1,5 5-8 (190-200 °C)
Pastry 1 - 3 2 - 3 5-10 (200-225 °C)
Pie 1 - 1,5 3 - 4 5-8 (190-200 °C)
Phyllo dough 2 - 3 1 - 1,5 5-8 (190-200 °C)
Pizza 2 - 3 2 - 4 15-20 (200 °C)

Dairy products Preparation		Maximum storage time (months)	Storage conditions
Packet (Homogenized) Milk	In its own packet	2 - 3 Pure Milk – in its own	packet
Cheese - excluding white cheese	In slices	6 - 8	Original packaging may be used for short-term storage.Keep wrapped in foil for longer periods.
Butter, margarine	In its packaging	6

5 CLEANING AND MAINTENANCE

Disconnect the unit from the power supply before cleaning.

Do not wash your appliance by pouring water on it.

Do not use abrasive products, detergents or soaps for cleaning the appliance. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug to the mains supply with dry hands.

• Make sure that no water enters the lamp housing and other electrical components.
• The appliance should be cleaned regularly using a solution of bicarbonate of soda and lukewarm water.
• Clean the accessories separately by hand with soap and water. Do not wash accessories in a dish washer.

- Clean the condenser with a brush at least twice a year. This will help you to save on energy costs and increase productivity.

The power supply must be disconnected during cleaning.

5.1 Defrosting

Technical line drawing of a refrigerated industrial machine with cooling panel and cooling unit (no text or symbols)

• Your appliance performs automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, flows into the vaporisation container behind your appliance and evaporates there.
• Make sure you have disconnected the plug of your appliance before cleaning the vaporisation container.
• Remove the vaporisation container from its position by removing the screws as indicated. Clean it with soapy water at specific time intervals. This will prevent odours from forming.

Replacing LED Lighting

To replace any of the LEDs, please contact the nearest Authorised Service Centre.

Note: The numbers and location of the LED strips may change according to the model.

Some versions may not include freezer illumination.

6 SHIPMENT AND REPOSITIONING

6.1 Transportation and Changing Positioning

• The original packaging and foam may be kept for re-transportation (optional).
• Fasten your appliance with thick packaging, bands or strong cords and follow the instructions for transportation on the packaging.
• Remove all movable parts (drawers, ice trays and so on) or fix them into the appliance against shocks using bands when re-positioning or transporting.

Always carry your appliance in the upright position.

6.2 Repositioning the Door

• It is not possible to change the opening direction of your appliance door if door handles are installed on the front surface of the appliance door.
• It is possible to change the opening direction of the door on models without handles.
• If the door-opening direction of your appliance can be changed, contact the nearest Authorised Service Centre to change the opening direction.

7 BEFORE CALLING AFTER-SALES SERVICE

Errors

Your freezer will warn you if the temperature of the freezer is at an improper level or if a problem occurs with the appliance. Warning codes are displayed in the freezer Indicators.

ERROR TYPE MEANING WHY WHAT TO DO
E01 Sensor warning			Call Service for assistance as soon as possible.
E02 Sensor warning			Call Service for assistance as soon as possible.
E03 Sensor warning			Call Service for assistance as soon as possible.
E06 Sensor warning			Call Service for assistance as soon as possible.
E07 Sensor warning			Call Service for assistance as soon as possible.
E08 Low Voltage Warning		Power supply to the device has dropped to below 170 V.	- This is not a device failure, this error helps to prevent damages to the compressor.- The voltage needs to be increased back to required levelsIf this warning continues an authorised technician needs to be contacted.
E09	Freezer compartment is not cold enough	Likely to occur after long term power failure.	1. Set the freezer temperature to a colder value or set Super Freeze. This should remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.2. Remove any products which have thawed/defrosted during this error. They can be used within a short period of time.3. Do not add any fresh produce to the freezer compartment until the correct temperature has been reached and the error is no longer.If this warning continues an authorised technician needs to be contacted.

If you are experiencing a problem with your freezer, please check the following before contacting the after-sales service.

Your freezer is not operating

Check if:

• There is power
• The plug is correctly placed in the socket
• The plug fuse or the mains fuse has blown

- The socket is faulty. Examine this by plugging your freezer into a working socket.

A rise in the temperature may be caused by:

• Opening the doors frequently for long periods of time
• Loading the appliance with large quantities of warm foods

• A high ambient temperature
- An error with the appliance.

Your freezer is operating noisily

Normal noises

Cracking (ice cracking) noise occurs:

• During automatic defrosting
- When the appliance is cooled or warmed (due to expansion of appliance material).

Short cracking noise occurs: When the thermostat switches the compressor on/off.

Motor noise: Indicates the compressor is operating normally. The compressor may cause more noise for a short time when it is first activated.

Bubbling noise and splash occurs:

Due to the flow of the refrigerant in the tubes of the system.

Water flowing noise occurs: Due to water flowing to the evaporation container. This noise is normal during defrosting.

Air blowing noise occurs: In No-Frost freezers during normal operation of the system due to the circulation of air.

The edges of the freezer in contact with the door joint are warm

Especially during summer (warm seasons), the surfaces in contact with the door joint may become warmer during the operation of the compressor, this is normal.

There is a build-up of humidity inside the freezer

Check if:

• All food is packed properly. Containers must be dry before being placed in the freezer.
• The freezer door is opened frequently. Humidity of the room enters the freezer when the doors are opened. Humidity increases faster when the doors are opened more frequently, especially if the humidity of the room is high.

- There is a build-up of water droplets on the rear wall. This is normal after automatic defrosting (in Static Models).

The door does not open or close properly

Check if:

• There is food or packaging preventing the door from closing
• The door compartments, shelves and drawers are placed correctly
  • The door joints are broken or torn
• Your freezer is on a level surface.

Important Notes:

• In the case of a power failure, or if the appliance is unplugged and plugged in again, the gas in the cooling system of your freezer will destabilise, causing the compressor protective thermal element to open. Your freezer will start to operate normally after 5 minutes.
• If the appliance will not be used for a long period of time (such as during holidays), disconnect the plug. Defrost and clean the freezer, leaving the door open to prevent the formation of mildew and odour.
• If the problem persists after you have followed all the instructions above, please consult the nearest Authorised Service Centre.
• This appliance is designed for domestic use and for the stated purposes only. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with these instructions, we emphasise that the manufacturer and the dealer will not be responsible for any repair or failure within the guarantee period.

8 TIPS FOR SAVING ENERGY

1. Install the appliance in a cool, well-ventilated room, but not in direct sunlight and not near a heat source (such as a radiator or oven) otherwise an insulating plate should be used.
2. Allow warm food and drinks to cool before placing them inside the appliance.
3. Drinks or other liquids should be covered when inside the appliance. If left uncovered, the humidity inside the appliance will increase, therefore the appliance uses more energy. Keeping drinks and other liquids covered helps preserve their smell and taste.
4. Avoid keeping the doors open for long periods and opening the doors too frequently as warm air will enter the appliance and cause the compressor to switch on unnecessarily often.
5. The door gasket must be clean and pliable. In case of wear, replace the gasket.

9 TECHNICALDATA

The technical information is situated in the rating plate on the internal side of the appliance and on the energy label.

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.

Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.

See the link www.theenergylabel.eu for detailed information about the energy label.

10 INFORMATION FOR TEST INSTITUTES

Appliance for any EcoDesign verification shall be compliant with EN 62552.

Ventilation requirements, recess dimensions and minimum rear clearances shall be as stated in this User Manual at Chapter 2. Please contact the manufacturer for any other further information, including loading plans.

11 CUSTOMERCAREAND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, Serial Number and Service Index.

The information can be found on the rating plate. Subject to change without notice.

The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model.

Visit our website

www.eico.dk

INNEHÅLL

1 SÄKERHETSANVISNINGAR 48

-bed and breakfast-bostäder

Diagram of two coiled heat exchangers with heat transfer arrows (no text or labels)

Technical line drawing of a door frame structure with no text or symbols

I detta läge:

Illustration showing three different hand positions: a keyboard, a curved arrow indicating rotation, and a crossed-out hand holding a cup (no text or symbols present)

4 PLACERING AV LIVSMEDEL

Technical line drawing of a refrigerated industrial machine with cooling panel and cooling unit (no text or symbols)

7 INNAN DU KALLAR SERVICE

Kontrollera varningar;

Diagram of two coiled heat exchangers with heat transfer arrows (no text or labels)

Technical line drawing of a door frame structure with no text or symbols

Illustration showing three hand gestures: a keyboard, a curved arrow, and a crossed-out box (no text or symbols)

4 RUOKA-AINEIDEN ASETTELU

Technical line drawing of a refrigerated industrial machine with cooling panel and cooling unit (no text or symbols)

1.2 Monteringsadvarsler

Diagram of two coiled heat exchangers with heat transfer arrows (no text or labels)

Technical line drawing of a door frame structure with no text or symbols

Diagram of a vertical container with curved arrows indicating flow or circulation, no text or symbols present

I modusen:

• Trykk på og hold inne Super-knappen og fryserinnstillingsknappen i fem sekunder samtidig.
• Når modusen er valgt, vises sikringssymbolet (låsesymbolet) på skjermen.

-17, -18, -19, -20, -21, -22, -23 og -24 °C)

Illustration showing three different hand positions: a keyboard, a grid-patterned tray, and a hand holding a cup with a crossed-out fork (no text or symbols)

4 RETNINGSLINJERFOR OPPBEVARING AV MAT

Technical line drawing of a refrigerated industrial machine with cooling panel and cooling unit (no text or symbols)
