Product Type	Air Fryer
Brand	Clas Ohlson
Model	AF-02B
Article Number	18-3632 / 44-4015
Rated Voltage	220–240 V AC, 50/60 Hz
Rated Power	1300 W
Capacity	2.5 liters
Temperature Range	80–200 °C
Timer	0–60 minutes
Dimensions (Diameter x Height)	27 cm x 33 cm
Weight	4.2 kg
Material	Plastic housing, metal heating element, non-stick coated basket
Safety Features	Automatic shutoff when pan removed; thermal cut-off; cool-touch handle
Care and Cleaning	Wipe exterior with damp cloth; wash pan and basket with warm water and mild detergent; clean heating element with soft brush
Cord Length	Not specified
Spare Parts Availability	Contact manufacturer or service agent for replacement parts
Repairability	Replaceable power cord by qualified personnel; no user-serviceable parts inside
Usage	Indoor household use only
Accessories Included	Pan, basket
Warranty	Standard warranty per local regulations

Frequently Asked Questions - AF-02B Clas Ohlson

How do I clean the air fryer?

Unplug and let cool completely. Wipe the exterior with a damp cloth. Wash the pan and basket with warm water and mild dish soap, rinse well. Use a soft brush to clean the heating element. Never use metal objects or abrasive cleaners.

Why won't the air fryer start?

Check that the power cable is securely plugged into a live outlet. Ensure the timer is set to a value above zero. If still not starting, contact customer service.

Can I use oil in the air fryer?

Do not fill the pan with oil or liquid. You can brush a small amount of oil on food for crispier results, but never pour oil into the basket.

Why are my chips not crispy?

Try brushing with a small amount of oil before frying. Cut potatoes thinner. Also ensure you shake the basket halfway through cooking for even browning.

How much food can I put in the basket?

Do not fill beyond the MAX marking inside the basket. Overfilling can lead to uneven cooking and longer times.

What does the shaking function do?

Shaking helps redistribute small items like fries or nuggets halfway through cooking for even results. The air fryer pauses when you remove the pan and resumes when replaced.

Is the air fryer noisy?

The fan motor makes a low humming noise during operation. This is normal. If you hear unusual sounds, stop use and contact support.

Can I cook frozen food directly?

Yes, frozen foods like chips, spring rolls, and nuggets can be cooked straight from the freezer. Adjust time and temperature according to the chart in the manual.

What should I do if I see smoke?

If you notice black smoke, unplug immediately. Wait for the smoke to disperse and the unit to cool before removing the pan. Usually caused by food debris or excess oil in the pan.

How long does it take to preheat?

No preheating required. The air fryer heats up quickly. Add 3 minutes to cooking time if starting from cold, as per manual recommendations.

USER MANUAL AF-02B Clas Ohlson

Illustration of a gray cylindrical device with a power button and lid, no text or symbols present

Art.no

18-3632

44-4015

Model

AF-02B

AF-02B

Ver. 201711214

clas ohlson

Air Fryer

Art.no 18-3632

Model AF-02B

44-4015

AF-02B

Please read the entire instruction manual before use and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Never let children play with the product.
• Cleaning and maintenance must not be done by children without adult supervision.
• Keep the product and its cord out of reach of children aged less than 8 years.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
• Never immerse the power cable or the product in water or other liquid.

• Warning: The product becomes hot during use. Surfaces which do not have a direct heating function can also reach high temperatures. As heat is perceived differently by different people, the product should always be handled with CAUTION. Use only the insulated handles and gripping surfaces and wear protective gloves, etc. Do not touch any surfaces which are not insulated handles or gripping surfaces until these have been allowed to cool.

• Ensure that the power cable is unplugged from the electrical outlet before cleaning the product and when it is not in use. Allow the product to cool before attaching or detaching any loose parts.

• Using accessories other than those recommended by the manufacturer or point of sale may lead to personal injury.
• This product is intended for indoor use only.
• Do not allow the power cable to hang over the edge of a work surface or a table. The cable must not be allowed to come into contact with hot surfaces.
• Never place the product on or near a hot hob. The product should never be placed in an oven.
• The product must not be used in any manner other than as described in this instruction manual.
• The product must never be used with a timer or other equipment which turns it on automatically.
• Do not subject the product to impacts or shocks and do not expose it to extremely hot, cold or dusty environments.
• Place all ingredients in the basket to prevent them coming into contact with the heating element.
• Never obstruct the air inlet and/or outlet.
• Never fill the product with oil or any other liquid.
• Do not touch the interior of the product during use.
• All accessible surfaces may become hot when the product is in use.

Warning

- This product should only be connected to a 230 V AC, 50 Hz electrical outlet.

- Never use the product if it is in any way damaged or not working properly or if the power cable or plug is damaged. Do not use the product if you have dropped it on the floor, into water or other liquid.

- Never use the product if your hands are moist or wet.

• Make sure that the product is completely dry before use.

- Never place the product close to a wall or close to other appliances. Ensure that there is clearance of at least 10 cm behind, next to and above the product.

- Never place anything on top of the product.

- Never leave the product unattended while in use.

- Hot steam is expelled from the air outlet when the product is in use. Keep hands and face a safe distance from the steam and air outlet.

- Exercise care when removing the pan from the product, as hot steam and air will escape.

- Remove the plug from the electrical outlet immediately if you notice black smoke rising from the product. Wait until the smoke disperses and the product has cooled before removing the pan.

- The product should be placed on a firm, level surface capable of supporting the product's weight.

- The product is only intended for normal domestic use as described in this instruction manual. It is not intended for use in similar environments such as canteens, offices, hotels or hostels.

- The product should be allowed to cool for a minimum of 30 minutes before it is safe to be handled for cleaning, etc.

Warning: Hot surfaces.

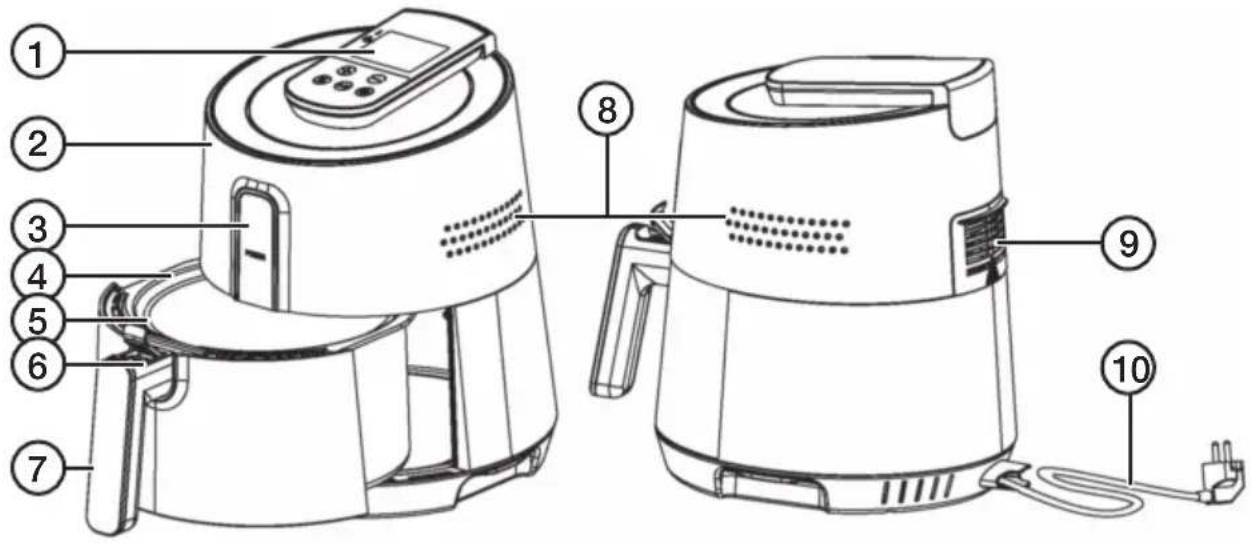

Product description

1. Control panel
2. Housing
3. Pan
4. Basket
5. Basket release button
6. Handle
7. Air inlet
8. Air outlet

9. Power cable

10. Power indicator, shines when the fryer is connected to the power supply.

Control panel

1. Temperature
2. Time
3. [ + ] Timer and temperature settings
4. [○] Alternate between timer and temperature settings
5. Indicator that fan motor is active
6. Indicator that heating element is active
7. [−] Timer and temperature setting
8. [⏻] On/off
9. [▶II] Start/cancel frying

Setup

1. Plug the power cable into an earthed electrical outlet.
2. Press [⏻] to turn on the fryer. The factory default settings are a temperature of 180^ C and a timer set to 15 min. The timer will begin flashing.
3. To change the timer, press or hold in [ + ] or [ - ].
4. To change the temperature, press [9]. The temperature will begin flashing.
5. Press or hold in [ + ] or [ - ] to set the temperature.
6. Press [▶II] to start the fryer.
7. Press [▶II] again if you want to stop frying before the timer has reached zero.

Before initial use

• Remove all packaging.
• Clean the pan and basket thoroughly. Use only mild cleaning agents, never solvents or corrosive chemicals.
• Rinse well and ensure that the pan and basket are completely dry before use.

Instructions for use

Line drawing of a modern air fryer device with handle and control panel (no text or symbols)

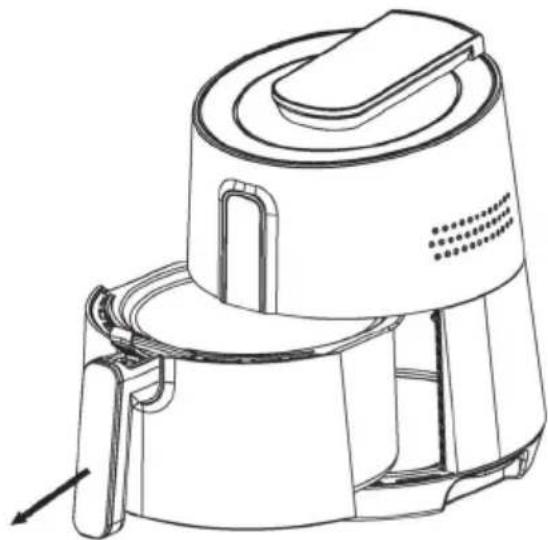

1. Remove the pan from the fryer.
2. Place the ingredients into the basket. Do not fill beyond the MAX marking on the inside of the basket.

Line drawing of a modern air fryer with handle and control panel (no text or symbols)

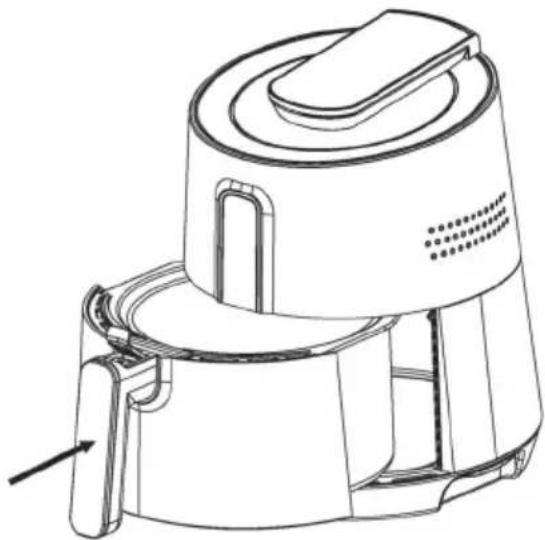

1. Place the basket in the pan and push down until the basket clicks into place. Push the pan with the basket into the fryer, making sure that it is all the way in. Never use the pan without the basket.

2. Turn on the fryer and enter the correct frying time and temperature (refer to Control Panel Settings section).

3. Small ingredients may need to be shaken after half the frying time has elapsed. Carefully remove the pan, which will automatically stop the fryer and pause the timer, gently shake the pan and replace it in the fryer. The fryer and timer will automatically resume. 🟢info: It may be a good idea to set the timer to half the frying time, so that you do not forget to shake the ingredients. Set the timer for the remaining frying time after shaking the ingredients.

4. When the timer reaches zero, the fryer emits a sound. Remove the pan and place it on a heatproof surface.

⚠ Warning: The pan will be extremely hot. Make sure that the pan is not too hot for the surface and place the pan such that it is not at risk of tipping. Ensure that no other person attempts to touch the pan.

1. Check that the ingredients are ready to eat. If they require additional time, replace the pan and set the timer for a few more minutes.

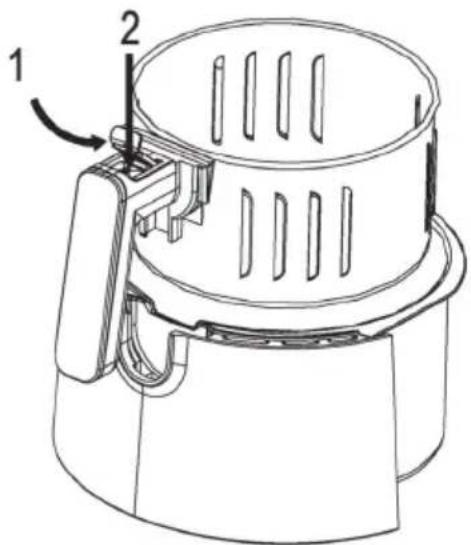

2. Once the ingredients are cooked, lift up the cover to the basket release button, press the button and carefully remove the basket from the pan. After frying, the pan may contain a small amount of oil from the ingredients. Take care as the oil is very hot.

⚠ Warning: Never touch the pan immediately after frying. It will be extremely hot. Only use the handle.

i Info

• Smaller sized ingredients usually require a shorter frying time than larger sized ingredients.
• A large amount of ingredients requires a somewhat longer frying time.
• A small amount of ingredients requires a somewhat shorter frying time.
• Shake smaller sized ingredients halfway through the frying time for better results.
• For chips, brushing with a small amount of oil before frying will result in a crispier texture. Fry the potatoes within minutes of adding the oil.
• Avoid very fatty ingredients such as various types of sausage, etc.

Here is a table showing examples of ingredients. Remember that weight, time and temperature are approximate and can vary. Add 3 minutes to the frying time if the fryer is cold when the frying is started.

	Weight (g)	Approx. time (min)	Temperature (°C)	Shake
Potatoes
Thin frozen chips 30	0–400 18–25	200 Yes
Thick frozen chips 30	00–400 20–25	200 Yes
Potato gratin 500 20	0–25 200 Yes
Meat/poultry
Steak 100–500 10–20	180 No
Pork chops 100–500	10–20 180 No
Hamburgers 100–500	10–20 180 No
Chicken thighs	100–500 25–30	180 No
Chicken breasts	100–500 15–20	180 No
Other frozen dishes
Frozen spring rolls 1	00–400 8–10	200 Yes
Frozen chicken nuggets	100–500 10–15	200 Yes
Frozen fish fingers 1	00–400 6–10	200 No

Care and maintenance

• Turn off the fryer and pull out the plug from the electrical outlet. Let the fryer cool completely.
• Clean the exterior of the fryer using a damp cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.
• Wash the pan and basket with warm water and washing-up liquid. Rinse thoroughly. Use only a soft dish-washing brush/sponge. Never use metal objects to clean the basket or the pan, as these may damage the coating.
• Clean the inside of the fryer with a damp cloth and use a brush to carefully clean the heating element.
• Turn off the fryer, unplug the power cable from the electrical outlet and store in a dry, dust-free environment out of the reach of children whenever it is not to be used for an extended period.

Troubleshooting guide

The fryer does not start. •	Is the power cable undamaged and securely plugged into an electrical outlet?• Is the electrical outlet live?• Has the timer been set correctly?
The ingredients are not ready when the timer reaches zero.	• The temperature is too low.• The frying time is too short.• The basket contains too many ingredients.
The ingredients are unevenly fried.	• Certain ingredients need to be shaken after half the frying time has elapsed.
The ingredients are not crispy after frying.	• Make sure to use the right type of ingredients.Ingredients intended to be deep fried in oil are not suitable for an air fryer.• Try brushing the ingredients with a small amount of oil before frying.
Steam escapes from the fryer during use.	• If you fry fatty ingredients, fat will collect in the pan.This will form steam and the pan can become hotter than normal. This does not damage the fryer and does not affect the end result.• The pan contains fat from the previous use.Make sure the pan is properly cleaned between uses.
Fresh chips are unevenly fried.	• Rinse your chips thoroughly before frying to remove starch.• Have you used an unsuitable type of potato?
The chips are not crispy after frying.	• Try brushing the chips with a small amount of oil before frying.• Cut the chips more thinly.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling the product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no text or labels, accompanied by a blank rectangular block below (no text or symbols present)

Specifications

Rated voltage 220–240 V AC, 50/60 Hz

Power 1300 W

Capacity 2.5 l

Adjustable temperature range 80–200 °C

Timer 0–60 min

Size Diameter 27 cm, height 33 cm

Weight 4.2 kg

Luftfritös

Art.nr 18-3632 Modell AF-02B

44-4015

AF-02B

Line drawing of a modern air fryer with handle and control panel (no text or symbols)

Line drawing of a modern air fryer with handle and control panel (no text or symbols)

i Tips!

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Specifikationer

Nätanslutning 220–240 V AC, 50/60 Hz

Effekt 1300 W

Kapacitet 2,5 l

Justerbar tillagningstemperatur 80–200 °C

Timer 0–60 min

Line drawing of a modern air fryer with handle and control panel (no text or symbols)

Line drawing of a modern air fryer with handle and control panel (no text or symbols)

i Tips!

Symbol of a trash bin crossed with no text or labels, accompanied by a blank rectangular block below (no text or symbols present)

Friteerauskeitin

Line drawing of a modern air fryer with handle and control panel (no text or symbols)

Line drawing of a modern air fryer with handle and control panel (no text or symbols)

i Vinkki!

Symbol of a trash bin crossed with no text or labels, accompanied by a blank rectangular block below (no text or symbols present)

Tekniset tiedot

Line drawing of a mounted air fryer device with handle and control panel (no text or symbols)

Line drawing of a modern air fryer with handle and control panel (no text or symbols)

i Hinweis

Symbol of a trash bin crossed with no text or labels, accompanied by a blank rectangular block below (no text or symbols present)

Technische Daten
