40-8943 - Uncategorized Clas Ohlson - Free user manual and instructions

Brand	Clas Ohlson
Model	40-8943
Product Type	Shelf Unit
Number of Shelves	5
Dimensions (W x H x D)	90 x 177 x 40 cm
Max Load per Shelf	175 kg
Material	Metal
Assembly Required	Yes
Wall Mounting Required	Yes
Care Instructions	Clean with damp cloth and mild detergent only. Avoid solvents.
Indoor Use Only	Yes
Included Components	Lower frame sections (4), upper frame sections (4), shelf supports (front/back x10, end x10, center x5), feet (4), shelves (5)
Weight	Approximately 25 kg (est.)

Frequently Asked Questions - 40-8943 Clas Ohlson

What tools are required for assembly?

A mallet and a piece of wood (or similar) are recommended for tapping shelf supports into place. No other special tools are specified, but a screwdriver may be needed for wall mounting.

How much weight can each shelf hold?

Each shelf has a maximum load capacity of 175 kg.

Is wall mounting necessary?

Yes, the shelf unit must be attached to the wall after assembly for stability. Use appropriate fasteners for your wall material.

Can this shelf unit be used outdoors?

No, it is designed for indoor use only. The care instructions advise against exposure to moisture and solvents.

What is the recommended cleaning method?

Clean with a damp cloth and mild cleaning agents. Never use solvents or corrosive chemicals.

How do I assemble the shelf unit?

Push feet onto lower uprights, then attach shelf supports starting from the bottom. Hook supports into slots, possibly bending the hooks slightly. Tap with a mallet if needed. Add upper sections and continue with remaining shelves.

What are the dimensions of the shelf unit?

Width: 90 cm, height: 177 cm, depth: 40 cm.

How many shelves does the unit have?

It comes with 5 shelves.

Is the shelf height adjustable?

The shelves are fixed at pre-determined positions based on the slot locations. No adjustment beyond the provided slots is possible.

What material is the shelf unit made of?

The frame and shelves are made of metal, likely steel. Exact material not specified.

USER MANUAL 40-8943 Clas Ohlson

Line drawing of a multi-tiered shelving unit with no text or symbols

Art.no 40-8943, -1,-3

Ver. 20181113

Shelf Unit

Art.no 40-8943,-1,-3

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Product description

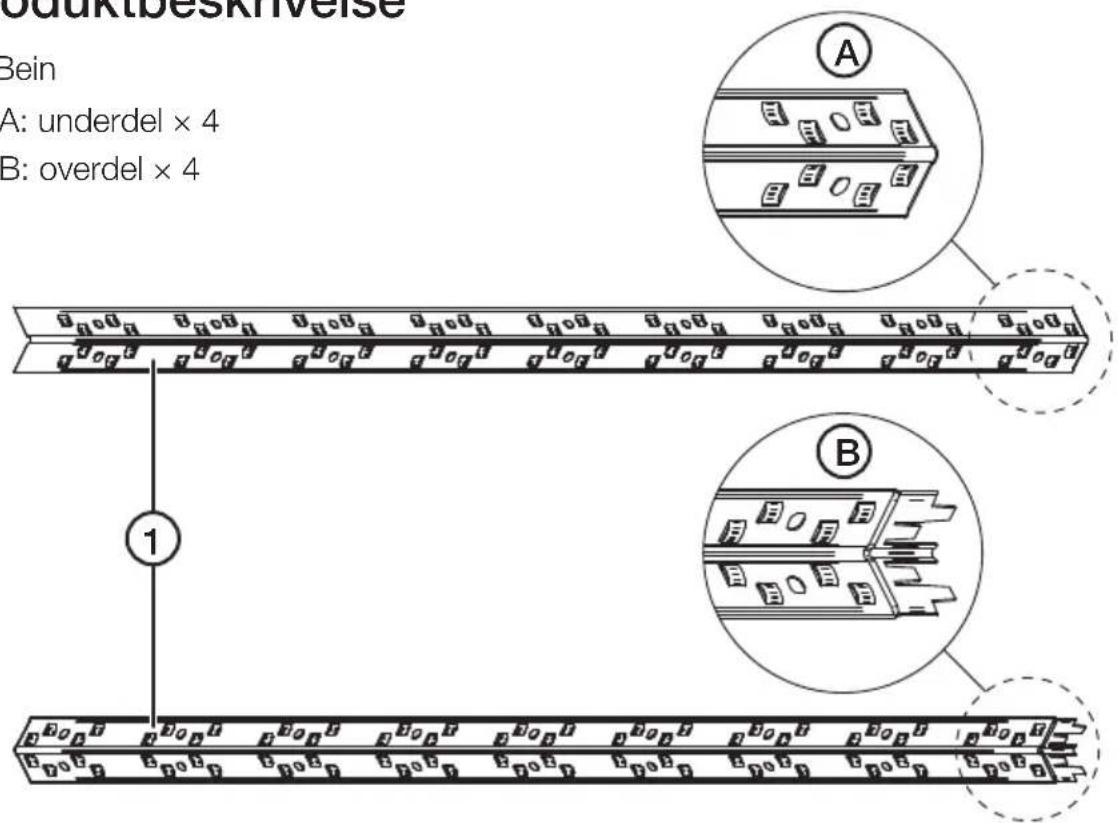

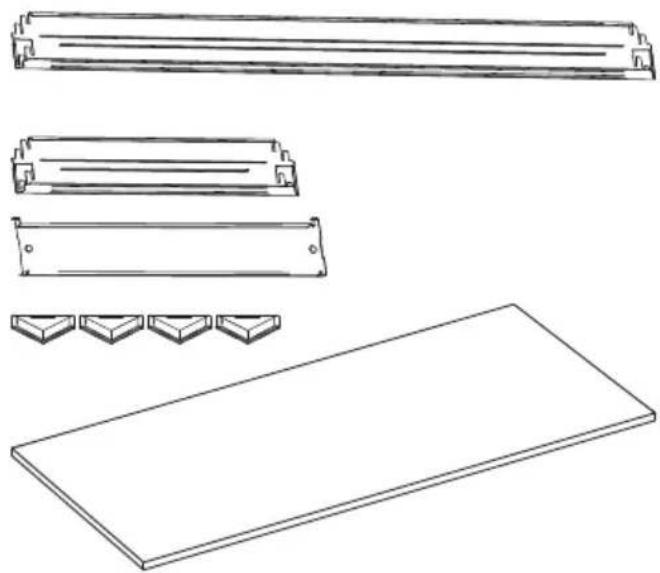

1. Uprights

A: lower frame section × 4
B: upper frame section × 4

1. Shelf support, front and back × 10
2. Shelf support, end × 10
3. Shelf support, centre × 5
4. Feet × 4
5. Shelves × 5

Technical line drawings of rectangular and rectangular components with mounting holes, including a separate 3D panel (no text or symbols)

Assembly

After assembly, the shelf unit should be attached to the wall. Use fasteners suitable for the wall material and ensure that there are no electrical wires or water pipes in the wall where you intend to drill or screw.

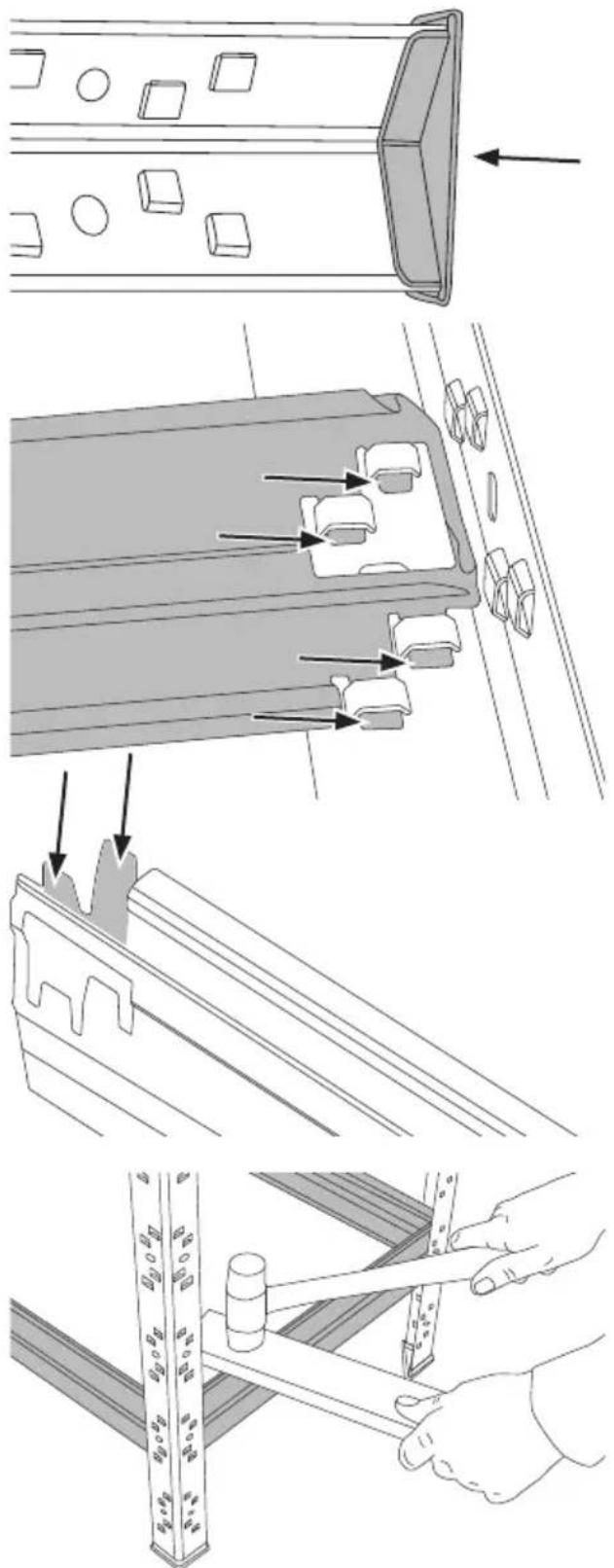

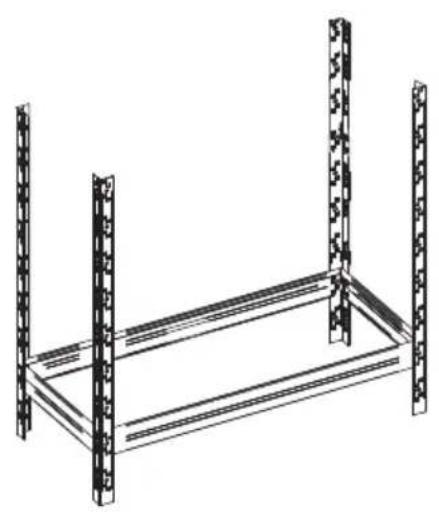

1. Push the feet firmly onto the lower frame uprights, making sure that you have inserted the feet into the correct end (the end where the end frame doesn't go).

2. Start with the lowest shelf and push the hooks on the end shelf supports into the slots on the uprights.

- You may have to bend the hooks on the shelf supports slightly for them to slot into the uprights. They could be bent as in the picture.

- Tapping the supports down carefully might help if it is difficult to slot them into the uprights. Use a mallet and a piece of wood (or another suitable material).

Isometric line drawing of a rectangular metal shelving unit with vertical supports (no text or symbols)

Illustration of a hand holding a metal beam with a triangular support bracket (no text or symbols)

3D diagram of a rectangular storage unit with vertical supports and a flat base (no text or symbols)

Illustration of a hand using a ruler to measure a wall-mounted object (no text or symbols present)

Technical line drawing of a structural beam with support beams and a triangular support (no text or symbols)

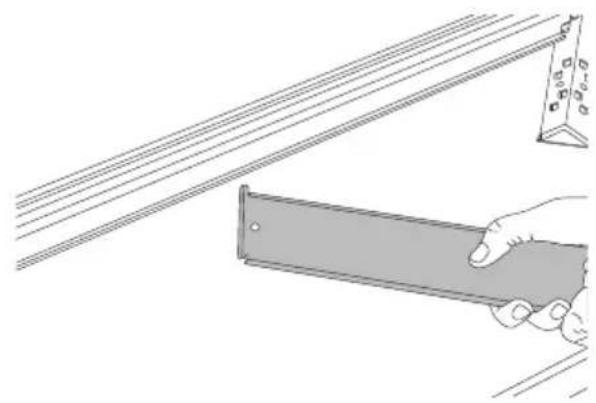

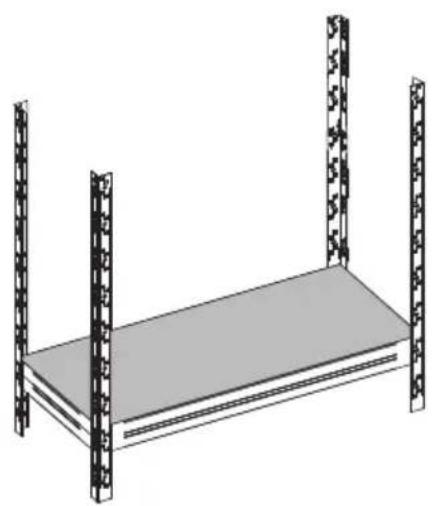

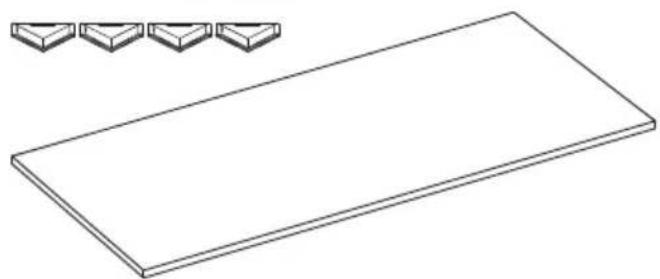

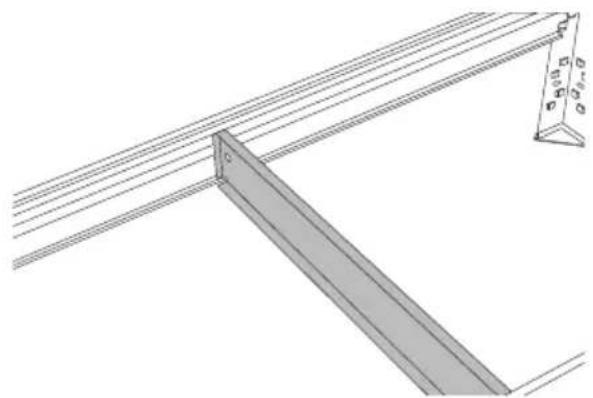

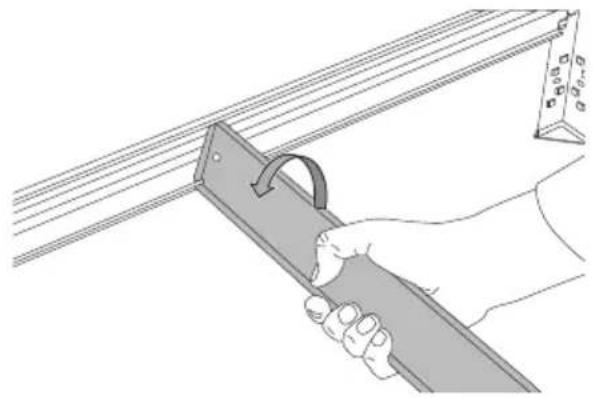

1. Fit the centre shelf support and lay the shelf board in position.

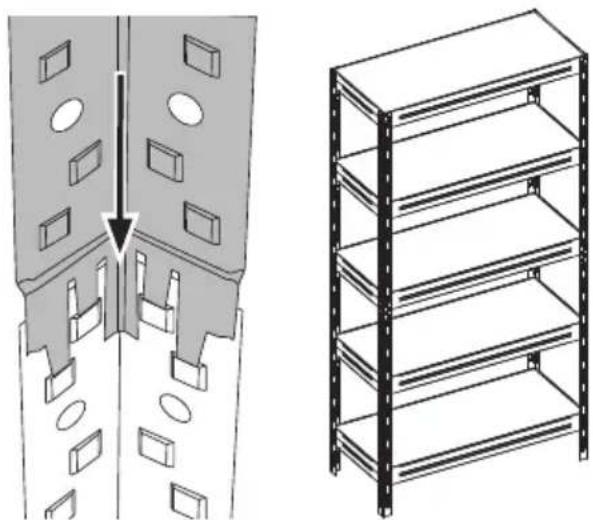

2. Attach the upper frame section uprights and continue building the frame using the shelf supports in the same way as you did for the bottom shelf.

Technical illustration showing a structural assembly with two views: one of a vertical panel with circular cutouts, the other of a multi-tiered shelving unit (no text or symbols present)

Care and maintenance

Clean the shelf unit using a damp cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.

Responsible disposal

The product should be disposed of in accordance with local regulations. If you are unsure how to proceed, contact your local council.

Specifications

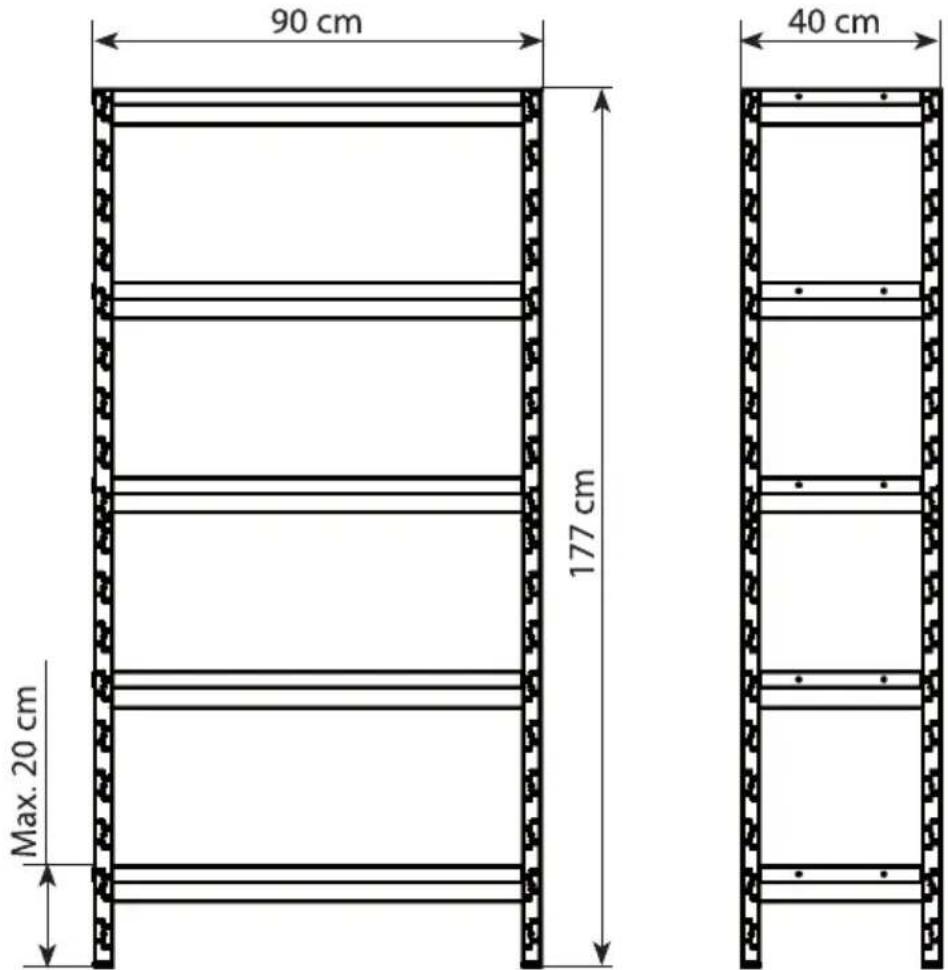

Max load per shelf 175 kg Size

Hylla

Technical line drawings of rectangular and rectangular components with mounting holes, plus a separate 3D panel (no text or symbols)

Montering

Isometric line drawing of a rectangular metal shelving unit with vertical supports (no text or symbols)

Illustration of a hand holding a metal beam with a triangular support bracket (no text or symbols)

3D diagram of a rectangular storage unit with vertical supports and a flat base (no text or symbols)

Illustration of a hand using a tool to lift a metal beam, no text or symbols present

Technical line drawing of a structural beam with support beams and a triangular support bracket (no text or symbols)

Technical illustration showing a structural assembly with a vertical pipe and a multi-tiered shelving unit (no text or symbols present)

A: underdel × 4
B: overdel × 4

1. Hylleplankonsoll, fram- og bakside × 10
2. Hylleplankonsoll, gavl × 10
3. Støtte for hylleplan × 5
4. Føtter × 4
5. Hylleplaner × 5

Simple line drawing of a rectangular object with horizontal lines, no text or symbols present

Two technical line drawings of rectangular electronic components with mounting holes (no text or symbols)

Simple line drawing of a rectangular plate with four small rectangular blocks above it (no text or symbols)

Montering

Isometric line drawing of a rectangular metal shelving unit with vertical supports (no text or symbols)

Illustration of a hand holding a metal beam with a triangular support bracket (no text or symbols)

3D diagram of a rectangular storage unit with vertical metal racks and a flat base (no text or symbols)

Illustration of a hand using a tool to lift a metal beam, no text or symbols present

Technical line drawing of a structural beam with support beams and a triangular support bracket (no text or symbols)

Technical illustration showing a structural assembly with two views: one of a vertical panel with circular cutouts, the other of a multi-tiered shelving unit (no text or symbols present)

Vedlikehold

Technical line drawings of rectangular and rectangular components with mounting holes, including a separate 3D panel (no text or symbols)

Asennus

Isometric line drawing of a rectangular metal shelving unit with vertical supports (no text or symbols)

Illustration of a hand holding a metal beam with a triangular support bracket (no text or symbols)

3D diagram of a rectangular storage unit with vertical supports and a flat base (no text or symbols)

Illustration of a hand using a tool to lift a metal beam, no text or symbols present

Technical line drawing of a structural beam with support beams and a triangular support bracket (no text or symbols)

Technical illustration of a structural frame with embedded components and a separate shelving unit (no text or symbols)

Huolto ja ylläpito

Simple line drawing of a rectangular object with horizontal lines, no text or symbols present

Two technical line drawings of rectangular electronic components with mounting holes (no text or symbols)

Simple line drawing of a rectangular plate with four small rectangular blocks above it (no text or symbols)

Montage

Isometric line drawing of a rectangular metal shelving unit with vertical supports (no text or symbols)

Illustration of a hand holding a metal beam with a triangular support bracket (no text or symbols)

3D diagram of a rectangular storage unit with vertical supports and a flat base (no text or symbols)

Illustration of a hand using a tool to lift a metal beam, no text or symbols present

Technical line drawing of a structural beam with support beams and a triangular support bracket (no text or symbols)

Technical illustration showing a structural assembly with a vertical panel and a multi-tiered shelving unit (no text or symbols present)

Pflege und Wartung

Postal 10 – 13 Market Place

Kingston upon Thames

Surrey

KT1 1JZ

Deutschland

Kundenservice Hotline: [phone]

E-Mail: [e-mail]

Homepage

www.clasohlson.de
