Product Type	Built-in Dishwasher
Brand	LG
Model	DU517HMS
Width	60 cm
Height	85 cm
Depth	60 cm
Weight	45 kg
Power Supply	220-240 V, 10 A, 50/60 Hz
Energy Efficiency Class	A+
Number of Place Settings	14
Noise Level	44 dB
Wash Programs	Auto, Intensive, Eco, Quick, Delicate, Rinse
Additional Functions	Delay Start, Half Load, Extra Dry, Steam
Control Type	Electronic with LED Display
Water Consumption	9.5 L per cycle (Eco)
Energy Consumption	0.92 kWh per cycle (Eco)
Drying System	Condensation Drying
Filter Type	Self-cleaning Micro Filter
Interior Material	Stainless Steel

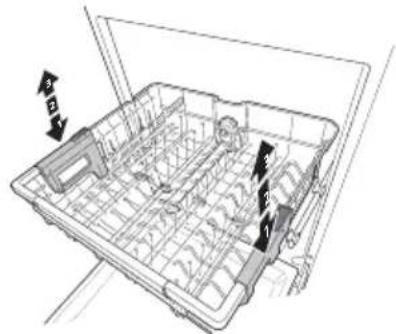

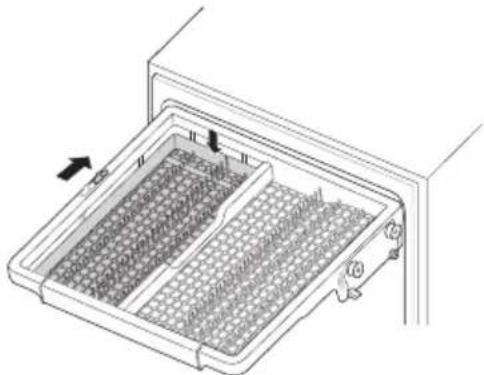

Adjustable Racks	Yes, Height-Adjustable Upper Rack
Child Lock	Yes
Leak Protection	AquaStop System
Noise Reduction	Inverter Motor, Sound-Absorbing Insulation
Spare Parts Available	Filters, Spray Arms, Racks, Detergent Dispenser

Frequently Asked Questions - DU517HMS LG

How do I install my LG DU517HMS dishwasher?

Refer to the installation manual. Ensure the appliance is level, water supply and drain hoses are connected properly, and the power cord is plugged into a grounded outlet. It is recommended to have a professional install it.

What detergent should I use?

Use a dishwasher detergent (tablet, powder, or gel) and rinse aid. Avoid using hand dishwashing liquid as it causes excessive suds.

How do I start a wash cycle?

Load the dishes, add detergent, select a program using the control panel, and press the Start button. Make sure the door is closed securely.

Why is my dishwasher not draining?

Check the drain hose for kinks or clogs. Clean the filter and ensure the garbage disposal (if connected) is clear. If the problem persists, the drain pump may need servicing.

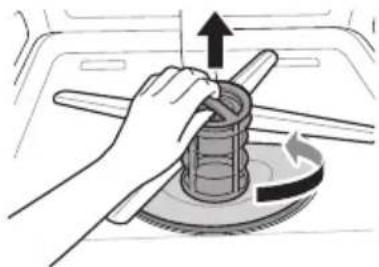

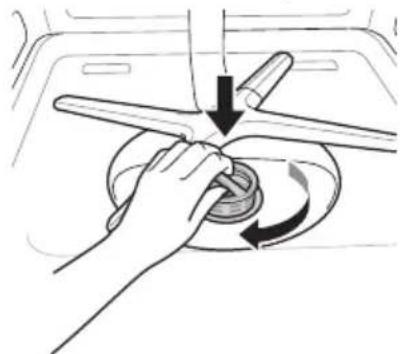

How do I clean the dishwasher filter?

Remove the lower rack, turn the filter assembly counterclockwise to unlock and lift it out. Rinse under running water and scrub gently if needed. Reinstall by aligning and turning clockwise until it locks.

What does the 'Child Lock' feature do?

The child lock prevents accidental pressing of buttons by disabling the control panel. Activate it by holding a specific button combination (see manual). To deactivate, repeat the combination.

Can I use the dishwasher with half a load?

Yes, select the 'Half Load' function if available. It adjusts water and energy usage for smaller loads, saving resources.

How do I resolve error code 'OE' on the display?

Error 'OE' indicates a drainage problem. Check the drain hose for blockages, clean the filter, and ensure the pump is not stuck. If the error persists, contact LG service.

Is it normal for the dishwasher to make noise?

Some noise from water spraying, draining, and motor operation is normal. If you hear unusual grinding or knocking, check for loose items or debris in the pump.

Where can I find spare parts for this model?

Spare parts such as filters, spray arms, and racks are available from LG authorized dealers or online retailers. Use the model number DU517HMS when ordering.

USER MANUAL DU517HMS LG

1. Material, printing and exterior size are refer to work tables.
2. Printing, text size and line are based on LG design film.
3. Exterier size on the drawing is cutting line.
4. Before product controlled by criteria sample.
5. The part should not contain prohibited substances(Pb,Cd,Hg,Cr+6,PBB,PBDE) and details should comply with LG standard of LG(63)-A-5501-34.

PDFILLUSTRATOR	DR COMPLETED도면 DR 완료
	완료일: 19.07.18

△
△
△
△
△
△
注:	REMARK DESCRIPTION		REF. NO REF. NO.	DATE	APPROVED PREPARED BY
	STOCK NAME	UNITED	DESCRIPTION	DRAWN

TRIG.		UNIT SCALEmm		1/1	TITLE	MANUAL,OWNER'S
MODELING		REVIEWED	RESIGNED APPROVED
	H.M.WANG20.02.06		B.H.KIM20.02.07	K.R.Kim19.02.08		XD-Global	1/1
LG 전자 (주)LG Electronics Inc.			RELATED DWG.		DWG.No.	MFL70282448

OWNER'S MANUAL

DISHWASHER

Before beginning installation, read these instructions carefully. This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference.

EN ENGLISH

DA DANSK FI SUOMI NO NORSK

SV SVENSKA

DU517*** DU315**

MFL70282448

Rev.00_020720

This manual may contain images or content different from the model you purchased.

This manual is subject to revision by the manufacturer.

SAFETY INSTRUCTIONS ....3

IMPORTANT SAFETY INSTRUCTIONS ....3

CARING FOR THE ENVIRONMENT....10

INSTALLATION....11

Specifications....11

Accessories....12

Preparing Cabinet Opening....12

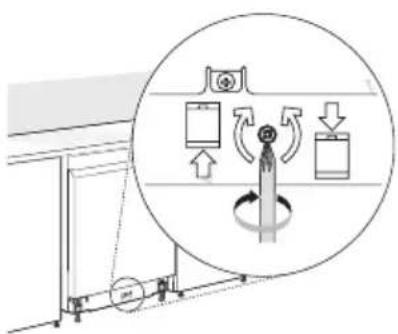

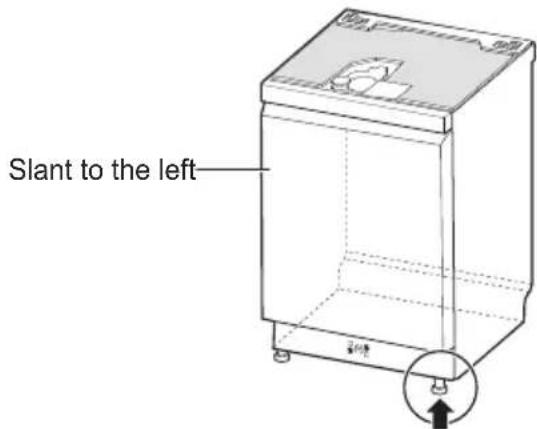

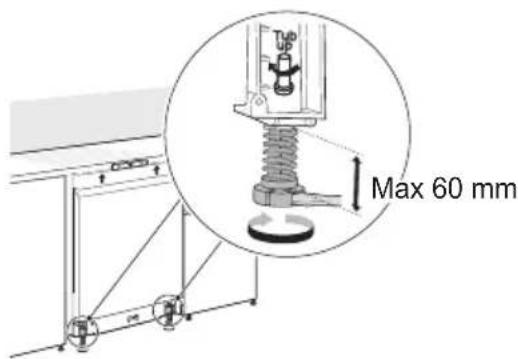

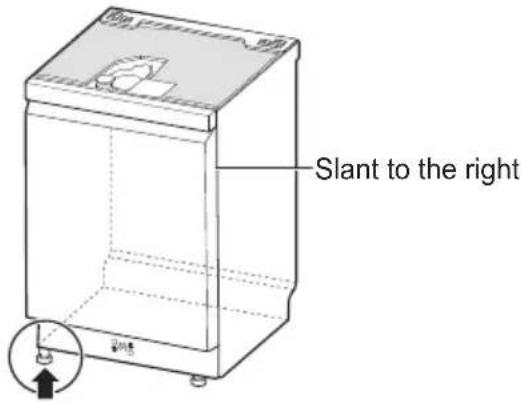

Levelling the Appliance 14

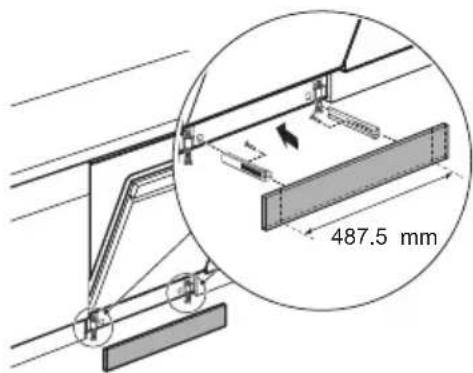

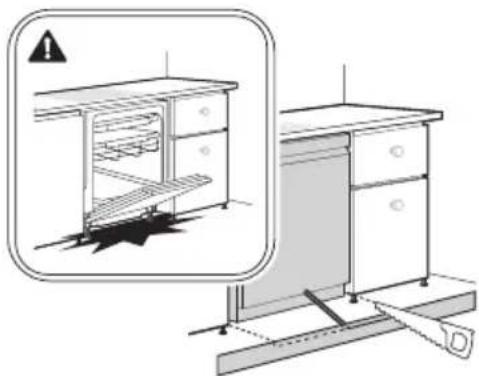

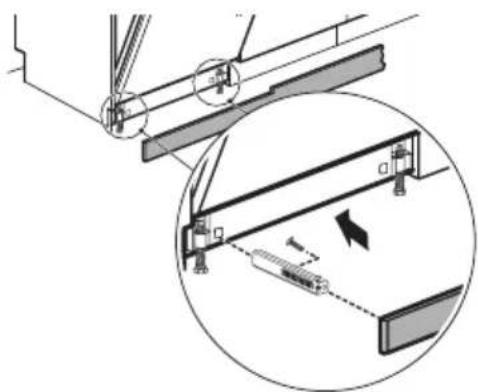

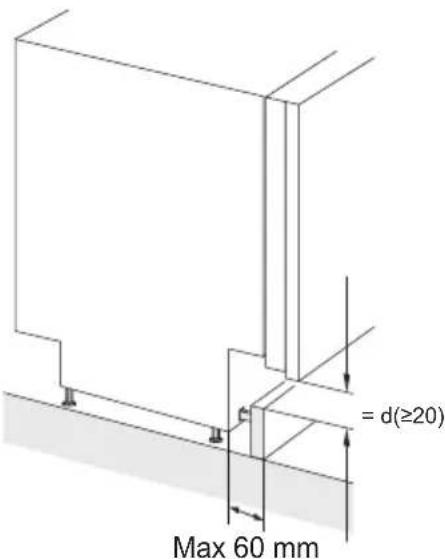

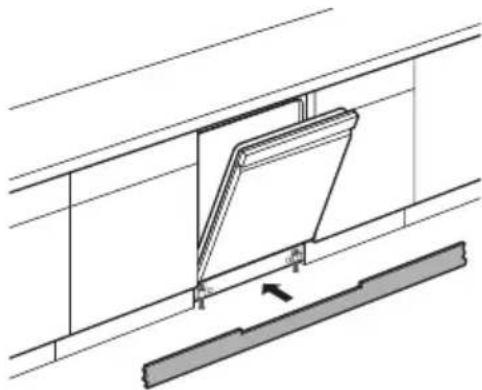

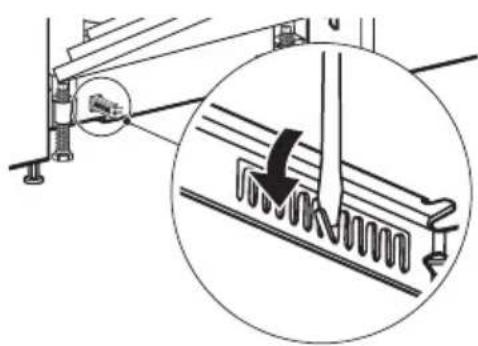

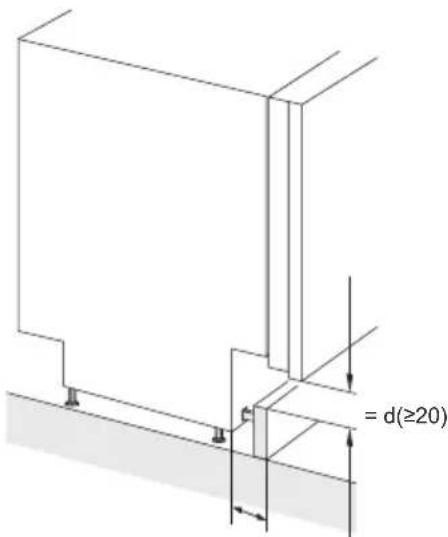

Attaching a custom Kick plate....15

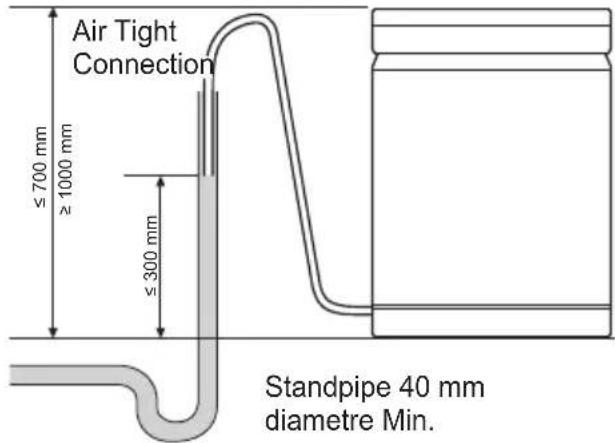

Installing the Drain Hose....16

Connecting the Water Supply Hose 17

Preparing Electrical Wiring....18

Final Check....18

OPERATION 19

Before Using the Appliance....19

Using the Appliance 23

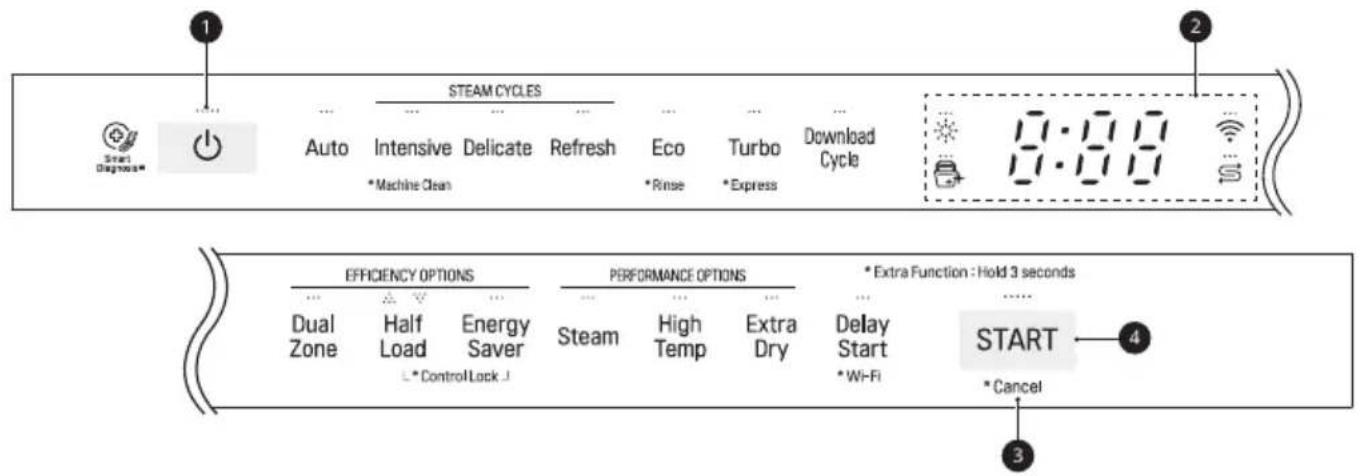

Control Panel 24

Cycles 26

Cycle Options....27

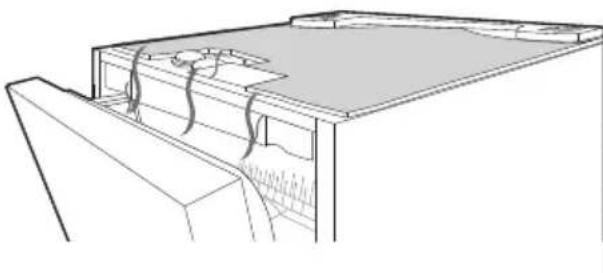

Auto Open Dry 28

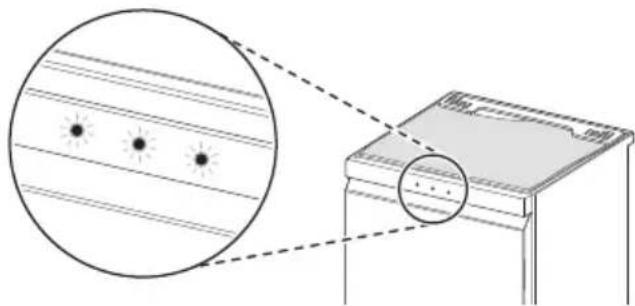

SignaLight™ (On Some Models) 28

Programme Guide (model dependent)....29

Available Options 31

Information for Energy Test (EN50242)....32

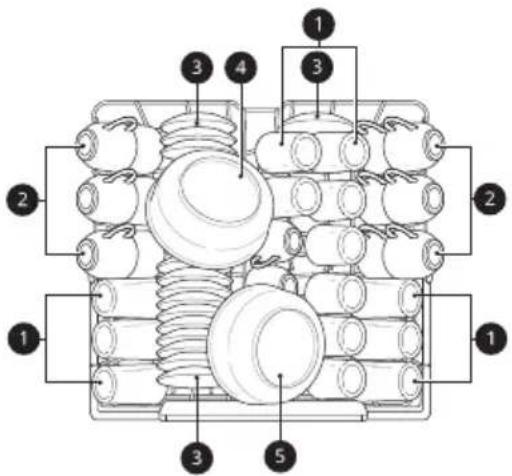

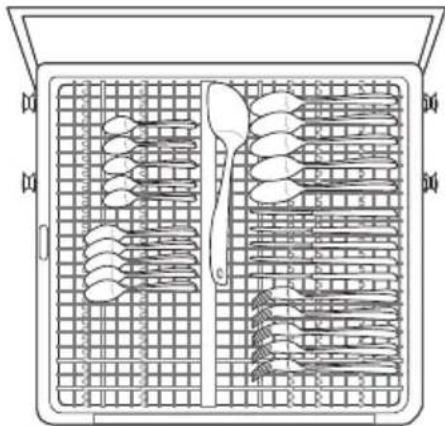

Loading the Dishwasher....33

Adding Cleaning Agents....38

Refilling 39

Drying....40

Unloading the Dishwasher 40

SMART FUNCTIONS....41

LG ThinQ Application 41

Smart Diagnosis....43

MAINTENANCE....44

Cleaning the Exterior....44

Cleaning the Interior....44

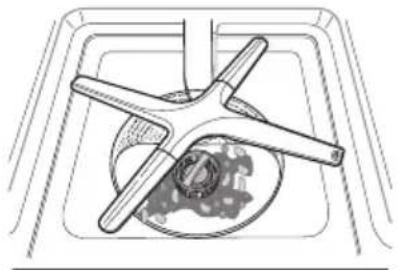

Cleaning the Filters 45

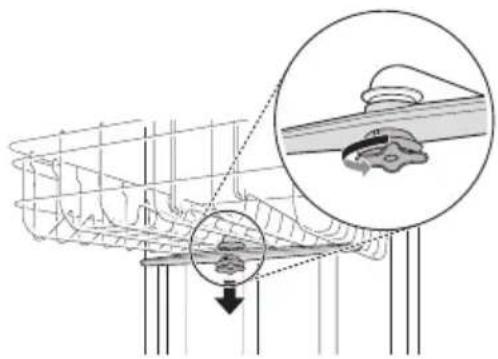

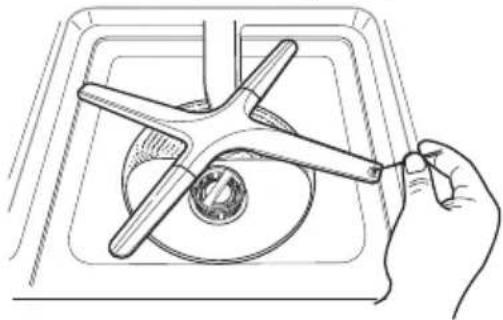

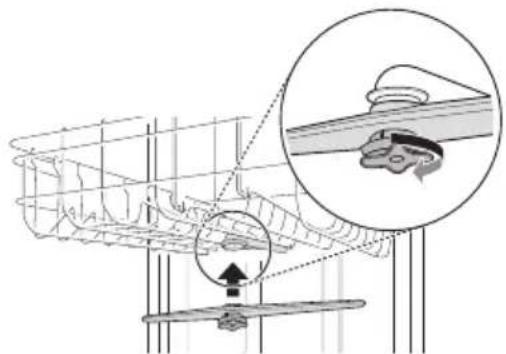

Cleaning the Spray Arms 46

Cleaning the Water Supply Hose Filter 48

TROUBLESHOOTING 49

Diagnosing Problems 49

Error Codes....54

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance.

The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below.

This symbol is displayed to indicate matters and operations that can cause risk. Read the part with this symbol carefully and follow the instructions in order to avoid risk.

WARNING

This indicates that the failure to follow the instructions can cause serious injury or death.

CAUTION

This indicates that the failure to follow the instructions can cause the minor injury or damage to the product.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of explosion, fire, death, electric shock, injury or scalding to persons when using this product, follow basic precautions, including the following:

Children in the Household

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Installation

- Never attempt to operate the appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.

- If the power cord is damaged or the hole of the socket outlet is loose, do not use the power cord and contact an authorized service centre.

- Do not modify the power cord provided with the appliance. Please contact the LG Customer information centre to advise of its incompatibility.

- This appliance should only be transported by two or more people holding the appliance securely.

- Do not install the appliance in a damp and dusty place. Do not install or store the appliance in any outdoor area, or any area that is subject to weathering conditions such as direct sunlight, wind, or rain or temperatures below freezing.

- Do not plug multiple socket outlets, an extension power cable or adapter with this appliance.

- Disconnect the power cord, house fuse or circuit breaker before installing or servicing the appliance.

- When moving or installing the product in a different location, call qualified service personnel for installation and service.

• Fix the drain hose securely in place.

- This appliance is not designed for maritime use or for mobile installations such as in RVs, trailers, or aircraft.

- This appliance must be positioned near to an electrical power supply.

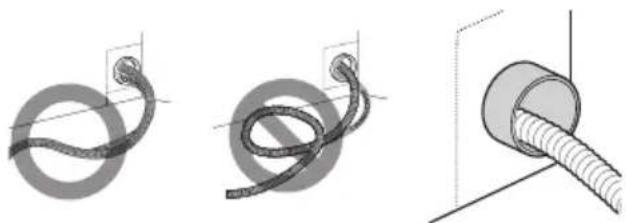

- When installing or moving the appliance, be careful not to pinch, crush, or damage the power cord.

- Use new hose or hose-set supplied with the appliance. Reusing old hoses can cause a water leak and subsequent property damage.

- Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with a qualified electrician or service personnel if you are in doubt as to whether the appliance is properly grounded.

- This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.

- This appliance is equipped with a power cord having an equipment-grounding conductor and a grounding power plug. The power plug must be plugged into an appropriate socket outlet that is installed and grounded in accordance with all local codes and ordinances.

- After installing, check the hose connection for leaks before moving the appliance into the cabinet opening.

- Do not damage or place heavy items on the power cord of the appliance.

- This appliance is intended to be used in household and domestic applications only and must not be used for commercial purposes.

- For a permanently connected dishwasher: This appliance must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead to the appliance.

- Connect the ground wire to the green ground connector in the terminal box.

Operation

• Immediately unplug the power plug and contact an LG Electronics customer information centre if you detect a strange sound, odour, or smoke coming from the appliance.
• Do not repair or replace any part of the appliance. All repairs and servicing must be performed by qualified service personnel unless specifically recommended in this Owner's Manual. Use only authorized factory parts.
• Do not leave the appliance door open. Children may hang on the door or crawl inside the appliance, causing damage or injury.
• Do not use flammable gas and combustible substances (benzene, gasoline, thinner, petroleum, alcohol, etc.) near the appliance.

- Do not attempt to separate any panels or disassemble the appliance. Do not apply any sharp objects to the control panel in order to operate the appliance.

• Do not bend the power cable excessively or place a heavy object on it.
• Do not put animals, such as pets into the appliance.

- Do not touch the power plug or the appliance controls with wet hands.

• If there is a gas leakage (isobutane, propane, natural gas, etc.), do not touch the appliance or power plug and ventilate the area immediately.
• In case of flood, disconnect the power plug and contact the LG Electronics Customer Information Centre.
• Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the appliance turn on all hot water tap and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

- Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemicals, etc.

- Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open. Check that the detergent receptacle is empty after completion of the wash cycle.

- Do not operate the appliance unless all enclosure panels are properly in place.

- Use only detergents or wetting agents recommended for use in a appliance and keep them out of the reach of children.

- Do not wash and dry articles that have been soaked in explosive substances such as gasoline, solvents, solvent-based detergent.

- When loading items to be washed:

- Locate sharp items so that they are not likely to damage the door seal.

- Load sharp knives with the handles up to reduce the risk of cut-type injuries.

- Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations.

- Do not touch any heating element (where it is exposed) during or immediately after use.

- Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.

- After cleaning the dishes, turn off the tap. Turn on the tap again and check the connection status of water supply hose before cleaning.

- Do not open the door while the appliance is in operation. Water will splash out and could cause a slipping hazard.

- Be careful not to catch your hand when closing the door of the appliance.

- Do not come into contact with any fitted steam outlet.

- Small parts, such as rack clips and filter retaining posts can be a choke hazard to small children if removed from the dishwasher. Keep out of reach of small children.

- Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

- The door should not be left in the open position since this could present a tripping hazard.

Maintenance

- Never unplug the appliance by pulling on the power cable. Always grip the power plug firmly and pull straight out from the socket outlet.

- Securely plug the power plug in the socket outlet after completely removing any moisture and dust.

- Do not spray water inside or outside the appliance to clean it.

- Disconnect the appliance from the power supply before cleaning the appliance. Setting the controls to the OFF or stand by position does not disconnect this appliance from the power supply.

Disposal

- Before discarding an old appliance, unplug it. Cut off the cable directly behind the appliance to prevent misuse.

- Dispose of all packaging materials (such as plastic bags and styrofoam) away from children. The packaging materials can cause suffocation.

- Remove the door before disposing of or discarding this appliance to avoid the danger of children or small animals getting trapped inside.

CAUTION

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following:

Installation

• Install the product on a firm and level floor.
- Do not put the drain hose under the dishwasher during installation.

Operation

- Turn off the water tap and unplug the appliance if the appliance is to be left for an extended period of time, such as during vacations.

- Do not place objects on the top of the appliance.

- Do not wipe or coat the surface of the product with liquid detergent or bleach (chlorine bleach, oxygen bleach, etc). Failure to follow these instructions may result in corrosion or discoloration of the coating.

- Do not touch water draining from the machine as it may be hot.

- If the drain hose and the water supply hose are frozen in winter, defrost before using.

- Do not put hands, feet, or metal objects below or behind the appliance.

- Do not wash dishes stained with chemical products such as oil, cream or lotions used in a massage parlor, skin care shop, beauty shop or barber shop.

MAINTENANCE

- If cooking oil is spilled on the exterior of the product, wipe it off immediately. Do not clean the exterior of the product with cleaners which contain alcohol, thinners, bleach, benzene, flammable liquids, or abrasives. These substances may discolor or damage the appliance.

CARING FOR THE ENVIRONMENT

Disposal of Your Old Appliance

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

• This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream.
• Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. Your old appliance may contain reusable parts that could be used to repair other products, and other valuable materials that can be recycled to conserve limited resources.
• You can take your appliance either to the shop where you purchased the product, or contact your local government waste office for details of your nearest authorised WEEE collection point. For the most up to date information for your country, please see www.lg.com/global/recycling.

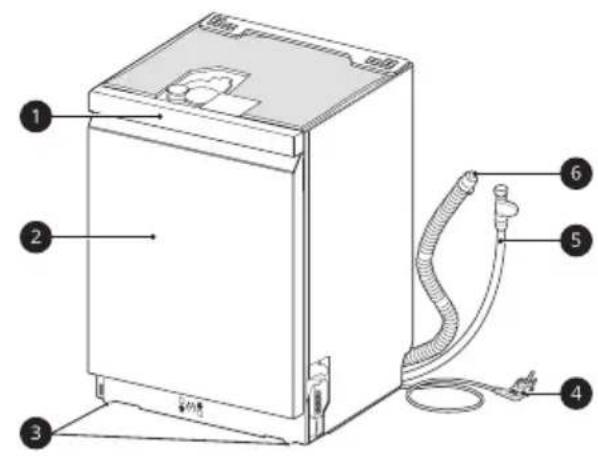

Specifications

1 Control Panel and Door Handle
2 Front Cover
3 Levelling
4 Power Cord
5 Water Supply Hose
6 Drain Hose

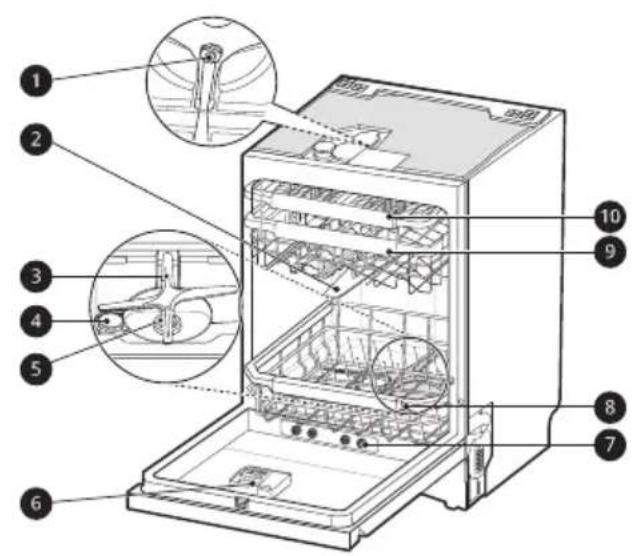

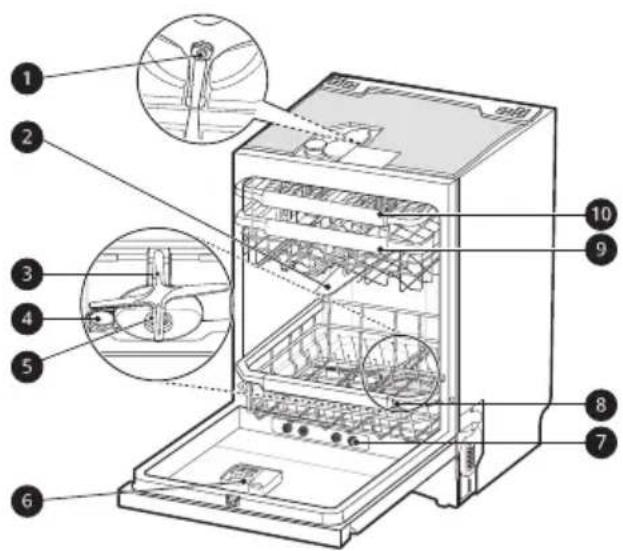

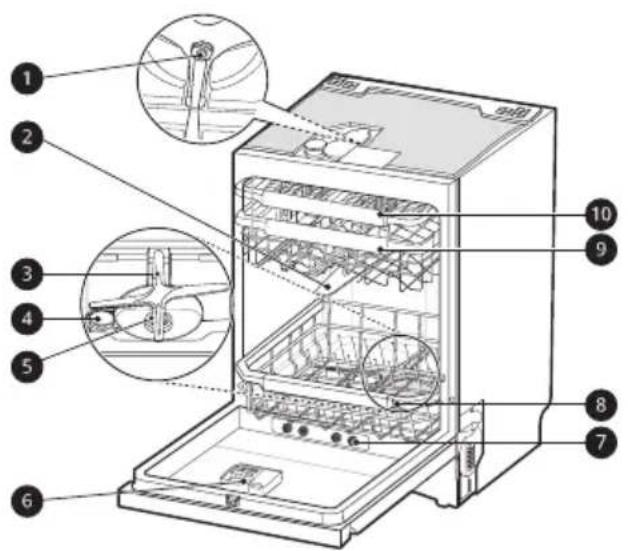

1 Top Wash Impeller
2 Upper Spray Arm
3 Lower Spray Arm

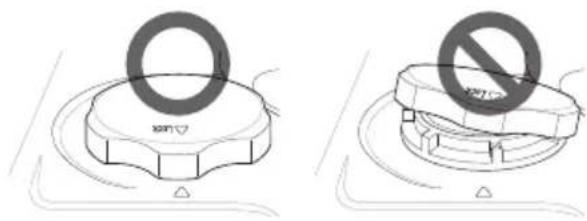

4 Salt Container Cap
5 Filtration System
6 Detergent and Rinse Aid Dispenser
7 Steam Nozzle (Steam Models)
8 Lower Rack
9 Upper Rack
10 Cutlery Rack

• Power supply: 220-240 V\~, 50 Hz
• Dimension (Width X Depth X Height): 600 mm X 567 mm X 815 mm
• Product weight: DU517*** - 44 kg / DU315** - 43kg
• Max. capacity: DU517*** / DU315** - 14 place settings
• Water feed pressure: 0.05 – 0.6 MPa
• Power consumption: 1600 – 1800 W

- Appearance and specification is may vary without notice to improve the quality of the appliance.

Accessories

Funnel Noise Strips (Side)

Side Fixable Screws
(Φ 4.5 x 12 mm)

Installation
Brackets

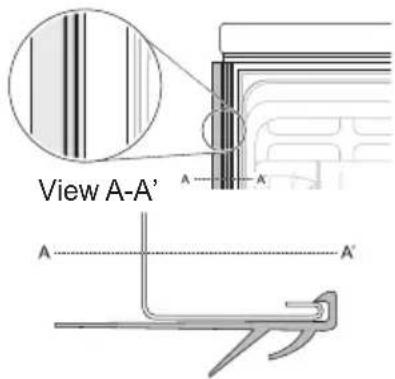

Moisture Barrier Tape (Aluminium Tape)

Bracket Fixing Screws
(Φ 4 x 14 mm)

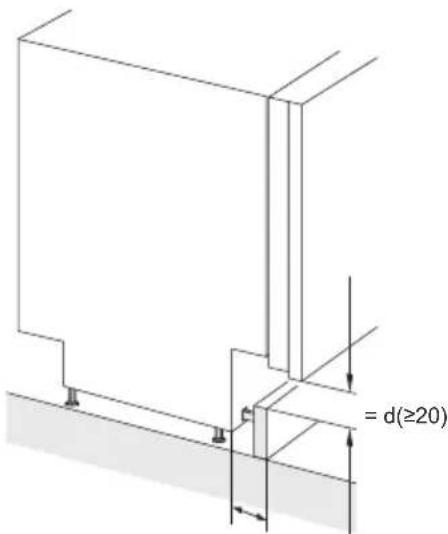

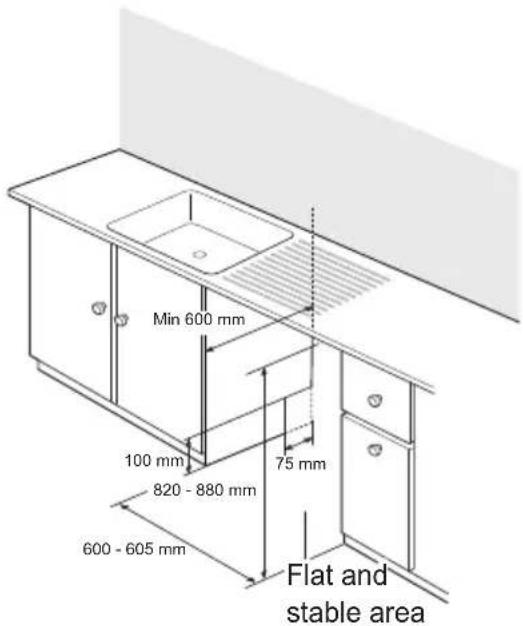

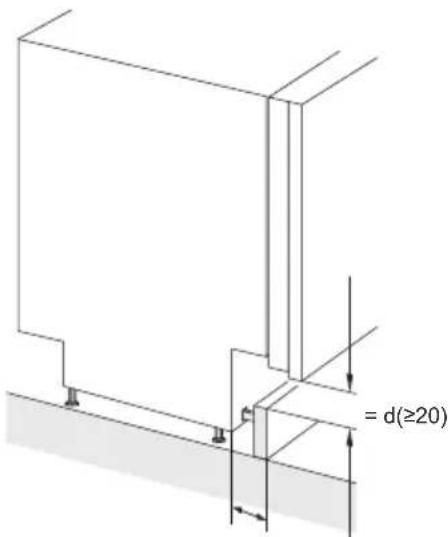

Preparing Cabinet Opening

• Cut out for hoses and electrical cables on either side. (Approximately 100 mm X 75 mm)
• Select a location as close to the sink as possible for ease of connection to the water and drain pipes.

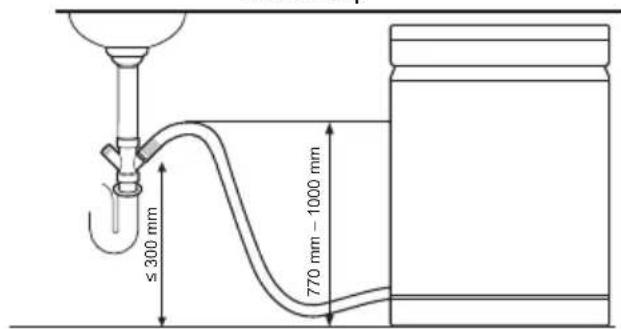

• To ensure drainage, the appliance should not be installed more than 1 metr away from the sink.
• If the appliance is installed in a corner, allow minimum clearance of at least 50 mm between the appliance and an adjacent cabinet or wall.
• Before sliding the appliance into the installation opening, all necessary height adjustments should be made using a spanner.

CAUTION

• Any bare wood surrounding the appliance should be sealed with a waterproof paint or sealant to prevent it from swelling.
• Slide the dishwasher into the cabinet, opening carefully. Make sure that the drain hose behind the machine and inside the cabinet is not kinked or stretched.
  • Install the appliance on a flat and stable area. Do not place any objects in-between the floor and base or leg off the appliance.

NOTE

• This installation must be conducted by qualified service personnel to ensure it has been installed correctly.
• Do not pull or lift the appliance using the handle; dosing so can damage the door and hinges. Open the door and grab the body frame and the top front opening of the tub to move or lift the appliance.

Line drawing of a washing machine with a circular component and a handle (no text or symbols)

- Do not push the door of the dishwasher with knees.

Illustration of a person pushing a large rectangular device with a no-smoking symbol (no text or labels)

Attaching the Strip to the Appliance Side Cabinet

To reduce noise attach the strip to the appliance sides, if the opening space allows.

1 Remove the double-side tape from the side strips.

Diagram of a tool interacting with a curved surface, showing a close-up view (no text or symbols present)

2 Attach the side strip to the front of the side cabinet and then push down the side strip so that the side strip adheres well to the cabinet.

3 Repeat the above steps for attaching the opposite side strip to the opposite side cabinet.

Installing the Moisture Barrier Tape

When the appliance is installed without the top cover, the counter top underside may be damaged by steam or condensation when the door is opened.

Install the moisture barrier tape to the underside of counter top to protect the counter top from condensation when the appliance opened.

1 Clean and dry the underside of the counter top on which the tape will be attached.

Diagram of a pulley system with an inset showing hand positioning (no text or symbols)

2 Remove the protective film from the tape.

Illustration of a hand holding a wrist with an arrow indicating motion (no text or symbols)

3 Install the tape to the underside of the counter top.

Pure technical diagram showing a mechanical component with a downward arrow, no text or symbols present

NOTE

• Moisture barrier tape is included in the manual assembly bag.
• If the counter top is made of granite or waterproof materials, the moisture barrier tape is not required.
• Condensation may occur on the underside or along the front edge of the counter top when the room temperature is low

Levelling the Appliance

Adjusting Levelling Feet

Adjust as needed until the dishwasher is completely levelled.

Adjusting Front Levelling Feet

• Use a flat-blade screwdriver to turn the front levelling feet and adjust the front of the tub.
• Turn the front levelling feet clockwise to raise the front of the tub and counterclockwise to lower it.
• The adjustments work identically for both front levelling feet.

Adjusting Back Levelling Feet

• Use a Phillips screwdriver to adjust the rear levelling foot and the rear of the tub using the centre screw at the base of the appliance in the front.
• Turn the centre screw clockwise to raise the rear of the tub and counterclockwise to lower it.

NOTE

- To avoid damaging the screw, do not use an electric screwdriver.

Case 1. The Door is Slanted to the Right

1 Unscrew (counter-clockwise) the rear left leg and correct the level.
2 Check the opening of door and repeat if necessary until the door opens and closes properly.

Case 2. The Door is Slanted to the Left

1 Unscrew (counter-clockwise) the rear right leg and correct the level.
2 Check the opening of door and repeat if necessary until the door opens and closes properly.

Securing Dishwasher to Cabinet Framework

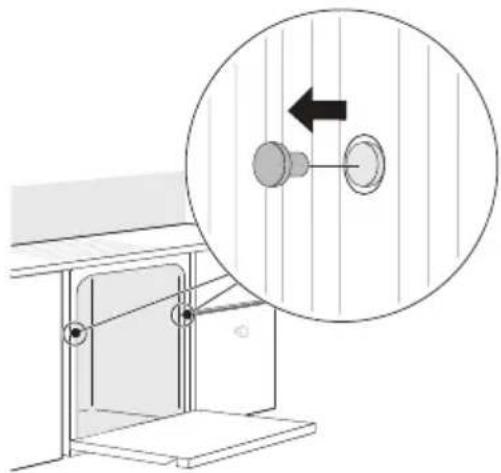

1 Remove the 2 plastic caps from the mounting bracket access holes.

Diagram of a pulley system inside a cabinet, showing a magnified view of the component (no text or symbols present)

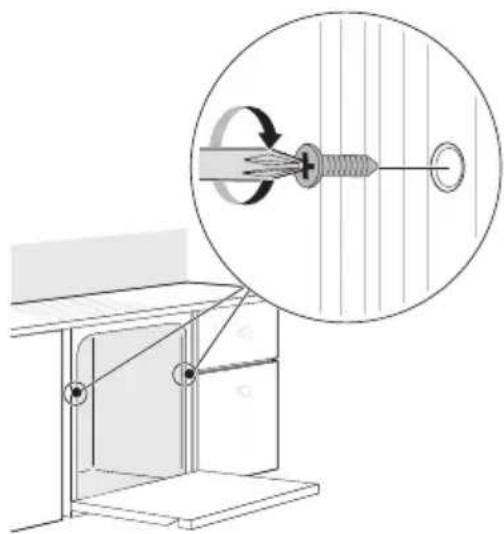

2 Drive a wood screw through the mounting bracket and into the cabinet frame.

Technical diagram showing a mechanical assembly with a magnified inset illustrating the pin mechanism (no text or symbols present)

3 Reinstall the plastic caps.

NOTE

• External water leakage could result if the installation of the screws to the surrounding timber cabinet is not done correctly.
• Please ensure that the height levelling of the dishwasher is done by adjusting the feet before installing the side cabinet securing screws.

Attaching a custom Kick plate.

1 Adjust the position of the installation brackets by bending the metal tab.

Technical diagram showing mechanical assembly with a magnified inset highlighting a component detail (no text or symbols present)

2 The fitting of the installation bracket depends on each of the following cases.

Case 1. The custom Kick Plate is seperated.

Case 2. The custom Kick Plate is connected and the dishwasher is at the end of the kitchen cabinet.

Technical diagram showing mechanical assembly with a magnified inset illustrating a disassembly or locking mechanism (no text or symbols present)

Case 3. The custom Kick Plate is connected, and the dishwasher is in the middle of the kitchen cabinet. (Using the brackets is not required.)

Technical line drawing of a window frame with a door and shelf, showing structural components without any text or symbols.

NOTE

- If necessary, trim the custom Kick Plate to avoid interfering with the door opening action.

Diagram of a kitchen appliance with a shelf and drawer, showing structural details (no text or symbols)

Installing the Drain Hose

If the end of the drain hose does not fit to the drain line, use a drain extension kit (optional) that is resistant to heat and detergent.

This should be available from a plumbing shop or a hardware store. If the drain hose or any extension is installed incorrectly, it can cause an operational malfunction.

Connection to the Waste Spigot

Check the waste spigot when initially installing. An OE error can occur when the waste spigot below the sink is not drilled out properly. To connect the drain hose, drill out at least a 15 mm diameter hole in the waste spigot before connecting and securing.

CAUTION

• Make sure that there is no plastic debris or sharp edge remaining inside of the under sink waste spigot after it has been drilled out.
• Do not attempt to open the waste hole spigot with a screwdriver and hammer. This will induce plastic debris and sharp edges and cause blockages resulting in a malfunction.
• Caution should be taken when passing hoses through Cabinetry holes as they may have sharp edges and could damage the hoses. Smooth or sand edges to avoid damaging the drain or inlet hose.

Three diagrams showing rope knotting steps: straight loop, curved rope, and twisted rope (no text or symbols)

• Make sure that the line is not kinked or sharply bent.
  • Make sure the drain hose is straight before feeding the end of it through the hole for the water supply.

To prevent siphoning, one of the following methods must be used.

Method 1

When the drain hose is connected to a waste spigot, the hose must be looped up to the underside of the bench top and secured.

Bench top

Method 2

When the drain hose is connected to a separate standpipe, it is essential that an airtight connection be made. If not, it can induce odors.

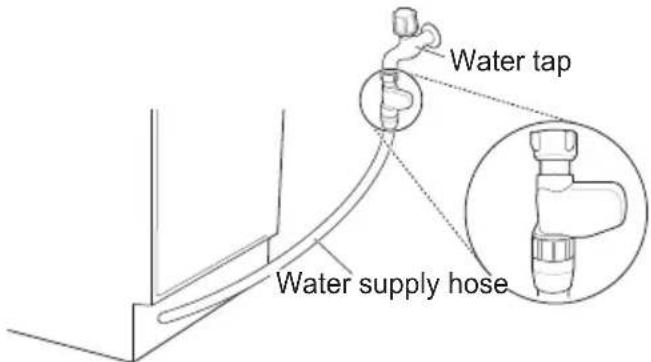

Connecting the Water Supply Hose

Connect the water supply hose to the water tap.

WARNING

• Do not cut or shorten or damage the water supply hose as it contains electrical wires and components. It can not be detached or removed from the appliance for installation purposes.
• It is important that the water supply hose not be tampered with, cut, disassembled, pulled, or kinked. It contains electrical wiring inside and if damaged or compromised, can cause an electrical hazard.

CAUTION

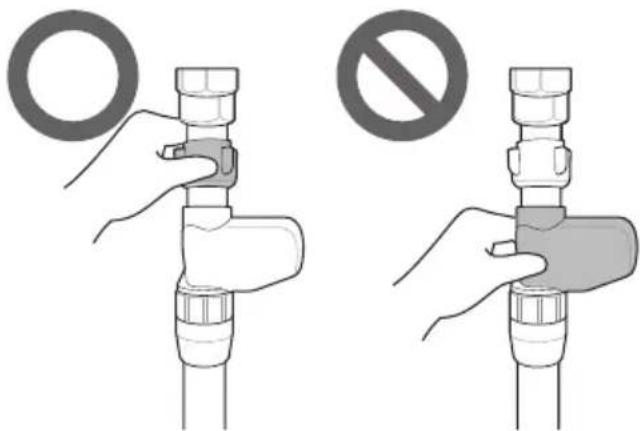

• Only use the threaded nut of the water supply hose to tighten it to the tap. Do not use any mechanical device or overtighten the threaded nut.
• Do not twist or kink the water supply hose when connecting it to the tap.

CAUTION

• This appliance may be fed with either hot or cold water. If the water connection can not be maintained below 65 °C, the appliance must be connected to cold water.
• Use sealant tape or sealing compound on the tap's thread to avoid water leaks.
• Make sure that the line is not kinked or sharply bent.

NOTE

• Before connecting the water supply hose to the tap, turn on the tap to flush out foreign substances (dirt, sand or sawdust) in the water lines. Let water drain into a bucket.
• It takes about 3 – 4 minitudes for the first supply water.

Preparing Electrical Wiring

Connect the appliance to an earthed socket in accordance with the current wiring regulations, protected by a minimum 15 amp circuit breaker or time delay fuse.

Wiring must be two wires with earth.

The power cord should not be positioned behind the appliance but within 1.2 meters of the side so that the plug is easily accessible.

WARNING

• For personal safety, remove house fuse or open circuit breaker or switch off power plug before installation.
• Do not use an extension cord or double adapter.
• The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• Repairs to the appliance must only be carried out by qualified service personnel. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact our local service centre.
• Connect to a properly rated, protected, and sized power circuit to avoid electrical overload.

Final Check

1 Turn on electrical power.
2 Turn on house water supply.
3 The door should open and close smoothly and without harsh noises, if the unit has been leveled correctly.
4 Run the appliance on a Rinse cycle to verify proper operation and check for leaks.

Error Code	Possible Cause and Solution
OE Error	Drain hose kinked or pinched.Feed the drainage and supply hoses through the hole under the sink. Then gradually slide the dishwasher into the cabinet while pulling on the hoses under the sink to take up any slack. This helps avoid kinking the hoses or trapping them beneath the dishwasher.
	Waste spigot under sink is clogged.Drill out the waste spigot under the sink.
IE Error	Water supply line kinked under dishwasher.Feed the drainage and supply hoses through the hole under the sink. Then gradually slide the dishwasher into the cabinet while pulling on the hoses under the sink to take up any slack. This helps avoid kinking the hoses or trapping them beneath the dishwasher.
	House water supply not turned on.Turn water on. Water pressure may be too high or too low.

Before Using the Appliance

This model has a water softener to soften hard water.

NOTE

• The appliance can be used without dishwasher salt if not required, however, the hardness level needs to be set to H0 so that the icon does not remain lit.
• In order to provide satisfactory rinsing results, the appliance requires soft water, i.e., containing little or no lime, otherwise water stains will be left behind on the dishes and inside the appliance.
• If the tap water exceeds a certain level of hardness, it must be softened, i.e., decalcified. This is achieved by adding dishwasher salt to the water softener inside the appliance. The required amount of the salt is set up according to how hard tap water is.

Checking Water Hardness Level

Method 1

1 Check the water hardness in your area. The water utility company can help you with this.
2 Set the softening system level of the appliance according to the water hardness level.

Method 2

You can check water hardness by using the test strip included in the product.

1 Immerse all reaction zones of the test strip for about a second. Do not in running water.
2 Shake off excess liquid from the strip and wait for 1 minute.
3 Check the water hardness color from the strip. Refer to the wrapper.

Water Hardness Table

The value of hardness	Hardness range					Water quality	Softening system level
	°d °e °f			mmol/l (Ca+Mg)	mg/l Ca
0 <4 <5	<7 <0.7 <29	Soft H0
75 4 - 7	5 - 9 7 - 13 0	7 - 1.3 29 - 50		H1
125	7 - 14	9 - 17.5	13 - 25	1.3 - 2.5	50 - 100		H2
250	14 - 21	17.5 - 26	25 - 38	2.5 - 3.8	100 - 150		H3
375	>21	>26	>38	>3.8	>150	Hard	H4

Setting the Water Softening System

For effective washing performance, adjust the setting corresponding to the hardness level of water used in water supply. The water softener has 5 adjustment levels, and the appliance is programmed at the factory for a water hardness level of H2. You can check the default setting value and adjust it in the following steps:

1 Press Power and Half Load button simultaneously.

• Current setting value indicated.

2 Press the Delay Start button, and then set up the intended value.

- Scope of setting value is H0 to H4.

3 Press the Start button to save the setting.

• The power turns off after saving.

NOTE

- The Salt Refill icon turns on in the display if dishwasher salt is not in the softening system.

- If the hardness setting is set to H0, no icon indicates in spite of no salt.

Filling with Dishwasher Salt

The Dishwasher Salt tank must be filled before starting the washing programme. In case of insufficient salt, the Salt Refill icon indicates on the display, unless the hardness level has been set to H0.

CAUTION

- Once you have filled with dishwasher salt you must run the Rinse cycle immediately to remove the salt and the salt water around the inner tub in order to prevent corrosion.

1 Remove the lower rack and remove the cap of the salt container located on the left side of the filters.

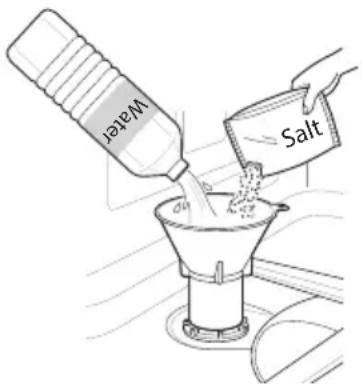

2 Before using the appliance for the first time, it is necessary to pour 1 kg of dishwasher salt and 1 litre of water at the same time if intending to use the water softener system. When refilling the salt, use a funnel. Refer to Before Using the Appliance section.

3 Refit the cap tightly.
4 Run the Rinse cycle without dishes.

Salt Refill Cycle (1 kg for each load)

	H1 H2	H3 H4
Cycles 1	30 50 20	10

• The table describes information of Auto programme.
  • Cycle may vary on the salt refill amount.

CAUTION

• Do not pour any detergent in the water softener. It will cause a malfunction.
• Wipe off any spilled salt around the water softener cap.
• Seal the cap properly by aligning it horizontally and turning it clockwise. A loosely fitted cap may cause the salt solution to leak from the compartment back into the tub and cause corrosion.
• After refilling the dishwasher salt, a wash programme should be operated without dishes, as any spilled salt inside the appliance may cause rust or damage to the appliance if the left unwashed.

Two identical diagrams showing a circular object with a ring above and a rectangular object with a 'no' symbol above, both without any text or symbols.

NOTE

- The salt can be purchased from salt distributors.

Adding Rinse Aid

The Rinse Aid indicator appears in the display when more rinse aid is needed.

The use of rinse aid is recommended to prevent water spots on dishes and to enhance drying performance.

1 Open the rinse aid lid by lifting up the flap.

Line drawing of a handheld device with a scroll wheel and control panel (no text or symbols)

2 Add a liquid rinse aid to the maximum fill level. The rinse aid should be settled in the dispenser while filling, or air bubbles may result in poor drying performance. Avoid overfilling the dispenser.

Line drawing of a handheld device with a handle and control panel (no text or symbols)

3 Close the lid to lock the dispenser. Rinse aid is dispensed automatically during the final rinse cycle.

Line drawing of a mechanical device with a handle and internal components, showing an arrow indicating rotation (no text or symbols)

CAUTION

- Wipe off any spilled rinse aid to prevent suds.

NOTE

• Only use liquid rinse aid in the appliance.
• Do not overfill the rinse aid dispenser.
• Too much or too little rinse aid can inhibit the drying performance.

Setting the Rinse Aid Level

The dispenser has five adjustment levels. The appliance is programmed at the factory for a rinse aid dispenser level of 2. This can be checked and altered by using the buttons on the control panel.

1 Ensure the appliance is off.
2 Press Power and Dual Zone simultaneously to check the current setting.
3 Press Delay Start to change the rinse aid dispenser setting. Each press of the button changes the setting one step from L0(off) to L4.
4 Once the desired rinse aid dispenser setting is selected, press Start to save.
• The power turns off after saving.

CAUTION

- If the rinse aid lid is not closed properly, a large amount of rinse aid will release into the tub and cause washability problems.

NOTE

• The Rinse Aid Refill ✦ icon will illuminate when more rinse aid is needed.
• If you notice cloudy spots, streaks or water marks on the glassware after washing, increase the setting level.
• Setting the control too high can cause foaming, which will cause poor wash performance.
• If the glass is smeared or foam is present on the bottom, decrease the level setting.
• Setting the rinse aid control too low can cause spotting and streaking on dishes and poor drying performance.

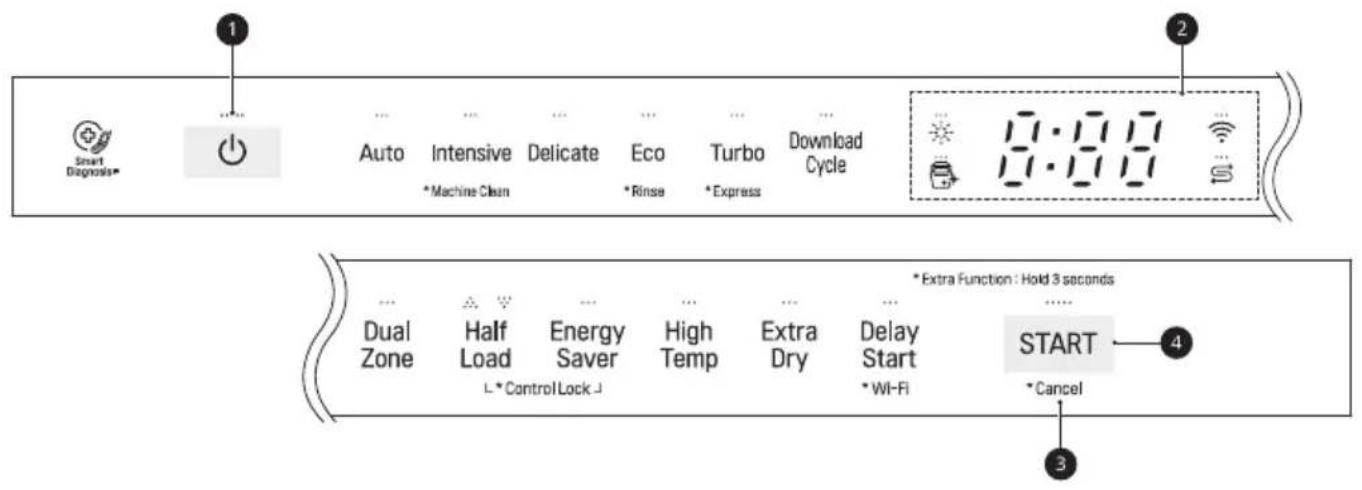

Using the Appliance

1 Press the Power button.

The unit will turn on. Check the indicators.

2 Check that there is rinse aid and dishwasher salt present.

Refill the rinse aid and the salt, if the corresponding icons illuminate. For more information, refer to Refilling section.

: Salt Refill icon

: Rinse Aid Refill icon

3 Open the door and check the filters.

Always clean the filter either after a wash or before a wash so that it does not impair the washing performance.

Top-down line drawing of a kitchen sink with a central bowl and four arms (no text or symbols)

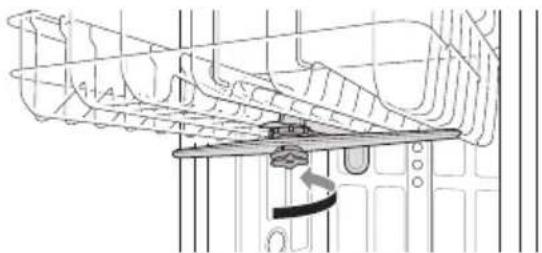

4 Ensure the spray arms can unobstructedly rotate.

Ensure that the upper spray arms and the lower spray arm rotate well. Remove the spray arm and clean it if it does not rotate.

Technical line drawing of a mechanical assembly with no visible text or symbols

NOTE

- If a knocking noise is heard during the wash, check to ensure that no items are touching the wash arms.

5 Load the dishes in the rack.

Make certain that no dishes or utensils are in the path of the spray arms.

Do not place one dish on top of another.

6 Add the proper amount of detergent powder to the dispenser.

If using Tablets, they can simply be placed directly on the base of the tub, or on the lower part of the inner door.

7 Set and start the programme.

The programme will start automatically in 4 seconds after any setting is selected.

WARNING

• Push the upper rack in all the way.
• Empty the lower rack first and then the upper one. It will avoid water dripping from the upper rack onto the dishes below.
• Do not open the door during operation or right after it has completed the wash cycle as the steam may cause scalding as the door is opened.

NOTE

- Never use liquid dishwashing detergent in the appliance.

Control Panel

Non-Steam Models

Steam Models

- Depending on the model, the Smart Diagnosis and LG ThinQ logo may be located either on the front of the appliance or the top of the door.

1 Power

- Press Power button to turn power on and off.

- After the cycle is complete, the power automatically turns off for purposes of safety and economy.

- If there is a power surge, power outage, or disruption of any kind, power is automatically turned off for safety.

- When power is connected again, it will turn on automatically and resume the cycle.

2 Display

- 8:88 : Digital Display

- The digital display on the control panel shows the ESTIMATED cycle time. When the cycle and options are selected, the display shows the total estimated time to complete those selections. During operation, the display shows the remaining estimated operating time.

- The estimated time shown on the display does not include delay times for heating water, etc.

- If Delay Start is selected, the display shows the delay time in hours.

- The Auto cycle time may vary depending on the soil level of your load.

• : Rinse Aid Icon

- This icon flashes when the rinse aid level is low. The LED automatically shuts off when the rinse aid is refilled or the level is set to 0.

- This icon flashes after every 30 cycles.

- To activate or deactivate the icon, press the Delicate button for 3 seconds.

• Wi-Fi

- When the appliance is connected to the internet through a home Wi-Fi network, this icon illuminates.

- S : Salt Refill Icon

- This icon flashes when the salt level is low. The LED automatically shuts off when the salt is refilled.

3 Cancel

- The drain pump activates and the cycle cancels. Once the appliance finishes draining, the power turns off.

- Press and hold Start button for 3 seconds to activate the cancel function.

4 Start

- To operate the appliance, close the door and press Start button.

- If Start button is not pressed to start the cycle within 4 minutes, the power will automatically turn off.

Chime On/Off

- To activate or deactivate the button sounds, press and hold Dual Zone and Energy Saver simultaneously for 3 seconds. The error alert sound cannot be turned off.

Cycles

Auto

This cycle senses the soil amount and water clarity and optimizes the wash to achieve the best cleaning. The wash time may vary depending on the soil level.

Intensive

This cycle is for heavily soiled dishes and dishes with hardened on soil. This cycle defaults to the strongest spray intensity and uses it to wash heavily soiled dishes.

Delicate

Use this cycle to clean delicate items such as fine china and stemware.

Refresh (Steam Models)

This cycle freshens up and warms dishes that have been unused for a long time.

- Do not use detergent when using this cycle.

Eco

- It provides the most efficient energy and water consumption for a good washing performance and drying result on a normally soiled load and as it uses very little energy.

Turbo

This cycle will clean moderately soiled dishes using slightly more energy and water.

- Extra Dry is set to on as default. If you do not want to dry dishes after washing, turn off the Extra Dry option. Not drying the dishes will result in a shorter cycle time.

Download Cycle

Use a dedicated cycle downloadable via Wi-Fi or NFC. (depending on model).

NOTE

- Only the cycle code for the currently downloaded cycle appears on the appliance. See the smartphone app for cycle codes, names, and more information about the available cycles.

– Default Cycle: P1. Pots & Pans

Machine Clean

This cycle is for cleaning the inside of the appliance. Use the cycle without dishes in the appliance. It eliminates residual soils, odor, white spots, and other dirt. Add citric acid or another cleaning agent for more effective results.

- Press and hold Intensive for 3 seconds to activate.

Rinse

This cycle is a quick rinse only for dishes that will not be washed immediately. The cycle rinses dishes that have excess soil to soften dried on residue. Rinsing the dishes helps prevent odors in the appliance.

- Do not use detergent with the this option.

• This cycle does not have drying.

- Press and hold Eco for 3 seconds to activate.

Express

This cycle will quickly clean lightly soiled dishes.

- This cycle does not have drying. Select the Extra Dry option or another cycle for better drying. Extra Dry will add to the overall cycle time.

- Press and hold Turbo for 3 seconds to activate.

- Detergent tablets are not recommended for use of Express cycle. If the detergent tablets are used, it may cause detergent residue on dishes due to the relatively low rinse temperatures.

Cycle Options

Select the desired cycle button and then select the options for that cycle. For more information about Cycle Options, see the Available Options section.

Dual Zone

This option automatically sets the spray intensity to soft for the upper spray arm and strong for the lower spray arm. Place heavily soiled dishes like plates and bowls in the lower rack and lightly soiled dishes like cups and small plates in the upper rack to get the best results.

Half Load

This option washes intensively by selecting the upper or lower racks. For small loads, use just the upper or lower rack to save energy and time. By pressing the Half Load button, the settings (Upper) ⋯ (Lower) and the cancellation of the this option are available.

Energy Saver

This option saves energy by reducing the wash and rinse temperatures. Wash time is increased to maintain wash performance. Do not use this cycle with heavily soiled dishes.

Steam (Steam Models)

This option adds steam during the cycle to improve wash performance.

High Temp

Raises the main wash or heating rinse temperature to improve cleaning.

- A chime will sound to alert you of any residual temperatures inside the appliance. Wait for the appliance to completely cool down before opening the door.

Extra Dry

Select the Extra Dry option for better drying performance. This option adds extra drying time to the cycle and raises the heating rinse temperature.

- When the rinse aid is empty, the Extra Dry option is selected automatically.

Delay Start

This feature delays the start of a selected cycle. Each time the Delay Start button is pressed, the delay time increases by an hour. The delay time can be set from 1 to 12 hours, in one-hour increments.

• To cancel this feature, turn the power off.
- To change the cycle and cycle option, open the door and then select another cycle and cycle option. The countdown will continue.

Control Lock

This feature helps prevent settings from being changed during a cycle. Selecting this feature locks all of the buttons, except for the Power button, on the control panel. This feature does not lock the door.

• On models with the external display, while a cycle is running, press and hold Half Load and Energy Saver simultaneously for 3 seconds to activate or deactivate this feature. On models with a concealed display, open the door during operation and follow the same instruction.
• When this feature is activated, the display code will show on the display.
  • To start a new cycle, deactivate this feature.
• This feature can be set at any time by turning on the appliance.

Wi-Fi

Press and hold Delay Start for 3 seconds to connect to the network. Refer to SMART FUNCTIONS sections for detailed information about this feature.

Auto Open Dry

The door will open automatically at the end of a programme that includes drying in order to enhance drying performance.

• This feature is not available in all models.

- To activate or deactivate this feature, press and hold the Energy Saver button and the High Temp button simultaneously for 3 seconds.

• This feature is not available when the Machine Clean and Rinse cycle is selected.

- When you select the Download Cycle, this feature may operate even if the feature is deactivated. Because the Download Cycle is designed to achieve the best performance in a specific purpose regardless of appliance settings.

- The display shows whether this feature is on or off.

Technical line drawing of a mechanical assembly with no visible text or symbols

WARNING

- Keep children away from the appliance while the appliance is operating. Exposure to high temperature steam may cause scalding or burns.

SignaLight™ (On Some Models)

SignaLight™ shows the status of the appliance, whether it has encountered any problems, whether it is operating normally, or whether it is ready to wash dishes.

- Depending on the model, the lamp may be located either on the front of the appliance or the top of the door.

Diagram showing a magnified view of three black dots on parallel lines above a table, with no visible text or symbols.

Red (left)

- The red lamp flashes when the appliance encounters an error. For more information about the error, see the Error Code part of the TROUBLESHOOTING section.

White (middle)

• The white lamp flashes when you select an option cycle or when a cycle has been paused.
• The white lamp lights up when a cycle is running.

Green (right)

• The green lamp lights up when a cycle is finished. When the door is opened, the lamp turns off.
• If the appliance does not detect that the door has been opened, the lamp will turn off after 90 seconds.

Programme Guide (model dependent)

For Non-Steam Models

Programme Soil Level	Wash Rinse				Dry
	Pre wash	Main wash Rinse Heating rinse
Auto All levels	○	○(65-70 °C)	○	○(62 °C)	○
Intensive Heavy	○	○(75 °C)	○	○(62 °C)	○
Delicate Light	○	○(45 °C)	○	○(62 °C)	○
Eco Moderate	○	○(49 °C)	○	○(54 °C)	○
Turbo Moderate	○○○			○(62 °C)
Express Light	○○○			○(62 °C)
Rinse Light			○
Machine Clean		○○○		○(70 °C)	○

For Steam Models

Programme Soil Level	Wash Rinse				Dry
	Pre wash	Main wash Rinse Heating rinse
Auto All levels	○	○(65-70 °C)	○	○(62 °C)	○
Intensive Heavy	○	○(75 °C)	○	○(62 °C)	○
Delicate Light	○	○(55 °C)	○	○(62 °C)	○
Refresh			○	○(62 °C)	○
Eco Moderate	○	○(49 °C)	○	○(54 °C)	○
Turbo Moderate	○○○			○(62 °C)
Express Light	○○○			○(62 °C)
Rinse Light			○
Machine Clean		○○○		○(70 °C)	○

• Running time may vary according to the water temperature, ambient temperature, water pressure and voltage.
• When the Auto Open Dry feature is activated, the heating rinse temperature may vary.

Program	Model	Auto Open Dry Feature	Water Consumption (l)	Energy Consumption (kWh)	Duration (min)
Eco	DU517*** / DU315**	ON	9.64	0.83	191
Auto	DU517*** / DU315**	ON	11.8 - 14.5	1.00 - 1.25	150 - 162

※ The datas given will vary depending on individual conditions.

Available Options

For Non-Steam Models

Programme	Options
	Dual Zone H	Half Load Energy	Saver High	Temp Extra Dry	Delay Start
Auto	○○○○	○○
Intensive	○○○○	○
Delicate		○○○○
Eco	○○○○	○○
Turbo	○○○○
Express	○○○○
Rinse						○
Machine Clean						○
Download Cycle						○

For Steam Models

• The Energy Saver option is not available with the High Temp or Extra Dry option.

Information for Energy Test (EN50242)

Appliance loaded in accordance with standard specifications.

For Models with Auto Open Dry Function

• Capacity: 14 place settings
• Comparability programme: Eco
- Rinse Aid setting: L2
• Reference cleaner: 35 g of detergent onto the inside surface of the door.
• Height-adjustable Rack-U position: Middle
• Auto Open Dry setting: On

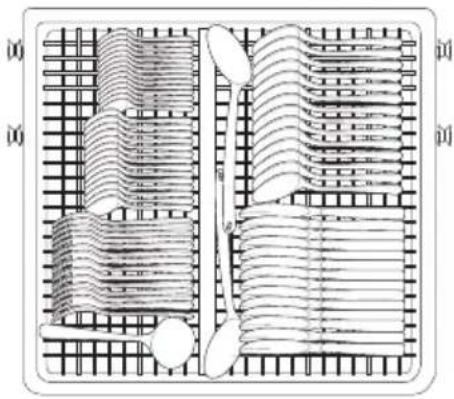

Cutlery Basket

Diagram of a heat exchanger or cooling system with layered heat distribution and cooling elements (no text or labels)

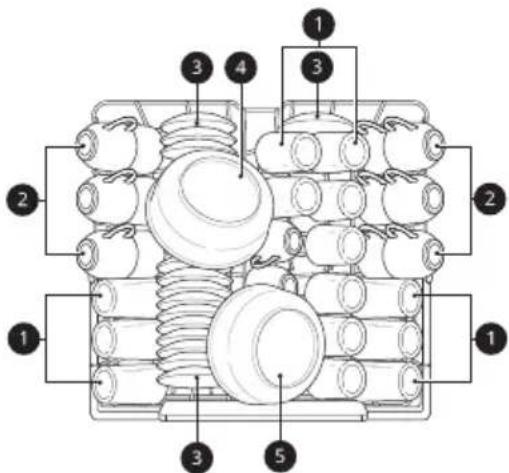

Upper Rack

1 Glasses
2 Cups
3 Saucers
4 Large bowl
5 Medium bowl

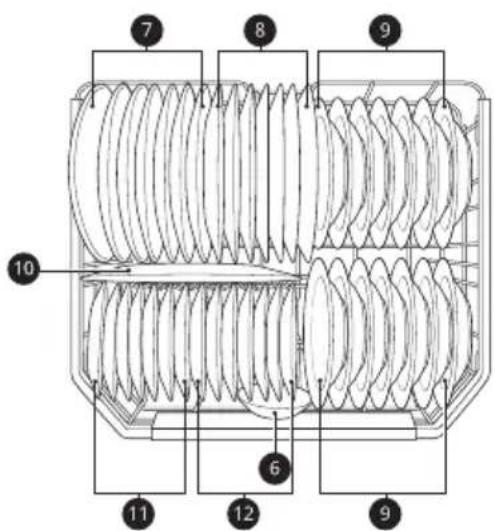

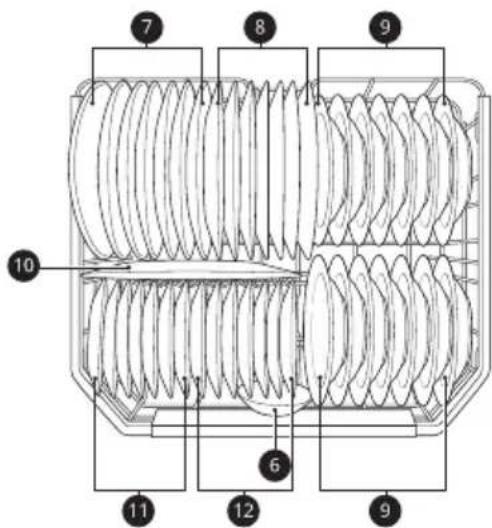

Lower Rack

6 Small bowl
7 Dinner plates (Meat)
8 Dinner plates (Egg)
9 Soup plates
10 Oval platter
11 Dessert dishes (Spinach)
12 Dessert dishes (Egg)

Loading the Dishwasher

For effective washing performance, always follow the instructions.

• Remove large particles of food debris from plates including bones etc. before loading. Always rinse off plates when loading if they are not to be washed immediately.
• Items with burnt on food should be soaked prior to loading in the appliance.
• Deep based items should be placed upside down.
• Plastic items will not dry well, compared to other items.
  • Make sure that all items do not touch each other.

Three abstract line drawings: a no-smoking circle, a blade-like structure, and a flat blade (no text or symbols)

The combination of high water temperature and appliance detergents may damage certain items. Do not wash the following items.

• Copper or anodised aluminium
• Hand painted silver or gold leaf crockery
• Wood or bone handled utensils
• Iron or non rust proof utensils
- Plastic items which are not appliance safe
- Expensive ware such as silver and dishes with golden rings
- Fragile item such as crystal glasses

CAUTION

• Do not place pots or pans with plastic handles in the appliance as the handles may deteriorate due to the heat and detergent.
• Water proof or long lasting lipstick smudges on glasses may not be removed during the wash.

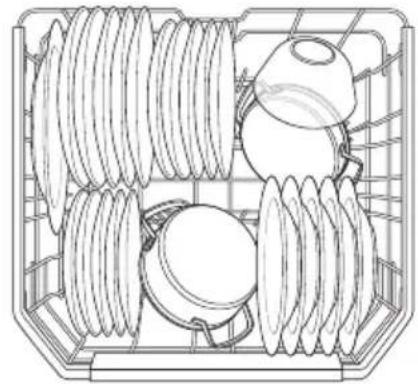

Loading the Lower Rack

Daily Use Load

The lower rack is suitable for dinner plates, soup bowls, dishes, pots, pans, lids and even a grill tray. Plates should be positioned upright and facing the centre of the rack and pots, pans and large dishes must be turned upside down.

To make it easier to load larger dishes, the front row of tines can be folded down.

Technical line drawing of a mechanical assembly with multiple components and no visible text or symbols

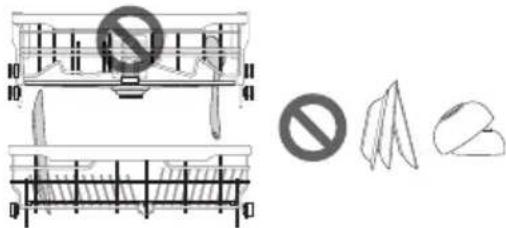

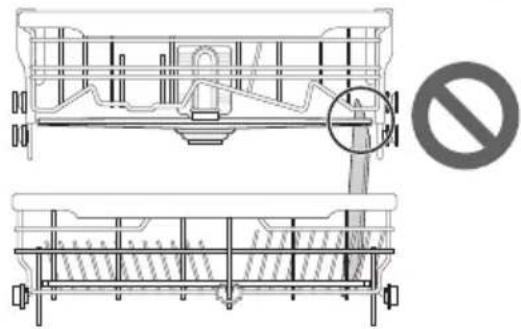

CAUTION

- Do not obstruct the rotation of the spray arms.

Technical line drawing of a vehicle chassis with no visible text or symbols

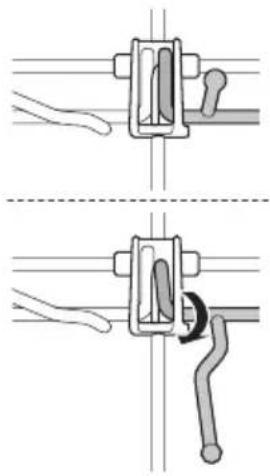

Folding Down the Rack Tines

Fold tines down to fit larger dishes; pull tines back up to fit smaller dishes.

Two-panel diagram showing mechanical assembly steps, no text or symbols present

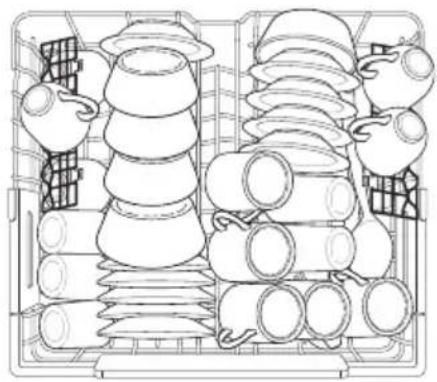

Loading the Upper Rack

Daily Use Load

The upper rack is suitable for delicate items such as, small plates, long cutlery, cups, glasses and appliance safe plastic items.

Cups, glasses and bowls must be positioned upside down.

Plates should be positioned upwards with the plate.

Top-down line drawing of a multi-tiered storage or storage unit with multiple cylindrical containers and handles (no text or symbols)

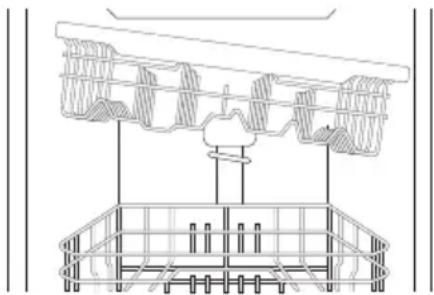

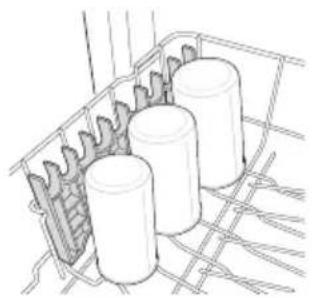

The cup racks provide support for long steam glasses.

Line drawing of a basket filled with eggs and vegetables (no text or symbols)

The left side row of tines can be folded down or the cup racks can be folded up out of the way for tall crockery items.

Technical line drawing of a mechanical assembly with three cylindrical components and meshed base (no text or symbols)

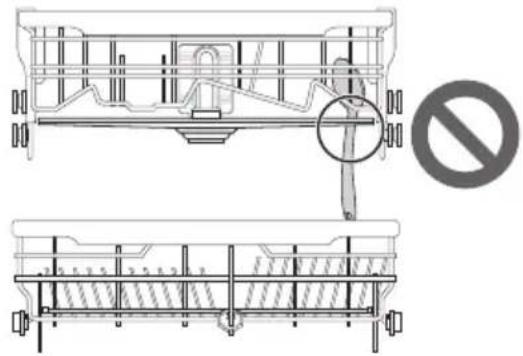

CAUTION

- Do not obstruct the rotation of the spray arms.

Technical line drawing of a vehicle chassis with no visible text or symbols

Removing and Replacing Cup Racks

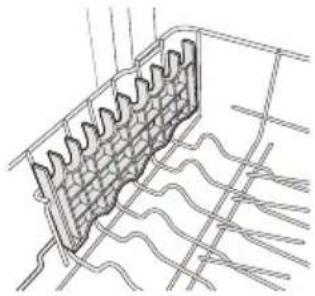

The left and right cup racks are interchangeable and can be removed.

1 Slide cup rack down into its closed position.

Technical line drawing of a mechanical component with internal grid structure (no text or symbols)

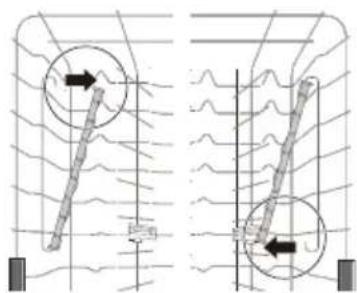

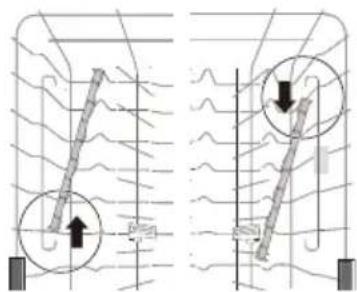

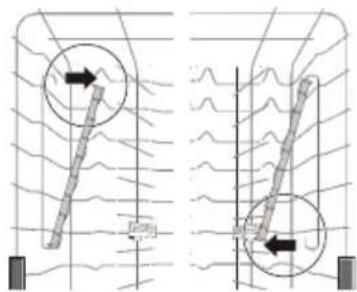

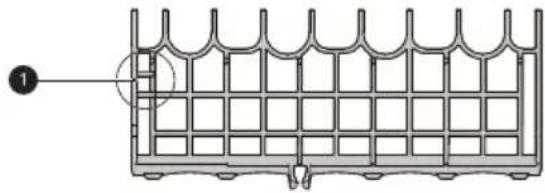

2 Locate assembly slot (1) on cup rack and firmly pop rack off support bar on that side.

- The rack on the left pops free at the back. The rack on the right pops free at the front.

Technical line drawing of a grid-patterned structure with no visible text or symbols

Diagram showing two mechanical or fluidic systems with directional arrows and wavy internal lines, no readable text or symbols present.

3 Slide cup rack off support bar on opposite side.

Diagram of two vertical structures with arrows indicating flow or movement, surrounded by wavy lines and grid lines (no text or symbols)

4 Reverse instructions to replace cup rack.

Height Adjustable Upper Rack

The height of the upper rack can be adjusted when you load glasses with long stems or tall crockery items.

There are three available positions for adjusting the height of the upper rack to create more space.

Technical line drawing of a mechanical component with internal grid structure (no text or symbols)

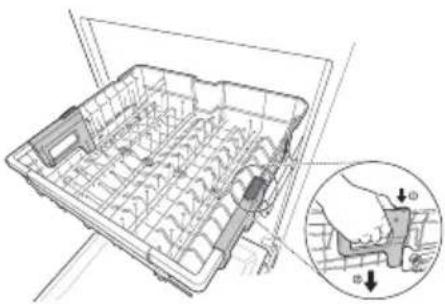

Lowering the Rack

Hold the rack at the centre of each side to support its weight. Then, push the button on each side to release the rack and lower it to the lower position.

Technical line drawing of a mechanical component with an inset showing a hand holding a tool (no text or symbols present)

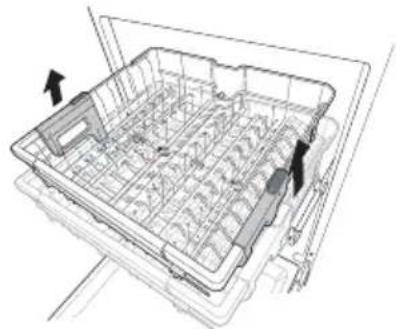

Raising the Rack

Lift the rack at the centre of each side until the rack locks into place in the upper position. It is not necessary to lift the lock levers to raise the rack.

Technical line drawing of a mechanical assembly with internal grid structure (no text or symbols)

WARNING

- Before adjusting, ensure the rack is empty of all dishes. Otherwise dishes may get damaged or you may get injured.

Possible plate size according to the upper rack position

Upper Rack Position	Plate Size (mm)
	Upper Rack		Lower Rack
	with Cutlery Rack	without Cutlery Rack
Upper 16	5 215 300
Middle 19	3 243 272
Lower 22	1 271 244

WARNING

- Before adjusting, ensure the rack is empty of all dishes. Otherwise dishes may get damaged or you may get injured.

NOTE

• Before pushing the upper rack into the appliance, ensure the rack height is the same on both sides. If the height is not the same on both sides, the appliance door will not shut and the upper spray arm will not connect to the water guide.
• Raise the upper rack without pushing the buttons on each side. Pushing the buttons when raising the rack will prevent the rack from locking into position.
• To set the rack to the middle position, it may be easier to lower the rack all the way down and then raise each side of the rack individually until it clicks into place.

Technical line drawing of a mechanical assembly with no visible text or symbols

• There is a 56 mm gain in height when the upper rack is moved to the lower position.
• After adjusting the rack levels, check that the spray arms are free to rotate.
• With the lower position of the upper rack, check if the bottom part of upper rack including spray arm is not disturbing items on the lower rack.
• When the upper rack is in the lower position, push in the upper rack first, and the lower rack later.
• Pull out the lower rack first, and the upper rack later.
• Raise the upper rack without pushing the buttons on each side. Pushing the buttons when raising the rack will prevent the rack from locking into position.
• When the upper rack is in the lower position, the possible height of dishes differs with models where the cutlery rack is fitted.

Loading the Cutlery Rack

The cutlery rack is best suited for flatware and most cooking or serving utensils. It can also fit small prep bowls and lids. The separators on the cutlery rack help keep utensils separated to avoid damage and improve cleaning.

Top-down line drawing of a food storage tray with trays of spoons and spoons, no text or symbols present.

Illustration of a shopping cart filled with food items, no text or symbols present

Illustration of a supermarket checkout area with shoppers and a no-smoking symbol (no text or labels)

If the handles of your cutlery are too thick, then reverse the pieces so that the handles face the other direction.

Line drawing of a vehicle interior with curved tracks and windows (no text or symbols)

Height Adjustable Tray

The tray on the left side can be adjusted to a high or low position to accommodate utensils or cutlery of different sizes. Remove dishes before adjusting the tray. Adjust the tray by sliding the lever.

Diagram of a refrigerator drawer with mesh compartments and directional arrows indicating flow (no text or symbols)

Removing the Cutlery Rack

The entire cutlery rack can be removed if more space is needed on the upper rack for larger items.

Always remove the cutlery from the rack before removing the rack.

Pull the rack out to the end of the rails. Then, lift the front of the rack so that the rollers clear the stop on the end of the rail. The rack can now be slid forward and removed from the rails.

Technical illustration of a mechanical component with a curved arrow indicating direction (no text or symbols)

WARNING

- Be careful when loading and unloading items with sharp edges. Load sharp knives with the blade down to reduce the risk of injury.

Adding Cleaning Agents

Adding Detergent to the Dispenser

• Remove the label on the dispenser prior to running the appliance for the first time.
• The amount of detergent needed depends on the cycle, load size, and soil level of dishes.
• Put detergent into the detergent compartment before starting any cycle, except the Rinse cycle.

1 Push the button on the dispenser lid to open the cover.

Illustration of a hand inserting a device into a device (no text or symbols visible)

2 Add dishwashing detergent to the main wash compartment until the level is between the lines marked 15 and 25.

• Fill to over the 25 line for hard water or heavily solied loads.
• Fill to the 15 line for soft water or lightly solied loads.

3 Push the detergent lid to slide the lid closed until it clicks.

Hand holding a digital device with a screen, no visible text or symbols

4 If a prewash is desired, fill the recessed prewash compartment area on the lid with detergent.

Line drawing of a hand holding a small object inside a device (no text or symbols)

Programme	Amount of detergent
	Pre wash(onto the lid)	Main wash(dispenser)
Auto 5 g 20 g
Intensive 5 g 30 g
Delicate 5 g 20 g
Refresh - -
Eco - 25 g
Turbo 5 g 20 g
Download Cycle 5 g 20 g
Machine Clean 5 g 20 g
Rinse - -
Express - 20 g

WARNING

- Dishwasher detergent and rinse aid contain chemical components, like all other household detergent. So, they must be kept out of the reach of children.

CAUTION

• Use only detergent intended for dishwashers. Incorrect detergent may cause the appliance to fill with suds during operation. Excess suds may reduce wash performance and may cause the appliance to leak.
• To avoid damaging the appliance, do not pull up on the dispenser to close the appliance door.

Diagram showing a device with a circular symbol and an arrow indicating rotation or disassembly (no text or labels)

• Use of an unsuitable detergent and rinse aid may result in a risk of damage, corrosion, poor washing performance, poor drying or leakage.
• Only use the detergent and rinse aid that has been qualified with standard. Use of an unqualified detergent and rinse aid may present a risk of damage, corrosion, poor washing performance, poor drying, and leakage.

NOTE

• Too much detergent can leave a film on dishes and in the appliance, resulting in poor wash performance.
• After washing, check whether the detergent was completely washed out.
• Some appliance detergent tablets may become stuck in the dispenser due to their excessive size. Tablets can be placed onto the base of the wash tub next to the filter before starting the cycle.
• Never use liquid dishwashing detergent in the appliance.
• Detergent tablets are not recommended for use of Express cycle. If the detergent tablets are used, it may cause detergent residue on dishes due to the relatively low rinse temperatures.
• If using Detergent Tablets that also contain rinse aid, then set the rinse aid dispenser level to the lowest setting or do not fill it with rinse aid. Excessive rinse aid can cause a clouded residue and undesirable foaming. This could also lead to a malfunction.

Refilling

To maintain the effective wash performance of the appliance, check and refill dishwasher salt regularly.

To maintain the effective dry performance of the appliance, check and refill rinse aid regularly.

Checking the Rinse Aid

When the Rinse Aid Refill 📧 con illuminates lit, it means the rinse aid is almost empty. If necessary, refill the rinse aid chamber.

Checking the Dishwasher Salt

After refilling the dishwasher salt, a wash programme should be operated without dishes, as any spilled salt inside the appliance may cause rust or damage to the appliance if the left unwashed.

When the Rinse Refill con illuminates, it means the salt is almost empty. If necessary, refill the salt chamber.

CAUTION

- Do not add detergent or any other solution into the water softener housing other than dishwasher salt. Doing so will cause the water softening system to malfunction.

Drying

• Plastic items may cause poor drying performance compared to other items.
• To assist drying, the door can be opened for a short period of time after the cycle.

NOTE

• Make sure that all items do not touch each other.
• If dry performance is not good or water stains remain, add the Extra Dry option or adjust the rinse aid level.
• When using tablet type (2 in 1, 3 in 1) detergent, an additional rinse may be required, depending on the volume of dishes, in this case use the Extra Dry option or adjust the rinse aid level.

Unloading the Dishwasher

• Check the Dishwasher Before unloading the dishes, check if the dishes have cooled down to a hand-warm condition.
• Empty the lower rack first and then the upper rack. It will avoid water dripping from the upper rack onto the dishes below.

LG ThinQ Application

- This feature is only available on models with the 📞 or 📖.

The LG ThinQ application allows you to communicate with the appliance using a smartphone.

LG ThinQ Application Features

Communicate with the appliance from a smartphone using the convenient smart features.

Monitoring

This function checks the current status, cycle, options running time and cycle end time for the application on a single screen.

Download Cycle

You can download new and special cycles that are not included in the basic cycles on the appliance.

Appliances that have been successfully registered can download a variety of specialty cycles specific to the appliance.

Only one cycle can be stored on the appliance at the same time.

Once cycle download is completed in the appliance, the appliance keep the downloaded cycle until a new cycle is downloaded.

Machine Clean Reminder

This function shows how many cycles remain before it is time to run the Machine Clean cycle.

Smart Diagnosis

This function provides useful information for diagnosing and solving issues with the appliance based on the pattern of use.

Settings

Various functions are available.

Push Alert

Turn on this function to receive appliance status notifications.

The notifications are triggered even if the LG ThinQ application is off.

NOTE

• If you change your wireless router, Internet service provider, or password, delete the registered appliance from the LG ThinQ application and register it again.
• The application is subject to change for appliance improvement purposes without notice to users.
  • Functions may vary by model.

Before Using LG ThinQ

1 Check the distance between the appliance and the wireless router (Wi-Fi network).

- If the distance between the appliance and the wireless router is too far, the signal strength becomes weak. It may take a long time to register or installation may fail.

2 Turn off the Mobile data or Cellular Data on your smartphone.

3 Connect your smartphone to the wireless router.

NOTE

• To verify the Wi-Fi connection, check that Wi-Fi 🔊 icon on the control panel is lit.
• The appliance supports 2.4 GHz Wi-Fi networks only. To check your network frequency, contact your Internet service provider or refer to your wireless router manual.

• LG ThinQ is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection.

• If the appliance is having trouble connecting to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength.

• The Wi-Fi connection may not connect or may be interrupted because of the home network environment.
• The network connection may not work properly depending on the Internet service provider.
• The surrounding wireless environment can make the wireless network service run slowly.
• The appliance cannot be registered due to problems with the wireless signal transmission. Unplug the appliance and wait about a minute before trying again.
• If the firewall on your wireless router is enabled, disable the firewall or add an exception to it.
• The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
• Smartphone user interface (UI) may vary depending on the mobile operating system (OS) and the manufacturer.
• If the security protocol of the router is set to WEP, you may fail to set up the network. Please change it to other security protocols (WPA2 is recommended) and register the product again.

Installing LG ThinQ

Search for the LG ThinQ application from the Google Play Store or Apple App Store on a smartphone. Follow instructions to download and install the application.

- Follow instructions to download and install the application.

Wireless LAN Module Specifications

Model LCW-003
Frequency Range	2412 to 2472 MHz
Output Power (Max)	IEEE 802.11b:18.37 dBmIEEE 802.11g:17.67 dBmIEEE 802.11n:17.67 dBm

Wireless function S/W version : V 1.0

For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm between the device and the body.

Declaration of Conformity

CE

Hereby, LG Electronics declares that the radio equipment type Washing Machine is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

http://www.lg.com/global/support/cedoc/cedoc#

LG Electronics European Shared Service Centre B.V

Krijgsman 1

1186 DM Amstelveen

The Netherlands

Standby Power Consumption

Standby power consumption 0.5 W
Network standby power consumption	2.0 W
The period of time after which the power management function, or a similar function, switches the equipment automatically into standby and/or off mode and/or the condition providing networked standby	20 min.

Open Source Software Notice Information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail]. This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this information.

Smart Diagnosis

This feature is only available on models with the ⏻ or ⏻ logo.

Use this feature to help you diagnose and solve problems with your appliance.

NOTE

• For reasons not attributable to LGE's negligence, the service may not operate due to external factors such as, but not limited to, Wi-Fi unavailability, Wi-Fi disconnection, local app store policy, or app unavailability.
• The feature may be subject to change without prior notice and may have a different form depending on where you are located.

Using LG ThinQ to Diagnose Issues

If you experience a problem with your Wi-Fi equipped appliance, it can transmit troubleshooting data to a smartphone using the LG ThinQ application.

• Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions provided in the LG ThinQ application.

Using Audible Diagnosis to Diagnose Issues

Follow the instructions below to use the audible diagnosis method.

• Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions for audible diagnosis provided in the LG ThinQ application.

1 Press the Power button to turn the appliance on.

2 Hold the mouthpiece of your phone over the Smart Diagnosis icon. Do not touch any other buttons.

3 Press and hold Download Cycle until a countdown displays on the appliance.

4 Keep the phone in place until the tone transmission has finished. After the data transfer is complete, the diagnosis will be displayed in the application.

- For best results, do not move the phone while the tones are being transmitted.

5 Once the countdown is over and the tones have stopped, resume your conversation with the call centre agent, who will then be able to assist you using the information transmitted for analysis.

NOTE

- For best results, do not move the phone while the tones are being transmitted.

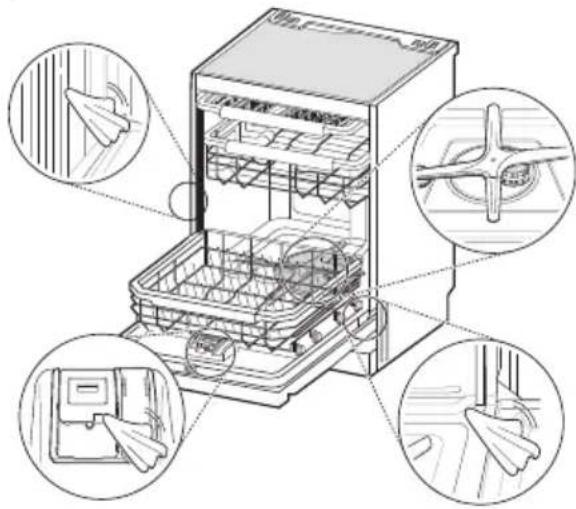

To maintain performance and prevent problems, check the outside and inside of the appliance, including filters and spray arms regularly.

WARNING

- When cleaning the outside and inside of the appliance, do not use any solvent based solutions such as thinners or acetone. It may cause fire or explosion.

NOTE

- If you have not used the appliance for a long time, refresh the inside by running Turbo or Machine Clean programme with detergent. When the cycle is finished, clean the inside and outside of the appliance according to the Maintenance instructions.

- Prevent animals from nibbling on the power cable or water hose.

Cleaning the Exterior

In most cases, the exterior of the appliance can be cleaned with a soft damp cloth or sponge, then dried with a soft cloth. If the appliance has a stainless steel exterior, use a stainless steel cleaner.

CAUTION

- If cooking oil is spilled on the exterior of the product, wipe it off immediately. Do not clean the exterior of the product with cleaners which contain alcohol, thinners, bleach, benzene, flammable liquids, or abrasives. These substances may discolor or damage the appliance.

Cleaning the Interior

Clean the interior of the appliance periodically with a soft, damp cloth or sponge to remove food and dirt particles.

Food residue may be stuck in the narrow gaps inside the appliance after completion of washing. Wipe off all food residue.

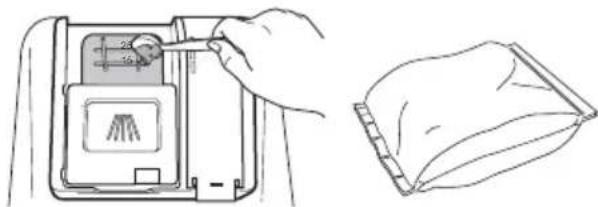

Using Citric Acid

Remove all dishes, cutlery basket and cutlery basket holder from appliance. Only racks should remain in tub. For best results, use citric acid powder (can be found in canning sections of most supermarkets or online). Measure 3 tablespoons (45 g) of citric acid powder. Fill main wash compartment with measured powder.

Line drawing showing a hand inserting a component into a device with a cloth, alongside a close-up of a cloth (no text or symbols)

Using White Vinegar

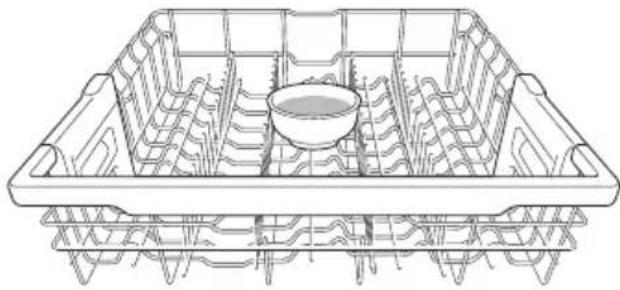

If you cannot find citric acid powder, pour approximately 3/4 - 1 1/4 cups (200 - 300 mL) of white vinegar into shallow bowl and place in upper rack. Run Auto cycle. Do not use detergent. When the cycle is finished, restart.

Technical line drawing of a rectangular tray with internal compartments and a central bowl (no text or symbols)

CAUTION

• Do not pour vinegar directly into the base.
• Excessive use of vinegar may cause damage to the appliance.

Seasonal Maintenance and Storage

• If you will be absent for an extended period of time during warmer months, close the water valve and unplug the power cord, or turn off the circuit breaker. Clean the filter, tub and dispenser to prevent odor.
• If you will be absent for an extended period of time during colder months and there is a possibility of freezing temperatures, winterize the water supply lines and the appliance itself. Winterization must be performed by qualified service personnel.

Cleaning the Filters

1 Remove the lower rack and position the bottom spray arm so a wider vee is open to the front.
2 Turn the inner filter counter-clockwise and take out the assembled inner filter and stainless steel filter.

Illustration of a hand using a mechanical component to press or adjust a cylindrical component, with no visible text or symbols.

3 Clean the filters with a soft brush under running water. Reassemble the filters before reinstalling them.

Illustration showing two hand-painted illustrations: one with a cylindrical object and upward/downward arrows, the other with a faucet filled with liquid (no text or symbols)

4 To replace the assembled filters, position the spray arm so the wider vee is toward the front. Fit the filters back into the filter holder and secure them by turning the inner filter clockwise until it clicks into place.

Hand holding a valve mechanism inside a car intake tray, with arrows indicating clockwise motion (no text or symbols)

WARNING

- Be cautious of sharp edges when handling the stainless steel filter.

CAUTION

- After using the appliance, particles of food are filtered by the filters. Any unremoved food residue may cause bad smell. In addition, drainage may have a problem due to food residue stuck in the filters.

NOTE

- When assembling, rotate it firmly until it clicks.

Cleaning the Spray Arms

If the spray arm holes are blocked by any food residue, dishes may not be cleaned well due to improper water spray.

It is recommended that the spray arms be cleaned once every two weeks.

Cleaning the Lower Spray Arm

1 Make sure that the water jet holes are not blocked by food particles.

2 If any food residue blocks the spray arm holes, remove it with a pin or any sharp tool.

Line drawing of a hand using a tool to clean or inspect a circular object inside a rectangular basin (no text or symbols)

CAUTION

- To avoid breaking the variable angle spray arm end sections, do not pull or manually rotate them.

Cleaning the Upper Spray Arm

1 Pull the upper rack forward. Make sure that the water jet holes are not blocked by food particles.

2 When cleaning is necessary, remove the upper spray arm by turning the nut on the bottom of the spray arm 1/8 turn counterclockwise and pulling down.

Diagram of a bicycle conveyor belt system with an inset showing a mechanical component (no text or symbols present)

3 Remove food particles by rinsing or shaking the spray arm.

4 If any food residue blocks the spray arm holes, remove it with a pin or any sharp tool.

Illustration of a hand holding a pen with a downward arrow indicating force or direction (no text or symbols)

5 After removing the food residue, clean the spray arms holes under running water.

6 After cleaning the upper spray arm, press it up into place. Turn the nut 1/8 turn clockwise to make sure that the nut locks back into place.

Diagram of a mechanical assembly with a magnified inset showing a component detail (no text or symbols present)

7 After assembly, check whether the spray arms rotate freely.

Cleaning the Water Supply Hose Filter

1 Unplug the appliance.
2 Turn off the water tap.
3 Unscrew the water supply hose.
4 Remove the seal and the plastic filter with a pair of small pliers or scissor grips.

5 Refit the filter and gasket and make sure that it is sitting correctly.

6 Refit and secure the water supply hose in reverse order. Do not use any mechanical device to tighten the hose. A soft cloth can be used to assist hand tightening.

NOTE

• A filter is fitted into the inlet of the water supply hose connection.
• If insufficient water flows into the appliance, check that the filter is not blocked.
• If there is a leak, the water supply hose will need to be checked for proper connection.
• Never over tighten the water supply valve or use mechanical devices to tighten.
• When reassembling the seal and the filter, ensure that they free from dirt or grit that may have come from the water supply.

The appliance is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If the appliance does not function properly or does not function at all, check the following before you call for service:

Diagnosing Problems

Symptoms Possible Causes & Solution
Appliance will not operate.	Door is not completely closed.Level the appliance again.
	Power supply or power cord is not connected.Connect the power supply or cord properly.
	When the Control Lock feature is activated, the display code will show on the display.Deactivate the Control Lock button.Press and hold Half Load and Energy Saver simultaneously for 3 seconds to activate or deactivate this feature.
	Fuse is blown or circuit breaker tripped.Replace the fuse or reset the circuit breaker.
Appliance continuously beeps when the door is opened, during or right after a cycle has completed.	The contents of the appliance are hot and care should be used when placing your hands inside the appliance.Close the door until the appliance and dishes have cooled down. The beeping will stop if the door is closed or the interior temperature has cooled.
Water remains in sump after completion of cycle.	Drain hose is kinked or clogged.Adjust hose or clear blockage.
	Water may remain if the power supply was lost before normal end of the course or was manually disconnected.Re-start the course.
Sprays arms do not rotate smoothly.	Holes of spray arms are blocked by food particles.Clean the holes of spray arms.
Upper rack is crooked.	Rack is poorly adjusted.See the Height Adjustable Upper Rack section.
Lamps do not illuminate.	Power is not connected.Connect power supply.
There is excessive foam inside the appliance.	Failure to use the detergent exclusive for appliance.Use the detergent exclusive for appliance.
	An excessive amount of rinse may cause foam.Reduce the rinse aid dispensing level.
Detergent is left in the detergent dispenser.	Unbalanced upper rack.Adjust the left/right height of the upper rack.
	Detergent may not be dispensed because poor stacking of the dishes prevent automatic opening of the detergent dispenser.Correctly arrange the dishes and always dry out the dispenser before adding new detergent so that it does not clump together.
Water leaks outside the appliance.	The door may not be closed due to tilted appliance. In this case a water leak may occur.Check the leveling by adjust the leg.
	Wrong installation of drainage hose may cause water leak.Check the connecting part of drainage hose.
	If the power is off, a water leak may be caused by a poor connection to the tap.Check the connection water supply hose.
Cloudiness on glassware.	Combination of excessive detergent and hard water.Use less detergent and use a rinse aid to minimize the problem.Check the setting of softening system.
Black or gray marks on dishes.	Aluminum items rubbing dishes during cycle.Reposition the dishes.
Yellow or brown film on inside surfaces of appliance.	Coffee or tea stains.Eliminate the stain by using a stain removal product.
Yellow water remains inside the dishwater	When initially using the appliance, Yellow water may generate in the water softener tank.This is a normal condition, and it is harmless to humans. It disappears after 1 - 3 cycles.
Spots and filming on dishes.	Wrong amount of detergent used.Use the recommended amount of detergent.
	Overloading.Do not overload the appliance.
	Improper loading.See the OPERATION section.
	Insufficient water pressure.Water pressure should be between 0.05 - 0.6 MPa.
	Insufficient detergent.Add the recommended amount of detergent. See the OPERATION section.
	Rinse aid dispenser is empty.Refill rinse aid dispenser.
	The water softener has no salt or insufficient the salt.Check whether there is the salt in the water softener.
	Water hardness level may be set too low.Increase the hardness level setting value.
	The rinse aid may be insufficient.Refill the rinse aid or increase the dispensing level.
	Hard water buildup in the tub.Remove all dishes, cutlery basket and cutlery basket holder from appliance. Only racks should remain in tub. For best results, use citric acid powder (can be found in canning sections of most grocery stores or online). Measure 3 tablespoons (45 g) of citric acid powder. Fill main wash compartment with measured powder. If you cannot find citric acid powder, pour approximately 3/4 - 1 1/4 cups (200 - 300 mL) of white vinegar into shallow bowl and place in upper rack. Run Auto cycle. Do not use detergent. When the cycle finish, run it again.
Odor	The previous cycle was stopped before completion and residual water remains in the appliance.Turn on the power, run the Cancel cycle option to remove the residual water, then run the Quick cycle using detergent but with the appliance empty.
	There is food in the bottom of the unit or in the filter.Clean the filter and the interior according to the Maintenance section of the owner's manual.
	Unwashed dishes are left in the unit for a long time.Cycle with one cup of white vinegar in a appliance safe glass or bowl placed on the upper rack. (Vinegar is an acid, and with constant use it could damage your appliance.)
Food soil remains on dishes.	Improper cycle selection.Select correct cycle based on soil level and type of dishware being washed.
	Water temperature is too low.Check water supply connection or water heater setting.
	Dishwashing detergent was not used.Use recommended detergent.
	Low inlet water pressure.Water pressure should be between 0.05 - 0.6 MPa.
	Water jet holes on spray arms blocked.Clean the spray arms.
	Improper loading of dishes.Make sure dishes do not block spray arm rotation or interfere with detergent dispenser.
	Filters are clogged.Clean filters.
	Too much Unremoved food debris on dishes.Large particles of food residues should be removed from the dishes before staring wash.
Noise	Some level of noise is normal during operation. ·Detergent cover opening. ·Drain pump at the beginning of drain cycle.
	The appliance is not level. ·Adjust leveling feet.
	Nozzle arm knocking against dishes. ·Reposition the dishes.
	Water pressure is too high. ·Adjust water pressure.
Dishes don't dry.	Rinse agent dispenser empty. ·Check and refill the rinse agent dispenser if empty. For better drying result, slightly open the door after operation.
	Tablets used may not have a built in rinse aid. This will reduce the drying performance. ·Change to a tablet that includes a rinse agent (contact the tablet manufacturer if unsure). Alternatively, you can use a liquid rinse agent in the dispenser if the tablets don't have a rinse agent built in.
	A cycle without the Extra Dry option was selected. ·Select a cycle that defaults to the Extra Dry option.
Your home appliance and smartphone are not connected to the Wi-Fi network.	The password for the Wi-Fi that you are trying to connect to is incorrect. ·Find the Wi-Fi network connected to your smartphone and remove it, then register your appliance on LG ThinQ.
	Mobile data for your smartphone is turned on. ·Turn off the Mobile data of your smartphone and register the appliance using the Wi-Fi network.
	The wireless network name (SSID) is set incorrectly. ·The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
	The router frequency is not 2.4 GHz. ·Only a 2.4 GHz router frequency is supported. Set the wireless router to 2.4 GHz and connect the appliance to the wireless router. To check the router frequency, check with your Internet service provider or the router manufacturer.
	The distance between the appliance and the router is too far. ·If the distance between the appliance and the router is too far, the signal may be weak and the connection may not be configured correctly. Move the location of the router so that it is closer to the appliance.

Error Codes

Symptoms Possible Causes & Solution
IE	Water inlet problem.Check for a clogged, kinked or frozen water supply hose.Check water supply.
OE	Drainage Problem.Check for a clogged, kinked or frozen drain hose.
	Waste spigot is clogged.Remove knockout on waste spigot.
	Filters are clogged.Clean Filters.
bE	Oversudsing caused by improper detergent, such as liquid dish soap.Do not use hand dishwashing liquids. Only use detergents which are designed for use in automatic dishwashers.To remove detergent residue in the tub, pour approximately 100~200 ml of milk into a shallow bowl, place it to the upper rack and then run the appliance on theAutocycle.
	Failure to level appliance.Make sure that the appliance is properly leveled.
HE	Heater circuit failure	Call for service if the same problem occurs again. (If the voltage exceeds 300 V, heater operation is temporarily stopped to prevent heater burnout. If this is repeated for a long time, an HE error may occur.)
FE	Excessive water supplied.
RE	Water leakage problem
tE	Thermistor failure
LE	Motor trouble
nE	Vario motor trouble
Product fiche_commission Delegated Regulation(EU) No 1059/2010
Supplier's name or trade mark LG
Supplier's model identifier DU517***/DU315**
Rated capacity, in standard place settings, for the standard cleaning cycle	14 PS
Energy efficiency class A+++
Awarded an “EU Ecolabel” under Regulation (EC) No 66/2010 No
Energy consumption “X” kWh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.	237	kWh/year
The energy consumption (Et) of the standard cleaning cycle 0.83 kWh
The power consumption in off mode 0.49 W
The power consumption in left-on mode 4 W
Water consumption “X” litres per year, based on 280 standard cleaning cycles. Actual water consumption will depend on how the appliance is used.	2700	litres/year
Drying efficiency class “X” on a scale from G (least efficient) to A (most efficient)	A
The ‘Eco’ is the standard cleaning cycle to which the information in the label and the fiche relates, that this programme is suitable to clean normally soiled tableware, and that it is the most efficient programme in terms of combined energy and water consumption.
Programme time for the standard cleaning cycle 191 min.
The duration of the left-on mode (TI) 1 min.
Airborne acoustical noise emissions 42 dB(A)
Built-Under

Memo

BRUGERVEJLEDNING

OPVASKEMASKINE

Smart Diagnosis....43

VEDLIGEHOLDELSE 44

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Line drawing of a washing machine with a circular vent and handle, showing internal components (no text or symbols)

Diagram of a tool interacting with a curved surface, showing a magnified inset (no text or symbols)

Diagram of a pulley system with an inset showing hand positioning (no text or symbols)

Illustration of a hand holding a wrist with an arrow indicating motion (no text or symbols)

Pure technical diagram showing a mechanical component with a downward arrow, no text or symbols present

BEMÆRK

BEMAERK

Diagram of a mechanical lifting device with an inset showing a pulley mechanism (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset illustrating the process (no text or symbols present)

Technical diagram showing mechanical assembly with a magnified inset of a tool interacting with a spring-like component (no text or symbols present)

Technical diagram showing mechanical assembly with a magnified inset of a bracket and internal components (no text or symbols)

Technical line drawing of a window frame with a door and shelf, showing structural components without any text or symbols.

BEMAERK

Maks. 60 mm

Diagram of a kitchen appliance with a rack and cabinet, showing internal components and a warning sign (no text or symbols present)

Three diagrams showing a coiled rope knot with different angles and connection points (no text or symbols)

FORSIGTIG

Two identical diagrams showing a circular object with a ring above it, one with a 'no' symbol and the other with a triangle (no text or labels)

BEMÆRK

Line drawing of a mechanical device with a lever and adjustment arrow (no text or symbols)

Line drawing of a handheld device with a handle and control panel (no text or symbols)

Line drawing of a mechanical device with a handle and control panel, showing an arrow indicating rotation (no text or symbols)

FORSIGTIG

Top-down line drawing of a kitchen sink with a central bowl and four arms (no text or symbols)

4 Sørg for, at spulearmene kan dreje frit rundt.

Technical line drawing of a mechanical assembly with no visible text or symbols

BEMAERK

Technical line drawing of a mechanical assembly with no visible text or symbols

ADVARSEL

Rød (venstre)

Diagram of a heat exchanger or cooling system with layered material and cooling elements (no text or labels)

∅verste stativ

1 Glas
2 Kopper
3 Underkopper
4 Stor skål
5 Mellemstor skål

Nederste stativ

6 Lille skål
7 Middagstallerkner (kød)
8 Middagstallerkner (æg)
9 Suppetallerkner
10 Ovalt fad
11 Desserttallerkner (spinat)
12 Desserttallerkner (æg)

Three abstract line drawings: a prohibition symbol, a folded blade, and a simplified blade shape (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical parts and a central housing (no text or symbols)

! FORSIGTIG

Technical line drawing of a vehicle chassis with no visible text or symbols

Two-step diagram showing mechanical assembly steps, no text or symbols present

Top-down line drawing of a storage tray with various items including jars, bowls, and containers (no text or symbols)

Line drawing of a basket with hanging items, no text or symbols present

Technical line drawing of a mechanical assembly with three cylindrical components and mesh grid (no text or symbols)

! FORSIGTIG

Technical line drawing of a vehicle chassis with no visible text or symbols

Technical line drawing of a mesh grid structure with no visible text or symbols

Technical line drawing of a washing machine drawer with internal compartments and labeled parts (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a hand holding a tool (no text or symbols present)

Hævning af stativet

Technical line drawing of a mechanical housing or enclosure with internal grid structure and directional arrows (no text or symbols)

ADVARSEL

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand inserting a device into a device (no text or symbols visible)

Hand holding a small electronic device with a screen (no visible text or symbols)

Line drawing of a hand holding a small object over a device panel (no text or symbols)

Program	Mængde af opvaskemiddel
	Forvask (på låget)	Hovedvask (dispenser)
Auto 5 g 20	g
Intensive 5 g	30 g
Delicate 5 g	20 g
Refresh - -
Eco - 25 g
Turbo 5 g 20	g
Download Cycle	5 g 20 g
Machine Clean 5	g 20 g
Rinse - -
Express - 20	g

ADVARSEL

Diagram showing a device with a circular symbol and an arrow indicating rotation or disassembly (no text or labels)

BEMÆRK

LG Electronics European Shared Service Centre B.V

Krijgsman 1

1186 DM Amstelveen

Holland

Brug af citronsyre

Line drawing showing a hand inserting a spring into a device with a magnified view of the fabric (no text or symbols)

Brug af hvid eddike

Technical line drawing of a mechanical component with internal channels and a central bowl (no text or symbols)

! FORSIGTIG

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Illustration showing two hand-painted illustrations: one with a coiled tube and upward/downward arrows, the other with a faucet filled with liquid and falling (no text or symbols)

Hand holding a circular component with arrows indicating rotation or change (no text or symbols)

ADVARSEL

Line drawing of a hand holding a tool interacting with a circular mechanical component (no text or symbols)

FORSIGTIG

Diagram of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols)

Diagram of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

7 Kontrollér efter samling, om spulearmene kan rotere frit.

Smart Diagnosis....43

KUNNOSSAPITO....44

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Line drawing of a washing machine with a hand adjusting its side panel (no text or symbols)

Diagram of a mechanical component with a close-up inset showing a detail (no text or symbols)

Diagram of a pulley system with an inset showing hand positioning (no text or symbols)

Illustration of a hand holding a wrist with a curved arrow indicating motion (no text or symbols)

Pure technical diagram showing a mechanical component with a downward arrow, no text or symbols present

HUOMAUTUS

HUOMAUTUS

Diagram of a mechanical lifting device with a magnified inset showing a lever mechanism (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset illustrating the process (no text or symbols present)

Technical diagram showing a mechanical assembly with a magnified inset illustrating a tool interacting with a spring-like component (no text or symbols present)

Technical diagram showing mechanical assembly with a magnified inset of a bracket and adjustment mechanism (no text or symbols)

Architectural diagram showing a window frame with a door and a wooden beam, no text or symbols present

HUOMAUTUS

Enint. 60 mm

Technical illustration of a kitchen cabinet with a highlighted interior space and a rolled-up sheet (no text or symbols)

Three diagrams showing a rope knot being twisted, with no text or symbols present.

HUOMIO

Simple line drawing of a ring mounted on a circular base with a triangular base (no text or symbols)

HUOMAUTUS

Line drawing of a mechanical device with a lever and control panel (no text or symbols)

Line drawing of a handheld device with a handle and control panel (no text or symbols)

Line drawing of a mechanical device with a handle and control panel, showing an arrow indicating rotation (no text or symbols)

HUOMIO

Top-down line drawing of a kitchen sink with a central bowl and four arms (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

HUOMAUTUS

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

VAROITUS

Punainen (vasen)

Diagram of a heat exchanger or cooling system with layered heat dissipation zones (no text or labels)

Yläkori

1 Lasit
2 Kupit
3 Aluslautaset
4 Suuri kulho
5 Keskikokoinen kulho

Alakori

Three abstract line drawings: a no-smoking circle, a folded paper or blade, and a simplified computer mouse (no text or symbols)

Technical line drawing of a multi-tiered mechanical component or housing (no text or symbols)

HUOMIO

Technical line drawing of a vehicle chassis with no visible text or symbols

Mechanical assembly diagrams showing two configurations of a clamp or bracket mechanism (no text or labels)

Yläkorin täyttö

Top-down line drawing of a storage or processing unit with multiple cylindrical containers and circular components (no text or symbols)

Line drawing of a basket with hanging food items (no text or symbols)

Technical line drawing of a mechanical assembly with cylindrical components and mesh grid (no text or symbols)

HUOMIO

Technical line drawing of a train car frame with no visible text or symbols

Technical line drawing of a mechanical component with internal grid structure (no text or symbols)

Technical line drawing of a grid-patterned metal enclosure or enclosure with no visible text or symbols

Diagram showing two mechanical or fluidic systems with directional arrows indicating flow or movement (no text or symbols present)

Diagram of two vertical structures with arrows indicating flow or movement, surrounded by wavy lines and grid lines (no text or symbols)

Technical line drawing of a mechanical component with internal grid structure and directional arrows (no text or symbols)

Korin laskeminen

Technical line drawing of a mechanical component with an inset showing a hand operating a tool (no text or symbols present)

Korin nostaminen

Technical line drawing of a mechanical component with internal grid structure and directional arrows (no text or symbols)

VAROITUS

Technical line drawing of a mechanical assembly with no visible text or symbols

Top-down line drawing of a food tray with trays containing various utensils and spoons (no text or symbols)

Diagram of a grid-patterned structure with a magnified circular detail (no text or symbols)

Illustration of a shopping cart filled with food items including a fork and spoon, with a no-smoking symbol overlaid (no text or labels)

Line drawing of a vehicle interior with curved tracks and windows (no text or symbols)

Diagram of a refrigerator drawer with mesh compartments and directional arrows indicating flow (no text or symbols)

Technical illustration of a mechanical component with a curved arrow indicating direction (no text or symbols)

VAROITUS

Illustration of a hand inserting a device into a device casing (no text or symbols visible)

Hand holding a small electronic device with a screen (no visible text or symbols)

Line drawing of a hand inserting a small object into a device (no text or symbols)

Ohjelma	Pesuainemäärä
	Esipesu (kannen lokeroon)	Pääpesu (annostelulokeroon)
Auto 5 g 20 g
Intensive 5 g 30 g
Delicate 5 g 20 g
Refresh - -
Eco - 25 g
Turbo 5 g 20 g
Download Cycle 5 g 20 g
Machine Clean 5 g 20 g
Rinse - -
Express	- 20 g

VAROITUS

Diagram showing a device with a circular arrow and a crossed-out ring, no text or symbols present

HUOMAUTUS

LG Electronics European Shared Service Centre B.V

Krijgsman 1

1186 DM Amstelveen

Alankomaat

Virrankulutus valmiustilassa

Line drawing showing a hand inserting a spring into a device with a cloth cover, next to a folded cloth (no text or symbols)

Technical line drawing of a mechanical component with internal channels and a central bowl (no text or symbols)

HUOMIO

Illustration of a hand using a mechanical component to lift a cylindrical component, with an arrow indicating upward motion (no text or symbols present)

Illustration showing two hand-painted illustrations: a cylindrical pipe with upward and downward arrows indicating flow or movement, and a hand washing a faucet with liquid (no text or symbols)

Hand holding a circular component inside a car intake tray, with arrows indicating rotation (no text or symbols)

VAROITUS

Line drawing of a hand using a tool to cut a circular component, no text or symbols present

HUOMIO

Diagram of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols)

Diagram of a mechanical assembly with an inset showing a hand holding a component (no text or symbols present)

Smart Diagnosis....43

VEDLIKEHOLD....44

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

1 Kontrollpanel og dørhåndtak
2 Frontdeksel
3 Høydejustering
4 Strømledning
5 Vannforsyningsslange
6 Avløpsslange

1 ∅vre pumpehjul
2 ∅vre spylearm
3 Nedre spylearm
4 Deksel for saltbeholder
5 Filtreringssystem
6 Dispenser for oppvaskmiddel og skyllemiddel
7 Dampdyse (På dampmodeller)
8 Nedre stativ
9 ∅vre stativ
10 Bestikkurv

Line drawing of a washing machine with a handle and internal components (no text or symbols)

- Ikke skyv døren til oppvaskmaskinen med knærne.

Diagram of a mechanical component with an inset magnified view showing a detail (no text or symbols)

Diagram of a pulley system with an inset showing hand positioning (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols)

3 Installer tapen på benkeplatens underside.

Pure technical diagram showing a mechanical component with a downward arrow, no text or symbols present

MERK

• Fuktbarrieretape er inkludert i posen med manuelt monteringsutstyr.
• Hvis benkeplaten er laget av granitt eller vanntette materialer, er ikke fuktbarrieretape nødvendig.
• Det kan forekomme kondens på undersiden eller langs forkanten av benkeplaten när romtemperaturen er lav

MERK

Diagram of a mechanical lifting device with an inset showing a pulley mechanism (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset illustrating the pin mechanism (no text or symbols present)

Technical diagram showing a mechanical assembly with a magnified inset illustrating a tool interacting with a spring-like component (no text or symbols present)

Technical diagram showing mechanical assembly with a magnified inset illustrating a disassembly or locking mechanism (no text or symbols present)

Technical line drawing of a window frame with a door and shelf, showing structural components without any text or symbols.

MERK

Maks. 60 mm

Diagram of a kitchen appliance with a shelf and drawer, showing structural details (no text or symbols)

Three diagrams showing a coiled rope knot with different angles and connection points (no text or symbols)

FORSIKTIG

	H1 H2	H3 H4
Sykluser	130 50 20	10

Two identical diagrams showing a circular object with a large circle above it and a smaller object with a prohibition symbol below, both without any text or symbols.

MERK

Line drawing of a mechanical device with a lever and adjustment knob (no text or symbols)

Line drawing of a handheld device with a handle and control panel (no text or symbols)

Line drawing of a handheld device with a scroll wheel and control panel, showing an arrow indicating rotation (no text or symbols)

FORSIKTIG

Top-down line drawing of a kitchen sink with a central bowl and four arms (no text or symbols)

4 Forsikre deg om at spylearmene kan rotere uhindret.

Technical line drawing of a mechanical assembly with no visible text or symbols

MERK

6 Fyll på en passende mengde oppvaskmiddel i dispenseren.

Technical line drawing of a mechanical assembly with no visible text or symbols

ADVARSEL

Diagram showing a magnified view of three black dots on parallel lines above a wooden table, with no visible text or symbols.

Rød (til venstre)

- Den røde lampen blinker när apparatet møter på problemer. For mer informasjon om feilen, vennligst se delen kalt Feilkode i avsnittet FEILS∅KING.

Hvit (i midten)

• Den hvite lampen blinker när du velger et syklusalternativ eller när en syklus har blitt satt på pause.
• Den hvite lampen lyser kontinuerlig när en syklus kjøres.

Grønn (til høyre)

Diagram of a heat exchanger or cooling system with layered material and cooling elements (no text or labels)

∅vre stativ

1 Glass
2 Kopper
3 Tefat
4 Store boller
5 Middels store boller

Nedre stativ

6 Små boller
7 Middagstallerkener (kjøtt)
8 Middagstallerkener (egg)
9 Suppeskåler
10 Ovale fat
11 Dessertskåler (spinat)
12 Dessertskåler (egg)

Three simple line drawings: a circle with no prohibition, a folded paper or blade, and a simplified cross-section (no text or symbols)

Technical line drawing of a mechanical assembly with multiple rollers and a housing (no text or symbols)

FORSIKTIG

Technical line drawing of a vehicle chassis with no visible text or symbols

Two diagrams showing mechanical assembly steps, no text or symbols present

Line drawing of a storage tray with various kitchenware and containers (no text or symbols)

Line drawing of a basket filled with eggs and mushrooms (no text or symbols)

Technical line drawing of a mechanical assembly with three cylindrical components and meshed base (no text or symbols)

FORSIKTIG

Technical line drawing of a vehicle chassis with no visible text or symbols

Technical line drawing of a mechanical component with internal grid structure (no text or symbols)

Technical line drawing of a grid-patterned container or enclosure structure (no text or symbols)

Diagram showing two mechanical or fluidic systems with directional arrows indicating flow or movement (no text or symbols present)

Diagram of two vertical structures with arrows indicating flow or movement, surrounded by wavy lines and grid lines (no text or symbols)

Technical line drawing of a mechanical component with internal grid structure and directional arrows (no text or symbols)

Senke stativet

Technical line drawing of a mechanical component with an inset showing a hand holding a tool (no text or symbols present)

Heve stativet

Technical line drawing of a mechanical assembly with internal grid structure and directional arrows (no text or symbols)

ADVARSEL

Technical line drawing of a mechanical assembly with no visible text or symbols

Top-down diagram of a food storage tray with rows of spoons and a spoon, no text or symbols present

Illustration of a shopping cart filled with shoes and a circular inset showing the number 1 (no text or symbols present)

Illustration of a shopping cart filled with food items, including a prohibition symbol overlay (no text or symbols present)

Line drawing of a vehicle interior with curved tracks and windows (no text or symbols)

Høydetilpassbart brett

Diagram of a refrigerator drawer with mesh compartments and directional arrows indicating flow (no text or symbols)

Fjerne bestikkurven

Diagram of a mechanical device with a curved arrow indicating motion or force (no text or symbols present)

ADVARSEL

Illustration of a hand inserting a device into a device (no text or symbols visible)

Hand holding a small electronic device with a screen (no visible text or symbols)

Line drawing of a hand holding a small object inside a device (no text or symbols)

Program	Mengde oppvaskmiddel
	Forhåndsvask (på lokket)	Hovedvask (dispenser)
Auto 5 g 20	g
Intensive 5 g	30 g
Delicate 5 g	20 g
Refresh - -
Eco - 25 g
Turbo 5 g 20	g
Download Cycle	5 g 20 g
Machine Clean 5	g 20 g
Rinse - -
Express - 20	g

ADVARSEL

Diagram showing a device with a circular symbol and an arrow indicating rotation or disassembly (no text or labels)

MERK

LG Electronics European Shared Service Centre B.V

Krijgsman 1

1186 DM Amstelveen

The Netherlands

Bruke sitronsyre

Line drawing showing a hand inserting a device into a device with a cloth cover, alongside a close-up of the fabric (no text or symbols)

Bruke hvit eddik

Technical line drawing of a rectangular container with internal mesh structure and a central bowl (no text or symbols)

FORSIKTIG

• Ikke hell eddik direkte i oppvaskmaskinen.
• Overdrevent bruk av eddik kan forårsake skade på apparatet.

Illustration of a hand using a mechanical tool to press or adjust a cylindrical component, with no visible text or symbols.

Illustration showing a pump with upward and downward arrows, and a hand holding a tap with liquid dripping (no text or symbols)

Hand holding a circular component inside a vehicle intake tray, with arrows indicating rotation (no text or symbols)

ADVARSEL

Line drawing of a hand using a tool to cut a circular component, no text or symbols present

FORSIKTIG

Diagram of a bicycle conveyor system with an inset showing a mechanical component (no text or symbols present)

Hand holding a pen with a downward arrow indicating compression or dislocation (no text or symbols)

Diagram of a mechanical assembly with a magnified inset showing a component detail (no text or symbols present)

7 Etter monteringen, kontroller hvorvidt spylearmene roterer uhindret.

INNEHÅLLSFÖRTECKNING

Smart Diagnosis....43

UNDERHÅLL 44

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Line drawing of a hand opening a washing machine with a circular vent (no text or symbols)

Illustration of a person pushing a large rectangular device with a no-smoking symbol (no text or labels)

Diagram of a tool interacting with a curved surface, showing a close-up view (no text or symbols)

Simple line drawing of a pulley system with an inset showing hand positioning (no text or symbols)

Illustration of a hand holding a wrist with a curved arrow indicating rotation (no text or symbols)

Pure technical diagram showing a mechanical component with a downward arrow, no text or symbols present

ANMÄRKNING

ANMÄRKNING

Diagram of a mechanical lifting device with an inset showing a pulley mechanism (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset illustrating the process (no text or symbols present)

Technical diagram showing mechanical assembly with a magnified inset of a tool interacting with a spring-like component (no text or symbols present)

Technical diagram showing mechanical assembly with a magnified inset illustrating a disassembly or locking mechanism (no text or symbols present)

Technical line drawing of a window frame with a door and shelf, showing structural components without any text or symbols.

ANMÄRKNING

Max 60 mm

Diagram of a kitchen appliance with a shelf and drawer, showing structural details (no text or symbols)

Installera avloppsslangen

Three diagrams showing a rope knot with different angles and orientations, no text or symbols present.

FÖRSIKTIGHET

Simple line drawing of a ring on a circular base with a triangular base, no text or symbols present.

Simple line drawing of a stove with a prohibition symbol on top (no text or labels)

ANMÄRKNING

Line drawing of a mechanical device with a lever and control panel (no text or symbols)

Line drawing of a handheld device with a handle and control panel (no text or symbols)

Line drawing of a handheld device with a scroll wheel and control panel, showing a curved arrow indicating rotation (no text or symbols)

FÖRSIKTIGHET

Top-down line drawing of a kitchen sink with a central bowl and four arms (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

ANMÄRKNING

Technical line drawing of a mechanical assembly with layered components and a handle (no text or symbols)

WARNING

Röd (vänster)

Technical diagram of a heat exchanger or cooling unit with layered heat distribution (no text or labels)

Övre ställning

Three abstract line drawings: a no-smoking circle, a folded blade, and a simplified blade (no text or symbols)

Technical line drawing of a multi-tiered mechanical component or housing (no text or symbols)

FÖRSIKTIGHET

Technical line drawing of a vehicle chassis with no visible text or symbols

Mechanical assembly diagrams showing two configurations of a bracket with a handle and lever mechanism (no text or labels)

Top-down line drawing of a multi-tiered kitchen appliance with cutlery and utensils (no text or symbols)

Line drawing of a basket filled with eggs and vegetables (no text or symbols)

Technical line drawing of three cylindrical components arranged in a grid-like structure (no text or symbols)

FÖRSIKTIGHET

Technical line drawing of a train car frame with no visible text or symbols

Technical line drawing of a grid-patterned container or rack structure (no text or symbols)

Technical line drawing of a grid-patterned container or enclosure with no visible text or symbols

Diagram of two mechanical or fluidic systems with directional arrows indicating flow or movement (no text or symbols present)

Diagram showing two vertical structures with arrows indicating flow or movement, surrounded by wavy lines and rectangular elements (no text or symbols)

Technical line drawing of a mechanical component with internal structure and directional arrows (no text or symbols)

Sänka ställningen

Technical line drawing of a mechanical component with an inset showing a hand holding a tool (no text or symbols present)

Höja ställningen

Technical line drawing of a mechanical assembly with internal grid structure and directional arrows (no text or symbols)

WARNING

Technical line drawing of a mechanical assembly with no visible text or symbols

Top-down line drawing of a food tray with trays holding spoons and a spoon (no text or symbols)

Diagram of a grid-patterned structure with a magnified circular detail (no text or symbols)

Illustration of a shopping cart filled with food items including a no-smoking symbol overlay (no text or symbols present)

Line drawing of a vehicle interior with curved tracks and windows (no text or symbols)

Diagram of a refrigerator drawer with mesh compartments and directional arrows indicating flow (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating motion (no text or symbols present)

WARNING

Illustration of a hand inserting a device into a device casing (no text or symbols visible)

Hand inserting a card into a device (no text or symbols visible)

Line drawing of a hand inserting a small object into a device (no text or symbols)

Diagram showing a device with a circular arrow and a crossed-out ring, no text or symbols present

3 Anslut din smartphone till den trådlösa routern.

ANMÄRKNING

LG Electronics European Shared Service Centre B.V

Krijgsman 1

1186 DM Amstelveen

Nederländerna

Använda citronsyra

Line drawing of a hand inserting a spring into a device, next to a folded cloth (no text or symbols)

Använda ättiksprit

Technical line drawing of a mechanical component with internal channels and a central bowl (no text or symbols)

FÖRSIKTIGHET

Hand holding a mechanical component with an arrow indicating rotation (no text or symbols)

Illustration showing two hand-painted illustrations: one with a cylindrical object and upward/downward arrows, the other with a faucet pouring liquid (no text or symbols)

Hand holding a car interior with a valve and circular button, showing a rotary switch mechanism (no text or symbols)

WARNING

Line drawing of a hand holding a tool interacting with a circular mechanical component (no text or symbols)

FÖRSIKTIGHET

Diagram of a bicycle conveyor system with an inset showing a mechanical component (no text or symbols present)

Hand holding a pen with a downward arrow indicating compression or dislocation (no text or symbols)

Diagram of a mechanical assembly with a magnified inset showing a component detail (no text or symbols present)
