Product Type	Dishwasher
Brand	LG
Model	DF222FWS
Energy Class	A++
Noise Level	44 dB
Capacity	14 place settings
Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	48 kg
Power Supply	230 V, 50 Hz, 10 A
Water Consumption	9.5 L per cycle
Annual Energy Consumption	266 kWh
Number of Programs	6
Main Functions	Intensive, Eco, Normal, Quick, Delicate, Rinse
Special Features	Direct Drive Motor, Inverter Technology, Steam
Type of Installation	Built-in
Drying System	Condensation drying
Control Type	Electronic with LED display
Salt Indicator	Yes
Rinse Aid Indicator	Yes
Child Lock	Yes
Maintenance and Cleaning	Clean filters regularly, use descaler every 3 months
Spare Parts Availability	10 years after end of production
Repairability Index	8.5/10

Frequently Asked Questions - DF222FWS LG

How do I start a wash cycle on my LG DF222FWS?

Press the Power button, select your desired program using the program selector, and press Start. Ensure the door is fully closed.

What should I do if the dishwasher does not drain?

Check the drain hose for kinks or blockages. Clean the filter and ensure the garbage disposal (if connected) is not clogged. If the problem persists, refer to the error code in the manual.

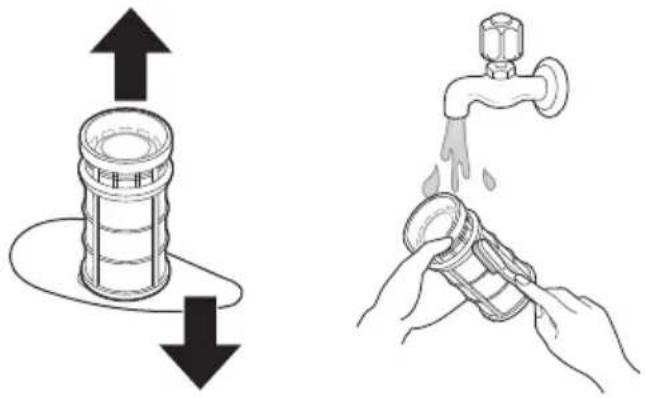

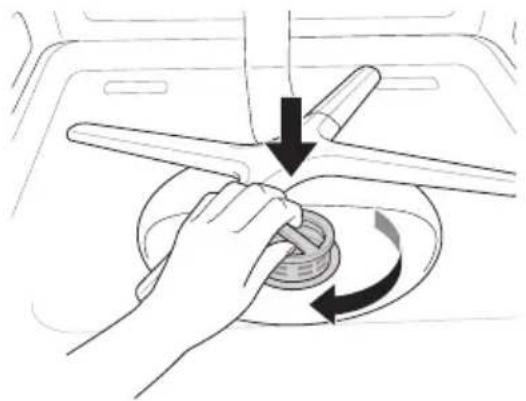

How often should I clean the filter?

Clean the filter after every few cycles to prevent food particles from clogging. Remove the bottom rack, turn the filter counterclockwise, rinse under running water, and reassemble.

Why is the dishwasher not cleaning dishes properly?

Ensure dishes are not blocking spray arms, the filter is clean, and you are using the correct amount of detergent. Also check the water temperature (min 50°C).

How do I add rinse aid?

Open the rinse aid dispenser located on the inside of the door. Fill to the max line. Adjust the dosage setting if dishes are spotty or have residue.

What does the error code 'OE' mean?

The 'OE' error indicates a drainage problem. Check the drain hose and the filter. If the issue persists, call a service technician.

Can I use regular dish soap instead of dishwasher detergent?

No, regular dish soap creates excessive suds and can damage the dishwasher. Use only automatic dishwasher detergent.

How do I enable the child lock?

Press and hold the Child Lock button for 3 seconds until the indicator lights up. To disable, repeat the same procedure.

What is the recommended water hardness setting?

Adjust the water softener according to your local water hardness. Use the test strip provided in the manual to set the appropriate level (H1-H5).

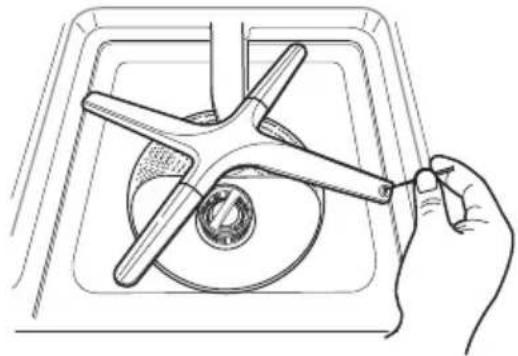

How do I clean the spray arms?

Remove the spray arms by lifting them out. Rinse under running water and use a toothpick to clear any blocked holes. Reinstall securely.

USER MANUAL DF222FWS LG

Before beginning installation, read these instructions carefully. This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference.

ENGLISH

DF222***

TABLE OF CONTENTS

This manual may contain images or content that may be different from the model you purchased.

This manual is subject to revision by the manufacturer.

SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE....4

WARNING STATEMENTS......4

CAUTION STATEMENTS 9

CARING FOR THE ENVIRONMENT....11

INSTALLATION

Parts and Specifications ....12

Preparing Cabinet Opening....14

Levelling the Appliance ....16

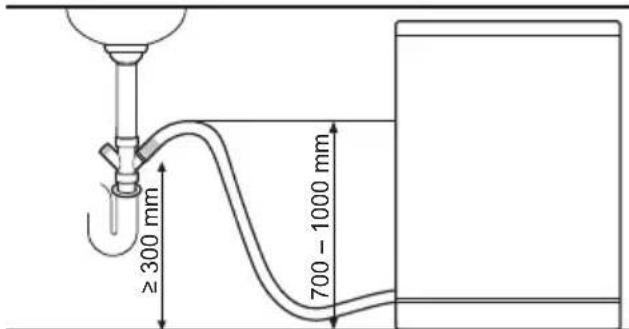

Installing the Drain Hose ....17

Preparing Water and Electrical Connections....18

Final Installation Check ....19

OPERATION

Before Using....20

Operation Overview....23

Control Panel....25

Wash Cycles 26

Options and Extra Functions ....27

Programme Table 29

Information for Energy Test (EN60436) 32

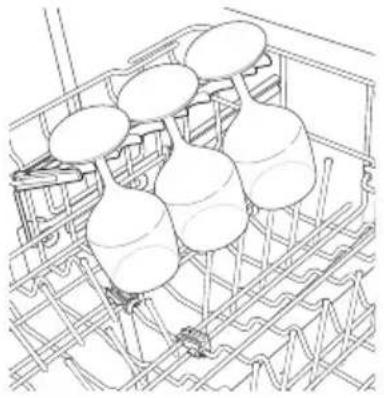

Loading the Dishwasher 33

Adding Cleaning Agents....38

Refilling....39

Useful Tips....40

SMART FUNCTIONS

LG ThinQ Application....41

Smart Diagnosis ....43

MAINTENANCE

Cleaning and Caring ....45

TROUBLESHOOTING

Before Calling for Service....49

SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into 'WARNING' and 'CAUTION' as described below.

Safety Messages

This symbol is displayed to indicate matters and operations that can cause risk.

Read the part with this symbol carefully and follow the instructions in order to avoid risk.

WARNING

This indicates that the failure to follow the instructions can cause serious injury or death.

CAUTION

This indicates that failure to follow the instructions can cause minor injury or damage to the product.

WARNING STATEMENTS

WARNING

- To reduce the risk of explosion, fire, death, electric shock, injury, or scalding to persons when using this product, follow basic precautions, including the following:

Technical Safety

- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Observe the information given in Specifications regarding the maximum number of place settings to be washed in the dishwasher.
• The water pressure must be between 0.05 MPa and 1.0 MPa.

Installation

• Never attempt to operate the appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.
• If the power cord is damaged or the hole of the socket outlet is loose, do not use the power cord and contact an authorized service centre.
• Do not modify the power cord provided with the appliance. Please contact the LG Customer information centre to advise of its incompatibility.
• This appliance should only be transported by two or more people holding the appliance securely.
• Do not install the appliance in a damp and dusty place. Do not install or store the appliance in any outdoor area, or any area that is subject to weathering conditions such as direct sunlight, wind, or rain, or temperatures below freezing.
• Do not plug multiple socket outlets, an extension power cable, or an adapter with this appliance.
• Disconnect the power cord, house fuse, or circuit breaker before installing or servicing the appliance.
• When moving or installing the product in a different location, call qualified service personnel for installation and service. Fix the drain hose securely in place.
• This appliance is not designed for maritime use or for mobile installations such as in RVs, trailers, or aircraft.
• This appliance must be positioned near an electrical power supply.

When installing or moving the appliance, be careful not to pinch, crush, or damage the power cord.

Use new hose or hose-set supplied with the appliance. Reusing old hoses can cause a water leak and subsequent property damage.

Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with a qualified electrician or service personnel if you are in doubt as to whether the appliance is properly grounded.

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.

This appliance is equipped with a power cord having an equipment-grounding conductor and a grounding power plug. The power plug must be plugged into an appropriate socket outlet that is installed and grounded in accordance with all local codes and ordinances.

After installing, check the hose connection for leaks before moving the appliance into the cabinet opening.

Do not damage or place heavy items on the power cord of the appliance.

This appliance is intended to be used in household and domestic applications only and must not be used for commercial purposes.

For a permanently connected dishwasher: This appliance must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead to the appliance.

- Connect the ground wire to the green ground connector in the terminal box.

Operation

- Immediately unplug the power plug and contact an LG Electronics customer information centre if you detect a strange sound, odour, or smoke coming from the appliance.

• Do not repair or replace any part of the appliance. All repairs and servicing must be performed by qualified service personnel unless specifically recommended in this Owner's Manual. Use only authorized factory parts.
• Do not leave the appliance door open. Children may hang on the door or crawl inside the appliance, causing damage or injury.
• Do not use flammable gas and combustible substances (benzene, gasoline, thinner, petroleum, alcohol, etc.) near the appliance.
• Do not attempt to separate any panels or disassemble the appliance. Do not apply any sharp objects to the control panel in order to operate the appliance.
• Do not bend the power cable excessively or place a heavy object on it.
• Do not put animals, such as pets into the appliance.
• Do not touch the power plug or the appliance controls with wet hands.
• If there is a gas leakage (isobutane, propane, natural gas, etc.), do not touch the appliance or power plug and ventilate the area immediately.
• In case of flood, disconnect the power plug and contact the LG Electronics Customer Information Centre.
• Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the appliance turn on all hot water tap and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
• Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemicals, etc.
• Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open. Check that the detergent receptacle is empty after completion of the wash cycle.

- Do not operate the appliance unless all enclosure panels are properly in place.

- Use only detergents or wetting agents recommended for use in a dishwasher and keep them out of the reach of children.

- Do not wash and dry articles that have been soaked in explosive substances such as gasoline, solvents, or solvent-based detergents.

- When loading items to be washed:

• Locate sharp items so that they are not likely to damage the door seal.
• Load sharp knives with the handles up to reduce the risk of cut-type injuries.

- Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations.

- Do not touch any heating element (where it is exposed) during or immediately after use.

- Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.

• After cleaning the dishes, turn off the tap. Turn on the tap again and check the connection status of the water supply hose before cleaning.

- Do not open the door while the appliance is in operation. Water will splash out and could cause a slipping hazard.

- Be careful not to catch your hand when closing the door of the appliance.

- Do not wash and dry articles that have been soaked in explosive substances such as gasoline, solvents, or solvent-based detergents.

- Do not come into contact with any fitted steam outlet.

- Small parts, such as rack clips and filter retaining posts, can be a choke hazard to small children if removed from the dishwasher. Keep out of reach of small children.

- Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

- The door should not be left in the open position since this could present a tripping hazard.

Maintenance

• Never unplug the appliance by pulling on the power cable. Always grip the power plug firmly and pull straight out from the socket outlet.
• Securely plug the power plug in the socket outlet after completely removing any moisture and dust.
• Do not spray water inside or outside the appliance to clean it.
• Disconnect the appliance from the power supply before cleaning the appliance. Setting the controls to the OFF or stand by position does not disconnect this appliance from the power supply.

Disposal

• Before discarding an old appliance, unplug it. Cut off the cable directly behind the appliance to prevent misuse.
• Dispose of all packaging materials (such as plastic bags and styrofoam) away from children. The packaging materials can cause suffocation.
• Remove the door before disposing of or discarding this appliance to avoid the danger of children or small animals getting trapped inside.

CAUTION STATEMENTS

CAUTION

- To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following:

Installation

• Install the product on a firm and level floor. - Do not put the drain hose under the dishwasher during installation.

Operation

- Turn off the water tap and unplug the appliance if the appliance is to be left for an extended period of time, such as during vacations.

- Do not place objects on the top of the appliance.

- Do not wipe or coat the surface of the product with liquid detergent or bleach (chlorine bleach, oxygen bleach, etc). Failure to follow these instructions may result in corrosion or discoloration of the coating.

- Do not touch water draining from the machine as it may be hot.

- If the drain hose and the water supply hose are frozen in winter, defrost before using.

- Do not put hands, feet, or metal objects below or behind the appliance.

- Do not wash dishes stained with chemical products such as oil, cream or lotions used in a massage parlor, skin care shop, beauty shop or barber shop.

Maintenance

- If cooking oil is spilled on the exterior of the product, wipe it off immediately. Do not clean the exterior of the product with cleaners which contain alcohol, thinners, bleach, benzene, flammable liquids, or abrasives. These substances may discolor or damage the appliance.

CARING FOR THE ENVIRONMENT

Disposal of Your Old Appliance

• This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream.
• Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. Your old appliance may contain reusable parts that could be used to repair other products, and other valuable materials that can be recycled to conserve limited resources.
• You can take your appliance either to the shop where you purchased the product, or contact your local government waste office for details of your nearest authorised WEEE collection point. For the most up to date information for your country, please see www.lg.com/global/recycling.

INSTALLATION

Parts and Specifications

NOTE

- Appearance and specifications may change without notice to improve the quality of the appliance.

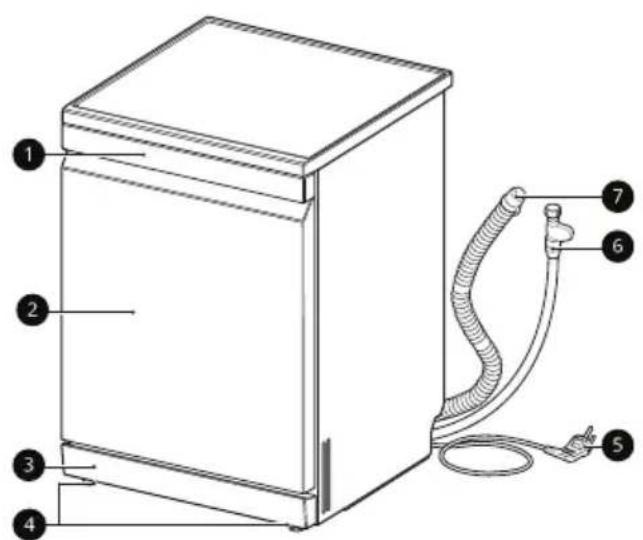

Front View

① Control Panel & Door Handle ② Front Cover ③ Lower Cover ④ Levelling Feet ⑤ Power Cord ⑥ Water Supply Hose ⑦ Drain Hose

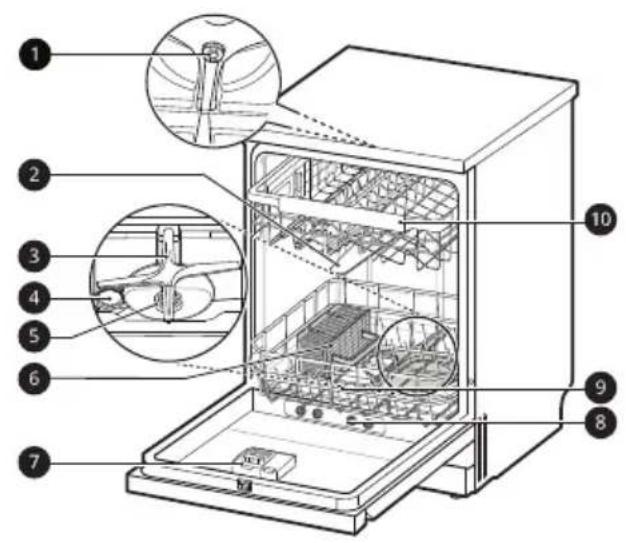

Interior View

① Top Wash Impeller ② Upper Spray Arm ③ Lower Spray Arm ④ Salt Container Cap ⑤ Filtration System ⑥ Cutlery Basket ⑦ Detergent and Rinse Aid Dispenser ⑧ Steam Nozzle ⑨ Lower Rack ⑩ Upper Rack

Accessories

① Funnel ② Noise Strap *1

*1 Noise strips are provided: Lower - 1 EA, Front - 1 EA

Specifications

Model DF222***
Power Supply 220 - 240 V~, 50 Hz
Dimension (Width X Depth X Height)	600 mm X 600 mm X 850 mm
Product Weight Approx. 48 kg
Max. Capacity 14 Place Settings
Permissible Inlet Water Pressure	0.05 - 1.0 MPa
Power Consumption 1600 - 1800 W

Preparing Cabinet Opening

Choosing the Proper Location

Install the appliance on a flat and stable floor. Cut out openings for hoses and electrical cables on either side (approximately 100 mm x 75 mm). Select a location as close to the sink as possible for ease of connection to the water and drain pipes. To ensure proper drainage, the appliance should not be installed more than 1 metre away from the sink. If the appliance is installed in a corner, allow a minimum clearance of at least 50 mm between the appliance and an adjacent cabinet or wall. Before sliding the appliance into the installation opening, make all necessary height adjustments using a spanner.

CAUTION

• Any bare wood surrounding the appliance should be sealed with a waterproof paint or sealant to prevent it from swelling.
• Slide the dishwasher into the cabinet opening carefully. Make sure that the drain hose behind the machine and inside the cabinet is not kinked or stretched.

Install the appliance on a flat and stable area. Do not place any objects between the floor and the base or legs of the appliance.

NOTE

• This installation must be conducted by qualified service personnel to ensure it has been installed correctly.

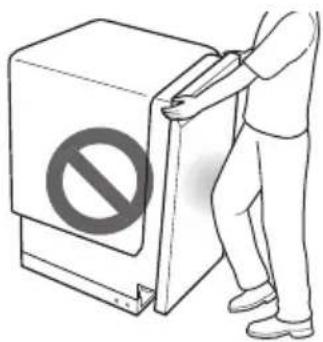

• Do not pull or lift the appliance using the handle; doing so can damage the door and hinges. Open the door and grab the body frame and the top front opening of the tub to move or lift the appliance.

Do not push the door of the dishwasher with your knees.

Attaching the Strip to the Appliance Base

To reduce noise, attach the strip to the appliance base.

1. Lay down the appliance and pull on both hooks at the bottom of the lower cover.

2. Pull on the lower cover to remove it.

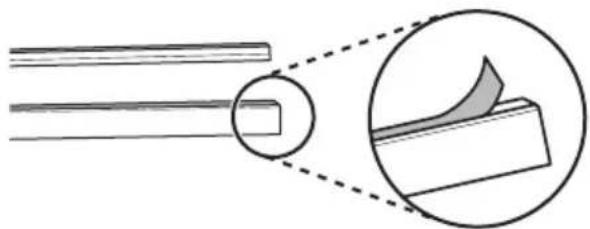

3. Remove the double-sided tape from the lower and front strips.

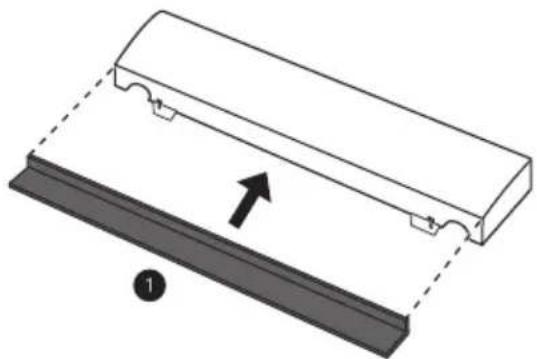

4. Attach the black coloured lower strip ① to the bottom of the lower cover.

5 Attach the black coloured front strip ② to the top of the lower cover.

- The length of the front strip is longer than the lower cover. Attach the front strip so that the overhang is equal on both sides of the lower cover.

6 Attach the lower cover with the strip onto the appliance.

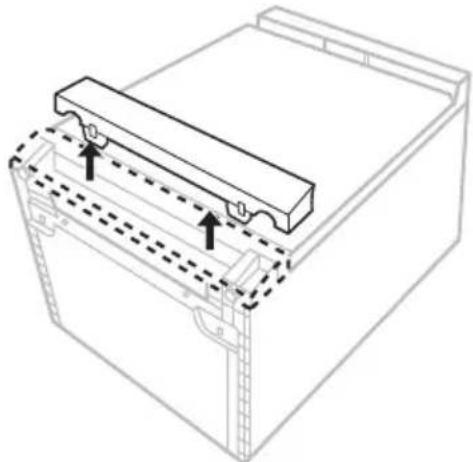

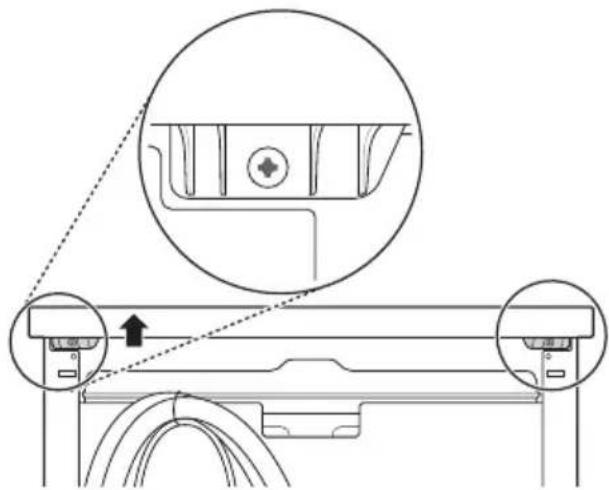

Removing the Top Cover

If the height of the opening is below 850 mm, follow these instructions.

1 Remove the 2 screws on the back.

2 Pull the top cover backwards after removing the two screws and then lift it up to remove it.

3 Remove the locating pins on the top by using a Phillips screw driver.

NOTE

- When the appliance is correctly leveled, there should be no slant, stickiness or rubbing sound when the door is opened.

Levelling the Appliance

Checking the Level

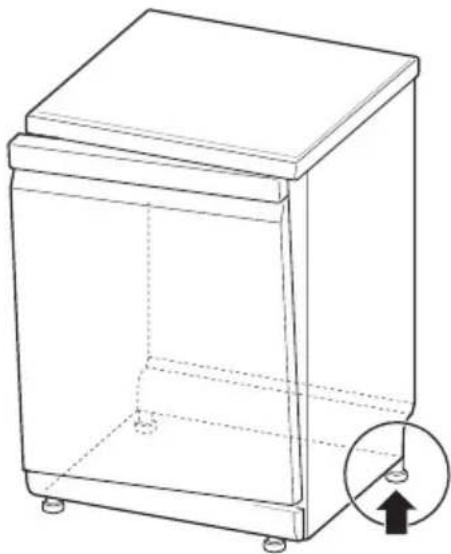

Levelling the appliance prevents unnecessary leakage and poor washing. Check whether the appliance is perfectly level after installation.

- If the appliance rocks when pushing the top plate of the appliance diagonally, adjust the feet again.

NOTE

- The appliance is not level if there is a rubbing sound or stickiness when the door is opened.

Adjusting and Leveling the Appliance

When the appliance is not perfectly level, turn the adjustable feet until the appliance no longer wobbles.

- Turn the adjustable feet clockwise to raise or turn the adjustable feet counterclockwise to

lower from front-to-back, side-to-side and corner-to-corner.

NOTE

• Place the appliance on a solid, level floor.
• Do not install the appliance on an elevated surface.

Case 1. The Door is Slanted to the Right

1 Unscrew (counter-clockwise) the rear left leg and correct the level. 2 Check the opening of door and repeat if necessary until the door opens and closes properly.

Case 2. The Door is Slanted to the Left

1 Unscrew (counter-clockwise) the rear right leg and correct the level.

2 Check the opening of door and repeat if necessary until the door opens and closes properly.

Installing the Drain Hose

If the end of the drain hose does not fit to the drain line, use a drain extension kit (optional) that is resistant to heat and detergent.

- This should be available from a plumbing shop or a hardware store.

Connection to the Waste Spigot

Check the waste spigot when initially installing. An DE error can occur when the waste spigot below the sink is not drilled out properly. To connect the drain hose, drill out at least a 15 mm diameter hole in the waste spigot before connecting and securing.

CAUTION

• Make sure that plastic debris is not remaining inside of spigot after it has been drilled out. - Do not attempt to open the waste hole with a screwdriver and hammer. This will induce debris to become stuck and cause a malfunction. - Caution should be taken when passing hoses through Cabinetry holes as they may have sharp edges and could damage the hoses. Smooth or

sand edges to avoid damaging the drain or inlet hose.

• Make sure that the line is not kinked or sharply bent.

• Make sure the drain hose is straight before feeding the end of it through the hole for the water supply.

To prevent siphoning, one of the following methods must be used.

Method 1

When the drain hose is connected to a waste spigot, the hose must be looped up to the underside of the bench top and secured.

Method 2

When the drain hose is connected to a separate standpipe ①, it is essential that an airtight connection ② be made. If not, it can induce odours.

- Standpipe diameter is at least 40 mm.

Preparing Water and Electrical Connections

Connecting the Hose to the Water Tap

Connect the water supply hose ① to the water tap.

WARNING

• Do not shorten or damage the water supply hose as it contains electrical wires and components. It cannot be detached or removed from the appliance for installation purposes.
• It is important that the water supply hose not be tampered with, cut, disassembled, pulled, or kinked. It contains electrical wiring inside and if damaged, can cause an electrical hazard.

CAUTION

- Only use the threaded nut of the water supply hose to tighten it to the tap.

- Do not twist or kink the water supply hose when connecting it to the tap.

• This appliance may be fed with either hot or cold water. If the water connection cannot be maintained below 65°C, the appliance must be connected to cold water.
• Use sealant tape or sealing compound on the tap's thread to avoid water leaks. Make sure that the line is not kinked or sharply bent.

NOTE

• Before connecting the water supply hose to the tap, turn on the tap to flush out foreign substances (dirt, sand or sawdust) in the water lines. Let water drain into a bucket.
• It takes about 3 – 4 minutes for the first supply water.

Routing Electrical Wiring

Connect the appliance to an earthed socket in accordance with the current wiring regulations, protected by a minimum 15 amp circuit breaker or time delay fuse.

Wiring must be two wires with earth.

The power cord should not be positioned behind the appliance but within 1.2 meters of the side so that the plug is easily accessible.

WARNING

• For personal safety, remove house fuse or open circuit breaker or switch off power plug before installation.
• Do not use an extension cord or double adapter.
• The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• Repairs to the appliance must only be carried out by qualified service personnel. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact our local service centre.
• Connect to a properly rated, protected, and sized power circuit to avoid electrical overload.

Final Installation Check

Testing the Dishwasher

1 Turn on electrical power. 2 Turn on house water supply. 3 The door should open and close smoothly and without harsh noises, if the unit has been levelled correctly. 4 Run the appliance on a Rinse cycle to verify proper operation and check for leaks.

Installation Check Error Codes

Error Code	Possible Cause and Solution
OE	Drain hose kinked or pinched.·Feed the drainage and supply hoses through the hole under the sink. Then gradually slide the dishwasher into the cabinet while pulling on the hoses under the sink to take up any slack. This helps avoid kinking the hoses or trapping them beneath the dishwasher.
	Waste spigot under sink is clogged.·Drill out the waste spigot under the sink.
IE	Water supply line kinked under dishwasher.·Feed the drainage and supply hoses through the hole under the sink. Then gradually slide the dishwasher into the cabinet while pulling on the hoses under the sink to take up any slack. This helps avoid kinking the hoses or trapping them beneath the dishwasher.
	House water supply not turned on.·Turn water on. Water pressure may be too high or too low.

OPERATION

Before Using

This model has a water softener to soften hard water.

NOTE

• The appliance can be used without dishwasher salt if not required, however, the hardness level needs to be set to H0 so that the icon does not remain lit.
• In order to provide satisfactory rinsing results, the appliance requires soft water, i.e., containing little or no lime, otherwise water stains will be left behind on the dishes and inside the appliance.
• If the tap water exceeds a certain level of hardness, it must be softened, i.e., decalcified. This is achieved by adding dishwasher salt to the water softener inside the appliance. The required amount of the salt is set up according to how hard tap water is.

Checking Water Hardness Level

Method 1

1 Check the water hardness in your area. The water utility company can help you with this.

2 Set the softening system level of the appliance according to the water hardness level.

Method 2

You can check water hardness by using the test strip included in the product.

1 Immerse all reaction zones of the test strip for about a second. Do not in running water. 2 Shake off excess liquid from the strip and wait for 1 minute. 3 Check the water hardness colour from the strip. Refer to the wrapper.

Water Hardness Table

Water Hardness							Softening level	Ratio*1
ppm °d	°e °f			mmol/l (Ca+Mg)	mg/l (Ca)	Range
0 <4 <5	<7 <0.7 <29	Soft H0 -
75 4 - 7	5 - 9 7 - 13	0.7 - 1.3 29 - 50		H1 1:24
125	7 - 14	9 - 17.5	13 - 25	1.3 - 2.5	50 - 100		H2	1:7
250	14 - 21	17.5 - 26	25 - 38	2.5 - 3.8	100 - 150		H3	1:4
375	>21	>26	>38	>3.8	>150	Hard	H4	2:1

*1 The number of water softerer regeneration(s) ² : The number of wash cycle(s) ³

*2 A water softener regeneration takes place at the end of a main wash operation according to the ECO programme.

*3 A wash cycle consists of 4 operations (Pre-wash, Main wash, Rinse, Heating rinse) according to the ECO programme.

Setting the Water Softening System

For effective washing results, adjust the setting corresponding to the hardness level of water used in water supply. The water softener has 5 adjustment levels, and the appliance is programmed at the factory for a water hardness level of H2. You can check the default setting value and adjust it in the following steps:

1 Press Power and Half Load button simultaneously.

- Current setting value indicated.

2 Press the Delay Start button, and then set up the intended value.

- Scope of setting value is H0 to H4.

3 Press the Start button to save the setting.

- The power turns off after saving.

NOTE

• The Salt Refill 🕒 icon turns on in the display if dishwasher salt is not in the softening system.
• If the hardness setting is set to H0, no icon indicates in spite of no salt.

Filling with Dishwasher Salt

The salt dispenser must be filled with salt before starting the washing programme. In case of insufficient salt, the Salt Refill ⚪ icon indicates on the display, unless the hardness level has been set to H0.

CAUTION

- Once you have filled with dishwasher salt, you must run the Rinse cycle immediately to remove the salt and the salt water around the inner tub in order to prevent corrosion.

1. Remove the lower rack and remove the cap of the salt dispenser located on the left side of the filters.

2. Before using the appliance for the first time, it is necessary to pour 1 kg of dishwasher salt and 1 litre of water at the same time if intending to use the water softener system. When refilling the salt, use a funnel. Refer to the 'Before Using' section.

3. Refit the cap tightly.

4. Run the Rinse cycle without dishes.

Salt Refill Cycle (1 kg for each load)

	H1 H2	H3 H4
C	y	c	l	e	s

- The table describes information about the Auto programme.

• Cycle may vary depending on the salt refill amount.

CAUTION

- Do not pour any detergent into the salt dispenser. It will cause a malfunction.

- Wipe off any spilled salt around the salt dispenser cap. Saline solution that runs into the tub can cause corrosion in the tub and to the dishwasher load.

- Seal the cap properly by aligning it horizontally and turning it clockwise. A loosely fitted cap may cause the saline solution to leak from the salt dispenser into the tub and cause corrosion.

• After refilling the dishwasher salt, a wash programme should be operated without dishes, as any spilled salt inside the appliance may cause rust or damage to the appliance if left unwashed.

Rust or damage to the appliance if left unwashed.

NOTE

• The salt can be purchased from salt distributors.

Adding Rinse Aid

The Rinse Aid indicator appears in the display when more rinse aid is needed.

The use of rinse aid is recommended to prevent water spots on dishes and to enhance drying results.

1 Open the rinse aid lid by lifting up the flap.

2 Add a liquid rinse aid to the maximum fill level. The rinse aid should be settled in the dispenser while filling, or air bubbles may result in poor drying results.

3 Close the lid to lock the dispenser. Rinse aid is dispensed automatically during the final rinse cycle.

CAUTION

- Wipe off any spilled rinse aid to prevent suds.

NOTE

• Only use liquid rinse aid in the appliance.
• Do not overfill the rinse aid dispenser.
• Too much or too little rinse aid can inhibit the drying results.
• If rinse aid flows out of the dispenser, wipe it off. Otherwise many suds can occur and stain the dishwasher.

Setting the Rinse Aid Level

The dispenser has five adjustment levels. The default programme is rinse aid level 2. This can be checked and altered by using the buttons on the control panel.

1. Ensure the appliance is off.

2. Press Power and Dual Zone simultaneously to check the current setting.

3. Press Delay Start to change the rinse aid dispenser setting. Each press of the button changes the setting one step from L0 (off) to L4.

4. Once the desired rinse aid dispenser setting is selected, press Start to save.

• The power turns off after saving.

CAUTION

- If the rinse aid lid is not closed properly, a large amount of rinse aid will release into the tub and cause washability problems.

NOTE

• The Rinse Aid Refill ✿ icon will illuminate when more rinse aid is needed.
• If you notice cloudy spots, streaks or water marks on the glassware after washing, increase the setting level.
• Setting the control too high can cause foaming, which will cause poor wash results.
• If the glass is smeared or foam is present on the bottom, decrease the level setting.
• Setting the rinse aid control too low can cause spotting and streaking on dishes and poor drying results.

Operation Overview

Using the Appliance

1 Press the Power button.

• The unit will turn on. Check the indicators.

2 Check that there is rinse aid and dishwasher salt present.

- Refill the rinse aid and the salt, if the corresponding icons illuminate. For more information, refer to Refilling section.

• : Salt Refill Icon • ✦: Rinse Aid Refill Icon

3 Open the door and check the filters.

• Always clean the filter either after a wash or before a wash so that it does not impair the washing results.

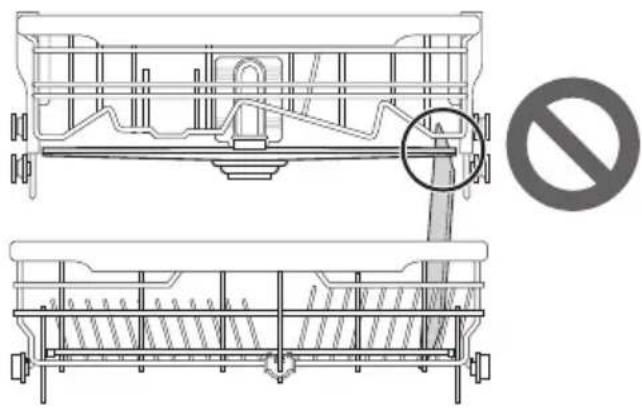

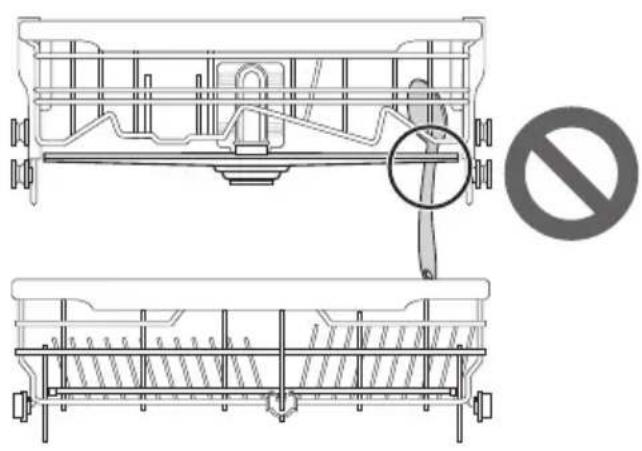

4 Ensure the spray arms can unobstructedly rotate.

- Ensure that the upper spray arms and the lower spray arms rotate well. Remove the spray arm and clean it if it does not rotate.

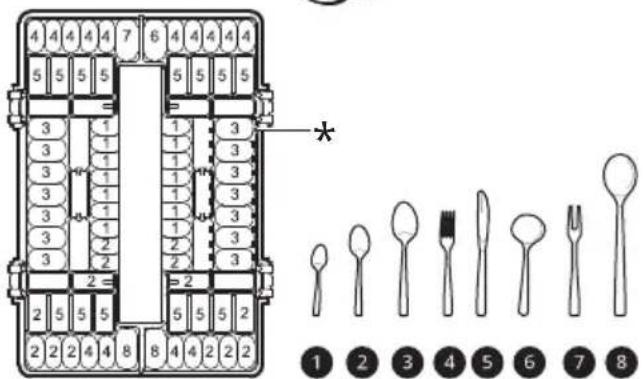

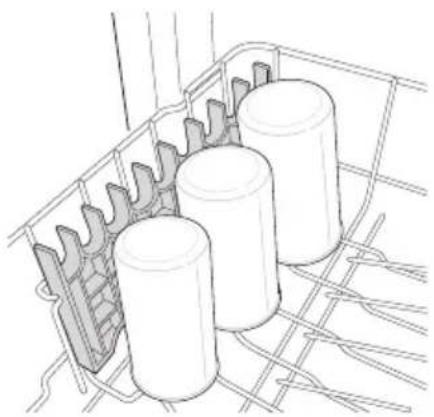

5 Load the dishes in the rack.

• Make certain that no dishes or utensils are in the path of the spray arms. - Do not place one dish on top of another.

6 Add the proper amount of detergent powder to the dispenser.

- If using Tablets, they can simply be placed directly on the base of the tub, or on the lower part of the inner door.

7 Set and start the programme.

- The programme will start automatically in 4 seconds after any setting is selected.

WARNING

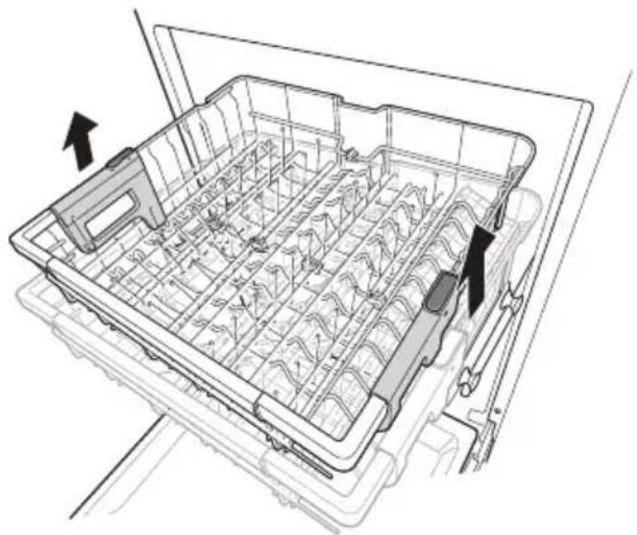

• Do not load any items in upper rack when the lower rack is pulled out and loaded. Failure to do so may result in injury as the appliance could become unbalanced and topple over.
• Push the upper rack in all the way.
• Empty the lower rack first and then the upper one. It will avoid water dripping from the upper rack onto the dishes below.
• Do not open the door during operation or right after it has completed the wash cycle as the steam may cause scalding as the door is opened.

NOTE

• Never use liquid dishwashing detergent in the appliance.
• It is not recommended to rinse the dishes manually before operating the dishwasher because it increases water and energy consumption.
• Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the manufacturer's instructions.
• Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings.

Control Panel

Control Panel Features

For Steam Models

① Power

• Press the Power button to turn the power on and off. After the cycle is complete, the power automatically turns off for purposes of safety and economy.
• If there is a power surge, power outage, or disruption of any kind, the power is automatically turned off for safety.
• When power is connected again, it will turn on automatically and resume the cycle.

② Display

• 8:00 : Digital Display

• The digital display on the control panel shows the ESTIMATED cycle time. When the cycle and options are selected, the display shows the total estimated time to complete those selections. During operation, the display shows the remaining estimated operating time.
• The estimated time shown on the display does not include delay times for heating water, etc.
• If Delay Start is selected, the display shows the delay time in hours.
• The Auto cycle time may vary depending on the soil level of your load.

- ✿: Rinse Aid Icon

- This icon flashes when the rinse aid level is low. The LED automatically shuts off when the rinse aid is refilled or the level is set to 0.

• This icon flashes after every 30 cycles.
• To activate or deactivate the icon, press the Delicate button for 3 seconds.

• Wi-Fi

- When the appliance is connected to the internet through a home Wi-Fi network, this icon illuminates.

- S: Salt Refill Icon

- This icon flashes when the salt level is low. The LED automatically shuts off when the salt is refilled.

③ Chime On/Off

- To activate or deactivate the button sounds, press and hold Dual Zone and Energy Saver simultaneously for 3 seconds. The error alert sound cannot be turned off.

4 Cancel

• The drain pump activates and the cycle cancels. Once the appliance finishes draining, the power turns off.
• Press and hold START button for 3 seconds to activate the cancel function.

5 START

• To operate the appliance, close the door and press START button.

- If START button is not pressed to start the cycle within 4 minutes, the power will automatically turn off.

Wash Cycles

Auto

This cycle senses the soil amount and water clarity and optimizes the wash to achieve the best cleaning. The wash time may vary depending on the soil level.

Intensive

This cycle is for heavily soiled dishes and dishes with hardened on soil. This cycle defaults to the strongest spray intensity and uses it to wash heavily soiled dishes.

Delicate

Use this cycle to clean delicate items such as fine china and stemware.

Refresh

This cycle freshens up and warms dishes that have been unused for a long time.

- Do not use detergent when using this cycle.

Eco

It provides the most efficient energy and water consumption for a good washing result and drying result on a normally soiled load and as it uses very little energy.

Turbo

This cycle will clean moderately soiled dishes using slightly more energy and water.

- Extra Dry is set to on as default. If you do not want to dry dishes after washing, turn off the Extra Dry option. Not drying the dishes will result in a shorter cycle time.

Download Cycle

Use a dedicated cycle downloadable via Wi-Fi or NFC. (depending on model).

NOTE

• Only the cycle code for the currently downloaded cycle appears on the appliance. See the smartphone app for cycle codes, names, and more information about the available cycles.
• Default Cycle: P1. Pots & Pans

Machine Clean

This cycle is for cleaning the inside of the appliance. Use the cycle without dishes in the appliance. It eliminates residual soils, odor, white spots, limescale, and other dirt. Add citric acid or another cleaning agent for more effective results.

- Press and hold Intensive for 3 seconds to activate.

Rinse

This cycle is a quick rinse only for dishes that will not be washed immediately. The cycle rinses dishes that have excess soil to soften dried on residue. Rinsing the dishes helps prevent odors in the appliance.

- Press and hold Eco for 3 seconds to activate.

NOTE

• Do not use detergent with this option.
• This cycle does not have drying.

Express

This cycle will quickly clean lightly soiled dishes.

- Press and hold Turbo for 3 seconds to activate.

• This cycle does not have drying. Select the Extra Dry option or another cycle for better drying. Extra Dry will add to the overall cycle time.
• Detergent tablets are not recommended for use with the Express cycle. If detergent tablets are used, they may cause detergent residue on dishes due to the relatively low rinse temperatures.

Options and Extra Functions

Select the desired cycle button and then select the options for that cycle. For more information, see the Cycle/Option Guide section.

Dual Zone

This option automatically sets the spray intensity to soft for the upper spray arm and strong for the lower spray arm. Place heavily soiled dishes like plates and bowls in the lower rack and lightly soiled dishes like cups and small plates in the upper rack to get the best results.

Half Load

This option washes intensively by selecting the upper or lower racks. For small loads, use just the upper or lower rack to save energy and time. By pressing the Half Load button, the settings ∴ (Upper), ∵ (Lower) and the cancellation of this option are available.

Energy Saver

This option saves energy by reducing the wash and rinse temperatures. Wash time is increased to maintain wash results. Do not use this cycle with heavily soiled dishes.

Steam

This option adds steam during the cycle to improve wash results.

High Temp

Raises the main wash or heating rinse temperature to improve cleaning.

- A chime will sound to alert you of any residual temperatures inside the appliance. Wait for the appliance to completely cool down before opening the door.

Extra Dry

Select this option for better drying results. This option adds extra drying time to the cycle and raises the heating rinse temperature.

- When the rinse aid is empty, this option is selected automatically.

Delay Start

This feature delays the start of a selected cycle. Each time the Delay Start button is pressed, the delay time increases by an hour. The delay time can be set from 1 to 12 hours, in one-hour increments.

- To cancel this feature, turn the power off.

- To change the cycle and cycle option, open the door and then select another cycle and cycle option. The countdown will continue.

Control Lock

This feature helps prevent settings from being changed during a cycle. Selecting this feature locks all of the buttons, except for the Power button, on the control panel. This feature does not lock the door.

• On models with the external display, while a cycle is running, press and hold Half Load and Energy Saver simultaneously for 3 seconds to activate or deactivate this feature. On models with a concealed display, open the door during operation and follow the same instruction.
• When this feature is activated, the display code L will show on the display.
• To start a new cycle, deactivate this feature.
• This feature can be set at any time by turning on the appliance.

Wi-Fi

Press and hold Delay Start for 3 seconds to connect to the network. Refer to the SMART FUNCTIONS sections for detailed information about this feature.

Programme Table

Programme Guide

On DF222*** Models

Programme	Soil Level	Wash Rinse				Dry
		Pre-wash	Main wash	Rinse	Heating rinse
Auto	All levels	●	(65 - 70 °C)	●	(70 °C)	●
Intensive	Heavy	●	(75 °C)	●	(70 °C)	●
Delicate	Light	●	(55 °C)	●	(70 °C)	●
Refresh		●		●	(75 °C)	●
Eco	Moderate	●	(39 °C)	●	(65 °C)	●
Turbo	Moderate	●	(65 °C)	●	(65 °C)
Express	Light	●	(45 °C)	●	(60 °C)
Rinse	Light			●
MachineClean		●	(50 °C)	●	(70 °C)	●

NOTE

• Running time may vary according to water temperature, ambient temperature, water pressure, and voltage. • Information that the values given for programmes other than the eco programme are indicative only.

Regulation for Europe (On DF222*** Models)

Programme Water	Consumption	Energy Consumption (kWh)	Duration (min)
Auto	13.1 1.08 - 1.17	195
Intensive	23.9 1.76 185
Delicate	16.8 1.14 124
Eco	9.9 0.95 215
Refresh	9.8 0.78 66
Turbo	18.8 0.87 59
Express	12.4 0.61 38
Rinse	6.5 0.01 18
Machine Clean	12.1 0.75 83

NOTE

- The data given will vary depending on individual conditions.

NOTE

• Regulation EU 2019/2022, valid from 1st March 2021, is related to the Energy Efficiency classes by Regulation EU 2019/2017.
• Scan the QR code on the energy label supplied with the appliance, which provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference together with the owner's manual and all other documents supplied with the appliance.
• The model name can be found on the rating label of the appliance. Open the door and look at the right side of the door.
• To find the same information in EPREL, visit https://eprel.ec.europa.eu and search using the model name. (Valid from 1st March 2021)

Available Options

NOTE

• The Energy Saver option is not available with the High Temp or Extra Dry option.
• The Delay Start option can be selected for every washing programme in this table.

For Steam Models

Programme	Dual Zone H	Half Load	Energy Saver	Steam High	Temp Extra	Dry
Auto	●	●	●	●	●	●
Intensive	●	●		●	●	●
Delicate		●	●	●		●
Refresh				●		●
Eco	●	●	●	●	●	●
Turbo	●		●	●	●
Express	●				●	●
Rinse
Machine Clean
Download Cycle

Information for Energy Test (EN60436)

Appliance loaded in accordance with standard specifications.

NOTE

• When the salt dispenser is operated, the data below increases.
• Water Consumption: 4 Liter
• Energy Consumption: 30 W
• Duration: 4 minutes

For Models without Auto Open Dry Function

• Capacity: 14 place settings - Comparability programme Eco - Rinse aid setting: L4 - Reference cleaner: 22 g of detergent into the dispenser inside. • Height-adjustable Rack-U position: Middle - Filter type: Manual

Loading the Dishes Cutlery Basket

① Tea Spoons (No soiling) ② Dessert Spoons (No soiling) ③ Soup Spoons (Oat flake) *: No soiling ④ Forks (Egg) ⑤ Knives (No soiling) ⑥ Gravy Ladle (No soiling) ⑦ Serving Fork (No soiling) ⑧ Serving Spoons (No soiling)

Upper Rack

① Glasses (Milk) *1 There are 7 glasses stained with milk. *2 Milk Glass for EN60704-2-3: 2020 ② Cups (Black tea) ③ Mugs (Black tea) ④ Dessert bowl (Oat flake) ⑤ Glass bowl (Meat) ⑥ Saucers (Black tea)

Lower Rack

① Dinner plates (Egg) ② Melamine Dessert Plates (Egg) ③ Oval Platter (Meat) ④ Soup plates (Oat flake) ⑤ Melamine Bowls (Margarine) ⑥ Dessert Plates (Spinach) ⑦ Dessert Bowls (Oat flake) ⑧ Small Pot (Spinach + Margarine) ⑨ Oven Pot (Meat) ⑩ Saucer (Black tea)

Loading the Dishwasher

For effective washing results, always follow the instructions.

• Remove large particles of food debris from plates including bones etc. before loading. Always rinse off plates when loading if they are not to be washed immediately.
• Items with burnt on food should be soaked prior to loading the dishwasher.
• Deep based items should be placed upside down.
• Plastic items will not dry well, compared to other items. • Make sure that all items do not touch each other.

Items not Suitable for Dishwashers

The combination of high water temperature and dishwasher detergents may damage certain items. Do not wash the following items.

• Copper or anodised aluminium - Hand painted silver or gold leaf crockery • Wood or bone handled utensils - Iron or non rust proof utensils - Plastic items which are not appliance safe - Expensive ware such as silver and dishes with golden rings - Fragile item such as crystal glasses

CAUTION

• Do not place pots or pans with plastic handles in the appliance as the handles may deteriorate due to the heat and detergent. Waterproof or long-lasting lipstick smudges on glasses may not be removed during the wash.

Loading the Lower Rack

Daily Use Load

The lower rack is suitable for dinner plates, soup bowls, dishes, pots, pans, lids and even a grill tray. Plates should be positioned upright and facing the centre of the rack and pots, pans and large dishes must be turned upside down.

To make it easier to load larger dishes, the front row of tines can be folded down.

CAUTION

The spray arms must not be blocked by items that are too tall or hang through the baskets. Test for free movement by manually rotating the spray arms.

Folding Down the Rack Tines

Fold tines down to fit larger dishes; pull tines back up to fit smaller dishes.

Loading the Upper Rack

Daily Use Load

The upper rack is suitable for delicate items such as small plates, long cutlery, cups, glasses and appliance-safe plastic items.

Cups, glasses and bowls must be positioned upside down.

Plates should be positioned upwards with the plate.

The cup racks provide support for long steam glasses.

The left side row of tines can be folded down or the cup racks can be folded up out of the way for tall crockery items.

CAUTION

- The spray arms must not be blocked by items that are too tall or hang through the baskets. Test for free movement by manually rotating the spray arms.

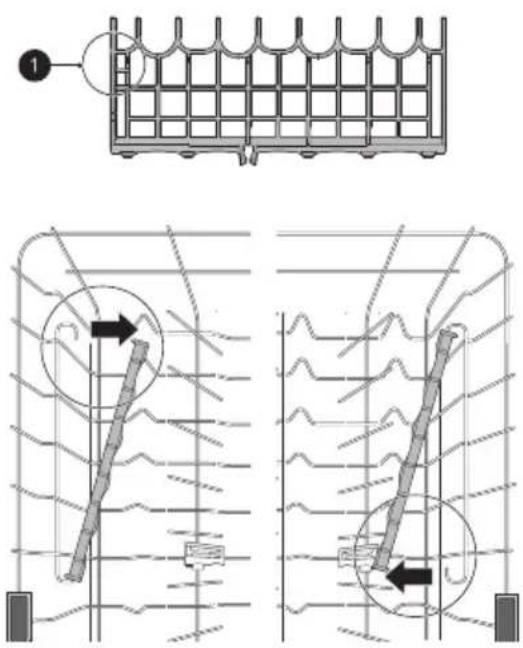

Removing and Replacing Cup Racks

The left and right cup racks are interchangeable and can be removed.

1 Slide cup rack down into its closed position.

2 Locate assembly slot a on cup rack and firmly pop rack off support bar on that side.

• The rack on the left pops free at the back. The rack on the right pops free at the front.

3 Slide cup rack off support bar on opposite side.

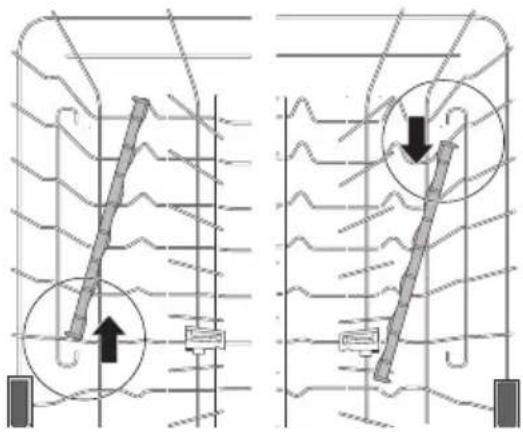

4 Reverse instructions to replace cup rack.

Height Adjustable Upper Rack

The height of the upper rack can be adjusted when you load glasses with long stems or tall crockery items.

There are three available positions for adjusting the height of the upper rack to create more space.

Lowering the Rack

Hold the rack at the center of each side to support its weight. Then, push the button on each side to release the rack and lower it to the lower position.

Raising the Rack

Lift the rack at the center of each side until the rack locks into place in the upper position. It is not necessary to lift the lock levers to raise the rack.

Possible plate size according to the upper rack position

Upper Rack Position	Plate Size (mm)
	Upper Rack Lower Rack
Upper 215	300
Middle 243	272
Lower 271	244

WARNING

- Before adjusting, ensure the rack is empty of all dishes. Otherwise dishes may get damaged or you may get injured.

NOTE

• Raise the upper rack without pushing the buttons on each side. Pushing the buttons when raising the rack will prevent the rack from locking into position.
• To set the rack to the middle position, it may be easier to lower the rack all the way down and

then raise each side of the rack individually until it clicks into place.

• There is a 56 mm gain in height when the upper rack is moved to the lower position. • After adjusting the rack levels, check that the spray arms are free to rotate.
• With the lower position of the upper rack, check if the bottom part of upper rack including spray arm is not disturbing items on the lower rack.
• When the upper rack is in the lower position, push in the upper rack first, and the lower rack later.
• Pull out the lower rack first, and the upper rack later.
• When the upper rack is in the lower position, the possible height of dishes differs with models where the cutlery rack is fitted.

Loading the Cutlery Basket

Daily Use Load

For large utensils, such as whisks, the cover can be opened by unhinging it.

Place forks and spoons in the cutlery basket with their handles downwards.

WARNING

• To prevent injuries, place knives and other utensils with sharp points on the cutlery basket.
• If you want to load them in the cutlery basket, place them with the pointed edges facing downwards.

CAUTION

• Do not obstruct the rotation of the spray arms. • The cutlery shouldn't be longer than 18 cm.

Adding Cleaning Agents

Adding Detergent to the Dispenser

- Remove the label on the dispenser prior to running the appliance for the first time.

• The amount of detergent needed depends on the cycle, load size, and soil level of dishes.
• Put detergent into the detergent compartment before starting any cycle, except the Rinse cycle.

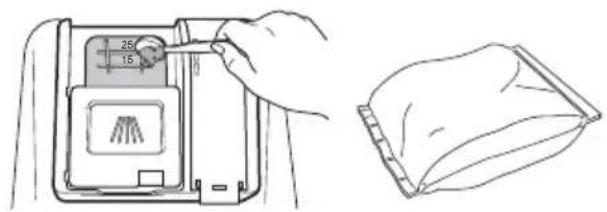

1 Push the button on the dispenser lid to open the cover.

2 Add dishwashing detergent to the main wash compartment until the level is between the lines marked 15 and 25.

• Fill to over the 25 line for hard water or heavily soiled loads.
• Fill to the 15 line for soft water or lightly soiled loads.

3 Push the detergent lid to slide the lid closed until it clicks.

4 If a prewash is desired, fill the recessed prewash compartment area on the lid with detergent.

Programme	Amount of detergent
	Main wash (dispenser)
Auto	20 g
Intensive	20 g
Delicate	20 g
Refresh	-
Eco	22 g
Turbo	20 g
Download Cycle	20 g
Machine Clean	20 g
Rinse	-
Express	20 g

WARNING

- Dishwasher detergent and rinse aid contain chemical components, like all other household detergent. So, they must be kept out of the reach of children.

CAUTION

• Use only detergent intended for dishwashers. Incorrect detergent may cause the appliance to fill with suds during operation. Excess suds may reduce wash results and may cause the appliance to leak.

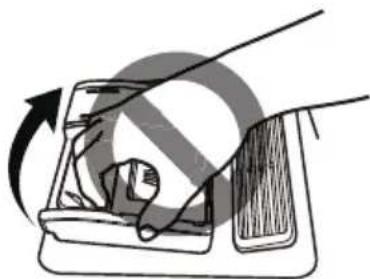

• To avoid damaging the appliance, do not pull up on the dispenser to close the appliance door.

- Use of an unsuitable detergent and rinse aid may result in a risk of damage, corrosion, poor washing results, poor drying or leakage.

• Only use the detergent and rinse aid that has been qualified with standard. Use of an unqualified detergent and rinse aid may present a risk of damage, corrosion, poor washing results, poor drying, and leakage.
• If too much detergent is used, too many suds can occur. It may cause leakage of suds and stain the dishes in the dishwasher.

NOTE

• Too much detergent can leave a film on dishes and in the tub, resulting in poor wash results. • After washing, check whether the detergent was completely washed out.
• Some appliance detergent tablets may become stuck in the dispenser due to their excessive size. Tablets can be placed onto the base of the wash tub next to the filter before starting the cycle.
• Never use liquid dishwashing detergent in the appliance.
• Detergent tablets are not recommended for use of Express cycle. If the detergent tablets are used, it may cause detergent residue on dishes due to the relatively low rinse temperatures.

Refilling

To maintain the effective dry results, check and refill rinse aid regularly.

To maintain the effective wash results, check and refill dishwasher salt regularly.

Checking the Rinse Aid

When the rinse aid refill ✦ icon illuminates lit, it means the rinse aid is almost empty. If necessary, refill the rinse aid chamber.

Checking the Dishwasher Salt

After refilling the dishwasher salt, a wash programme should be operated without dishes, as any spilled salt inside the appliance may cause rust or damage to the appliance if the left unwashed.

When the salt refill ⬆ icon illuminates, it means the salt is almost empty. If necessary, refill the salt chamber.

CAUTION

- Do not add detergent or any other solution into the water softener housing other than dishwasher salt. Doing so will cause the water softening system to malfunction.

Useful Tips

Drying

• Plastic items may cause poor drying results compared to other items. • To assist drying, the door can be opened for a short period of time after the cycle.

NOTE

• Make sure that all items do not touch each other.
• If dry results are not good or water stains remain, add the Extra Dry option or set the rinse level.
• When using tablet type (2 in 1, 3 in 1) detergent, an additional rinse may be required, depending on the volume of dishes, in this case use the Extra Dry option or set the rinse level.

Unloading the Dishwasher

• Before unloading the dishes, check if the dishes have cooled down to hand-warm condition.
• Empty the lower rack first and then the upper one. This will avoid water dripping from the upper rack onto the dishes below.

WARNING

- Do not pull out all fully loaded racks at one time; the appliance can topple over. Unload each rack one by one.

SMART FUNCTIONS

LG ThinQ Application

The LG ThinQ application allows you to communicate with the appliance using a smartphone.

LG ThinQ Application Features

Communicate with the appliance from a smartphone using the convenient smart features.

Monitoring

This function checks the current status, cycle, options running time and cycle end time for the application on a single screen.

Download Cycle

You can download new and special cycles that are not included in the basic cycles on the appliance.

Appliances that have been successfully registered can download a variety of specialty cycles specific to the appliance.

Only one cycle can be stored on the appliance at the same time.

Once cycle download is completed in the appliance, the appliance keeps the downloaded cycle until a new cycle is downloaded.

Machine Clean Reminder

This function shows how many cycles remain before it is time to run the Machine Clean cycle.

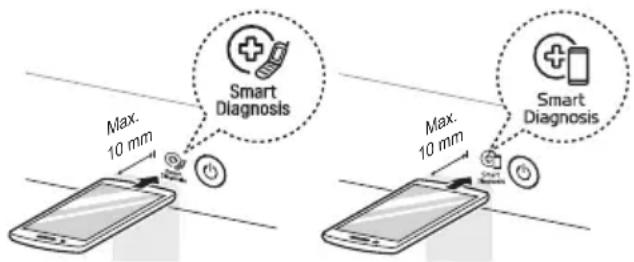

Smart Diagnosis

This function provides useful information for diagnosing and solving issues with the appliance based on the pattern of use.

Settings

Allows you to set various options on the appliance and in the application.

Push Alert

When the cycle is complete or the appliance has problems, you have the option of receiving push notifications on a smartphone. The notifications are triggered even if the LG ThinQ application is off.

NOTE

• If you change your wireless router, Internet service provider, or password, delete the registered appliance from the LG ThinQ application and register it again.
• The application is subject to change for appliance improvement purposes without notice to users.
• Functions may vary by model.

Before Using LG ThinQ Application

1 Check the distance between the appliance and the wireless router (Wi-Fi network). - If the distance between the appliance and the wireless router is too far, the signal strength becomes weak. It may take a long time to register or installation may fail. 2 Turn off the Mobile data or Cellular Data on your smartphone.

3 Connect your smartphone to the wireless router.

NOTE

• To verify the Wi-Fi connection, check that the Wi-Fi icon on the control panel is lit.
• The appliance supports 2.4 GHz Wi-Fi networks only. To check your network frequency, contact your Internet service provider or refer to your wireless router manual.
• LG ThinQ is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection.
• If the appliance is having trouble connecting to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength.
• The Wi-Fi connection may not connect or may be interrupted because of the home network environment.
• The network connection may not work properly depending on the Internet service provider.
• The surrounding wireless environment can make the wireless network service run slowly.
• The appliance cannot be registered due to problems with the wireless signal transmission. Unplug the appliance and wait about a minute before trying again.
• If the firewall on your wireless router is enabled, disable the firewall or add an exception to it.
• The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
• Smartphone user interface (UI) may vary depending on the mobile operating system (OS) and the manufacturer.
• If the security protocol of the router is set to WEP, you may fail to set up the network. Please change it to other security protocols (WPA2 is recommended) and register the product again.

Installing the LG ThinQ Application

Search for the LG ThinQ application from the Google Play Store or Apple App Store on a smartphone. Follow instructions to download and install the application.

Deactivating Network Connection

On your smartphone, disconnect to your home Wi-Fi network.

1 Run the LG ThinQ application. 2 Select and touch the Dishwasher in the application. 3 Select and touch the Delete Product on the settings menu to disconnect it.

Wireless LAN Module Specifications

Model	LCW-003
Frequency Range	2412 to 2472 MHz
Output Power (Max)	IEEE 802.11b: 18.37 dBmIEEE 802.11g: 17.67 dBmIEEE 802.11n: 17.67 dBm

Wireless function S/W version : V 1.0

For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm between the device and the body.

Declaration of Conformity

CE

Hereby, LG Electronics declares that the radio equipment type Dishwasher is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

http://www.lg.com/global/support/cedoc/cedoc# LG Electronics European Shared Service Centre B.V. Krijgsman 1, 1186 DM Amstelveen, The Netherlands

Open Source Software Notice Information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses that have the obligations to disclose source code, that is contained in this product, and to access all referred license terms, copyright notices and other relevant documents please visit https://opensource.lge.com.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail].

This offer is valid to anyone in receipt of this information for a period of three years after our last shipment of this product.

Smart Diagnosis

This feature is only available on models with the Ⓧ or Ⓧ logo.

Use this feature to help you diagnose and solve problems with your appliance.

NOTE

• For reasons not attributable to LGE's negligence, the service may not operate due to external factors such as, but not limited to, Wi-Fi unavailability, Wi-Fi disconnection, local app store policy, or app unavailability.
• The feature may be subject to change without prior notice and may have a different form depending on where you are located.

Using LG ThinQ to Diagnose Issues

If you experience a problem with your Wi-Fi equipped appliance, it can transmit

troubleshooting data to a smartphone using the LG ThinQ application.

- Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions provided in the LG ThinQ application.

Using Audible Diagnosis to Diagnose Issues

Follow the instructions below to use the audible diagnosis method.

- Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions for audible diagnosis provided in the LG ThinQ application.

1 Press the POWER button to turn on the appliance.

- Do not press any other buttons.

2 Place the mouthpiece of your smartphone close to the ✅ or ⚙ logo.

3 Press and hold the Download Cycle button for 3 seconds or longer while holding the smartphone mouthpiece to the logo until the data transfer is complete.

- Keep the smartphone in place until the data transfer has finished. Time remaining for data transfer is displayed.

4 After the data transfer is complete, the diagnosis will be displayed in the application.

NOTE

- For best results, do not move the smartphone while the tones are being transmitted.

Customer Care and Service

Contact an LG Electronics customer information centre.

• To find an LG Electronics authorised service personnel, visit our website at www.lg.com and follow the instructions found there.
• Self-repair is not recommended as it could further damage the device and void the guarantee.
• Spare parts referenced in Regulation 2019/2022 are available for a minimum duration of 10 years.

MAINTENANCE

To maintain performance and prevent problems, check the outside and inside of the appliance, including filters and spray arms regularly.

WARNING

- When cleaning the outside and inside of the appliance, do not use any solvent based solutions such as thinners or acetone. It may cause fire or explosion.

NOTE

- Prevent animals from nibbling on the power cable or water hose.

Cleaning and Caring

Cleaning the Exterior

In most cases, the exterior of the appliance can be cleaned with a soft damp cloth or sponge, then dried with a soft cloth. If the appliance has a stainless steel exterior, use a stainless steel cleaner.

CAUTION

- If cooking oil is spilled on the exterior of the product, wipe it off immediately. Do not clean the exterior of the product with cleaners which contain alcohol, thinners, bleach, benzene, flammable liquids, or abrasives. These substances may discolour or damage the appliance.

Cleaning the Interior

It is recommended to clean the interior, spray arms, or filters once every two weeks.

Clean the interior of the appliance periodically with a soft, damp cloth or sponge to remove food and dirt particles.

Food residue may be stuck in the narrow gaps inside the appliance after completion of washing. Wipe off all food residue.

NOTE

- If you have not used the appliance for a long time, refresh the inside by running Turbo or Machine Clean programme with detergent. When the cycle is finished, clean the inside and outside of the appliance according to the MAINTENANCE instructions.

Cleaning the Tub

Using Citric Acid

Remove all dishes, cutlery basket and cutlery basket holder from appliance. Only racks should remain in tub. For best results, use citric acid powder (can be found in canning sections of most supermarkets or online). Measure 3 tablespoons (45 g) of citric acid powder. Fill main wash compartment with measured powder.

Using White Vinegar

If you cannot find citric acid powder, pour approximately 3/4 - 1 1/4 cups (200 - 300 mL) of

white vinegar into shallow bowl and place in upper rack. Run Auto cycle. Do not use detergent. When the cycle is finished, restart.

CAUTION

• Do not pour vinegar directly into the base.
• Excessive use of vinegar may cause damage to the appliance.

Cleaning the Filters

1 Remove the lower rack and position the bottom spray arm so a wider vee is open to the front. 2 Turn the inner filter counter-clockwise and take out the assembled inner filter and stainless steel filter.

Clean the filters with a soft brush under running water. Reassemble the filters before reinstalling them.

To replace the assembled filters, position the spray arm so the wider vee is toward the front. Fit the filters back into the filter holder and secure them by turning the inner filter clockwise until it clicks into place.

WARNING

- Be cautious of sharp edges when handling the stainless steel filter.

CAUTION

• After using the appliance, particles of food are filtered by the filters. Any unremoved food residue may cause bad smell. In addition, drainage may have a problem due to food residue stuck in the filters.

NOTE

- When assembling, rotate it firmly until it clicks.

Cleaning the Spray Arms

If the spray arm holes are blocked by any food residue, dishes may not be cleaned well due to improper water spray.

Cleaning the Lower Spray Arm

1 Make sure that the water jet holes are not blocked by food particles.

2 If any food residue blocks the spray arm holes, remove it with a pin or any sharp tool.

CAUTION

- To avoid breaking the variable angle spray arm end sections, do not pull or manually rotate them.

Cleaning the Upper Spray Arm

1 Pull the upper rack forward. Make sure that the water jet holes are not blocked by food particles.

2 When cleaning is necessary, remove the upper spray arm by turning the nut on the bottom of the spray arm 1/8 turn counterclockwise and pulling down.

3 Remove food particles by rinsing or shaking the spray arm.

4 If any food residue blocks the spray arm holes, remove it with a pin or any sharp tool.

5 After removing the food residue, clean the spray arms holes under running water.

6 After cleaning the upper spray arm, press it up into place. Turn the nut 1/8 turn clockwise to make sure that the nut locks back into place.

7 After assembly, check whether the spray arms rotate freely.

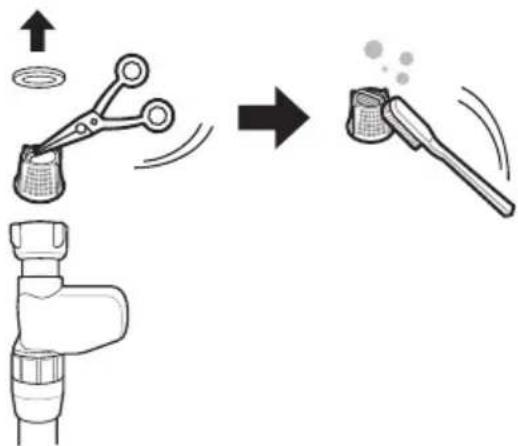

Cleaning the Water Supply Hose Filter

1 Unplug the appliance. 2 Turn off the water tap. 3 Unscrew the water supply hose. 4 Remove the seal and the plastic filter with a pair of small pliers or scissor grips.

5 Refit the filter and gasket and make sure that it is sitting correctly.

6 Refit and secure the water supply hose in reverse order. Do not use any mechanical device to tighten the hose. A soft cloth can be used to assist hand tightening.

NOTE

• A filter is fitted into the inlet of the water supply hose connection.
• If insufficient water flows into the appliance, check that the filter is not blocked.
• If there is a leak, the water supply hose will need to be checked for proper connection.
• Never over tighten the water supply valve or use mechanical devices to tighten.

- When reassembling the seal and the filter, ensure that they are free from dirt or grit that may have come from the water supply.

Seasonal Maintenance and Storage

• If you will be absent for an extended period of time during warmer months, close the water valve and unplug the power cord, or turn off the circuit breaker. Clean the filter, tub and dispenser to prevent odour.
• If you will be absent for an extended period of time during colder months and there is a possibility of freezing temperatures, winterize the water supply lines and the appliance itself. Winterization must be performed by qualified service personnel.

TROUBLESHOOTING

Before Calling for Service

Operation of the appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. You can remedy most of the problems by yourself, consequently save time and money, since you do not need to call service centre. The following table should assist you by troubleshooting.

Error Codes

The appliance is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If this appliance does not function properly or does not function at all, check the following before you call LG Electronics service centre.

Symptoms Possible Cause & Solution
IE	Water inlet problem.• Check for a clogged, kinked or frozen water supply hose.• Check water supply.
OE	Drainage Problem.• Check for a clogged, kinked or frozen drain hose.
	Waste spigot is clogged.• Remove knockout on waste spigot.
	Filters are clogged.• Clean Filters.
bE	Oversuding caused by improper detergent, such as liquid dish soap.• Do not use hand dishwashing liquids. Only use detergents which are designed for use in automatic dishwashers.• To remove detergent residue in the tub, pour approximately 100~200 ml of milk into a shallow bowl, place it to the upper rack and then run the appliance on theAutocycle.
	Failure to level appliance.• Make sure that the appliance is properly leveled.
HE	Heater circuit failure• Call for service if the same problem occurs again.
FE	Excessive water supplied.• Call for service if the same problem occurs again.
RE	Water leakage problem• Call for service if the same problem occurs again.
EE	Thermistor failure• Call for service if the same problem occurs again.
LE	Motor trouble• Call for service if the same problem occurs again.
nE	Vario motor trouble• Call for service if the same problem occurs again.

Operation

Symptoms Possible Cause & Solution
Noise Some level of noise is normal during operation.·Detergent cover opening.·Drain pump at the beginning of drain cycle.
Appliance will not operate.	Door is not completely closed.·Level the appliance again.
	Power supply or power cord is not connected.·Connect the power supply or cord properly.
	When the Control Lock feature is activated, the display code CL will show on the display.·Deactivate theControl Lockbutton.·Press and holdHalf LoadandEnergy Saversimultaneously for 3 seconds to activate or deactivate this feature.
	Fuse is blown or circuit breaker tripped.·Replace the fuse or reset the circuit breaker.
Appliance continuously beeps when the door is opened, during or right after a cycle has completed.	The contents of the appliance are hot and care should be used when placing your hands inside the appliance.·Close the door until the appliance and dishes have cooled down. The beeping will stop if the door is closed or the interior temperature has cooled.
Water remains in sump after completion of cycle.	Drain hose is kinked or clogged.Adjust hose or clear blockage.
	Water may remain if the power supply was lost before normal end of the course or was manually disconnected.Re-start the course.
Sprays arms do not rotate smoothly.	Holes of spray arms are blocked by food particles.Clean the holes of spray arms.
Upper rack is crooked. Rack is poorly adjusted.See the Height Adjustable Upper Rack section.
Lamps do not illuminate.	Power is not connected.Connect power supply.
There is excessive foam inside the appliance.	Failure to use the detergent exclusive for appliance.Use the detergent exclusive for appliance.
	An excessive amount of rinse may cause foam.Reduce the rinse aid dispensing level.
Detergent is left in the detergent dispenser.	Unbalanced upper rack.Adjust the left/right height of the upper rack.
	Detergent may not be dispensed because poor stacking of the dishes prevent automatic opening of the detergent dispenser.Correctly arrange the dishes and always dry out the dispenser before adding new detergent so that it does not clump together.
Water leaks outside the appliance.	The door may not be closed due to tilted appliance. In this case a water leak may occur.Check the levelling by adjust the leg.
	Wrong installation of drainage hose may cause water leak.Check the connecting part of drainage hose.
	If the power is off, a water leak may be caused by a poor connection to the tap.Check the connection water supply hose.

Performance

Symptoms Possible Cause & Solution
Cloudiness on glassware	Combination of excessive detergent and hard waterUse less detergent and use a rinse aid to minimize the problem.Check the setting of softening system.
Black or gray marks on dishes	Aluminum items rubbing dishes during cycle• Reposition the dishes.
Yellow or brown film on inside surfaces of appliance	Coffee or tea stains• Eliminate the stain by using a stain removal product.
Yellow water remains inside the dishwasher.	When initially using the appliance, Yellow water may generate in the water softener tank.• This is a normal condition, and it is harmless to humans. It disappears after 1 - 3 cycles.
Spots and filming on dishes	Wrong amount of detergent used• Use the recommended amount of detergent.
	Overloading• Do not overload the appliance.
	Improper loading• See the OPERATION section.
	Insufficient water pressure• Water pressure should be between 0.05 - 1.0 MPa.
	Insufficient detergent• Add the recommended amount of detergent. See the OPERATION section.
	Rinse aid dispenser is empty.• Refill rinse aid dispenser.
	The water softener has no salt or insufficient the salt.• Check whether there is the salt in the water softener.
	Water hardness level may be set too low.• Increase the hardness level setting value.
	The rinse aid may be insufficient.• Refill the rinse aid or increase the dispensing level.
	Hard water buildup in the tub• Remove all dishes, cutlery basket and cutlery basket holder from appliance. Only racks should remain in tub. For best results, use citric acid powder (can be found in canning sections of most grocery stores or online). Measure 3 tablespoons (45 g) of citric acid powder. Fill main wash compartment with measured powder. If you cannot find citric acid powder, pour approximately 3/4 - 1 1/4 cups (200 - 300 mL) of white vinegar into shallow bowl and place in upper rack. Run Auto cycle. Do not use detergent. When the cycle finish, run it again.
Odour The previous cycle	was stopped before completion and residual water remains in the appliance.Turn on the power, run the Cancel cycle option to remove the residual water, then run the Turbo cycle using detergent but with the appliance empty.
	There is food in the bottom of the unit or in the filter.Clean the filter and the interior according to the MAINTENANCE section of the owner's manual.
	Unwashed dishes are left in the unit for a long time.Cycle with one cup of white vinegar in a appliance safe glass or bowl placed on the upper rack. (Vinegar is an acid, and with constant use it could damage your appliance.)
Food soil remains on dishes.	Improper cycle selectionSelect correct cycle based on soil level and type of dishware being washed.
	Water temperature is too low.Check water supply connection or water heater setting.
	Dishwashing detergent was not used.Use recommended detergent.
	Low inlet water pressureWater pressure should be between 0.05 - 1.0 MPa.
	Water jet holes on spray arms blocked.Clean the spray arms.
	Improper loading of dishes.Make sure dishes do not block spray arm rotation or interfere with detergent dispenser.
	Filters are clogged.Clean filters.
	Too much unremoved food debris on dishes.Large particles of food residues should be removed from the dishes before staring wash.

Drying

Symptoms Possible	Cause & Solution
Dishes don’t dry. Rinse agent dispenser empty.Check and refill the rinse agent dispenser if empty. For better drying result, slightly open the door after operation.

Wi-Fi

Symptoms Possible Cause & Solution
Your home appliance and smartphone are not connected to the Wi-Fi network.	The password for the Wi-Fi that you are trying to connect to is incorrect.· Find the Wi-Fi network connected to your smartphone and remove it, then register your appliance on LG ThinQ.
	Mobile data for your smartphone is turned on.· Turn off the Mobile data of your smartphone and register the appliance using the Wi-Fi network.
	The wireless network name (SSID) is set incorrectly.· The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters).
	The router frequency is not 2.4 GHz.· Only a 2.4 GHz router frequency is supported. Set the wireless router to 2.4 GHz and connect the appliance to the wireless router. To check the router frequency, check with your internet service provider or the router manufacturer.
	The distance between the appliance and the router is too far.· If the distance between the appliance and the router is too far, the signal may be weak and the connection may not be configured correctly. Move the location of the router so that it is closer to the appliance.

Memo

LG

Life's Good

① Funnel ② Soundproofing tape ^*1

NOTE

NOTE

WARNING

CAUTION

	H1 H2	H3 H4
Цикли	1 3	0	5	0

NOTE

① Bowls (milk)

CAUTION

CAUTION

Removing the shelf

Raising the shelf

WARNING

2

NOTE

NOTE

CAUTION

WARNING

CAUTION

NOTE

NOTE

⚠️ WARNING

NOTE

① Glass (milk)

⚠ CAUTION

Folding down the basket teeth

⚠ WARNING

Lowering the basket

Raising the basket

⚠️ WARNING

NOTE

http://www.lg.com/global/support/cedoc/cedoc# LG Electronics European Shared Service Centre B. V.

Krijgsman 1, 1186 DM Amstelveen, Netherlands

NOTE

Using white vinegar

⚠ WARNING

⚠️ WARNING

⚠ WARNING

Smart Diagnosis ....43

MAINTENANCE

① Upper wash rotor ② Upper spray arm ③ Lower spray arm ④ Salt container cap ⑤ Filter system ⑥ Cutlery basket ⑦ Detergent and rinse aid dispenser ⑧ Steam opening ⑨ Lower rack 10 Upper rack

Device

① Funnel ② Noise reduction tape ^*1

*1 Noise reduction tapes are included: bottom - 1 piece, front - 1 piece

Technical specifications

Model DF222***
Napajanje 220 - 240 V~, 50 Hz
Dimenzije(Širina X Dubina X Visina)	600 mm X 600 mm X 850 mm
Težina proizvoda Oko 48 kg
Maks. kapacitet 14 kompleta posuđa
Dopušteni tlak ulazne vode 0,05 -	1,0 MPa
Potrošnja energije 1600 - 1800 W

Attaching the tape to the device base

2 Pull the bottom cover to remove it.

3 Remove the double-sided adhesive tape from the bottom and front tapes.

4 Attach the black bottom tape ① to the bottom of the bottom cover.

6 Attach the bottom cover with the tape to the device.

Removing the top cover

If the opening height is less than 850 mm, follow these instructions.

1 Remove the 2 screws on the rear side.

2 Pull the top cover backward after removing the two screws, then lift it to remove it.

NOTE

NOTE

- Make sure the line is not tangled or sharply bent.

- Make sure the drain hose is straight before threading its end through the water inlet opening.

To prevent water from flowing back into the washer, one of the following methods must be used.

Method 1

⚠ WARNING

- Do not shorten or damage the water inlet hose as it contains electrical wires and components. It cannot be detached from the appliance or removed for installation purposes.

- It is important that the water inlet hose is not altered, cut, disassembled, pulled, or tangled. It contains electrical wires inside, and if damaged, it can cause a risk of electric shock.

CAUTION

- Use only the threaded nuts of the water inlet hose to attach it to the faucet.

- This appliance can be filled with hot or cold water. If the water temperature cannot be maintained below 65 °C, the appliance must be connected to cold water.

- To avoid water leakage, use sealing tape or sealant on the faucet.

- Make sure the line is not tangled or sharply bent.

NOTE

- Before connecting the water inlet hose to the faucet, turn on the faucet to release foreign substances (dirt, sand, or sawdust) in the water. Let the water run into a bucket.

- For the first water supply, this takes approximately 3–4 minutes.

Running electrical wires

Connect the device to a grounded outlet in accordance with current wiring regulations and so that it is protected by a circuit breaker of at least 15 amperes or a time-delay fuse. Wiring must be done using two grounded wires.

3 Firmly replace the cap.

4 Run the Rinse cycle without dishes.

	H1 H2	H3 H4
Ciklusi 1	30 50 20 1	0

- The table contains information about the Auto program.

- The cycle may vary depending on the amount of salt fill.

CAUTION

- Do not pour detergent into the salt dispenser. This could cause a malfunction.

- Wipe up salt if it spills around the salt dispenser cap. The resulting salt solution can cause corrosion of the drum and dishes in the dishwasher.

NOTE

- Salt can be obtained from salt distributors.

Adding rinse aid

When more rinse aid needs to be added, the rinse aid indicator appears on the display.

4 Make sure the spray arm rotates freely.

- Make sure the upper and lower spray arms rotate well. If they do not rotate, remove the spray arm and clean it.

5 Place the dishes on the rack.

6 Add the correct amount of powder detergent to the dispenser.

① Teaspoons (unsoiled) ② Dessert spoons (unsoiled) ③ Soup spoons (oatmeal) *: unsoiled ④ Forks (egg) ⑤ Knives (unsoiled) ⑥ Sauce ladle (unsoiled) ⑦ Serving fork (unsoiled) ⑧ Serving spoons (unsoiled)

Upper rack

① Glasses (milk)

① Large plates (egg) ② Melamine dessert plate (egg) ③ Oval platter (meat) ④ Soup plates (oatmeal) ⑤ Melamine bowls (margarine) ⑥ Dessert plates (spinach) ⑦ Dessert bowls (oatmeal) ⑧ Small pot (spinach + margarine) ⑨ Baking dish (meat) ⑩ Saucer (black tea)

Loading the dishwasher

Dishes not suitable for washing in the dishwasher

The combination of high water temperature and dishwasher detergent can damage certain dishes. Do not wash the following.

• Copper and anodized aluminum - Hand-painted silver and gold-leaf dishes - Cutlery with wooden or bone handles - Iron cutlery or cutlery that is not stainless steel - Plastic dishes that cannot be washed in the dishwasher - Expensive dishes such as silverware and gold-rimmed dishes • Fragile dishes such as crystal glasses

CAUTION

• Do not place pots and pans with plastic handles in the appliance, as the handles could be damaged by heat and detergent.
• Stains from waterproof or long-lasting lipstick on glasses may not be removed during washing.

Loading the lower rack

Loading for daily use

The lower rack is suitable for large plates, soup bowls, dishes, pots, pans, lids, and even a roasting tray.

Plates should be placed upright and facing the center of the rack, while pots, pans, and large dishes should be turned upside down.

To make it easier to place larger dishes in the dishwasher, the front row of tines can be folded down.

CAUTION

- The spray arms must not be blocked by dishes that are too tall or hang through the baskets. Test free movement by manually rotating the spray arms.

Loading the upper rack

Loading for daily use

The glass rack provides support for tall glasses.

The left row of tines can be folded down, or the cup racks can be folded to make room for tall earthenware.

CAUTION

- The spray arms must not be blocked by dishes that are too tall or hang through the baskets. Test free movement by manually rotating the spray arms.

2 Locate the assembly groove ① on the cup rack and firmly release the rack from the support bar on that side.

3 Push the cup rack off the support bar on the opposite side.

Lowering the rack

Hold the rack in the middle of each side to support its weight. Then press the button on

On each individual side to release the rack and lower it to a lower position.

Raising the rack

Lift the rack in the middle of each side until it locks into place in the upper position. It is not necessary to lift the locking levers to raise the rack.

Possible plate sizes depending on the position of the upper rack

Položaj gornjeg stalka	Veličina tanjura (mm)
	Gornji stalak	Donji stalak
Gornji 215 300
Srednji 243 272
Spuštanje 271 244

⚠ WARNING

- Before adjusting, make sure there is no dishware on the rack. Otherwise, the dishware could be damaged or you could be injured.

NOTE

• When the upper rack is moved to the lower position, 56 mm of height is gained.
• After adjusting the rack levels, check that the spray arms can rotate freely.
• When the upper rack is in the lower position, check that the bottom of the upper rack, including the spray arm, does not obstruct the dishware on the lower rack.
• When the upper rack is in the lower position, first push in the upper rack, then the lower one. • First pull out the lower rack, then the upper one.
• When the upper rack is in the lower position, the possible height of dishware varies depending on the models on which the cutlery rack is attached.

Loading the cutlery basket

Loading for daily use

For large cutlery, such as a whisk, the lid can be opened by removing it from the hinges.

Place forks and spoons in the cutlery basket with their handles facing down.

WARNING

2 Add detergent to the main wash compartment until the level reaches between the lines marked 15 and 25.

3 Press the detergent dispenser lid to close it until it clicks.

4 If a prewash is needed, fill the recessed prewash compartment on the lid with detergent.

Program	Količina deterdženta
	Glavno pranje (dozator)
Auto (Automatski)	20 g
Intensive (Intenzivno)	20 g
Delicate (Osjetljivo)	20 g
Refresh (Osvježi)	-
ECO	22 g
Turbo	20 g
Download Cycle (Preuzimanje ciklusa)	20 g
Machine Clean (Čišćenje stroja)	20 g
Rinse (Ispiranje)	-
Express (Brzo)	20 g

⚠ WARNING

- Dishwasher detergent and rinse aid contain chemical components, like all other household detergents. Therefore, keep them out of reach of children.

CAUTION

- Use only detergent intended for dishwashers. Incorrect detergent may cause the appliance to fill with suds during operation. Excessive suds can worsen washing results and cause leakage from the appliance.

• Use of unsuitable detergent and rinse aid can cause risk of damage, corrosion, poor washing results, poor drying, or leakage.
• Use only detergent and rinse aid that are qualified by a specific standard. Use of unqualified detergent and rinse aid can cause risk of damage, corrosion, poor washing results, poor drying, or leakage.
• If you use too much detergent, excessive suds may form. This can cause suds to leak and leave stains on the dishes in the dishwasher.

NOTE

• Excessive detergent can leave a film on dishes and in the drum, resulting in poor washing results.
• After washing, check that the detergent has been completely rinsed away.
• Some detergent tablets may remain stuck in the dispenser due to their excessive size. Tablets can be placed on the base of the drum next to the filter before starting the cycle.
• Never use liquid dish soap in the appliance.
• When using the Express (Quick) cycle, detergent tablets are not recommended. If a detergent tablet is used, detergent residue may remain on the dishes due to the low rinse temperatures.

Refilling

To maintain effective drying results, regularly check and refill the rinse aid.

3 Connect your smartphone to the wireless router.

NOTE

• To check the wireless Wi-Fi connection, verify that the 📋 icon on the control panel is lit.
• The appliance supports only 2.4 GHz Wi-Fi networks. To check the network frequency, contact your internet service provider or refer to the wireless router manual.
• LG ThinQ is not responsible for any network connection problems or any errors, malfunctions, or failures caused by the network connection.
• If the appliance has trouble connecting to the Wi-Fi network, it may be too far from the router. Get a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength.
• The Wi-Fi connection may not be established or may be interrupted due to the home network environment.
• The network connection may not work properly, depending on the internet service provider.
• The surrounding wireless environment may cause the wireless network to operate slowly.
• The appliance cannot be registered due to problems with wireless signal transmission. Turn off the appliance and wait about a minute before trying again.
• If the firewall is enabled on the wireless router, disable the firewall or add an exception.
• The wireless network name (SSID) should contain a combination of Latin letters and numbers. (Do not use special characters).
• The smartphone user interface (UI) may vary depending on the mobile operating system (OS) and manufacturer.
• If the router's security protocol is set to WEP, you may not be able to set up the network. Please change to other security protocols (WPA2 is recommended) and register the product again.

NOTE

- If you have not used the appliance for a long time, refresh the interior by running the Turbo or Machine Clean program with detergent. When the cycle finishes, clean the inside and outside of the appliance according to the MAINTENANCE instructions.

Drum cleaning

Using citric acid

Remove all dishes, the cutlery basket, and the cutlery basket holder from the appliance. Only the racks should remain in the drum. For best results, use powdered citric acid (available in the canned goods section of most supermarkets or online). Measure 3 tablespoons (45 g) of powdered citric acid. Fill the main wash compartment with that amount of powder.

CAUTION

3 Clean the filters with a soft brush and running water. Reassemble the filters before placing them back into the appliance.

4 To replace the assembled filters, position the spray arm so that the wider end faces forward. Place the filters back onto the filter holder and secure them by turning the inner filter clockwise until it clicks into place.

⚠ WARNING

- Be careful of sharp edges while handling the stainless steel filter.

CAUTION

- After using the appliance, food residues are filtered by the filters. If food residues are not removed, this can cause an unpleasant odor. In addition, drainage problems can occur if food residues remain in the filters.

NOTE

Cleaning the spray arms

CAUTION

- To avoid breaking the ends of the spray arms, do not pull or manually turn them.

Cleaning the upper spray arm

1 Push the upper rack forward. Make sure that food residues do not block the water jet openings.

2 When cleaning is needed, remove the upper spray arm by turning the nut at the bottom of the spray arm 1/8 turn counterclockwise and pulling it downward.

5 After removing food residues, clean the openings of the spray arms with running water.

7 After reassembly, check that the spray arms rotate freely.

Cleaning the water inlet hose filter

5 Reinstall the filter and seal and make sure they are in place.

NOTE

NOTE

WARNING

	H1 H2	H3 H4
Ciklu-sok	1	3	0	5 0

NOTE

① Cups (milk)

CAUTION

CAUTION

Lowering the rack

Raising the rack

WARNING

NOTE

NOTE

CAUTION

WARNING

CAUTION

MFL70282478

Rev.01_122821

www.lg.com

NOTE

NOTE

- Check whether the hose is tangled or sharply bent.

CAUTION

WARNING

NOTE

① Cups (for milk)

WARNING

WARNING

WARNING

2

Програма	Количина детергент
	Main wash (Главно миење) (диспензер)
Auto (Автоматски)	20 g
Intensive (Интензивно)	20 g
Delicate (Деликатни)	20 g
Refresh (Освежи)	-
ECO	22 g
Turbo (Турбо)	20 g
Download Cycle (Преземање на циклус)	20 g
Machine Clean (Чистење на машината)	20 g
Rinse (Плакнење)	-
Express (Експресно)	20 g

WARNING

NOTE

NOTE

WARNING

WARNING

CAUTION

Smart Diagnosis ....49

MAINTENANCE

CAUTION

CAUTION

WARNING

⚠ CAUTION

CAUTION

① Glasses (milk)

CAUTION

⚠ CAUTION

WARNING

CAUTION

CAUTION

WARNING

3

4

WARNING

⚠ WARNING

MFL70282478

Rev.01_122821

www.lg.com

Smart Diagnosis ....44

MAINTENANCE

NOTE

NOTE

WARNING

	H1 H2	H3 H4
Cicluri 1	30 50 20 1	0

NOTE

① Glasses (milk)

*1 There are 7 dirty glasses with traces of milk.

CAUTION

CAUTION

Lowering the shelf

Raising the shelf

WARNING

Program	Cantitate de detergent
	Spălare principală (dozator)
Auto	20 g
Intensive (Intens)	20 g
Delicate (Delicat)	20 g
Refresh (Reîmprospătare)	-
ECO	22 g
Turbo	20 g
Download Cycle (Descărcare ciclu)	20 g
Machine Clean (Curățare mașină)	20 g
Rinse (Clătire)	-
Express (Expres)	20 g

WARNING

NOTE

NOTE

CAUTION

WARNING

CAUTION

Smart Diagnosis ....44

MAINTENANCE

Cleaning and care......46

TROUBLESHOOTING

Connecting the bar to the base of the appliance

2 Pull the bottom cover and remove it.

NOTE

NOTE

WARNING

NOTE

5 Place the cutlery into the basket.

① Teaspoons (No soiling) ② Dessert spoons (No soiling) ③ Soup spoons (Oat flakes) *: No soiling ④ Forks (Egg) ⑤ Knives (No soiling) ⑥ Meat juice ladle (No soiling) ⑦ Serving fork (No soiling) ⑧ Serving spoons (No soiling)

Upper basket

① Glasses (Milk)

⚠ CAUTION

Folding down the basket teeth

⚠ CAUTION

2 Place the mounting hole ① on the glass rack and firmly fold the rack onto the support on this side.

- The stand on the left side is released towards the back. The stand on the right side is released towards the front.

3 Move the glass rack from the support rod to the opposite side.

Lowering the basket

Raising the basket

WARNING

3 Press the detergent compartment lid to close it until it clicks.

Program	Množstvo čistiaceho prostriedku
	Hlavné umývanie (dávkovač)
Auto	20 g
Intensive (Intenzívne)	20 g
Delicate (Jemné)	20 g
Refresh (Obnovenie)	-
ECO	22 g
Turbo	20 g
Download Cycle (Stiahnut' cyklus)	20 g
Machine Clean (Čistenie spotrebiča)	20 g
Rinse (Oplachovanie)	-
Express (Expresné)	20 g

WARNING

NOTE

NOTE

⚠ CAUTION

3 Clean the filters with a soft brush under running water. Before reinstalling the filters, reassemble them.

4 To replace the assembled filters, position the spray arm so that the wider weld faces forward. Insert the filters back into the filter holder and secure them by turning the inner filter clockwise until it clicks into place.

WARNING

- Be careful of sharp edges when handling the stainless steel filter.

CAUTION

WARNING

Smart Diagnosis ....43

MAINTENANCE

Cleaning and care 45

TROUBLESHOOTING

Before calling for service ....49

SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

① Funnel ② Noise reduction tape ^*1

• Do not push the dishwasher door with your knees.

2 Pull the lower cover and remove it.

6 Attach the lower cover to the appliance with tape.

Removing the upper cover

2 After removing the screws, pull the upper cover back and then lift it up to remove it.

NOTE

NOTE

- Place the appliance on a solid and level surface.

- Do not install the appliance on an elevated surface.

1st case: the door is tilted to the right.

1 Unscrew (counterclockwise) the rear left foot to level the appliance.

2 Check the door opening and, if necessary, repeat the procedure until the door opens and closes properly.

2nd case: the door is tilted to the left.

1 Unscrew (counterclockwise) the rear right foot to level the appliance.

2 Check the door opening and, if necessary, repeat the procedure until the door opens and closes properly.

- Make sure the hose is not kinked or sharply bent.

WARNING

3 Refit the cap. 4 Run the Rinse program without dishes.

	H1 H2	H3 H4
Cikli 13	0 50 20 10

NOTE

5 Load the dishes onto the rack.

6 Add the appropriate amount of powder detergent to the dispenser.

① Glasses (milk)

*1 7 glasses are dirty with milk.

*2 Glass for milk for EN60704-2-3: 2020

CAUTION

Loading the lower rack

Loading the upper rack

CAUTION

Removing and reinstalling the cup racks

The left and right cup racks can be interchanged and removed.

1 Push the cup rack down to the closed position.

2 On the cup rack, locate the assembly slot ① and on the corresponding side, firmly push the rack off the support post.

3 Pull the cup rack off the support post on the opposite side.

Lowering the rack

Hold the rack in the middle of both sides to support its weight. Then press the button on each side to release the rack and lower it to a lower position.

Raising the rack

Shelf raised in the middle of each side to lock into place in the upper position. To raise the shelf, you do not need to lift the locking levers.

WARNING

2 Add dishwasher detergent to the main wash compartment so that the level is between the 15 and 25 marks.

- Pour detergent above the 25 mark if you have hard water or the dishes are very dirty.

- Pour detergent up to the 15 mark if you have soft water or the dishes are lightly soiled.

3 Replace the detergent compartment cover and push it until it clicks into place.

Program	Količina detergenta
	Glavno pomivanje (dozirnik)
Auto (Samodejno)	20 g
Intensive (Intenzivno)	20 g
Delicate (Občutljivo)	20 g
Refresh (Osvežitev)	-
ECO	22 g
Turbo	20 g
Download Cycle (Prenos programa)	20 g
Machine Clean (Čiščenje stroja)	20 g

Program	Količina detergenta
	Glavno pomivanje (dozirnik)
Rinse (Izpiranje)	-
Express (Ekspresno)	20 g

WARNING

NOTE

NOTE

Using white vinegar

If you cannot find citric acid powder, pour 3/4 to 1 1/4 cups (200–300 ml) of white vinegar into a shallow bowl and place it on the upper shelf.

Run the Auto cycle. Do not use detergent. When the cycle is finished, run it again.

CAUTION

WARNING

- Be careful when handling the stainless steel filter, as it has sharp edges.

CAUTION

CAUTION

5 Reinstall the filter and gasket, making sure they are correctly positioned.

Smart Diagnosis ....44

MAINTENANCE

NOTE

NOTE

WARNING

3 Properly reposition the basket. 4 Run the Rinse cycle without dishes.

	H1 H2	H3 H4
C	i	k	l	e	t

NOTE

Dual Zone

① Glasses (Milk)

CAUTION

CAUTION

Lowering the rack

Raising the rack

WARNING

Programet	Sasia e detergjentit
	Larja kryesore (tek dispenseri)
Auto (Automatike)	20 g
Intensive (Intensiv)	20 g
Delicate (Delikate)	20 g
Refresh (Rifresko)	-
ECO	22 g
Turbo	20 g
Download Cycle (Shkarkimi i Ciklit)	20 g
Machine Clean (Pastrimi i makinerisë)	20 g
Rinse (Shpëlarja)	-
Express (Ekspres)	20 g

WARNING

NOTE

NOTE

CAUTION

⚠️ WARNING

CAUTION

① Control panel and door handle ② Front cover ③ Lower cover 4 Leveling feet ⑤ Power cord 6 Water inlet hose ⑦ Drain hose

Interior view

1 Upper wash rotor ② Upper spray arm ③ Lower spray arm 4 Salt container cover ⑤ Filter system ⑥ Cutlery basket ⑦ Detergent and rinse aid dispenser 8 Steam nozzle ⑨ Lower rack 10 Upper rack

Accessories

① Funnel ② Noise insulation belt ^*1

*1 Noise insulation belts are included: bottom – 1 pc, front – 1 pc

Specifications

Model DF222***
Napajanje 220 - 240 V~, 50 Hz
Dimenzije(Širina X Dužina X Visina)	600 mm X 600 mm X 850 mm
Težina proizvoda Približno 48 kg
Maks. kapacitet Podešavanje 14 mesta
Dozvoljeni pritisak vode na ulazu	0,05 - 1,0 MPa
Potrošnja energije 1600 - 1800 W

Attaching the tape based on the device

To reduce noise, attach the tape to the base of the device.

1 Lay the device down and pull both hooks at the bottom of the lower cover.

2 Pull the lower cover to remove it.

3 Remove the double-sided tape from the lower and front tapes.

4 Attach the black lower tape ① to the bottom part of the lower cover.

5 Attach the white front tape ② to the top part of the lower cover.

- The length of the front tape is longer than the lower cover. Attach the front tape so that the protruding part is equal on both sides of the lower cover.

6 Attach the lower cover to the device with the help of the tape.

Removing the upper cover

2 Pull the upper cover backward after removing the two screws, then lift and remove it.

3 Remove the locating pins on the top using a Phillips screwdriver.

NOTE

- When the device is properly aligned, there should be no tilt, stickiness, or rubbing sound when opening the door.

Leveling the device

Level check

Leveling the appliance prevents unnecessary leakage and poor washing. Check that the appliance is perfectly level after installation.

- If the appliance rocks when pressing the top plate diagonally, readjust the feet.

NOTE

- The appliance is not level if you feel it rubbing against the floor or notice stickiness when the door is opened.

Adjusting and leveling the appliance

When the appliance is not perfectly level, turn the adjustable feet until the appliance no longer rocks.

- Turn the adjustable feet clockwise to raise or counterclockwise to lower, from front to back,

from side to side, and from corner to corner.

NOTE

Case 2 – The door is tilted to the left

1 Unscrew (counterclockwise) the rear right foot and fix the leveling.

2 Check the door opening and repeat as necessary until the door opens and closes properly.

- Make sure the drain hose is straight before passing its end through the water inlet opening.

WARNING

3 Replace the cover and screw it on tightly.

4 Run the Rinse cycle without dishes.

Salt refill cycle (1 kg for each load of dishes)

	H1 H2	H3 H4
Ciklusi 1	30 50 20 1	0

- The table describes information about the Auto program.

- The amount of salt for refill may vary during the cycle.

CAUTION

NOTE

- Salt can be purchased from salt distributors.

Adding rinse aid

3 Close the lid to lock the dispenser. Rinse aid is dispensed automatically during the final rinse cycle.

CAUTION

- Wipe up any spilled rinse aid to prevent suds.

NOTE

5 Place dishes on the rack.

6 Pour the appropriate amount of powder detergent into the dispenser.

- If using tablets, they can simply be placed directly in the base of the wash chamber or in the lower part of the inner door.

7 Set and start the program.

- The program starts automatically 4 seconds after any setting is selected.

⚠ WARNING

• Do not place items on the upper rack when the lower rack is pulled out and loaded. Failure to do so may result in injury because the appliance may become unbalanced and tip over. • Push the upper rack fully back.
• First empty the lower rack, then the upper rack. This will avoid water dripping from the upper rack onto dishes below.
• Do not open the door during operation or immediately after the wash cycle ends, as steam may cause burns when the door is opened.

NOTE

• Never use liquid dishwashing detergent in the appliance.
• Manual rinsing of dishes before using the dishwasher is not recommended, as it leads to increased water and energy consumption.
• Washing dishes in a household dishwasher typically results in lower energy and water consumption during the use phase compared to manual dishwashing when the dishwasher is used in accordance with the manufacturer's instructions.
• Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings.

Control panel

① Glasses (milk)

*1 There are 7 glasses soiled with milk.

*2 Glasses of milk for EN60704-2-3:2020

② Cups (black tea) ③ Large cups (black tea) 4 Dessert bowl (oatmeal) ⑤ Glass bowl (meat) ⑥ Cup saucers (black tea)

Lower rack

① Shallow plates (eggs) ② Melamine dessert plates (egg) ③ Oval plate (meat) ④ Deep plates (oatmeal) ⑤ Melamine bowls (margarine) ⑥ Dessert plates (spinach) ⑦ Dessert bowls (oatmeal) ⑧ Small pot (spinach + margarine) ⑨ Oven pot (meat) 10 Tray (black tea)

Loading the dishwasher

CAUTION

- Spray arms must not be blocked by items that are too tall or that hang over the baskets. Test free movement by manually rotating the spray arms.

Folding down the rack tines

Fold down the tines to accommodate larger dishes; pull the tines back up to accommodate smaller dishes.

Inserting the upper rack

Quantity for daily use

The cup racks provide support for glasses with a long base.

CAUTION

- Spray arms must not be blocked by items that are too tall or that hang over the baskets. Test free movement by manually rotating the spray arms.

Removing and reinstalling the cup racks

2 Find the folding support ① on the cup shelf and firmly push the shelf out of the support on that side.

- The shelf on the left side is released at the rear. The shelf on the right side is released at the front.

3 Move the cup shelf off the support on the opposite side.

4 Follow the instructions in reverse order to replace the cup shelf.

Top shelf with adjustable height

The height of the top shelf can be adjusted when you insert glasses with long stems or tall serving dishes.

There are three available positions for adjusting the height of the top shelf to gain more space.

Lowering the shelf

Hold the shelf at the center on both sides to support its weight. Then, press the buttons on both sides to release the shelf and lower it to the lower position.

Raising the shelf

Lift the shelf at the center on both sides until the shelf locks into the upper position. It is not necessary to lift the locking handles to raise the shelf.

Possible plate sizes according to the position of the top shelf

• An increase in height of 56 mm is achieved when the top shelf is moved to the lower position.
• After adjusting the shelf levels, check that the spray arms rotate freely.
• While the top shelf is in the lower position, check that the bottom of the top shelf, together with the spray arm, does not obstruct items on the lower shelf.
• While the upper rack is in the lower position, push in the upper rack first, and then the lower rack.
• First pull out the lower rack, and then the upper rack.
• When the upper rack is in the lower position, the possible height of the dishes differs for models equipped with a cutlery rack.

Inserting the cutlery basket

Quantity for daily use

In the case of large utensils, such as whisks, the lid can be opened via the hinges.

WARNING

• To prevent injury, place knives and other utensils with sharp points in the cutlery basket.
• If you want to insert them into the cutlery basket, place them with the sharp edges pointing downward.

CAUTION

3 Press the detergent dispenser lid to move and close the lid, which will click.

4 If you want a prewash, fill the recessed prewash compartment on the lid with detergent.

Program	Količina deterdženta
	Glavno pranje (dozator)
Auto (Automatski)	20 g
Intensive (Intenzivno)	20 g
Delicate (Osetljivo)	20 g
Refresh (Osvežavanje)	-
ECO	22 g
Turbo	20 g
Download Cycle (Preuzimanje ciklusa)	20 g
Machine Clean (Čišćenje mašine)	20 g
Rinse (Ispiranje)	-
Express (Ekspresno)	20 g

WARNING

- Dishwasher detergent and rinse aid contain chemical components, as do other household detergents. Therefore, they must be kept out of the reach of children.

CAUTION

Use only detergents intended for dishwashers. Using an unsuitable detergent may cause the appliance to fill with foam during operation.

Excessive foam can reduce the washing result and lead to product leakage.

• Using unsuitable detergent and rinse aid can lead to risks of damage, corrosion, poor washing results, poor drying, or leakage.
• Use only detergent and rinse aid that meet the standard. Using non-compliant detergent and rinse aid can lead to risks of damage, corrosion, poor washing results, poor drying, and leakage.
• If too much detergent is used, excessive foam may form. This can lead to foam leakage and stains on dishes in the dishwasher.

NOTE

• Too much detergent can leave a film on dishes and in the wash chamber, leading to poor washing results.
• After washing, check that the detergent has been completely rinsed away.
• Some detergent tablets for the appliance may get stuck in the dispenser due to their size. Tablets can be placed at the bottom of the wash chamber next to the filter before starting the cycle.
• Never use liquid dishwashing detergent in the appliance.
• Tablet detergent is not recommended for use in the Express cycle. If tablet detergent is used, it may cause detergent residue on dishes due to the relatively low rinse temperature.

Loading

NOTE

- To check the Wi-Fi connection, verify that the 📋 icon is lit on the control panel.

NOTE

• The device supports only 2.4 GHz Wi-Fi networks. To check the network frequency, contact your internet service provider or refer to the wireless router manual.
• LG ThinW is not responsible for network connection problems or for any interference, malfunctions, or errors caused by connecting to the network.
• If the device cannot connect to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi signal booster (range extender) to strengthen the Wi-Fi signal.
• The Wi-Fi connection may not be established or may be interrupted due to the conditions in which the home network operates.
• Network connection may not work properly due to the internet service provider.
• Due to surrounding wireless networks, your wireless network may be slow.
• The device cannot register due to problems with wireless signal transmission. Turn off the device and wait about one minute before trying again.
• If the firewall is enabled on the wireless router, disable the firewall or add an exception.
• The wireless network name (SSID) should consist of a combination of Latin letters and numbers. (Do not use special characters)
• The smartphone user interface may differ depending on the mobile operating system and manufacturer.
• If the router's security protocol is set to WEP, you may not be able to set up the network. Please change to other security protocols (WPA2 is recommended) and re-register the product.

Installing the LG ThinQ App

Search for the LG ThinQ app in the Google Play Store & Apple App Store using your smartphone. Follow the instructions to download and install the app.

Deactivating the Network Connection

On your smartphone, disconnect from your Wi-Fi network.

1. Launch the LG ThinQ application. 2. Select and touch the Dishwasher option in the app. 3. Select and touch the Delete Product option in the settings menu to disconnect from it.

Wireless LAN module specifications

Model	LCW-003
Frekventni opseg	Od 2412 MHz do 2472 MHz
Izlazna snaga (maks.)	IEEE 802.11b: 18.37 dBmIEEE 802.11g: 17.67 dBmIEEE 802.11n: 17.67 dBm

Wireless function software version: V 1.0

To inform users, this device should be installed and operated with a minimum distance of 20 cm between the device and the body.

Declaration of Conformity

CE

Hereby, LG Electronics declares that this type of radio equipment, Dishwasher, complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

http://www.lg.com/global/support/cedoc/cedoc# LG Electronics European Shared Service Centre B.V. Krijgsman 1, 1186 DM Amstelveen, Netherlands

NOTE

- If you have not used the appliance for a long time, refresh the interior by running the Turbo or Machine Clean program with detergent. When the cycle is finished, clean the interior and exterior of the appliance according to the instructions in the MAINTENANCE section.

CAUTION

3. Clean the filters with a soft brush under running water. Reassemble the filters before reinstalling them.

4. To return the assembled filters, position the spray arms so that the wider arm faces the front. Place the filters back into the filter holder and secure them by turning the inner filter clockwise until it clicks into place.

⚠ WARNING

- Be careful of sharp edges when handling the stainless steel filter.

CAUTION

- After using the appliance, food particles are filtered through the filter. Any remaining food residues can cause unpleasant odors. Additionally, drainage problems may occur due to residues on the filters.

NOTE

Cleaning the spray arms

CAUTION

- To avoid breaking the ends of the spray arms with variable angle, do not pull or rotate them manually.

Cleaning the upper spray arm

1 Pull the upper rack forward. Make sure the water jet holes are not blocked by food particles.

3 Remove food particles by rinsing or shaking the spray arm.

4 If food residues block the spray arm holes, remove them with a needle or a sharp tool.

5 After removing food residues, clean the spray arm openings under running water.

7 After reassembly, check that the spray arms rotate freely.

5 Reinstall the filter and gasket, and make sure they fit correctly.

6 Reinstall and secure the water supply hose in reverse order. Do not use any mechanical device to tighten the hose. A soft cloth can be used as an aid when tightening by hand.

NOTE

• The filter is placed at the inlet of the water supply hose connection.
• If the water supply to the appliance is insufficient, check that the filter is not blocked.
• If there is a leak, the water supply hose should be checked for proper connection.
• Never tighten the water supply valve or use mechanical devices for tightening.
• When reassembling the seal and filter, make sure there is no dust or debris on them that may have come from the water supply.
