CCM-110522 - Cotton candy machine Emerio - Free user manual and instructions

Product Type	Cotton Candy Machine
Brand	Emerio
Model	CCM-110522
Power Consumption	500W
Power Supply	220-240V ~ 50/60Hz
Sugar Capacity	Maximum 20g per batch
Recommended Sugar	Pure granulated sugar
Preheating Time	Approximately 3-5 minutes
Bowl	Removable large bowl
Transparent Ring	Included for splash protection
Extractor Head	Removable and washable
Measuring Spoon	Included
Cleaning Method	Hand wash with warm water; do not use dishwasher
Safety	Do not immerse in water; keep away from children under 8
Hot Surface Warning	Caution: surface may get hot during use
Usage	For household use only
Cord Length	Short (to reduce tripping hazard)
Warranty	2 years
Disposal	Recyclable per WEEE directive

Frequently Asked Questions - CCM-110522 Emerio

How do I use the cotton candy machine?

First, plug in the machine and let it preheat for 3-5 minutes with the switch set to 'I'. Then, turn it off, add up to 20g of granulated sugar into the extractor head, and turn it back on. Hold a stick horizontally over the bowl and collect the cotton candy as it forms.

What type of sugar should I use?

Use only pure granulated sugar. Do not use powdered sugar, brown sugar, or any other sweeteners, as they may clog the machine.

Can I use flavored or colored sugar?

Yes, you can mix a small pinch of pre-sweetened Kool-Aid or similar flavored drink mix with the granulated sugar to add flavor and color. Avoid using liquid flavorings.

How much sugar can I put in at once?

The maximum amount of sugar per batch is 20 grams (about one leveled measuring spoon). Overfilling can cause clogging or poor results.

How long does the machine take to warm up?

Preheat the machine for 3-5 minutes before adding sugar. The first batch may take slightly longer; subsequent batches will be faster.

How do I clean the cotton candy machine?

Unplug and let the machine cool. Remove the big bowl, transparent ring, and extractor head. Wash these parts by hand in warm water, rinse, and dry thoroughly. Wipe the main unit with a slightly damp cloth. Never use a dishwasher.

Can I put the parts in the dishwasher?

No, none of the parts are dishwasher-safe. Hand wash only with warm water and a non-abrasive sponge.

Is the machine safe for children to use?

Children aged 8 years and above can use the machine under supervision. The appliance gets hot, so keep younger children away. Always supervise children during cleaning and use.

What should I do if the sugar clogs or stops flowing?

Turn off and unplug the machine. Let it cool, then remove the extractor head and clean the tiny holes thoroughly with a brush or toothpick. Ensure you are using pure granulated sugar and not exceeding 20g.

What is the warranty period for this machine?

Emerio offers a 2-year warranty from the date of purchase. Keep your receipt as proof. The warranty does not cover damage from improper use, unauthorized repairs, or normal wear.

USER MANUAL CCM-110522 Emerio

Pink disposable water heater with a digital display and control knob (no visible text or symbols)

Cotton candy maker (EN)

Zuckerwatte-maker (DE)

Sockervaddsmaskinen (SE)

Suikerspinmachine (NL)

Hattara maker (FI)

Sukkerspinnmaskin (NOR)

Candyflossmaskine (DK)

Content – Inhalt – Innehåll – Inhoud – Pitoisuus – Innhold – Indhold

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

4. Keep the appliance and its cord out of reach of children less than 8 years.

5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. Regarding the instructions for cleaning the surfaces which come in contact with food, please refer to the paragraph “cleaning and maintenance” of the manual.

7. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

8. Switch off the appliance and disconnect from supply

before changing accessories or approaching parts that move in use.

1. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environment; bed and breakfast type environments.

2. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

3. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

4. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

5. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

6. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

7. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

8. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

9. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

10. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

11. Never leave the appliance unattended during use.

12. This appliance is not designed for commercial use.

13. Do not use the appliance for other than intended use.

14. Do not wind the cord around the appliance and do not bend it.

15. Do not use outdoors. Extreme caution must be used when moving this appliance.
16. Check if there is any foreign object inside the heating element compartment before switching to "I" position.
17. The heating element in the center can get hot. Avoid contact until cooled down.
18. A short power supply cord is provided to reduce the risk resulting from becoming entangled or tripping over a long cord.
19. Keep hands away from the appliance when it is in use.
20. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.
21. Do not place anything other than the intended sugar in the extractor head.

1. Caution, hot surface

Warning!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. Regarding the instructions for the maximum quantities of sugar, thanks to refer to the below paragraph of the manual.

HOW TO USE

1. Place the housing of the cotton candy maker on a firm surface at a distance from wet environments and flammable objects.

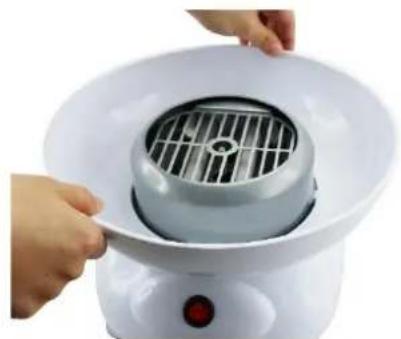

2. Put the big bowl on the housing by rotating it anticlockwise. Make sure it fits firmly and not movable.

Close-up of hands holding a white appliance with a circular vent and a gridded lid (no text or symbols visible)

1. Attach the transparent ring over the edge of the big bowl. Make sure it fits firmly and not movable.

Close-up of a hand placing a white ceramic dish into a transparent bowl, with a black arrow indicating the lid (no text or symbols visible)

Note: Do not use the cotton candy maker if the transparent part is loose.

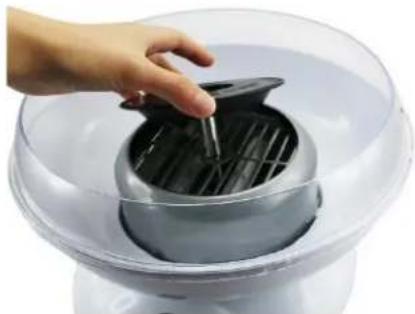

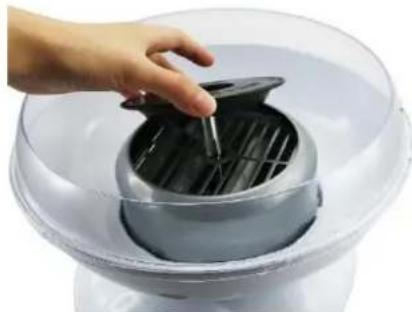

1. Place the extractor head into the heating position.

Hand placing a black plastic component into a transparent container (no text or symbols visible)

1. Connect the cotton candy maker to the socket.

2. Turn the switch to "I" position and allow to run for at least 3-5 minutes, this will allow it to warm up then switch to "O" position.

3. Pour one spoon of sugar with the provided measuring spoon into the center receptacle of the extractor head. Switch to "I" position.

Close-up of a hand using a tool to smooth a circular object on a white appliance (no text or symbols visible)

NOTE: Never use ingredients other than pure granulated sugar, this will cause clogging. Do not overfill the sugar receptacle. Maximum quantity of sugar is 20g.

1. Use the bamboo sticks or use a normal piece of paper and make a roll out of it. Use this as the stick to roll up the cotton candy. You shall hold the stick horizontal over the transparent part and go from left to right when you roll up the cotton candy. You can use also a wooden stick which is suitable for using for food preparation.

Close-up of a hand holding a white plastic container with a black circular lid, next to a small white object on a dark surface (no text or symbols visible)

NOTE: Do not put the paper roll or wooden stick inside the transparent part, this action can get you burned.

1. Turn the appliance off when all the sugar has been dispensed. Wait until the extractor head has come to a complete stop, you can pour another spoon of sugar in the extractor head and begin again. The cotton candy maker should be flowing more quickly as the unit is warmed up sufficiently.

Tip

You can use regular household granulated sugar in your cotton candy maker. To add a little flavor and color, mix a pinch of your favorite pre-sweetened kool-aid to the sugar. Imagine the variety of flavors you can make and the fun you'll have!

CLEANING AND MAINTENANCE

1. Make sure the cotton candy maker is unplugged and has had time to cool down before cleaning.
2. Remove the extractor head, transparent ring and big bowl by pulling them straight up separately. Wash them in warm water, rinse and dry. Do not put any part in a dishwasher for cleaning purpose.
3. Use a slightly damp, non-abrasive sponge or non-abrasive towel to wipe the outside of the unit, wipe with a non-abrasive towel to dry.

NOTE: The cotton candy is made by heating sugar. This turns sugar into a liquid form. Then the sugar liquid is forced out of tiny holes in the extractor head by centrifugal force as the extractor head spins. As the liquid sugar hits the air it returns to a solid fluffy material that adheres to a paper cone, or wooden stick.

It is very important that the unit will be cleaned properly after each use. If it is not, the holes will get clogged and sugar will not be able to sift through the tiny holes properly.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50/60Hz

Power: 500W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt,

without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product

was purchased. They can take this product for environmental safe recycling.

SICHERHEITSHINWEISE

Close-up of hands holding a white appliance with a circular vent and a gridded lid (no text or symbols visible)

Close-up of a hand placing a small white object into a transparent container with a black arrow, next to a white appliance (no visible text or symbols)

Hand placing a black plastic component into a transparent cylindrical container (no text or symbols visible)

Close-up of a hand using a spoon to apply white powder onto a circular object inside a transparent container (no text or symbols visible)

Close-up of a hand holding a white spoon next to a transparent bowl containing a black circular object (no text or symbols visible)

Close-up of hands holding a white appliance with a circular vent and a gridded lid (no text or symbols visible)

Close-up of a hand holding a white ceramic kitchen appliance with a black grater inside (no visible text or symbols)

Hand placing a black plastic component into a transparent steamer (no text or symbols visible)

Close-up of a hand using a tool to press a black circular object on a white appliance (no text or symbols visible)

Close-up of a hand holding a white object over a transparent container with a black lid (no visible text or symbols)

Close-up of hands holding a white appliance with a circular vent and a gridded lid (no text or symbols visible)

Close-up of a hand placing a white cloth into a transparent container with a black arrow pointing to the lid (no text or symbols visible)

Hand placing a small object into a transparent container with a mesh chamber (no text or symbols visible)

Close-up of a hand using a white tool to smooth a circular object on a white appliance (no text or symbols visible)

Close-up of a hand using a tool to smooth a white object inside a transparent bowl (no text or symbols visible)

Close-up of hands holding a white appliance with a circular vent and a gridded lid (no text or symbols visible)

Close-up of a hand placing a grater into a white ceramic kitchen appliance (no text or symbols visible)

Hand placing a small object into a transparent container with a mesh chamber (no text or symbols visible)

Close-up of a hand using a tool to apply white powder onto a black circular object inside a transparent container (no text or symbols visible)

Close-up of a hand using a spoon to dispense liquid into a transparent container with a dark circular object (no text or symbols visible)

Close-up of hands holding a white appliance with a circular vent and a gridded lid (no text or symbols visible)

Close-up of a hand placing a small white steamer into a transparent bowl, with no visible text or symbols.

1. Plasser sentrifugehodet i stilling for oppvarming.

Hand placing a small object into a transparent container with a mesh chamber (no text or symbols visible)

Close-up of a hand using a spoon to apply liquid into a white ceramic bowl (no text or symbols visible)

Close-up of a hand holding a cotton swab next to a transparent plastic appliance with a black lid (no visible text or symbols)

Close-up of hands holding a white appliance with a circular vent and control panel (no visible text or symbols)

Close-up of a hand placing a white grater into a transparent container with a black arrow indicating the blade (no text or symbols visible)

Hand placing a black plastic component into a transparent steamer (no text or symbols visible)

Close-up of a hand using a tool to apply white powder onto a circular mechanical component (no text or symbols visible)

Close-up of a hand using a spoon to dispense food into a glass bowl containing a dark liquid (no text or symbols visible)
