Svart Manuell WSM-1B - Uncategorized WILFA - Free user manual and instructions

Product Type	Manual Coffee Grinder
Brand	Wilfa
Model	Svart Manuell WSM-1B
Color	Black
Dimensions (Approx.)	Height: 20 cm, Diameter: 7 cm
Weight (Approx.)	400 g
Power Source	Manual operation (no electricity required)
Grinding Mechanism	Conical burr grinder
Material	Stainless steel and glass
Capacity	Up to 30 g of coffee beans
Adjustable Grind Settings	Yes, stepless adjustment for fine to coarse
Features	Manual crank, removable handle, easy to clean
Included Accessories	Grinder, cleaning brush, user manual
Maintenance	Burrs can be removed for cleaning; wipe exterior with damp cloth
Safety	Not for use by children without supervision; avoid overloading
Spare Parts Availability	Replacement burrs and handle available from Wilfa
Repairability	Modular design allows easy disassembly for repairs
Warranty	2 years (check local regulations)

Frequently Asked Questions - Svart Manuell WSM-1B WILFA

How do I adjust the grind size on the Wilfa Svart Manuell WSM-1B?

The grinder features a stepless adjustment ring. Turn the ring clockwise for finer grind and counterclockwise for coarser. Ensure the grinder is empty before adjusting.

Can I use the Svart Manuell for espresso grinding?

Yes, the stepless adjustment allows for fine settings suitable for espresso. However, you may need to experiment to find the perfect setting for your machine.

How do I clean the grinder?

Disassemble the grinder by removing the handle and the top burr. Use the included brush to clean the burrs. Wipe the body with a damp cloth. Do not use water on the burrs.

What is the maximum capacity of the bean hopper?

The bean hopper holds up to 30 grams of coffee beans, which is enough for about 2-3 cups of coffee.

Is the grinder portable?

Yes, the compact design and manual operation make it ideal for travel. It fits easily in a backpack.

How long does it take to grind coffee?

Grinding time depends on the quantity and desired fineness. Typically, it takes 30-60 seconds for a single dose.

Can I grind other substances like spices?

It is not recommended. The grinder is designed specifically for coffee beans and using other substances may damage the burrs.

What materials are used in the construction?

The burrs are made of stainless steel for durability, and the body is a combination of glass and plastic. The handle is made of wood.

Does the grinder come with a warranty?

Yes, Wilfa offers a 2-year warranty against manufacturing defects. Keep your receipt as proof of purchase.

How do I disassemble the grinder for deep cleaning?

Remove the handle by unscrewing the knob. Then twist the top burr counterclockwise to remove it. The bottom burr can be cleaned with a brush. Refer to the manual for detailed instructions.

USER MANUAL Svart Manuell WSM-1B WILFA

Two stainless steel coffee wafers on a tray, one with a pour filter and the other with a clear blue liquid (no visible text or symbols)

Wilfa Svart manuell

Coffee brewer

Bruksanvisning

Bruksanvisning

Brugsanvisning

Käyttöohje

Instruction manual

WSM-1R, WSM-1B

Design

Design

Design

Design

Congratulations on your new Wilfa SVART Manuell coffee maker. It will give you a mug of black, perfectly brewed filter coffee that hides many possibilities of detail, taste variations and nuances. Baristas and coffee enthusiasts have, over the last few years, developed a passion for brewing coffee manually. By pouring water over the coffee with the right temperature, you have complete control over the brewing process. With Wilfa SVART Manuell can anyone master the art of brewing delicious coffee.

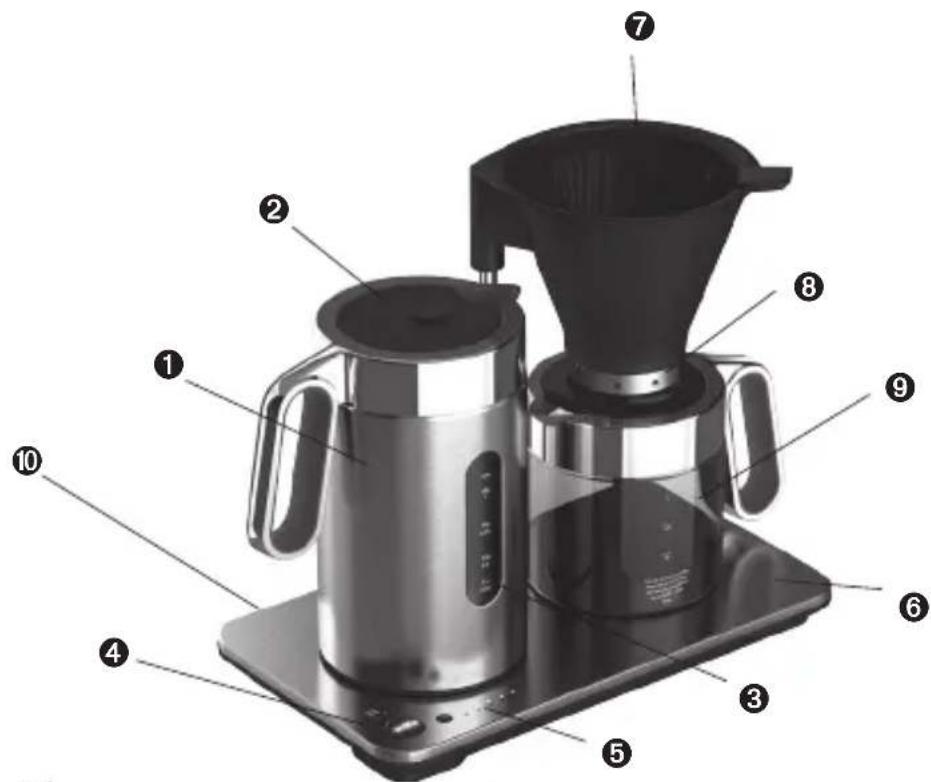

Design

① Kettle
② Lid
③ Water scale
⑤ Regulation of heat on the water 60^ C, 70^ C, 80^ C, 90^ C og 100^ C
⑥ Base plate
⑦ Filter Holder
⑧ Flow controll and drip stop
⑨ Water jug
⑩ Power cord with plug

First use of the machine

Please read these instructions carefully and keep them in a safe place. Boil fresh water in the kettle at least twice before it is used for the first time. Use only plain water with no additives or ingredients.

Use

Set Wilfa SVART Manuell on a flat surface.

fresh cold water. Water scale on the side of the kettle showing how much water it contains. Do not overfill the kettle.

★ Close the lid by pushing it into the closed position.
Put the kettle on the flat base plate.
Press "Wilfa" start / stop button to start warming. The kettle turns off automatically when selected temperature is reached.
If it is desirable to maintain the selected temperature, press the "Keep Warm" button. The temperature will be kept for 15 min.
- Avoid touching the sides of the kettle when it contains hot water. Avoid opening the lid when you pour out the water.
Place the coffee filter (1x4) in the filter holder. Use desired quantity of coffee in the filter. We recommend that you use ground coffee, about 60 g per liter of water. Try out the first times until you find out how much coffee you think is best.

We also recommend that you use our Wilfa GRAM stål scale that gives 1g intervals for best results.

Set the flow control in middle position and adjust after your own desired for shorter or longer coffee-to-water contact time. Recommended contact time between water and coffee are 4 to 6 minutes.
Pour the water from the kettle over coffee in a circular motion.
By turning flow control completely to the right, it will act as a drip stop.

Wilfa SVART Manuell can also be used as a kettle. You can choose the water temperature on the "Set" button, 60°C, 70°C, 80°C, 90°C and 100°C. We recommend 100oC when brewing coffee, because the temperature will soon be reduced to the proper brewing temperature when pouring the water. Proper brewing temperature should be somewhere between 92°C – 96°C.

TIPS

and the taste of coffee. With less circulating motion the water will flow faster through and will give a less-extracted coffee. You can also use our Wilfa MALT coffee grinder to change the degree of grind of the coffee. This will also change extraction time.

freshly ground.

Cleaning

out any additives.

or placed at the top in the dishwasher.

use strong detergents, scouring powders, steel wool or other release agents on any part of the maker.

Descaling

water is and how often it is used.

needs descaling.

Electrical connection

Check the voltage where you use the device is the same as specified on the appliance. For details on the label on the base plate.

General safety instructions

keep the instructions including the warranty, receipt, and if possible the box with inner packaging.

application. It is not suitable for commercial use.

moisture and sharp edges.

damp or wet. Do not immerse in water.

the plug must be pulled out of the socket (pull the plug, not the cable).

damaged.

authorized technician.

nedenfor.

SpesielleSpecial safety instructions for this device

water level exceeds the maximum level, the boiling water and steam may be ejected, which might arise a hazard to the user.

base plate. Kettle must only be used with the included base plate.

with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they are supervised by a person who is responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Environmental Instructions

not used anymore. It must be delivered to a collection point for recycling of electrical and electronic appliances.

The symbols on the product, the user manual or on the packaging shows the appropriate disposal methods.

recycle or otherwise reuse old appliances, you give an important

contribution to environmental protection.

how you can deliver your unit.

Technical info: 220-240V \~ 50Hz, 2000W

According to the Waste Electrical and Electronic Equipment (WEEE) Directive, this type of waste must be collected and treated separately. If it becomes necessary to dispose of this product at some point, kindly make sure that it is not discarded with your everyday household refuse.

WILFA AS

Industriveien 25

Postboks146, Hagan

1481 Hagan, Norway

Tlf: 67 06 33 00

Fax: [phone]

[e-mail]

www.wilfa.com
