ST-106266 - Sandwich Press Emerio - Free user manual and instructions

Product Type	Sandwich Press / Toaster
Brand	Emerio
Model	ST-106266
Power Consumption	700 W
Voltage / Frequency	220-240 V ~ 50/60 Hz
Non-Stick Coating	Yes, on cooking plates
Indicator Lights	Red power light and green ready light
Temperature Control	Automatic thermostat (heating cycles)
Cooking Time	Approximately 2-3 minutes per sandwich
Housing Material	Stainless steel (exterior) / Plastic parts
Plate Material	Non-stick coated cooking plates
Dimensions (approx.)	24 x 21 x 9 cm (estimated)
Weight (approx.)	1.2 kg (estimated)
Cord Length	Not specified (estimated 75 cm)
Safety Features	Overheat protection, cool-touch handle, automatic shut-off? (only disconnect manually)
Cleaning Method	Wipe with soft damp cloth; do not immerse; use soft brush for crumbs
Warranty	2 years from purchase date
Included Accessories	None (just the appliance)
Usage	Household only, indoor
Child Safety	Not for children under 8; keep out of reach; supervision required
Spare Parts Availability	Contact service department; not detailed in manual
Repairability	Do not open; seek authorized service
Disposal	Recycle per WEEE directive

Frequently Asked Questions - ST-106266 Emerio

How do I use the sandwich press for the first time?

Remove all packaging. Clean the cooking plates with a soft damp cloth and dry them. Unwind the mains cable completely. Plug into an appropriate socket; the red power light will glow. Wait until the green control light turns on (indicating ready). Place buttered bread (butter side outward) with desired filling on the lower plate, close the appliance until the catch engages. Toast for approximately 2-3 minutes. Use a plastic or wooden spatula to remove the sandwich. Never use metal utensils.

Can I use metal utensils?

No, never use sharp or metal objects such as knives or metal spatulas, as they will damage the non-stick coating. Always use a flat wooden or plastic spatula.

What fillings are recommended?

Recommended fillings include cheese, ham, pineapple, tomatoes, cooked meat, onions, herbs, and spices. For fruit fillings, sprinkle a little sugar on the buttered side for a crispier result.

Why does the green light turn on and off during use?

The temperature regulating thermostat switches off and on to maintain the correct temperature. The green control light indicates when the heating element is active; it turns off during heating and on when the set temperature is reached.

How do I clean the sandwich press?

Unplug the appliance and let it cool completely. Wipe the housing and cooking plates with a soft, damp cloth. Use a very soft brush to remove crumbs. Do not use abrasive cleaners or sharp objects. Do not immerse in water or any liquid.

What do the red and green indicator lights mean?

The red power light illuminates when the appliance is switched on. The green control light turns off during heating and turns on when the appliance has reached the set temperature, indicating it is ready for use.

Can children use this appliance?

Children aged 8 years and above can use the appliance under supervision. Children under 8 must be kept away from the appliance and cord. Cleaning and maintenance should not be performed by children unless they are older than 8 and supervised.

What should I do if the power cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard. Do not attempt to repair it yourself.

Is this sandwich press suitable for commercial use?

No, this appliance is designed for household use only and similar applications such as staff kitchens, farm houses, hotels, and bed & breakfast environments. It is not intended for commercial or industrial use.

What is the warranty period and what does it cover?

The appliance comes with a 2-year guarantee from the date of purchase. Defects due to improper handling, third-party repairs, or use of non-original parts are not covered. Keep your receipt as proof of purchase. Damage caused by not following the instruction manual voids the warranty.

USER MANUAL ST-106266 Emerio

Exterior view of a modern stainless steel griddle (no visible text or symbols)

Sandwich toaster (EN)

Sandwichtoaster (DE)

Smörgåsgrill (SE)

Sandwich toaster (NL)

Voileipägrilli (FI)

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph “cleaning and maintenance” of the manual.
7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

8. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

9. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

10. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

11. Always plug the appliance into an earthed plug socket.

12. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

13. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

14. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

15. Do not touch the appliance if it falls into water. Remove the plug from its socket and send it to an authorized service center for repair.

16. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

17. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

18. Never leave the appliance unattended during use.

19. This appliance is not designed for commercial use.

20. Do not use the appliance for other than intended use.

21. Do not wind the cord around the appliance and do not bend it.

22. Place the appliance on a stable, level surface from which it cannot fall off.

23. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

24. WARNING!!

Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

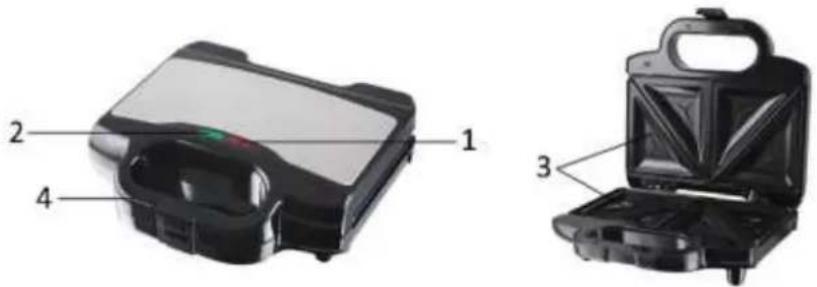

PARTS DESCRIPTION

1. Red power light
2. Green control light
3. Non-stick cooking plates
4. Handle

BEFORE INTITIAL USE

1. Remove all packaging.
2. Clean the toasting surfaces with a soft damp cloth and then dry them.
3. Unwind the mains cable completely.

OPERATING INSTRUCTIONS

1. Connect the appliance to an appropriate socket. The red power light will glow to indicate when the appliance is switched on.
2. The green control light will turn off during heating. Once the temperature is reached, the green control light will turn on. It means the appliance is ready for use.
3. The appliance must be heated up before you toast a sandwich. In the meantime prepare your sandwich.
4. Open the appliance at the catch.
5. Put the slices of bread on the lower toasting surface. Ensure that the buttered sides are facing outwards.
6. Now put the filling on the bread slices (e.g. cheese, ham, pineapple, etc.) and cover this with the second slice of bread. Once again, ensure that the buttered sides are facing outwards.
7. Close the appliance, making sure that the catch is engaged.
8. Caution: If the slices of bread have too much filling on, it will not be possible to close the appliance. Take some of the filling off. Never use force to close the appliance.
9. During toasting the temperature regulating thermostat switches off and on again. The green control light also switches off and on again.
10. After completion of the toasting process (approx. 2-3 minutes) open the catch and remove the sandwiches with the help of a flat wooden or plastic spatula. Never use sharp or metal objects (e.g. knives, metal spatulas, etc.) as this will damage the non-stick coating.
11. If you wish to toast more sandwiches, close the appliance again and wait until the toasting surfaces have reheated sufficiently.
12. When the control light illuminates again you can repeat the toasting process as described above.
13. After completion of the toasting process disconnect the mains plug immediately. With the appliance open allow it to cool down.

TIPS FOR TASTY SANDWICHES

1. Allow the appliance to heat up completely before you begin toasting.
2. Lay the buttered side facing outwards.
3. All kinds of spiced butters and lards can be used.
4. With fruit fillings the toasted bread will be crispier if you sprinkle a little sugar on the buttered side.
5. The following ingredients are particularly recommended: cheese, ham, pineapple, tomatoes, cooked meat, onions, herbs and spices.

CLEANING AND MAINTENANCE

1. Firstly, disconnect the mains plug!
2. Only clean when the appliance has completely cooled down.
3. Clean the housing surface and the toasting surfaces of the sandwich toaster with a soft, damp cloth.
4. It is easiest to remove toast or food crumbs with a very soft brush.
5. Never use abrasive cleaning agents or sharp objects (e.g. scrubbing brush or knife) for cleaning.
6. Caution: Do not immerse the appliance in water or other liquids. There is a danger to life due to electric shock!

TECHNICAL DATA

Operating voltage: 220-240V \~ 50/60Hz

Power: 700W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used

device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

SICHERHEITSHINWEISE

Black plastic grater with open casing and labeled part '3' (no text or symbols on body)

INNAN FÖ RSTA ANVÄNDNING

VOOR EERSTE GEBRUIK

Black rectangular food grater with a handle and internal compartments, labeled with number 3 (no text or symbols on the device itself)

ENNEN ENSIMMÄISTÄ KÄYTTÖ Ä

INDEN F∅ RSTE BRUG
