Product Type	High-Speed Blender
Model	Infiny Mix+ (OBH Nordica)
Power	1600 W
Voltage	220-240 V ~ 50/60 Hz
Jug Capacity (thick mixtures)	1.75 L
Jug Capacity (liquids)	1.5 L
On-the-Go Bottle Capacity (thick mixtures)	400 ml
On-the-Go Bottle Capacity (liquids)	600 ml
Jug Material	Tritan (BPA-free plastic)
Blade Type	Powelix blades (titanium-coated life blades on bottle)
Speed Settings (jug)	1 to 9
Speed Settings (bottle)	1 to 7
Time Settings (jug)	5 seconds to 3 minutes
Time Settings (bottle)	5 seconds to 90 seconds
Auto Programs	Smoothie, Ice Cream, Crushed Ice, Dessert (jug) + Cleaning (both)
Pulse Function	Yes
Display	Digital screen with lock indicators
Safety Features	Overload protection, lid lock, jar/bottle lock detection, automatic standby
Dishwasher Safe Parts	Lid, bottle lid, middle cap; jug and blades hand wash only
Warranty	2 years limited (Sweden, Norway, Denmark, Finland)

Frequently Asked Questions - Infiny Mix+ OBH NORDICA

What should I do if the blender does not start?

Ensure the appliance is plugged in and the jug or bottle is correctly locked onto the motor unit. The lid must also be locked. Check that the power switch is on. If there is a software bug, unplug for a few minutes and reconnect.

Why does the blender stop during operation?

The blender may have overload protection. Unplug it and let it cool for 15-20 minutes. Also, ensure the ingredients quantity does not exceed the maximum level. After two cycles, allow the blender to cool to room temperature.

Can I blend hot liquids in the blender?

No. Do not pour liquids above 80°C (176°F) into the jug or bottle, as steam buildup can cause ejection and risk of burns.

How do I clean the blender?

Use the cleaning program (M) with 200 ml water and a drop of dish soap. The lid, bottle lid, and middle cap are dishwasher safe. The jug, blades, and motor unit must be hand washed. Never immerse the motor unit or blades fully.

What is the maximum capacity for crushed ice?

For the jug, up to 8 ice cubes; for the on-the-go bottle, up to 4 ice cubes. Use the Crushed Ice auto program.

Can I store food in the blender jug?

No. The jug is not designed for storage. Pour out the mixture after use. Do not freeze or refrigerate in the jug.

How do I change the blade unit?

To replace blades, unscrew the locking ring. Moisten the seal and place it correctly on the new blade unit. Assemble by aligning arrows and locking clockwise. Ensure the seal is properly seated to avoid leaks.

What is the warranty coverage?

OBH Nordica offers a 2-year limited warranty for manufacturing defects in Sweden, Norway, Denmark, and Finland. It does not cover misuse, wear, or commercial use. Proof of purchase required.

Why is there a leak from the base of the jug?

The blade unit may not be locked properly. Ensure the locking ring is aligned correctly (arrow on jar matches arrow on ring). Also check that the seal is not damaged or incorrectly fitted.

How long should I run the blender for smoothies?

Use the Smoothie auto program (default 60 seconds, adjustable 30-80 seconds). For most recipes, less than 3 minutes is sufficient. Do not exceed the maximum time settings.

USER MANUAL Infiny Mix+ OBH NORDICA

DESIGNING GOOD LIFE

High Speed Blender INFINYMIX+

Enjoy endless possibilities

Making good!

Bruksanvisning - svenska......sida 6 - 16

* Depending on model.

1

Visiting address: Deltapark 37, 3. sal

Phone: [phone]

Direct: [phone]

www.obhnordica.dk

BEGRENSET GARANTI for OBH Nordica

Garantien

Before using your appliance for the first time, carefully read these instructions for use and retain them for future reference: the manufacturer shall not accept liability in the event of any use that does not comply with the instructions.

• Make sure that the voltage that your appliance uses matches that of your electrical supply system.
  Any error in connection will negate the guarantee.
• This product has been designed for indoor and domestic use only, and at an altitude below 2000m. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
• Always disconnect the appliance from the mains power supply when it is unattended and before assembling, dismantling or cleaning it.
• Remember: you may injure yourself if you use the appliance incorrectly.
• Do not use the appliance if it is not working properly or if it has been damaged. In this case, contact an authorized service centre (see the list in the service booklet).
• All maintenance other than cleaning and everyday upkeep by the customer must be performed by an authorized service centre.
• Do not use this appliance to blend or mix non-food items.

• Never use the blender jug without ingredients or with solid ingredients only.
  • Always pour the liquid ingredients into the blender jug first, before adding the solid ingredients.

• Do not use the mixing bowl or accessories (according to model) as containers for preservation, freezing, cooking or sterilisation.

• In order to prevent overflow, do not fill the bowl or jug over the maximum level (if indicated).
• Do not touch any moving parts (blades, etc.).
• Blades are very sharp: to prevent injuries, handle them with care when emptying the blender jug, the bowls (according to model), cleaning, assembling and dismantling the blender jug (according to model) and the accessories (according to model).
• Never place your fingers or any other object not intended for this function in the blender jug when the appliance is running.
• Never remove the lid or the blender jug before the appliance has come to a complete stop.
  • Always use the blender jug with the lid.
• Place the appliance on a stable, heat-resistant, clean and dry worktop.
• Do not immerse the appliance, power cord or plug in any liquid.
• Do not leave the power cord hanging within reach of children.
• Do not leave the power cord close to or in contact with the hot parts of the appliance, near a source of heat or a sharp angle or inside the blender jug in contact with the blades.
• Keep moving parts (blades) away from the cord during use.
• Never pull the power cord to disconnect the appliance.
• Do not allow long hair, scarves, ties etc. to hang over the appliance or attachment when either is in use.
• Do not use the appliance if the power cord or plug have been damaged. To avoid all danger, have them

replaced by an authorized service centre (see the list in the service booklet).

- For your safety, only use spare parts and accessories that are approved for your appliance.

- Be careful if hot liquid is poured into the blender as it can be ejected out of the appliance as it produces a lot steam.

- Do not pour boiling liquids (over 80°C / 176°F ) in the bowl or jug (according to model).

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

- Do not allow children to use the appliance without supervision.

- This appliance is designed for domestic use only. It is not intended to be used in the following environments, in which the guarantee shall not apply:

• Kitchen work areas in shops, offices and other working environments.
• In kitchen areas reserved for staff in shops, offices and other professional environments.

-Farmhouses

- By clients in hotels, motels and other residential environments.

- Bed and breakfast type environments.

- Switch off the appliance and unplug it from the electrical power supply before changing accessories or approaching parts that move in use.

• Refer to the instructions to obtain the appropriate operating time and speed settings for each accessory.
• Refer to the instructions for correct fitting and assembly of your accessories.
• Refer to the instructions for initial and regular cleaning of surfaces in contact with foodstuff, and for cleaning and maintenance of your appliance.

EUROPEAN MARKETS ONLY

- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

• Children shall not play with the appliance.

- This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instruction to use the appliance safely and understand the dangers.

Description

A 1 Middle cap

2 Lid

3 Plastic Tritan jar

B ^A 1 Seal

2 Powelix blades unit

3 Locking ring

C ^* Motor unit

D Tamper

E ^A 1 On the go bottle lid

2 On the go bottle

3 Seal

4 Powelix life blades unit

5 Locking ring

F* Screen

G ON/OFF button

H Blender jar lock indicator

I On the go bottle lock indicator

J Program function

K Manual setting function

L Pulse function

M Cleaning function

WARNING:

The safety instructions are part of the appliance. Read these instructions carefully before using your new appliance for the first time. Keep them in an accessible place so that you can refer to them later. The appliance will only work if the jar or the bottle is correctly positioned on the motor unit (C) and if the lid is locked onto the jar.

Before using your appliance for the first time

Before using your appliance for the first time, rinse the parts that come into contact with food (jar, bottle, lids and middle cap) with soapy water.

WARNING: Do not immerse the appliance in water (neither the motor unit nor the blades unit (C and B2). Never put the motor unit (C) under running water. Clean the appliance with a damp cloth and dry it carefully. The blades are extremely sharp.

Make sure all the packaging has been removed before operating the appliance.

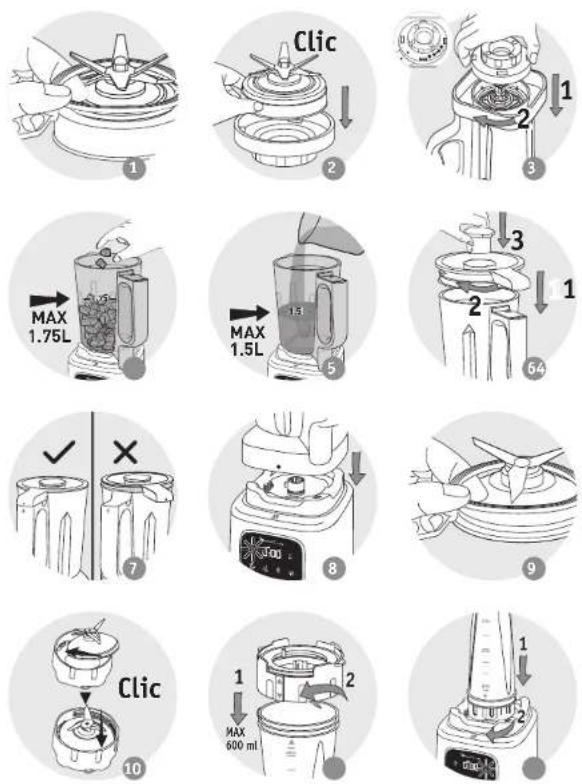

Assembling and fitting the jar

• Moisten the seal (B1) (even if already fitted on the blades unit (B2)). Be careful to correctly fit the seal (B1) back onto the blades unit (B2) the correct way up (Fig. 1).
• Place the blades (B2) on the locking ring (B3) (Fig. 2). Turn the jar upside down and fit the locking ring with blades on the base of the jar (Fig. 3).
• Lock it by rotating to lock ring in the clockwise direction (Fig. 3).
• Make sure the locking ring is locked correctly: the arrow on the jar must be aligned with the arrow on the locking ring (Fig. 3).
• Add the ingredients into the assembled jar without exceeding the maximum level indicated (Figures 4 and 5):
  * 1.75 L for thick mixtures
  * 1.5 L for liquid preparations

Warning: Do not pour boiling liquids (over 80°C/176°F) into the jar.

Lock the lid on the jar and lock in the clockwise direction (Fig. 6). Make sure the lid is locked correctly: the point on the lid should be aligned with point on the handle (Fig. 7). Lock the middle cap in position on the lid and lock it by rotating it in the clockwise direction. If the lid is not correctly locked, your appliance will not start; Position the jar correctly on the motor unit (Fig. 8): the point on the jar should align with the lock on the motor unit (Fig. 8). A jar logo will appear on the screen (H) and a beep signal will sound.

Assembling and fitting the on the go bottle

• Moisten the seal (E3) (even if already fitted on the blades unit (E4)). Be careful to correctly fit the seal back onto the blades unit (E4) the correct way up (Fig 9).
• Add the ingredients into the bottle without exceeding the maximum level indicated:
  * 400ml for thick mixtures
  * 600ml for liquids

Warning: Do not pour boiling liquids (over 80°C/176°F) into the bottle.

Place the blades unit (E3+E4) on the locking ring (E5) (Fig. 10). Turn the jar (E2) upside down and assemble the locking ring with the blades on the base of the jar (Fig. 11) by locking it in the clockwise direction.

Turn the bottle upside down and position it correctly on the motor unit. Lock it by rotating it in the clockwise direction (Fig. 12). A bottle logo will appear on the screen (I) and a beep signal will sound.

Using your appliance

Put the appliance on a flat, stable, heat-resistant surface away from heat sources or water.

• Plug your appliance in and select your program (J) or manual settings (K) (time and speed) and press the Start/Slop button (G).
• With the jar (A) you can change the blending speed from 1 to 9 by pressing speed program then the setting +7 -("H" being the maximum speed), and you can also set up the running time by pressing time program then setting +7 -(K) between 5 seconds and 3 minutes.
• With the on the go bottle (E) you can manage the blending speed from 1 to 7 by pressing the setting +/- buttons (K). You can also set up the running time by pressing the setting +/- buttons (K) between 5 seconds and 90 seconds. Your blender will stop automatically at the end of the program. If you want to stop the blender before the automatic end of the program, press on the Start/Stop button (G).

When using the blender, do not use any accessories other than the pusher to avoid damaging the bowl.

Less than 3 minutes of mixing are enough to blend liquids for most recipes.

To add ingredients while blending, remove the middle cap from the lid and add the ingredients through the feeder hole. Beware of the risk of spatter.

WARNING: After running one cycle in the blender for the maximum processing time, let the blender rest for 1 minute before operating it again. After using the blender for a maximum of two cycles, stop the appliance

and leave to cool to room temperature (takes about 2 hours). The appliance is fitted with overload protection. This prevents the motor from being damaged by abnormal usage.

If the appliance switches off during operation, proceed as follows: Unplug and leave to cool down for around 15 to 20 minutes. Reconnect the appliance to the power supply and resume blending.

After approx. 3 minutes without use, your appliance will start a standby mode. To switch on your appliance again, press the Start/Stop button (G).

Rough chopping small quantities

Accessory used: assembled chopper

Chop in a few seconds by pulsing (L): peanuts, almonds etc.

Model 1600 w: quantity/max. time: 140 g peanuts/8 seconds or 150 g almonds/8 seconds.

Programs available with the Jar (A)

Autoprograms	Description Example	of recipe Time	Time
	Use this program to make smoothie: blending fresh fruits/ vegetables with milk or yogurt.	300 g of pineapple chunks + 200 g of oranges in quarlers + 200 g of sliced bananas + 500 ml of milk.	Default time: 60 secAdjustable from 30 seconds to 80 seconds.
	Use this program to make ice cream: blending frozen fruits with fresh cream or yogurt.	Sorbet: 450 g of frozen raspberries + 240 g of milk + 75 g of powdered brown sugar. The pusher should be used to help mix.	Default time: 1 min10 s.
	Use this program to crush ice cubes and make crushed ice.	8 ices cubes maximum.	Default time: 40 secondsCan be adjusted between 10 seconds to 50 seconds.

Dessert	Use this program to make light dough for waffles, cakes, pancakes, clafoutis, brownies, etc. Not suitable for making heavy dough like bread, brioche, pizza etc.	Yoghurt cake: Add the ingredients to the jar in this order: 120 g of yoghurt + 210 g of powdered brown sugar + 7.5 g of vanilla sugar + 3 eggs + 125 g of sunflower oil + 85 g of corn flour + 65 g of ground almonds + 140 g of flour + 11 g of baking powder. Pour the mixture into a mould and bake for 50 minutes at 180°C.	Default time: 1 min 15 seconds Can be adjusted between 30 seconds to 2 minutes.
	Use this program to clean your blender.	200 ml of water + 1 drop of washing-up liquid.	30 seconds

Programs available with the On The Go bottle (E)

Autoprograms	Description Example of recipe Time	Time
	Use this program to make smoothies: blending fresh fruits/vegetables with milk or yoghurt.	100 g of carrots + 50 g of bananas + 50 g of celeriac + 250 g of orange juice
	Use this program to crush ice cubes and make crushed ice.	4 ices cubes maximum.
	Use this program to clean your blender.	200 ml of water. 30 seconds

The pulse function (L) can still be used when no program is running.

WARNING: Strong foods may stain the inside of the bowl, but this does not affect the efficiency of the appliance. Frozen foods should be no bigger than a walnut. Do not add hot liquid above 80° C as it can be ejected out of

the appliance due to a sudden build up of steam.

After using your appliance

• Unplug the appliance.
• Pour the mixture out of the jar since it is not designed for storing food in the refrigerator or in the freezer.
• Use a damp cloth to clean the motor unit. Dry off carefully. Never immerse the motor unit in water.
• Wash removable parts with water and a few drops of washing-up liquid. To make cleaning easier, you can use the "cleaning program" (M).
• Pour in 200 ml of water. You can add a drop of washing-up liquid into the water but nothing else The lid (A2), the on the go bottle (E2), the lid of the on the go bottle (E1) and the middle cap (A1) can be cleaned in the dishwasher but the jar (A3), the Powelix blades unit (B2 or E4), the titanium-coated Powelix life blades unit must not be washed in dishwasher. Do not fully immerse the blades (B2 or E4) or leave them under water for a long time. (A).

What to do if you appliance does not work?

Problems Causes Solutions
The appliance does not operate.	It is not plugged in. Plug the appliance into an outlet providing the same voltage as specified on the appliance's rating plate.
	The blender jar is not correctly positioned or locked on the motor unit.	Check that the blender jar is cor-rectly positioned on the motor unit as explained in the instructions.
	The power switch is in the OFF position.	Follow the instructions for starting your appliance.
	In case of a software bug.	Jnplug the appliance, wait few minutes and plug in again.
The appliance switches off when in use.	Overload Follow the instructions in the Over-load section.
Excessive vibration.	The appliance is not placed on a flat surface.	Place the appliance on a flat sur-face.
	Volume of ingredients is too high.	Reduce the quantity of ingredients in the appliance.

Leak from the lid.	Volume of ingredients is too high.	Reduce the quantity of ingredients in the appliance.
	The lid is not correctly positioned.	Lock the lid securely onto the blender jar.
Leak from the base of the blender jar.	The blades are not correctly positioned.	Fit the locking ring (B3, C3) (Fig. 2) and lock it by rotating the lock notch in the clockwise direction (Fig. 2). Make sure the locking ring is locked correctly: the point on the jar should be aligned with the lock (Fig. 9).
The blades have difficulty turning.	The pieces of food are too large or too hard.	Reduce the quantity or size of mixed ingredients.
	The blended liquid is too hot or the silicone seal is bent.	Replace the seal with a new one.
Leak from the bottom of the OTG bottle.	The blades are not correctly positioned.	Place the blades unit on the top of the bottle and lock it by rotating to lock notch in the clockwise direction (Fig. 9).

Environment protection first!

These instructions are also available on our website www.obhnordica.com

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
• ingress of water, dust or insects into the product
• scaling (any de-scaling must be carried out according to the instructions for use)
• damage as a result of lightning or power surges
• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

These instructions are also available on our website www.obhnordica.com.

TEFAL - OBH Nordica Group AB

Löfströms Allé 5

Phone: [phone]

www.obhnordica.com
