VC2303SPRCY - Electric broom GORENJE - Free user manual and instructions

Product Type	Electric Broom (Stick Vacuum)
Brand	Gorenje
Model	VC2303SPRCY
Dimensions (H x W x D)	115 cm x 25 cm x 15 cm
Weight	2.5 kg
Power Source	Rechargeable Battery (Li-Ion)
Battery Voltage	22 V
Battery Capacity	2500 mAh
Charging Time	4 hours
Run Time (Max)	45 minutes
Suction Power	120 AW
Dust Capacity	0.6 L
Filtration System	Washable HEPA filter
Floor Nozzle Included	Yes, multi-surface
Crevice Tool Included	Yes
Brush Roll Type	Soft roller
LED Headlights	Yes
Wall Mount Included	Yes
Noise Level	75 dB
Safety Features	Overheat protection, automatic shut-off
Maintenance	Washable filter, removable roller
Spare Parts Available	Battery, filter, roller, nozzle
Repairability	Modular design, spare parts widely available
Warranty	2 years

Frequently Asked Questions - VC2303SPRCY GORENJE

How do I charge the battery?

Connect the charger to the device's charging port and plug it into a wall outlet. The LED indicator will show red during charging and green when fully charged. Typical charging time is 4 hours.

What is the maximum run time?

On standard mode, the run time is up to 45 minutes. On max power, it reduces to about 20 minutes.

How do I clean the filter?

Remove the dirt container and take out the filter. Wash it under running water, ensure it is completely dry before reinserting. Do not use detergent.

Can I use it on hard floors?

Yes, the included multi-surface nozzle works on both hard floors and carpets. For best results on hard floors, set the roller to low speed if adjustable.

What should I do if the device overheats?

The device has automatic overheat protection. It will shut off. Let it cool for at least 30 minutes before restarting. Check for blockages in the air path.

How do I replace the brush roller?

Turn off and unplug the device. Remove the floor nozzle, press the release button on the roller cover, lift it, and slide the roller out. Insert the new roller and close the cover.

Where can I buy spare batteries?

Spare batteries are available from Gorenje authorized service centers or online retailers. Use only genuine parts to ensure safety and performance.

How do I set up the wall mount?

Drill holes in a wall stud, insert anchors, and screw the mount in place. Then hang the device on the mount by aligning the slots on the back of the device with the mount tabs.

What is the warranty period?

The standard warranty is 2 years from the date of purchase. Keep your receipt for service claims.

How do I empty the dust container?

Press the release button on the dust container to detach it. Open the bottom lid and empty the contents into a trash bin. Reattach the container until it clicks.

USER MANUAL VC2303SPRCY GORENJE

VACUUM CLEANER

SUPRA POWER

Sesalnik za prah	Usisavač prašine	Usisivač za prašinu	Правосмукалка	Vacuum cleaner	Aspirator
Vysavač	Vysávač	Odkurzacz	Porszívó	Прахосмукачка	Пилосос
Пылесос	Staubsauger	Støvsuger	Pölynimuri	Støvsuger	Dammsugare

Symbolic icon of an open box with an upward arrow, enclosed in a shield-like shape (no text or numbers present)

1.

Line drawing of a stylized air fryer device with control knobs and a central vent (no text or symbols)

1.

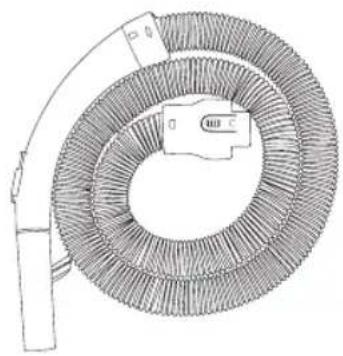

Technical line drawing of a coiled electrical component with no visible text or symbols

1.

Pure technical line drawing of a mechanical component (no text or symbols)

4.

1.

Line drawings of four different mechanical or architectural components (no text or symbols)

1.

Turbo brush for models: VC2303SPRCY VCE03SPRCY VC2303RCYIV VC2301SPWCY

Parquet brush for models: VC2102BCYIV

SI	HR / BIH- 6 -- 12	SRB / BIH / MNE-- 15 -- 18 -- 21	MK- 24 -- 27	GB-- 30 -- 9 -	DE / AT	RO	SK	HU	PL
CZ- 33 -	BG- 36 -- 39	UA-- 42 -- 45 -- 48	RU- 51 -- 54	KZ-- 57 -	FI	DK	NO	SE

1. Sesalnik za prah

2. Upogljiva cev

3. Teleskopska cev

4. Talna krtača

5. Dodatni nastavki

6. Talna krtača

POMEMBNA VARNOSTNA OPOZORILA

1. Vacuum cleaner

2. Hose

3. Telescopic tube

4. Universal brush

5. Extra attachments

6. Additional brush

IMPORTANT SAFETY INSTRUCTIONS

When using the vacuum cleaner, always observe the following basic safety precautions: Carefully read this instruction manual and only use the appliance in accordance with the instructions herein. // Before using the appliance, carefully assemble all of its parts. Only use the appliance with the parts recommended by the manufacturer. // Never leave the appliance unattended during use. // Before connecting the appliance to the power mains, make sure the specified voltage matches the voltage of the power mains in your home. // If the power cord is damaged, replace it with a suitable power cord or a power cord reel assembly. The power cord or the power cord reel assembly may only be replaced by Gorenje, Gorenje's authorized service and repair centre, or an adequately trained professional. // Only use and keep the appliance in dry indoor areas and out of reach of children. // Do not use the appliance if it has been dropped, if it is damaged, if it has been kept outdoors, or if it has been dropped or immersed in water. // Do not use the appliance with an unsuitable attachment or extension. // To prevent injury, make sure your hair, loose parts of your garments, fingers or other parts of the body do not come into contact with the vents or moving parts of the appliance. // This appliance may be used by children aged 8 years or more, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they are supervised during the use of the appliance or if they have been provided relevant instructions regarding the use of the appliance in a safe way, and they understand the hazards involved. Keep children under supervision while they are using the appliance and make sure they do not play with it. // Children should not perform any cleaning or maintenance tasks on the appliance, unless they are at least 8 years old and they do so under supervision. // Do not leave the appliance unattended while it is connected to the power mains. After use or during maintenance, put down the appliance, switch it off, and unplug the power cord from the electrical outlet. // Never unplug the appliance by pulling on the power cord. // The appliance is only intended for household use.

DANGER

Do not immerse the appliance in water or any other liquid, and do not rinse it under running water. Also, do not touch the power cord or the plug with wet hands.

SPECIAL WARNINGS

Always switch off the appliance before attaching or replacing the suction tube, suction hose or attachments. // Never use the vacuum cleaner without a bag or the cyclone dust bin (depending on the vacuum cleaner type), or without inlet and exhaust filters. // Keep the vents free from dust, hair or any other impurities that could clog the vents, decrease the air flow and reduce suction power. // Do not move the vacuum cleaner across the room by pulling by the power cord or the suction hose. Protect the power cord from hot surfaces and any other damage, and avoid kinking it. When using the automatic power cord reel, use your hand to guide the power cord. // In case of extended use, unwind at least 2/3 of the power cord to prevent overheating and damage. When using the vacuum cleaner for several hours, completely unwind the power cord. // Keep the suction tube, open part of the appliance and attachments away from your face and body. // Never use the vacuum cleaner to clean up embers or filings, cigarette butts, matches, liquids (e.g. carpet cleaning foam), or sharp or pointed objects (broken glass etc.). Also, do not use the vacuum cleaner to pick up toner dust. Do not use the vacuum cleaner to pick up construction material (such as fine sand, lime, cement powder etc.). This can cause damage to the appliance. // Be extra careful when cleaning stairs.

The appliance complies with the following European directives: 2014/35/EU; 2014/30/EU; 2009/125/ES; 2011/65/EU. 666/2013/EU (VCE03SPRCY).

This equipment is labelled in compliance with the European Directive 2012/19/EC on waste electric and electronic equipment – WEEE. The Directive specifies the requirements for collection and management of waste electric and electronic equipment effective in the entire European Union.

ENVIRONMENT

After the expiry of its useful life, do not discard the appliance with common household waste. Rather, take it to an authorized recycling centre. This will help preserve the environment.

WARRANTY AND REPAIR

For more information or in case of problems, please contact the Gorenje Call Centre in your country (phone number listed in the International Warranty Sheet). If there is no such centre in your country, please contact the local Gorenje dealer or Gorenje's small domestic appliance department.

For personal use only!

GORENJE WISHES YOU A LOT OF PLEASURE USING YOUR VACUUM CLEANER
