Product Type	Range Hood (Kitchen Extractor Hood)
Brand	Gram
Model	EFU 603-90
Installation Type	Wall-mounted (chimney hood)
Modes of Operation	Extraction (air discharge outside) and Recirculation (with carbon filter)
Number of Speeds	3 (Settings 1, 2, 3)
Lighting	Independent lighting with separate switch
Duct Diameter	120 mm (recommended)
Grease Filter	Aluminium mesh (washable, clean monthly)
Charcoal Filter	Optional for recirculation mode, replace every 2 months
Minimum Installation Height	450 mm above hob (follow gas cooker instructions if greater)
Control Type	Mechanical switches (light and motor speed)
Power Supply	220-240 V (as per rating plate)
Material	Stainless steel (exterior)
Safety Features	No open flame under hood, child supervision, thermal protection not specified
Compliance	Low Voltage Directive 2014/35/EC, EMC 2014/30/EC, ErP 2009/125/EC, RoHS 2011/65/EC
Environmental	Recyclable packaging, WEEE disposal
Package Contents	Hood, installation accessories, carbon filter (if applicable)

Frequently Asked Questions - EFU 603-90 GRAM

How often should I clean the grease filter?

The aluminium grease filter should be cleaned at least once a month. You can wash it in the dishwasher or by hand with mild detergent.

How do I replace the charcoal filter?

The charcoal filter is used only in recirculation mode. It cannot be washed and should be replaced every 2 months, or more frequently with heavy use.

What is the minimum distance between the hob and the hood?

The minimum distance is 450 mm (approx. 17.7 inches) from the hob. However, always follow the gas cooker instructions if they specify a greater distance.

Can I use the hood without a duct?

Yes, you can use the hood in recirculation mode. In this case, you need to install a charcoal filter. No external duct is required, but an air guide vane is recommended for chimney hoods.

How do I switch between speeds?

The hood has 3 speed settings. Press the motor switch up and down for settings 1 and 2. For setting 3, press the switch down; to deactivate, push it back up.

What should I do if the hood stops working?

First, check the power supply and ensure the plug is connected. If it still does not work, contact a qualified technician for repair.

Is the lighting replaceable?

The hood has independent lighting. If the bulb fails, it should be replaced by a qualified technician. Refer to the manual for bulb type.

How do I clean the exterior?

Use a damp cloth with a neutral detergent. Do not use abrasive cleaners, solvents, or alcohol. For stainless steel, avoid caustic substances.

Can I install the hood over a gas stove?

Yes, the hood is designed for use over gas and electric stoves. Ensure the installation height is at least 450 mm and follow the gas cooker's instructions.

Does the hood require professional installation?

Installation should be carried out by a qualified installer, especially for electrical connections and ductwork.

USER MANUAL EFU 603-90 GRAM

Before using the appliance, please carefully read this manual!

BRUGSANVISNING - K∅KKENEMFANG

Isometric diagram of a kitchen appliance with a mounted shelf and height measurement (no text or symbols)

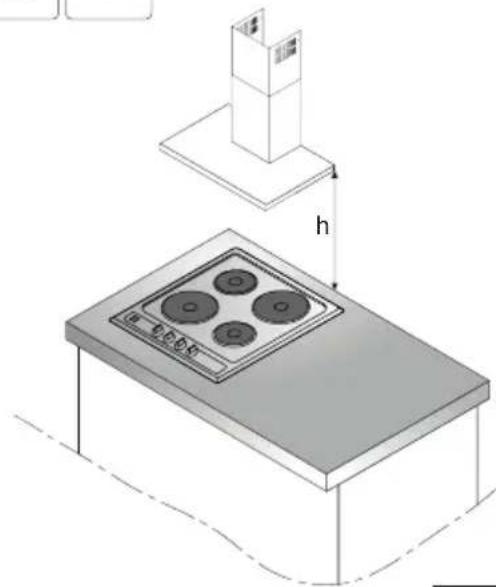

h = min 450mm

Isometric diagram of a kitchen appliance with a stove and a cabinet, showing height measurement (no text or symbols)

4

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Hand holding a rectangular object with a downward arrow, no text or symbols present

3D rendering of a mechanical component with a housing and internal components (no text or symbols visible)

Diagram of a fan assembly with rotating blades and fan blades (no text or labels)

5

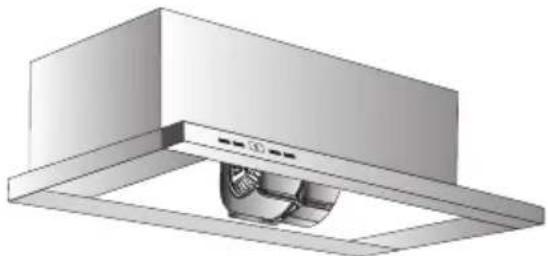

3D diagram of a kitchen chimney with two fans and a rotating fan (no text or symbols)

6b

6a

7

THANK YOU FOR PURCHASING AN GRAM APPLIANCE

DEAR CUSTOMER!

You are now a user of a kitchen extractor hood. This hood has been designed and manufactured specially with a view to satisfying your expectations and it will certainly constitute a fitting element of a modern kitchen. The modern structural solutions and the newest technologies used in production of this hood guarantee its high effectiveness and good appearance.

Please read these instructions carefully before installing the hood. They will help you avoid mistakes during installation and operation of the hood.

We wish you a lot of satisfaction from choosing our kitchen extractor hood.

Symbols appearing in these instructions have the following meaning:

Important information concerning proper operation of the appliance and your personal safety.

Risks resulting from improper operation of the appliance. Activities that must be performed by a qualified technician.

Tips on how to use the appliance.

Information on how to protect the environment.

This indicates actions than must not be performed by the user.

TABLE OF CONTENTS

GUIDELINES CONCERNING THE SAFETY OF USE 6

INSTALLATION

8

OPERATION

AND

MAINTENANCE

10

ENVIRONMENTAL

PROTECTION

11

The appliance is intended for household use only.

The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

●The manufacturer will accept no responsibility for any damage due to installation or operation not conforming to these instructionsi

● Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.

- Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The duct length (typically 120 or 150mm in diameter) should not exceed 4-5 m. The air exhaust duct is also required for telescopic and under furniture cooker hoods operating in air recirculation mode.

- Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane. (chimney cooker hoods only).

●The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.

- Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

- For details of the installation distance above an electric hob please refer to product technical sheet If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1a/b/c).

- Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not ex-

tend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.

●Any food cooked in fat shall be constantly monitored, since overheated fat can ignite very easily.

●Pull the plug of the power cord from a wall socket before any filter cleaning or repair operation.

●The textile grease filter should be replaced, and the aluminium filter should be cleaned at least every one month in connection with the existing fire danger (saturated fat is very flammable).

- If any other non-electric devices are used in the same room as the hood (e.g. liquid fuel ovens, flow-through or volumetric water heaters), it is necessary to provide appropriate ventilation (air supply). Safe operation is possible when during simultaneous operation of the hood and combustion devices dependent on air supply the negative pressure of not more than 0.004 milibar is

maintained at the location of these devices inside the room (this point does not apply when the hood is used as an odour absorber).

●Do not lean on hood

●The hood should be frequently cleaned inside and on the outside surfaces (at least once a month). See “Cleaning section” in this manual.

- If the power wire gets broken, it should be replaced with a new one in a specialist repair shop.

●Make sure the appliance can be easily disconnected from the mains, either by pulling the plug out of the mains socket, or by switching the two-pole switch off.

●This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

●Children should be su-

GUIDELINES CONCERNING THE SAFETY OF USE

pervised to ensure that they do not play with the appliance.

• Check if the voltage indicated on the rating plate corresponds to the local power supply parameters.
  ●Before installing unwind and straighten the power cord.
  ●Warning! The packaging materials (polyethylene bags, small pieces of foamed poly-

styrene etc.) should be kept away from children while unpacking.

NOTE: Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. It is recommended to make sure the hood operates correctly before installation.

INSTALLATION

3.1

Technical line drawing of a mechanical component with a cylindrical top and base, showing a downward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical housing with a circular component and a downward arrow indicator (no text or symbols)

3.2

3.4

Simple line drawing of a rectangular container with two internal compartments and a top opening (no text or symbols)

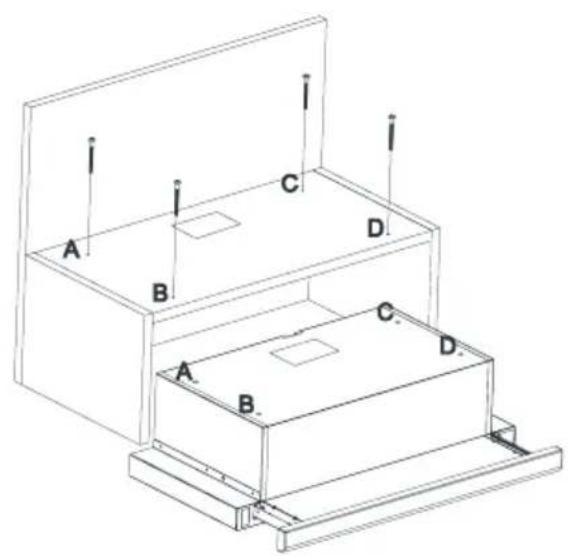

The click-fit angle brackets must be positioned and screwed onto the right and the left side to fit with the suspension element on the side of the extractor hood. (Fig. 3.4).

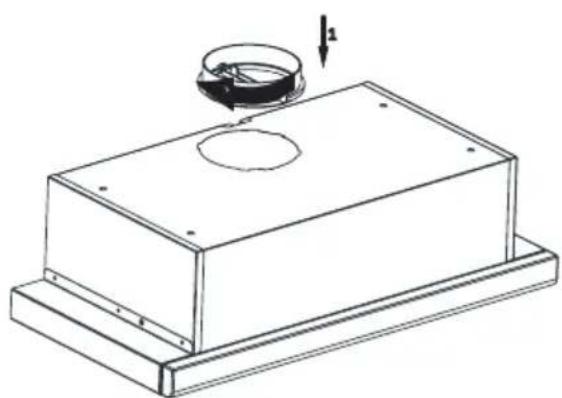

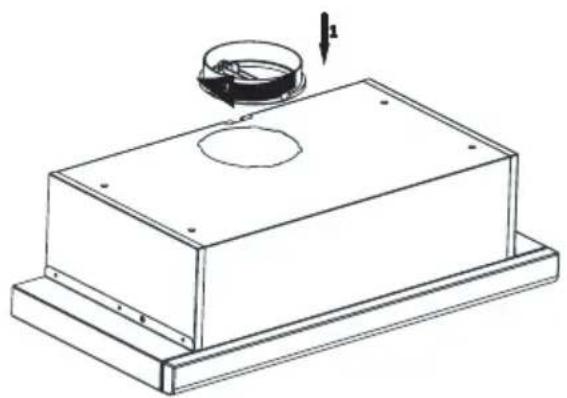

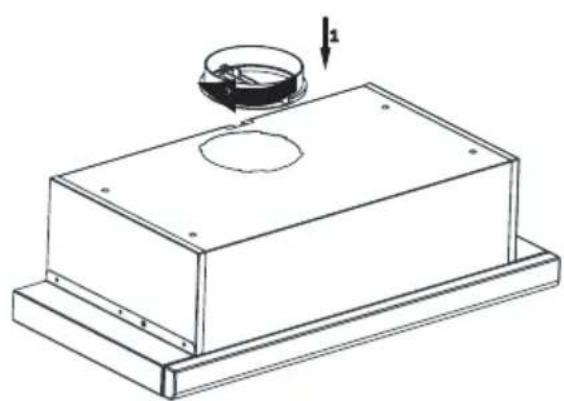

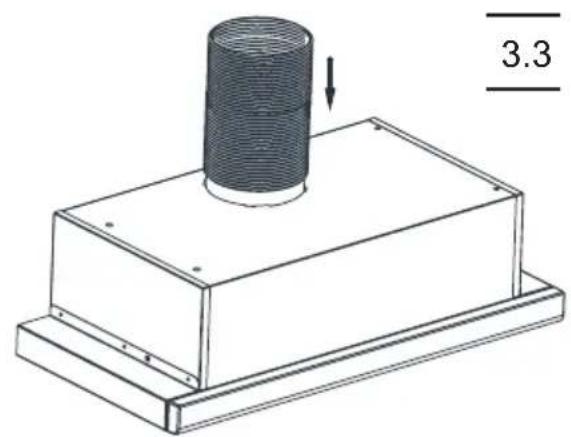

Place the extraction hose fitting that comes with the extractor hood on top of the product. Now turn the extraction hose clockwise. Connect the extraction channel to the extraction hose.

3.5

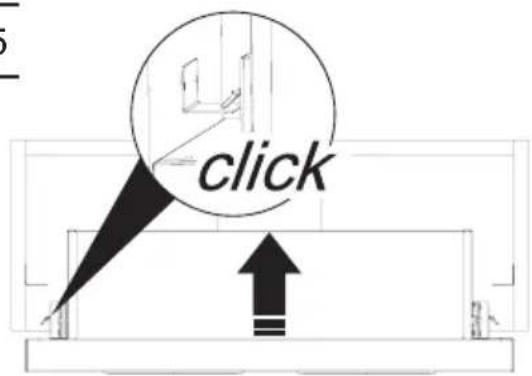

Now press the extractor hood up into the cabinet until it clicks into place in the suspension mechanism on the click-fit angle brackets. (Fig. 3.5)

3.6

Technical line drawing of a rectangular enclosure with curved arrows indicating rotation or movement (no text or symbols)

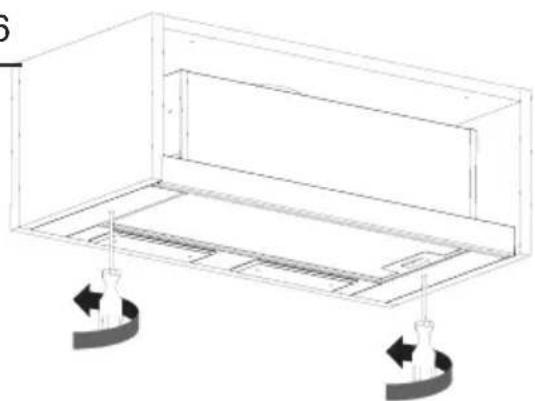

Use a screwdriver to secure the extractor hood in the cabinet. Screw from below using the suspension mechanism as support. (Fig. 3.6).

Setting the air extractor mode of operation of the hood

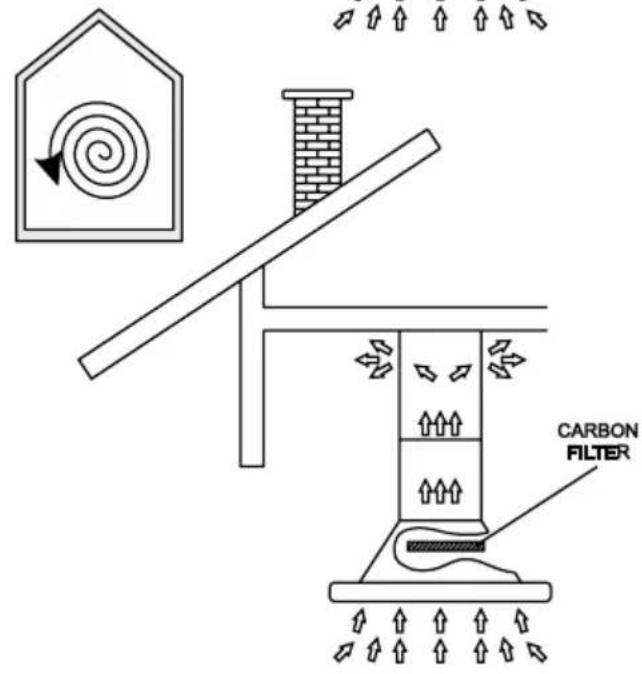

In the extractor mode air is discharged to the outside by a special conduit. In that setting any carbon filters shall be removed. The hood should be connected to the opening discharging air to the outside by means of a rigid or flexible conduit of 120 mm diameter, which should be purchased in a shop selling installation materials.

A qualified installer should be commissioned to make the connection.

Setting the odour absorber mode of operation of the hood

In this option filtered air returns to the room through openings in the front of the hood. In this setting it is necessary to install the carbon filter. It is recommended to install the air guide (availability depending on model).

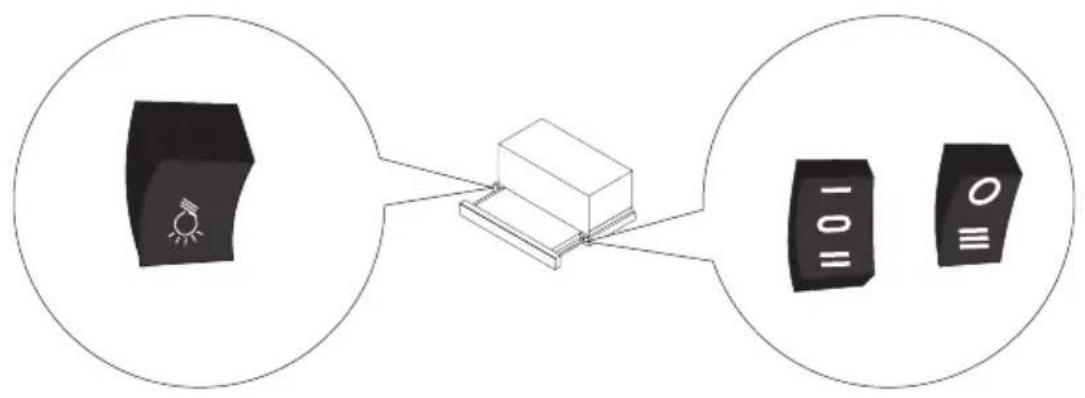

Light switch

Press the light switch to turn the light on or off. Pull out the front panel to turn the light on

Motor switch Settings 1 & 2

To use the product at settings 1 and 2, press the button up and down.

Motor switch Setting 3

Activate setting 3 by pressing the switch down. Deactivate by pushing the switch back up.

Maintenance

Regular maintenance and cleaning of the device will ensure faultless operation, and help extend the life of the unit. Attention should be paid to replacing grease and carbon filters according to instructions.

Aluminium grease filter

Cleaning

For normal hood operation, aluminium grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

To replace:

Dismantling of aluminium grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Charcoal filter (only the recirculation version)

Operation - Carbon filters can be used only when the hood is not connected to any ventilation duct. Filters with active carbon can absorb odours until they are saturated. They cannot be washed or regenerated and should be replaced at least every 2 months or more frequently in case of very intensive use.

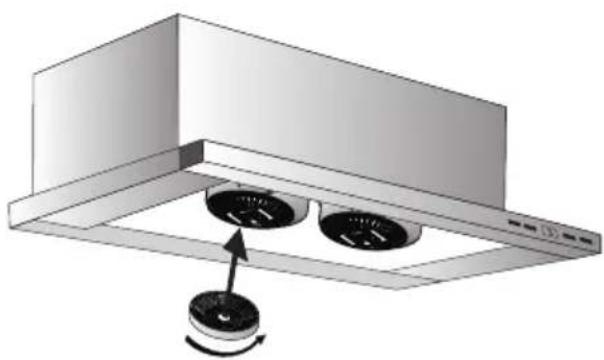

Replace:

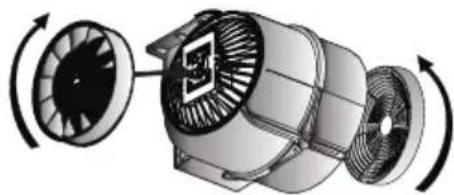

Dismantling of charcoal filter is shown on Figure 6.

Cleaning

Normal hood cleaning:

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.

It is recommend to use a damp cloth and a neutral detergent.

Aluminium filters may be washed in the dishwasher. The colour of aluminium filters may change after several washings. This is normal and it is not necessary to renew the filters.

RECYCLING OF THE PACKAGING

Simple line drawing of a three chasing recycling symbol (no text or labels)

Our packaging is made of environmentally friendly materials, which can be reused:

● The external packaging is made of cardboard/foil
● The FCKW free shape of foamed polystyrene (PS)
● Polyethylene (PE) foils and bags

ELIMINATION / DISPOSAL OF THE EU-IPMENT

If the appliance is no longer in use, cut the connecting cable off the used equipment before scrapping. We also recommend that the appliance is locked or render it useless so that the appliance presents no danger to children while being stored for disposal. This appliance is marked with a symbol of the crossed out waste container in conformance with the European Directive 2002/96/EC. Such

marking informs that the equipment may not be kept together with other waste coming from the household after the period of its use. The user is obliged to dispose of the appliance at the waste collection point authorised by the local authority. The local waste collection points, shops and communal units form an appropriate system enabling the disposal of the equipment.

Handling the used electrical and electronic equipment and any hazardous substances contained therein in a correct manner is vital to avoid damage the local natural environment. Therefore care and responsibility should always be taken in the disposal of these products

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
