TC04 - Electric cooktop ROSIERES - Free user manual and instructions

Product Type	Electric Hob
Brand	ROSIERES
Model	TC04
Number of Plates	4 Electric Plates
Plate Types	2 standard plates, 2 quick self-protected plates
Plate Diameters	2x Ø145 mm, 2x Ø180 mm
Power per Plate (front left)	2000 W (Ø180 mm, quick)
Power per Plate (rear left)	1500 W (Ø145 mm, quick)
Power per Plate (front right)	1000 W (Ø145 mm, standard)
Power per Plate (rear right)	1500 W (Ø180 mm, standard)
Total Electric Power	6 kW
Overall Dimensions (W x D)	59 x 51 cm
Cutout Dimensions (W x D)	56 x 48 cm
Power Supply	Single-phase 220-240 V~, two-phase 220-240 V2~, three-phase 220-240 V3~ or 380-415 V3N~
Recommended Fuse	20 A (single/two-phase) or 16 A (three-phase 380-415 V)
Power Cable	H05RR-F 3G2.5 mm² (single/two-phase) or adapted according to connection
Controls	4 switches 7 positions (0-6)
Power-On Indicator	Yes, per plate
Safety	Internal thermostat on quick plates, hot surfaces, child protection
Table Material	Enameled steel or stainless steel depending on version
Maintenance	Clean with soapy water, avoid abrasive products, wipe with a slightly greasy cloth for the plates
Included Accessories	4 fixation brackets
Standards	Compliant with EEC directives 89/336 and 73/23

Frequently Asked Questions - TC04 ROSIERES

How to connect the hob in three-phase 380-415 V?

For a three-phase 380-415 V3N~ connection, use a H05RR-F or H05VV-F cable with a section of 5G1.5 mm². The conductors connect to terminals 1, 2, 3 (phases), 4-5 shunted (neutral) and 6 (earth). A 16 A fuse is required. Refer to the diagram on page 6 of the manual.

What to do if an electric plate does not heat up?

First check that the switch is in a position other than 0. If the indicator does not light, check the power supply and fuse. If a fuse has blown, replace it with a model of the same rating. If the problem persists, contact the after-sales service.

How to clean the electric plates?

After cooling, heat the plate slightly to carbonize residues, then turn off the power. Once cooled, wipe with absorbent paper. Never use abrasive products or metal sponges. After each use, wipe with a slightly oiled cloth to protect the plate.

What cooking utensils are recommended?

Use pots with a flat and thick bottom, with a diameter at least equal to that of the plate to avoid energy loss and overheating. Make sure the bottom is dry before placing on the plate.

How to use the self-protected quick plate?

It works like a standard plate with a 7-position switch (0-6), but incorporates a thermostat that reduces power in case of abnormal heating (e.g., empty operation). For first use, heat it empty at maximum power for a few minutes.

What to do in case of overheating or start of fire?

Never pour water on the plates. Immediately turn off the power supply. Use a lid or fire blanket to smother the flames if necessary. Always supervise cooking with fats.

Can I install the hob myself?

The electrical installation must be carried out by a qualified professional in accordance with current standards (NFC 15100 in France). Incorrect installation can lead to serious risks. ROSIERES declines all responsibility in case of non-compliance.

Which fuses to use for each type of connection?

For a single-phase or two-phase 220-240 V~ connection, use a 20 A fuse. For a three-phase 380-415 V3N~ connection, use a 16 A fuse. Always check the appropriate cable section.

How to prevent rust on the electric plates?

After each use, wipe the plate with a slightly greasy cloth to create anti-moisture protection. If rust appears, use fine emery cloth to remove it, then apply a specific renovator for electric plates.

What to do before first use of the hob?

Heat each plate empty for a few minutes at the maximum position (6) to cure the protective coating. Then let cool and clean the hob with a damp cloth. Refer to the manual for details.

USER MANUAL TC04 ROSIERES

INSTALLATION: "LE RACCORDEMENT ELECTRIQUE"

INSTALLATION: "LE RACCORDEMENT ELECTRIQUE"

INSTALLATION: "ENCASTREMENT"

INSTALLATION: "ENCASTREMENT"

Unpacking the appliance 14

Recommendations 14

- INSTALLATION

Safety instructions 15

Electrical connection 15/17

Fitting the hob 18/19

- USING THE APPLIANCE

Presentation of the hob 20

Technical data 20

The different hot plates 21

Using the hot plate 21

Cooking with the hot plate 22

General maintenance 23

The hot plate 23

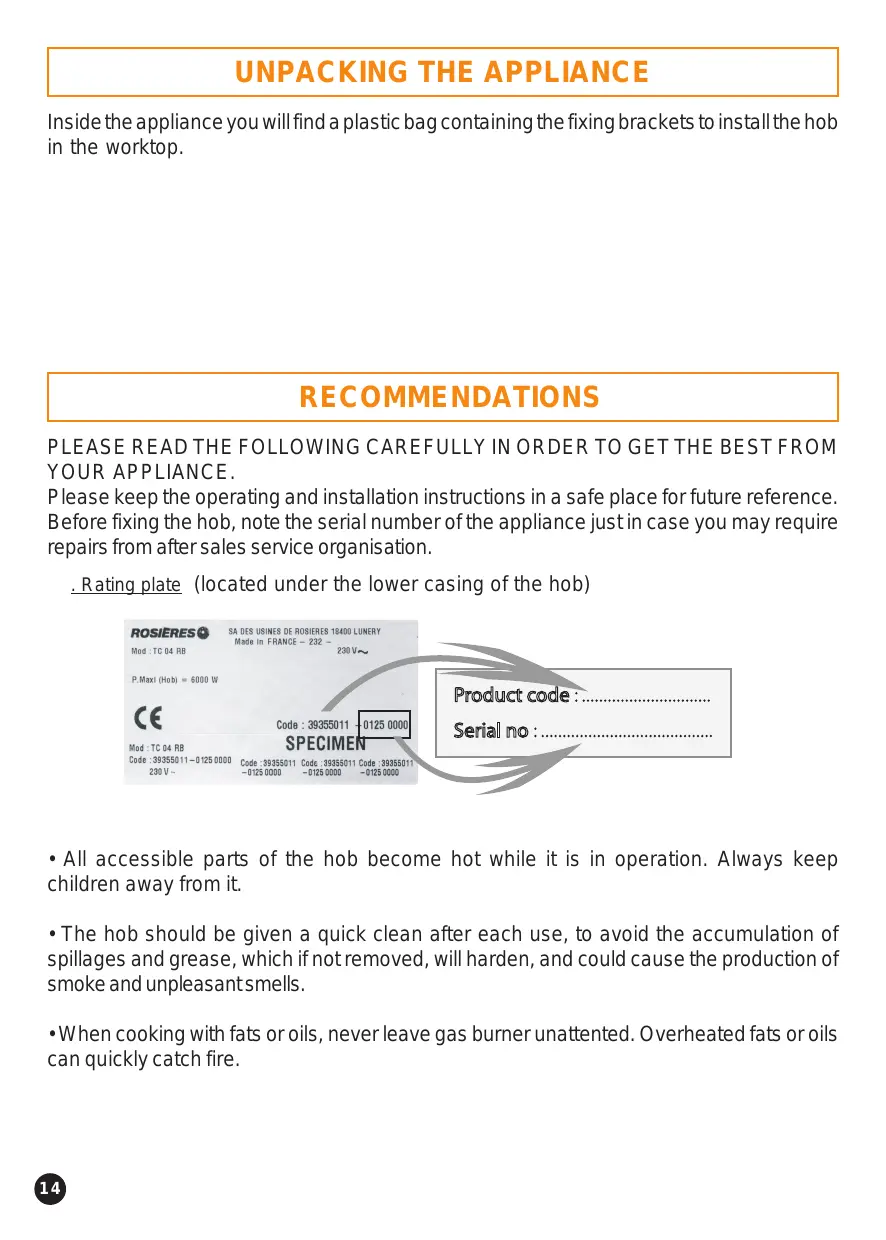

UNPACKING THE APPLIANCE

Inside the appliance you will find a plastic bag containing the fixing brackets to install the hob in the worktop.

RECOMMENDATIONS

PLEASE READ THE FOLLOWING CAREFULLY IN ORDER TO GET THE BEST FROM YOUR APPLIANCE.

Please keep the operating and installation instructions in a safe place for future reference. Before fixing the hob, note the serial number of the appliance just in case you may require repairs from after sales service organisation.

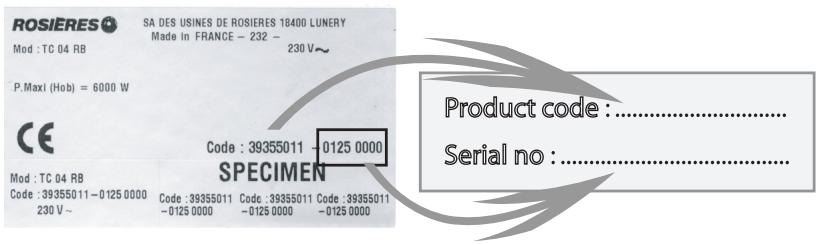

Rating plate (located under the lower casing of the hob)

• All accessible parts of the hob become hot while it is in operation. Always keep children away from it.
• The hob should be given a quick clean after each use, to avoid the accumulation of spillages and grease, which if not removed, will harden, and could cause the production of smoke and unpleasant smells.
• When cooking with fats or oils, never leave gas burner unattended. Overheated fats or oils can quickly catch fire.

INSTALLATION

Installing a domestic appliance can be a complicated operation which, if not carried out correctly, can seriously affect consumer safety.

It is for this reason that the task should be undertaken by a professionally qualified person who will carry it out in accordance with the technical regulations in force.

In the event that this advice is ignored and the installation is carried out by an unqualified person, ROSIERES declines all responsibility for any technical failure of the product whether or not it results in damage to goods or injury to individuals.

INSTALLATION: "ELECTRICAL CONNECTION"

The mains electricity supply connected to the appliance should comply with the norms in force in the country of installation.

Rosières declines all responsibility for any damage that may be caused by unsuitable or unreasonable use.

Warning :

• Always check before any electrical operation, the supply voltage shown on the electricity meter, the adjustment of the circuit-breaker, the continuity of the connection to earth of the installation and that the fuse is suitable.
• The electrical connection to the installation should be made via a socket with a plug with earth, or via an omnipole cut-out switch with an opening gap of at least 3mm .
• The yellow/green wire of the power supply cable must be connected to the earth of both power supply and appliance terminals.
• Rosières cannot be held responsible for any accidents resulting from the use of an appliance which is not connected to earth, or with a faulty earth connection continuity.
• Any queries regarding the power supply cord should be referred to After Sales Service or a qualified technician.

The hob "TC 04" is equipped with a supply cord type H05RR-F - area 3G2,5 mm². This power cord enables you to connect to exclusively single phase 220-240 V~ or two phase 220-240 V2~.

However it can be modified for connection to :

• Threephase

220-240 V3~

• Threephase

380-415 V3N~

To proceed to the new connection, you mus adhere the following instructions

• Before making the connection, make sure that the installation is protected by a suitable fuse, see table on next page, and that it is fitted with wires of a large enough section to supply the appliance normally.

1 - Operations to be carried out on the existing connection (if necessary) :

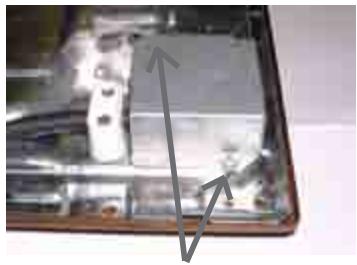

. Turn the hob against the worktop.

1. Unscrew the cover

1. The hob is supplied for a single phase

connection : 220- 240 V~ or

two phase : 220- 240 V2~.

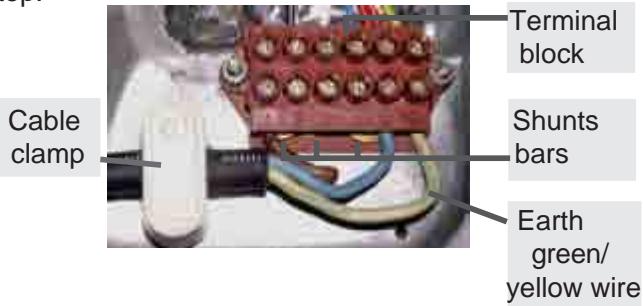

. Remove the screws retaining the terminal block which contains the shunt bars and the conductors of the supply cord.
. Unscrew the cable clamp to release the power supplying cord.
Pull out the supply cord.

2 - Operations to be carried out to make a new connection :

. Choose the supply cord in accordance with the recommendations in the table on the next page.

. The hob must be in situation as shown :

Pass the supply cord into the clamp.

. Strip the end of each conductor of the supply cord to a 10mm length, by taking in account the requested length of the cord for the connection on the terminal block.
. According to the installation and with the help of shunt bars which you should have recovered in the first operation, fix the conductor as shown on the chart.
. Engage the earth wire yellow/green on the earth terminal, tighten the nut and verify the continuity of the earth.
. Secure the cable clamp.
Fix the cover.

INSTALLATION: "ELECTRICAL CONNECTION"

	Connection of origin
	Single phase 220-240V~	Two phase 220-240V2~	Three phase 220-240V3~	Three phase 380-415 V3N~
FUSE	20A	20A	20A	16A
CABLE
Type	H05RR-F	H05RR-F	H05RR-F H05VV-F	H05RR-F H05VV-F
Aera	3 G 2,5 mm²	3 G 2,5 mm²	4 G 2,5 mm²	5 G 1,5 mm²
Connection to the terminal block	1 2 3 4 5 ± PH N E	1 2 3 4 5 ± PH PH E	1 2 3 4 5 ± PH PH PH E	1 2 3 4 5 ± PH PH PH N E
To shunt : make a bridge with a shunt bar	1rst Phase Shunt 1-2 Shunt 2-3 Neutral Shunt 4-5 Earth ±	1rst Phase Shunt 1-2 Shunt 2-3 2nd Phase Shunt 4-5 Earth ±	1rst Phase Shunt 1-2 2nd Phase Shunt 3-4 3rd Phase 5 Earth ±	1rst Phase 1 2nd Phase 2 3rd Phase Neutral Shunt 4-5 Earth ±

IMPORTANT: Blue wire = Neutral Yellow/green wire = Earth

For the connection to the terminal block, you must :

respect the n^1,2,3,4 and 5
. tighten the screws,
. do not forget to fix the earth wire (yellow/ green) on the earth terminal n^6

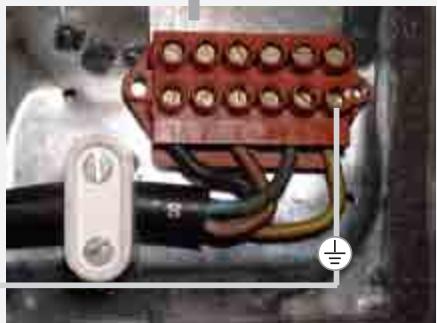

Example of connection Three phase

220-240V3~:

The earth wire must be clipped at this place.

Tighten the nut fully home.

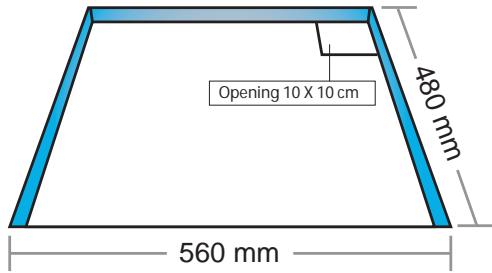

INSTALLATION: "BUILDING-IN"

Both the unit into which the hob will be fitted and any adjacent kitchen furniture must be made from heat resistant material and fixed with heat resistant adhesive.

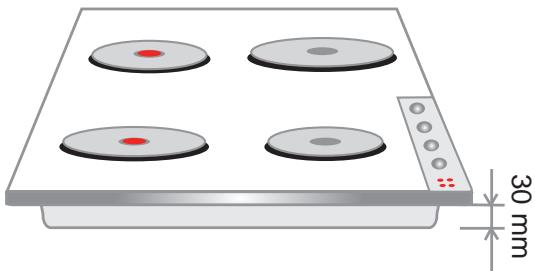

If, when installing the hob, the lower part of the casing is adjacent to an area normally accessible when handling or cleaning, fit a heatproof partition 1 cm below the base of the casing, with a 10 × 10 cm opening in the rear right-hand corner, to avoid any risk of burning or damage.

There should also be a 5 cm gap between the appliance and all adjacent vertical surfaces.

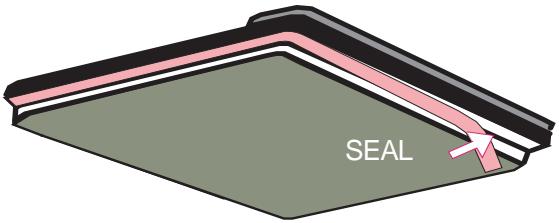

A foam adhesive seal is supplied with the hob. Stick this seal under the edge of the body as near as possible to the outer edge of the hob. Press round the edges of the hob, so that the seal flattens out and ensures an air tight seal.

Fittingthe seal Top view of the hob

Building-inaccordinglyTYPEY (Norm EN 335-2-6)

INSTALLATION: "BUILDING-IN"

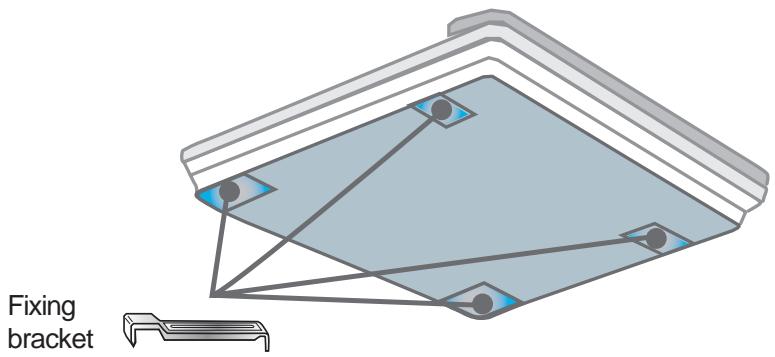

The body of the hob is fitted with 4 location holes to take the fixing brackets that secure the intended to fix the hob in the unit. Place the 4 fixing brackets in such a way that the hob surface is placed perfectly in the support unit.

Location for fixingbrackets

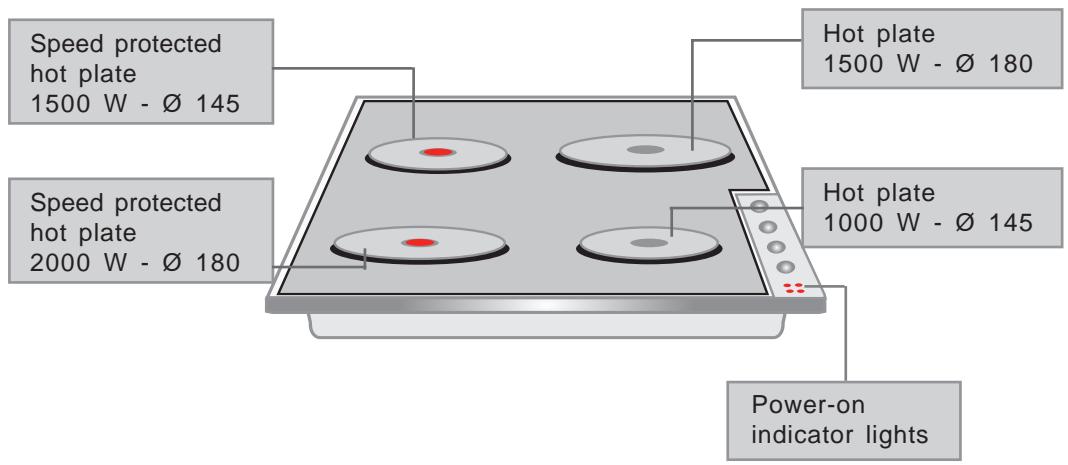

PRESENTATION / TECHNICAL DATA

TC 04

4 ELECTRICAL HOT PLATES

Overall dimensions (cm):

Width:59

Depth:51

Building-in dimensions (cm) - (see chapter "Installation")

Width:56

Depth :

48

Totalelectrical power:

6 kW

In order to improve the quality of the products, ROSIERES may carry out modifications linked to technical improvements.

Appliance meeting with the standard CEE 89/336, and 73/23.

THE HOT PLATE

THE STANDARD ELECTRICAL HOT PLATE

This is a cast-iron hot plate, controlled by a 7 position switch.

Each position corresponds to a permanent and progressive temperature according to the marks 1, 2, 3, 4, 5 and 6.

RAPID SELF-PROTECTING ELECTRIC HOT PLATE (with a red dot in the centre)

This is a cast-iron hot plate, controlled by a 7 position switch.

As with the previous hot plate, each position corresponds to a

permanent and progressive temperature according to the marks 1, 2, 3, 4, 5 and 6. An internal thermostat cuts off of the power supply if there is any overheating. (If, for example, a hot plate is working without a pan on it).

BEFORE USING THE ELECTRIC HOT PLATE :

• Before using the electric hot plate for the first time, let it heat up for a few minutes, without a pan, at maximum temperature to let the protective coating harden.

HOW TO USE :

• For best results, it is advisable to start on the maximum heat and then turn back to an intermediate temperature taking into account the type and volume of the food.
• The power-on indicator light comes on to show that the hot plate is working.
• To stop it, turn back the knob until position "●".

THE DIFFERENT TEMPERATURE SETTINGS : below are a few examples which are given as guidelines. When you become more familiar with the appliance, you will be able to choose settings to suit your own personal tastes and requirements.

Positions		Some tips ......
1	Very low	To keep a dish hot, melt butter and chocolate ....
2	Low	Slow cooking, sauces, stews, rice pudding, poached eggs ...
3	Moderately	Beans, frozen foods, fruit, boiling water ....
4	Medium	Steamed apples, fresh vegetables, pasta, crepes, fish ....
5	High	More intense cooking, omelettes, steaks ....
6	Very high	Steaks, chops, frying...

For information, we note below the different powers reached according to the type of the plate and the control knob setting.

ELECTRICAL HOT PLATE	POSITIONS
7 positions	0	1	2	3	4	5	6
Ø145 - 1000 W front right	S	100	165	250	500	750	1000
Ø180 - 1500 W rear right	T	135	220	300	850	1150	1500
Ø145 - 1500 W rear left	O	135	165	250	500	750	1500
Ø180 - 2000 W front left	P	175	220	300	850	1150	2000

Cooking with the electric hot plate

To gest the best results from your appliance it is important to observe the following :

• Use thick, flat-bottomed cooking vessels, a completely flat bottom prevents the overheating of some points which cause food to stick. Thick metal allows for good heat distribution.
• Make sure that the bottoms of pans are dry : this will prevent things from sticking to the hot plate because of moisture.
• Use pans with a diameter large enough to completely cover the hot plate, otherwise some of the energy will be wasted and if there are any spillages the hot plate will quickly become stained and difficult to maintain (rust, etc).
• Never leave a hot plate switched on without a pan on it: it could become deformed, which would reduce its efficiency.
• When cooking with fat or oil, do not remove the pan from the hob. Very hot fats and oils can quickly catch fire.
• When the hot plate is hot, avoid any contact with materials made of plastic or aluminium foil.

Warning : during the hot plate is operating, it becomes hot, keep children away from it.

MAINTENANCE

Before all cleaning or dismantling operation, it is imperative to :

. disconnect the hob to the mains supply.
. let all parts of the hob cool down.

Never use :

. harsh abrasives, scouring pads or sharp object to clean the hob.

GENERAL MAINTENANCE

THE ENAMELLED HOB

. Enamelled steel hob : simply clean the enamelled hob with soapy water when the hob is cold, rinse and wipe with a clean dry cloth. If you clean the enamelled hob when it is hot, you may tarnish it.
. Stainless steel : clean with soapy water, rinse and dry. You can use a special product to clean stainless steel which is available in stores.

THE KNOBS

For thorough cleaning, the control knobs can be removed by pulling them upwards. Clean exclusively with soapy water and dry well before replacing them.

THE HOT PLATE

Heat it for a while if necessary, to burn the deposits. After switching off and cooling down of the plate, wipe it with an absorbing paper. In any cases, it is important to protect the hot plate from humidity.

Do not use abrasive products.

To maintain and preserve the appearance, rub a drop of neutral oil, such as sewing machine oil into the surface of the hot plate.

The hot plate should always be dry, or slightly greasy, if it is not to be used for some time.

Remove any rust using emery paper followed by a suitable commercially available product.

SA DES USINES DE ROSIERES - 30, rue Y. Lacelle - Rosières - 18400 LUNERY

RCS Bourges B 553 720 053 - Capital de 18 000 000 F

Tél. [phone] - Télex 780868F - Fax [phone]
