Product Type	Coin Sorter
Brand	Royal Sovereign
Model	QS-1AC
Dimensions (L x D x H)	7.1" x 11.5" x 10" (180 mm x 292 mm x 254 mm)
Weight	4.1 lbs (1.86 kg)
Power Supply	120 Vac / 60 Hz
Power Consumption	4 W
Motor Type	AC synchronous motor
Sorting Speed	Up to 200 coins per minute
Coin Types Supported	U.S. Quarters, Dimes, Nickels, Pennies
Coin Tube Capacity	Quarters: 40, Dimes: 50, Nickels: 40, Pennies: 50
Box Contents	Digital Coin Sorter, 4 Coin Tubes, 20 Preformed Coin Wrappers
Safety Features	Polarized plug, automatic jam clearance, overload protection
Material	Plastic housing
Warranty	Limited 1 Year
Operating Environment	Room temperature, avoid direct sunlight and moisture

Frequently Asked Questions - QS-1AC Royal Sovereign

What types of coins can the Royal Sovereign QS-1AC sort?

The QS-1AC sorts U.S. Quarters, Dimes, Nickels, and Pennies.

How do I use coin wrappers with the sorter?

Insert pre-formed coin wrappers all the way to the bottom of the coin tubes. Do not use bent, crushed, or folded wrappers. The sorter will automatically dispense coins into the wrappers.

What should I do if the motor does not run?

Check that the power cord is plugged in, the power switch is on, and the RUN/STOP button is pressed. Also ensure the tube trays are in the correct position (pushed all the way in or pulled all the way out).

How do I clear a coin jam?

The machine automatically tries to clear jams by reversing the agitation screw. Wait about 15 seconds. If still jammed, press RUN/STOP, loosen the hopper lid screw with a coin, lift the lid, remove the jammed item, replace the lid, and restart.

Can I use the sorter without coin wrappers?

Yes, you can use the coin tubes without wrappers. Coins will collect directly in the tubes. Remember to remove filled tubes after sorting.

What is the sorting speed of the QS-1AC?

The sorter can sort up to 200 coins per minute.

How do I use flat wrappers instead of pre-formed ones?

After sorting without wrappers, hold a flat wrapper open with your index finger, slide it over the top coins in the tube, tilt the tube to slide coins into the wrapper, then fold the top. Turn the tube upside down and remove the filled wrapper.

What should I avoid when using the sorter?

Avoid using bent, damaged, excessively dirty, or foreign coins. Do not use bent or crushed coin wrappers. Keep the machine out of direct sunlight and moisture.

What is the power requirement for the QS-1AC?

It requires 120 Vac / 60 Hz power supply and consumes 4 Watts.

How do I register my product or get warranty service?

Register at www.royalsovereign.com under customer support. For warranty service, obtain a Return Authorization number from the website, then return the product prepaid with proof of purchase and shipping payment.

USER MANUAL QS-1AC Royal Sovereign

Página en Español 9

Please read and retain these instructions

To register your product, please go to www.royalsovereign.com

-customer support-registration.

www.royalsovereign.com

Royal Sovereign International, Inc.

SAFETY PRECAUTIONS

The safety recommendations outlined in this section should be read, understood and followed before operating the machine. Keep this information for future reference.

1. To prevent the possibility of electrical shock, do not immerse machine in water or permit liquid to get inside.

2. Do not operate machine for any other purpose other than its intended use.

3. Place this machine on a level work place.

4. Do not allow any other materials to enter except coins.

5. Do not operate machine if electrical plug or power cord is damaged.

6. The machine should be placed near the electrical outlet so that the outlet is easily accessible.

7. Do not alter the electric plug in anyway.

8. Turn off the power when unattended or not in use. Unplug machine before moving it or when it is not in use for an extended period of time.

9. To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

CONTENTS

Box Contents 4

Parts 4

Features 5

Operation 6

Troubleshooting 7

Specifications 7

Warranty 8

Contact Information 8

BOX CONTENTS

Digital Coin Sorter, 4 Coin Tubes, 20 Preformed Coin Wrappers

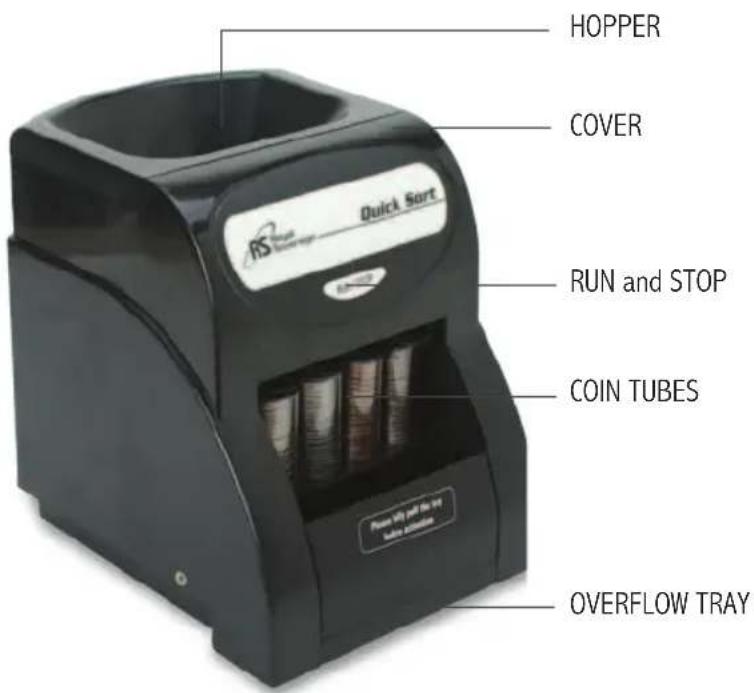

PARTS

FEATURES

1. This fast and powerful coin sorter sorts U. S. Quarters, Dimes, Nickels and Pennies.
2. There are four coin tubes included.
3. When you place good quality pre-formed coin wrappers into the proper tubes, the Quick-Sort™ Coin Sorter automatically dispenses the coins into the wrappers. The filled wrappers can then be removed with the exact number of coins.
4. It is very important that the coin wrapper be inserted all the way to the bottom of the tube. If the top of the coin wrapper is above the top of the plastic tube, the coins will not fall properly.
5. DO NOT USE BENT, CRUSHED OR FOLDED COIN WRAPPERS. These will cause improper loading.
6. DO NOT USE DAMAGED, BENT, EXCESSIVELY DIRTY OR FOREIGN COINS. THIS WILL CAUSE JAMMING, MIS-SORTING AND MISCOUNTING.
7. Because pennies and dimes are very close in size and thickness, they may sometimes sort into opposite tubes.
8. The QUICK-SORT™ Coin Sorter may be used without coin wrappers if you prefer.
9. The coin tubes can only be inserted right side up. Be sure to place them into the correct positions. The tubes are labeled on the inside base: Q, N, P, D.
10. The overflow tray catches overflow coins, redeposit coins into the top opening.

* ONE COIN TUBE QUANTITY

COIN QUANTITY		DOLLAR AMOUNT
PENNIES 50 0.50
NICKELS 40 2.00
DIMES 50 5.00
QUARTERS 40 10.00

OPERATION

1. Place QUICK-SORT™ Coin Sorter on a level work surface.
2. Connect sorter to 120V outlet.
3. Fully pull out the coin tray before activation.
4. Remove coin tubes. Place coin wrappers into correct tubes. Return all four tubes to proper positions.
5. Drop coins into hopper.
6. Switch the power to ON position, and press the button "Run/Stop"
7. Coins sort automatically.
8. After sorting is finished, press the button "Run/Stop". Then, remove the tubes.

NOTE : COINS ARE NOT ALWAYS EXACTLY THE SAME. THEY MAY BE BENT OR WORN ON THE EDGES. TO INSURE EXACT COUNTS, BE SURE THAT THE COINS ARE LEVEL WITH THE TOP EDGE OF THE PLASTIC TUBE EITHER VISUALLY OR BY RUNNING YOUR FINGER ACROSS THE TOP OF THE FILLED TUBE.

1. Remove filled wrappers by pushing up on the bottom at the base of the tube then pulling from the top.
2. Fold edges of wrapper.
3. Push the overflow tray back.
4. Keep machine out of direct sunlight and moisture.
5. Sorter operates best at room temperatures.

\* USING FLAT WRAPPERS

1. Allow coins to fall directly into plastic tubes. Do not place flat wrappers into plastic tubes while operating.
2. Remove full coin tubes after sorting.
3. Hold a flat wrapper open by placing your index finger slightly inside the end of the wrapper. Slide the flat wrapper over the top few coins in the tube.
4. While gently pushing the wrapper toward the bottom of the coin tube, tilt the coin tube so that the coins slide into the wrapper. When the wrapper touches the bottom of the coin tube, hold the tube upright, fold the top of the wrapper.
5. Turn the coin tube upside down and remove the coin-filled wrapper. Fold over the other end of the wrapper.

TROUBLESHOOTING

Symptom Solutions
1. Motor does not run	Check that the power cord is plugged in.Check that the power switch is turned on.Press the RUN/STOP button again.Check that the tube trays are in the correct position: pushed all the way in or pulled all the way out.
2. Coins are not sorting into tubes.	Foreign objects and bent, damaged, or sticky coins may cause the machine to jam.This machine is designed to resolve jams automatically. Wait about 15 seconds as the agitation screw and the running vessel rotate back and forth to release the jam.Tap machine gently on the side to loosen jam.If the machine is still not sorting, push the RUN/STOP button.Loosen the Hopper Lid Screw with a coin.Lift the Hopper Lid exposing the Running Vessel.Retrieve jammed item and replace Hopper Lid.Screw Hopper Lid and push RUN/STOP to start sorting again.

SPECIFICATIONS

MODEL QS-1AC
DIMENSIONS (L) x (D) x (H)	7.1" x 11.5" x 10"180mm x 292 mm x 254mm
SORTING SPEED Up to 200 coins / min
MOTOR TYPE AC synchronous motor
POWER CONSUMPTION 4 W
POWER SUPPLY 120Vac / 60Hz
WEIGHT 4.1 lbs

LIMITED ONE YEAR WARRANTY

This warranty applies to repair or replacement of product found to be defective in material or workmanship for one year from the date of the original purchase. This warranty is extended only to the original purchaser.

This warranty does not apply to damage resulting from abuse, misuse, or improper maintenance of damage that is attributable to acts of nature. Royal Sovereign International, Inc. (and its affiliated companies) is not liable for incidental or consequential damages of any nature. This limitation would not apply if you live in those areas that do not permit the exclusion or limitation of incidental or consequential damages.

Defective products for warranty repair or replacement cannot be returned without a Return Authorization number. Please go to www.royalsovereign.com USA-Customer Support Tab to make a request for an Office Product Return Authorization.

Defective products must be returned to Royal Sovereign International Consumer Return Department, freight prepaid, with proof of purchase and Return Shipping and Handling payment (check or money order). Upon repair or replacement the product will be returned to the customer.

Return defective product to the following address with a detailed description of the problem. If possible, pack in original carton. Please prepay shipping charges.

For out of warranty service or frequently asked questions please go to www.royalsovereign.com USA- Customer Support Tab.

For sales of product, parts or accessories please visit us at www.royalfulfillmentcorp.com.

For service or sales please contact your local Royal Sovereign Office:

ROYAL SOVEREIGN INTERNATIONAL, INC.

2 Volvo Drive Rockleigh, NJ 07647 USA

TEL: [phone] FAX: [phone]

www.royalsovereign.com

www.royalsovereign.com

Royal Sovereign International, Inc.

www.royalsovereign.com
