Product Type	Portable Media Player
Brand	Sanyo
Model	VWM-950
Dimensions (W x H x D)	12.5 cm x 7.0 cm x 2.0 cm
Weight	180 g (including battery)
Power Source	Rechargeable lithium-ion battery (3.7V, 1500mAh) or USB power (5V)
Display	2.4-inch TFT LCD (320x240 pixels)
Supported Audio Formats	MP3, WMA, WAV, FLAC, APE
Supported Video Formats	AVI, MP4, RMVB, FLV, MKV
Storage Capacity	8 GB internal, expandable via SD card (up to 32 GB)
Main Functions	Music playback, video playback, FM radio, voice recording, photo viewer, e-book reader, file browser
Connectivity	USB 2.0, 3.5mm headphone jack, microSD slot
Battery Life	Up to 8 hours audio playback, 4 hours video playback
Charging Time	Approx. 2.5 hours
Care and Cleaning	Wipe with a dry, soft cloth. Avoid solvents or abrasive cleaners. Keep away from moisture and extreme temperatures.
Safety Precautions	Do not disassemble. Use only approved charger. Do not expose to water or fire. Keep out of reach of small children.
Spare Parts and Repairability	Battery and screen are replaceable by qualified technicians. Contact Sanyo support for spare parts.
Warranty	1 year limited warranty

Frequently Asked Questions - VWM-950 SANYO

How do I transfer music to the Sanyo VWM-950?

Connect the device to your computer via USB. It will appear as a removable drive. Drag and drop music files into the appropriate folder. Supported formats include MP3, WMA, and FLAC.

What video formats are supported?

The device supports AVI, MP4, RMVB, FLV, and MKV formats. For best compatibility, convert videos to AVI or MP4 using a standard codec.

Can I use an SD card to expand storage?

Yes, the VWM-950 has a microSD slot that supports cards up to 32 GB. Insert the card with the metal contacts facing down.

How do I set the FM radio?

Go to the FM radio mode from the main menu. Press the play/pause button to start auto-scanning for stations. Save favorites by holding the number button.

The device won't turn on. What should I do?

Ensure the battery is charged. Connect the device to a USB charger for at least 30 minutes. If still unresponsive, reset by inserting a pin into the reset hole on the bottom.

How do I record voice?

Select Voice Recorder from the main menu. Press the record button to start, and press again to stop. Files are saved in WAV format in the Recordings folder.

Can I read e-books on this device?

Yes, it supports TXT format. Copy your text files to the E-Book folder. Use the directional pad to scroll and turn pages.

How to clean the screen?

Turn off the device and wipe the screen gently with a soft, dry microfiber cloth. Do not use liquids or harsh chemicals.

Is the battery removable?

The battery is internal and not user-removable. For replacement, contact Sanyo service center or a qualified technician.

Why is the display flickering?

Flickering may occur due to low battery or loose connection. Charge the device fully. If persists, try resetting the device. Ensure that the backlight timeout is not set too low.

USER MANUAL VWM-950 SANYO

4 Plug the AC power cords of the VCR and TV into the AC outlets.

Hints for Cable Box or Satellite Box

Select this connection when you want to view or record a scrambled channel. With this connection, channels cannot be changed on the VCR. You can view or record ONLY the channels you have selected on the cable box or the satellite box.

- While you are recording, only the recorded channel can be viewed.

To select channels of the cable box or satellite box

1) Turn on the unit by pressing [POWER], then press [VCR/TV]. The "POWER" and the "VCR/TV" lights on the front panel will appear, then press [CHANNEL NV] to select channel 3 or 4 (the same channel as the output channel of the cable box or satellite box). • If you use the channel 4, you need to change the unit's RF output to channel 4. Refer to "RF Output Channel".

2) On the TV, select channel 3 or 4 (the same channel as you have selected at step 1). 3) On the cable box or satellite box, select the channel you want to view or record.

Select this connection when you want to change channels on the unit. With this connection, you may watch one channel while recording another.

- You may not view or record a scrambled channel.

To select channels of the cable box

1) On the cable box, select channel 3 or 4 (the same channel as the VCR's RF output channel.) • Refer to "RF Output Channel".

2) On the TV, select the same channel as the output channel (3 or 4) of the cable box.

3) Turn on the unit by pressing [POWER], then press [VCR/TV]. The "POWER" and "VCR/TV" lights on the front panel will appear, then select the channel you want to view or record.

To play back a tape

Follow the steps 1) to 2) above, then play back a tape. - Refer to "Playback" on page 4.

To view one channel while recording another 1) While you are recording on the unit, press [VCR/TV]. 2) On the cable box, select the channel you want to view.

RF Output Channel

If channel 3 is already occupied for broadcasting,

1) Set your TV to channel 4.
2) Insert a pre-recorded tape into this unit.
3) Press [PLAY▶] once to start playback.
4) After a few seconds, press [PLAY▶] on the unit for 3 seconds. • The RF output channel will change to channel 4 from channel 3 and you will see a playback picture.
- When a picture does not appear on the TV screen, repeat step 4).
5) Press [■ STOP] to stop playback.

Stereo TV Connection

You can use the AUDIO OUT jacks and VIDEO OUT jack on the back of the unit if your TV has Audio/Video Input jacks. In this case, you need to set the TV to external Line Input Mode. Please refer to your TV's owner's manual.

(Back of TV)

Front & Rear Terminals

Supplied Accessory

- Remote control

(NA323) with

two AA batteries

- RF cable

• Instruction manual

- Quick setup guide

Printed in China

Installing the Batteries for the Remote Control

Install two AA batter

(supplied) matching

polarity indicated on

the bottom of the

remote control.

81VMN20401---/HJ420UD ★★★★★

2. IMPORTANT SAFEGUARDS

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

The caution marking is located on the rear of the cabinet.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

1. Read Instructions- All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
5. Cleaning- Unplug this video product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
   EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.
6. Attachments- Do not use attachments not recommended by the video product manufacturer as they may cause hazards.
7. Water and Moisture- Do not use this video product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.
8. Accessories- Do not place this video product on an unstable cart, stand, tripod, bracket, or table. The video product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the video product.

Any mounting of the appliance should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

1. Ventilation- Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the video product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the video product on a bed, sofa, rug, or other similar surface. This video product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
2. Power Sources- This video product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
3. Grounding or Polarization- This video product is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

1. Power Cord Protection- Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
2. Outdoor Antenna Grounding- If an outside antenna or cable system is connected to the video product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

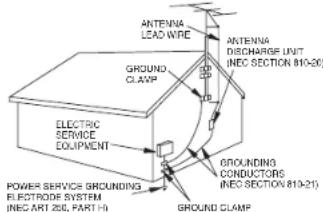

FIGURE A
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE

NEC - NATIONAL ELECTRICAL CODE S2898A

1. Lightning- For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the video product due to lightning and power-line surges.
2. Power Lines- An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

3. Overloading- Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

4. Object and Liquid Entry- Never push objects of any kind into this video product through any openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the video product.

5. Servicing- Do not attempt to service this video product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
6. Damage Requiring Service- Unplug this video product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
   a. When the power-supply cord or plug is damaged.
   b. If liquid has been spilled, or objects have fallen into the video product.
   c. If the video product has been exposed to rain or water.
   d. If the video product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.
   e. If the video product has been dropped or damaged in any way.
7. When the video product exhibits a distinct change in performance—this indicates a need for service.
8. Replacement Parts- When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
9. Safety Check- Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine that the video product is in proper operating condition.
10. Heat- This video product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

3. Preparation for Use

Turn On the Unit for the First Time

Do you connect the cable of the cable box or the satellite box to the unit's ANT-IN jack?
No/ Please wait for a few minutes. After scanning...
• The tuner stops on the lowest memorized channel.
- You can select only the channels memorized in this unit by using [CHANNEL ^/∨].
- If "AUTO SET UP" appears on the TV screen again, check the cable connections. Then, press [F.FWD ▶▶] once again.

Hint

- Repeat these steps only if either there was a power failure or this unit has been unplugged for more than 30 seconds.

To Select a Channel

You can select a channel by using the Number buttons on the remote control.

Notes for using the Number buttons:

- When selecting cable channels which are higher than 99, enter channel numbers as a three-digit number. (For example: 117, press [1], [1], [7]) - You must precede single-digit channel numbers with a zero (For example: 02, 03, 04 and so on).

To Preset the Channel Again

1) Press [MENU] until the main menu appears.

2) Press [PLAY▶] or [■STOP] to select "CHANNEL SET UP", then press [F.FWD▶▶].

3) Press [PLAY▶] or [■STOP] to select "AUTO SET UP", then press

[F.FWD▶▶]. After scanning, the tuner stops on the lowest memorized channel.

To Change the On-Screen Language

1) Press [MENU] until the main menu appears.

2) Press [PLAY▶] or [■STOP] to select "LANGUAGE SELECT", then press [F.FWD▶▶].

3) Press [PLAY▶] or [■ STOP] to select "ENGLISH", "FRANCAIS" or "ESPAÑOL", then press [C.RESET/EXIT].

Hint

- If you accidentally select Spanish or French and need English: Press [MENU] and choose SELEC. IDIOMA, or SELECTION LANGUE. Press [F.FWD ▶▶] and select ENGLISH. Finally, press [C.RESET/EXIT].

Need help? Call 1-800-813-3435

To Add/Delete Channels

Clock Set Up

Hint

• To go back one step, press [◀◀ REW] (during the steps 2) to 7).
- Your clock setting will be lost if either there is a power failure or this unit has been unplugged for more than 30 seconds.

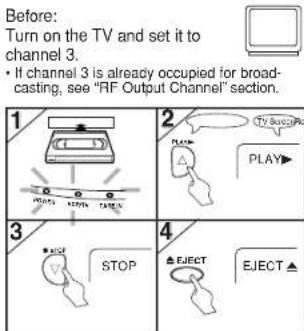

4. Playback

Hint

- When a tape without record tab is inserted, the unit will start playback automatically at step 1).

- Tracking will be automatically adjusted upon playback. To adjust the tracking manually, press [CHANNEL ∧/∨].

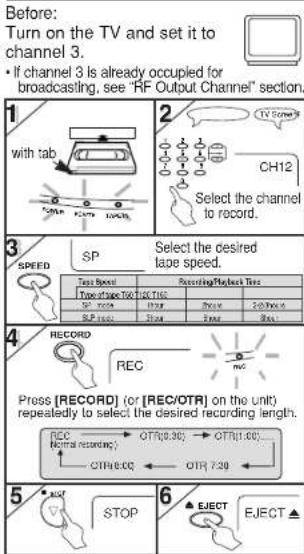

5. Recording & OTR (One Touch Recording)

Accidental erasure prevention
To prevent accidental recording on a recorded cassette, remove its record tab. To record on it later, cover the hole with adhesive tape.

Hint
- If you have connected this unit to a cable box or satellite box, refer to "Hints for Cable Box or Satellite Box" section on page 1.

Need help? Call 1-800-813-3435

6. Other Operations

To cue or review picture during play-back (Picture Search)

Press [F.FWD▶▶] or [◀◀ REW]. - Press it again and the VCR will now search in super high speed. (in the LP/SLP modes only)

To freeze the picture on TV screen during playback (Still mode)

Press [PAUSE/STILL]. Each time you press the button, the picture will be forwarded by one frame. • If the picture begins to vibrate vertically during the still mode, press

[CHANNEL ∧/V] to stabilize the • If the picture is distorted or rolling vertically, adjust the vertical hold control on your TV if equipped.

Counter Reset

Press [C.RESET/EXIT].

To play back in slow motion Press [SLOW] during playback or the still mode.

- If the noise bar appears on the TV screen, you can reduce it by pressing [CHANNEL ∧/∨].

To temporarily stop recording (Pause mode)

Press [PAUSE/STILL].
- During the rec pause mode, five marks appear on the TV screen. Each mark represents one minute.
- Press it again to resume recording.

cture Auto Rewind

When a tape reaches its end during play-back, fast-forward, or recording (except timer recording and One Touch Recording), the tape will automatically rewind to the beginning. After rewinding finishes, the unit will eject the tape and turn itself to off.

Hint

- Still/Slow/Pause mode will be automatically cancelled after 5 minutes to prevent damage to the tape and the video head.

• To return to playback from the Picture Search/Still/Slow mode, press[PLAY▶].

7. On-Screen Operations

EN

8. Recording Features

Timer Recording

- Insert a tape with its record tab into the unit.

1) Press the [POWER] to turn on the power.

2) Press [MENU] to select the main menu.

3) Press [PLAY▶] or [■ STOP] to select "TIMER PROGRAM-MING", then press [EFWD▶].

4) Press [PLAY▶] or [■ STOP] to select the program number which you want to check. The details of the program you selected will appear on the TV screen.

- Press [F.FWD▶▶] or [◀◀ REW] to go the digit you want to change, then press [PLAY▶] or [■ STOP] to enter correct numbers.

- You may cancel the entire program by pressing [◀◀ REW] while the program number flashes.

5) Press [C.RESET/EXIT] to exit. 6) Press [POWER] to return to timer stand-by mode.

Hints for Timer Recording

• If there is a power failure or the unit has been unplugged for more than 30 seconds, the clock setting and all timer settings will be lost.
• If the tape runs out before the end time, the unit will switch to the Stop mode immediately, eject the tape and the power will be turned off. The TIMER indicator will flash.
• If a tape is not in the unit or does not have the record tab, the TIMER indicator flashes and timer recording cannot be performed. Please insert a recordable tape.
• When all the Timer Recording are completed, the TIMER indicator flashes. To play or eject the recorded tape, press [POWER] first, and then press [PLAY▶] or [▲ EJECT].

To cancel a Timer Recording that is in progress

Press [STOP/EJECT ■ / ▲] on the unit.

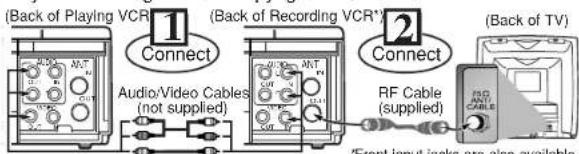

Copying a Video Tape

Warning: Unauthorized recordings of copyrighted video tapes may be an infringement of copyright laws.

1) Insert a pre-recorded tape into the playing VCR.
2) Insert a tape with its record tab into the recording VCR.
3) Press [SPEED] on the remote control of the recording VCR to select the desired recording speed ("SP" or "SLP").
4) Select the "L1" or "L2" position on the recording VCR. • To use the input jacks on the back of this unit, press[0], [0], [1] on the remote control or [CHANNEL ∧/∨] to select "L1" position. • To use the input jacks on the front of this unit, press[0], [0], [2] on the remote control or [CHANNEL ∧/∨] to select "L2" position.

5) Press [REC/OTR] on the recording VCR.

6) Begin playback of the tape in the playing VCR.

7) To stop recording, press [STOP/EJECT ■ / ▲] on the recording VCR, then stop playback of the tape in the playing VCR.

Hint

• For best results during dubbing, use the VCR's front panel controls whenever possible. The remote control might affect the playing VCR's operation.
  • Always use video-quality shielded cables with RCA-type connectors. Standard audio cables are not recommended.
• You can use a video disc player, satellite receiver, or other audio/video component with A/V outputs.
• "L1" or "L2" is found before the lowest memorized channel (example: CH02).
  • "L2" input jacks are on the front of this unit.

9. Special Features

Index Search

You can skip the program backward and forward by the Index Mark.

- Insert a tape into this unit.

Hint

• The unit records an index mark at the beginning of the recording when you make a recording. There should be time gap between index marks for the Index Search.

Hints for Index Search & Time Search

• These functions are not available during recording.

- Press [■ STOP] to stop the search.

- If the end of the tape is reached during a Search, the VCR will cancel the search and rewind the tape.

Time Search

You can search backward and forward a specific length of time on a tape.

- Insert a tape into this unit.

2 Select the desired length of time for fast forwarding or rewinding.

Auto Repeat

This function will play back a tape repeatedly from the beginning when the tape reaches to the end.

- Insert a tape into this unit.

Hint

- To cancel Auto Repeat, follow steps 1) to 2) above. Then, press [F.FWD ▶▶] so that [OFF] appears beside AUTO REPEAT. Press [C.RESET/EXIT] to exit. - If menu remains on the TV screen at step 3), press [C.RESET/EXIT] to exit.

Need help? Call 1-800-813-3435

10. MTS System (Multi-Channel Television Sound)

When You Receive or Record a Program Broadcast in MTS

• When you receive a broadcast on the VCR, you can check the type of the broadcast by pressing [DISPLAY].
• When "TV STEREO" or "SAP" selection is valid, select them by following steps. This selection is needed when you record the program.
• SAP means Second Audio Program (usually second language).

Display on the TV screen	Type of broadcast	STENEGSAP Selection
-None-	Regular broadcast radio	-invisible-
STEREO	Stereo broadcast	-invisible-
SAP	Bilingual broadcast	TV STENEO (main auto program)
		SAP (second auto program)
STEREO SAP	Stereo & Bilingual broadcast	TV STENEO (main auto program)
		SAP (second auto program)

When You Play Back a Tape Recorded in Hi-Fi Stereo

• If you have connected a stereo TV to this unit, select "HIFI".
• If you have connected a monaural TV to this unit, select "MONO".

Type of recorded tape	HPI		MONO
	L-channel	R-channel
non Hi-Fi tapes	Vancead	Vancead	Horserud
Hi-Fi tapes recorded in Hi-Fi stereo	L	S	L+R
Hi-Fi tapes recorded main audio program	Main audio program	Main audio program	Main audio program
Hi-Fi tapes recorded second audio program	Second audio program	Second audio program	Second audio program

11. Important Information

Install Location

For safety and optimum performance of this unit:
- Install the unit in a horizontal and stable position. Do not place anything directly on top of the unit. Do not place the unit directly on top of the TV.
- Shield it from direct sunlight and keep it away from sources of intense heat. Avoid dusty or humid places. Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes on the sides of the unit. Avoid locations subject to strong vibration or strong magnetic fields.

Avoid the Hazards of Electrical Shock and Fire

• Do not handle the power cord with wet hands.
• Do not pull on the power cord when disconnecting it from AC wall outlet. Grasp it by the plug.

Moisture Condensation Warning

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. Do not use the unit at least for 2 hours until its inside is dry.

FCC Warning

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

Important Copyright Information

Unauthorized recording or use of broadcast television programming, video tape, film or other copyrighted material may violate applicable copyright laws. We assume no responsibility for the unauthorized duplication, use, or other acts which infringe upon the rights of copyright owners.

A Note about Recycling

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations. Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Note to the Cable TV System Installer

This reminder is provided to call the Cable TV system installer's attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground should be connected to the grounding system of the building, as close to the point of cable entry as practical.

CAUTION:

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION:

POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.

12. Maintenance

Cabinet Cleaning

• Wipe the front panel and other exterior surfaces of the unit with a soft cloth immersed in lukewarm water and wrung dry.
• Never use a solvent or alcohol. Do not spray insecticide liquid near the unit. Such chemicals may cause damage and discoloration to the exposed surfaces.

Need help? Call 1-800-813-3435

Auto Head Cleaning

• Automatically cleans video heads as you insert or remove a cassette, so you can see a clear picture.
- Playback picture may become blurred or interrupted while the TV program reception is clear. Dirt accumulated on the video heads after long periods of use, or the usage of rental or worn tapes can cause this problem. If a streaky or snowy picture appears during playback, the video heads in your unit may need to be cleaned.
1. Please visit your local Audio/Video store and purchase a good quality VHS Video Head Cleaner.
2. If a Video Head Cleaner does not solve the problem, please call our help line mentioned left to locate an Authorized Service Center.

NOTES:

• Remember to read the instructions along with the video head cleaner before use.
• Clean video heads only when problems occur.

13. Specifications

Video Heads : Four Heads

Operating temperature : 41°F\~104°F (5°C\~40°C)

Converter output : VHF Channel 3 or 4.

Power source : 120V, 60Hz

Power consumption : 14 Watts

Dimensions : W 14-3/16 " (360mm)

H 3-5/8" (92mm) D 8-9/16" (216mm)

Weight : Approx. 4.0 lbs. (1.8 Kg.)

• Designs and specifications are subject to change without notice and legal obligation.
• If there is a discrepancy between languages, the default language will be English.

Make your contribution to the environment!!!

• Used up batteries do not belong in the dust bin.
- You can dispose of them at a collection point for used up batteries or special waste. Contact your council for details.

14. Troubleshooting Guide

If this unit does not perform properly when operated as instructed in this Instruction Manual, check this unit consulting the following checklist.

PROBLEM	CORRECTIVE ACTION
No power.	Make sure the power plug is connected to an AC outlet.Make sure the power is turned on.
Timer recording is impossible.	Make sure the timer recording is set correctly.Make sure the power is off.Make sure the VCR clock is set correctly.
Cannot go into Recording mode.	Make sure the tape has a record tab. If needed, cover the hole with adhesive tape.
Playback picture is partially noisy.	Press [CHANNEL ∧∨] to adjust tracking control for a better picture.
Cannot view a tape but the audio is OK.	Head cleaning may be necessary. Refer to “Auto Head Cleaning” on page 7.Make sure the unit is not in the Menu mode.
No or poor playback picture.	Change the RF output channel to CH4. Then select the same channel on the TV. Refer to “RF Output Channel” on page 1.Fine tune your TV.
TV programs cannot be seen normally.	Re-check the ANT IN and ANT OUT connections. See page 1.Press [VCR/TV] on the remote control so that the VCR/TV indicator on the unit disappears.
No operation from the infrared Remote Control.	Make sure the power plug is connected to an AC outlet.Check batteries in remote control.
Video or color fades in and out when making a copy of a video tape.	You cannot copy a copyrighted video tape.You are experiencing copy guard protection.

Servicing:

Should this product require service, refer to the SANYO VIDEO limited warranty. If you do not have a convenient SANYO service station nearby, contact the SANYO dealer where you purchased the unit. Be sure to give the model number and explain the problem. The dealer will advise you how to obtain service.

For assistance in obtaining repairs and operational information, please contact the following Toll Free Number:

DIAL TOLL FREE: 1-800-813-3435

Weekdays: 7:30 AM - 4:00 PM Central Time

Also, you may write to SANYO Manufacturing Corporation, 3333 Sanyo Road, Forrest City, Arkansas 72335.

Limited Warranty

LABOR 1 YEAR PARTS 1 YEAR

CARRY-IN ONLY

THIS WARRANTY IS VALID ONLY ON SANYO PRODUCTS PURCHASED FROM A WAL-MART STORE AND USED IN THE UNITED STATES OF AMERICA, EXCLUDING HAWAII AND ALL U.S. TERRITORIES AND PROTECTORATES. THIS WARRANTY APPLIES ONLY TO THE ORIGINAL RETAIL PURCHASER AND DOES NOT APPLY TO PRODUCTS USED FOR ANY INDUSTRIAL, PROFESSIONAL OR COMMERCIAL PURPOSE.

Subject to the OBLIGATIONS and EXCLUSIONS below, SANYO Manufacturing Corporation ("SANYO") warrants this SANYO product against defects in materials and workmanship for the periods of LABOR and PARTS specified above. SANYO will repair or replace (at its option) the product and any of its parts which fail to conform to this warranty with new or refurbished products or parts.

The warranty period commences on the date the product was first purchased at retail from a Wal-Mart Store.

OBLIGATIONS

In order to obtain warranty service, the product must be delivered to and picked up from a Wal-Mart Store at the original retail purchaser's expense. The original dated bill of sale, or sales slip from a Wal-Mart Store must be submitted to a Wal-Mart Store at the time warranty service is requested.

EXCLUSIONS

1. This warranty does not cover (A) the adjustment of customer-operated controls as explained in the appropriate model's instruction manual, or (B) the repair of any product whose serial number has been altered, defaced or removed.

2. This warranty shall not apply to the cabinet or cosmetic parts, broken or damaged video heads, batteries or routine maintenance.

3. This warranty does not apply to uncrating, setup, installation, removal of the product for repair or reinstallation of the product after repair.

4. This warranty does not apply to repairs or replacements necessitated by any cause beyond the control of SANYO including, but not limited to, any malfunction, defect or failure caused by or resulting from unauthorized service or parts, improper maintenance, operation contrary to furnished instructions, shipping or transit accidents, modification or repair by user or any third party, abuse, misuse, neglect, accident, incorrect line voltage, fire, flood or other Acts of God, or normal wear and tear.

The foregoing is in lieu of all other express warranties and SANYO does not assume or authorize any party to assume for it any other obligation or liability.

THE DURATION OF ANY WARRANTIES WHICH MAY BE IMPLIED BY LAW (INCLUDING THE WARRANTIES OF MER CHANTABILITY AND FITNESS) IS LIMITED TO THE TERM OF THIS WARRANTY. IN NO EVENT SHALL SANYO OR THE MANUFACTURER OF THE PRODUCT BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM OWNERSHIP OR USE OF THIS PRODUCT, OR FOR ANY DELAY IN THE PERFORMANCE OF ITS OBLIGATIONS UNDER THIS WARRANTY DUE TO CAUSES BEYOND ITS CONTROL.

SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE EXCLUSION OR LIMITATION OF CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIAL LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. R03/12/18 (M)

For your protection in the event of theft or loss of this product, please keep the following information with a sales receipt in a safe place.

Model No.

Serial No.

Date of Purchase

Purchase Price

Where Purchased

SANYO

SANYO Manufacturing Corporation

SANYO Electric Co., Ltd.

Consejo

SANYO Manufacturing Corporation

SANYO Electric Co., Ltd.
