Brand	Black & Decker
Model	BXCSH2000E
Product type	Electric convector
Power supply	230 V ~ 50 Hz
Rated power	2000 W (max) / 1900 W (nominal)
Power levels	2 (1250 W and 2000 W) + Turbo mode
Thermostat	Mechanical, adjustable
Overheat protection	Yes, built-in safety device
Protection rating	IPX0 (indoor use only)
Mounting	On included feet, floor standing
Safety distance	50 cm minimum from combustible materials
Carrying handle	Yes, side
Cleaning	Damp cloth with mild detergent
Usage	Domestic, indoor, well-insulated rooms
Warranty	Legal warranty, approved after-sales service
Repairability	Original spare parts via approved after-sales service
Cable length	Approximately 1.5 m
Weight	Approximately 3.5 kg
Dimensions (approx.)	H 45 cm x W 40 cm x D 20 cm

Frequently Asked Questions - BXCSH2000E BLACK & DECKER

How to correctly install the BXCSH2000E convector?

Place the appliance on a flat, stable surface, at least 50 cm from any combustible materials (curtains, furniture). Make sure to mount the provided feet before first use. Never place the appliance under a power outlet.

What are the available power settings?

The power selector (A) offers 4 positions: I (1250 W), II (2000 W), I+Turbo (1250 W with Turbo) and II+Turbo (2000 W with Turbo). Turbo mode probably activates continuous power. Use the thermostat (B) to set the desired temperature.

What to do if the appliance turns off by itself?

This may be due to overheating. Check that the air vents are not blocked. If the problem persists, unplug the appliance, wait 15 minutes and plug it back in. If the shutdown repeats, contact an approved technical service.

Can I use the appliance in a bathroom?

No, the appliance is not designed for use near water points (bathtub, shower, pool). It should be used in a dry place indoors.

How to clean the BXCSH2000E convector?

Unplug the appliance and wait for it to cool down. Clean it with a damp cloth moistened with a few drops of mild detergent. Do not immerse in water or use solvents or abrasive products. Make sure the ventilation openings remain clean.

Does the thermostat completely turn off the appliance?

No, the minimum position (MIN) of the thermostat does not guarantee complete shutdown. To completely turn off the appliance, set the power selector to 0 and unplug the power cord.

What is the power consumption in standby?

According to the technical data sheet, the consumption in standby mode is 0.0 kW, which means the appliance does not have active standby. Make sure to unplug the appliance when not in use.

Can I use this appliance to dry clothes?

No, do not use for drying clothes or textiles. The appliance should not be covered, as this could cause overheating and a fire hazard.

What is the procedure for operating the appliance for the first time?

Remove all packaging, mount the feet. Fully unwind the cable. Plug in the appliance, set the selector to the desired position and turn the thermostat. It is normal for a little smoke to be emitted during first use; run at full power for 2 hours in a ventilated room.

What to do if the power cord is damaged?

Do not use the appliance. The damaged cord must be replaced by an approved technical support service to avoid any risk of electric shock. Do not attempt to repair yourself.

USER MANUAL BXCSH2000E BLACK & DECKER

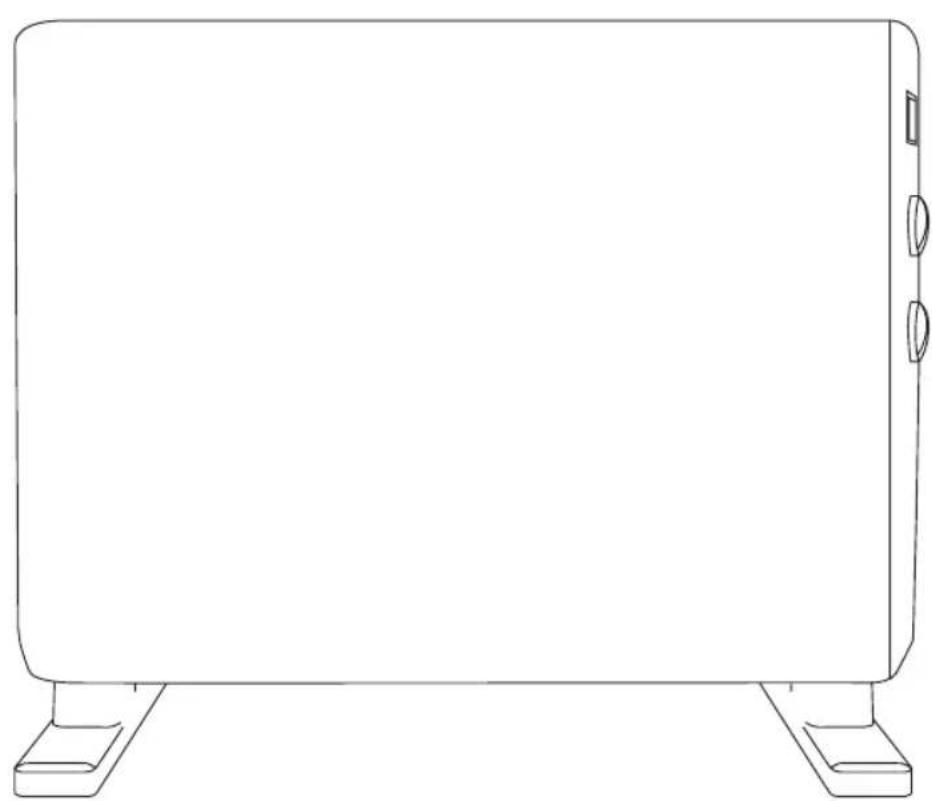

Line drawing of a flat-screen electrical heating element with three buttons and base legs (no text or symbols)

EN: This product is only suitable for well insulated spaces or occasional use.

Many thanks for choosing to purchase a BLACK+DECKER brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could result in an accident.

SAFETY ADVICE AND WARNINGS

♦ CAUTION: Some parts of this product may become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

◆ The appliance must not be placed below a power socket.
◆ Children of less than 3 years should be kept away unless continuously supervised.
Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
◆ This appliance can be used by chil-

dren aged 8 and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or given instructions concerning use of the appliance in a safe way and understand the hazards involved.

◆ Cleaning and user maintenance must not be done by children unless supervised.
◆ Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
◆ Do not use the appliance near bath-tubs, showers or swimming pools.
If the mains connection is damaged, it must be replaced. Take the appliance to an authorised Technical Assistance Service In order to prevent any danger, do not attempt to dismantle or repair it yourself.
- This appliance is for household use only, not professional or industrial use.

This symbol means that product can't be covered.

◆ WARNING: In order to prevent overheating do not cover the appliance.

ENGLISH

(Original instructions)

- Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.

◆ Connect the appliance to a 16 amp earthed mains socket.

- The appliance's plug must fit into the mains socket properly. Do not modify the plug. Do not use plug adaptors.

◆ Use the appliance in a well ventilated area.

Make sure the room is adequately ventilated, if other appliances are used in the same room and at the same time that are powered by gas or other types of fuel.

◆ The appliance should be used and placed on a flat and stable surface.

◆ Place the appliance on a horizontal, flat, stable surface, suitable for withstanding high temperatures and away from other heat sources and contact with water.

◆ Keep the appliance away from flammable material such as textiles, cardboard or paper, etc.

◆ Install the appliance a minimum distance of 50cm away from combustible materials, such as curtains, furniture ...

- Do not place inflammable material near the appliance.

◆ Ensure that neither the air inlet or outlet become totally or partially covered by drapery, clothing, etc., as this increases the risk of fire.

Do not use the appliance in conjunction with a programmer, timer or other device automatically connected to it.

- Do not use the appliance if the cable or plug is damaged.

If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

♦ WARNING: Maintain the appliance dry.

♦ WARNING: Do not use the appliance near water.

Do not use the appliance with damp hands or feet, or when barefooted.

Do not stretch the mains cable. Never use the mains cable to lift, carry or unplug the appliance.

◆ Do not wrap the cable around the appliance.

◆ Ensure that the electric cable does not get trapped or tangled.

- Do not allow the connection cable to come into contact with the appliance's hot surfaces.

- Keep the appliance away from sources of heat, oils, sharp edges or moving objects.

◆ Check the condition of the mains cable. Damaged or twisted cables increase the risk of electric shock.

◆ This appliance is not suitable for outdoor use.

- The power cord must be regularly examined for signs of damage and if damaged, the appliance must not be used.

As an additional protection to the electrical supply for the appliance, it is advisable to have a differential current device with a maximum sensitivity of 30mA. Ask for advice from a competent installer.
◆ Do not use or store the appliance outdoors.
Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
♦ Do not touch the plug with wet hands.
Do not use the appliance, in the case persons insensitive to heat (the appliance has heated surfaces).
- Do not touch any heated parts, as this may cause serious burns.
- The temperature of the accessible surfaces may be high when the appliance is in use.

Use and care:

◆ Fully unroll the appliance's power cable before each use.
- Do not use the appliance if the on/off switch does not work.
◆ Use the appliance handle/s, to lift or move it.
◆ Do not use the appliance at an angle or turn it over.
- Do not turn the appliance over while it is in use or connected to the mains.
◆ Unplug the appliance from the mains when not in use and before undertaking any cleaning task.
◆ Store this appliance out of reach of children and/or those with reduced physical, sensory or mental capabilities or those who are unfamiliar with its use
◆ Do not store or transport the appliance if it is still hot.
- Keep the appliance in a dry, dust-free place, out of direct sunlight.
◆ Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.
◆ Never leave the appliance unattended while in use.
- Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.
◆ Do not use the appliance to dry pets or animals.
◆ Do not use the appliance to dry garments of any kind.
♦ WARNING: Do not sleep while using this appliance, as there is risk you could be harmed.
- Turning the thermostat control to the minimum (MIN) setting does not guarantee that the apliance is switched off completely.

Service:

◆ Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or acces-

sories are used to replace existing parts/accessories.

◆ WARNING: There is a risk of fire if the appliance is not cleaned according to these instructions.
- Misuse or failure to follow the instructions may be dangerous and renders the manufacturer's guarantee null and void.

DESCRIPTION

A Power regulator control

B Thermostat

C Carry handle

D Base feet

Fitting the base feet

◆ The appliance has some base feet (D) on which the product can be supported.
◆ To assemble the base feet, place the appliance face down.
◆ Fit the base feet on the main body of the appliance.
◆ Attach the base feet to the body of the appliance using the screws (Supplied with the appliance)
◆ Stand the appliance up again so as to check that the base feet work properly.

INSTRUCTIONS FOR USE

Before use:

◆ Make sure that all the product's packaging has been removed.
Some parts of the appliance have been lightly greased, consequently, the appliance may give off a light smoke the first time it is used. After a short time, this smoke will disappear.
◆ To eliminate the smell given off by the appliance when used for the first time, it is recommended to have it on at full power for 2 hours in a well-ventilated room.
◆ Prepare the appliance according to the function you wish to use.

Use:

◆ Unroll the cable completely before plugging it in.
◆ Connect the appliance to the mains.
◆ Start the appliance by turning on the power regulator.(A)
-1 1250W
-II 2000W
-1250W + Turbo
-1×2000W + Turbo

♦ Turn the thermostat control to the desired temperature position (B)

When you have finished using the appliance:

♦ Select the minimum position (MIN) using the thermostat control. (B)
♦ Turn off the appliance by selecting 0 on the power regulator. (A)
◆ Unplug the appliance to the mains.

Carry handle/s:

- This appliance has side handles which facilitate comfortable transport (C).

Safety thermal protector:

• The appliance has a safety device, which protects the appliance from overheating.
  When the appliance switches itself on and off repeatedly, for reasons other than the thermostat control, check to ensure that there are no obstacles that impede correct air entry or expulsion.
  If the appliance turns itself off and does not switch itself on again, disconnect it from the mains supply, and wait for approximately 15 minutes before reconnecting. If the machine does not start again seek authorised technical assistance.

CLEANING

◆ Disconnect the appliance from the mains and let it cool before undertaking any cleaning task.
◆ Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
- Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.
- Do not submerge the appliance in water or any other liquid, or place it under a running tap.
If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.
Remark: When the appliance is used as a heater after long periods in storage or after having been used solely as a fan a small amount of smoke may be produced. This is not important and is due to the heater burning dust deposits which have accumulated on the heating

ENGLISH

(Original instructions)

element. This phenomenon may be avoided by cleaning the inside of the appliance beforehand through the grill with a vacuum cleaner or pressurised air.

FAULTS AND REPAIR

Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair it, as this may be dangerous.

For EU product versions and/or in the case that it is requested in your country:

Ecology and recyclability of the product

The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public containers for each type of material.
- The product does not contain concentrations of substances that could be considered harmful to the environment

This symbol means that if you wish to dispose of the product once its useful life has ended, it must be deposited with an authorised waste management agent for the selective collection of Waste Electrical and Electronic Equipment (WEEE)

This appliance complies with Directive 2014/35/EC on Low Voltage, with Directive 2014/30/EU on Electromagnetic Compatibility, with Directive 2011/65/EU on restrictions on the use of certain dangerous substances in electrical and electronic appliances and with Directive 2009/125/EC on the ecological design requirements applicable to products related to energy.

WARRANTY AND TECHNICAL ASSISTANCE

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services. You can find the closest one by accessing the following web link: http://www.2helpu.com/ You can also request related information, by contacting us (see the last page of the manual). You can download this instruction manual and its updates at http://www.2helpu.com/

The following information details the characteristics related to the ecological design:

Model: BXCSH2000E
Heat output
Nominal heat output Pnom 1.9 kW
Minimum heat output (indicative) Pmin 0 kW or N/A
Maximum continuous heat output Pmax 1.9 kW
Auxiliary power consumption
At nominal heat output max 0,0 kW
Minimum heat outputmin 0.0 kW
Stand-by mode SB 0.0 kW
Type of heat input, only for electric thermal-storage room heaters
Manual control of heat load, with built-in thermostat No
Manual control of heat load with response to indoor/outdoor temperature. No
Electronic control of heat load with response to indoor/outdoor temperature. No
Fan assisted heating No
Type of heating / indoor temperature control
Single setting heating, with no indoor temperature control No
Two or more manual settings, with no indoor temperature control No
With mechanical thermostat for indoor temperature control Yes
With electronic indoor temperature control No
Electronic indoor temperature control and daily timer	No
Electronic indoor temperature control and weekly timer	No
Other control options
Indoor temperature control with presence detector	No
Indoor temperature control with open window detector	No
With optional remote control	No
With adaptable on/off control	No
With time-limit operation	No
With black light sensor	No
Contact information: Engineering and Technology for Life, S.L., Avda. Barcelona, s/n, Oliana, 25790, Spain
