Product Type	Lens
Brand	Fujifilm
Model	XF56mmF1.2 R APD
Lens Mount	Fujifilm X-Mount
Focal Length	56mm (35mm equivalent: 85mm)
Maximum Aperture	f/1.2
Minimum Aperture	f/16
Lens Construction	11 elements in 8 groups (including 1 aspherical and 1 APD element)
Aperture Blades	7 (rounded diaphragm)
Angle of View	28.5°
Minimum Focus Distance	70 cm (27.6 in)
Filter Size	62mm
Dimensions (Diameter x Length)	73.2mm x 70.7mm (2.9 in x 2.8 in)
Weight	405 g (14.3 oz)
Autofocus	Yes (stepping motor)
Image Stabilization	No
Apodization Filter	Yes
Weather Sealing	No
Supplied Accessories	Lens cap, lens hood, soft case
Functions	Smooth bokeh due to APD element, fast f/1.2 aperture for low light and shallow depth of field
Care and Cleaning	Use a blower and soft lens cloth to clean. Store in a cool, dry place.
Safety	Avoid exposure to dust, moisture, and direct sunlight. Always use the lens cap when not in use.
Spare Parts and Repairability	Service and repairs by Fujifilm authorized centers only. Spare parts available through Fujifilm service network.

Frequently Asked Questions - XF56mmF1.2 R APD FUJIFILM

Is the Fujifilm XF56mmF1.2 R APD compatible with all Fujifilm X-mount cameras?

Yes, it is fully compatible with all Fujifilm X-mount cameras, including X-T, X-H, X-S, and X-Pro series.

What is the effect of the APD filter?

The Apodization (APD) filter creates smoother, creamier bokeh by reducing the brightness of out-of-focus highlights, resulting in more natural and pleasing background blur.

Can I use filters on this lens?

Yes, the lens has a 62mm filter thread and accepts standard filters such as UV, polarizing, and ND filters.

Does the lens have weather sealing?

No, the XF56mmF1.2 R APD is not weather sealed. It is recommended to use caution in dusty or wet conditions.

What is the minimum focus distance?

The minimum focus distance is 70 cm (27.6 inches), allowing for close-up portrait shots.

Does this lens have image stabilization?

No, the lens does not have built-in optical image stabilization. However, it can be used with camera bodies that have in-body stabilization (IBIS).

How does the XF56mmF1.2 R APD compare to the non-APD version?

The APD version has a slightly slower autofocus and reduced transmission (about 1/3 stop slower) but offers superior bokeh quality due to the apodization filter.

Can I use a teleconverter with this lens?

No, Fujifilm teleconverters are not compatible with this lens due to its optical design and the APD element.

Is this lens suitable for portrait photography?

Absolutely. The 56mm focal length (85mm equivalent) and f/1.2 aperture make it an excellent choice for portraits, providing beautiful subject isolation and bokeh.

What accessories are included with the lens?

The lens comes with a front lens cap, rear lens cap, bayonet lens hood, and a soft carrying case.

USER MANUAL XF56mmF1.2 R APD FUJIFILM

レンズフードの取り付け方

絞りリング

Be sure to read these notes before use

Safety Notes

Thank you for your purchase of this product. For repair, inspection, and internal testing, contact your FUJIFILM dealer.

• Make sure that you use the lens correctly. Read these safety notes and the camera Owner's Manual carefully before use.
• After reading these safety notes, store them in a safe place.

About the Icons

The icons shown below are used in this document to indicate the severity of the injury or damage that can result if the formation indicated by the icon is ignored and the product is used incorrectly as a result.

	This icon indicates that death or serious injury can result if the information is ignored.
	This icon indicates that personal injury or material damage can result if the information is ignored.

The icons shown below are used to indicate the nature of the instructions which are to be observed.

	Triangular icons tell you that this information requires attention ("Important").
	Circular icons with a diagonal bar tell you that the action indicated is prohibited ("Prohibited").
	Filled circles with an exclamation mark indicate an action t be performed ("Required").

WARNING
Do not use in the bathroom or shower	Do not immerse in or expose to water.Failure to observe this precaution can cause a fi re or electric shock.
Do not disassemble	Do not disassemble (do not open the case).Failure to observe this precaution can cause fi re, electric shock, or injury due to product malfunction.
Do not touch internal parts must	Should the case break open as the result of a fall or other accident, do not touch the exposed parts.Failure to observe this precaution could result in electric shock or in injury from touching the damaged parts.Remove the camera battery immediately, taking care to avoid injury or electric shock, and take the product to the point of purchase for consultation.Do not place on unstable surfaces. The product may fall, causing injury.
	Do not view the sun through the lens or camera view fi ndFailure to observe this precaution can cause permanent visual impairment.
CAUTION
	Do not use or store in locations that are exposed to steam, or smoke or are very humid or extremely dusty. Failure to observe this precaution can cause fi re or electric shock.
	Do not leave in direct sunlight or in locations subject to very high temperatures, such as in a closed vehicle on a sunny day.Failure to observe this precaution can cause fi re.

WARNING

CAUTION

Do not handle with wet hands. Failure to observe this precaution can cause electric shock.

Keep the sun out of the frame when shooting backlit subjects. Sunlight focused into the camera when the sun is in or close to the frame can cause fire or burns.

When the product is not in use, replace the lens caps and store out of direct sunlight. Sunlight focused by the lens can cause fire or burns.

For Customers in the U.S.A.

Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• You are cautioned that any changes or modifications not expressly approved in this manual could void the user's authority to operate the equipment.

Notes on the Grant: To comply with Part 15 of the FCC Rules, this product must be used with a Fujifi Im-specific ed ferrite-core A/V cable, USB cable, and DC supply cord.

For Customers in Canada

CAUTION: This Class B digital apparatus complies with Canadian ICES-003.

IMPORTANT SAFETY INSTRUCTIONS

• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water (excluding waterproof products).
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
  • Refer all servicing to qualified service personal. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Disposal of Electrical and Electronic Equipment in Private Households

In the European Union, Norway, Iceland and Liechtenstein: This symbol on the product, or in the manual and in the warranty, and/or on its packaging indicates that this product shall not be treated as household waste. Instead it should be taken to an applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The recycling of materials will help to conserve natural resources. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

In Countries Outside the European Union, Norway, Iceland and Liechtenstein: If you wish to discard this product, including the batteries or accumulators, please contact your local authorities and ask for the correct way of disposal.

Australian RCM

Before Using This Product

Some lens features are not available with older versions of the camera firmware. Be sure to update the camera firmware to the latest version. Instructions on viewing the camera firmware version and updating camera firmware are available from the following website:

http://www.fujifilm.com/support/digital_cameras/software/#firmware

If you do not have access to a computer, support is available from the local distributor listed in the "FUJIFILM Worldwide Network" material provided with your camera.

Product Care

• When using a lens hood, do not pick up or hold the camera using only the hood.
• Keep the lens signal contacts clean.
• Use a blower to remove dust and lint from the glass surfaces of the lens or filter. To remove smudges and fingerprints, apply a small amount of lens cleaner to a soft, clean cotton cloth or lens-cleaning tissue and clean from the center outwards using a circular motion, taking care not to leave smears or touch the glass with your fingers.
• Never use organic solvents such as paint thinner or benzene to clean the lens.

EN-4

ENGLISH

• Attach the front and rear caps when the lens is not in use.
• Store the lens and fi Iter in cool, dry locations to prevent mold and rust. Do not store in direct sunlight or with naphtha or camphor moth balls.
• Keep the lens dry. Rusting of the internal mechanism can cause irreparable damage.
  • Leaving the lens in extremely hot locations could cause damage or warping.
• Attach the ND fi Iter securely. A fall from the lens could damage the threads.
• Do not drop or strike the ND filter. Deformation of the threads could render the filter unusable.
• Do not leave the ND fi Iter in locations exposed to direct sunlight or to high temperatures or humidity. Discoloration could interfere with the normal functioning of the fi Iter.
• Ghosting may occur in rare cases depending on lighting conditions. This can be addressed by removing the filter.

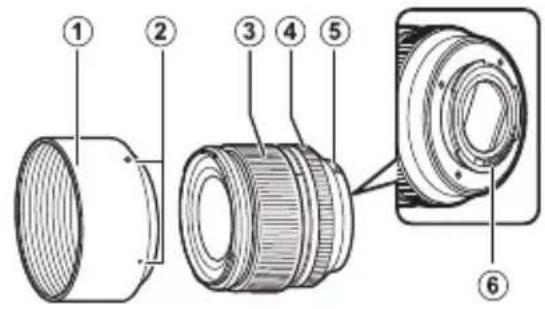

Parts of the Lens

XF56mmF1.2 R APD

① Lens hood
② Mounting marks
③ Focus ring
④ Aperture ring
⑤ Mounting marks (focal length)
⑥ Lens signal contacts
⑦ Front lens cap
⑧ Rear lens cap

Supplied Accessories

• Front lens cap
• Rear lens cap

• Lens hood

• Cloth wrapping

• ND fi Iter (ND8)

EN-6 ENGLISH

Attaching the Lens

See the camera manual for information on attaching and removing lenses. Note that this product is not compatible with X mount fi lm cameras.

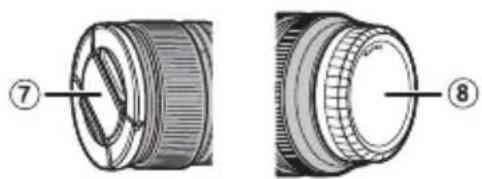

Removing the Caps

Remove the caps as shown.

Attaching the Hood

When attached, lens hoods reduce glare and protect the front lens element.

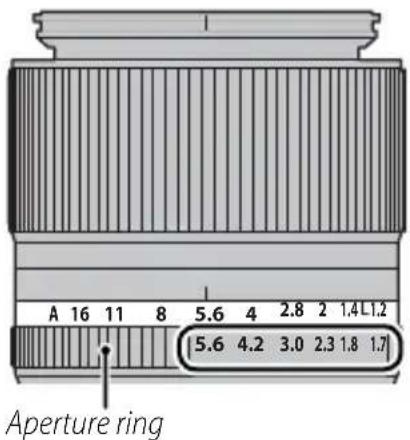

The Aperture Ring

At settings other than A, you can adjust aperture by rotating the lens aperture ring (exposure modes A and M).

The built-in apodization fi Iter reduces the amount of light passing through the lens; the effective aperture (f-number) is shown by the red numbers on the aperture ring.

The Apodization Filter

The built-in apodization fi Iter progressively reduces transmittance from the center of the aperture outwards. The area in focus appears in high resolution as always, but the gradations in the defocused areas create bokeh with a beautiful melting effect. The effective aperture (f-number) due to the reduction in transmittance is shown by the red numbers on the aperture ring; the strength of the effect can be judged by the difference between the actual and effective apertures. The most striking effects are achieved at wide apertures (low f-numbers); to keep exposure in the supported range when shooting outdoors, use the ND8 neutral density (ND) fi Iter, which reduces the brightness (and only the brightness) of the light entering the camera to an eighth of its actual value, an amount equivalent to three aperture stops. Users of cameras with phase-detection autofocus should note that contrast-detect AF will be used due to the presence of the built-in apodization fi Iter.

EN-9ENGLI

Specifications

Type XF56mmF1.2 R APD
Lens construction	11 elements in 8 groups (includes 1 aspherical and 2 extra low dispersion elements and apodization fi lter)
Focal length (35 mm format equivalent)	f=56 mm (85 mm)
Angle of view 28.5°
Max. aperture f/1.2
Min. aperture f/16
Aperture controlNumber of blades 7 (rounded diaphragm opening)Stop size	1/3 EV ( 1/2 EV for last stop to maximum aperture only; total 23 stops)
Focus range Normal: 70 cm – infi nity	Macro: 70 cm – 3 m
Max. magnifi cation 0.09 ×
External dimensions: Diameter × Length * (approx.)* Distance from camera lens mount fl ange	∅73.2×69.7 mm
Weight (approx., excluding caps and hoods)	405 g
Filter size	∅62 mm

① Improvements may result in unannounced changes to specifications and appearance.
① Owing to how this lens is constructed, the "Distance indicator" displayed by the camera may in some cases differ from the actual focus distance. Use the "Distance indicator" as a guide only.
