Product Type	Camera Lens
Brand	Fujifilm
Model	XF56mmF1.2 R
Lens Mount	Fujifilm X-mount
Focal Length	56mm (35mm equivalent: 85mm)
Maximum Aperture	f/1.2
Minimum Aperture	f/16
Lens Construction	11 elements in 8 groups (1 aspherical, 2 extra-low dispersion)
Angle of View	28.5°
Aperture Blades	7 (rounded diaphragm)
Focus Range (Normal)	0.7 m to infinity
Focus Range (Macro)	0.7 m to 3 m
Maximum Magnification	0.09×
Filter Size	∅62 mm
Dimensions (Diameter × Length)	∅73.2 × 69.7 mm
Weight (approx., without caps/hood)	405 g
Supplied Accessories	Front lens cap, rear lens cap, lens hood, cloth wrapping
Compatibility	Fujifilm X-mount cameras (not for film cameras)
Firmware Requirement	Update camera firmware for full functionality
Cleaning	Use blower for dust; lens cleaner and soft cloth for smudges
Safety Warning	Do not view the sun through the lens

Frequently Asked Questions - XF56mmF1.2 R FUJIFILM

How do I attach the lens to my camera?

Align the mounting marks on the lens and camera, then rotate the lens until it clicks. See your camera manual for details.

What is the aperture range of this lens?

The maximum aperture is f/1.2 and the minimum is f/16. The aperture ring allows 1/3 EV steps.

Can I use this lens with film cameras?

No, this lens is only compatible with Fujifilm X-mount digital cameras. It does not work with X-mount film cameras.

How do I clean the lens?

Use a blower to remove dust. For smudges, apply a small amount of lens cleaner to a soft, clean cloth and wipe from center outward. Never use organic solvents.

What is the macro focus range?

The macro focus range is 0.7 m to 3 m. For normal focus, it is 0.7 m to infinity.

Do I need to update my camera firmware?

Yes, some features may not work with older firmware. Visit the Fujifilm website for updates.

What accessories are included with the lens?

The lens comes with a front lens cap, rear lens cap, lens hood, and cloth wrapping.

Is this lens weather-sealed?

The XF56mmF1.2 R does not have dust- or splash-proofing. The mount does not include the rubber ring found on some other models.

What is the filter thread size?

The filter thread size is 62 mm.

Can I use the lens hood for protection?

Yes, the lens hood reduces glare and protects the front element. But do not pick up or hold the camera using only the hood.

USER MANUAL XF56mmF1.2 R FUJIFILM

XF56mmF1.2 R XF90mmF2 R LM WR

レンズフードの取り付け方

絞りリング

Be sure to read these notes before use

Safety Notes

Thank you for your purchase of this product. For repair, inspection, and internal testing, contact your FUJIFILM dealer.

• Make sure that you use the lens correctly. Read these safety notes and the camera Owner's Manual carefully before use.
• After reading these safety notes, store them in a safe place.

About the Icons

The icons shown below are used in this document to indicate the severity of the injury or damage that can result if the formation indicated by the icon is ignored and the product is used incorrectly as a result.

WARNING	This icon indicates that death or serious injury can result if the information is ignored.
CAUTION	This icon indicates that personal injury or material damage can result if the information is ignored.

The icons shown below are used to indicate the nature of the instructions which are to be observed.

	Triangular icons tell you that this information requires attention ("Important").
	Circular icons with a diagonal bar tell you that the action indicated is prohibited ("Prohibited").
	Filled circles with an exclamation mark indicate an action to be performed ("Required").

WARNING
Do not use in the bathroom or shower	Do not immerse in or expose to water.Failure to observe this precaution can cause a fi re or electric shock.
Do not disassemble	Do not disassemble (do not open the case).Failure to observe this precaution can cause fi re, electric shock, or injury due to product malfunction.
Do not touch internal parts must	Should the case break open as the result of a fall or other accident, do not touch the exposed parts.Failure to observe this precaution could result in electric shock or in injury from touching the damaged parts.Remove the camera battery immediately, taking care to avoid injury or electric shock, and take the product to the point of purchase for consultation.Do not place on unstable surfaces. The product may fall, causing injury.
	Do not view the sun through the lens or camera view fi ndFailure to observe this precaution can cause permanent visual impairment.
CAUTION
	Do not use or store in locations that are exposed to steam, or smoke or are very humid or extremely dusty. Failure to observe this precaution can cause fi re or electric shock.
	Do not leave in direct sunlight or in locations subject to very high temperatures, such as in a closed vehicle on a sunny day.Failure to observe this precaution can cause fi re.

WARNING

CAUTION

Do not handle with wet hands. Failure to observe this precaution can cause electric shock.

Keep the sun out of the frame when shooting backlit subjects. Sunlight focused into the camera when the sun is in or close to the frame can cause fire or burns.

When the product is not in use, replace the lens caps and store out of direct sunlight. Sunlight focused by the lens can cause fire or burns.

For Customers in the U.S.A.

Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• You are cautioned that any changes or modifications not expressly approved in this manual could void the user's authority to operate the equipment.

Notes on the Grant: To comply with Part 15 of the FCC Rules, this product must be used with a Fujifi Im-specific ed ferrite-core A/V cable, USB cable, and DC supply cord.

For Customers in Canada

CAN ICES-3 (B)/NMB-3(B)

CAUTION: This Class B digital apparatus complies with Canadian ICES-003.

IMPORTANT SAFETY INSTRUCTIONS

• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water (excluding waterproof products).
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as ra-

diators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personal. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Disposal of Electrical and Electronic Equipment in Private Households

In the European Union, Norway, Iceland and Liechtenstein: This symbol on the product, or in the manual and in the warranty, and/or on its packaging indicates that this product shall not be treated as household waste. Instead it should be taken to an applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The recycling of materials will help to conserve natural resources. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

In Countries Outside the European Union, Norway, Iceland and Liechtenstein: If you wish to discard this product, including the batteries or accumulators, please contact your local authorities and ask for the correct way of disposal.

Australian RCM

Before Using This Product

Some lens features are not available with older versions of the camera fi rmware. Be sure to update the camera fi rmware to the latest version. Instructions on viewing the camera fi rmware version and updating camera fi rmware are available from the following website:

http://www.fujifilm.com/support/digital_cameras/software/#firmware

If you do not have access to a computer, support is available from the local distributor listed in the "FUJIFILM Worldwide Network" material provided with your camera.

Product Care

• When using a lens hood, do not pick up or hold the camera using only the hood.

• Keep the lens signal contacts clean.

• Use a blower to remove dust and lint from the glass surfaces of the lens or fi lter. To remove smudges and fi ingerprints, apply a small amount of lens cleaner to a soft, clean cotton cloth or lens-cleaning tissue and clean from the center outwards using a circular motion, taking care not to leave smears or touch the glass with your fi ngers.

• Never use organic solvents such as paint thinner or benzene to clean the lens.
• Attach the front and rear caps when the lens is not in use.
• Store the lens and filter in cool, dry locations to prevent mold and rust. Do not store in direct sunlight or with naphtha or camphc moth balls.
• Keep the lens dry. Rusting can cause irreparable damage. Wipe off rain and water droplets.
  • Leaving the lens in extremely hot locations could cause damage or warping.

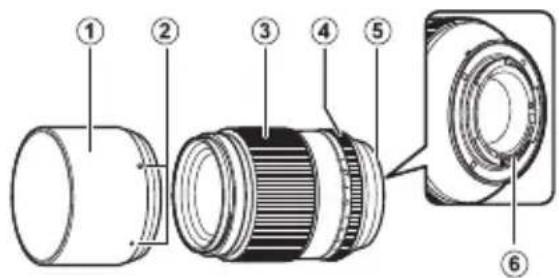

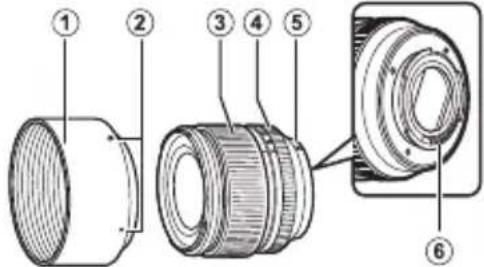

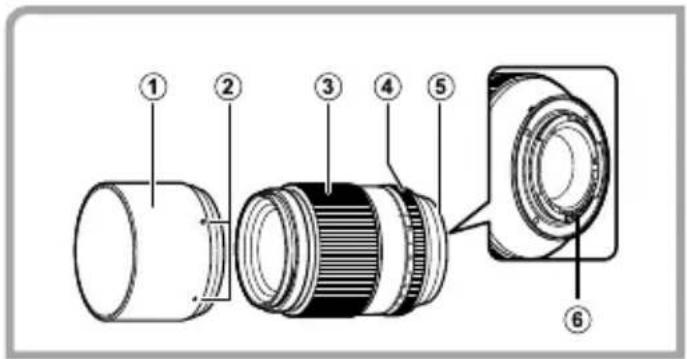

Parts of the Lens

XF56mmF1.2 R XF90mmF2 R LM WR

① Lens hood
② Mounting marks
③ Focus ring
④ Aperture ring

⑤ Mounting marks (focal length)
⑥ Lens signal contacts
⑦ Front lens cap
⑧ Rear lens cap

① The lens mount includes a rubber ring to ensure that the lens remains dust- and splash-proof. The ring can be replaced for a fee at any FUJIFILM service center (XF90mmF2 R LM WR only).

Supplied Accessories

• Front lens cap

• Rear lens cap

• Lens hood

• Cloth wrapping

ENGLISH

EN-5

Attaching the Lens

See the camera manual for information on attaching and removing lenses. Note that this product is not compatible with X mount fi lm cameras.

Removing the Caps

Remove the caps as shown.

Attaching the Hood

When attached, lens hoods reduce glare and protect the front lens element.

Aperture ring

At settings other than A, you can adjust aperture by rotating the lens aperture ring (exposure modes A and M).

Aperture ring

EN-7ENGLI

Specifications

Type XF56mmF1.2 R XF90mmF2 R LM WR
Lens construction 11 elements in 8 groups (includes 1 aspherical and 2 extra low dispersion elements)		11 elements in 8 groups (includes 3 extra low dispersion elements)
Focal length (35 mm format equivalent)	f=56 mm (85 mm)	f=90 mm (137 mm)
Angle of view 28.5° 17.9°
Max. aperture f/1.2 f/2
Min. aperture f/16 f/16
Aperture controlNumber of bladesStop size	7 (rounded diaphragm opening)1⁄3 EV (1⁄2 EV for last stop to maximum aperture only; total 23 stops)	7 (rounded diaphragm opening)1⁄3 EV (total 19 stops)
Focus range	Normal: 0.7 m – infinityMacro: 0.7 m – 3 m	Normal: 0.6 m – infinityMacro: 0.6 m – infinity
Max. magnification	0.09 ×	0.20 ×
External dimensions: Diameter × Length* (approx.) * distance from camera lens mount flange	∅73.2 × 69.7 mm	∅75.0 × 105.0 mm
Weight* (approx.) * excluding caps and hoods	405 g	540 g
Filter size	∅62 mm ∅62 mm

① Improvements may result in unannounced changes to specifications and appearance.
① Owing to how this lens is constructed, the "Distance indicator" displayed by the camera may in some cases differ from the actual focus distance. Use the "Distance indicator" as a guide only.

EN-8 ENGLISH

Pour votre sécurité

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF56mmF1.2 R XF90mmF2 R LM WR

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF56mmF1.2 R XF90mmF2 R LM WR

DE-6 DEUTSCH

Blendenring

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF56mmF1.2 R XF90mmF2 R LM WR

ES-6 ESPAÑOL

Anillo de apertura

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF56mmF1.2 R XF90mmF2 R LM WR

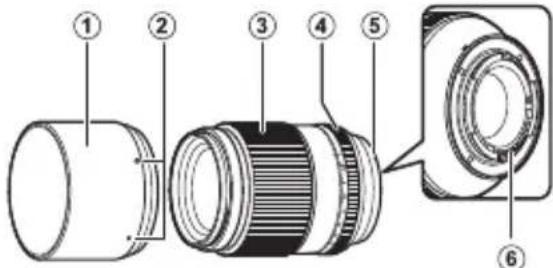

① Zonnekap
② Bevestigingsmarkeringen
③ Scherpstelring
④ Diafragmaring

⑤ Bevestigingsmarkeringen (brandpuntsafstand)
⑥ Lenssignaalcontacten
⑦ Voorste lensdop
⑧ Achterste lensdop

De zonnekap bevestigen

NL-6 NEDERLANDS

De diafragmaring

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF56mmF1.2 R XF90mmF2 R LM WR

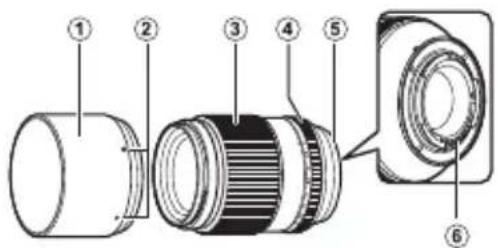

① Motljusskydd
② Monteringsmarkeringar
③ Fokusring
④ Bländarring

⑤ Monteringsmarkeringar (brännvidd)
⑥ Objektivsignalkontakter
⑦ Främre objektivlock
⑧ Bakre objektivlock

Bländarring

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF56mmF1.2 R XF90mmF2 R LM WR

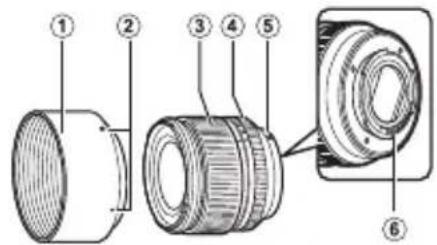

① Solblender
② Monteringsmerker
③ Fokusring
④ Blenderring

⑤ Monteringsmerker (brennvidde)
⑥ Objektivets signalkontakter
⑦ Fremre objektivdeksel
⑧ Bakre objektivdeksel

① Objektivfestet har en gummiring som sikrer at objektivet holder seg støv- og sprutsikkert. Ringen kan byttes ut mot en avgift på ethvert FUJIFILM servicesenter (kun XF90mmF2 R LM WR).

Blenderring

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF56mmF1.2 R XF90mmF2 R LM WR

Himmenninrengas

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF56mmF1.2 R XF90mmF2 R LM WR

Установка бленды

RU-6 РУССКИЙ

Кольцо диафрагмы

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF56mmF1.2 R XF90mmF2 R LM WR

Montaggio paraluce

IT-6 ITALIANO

Ghiera diaframma

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF56mmF1.2 R XF90mmF2 R LM WR

Blændering

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF56mmF1.2 R XF90mmF2 R LM WR

PL-6 POLSKI

Pierścień przysłony

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF90mmF2 R LM WR

安装遮光罩

光圈环

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF56mmF1.2 R XF90mmF2 R LM WR

安裝遮光罩

光圈環

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF56mmF1.2 R XF90mmF2 R LM WR

후드부착

조리개 링
