GoSafe S810 - Dash cam Papago - Free user manual and instructions

Product type	Dash cam
Brand	Papago
Model	GoSafe S810
Dimensions (approx.)	100 x 55 x 35 mm
Weight (approx.)	120 g
Power supply	Rechargeable built-in battery via cigarette lighter adapter (12V/24V)
Video resolution	Full HD 1080p
Viewing angle	140°
Sensor	CMOS image sensor
Main features	Continuous recording, collision detection (G-sensor), parking mode, night vision, loop recording
Storage	microSD card (up to 128 GB, class 10 recommended)
Screen	2.4 inch TFT LCD
Microphone and speaker	Built-in
Connectivity	Mini USB, HDMI output
Care and cleaning	Clean the lens with a soft dry cloth; avoid solvents; update firmware via Papago website
Safety	Automatic file locking upon impact; sturdy mounting bracket
Spare parts and repairability	AC adapter, USB cable, suction mount, manuals available; repair via after-sales service
Operating temperature	-10°C to 60°C
Warranty	2 years (subject to manufacturer's conditions)

Frequently Asked Questions - GoSafe S810 Papago

How to install the Papago GoSafe S810 camera in my car?

Attach the suction mount to the windshield, connect the cigarette lighter adapter to the camera and insert a microSD card (up to 128 GB). Adjust the lens angle for an optimal view of the road.

How to format the memory card?

In the camera menu, select 'Format' to erase all data. It is recommended to format regularly or use a Class 10 card to avoid write errors.

Why doesn't the camera turn on?

Check that the cigarette lighter adapter is properly connected and the internal battery is charged. Press the power button for 3 seconds. If the problem persists, try another USB cable.

How to activate parking mode?

Parking mode activates automatically when the vehicle is stationary. It can be configured in the settings: adjust the G-sensor (impact detection) and recording duration after engine shutdown.

How to view recorded videos?

You can view videos directly on the camera screen using the built-in player, or remove the SD card and insert it into a computer. Use an HDMI output for TV viewing.

The video quality is blurry, what to do?

Clean the lens with a soft cloth. Make sure the protective film is removed. Check the resolution settings (1080p recommended) and windshield cleanliness.

How to update the firmware?

Download the latest firmware from the official Papago website. Copy the file to the root of a formatted SD card. Insert the card into the camera when turned off, then turn it on; the update starts automatically.

What to do if the camera beeps or shows an error message?

Beeps may indicate full memory (enable loop recording) or incompatible SD card. Check the on-screen message and refer to the manual for error codes.

How to clean and maintain the camera?

Use a soft dry cloth for the lens and screen. Do not use chemicals. Ensure USB connectors are dry. Store in a cool, dry place away from frost.

Can I use the camera without an SD card?

No, the camera requires a microSD card to record videos. Without a card, recording is impossible. Use a Class 10 card with a capacity between 16 and 128 GB.

USER MANUAL GoSafe S810 Papago

dash cam

1. Please follow the set-up and usage instructions in the print material that came with this Dashboard Camera (dash cam) product.
2. You should not set/install this dash cam at a place that would obstruct or reduce a driver's view; make sure your use complies with pertinent vehicle codes of your state, province, territory or country.
3. You should post the required notices of recordation to occupants inside the vehicle, if voices or other information/signal pertaining to in-vehicle activities will be recorded.
4. You should not change the dash cam's setting or mode of operation when the vehicle is in motion.
5. The optional driving warning signals, including any visual or audible reminder signals, should not replace your decision-making and judgment that are needed for the proper operation of the vehicle.
6. You should not leave the dash cam in a visible spot when no one is inside the vehicle, to avoid attracting break-ins to steal the unit, or other property.
7. You should avoid extended exposure of the dash cam to direct sunlight or extreme temperatures (either high or low temperature) which tend to degrade or damage the unit and its normal functionality.
8. You should examine, check and/or verify the dash cam at least every six (6) months, including the associated memory cards, to ensure the video reception and recording are working properly. For each use, you should verify that the dash cam unit, the visible lights and the audible sounds are working normally. If there are signs of non-operation or mal-function, you should immediately seek to replace the product and check to see if the product is covered under any applicable warranty.
9. The dash cam unit may have additional functionality, such as transmission and recording of audio or GPS signal or other identification information. If you have privacy concerns about these functions, make sure you follow the instruction to disable these functions.
10. You should use the dash cam unit in the way it was intended. You should not use the dash cam unit in a way that would be illegal, physically damages the unit, or tends to cause danger to the safe operation of the vehicle and/or occupants.

Attention please

【About Usage】

1. If your vehicle still provides power when the vehicle is off, unplug the device when you plan to have your vehicle parked for a long period of time to avoid draining your vehicle's battery.
2. The embedded supercapacitors can help to save your recorded file even if the power is off.
3. To avoid file corruption, don't eject the Micro SD Card immediately after powering off.
4. It is recommended to use provided adapter.
5. To enable motion detection and monitor function, the unit must receive constant power.

1. Please use Micro SD card with the size / memory of at least 16GB, Class 10 (up to 128GB).
2. Format Micro SD card before using. To format card press ▼ When you get to settings ---- Format

1. Product Introduction

1.1 Package Contents

Check the items in your package with the list below. If any of the items are damaged or missing, contact your retailer.

• Device
• Suction Cup Mount
• Sticker Mount
• Car Charger
• Cable(Long cable for rear camera/Short cable for inside the car)
• Warranty Card
• Quick Start Guide
• 16GB MicroSD

1.2 Driving Recorder Overview

① Mount Bracket
② Lens
③ Speaker
④ MicroSD Slot
⑤ Reset
⑥ Mini USB Slot
⑦ GPS Slot
⑧ Display
⑨ Buttons
⑩ Rear Camera Cable Slot

2. Location Installation

2.1 Two Way Installation

Front & Rear Installation Front & Cabin Installation

Caution: We are not responsible for any damage caused to, or caused by, the air bag due to incorrectly placing the device within the range of the safety bag area.

1 For better view, try to install in the center of the windshield. in the package contents, we have the two kind of cable for mount, you can mounted in the front window for short cable, or choice for the long cable to mounted in the back window.
2 To ensure view is clear, make sure the lens is located in a place where the windshield wiper wipes the window.
3 Make sure device is not installed where it will interfere with the air bag.
4 Make sure the device will not be obstructed by windshield's window tint.
5 Clean the area you wish to place the dash cam before mounting the device. DO NOT move the device for a 24-hour period.

3. Start and Go

3.1 Power On

Insert the car charger cable into the car's cigarette lighter and the other end into the mini USB port on the device. Make sure to install the Micro SD Card into the Micro SD Card slot on device. After turning on, the system will start recording automatically. The LED light will turn green when recording mode has started.

*Reminder: Please format Micro SD card before you start recording. Please refer to page 2 for instructions.

3.2 Power Off

Hold down the power button at least 5 seconds to turn off device. To avoid corrupting the last file recorded, do not eject SD Card immediately after powering off.

If you need to turn it back on simply hold the power button for at least 3 seconds.

3.3 LED

LED Color	Behavior
Green ON	Power ON, Recording
Green OFF	Power OFF, not Recording

3.4 Buttons

Buttons	Behavior
	Recording mode: Enter Emergency modePlaylist: Back to previous menuReplay/Setting Menus: Back to camera mode
	Recording mode: Enter Playback MenuPlaylist/Setting: UpReplay mode: Delete
	Recording mode: One short click leads to setting menuOne long press and device will take a snapshotPlaylist/Setting: DownReplay mode: Lock / Unlock
	Recording mode: One long press to turn audio recording on/offPlaylist/Setting: SelectReplay mode: Play/Pause/Resume

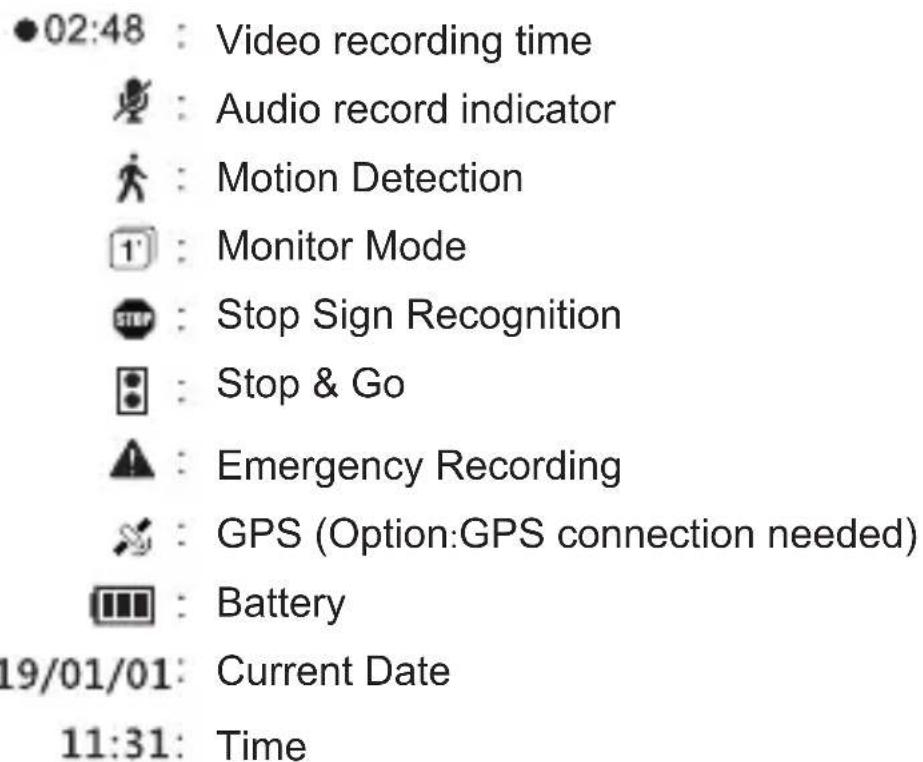

3.5 Recording

4. Settings

Press the ▼ button to enter "Settings".

- Record Mode

a. Automatic Recording
b. Monitor Mode: When this mode is selected, your device will take snapshots every second while recording.
c. Motion Detection: When this mode is selected, recording starts when dash cam detects movement. If there is no movement for more than 60 seconds, recording will stop and be switched to detection mode.

This function only works when the device has a continual power source after the vehicle's engine is turned off.

- Driving Safety

a. Stop Sign Recognition : The device will recognize any Stop Sign and warn you with a beep.
b. Stop & Go : After you stop for at least 10 seconds (as for red lights), the device will detect when the car in front has proceeded and it will give an audio alert to remind you to proceed driving as well.
c.Driver Fatigue Alarm : When activated, the user can setup an alarm clock, periodically reminding you to rest. Options available are : 30 minutes/1 hour/2 hours/4 hours/off.
d.Light Reminder : When activated, if driving in a dark environment (such as tunnel or parking structure), it will have an audio alert and display the light alert icon on the screen. The alert can be turned on/off.
e.TPMS : Supports the TireSafe D10E (sold separately). The TireSafe D10E is a Tire Pressure Monitoring System that allows you to view each of your tire's pressure and temperature on your device's display.

Front Left Front Right

F.L.18 psi25 °C		F.R.18 psi25 °C	Tire PressureTire Temperature
R.L.18 psi24 °C		R.R.18 psi24 °C

Rear Left Rear Right

Tire Pressure & Temperature display

White	Start the car engine, no signal.	Blue	Temperature is normal.
Green	Pressure is normal.	Red	Warning, please check Tire.

Note: This device does not support both the GPS antenna and TPMS simultaneously. Please use only one of the optional accessories at a time

• Volume : Set Volume.
- Microphone : Enable or disable voice recording.
• EV (Exposure Value)
Adjust EV for better effect in different lighting condition.
- Resolution : Set recording resolution.
- Back Camera Setup
- Display Mode
- Bump Recording : Set the impact sensitivity of the G-sensor.

• Date/Time : Set date, time, and date format.
• Time Zone : Set Time Zone.
• Daylight Saving Time : Enable or disable daylight saving time.
• Screen Saver : Set screen saver for stand-by .
• Power on/off Sound : Set power sound on or off.
• Video Stamp

a. Date Stamp Enable or disable date stamp on recordings. b. GPS Stamp Enable or disable coordinate stamp on recordings.

- Language : Set display language. Options include 简体中文, 繁體中文, English, Français, Español, Deutsch, Italiano, 日本語, Português, and Русский.

- Format memory Card

All data on the MicroSD will be deleted. Data is irrecoverable after formatting.

Please backup videos and photos before formatting the MicroSD.

• Format Warning : Set format prompt interval. Options include 15 days, 30 days, 60 days, or OFF.
• Default : Reset all values to factory default.
• Version : Check the current firmware version.

5. Record/Play/Delete record Snapshot function

5.1 Video Recording Circulation

1 Video recording will start looping after powering on with the Micro SD Card plugged in.
2 Each recorded file is 5 minutes long, with old footage being replaced when the MicroSD Card is full.

5.2 Emergency Recording

① Manual File Backup

Hold down the button 📁, to backup file so that it will not be overwritten. You will see an icon at the top left of the LCD screen that looks like this 🔒 This occurs when an emergency file is being recorded.

② Auto Backup

Once the G-Sensor is activated by sudden impact, the device will automatically lock the file so that it is not overwritten.

5.3 Snapshot

① Hold ▼ for 3 seconds to take a snapshot while in recording mode.
② The snapshot images are located on the Micro SD Card in the PHOTOS folder. This is also where you can find the video files that are recorded.
③ The 📄 icon will be shown after you take a snapshot. This will not disturb video recording mode.

5.4 Copying Files with USB Connection

① Connect device to your computer using a USB to mini-USB cable. It should be recognized as a removable device or show up as an icon titled “No Name” on your desktop.
② There are video recording files located in folder \PAPAGO (looping video recording files) and (emergency video recording files) on the “removable device”.
③ Copy the files to your computer. Please follow the copy and paste or drag and drop procedure for your computer model.

5.5 Copying Files from Micro SD Card

① Shut down the device and eject the Micro SD Card. (To avoid corrupting the last file recorded, do not eject SD Card immediately after powering off.)
② Insert the Micro SD Card onto adapter. Insert adapter into the MicroSD Card reader and your computer will automatically detect the SD Card.
③ There are video recording files located in folder \PAPAGO (looping video recording files) and (emergency video recording files) on the “removable device”.
④ Copy the files to your computer. Please follow the copy and paste or drag and drop procedure for your computer model.

5.6 Play/Delete Video or Photo

① Hold down to enter playback menu and to preview the recorded files.
② Choose Type : Videos (regular recorded videos), Emergency (videos recorded in emergency mode) or Photos (snapshots taken).
③ Press "up/down buttons" to browse the files. Click OK to choose which file you want to preview.
④ Click to OK to play file, or ▲ delete the file.
