Product Type	Monoblock Car Audio Amplifier (Subwoofer)
Brand	Soundstream
Model	Reserve RSM1.4000D
Amplifier Class	Class D
RMS Power (4 ohms)	1000W x 1
RMS Power (2 ohms)	2000W x 1
RMS Power (1 ohm)	4000W x 1
Peak Power	8000W
Frequency Response	20Hz - 250Hz
Low Pass Filter	40Hz - 250Hz, 12dB/octave
Subsonic Filter	15Hz - 40Hz, 12dB/octave
Bass Boost	0 - 12dB at 45Hz
Input Sensitivity	0.2V - 6V
Remote Level Control	Included
Fuse Rating	300A (3 x 100A)
Dimensions (L x W x H)	20.5" x 8.5" x 2.5"
Weight	9.8 lbs
Power Supply	12V DC (10V-16V)
Maintenance	Clean with dry cloth; avoid moisture
Safety Features	Thermal protection, short circuit protection, over-voltage protection
Spare Parts & Repairability	Not user-serviceable; contact authorized service center
Warranty	1 year limited warranty

Frequently Asked Questions - Reserve RSM1.4000D Soundstream

What is the RMS power output of the RSM1.4000D at 1 ohm?

The RMS power output at 1 ohm is 4000W x 1.

What fuse size is required for this amplifier?

The amplifier uses three 100A fuses (300A total). It is recommended to use a 300A fuse on the power wire near the battery.

What is the minimum impedance that this amplifier can handle?

The amplifier is stable down to 1 ohm. Do not use a load lower than 1 ohm as it may cause damage.

Does the RSM1.4000D include a remote subwoofer level control?

Yes, a remote level control is included for adjusting the bass from the driver's seat.

What is the frequency response range of this amplifier?

The frequency response is 20Hz to 250Hz, suitable for subwoofers.

How do I adjust the low pass filter?

Use the LPF knob on the amplifier to set the cutoff frequency between 40Hz and 250Hz.

What is the recommended power wire gauge for installation?

For this high-power amplifier, use 0 AWG or 1/0 AWG power wire for distances up to 20 feet.

Does the amplifier have protection features?

Yes, it includes thermal, short circuit, and over-voltage protection to prevent damage.

Can I use this amplifier with a high-level (speaker level) input?

Yes, it accepts both high-level and low-level inputs via RCA or speaker wire adapters.

What are the dimensions of the RSM1.4000D?

The dimensions are 20.5 inches long, 8.5 inches wide, and 2.5 inches high.

USER MANUAL Reserve RSM1.4000D Soundstream

Abstract geometric logo design with stylized 'R' and circular elements (no text or symbols)

E S E R V E

SOUNDSTREAM

OWNER'S MANUAL

CAR AUDIO SYSTEM

PLEASE READ CAREFULLY BEFORE INSTALLING OR OPERATED THIS UNIT

System Planning

Proper system planning is the best way to maximize your amplifier performance. By planning your installation carefully you can avoid situations where the performance of the reliability of your system is compromised. Your authorized dealer has been trained to maximize your system's sonic potential. Your dealer is a valuable resource in helping you with your system design and installation.

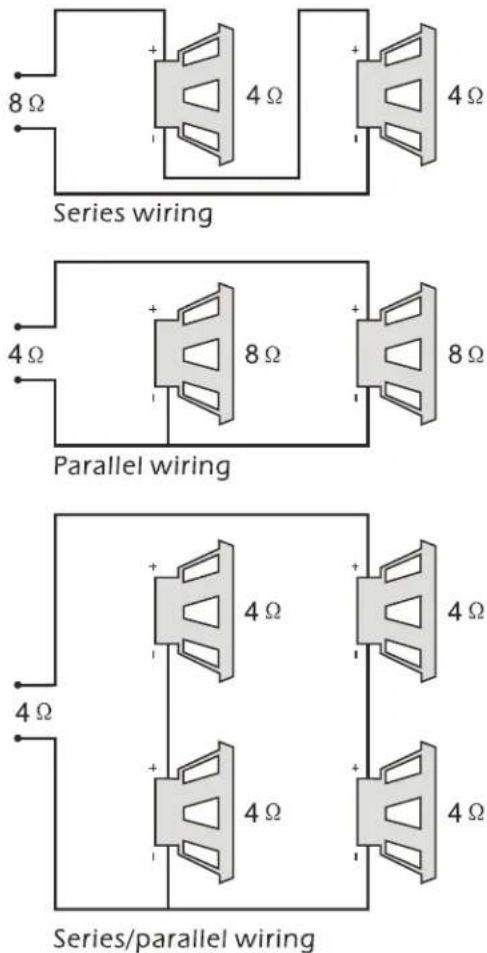

Speaker Requirements

Each channel of your amplifier can easily drive 4Ω speaker loads when used in the stereo mode. When a channel-pair is bridged, the recommended minimum load impedance is 3Ω for subwoofer use, and 4Ω for full range operation. Although operation with lower impedances is not likely to cause immediate damage to the internal circuitry, the unit will most likely overheat, causing the thermal protection circuitry to shut down the amplifier. When the chassis cools down, normal operation will resume. Continuing to operate the amplifier under these conditions is not recommended and will reduce its life expectancy.

Most speakers designed for car audio operation are 4Ω impedance. Connecting two such speakers in parallel will result in a 2Ω impedance load as seen by the amplifier. Some subwoofer models feature a dual 4Ω voice coil design. Connecting these voice coils in parallel will result in a 2Ω nominal impedance, which is not recommended for use with bridged channels of your amplifier.

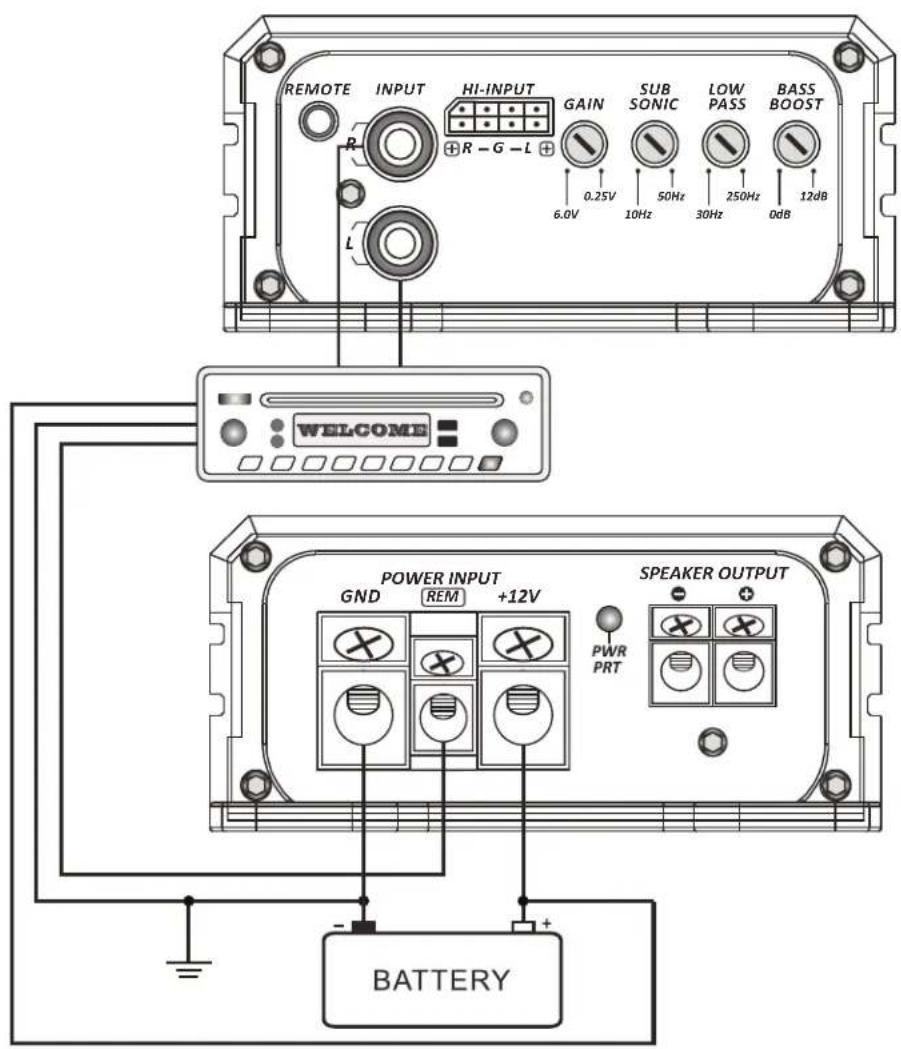

Power Connection Leads

Notes on the power supply

Connect the +12V power input lead only after all other leads have been connected. Be sure to connect the ground wire of the unit securely to a metal part of the car.

A lose connection may cause a malfunction of the amplifier.

REMOTE: The unit is turned on by applying +12Volts to this terminal This terminal dose not draw heavy current like the two power terminal so a thinner connecting wire is acceptable. Standard 18 GAUGE is fine and the standard colour is yellow. If the radio is equipped with a power antenna control wire, it can drive this terminal. If the power antenna wire is already in use, you can still splice into it. With this method, the unit will turn on automatically with the radio. Use the power supply lead with a fuse attached whose value is the same as original fuse.

Place the fuse in the power supply lead as close as possible to the car battery. During a full power operation, Maximum current will run through the system. Therefore, Make sure that the leads to be connected to the +12v and GND terminals of the unit respectively must be larger than 10-Gauge (AWG.10).

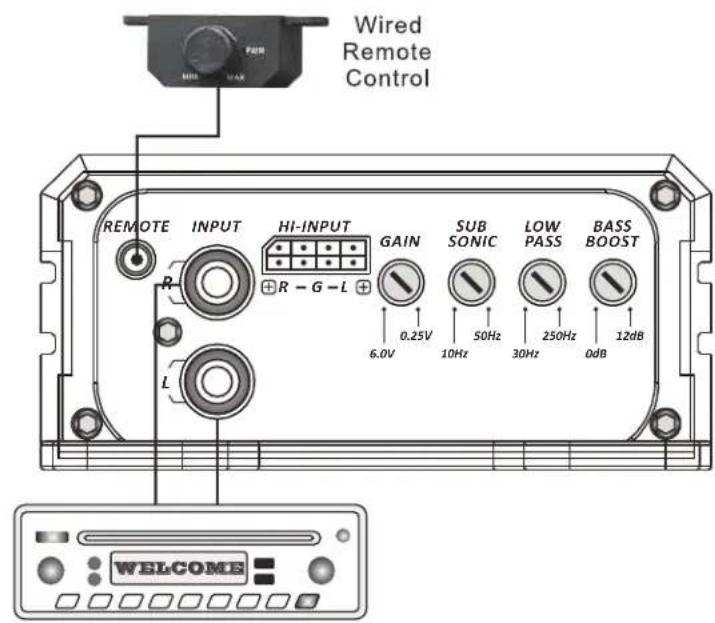

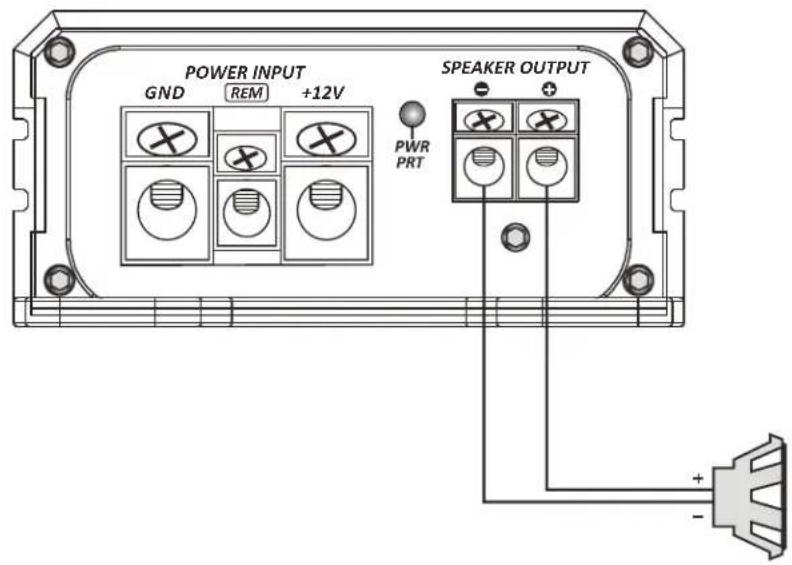

System 1 connection subwoofer

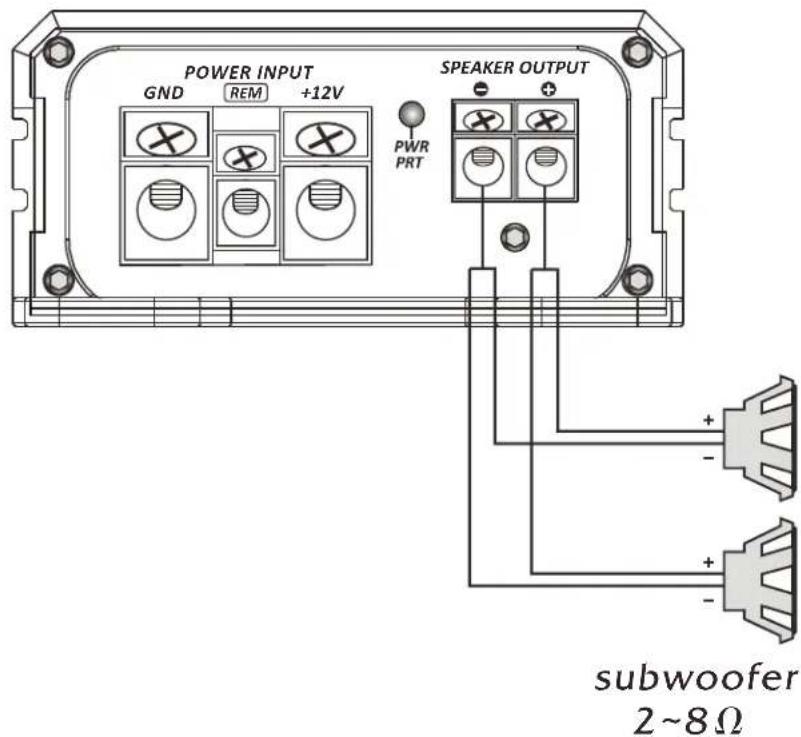

subwoofer 2\~8Ω

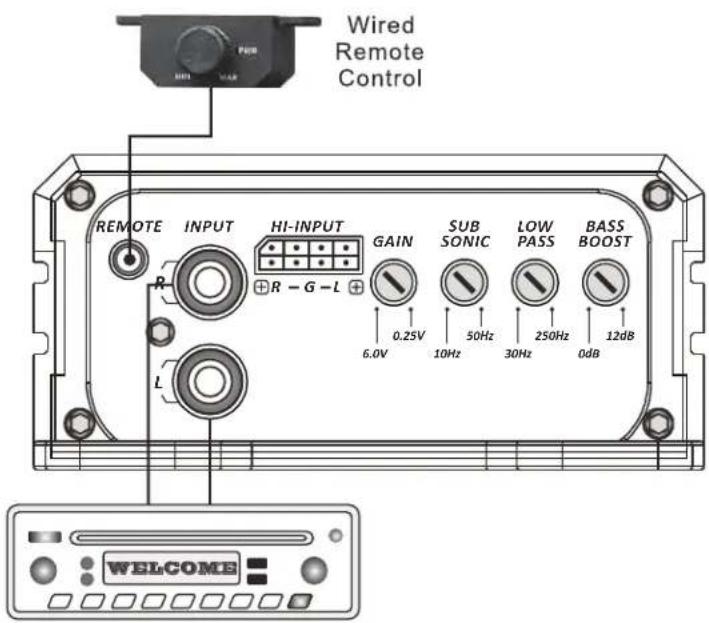

System 2 connection subwoofer

Trouble Shooting

Symptom no output	Possible Cause low or no remote turn-on input	Action to Take check remote turn-on voltage output at amplifier and correct as needed
	fuse blown	check power wire integrity and reversed polarity ,repair as needed and replace fuse
	power wires not connected	check power wire and ground connections and repair of replace as needed
	audio input not connected or no output from source	check input connections and signal integrity , repair or replace as needed
	speaker wires not connected	check speaker wires and repair or replace as needed
audio cycles on and off	speakers are blown	check system with known working speaker and repair or replace speakers as needed
	thermal protection engages when amplifier heatsink temperature exceeds 90°C	make sure there is proper ventilation for amplifier and improve ventilation as needed
	loose or poor audio input	check input connections and repair or replace as needed
distorted output	amplifier level sensitivity set too high; exceeding maximum output capability of amplifier	reset gain referring to the tuning section of the manual for detailed instructions
	impedance load to amplifier too low	check speaker impedance load if below 2Ω stereo or 4Ω mono rewire speakers to achieve a higher impedance
	shorted speaker wires	check speaker wire connections and repair or replace as needed
	speaker not connected to amplifier properly	check speaker wiring and repair of replace as needed refer to the installation section of this manual for detailed instructions
Symptom	Possible Cause	Action to Take
distorted output (cont'd)	speakers are blown	check system with known working speakers and repair or replace as needed
poor bass response	speakers wired wrong polarity causing cancellation at low frequencies	check speaker polarity and repair as needed
	crossover set incorrectly	reset crossovers referring to the multi-cross crossover configuration section of this manual for detailed instructions
battery fuse blowing	impedance load to amplifier too low	check speaker impedance load, if below 2Ω stereo or 4Ω mono rewire speakers to achieve a higher impedance
	short in power wire or incorrect power connections	check power and ground connections and repair as needed
	fuse used is smaller than recommended	replace with proper fuse size
	too much current being drawn	check speaker impedance load, if below 2Ω stereo or 4Ω mono rewire speakers to achieve a higher impedance
	short in power wire or incorrect	check power and ground connections and repair as needed
amplifier fuse blowing	too much current being drawn	check speaker impedance load, if below 2Ω stereo or 4Ω mono rewire speakers to achieve a higher impedance and replace with recommended fuse size
	fuse used is smaller than recommended	check power and ground connections and repair as needed

Specifications

RSM1.2000D

360wx1@4-ohm Mono

480wx1@2-ohm Mono

600wx1@1-ohm Mono

2000w MAX Power

Variable 30-250Hz 12dB Low Pass Crossover

Variable 10-50Hz 12dB Subsonic Crossover

Variable 0-12dB 45Hz Bass Boost

Total Harmonic Distortion: 0.5%@4-ohm

Frequency Response: 10-250Hz

Signal-to-noise Ratio: 70dB

Input Sensitivity: 250mV-6V

Dimensions. 3.75"wx1.75"hx7.50"I

RSM1.4000D

600wx1@4-ohm Mono

850wx1@2-ohm Mono

1200wx1@1-ohm Mono

4000w MAX Power

Variable 30-250Hz 12dB Low Pass Crossover

Variable 10-50Hz 12dB Subsonic Crossover

Variable 0-12dB 45Hz Bass Boost

Total Harmonic Distortion: 0.5%@4-ohm

Frequency Response: 10-250Hz

Signal-to-noise Ratio: 70dB

Input Sensitivity: 250mV-6V

Dimensions. 3.75"wx1.75"hx9.25"l
