USER MANUAL IAN 315393 CRIVIT

Operation and safety notes

PL

LICZNIKROWEROWY

GB Operation and safety notes Page 13

N

D	U
20"	1598 mm
22"	1759 mm
24"	1916 mm
26" (650A) 2073 mm
26,5" (Tubular) 2117 mm
26,6" (700 x 25C) 2124 mm
26,8" (700 x 28C) 2136 mm
27" (700 x 32C) 2155 mm
28" (700B) 2237 mm
ATB24" x 1,75 1888 mm
ATB26 x1,4 1995 mm
ATB26 x1,5 2030 mm
ATB26 x1,75 2045 mm
ATB26 x 2 (650B) 2099 mm
27" x 1 2138 mm
27" x 1 1 / 4 2155 mm

Introduction ......Page 15

Intended use......Page 15

Functions......Page 15

Parts description......Page 16

Technical data......Page 18

Scope of delivery......Page 18

General safety instructions ......Page 19

Safety instructions for batteries / rechargeable batteries ......Page 22

Before use......Page 29

Inserting the battery....Page 29

Attaching the bicycle computer......Page 30

Initial use......Page 31

Changing basic settings ......Page 31

Connecting the bicycle computer to the sensor ......Page 35

Using the bicycle computer......Page 35

CUSTOMIZE mode ......Page 40

Using the backlight......Page 41

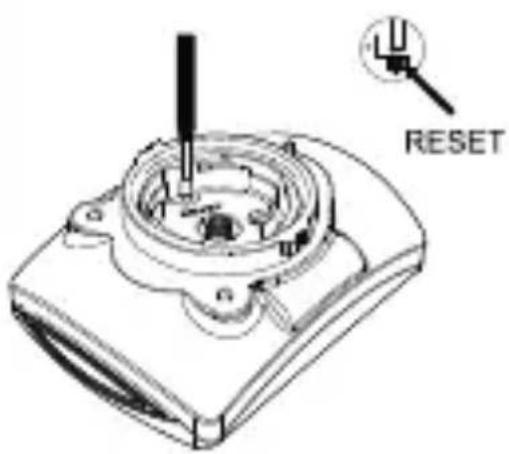

Resetting the bicycle computer......Page 42

Replacing the battery......Page 42

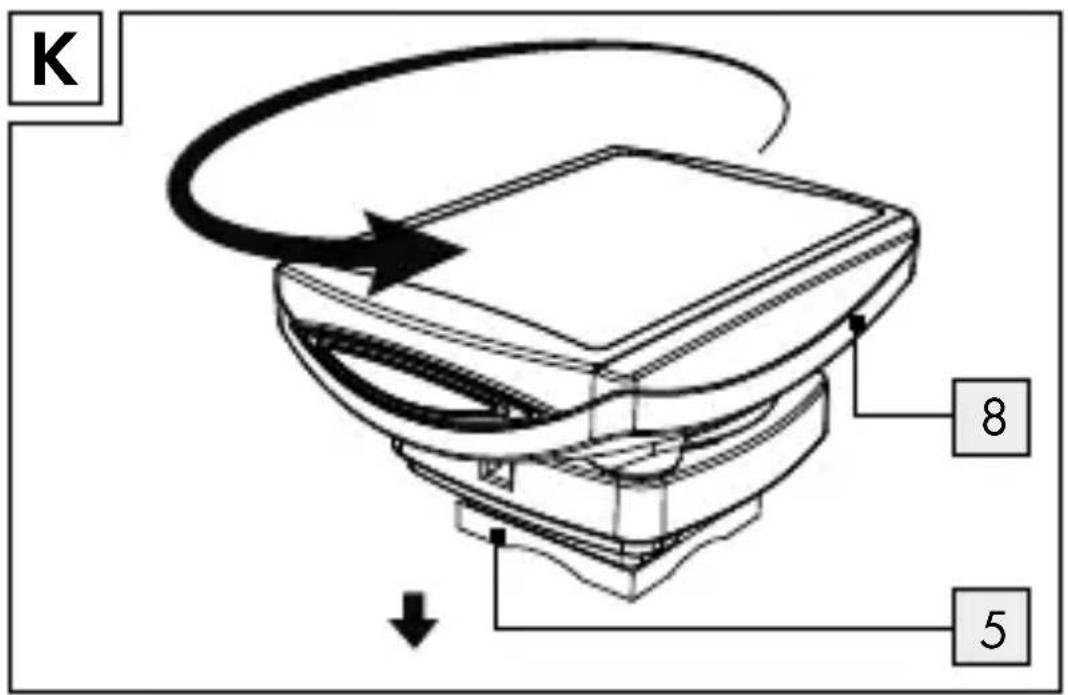

Removing the bicycle computer

from the bicycle......Page 43

Troubleshooting......Page 44

Cleaning and care......Page 46

Maintenance......Page 47

Simplified EU declaration

of conformity......Page 49

Warranty Page 50

Bike Computer

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

The product is intended to be used as a bicycle computer. Not for commercial use.

Functions

• Menu languages: GB, DE, FR, NL, IT, ES
• Clock

• Stopwatch

• Temperature display °C / °F

• Memory function for min. and max. temperature
• Bike speed display (0–99.9 km / h)
• Average speed display (0–99.9 km / h)
• Maximum speed display (0–99.9 km / h)
• Speed comparator
• Speed trend
• Trip timer (max. 9:59:59) (Countdown or forward-counting)
• Odometer (Countdown or forward-counting)
• Total kilometer and total trip time display
• Calorie counter
• Fat burning display
• CO_2 saved
• Scan display (functions are interconnected)
• Automatic start function
• ETA (Estimated time of arrival)-Distance
• ETA time
• Fuel Saving
• Back light ON / OFF

Parts description

1 Magnet
2 Cable ties

3 Battery
4 Damper for bicycle computer bracket
5 Bracket
6 Sensor
7 Bicycle computer battery cap
8 Bicycle computer
9 Sensor battery cap

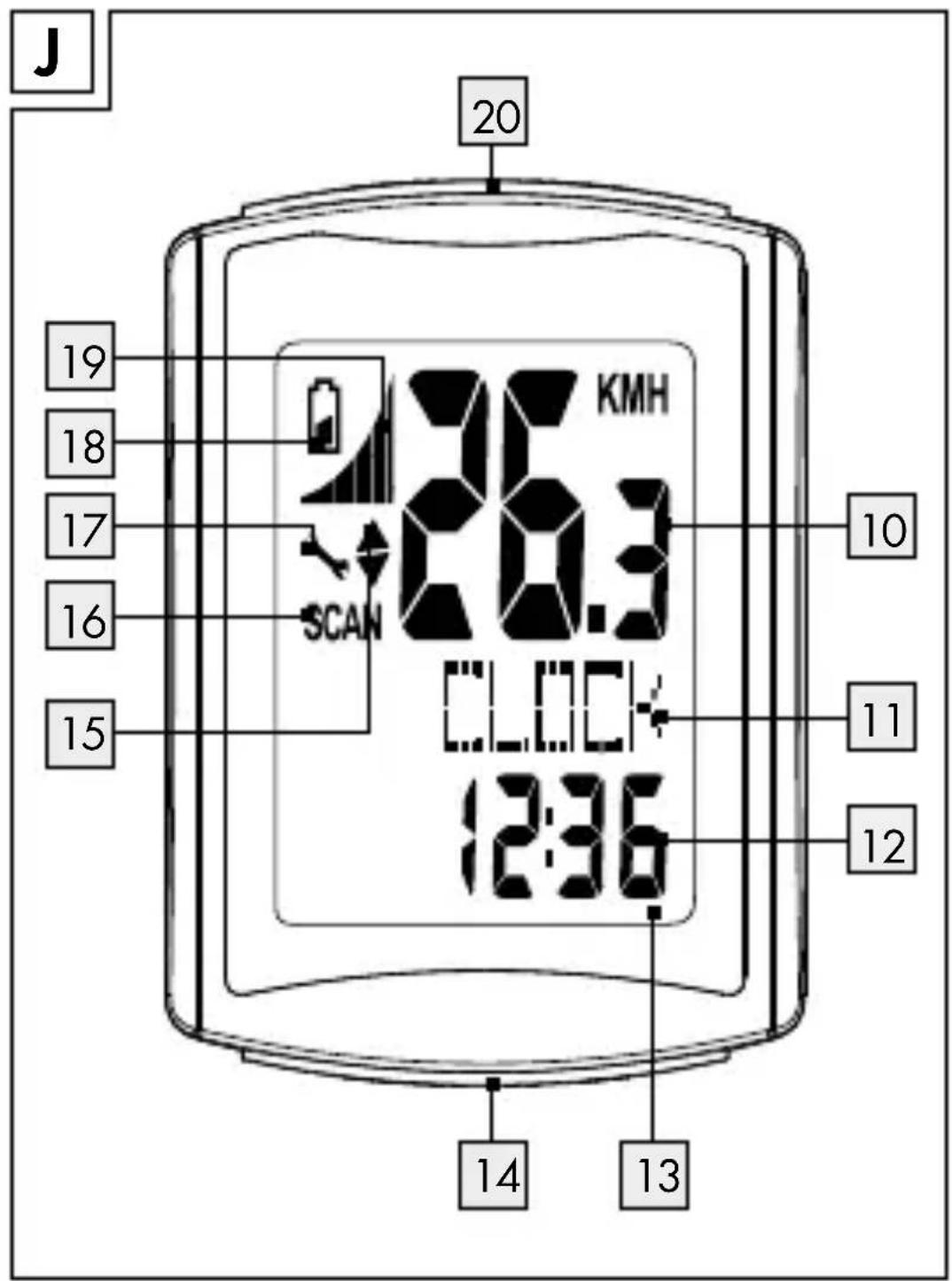

10 Primary functional value display
11 Function indicator
12 Secondary functional value display
13 LC display
14 MODE button (M)
15 Speed comparator display:

Compares the current speed with the average speed

▲ higher than the average speed

▼ lower than the average speed

16 SCAN display

17 Maintenance interval display

18 Battery state indicator (for bicycle computer)

19Speedtendency:

This displays the trend in terms of whether the speed is increasing (large bar, right) or decreasing (small bar, left).

20 SET button (S)

21 Replacement O-rings

- Technical data

Battery:3V (direct current)

三

(CR2032 button cell battery)

Operating temperature: 0–50 °C

Frequency Band: 125 kHz +/-10 kHz

Max. Transmitted power: 125 kHz <6.58 dBm

Scope of delivery

1 Wireless bike computer
1 Bracket for bicycle computer
1 Damper for bicycle computer bracket
1 Bracket with sensor
1 Magnet
6 Cable ties
2 Batteries, 3 V--- (direct current), Model CR2032 button cell battery

2 Replacement O-rings for bicycle computer and sensor
1 Instructions for use

Generalsafety instructions

KEEP ALL SAFETY NOTICES AND INSTRUC- TIONS FOR FUTURE REFERENCE!

This product may be used by children 8 years and up as well as persons with physical, sensory or

mental impairments or lacking experience and knowledge, when supervised or instructed in the safe use of the product and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance must not be performed by children without supervision.

Please note that the guarantee does not cover damages caused by incorrect handling, non-compliance with the safety instructions or use by unauthorised persons.

Safety instructions for batteries / rechargeable batteries

DANGER TO LIFE!

Keep batteries / recharge- able batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

Warning symbol depicting a collapse with radiating lines, no text present

DANGER OF EXPLOSION!

Never recharge non- rechargeable batteries. Do not short-circuit bat- teries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.

■ Never throw batteries / rechargeable batteries into fire or water.

Do not exert mechanical loads to batteries / rechargeable batteries.

Risk of leakage of batteries / rechargea- ble batteries

Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.

Avoid contact with the skin, eyes and mucous membranes. In the event of contact with battery acid, thoroughly flush the affected area with plenty of clean water and seek immediate medical attention.

Symbol of two gloves inside a black circle (no text or numbers)

WEAR PRO-

TECTIVE

GLOVES!

Leaked or damaged batteries / rechargeable

batteries can cause burns on contact with the skin.

Wear suitable protective gloves at all times if such an event occurs.

In the event of a leakage of batteries / rechargeable batteries, immediately remove them from the product to prevent damage.

Only use the same type of batteries / rechargeable batteries. Do not

mix used and new bat- teries / rechargeable batteries.

■ Removebatteries/rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

Only use the specified type of battery / rechargeable battery!

Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.

Clean the contacts on the battery/rechargeable battery and in the battery compartment before inserting!

■ Removeexhausted batteries / rechargeable

batteries from the product immediately.

Beforeuse

Remove the protective film from the LC display 13 before you use the device for the first time.

Note: Do not use this product on electric bikes. The motor could cause the product to malfunction.

Note: To use the backlight function, it must be activated in basic settings. See "Changing basic settings".

- Inserting the battery

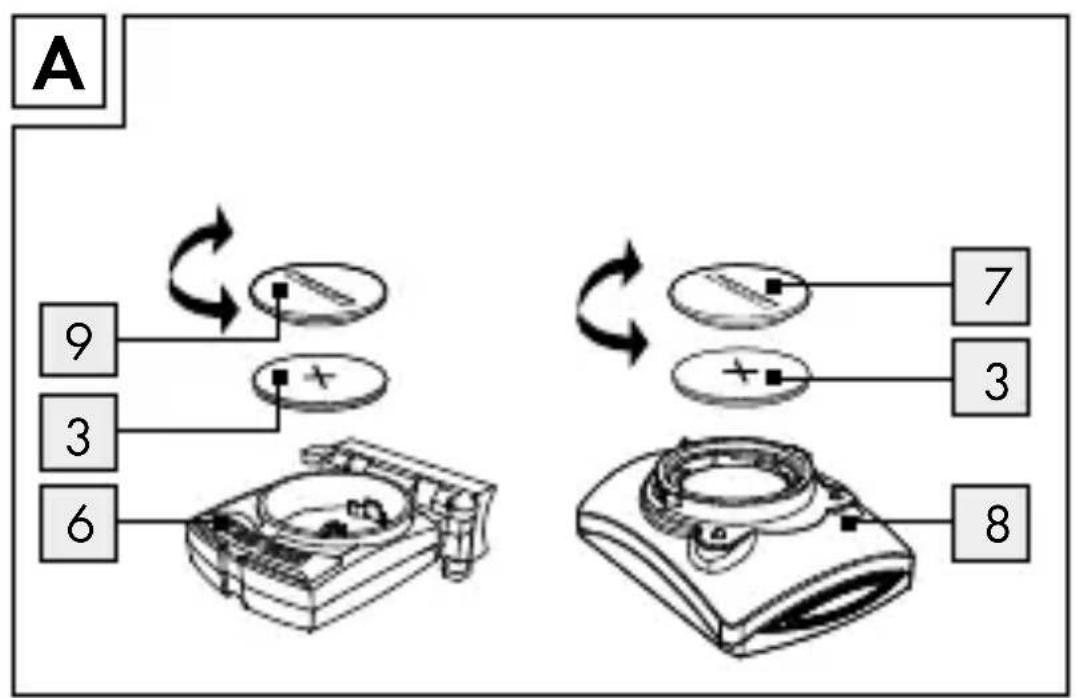

☐ To insert the battery proceed as depicted in Fig. A.

Use a coin to open the battery compartment. Use this to turn the battery cap counter-clockwise. Ensure that you insert the battery correctly into the battery compartment (polarity). This is shown in the battery compartment.

Ensure that the O-ring is attached correctly before inserting the battery.

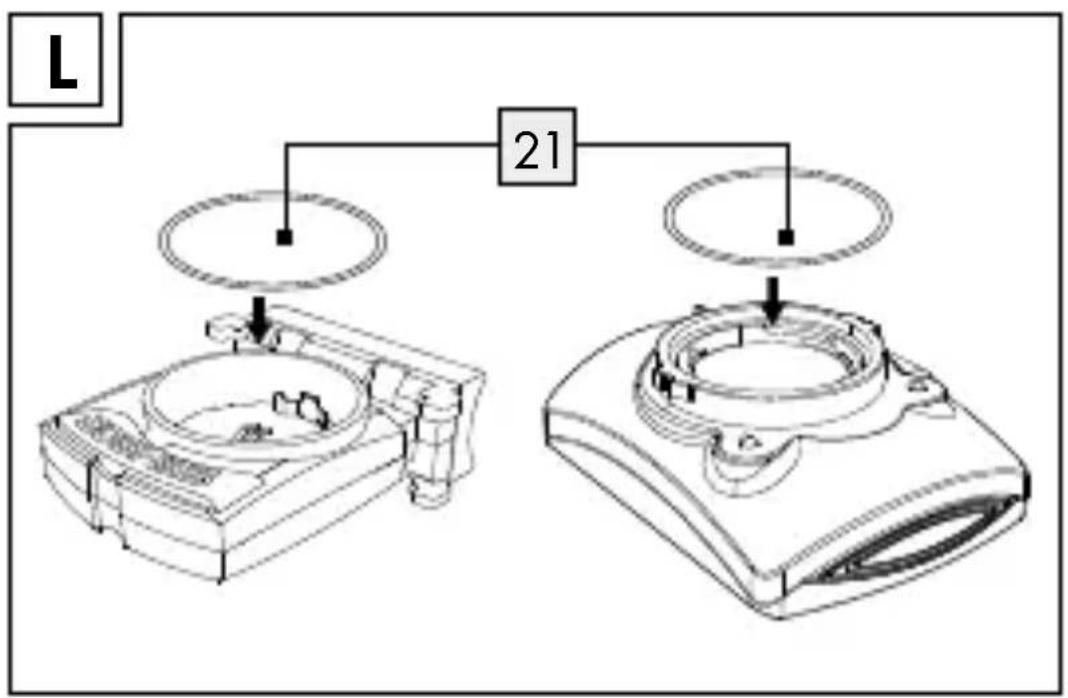

Note: We also provide 2 replacement O-ring for bicycle computer and sensor.

Turn the battery cap clockwise onto the battery compartment using the coin to close it.

- Attaching the bicycle computer

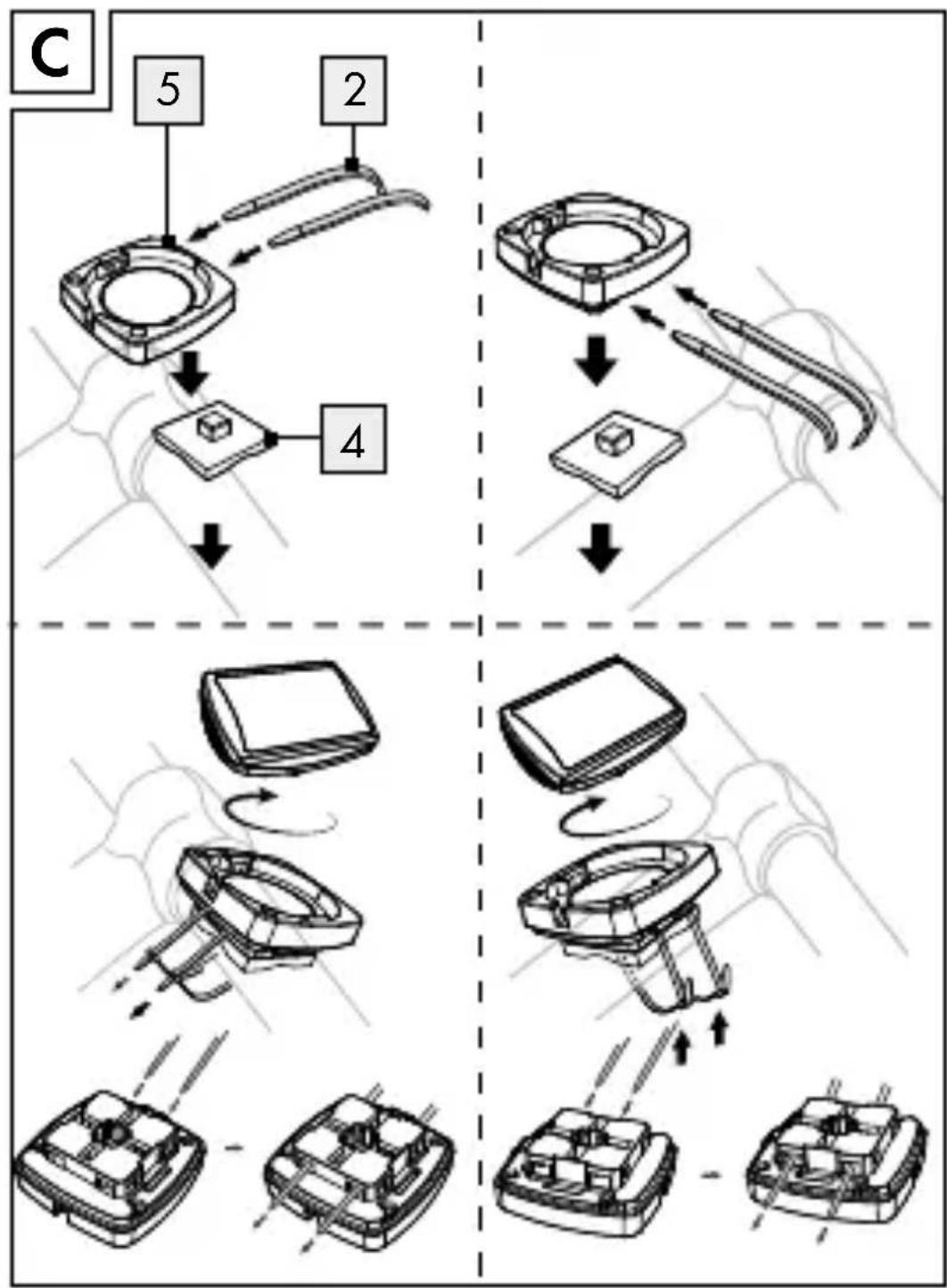

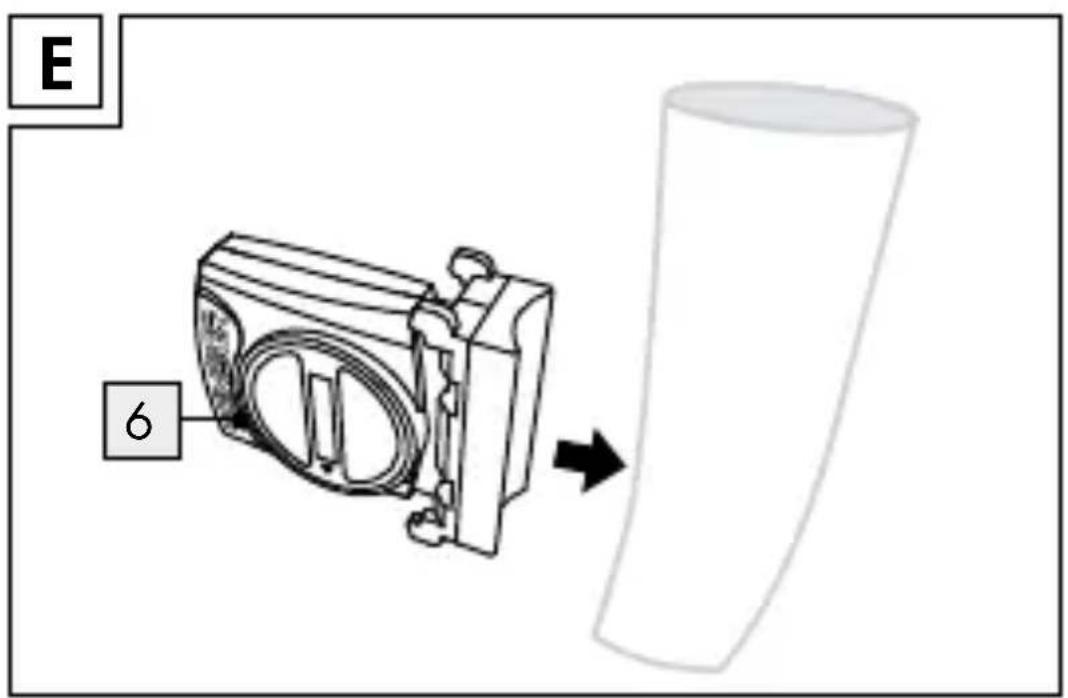

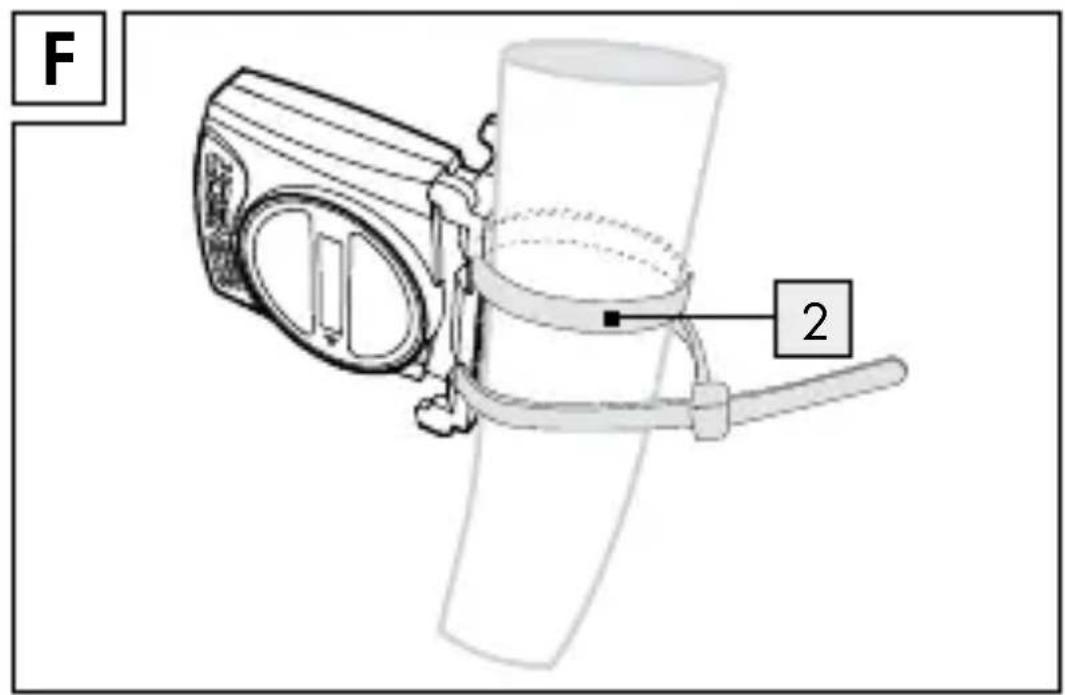

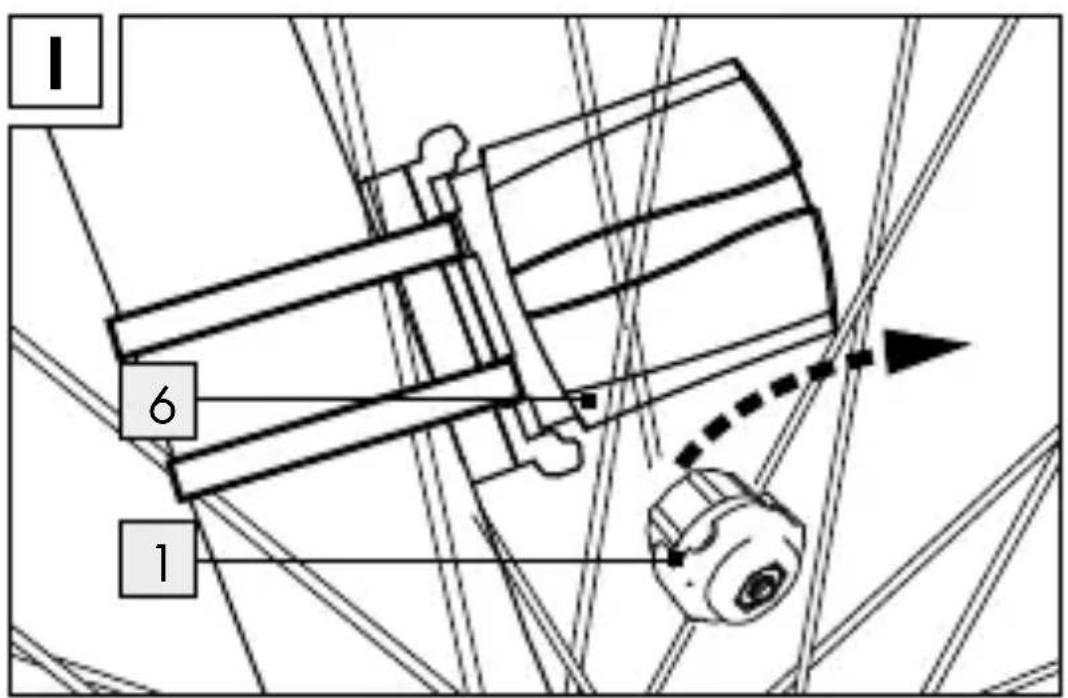

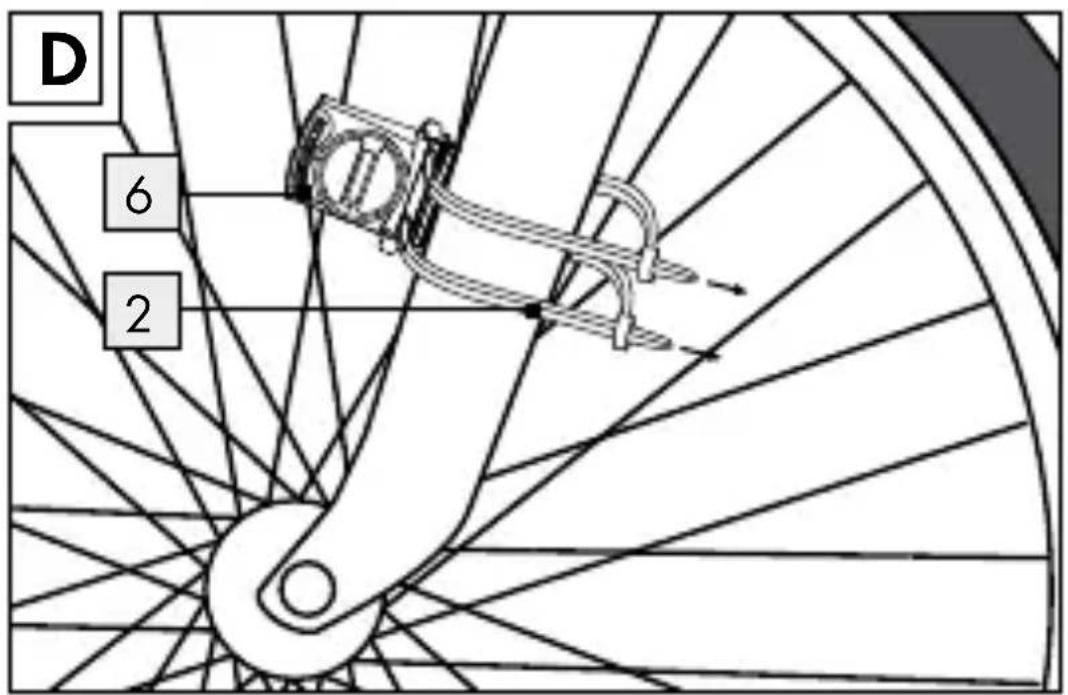

☐ To attach the product, proceed as depicted in Fig. B to I.

Trim the protruding ends of the cable ties using a suitable tool such as a side cutter.

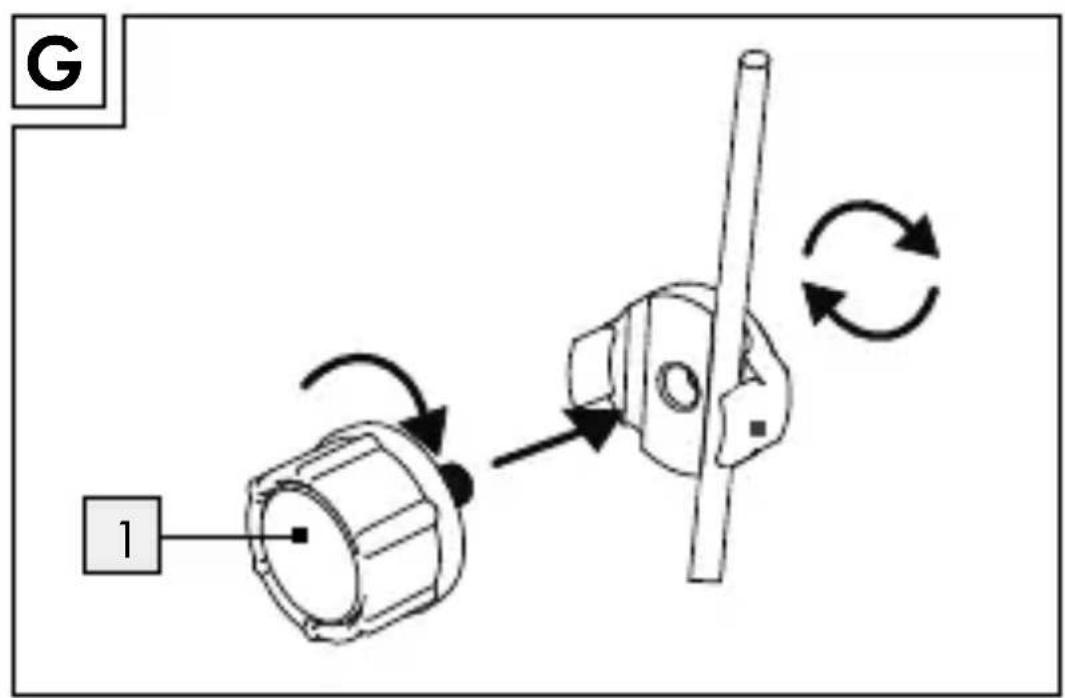

Hint: You can choose the suitable notches on the magnet 1 for different spoke size of your bicycle to attach.

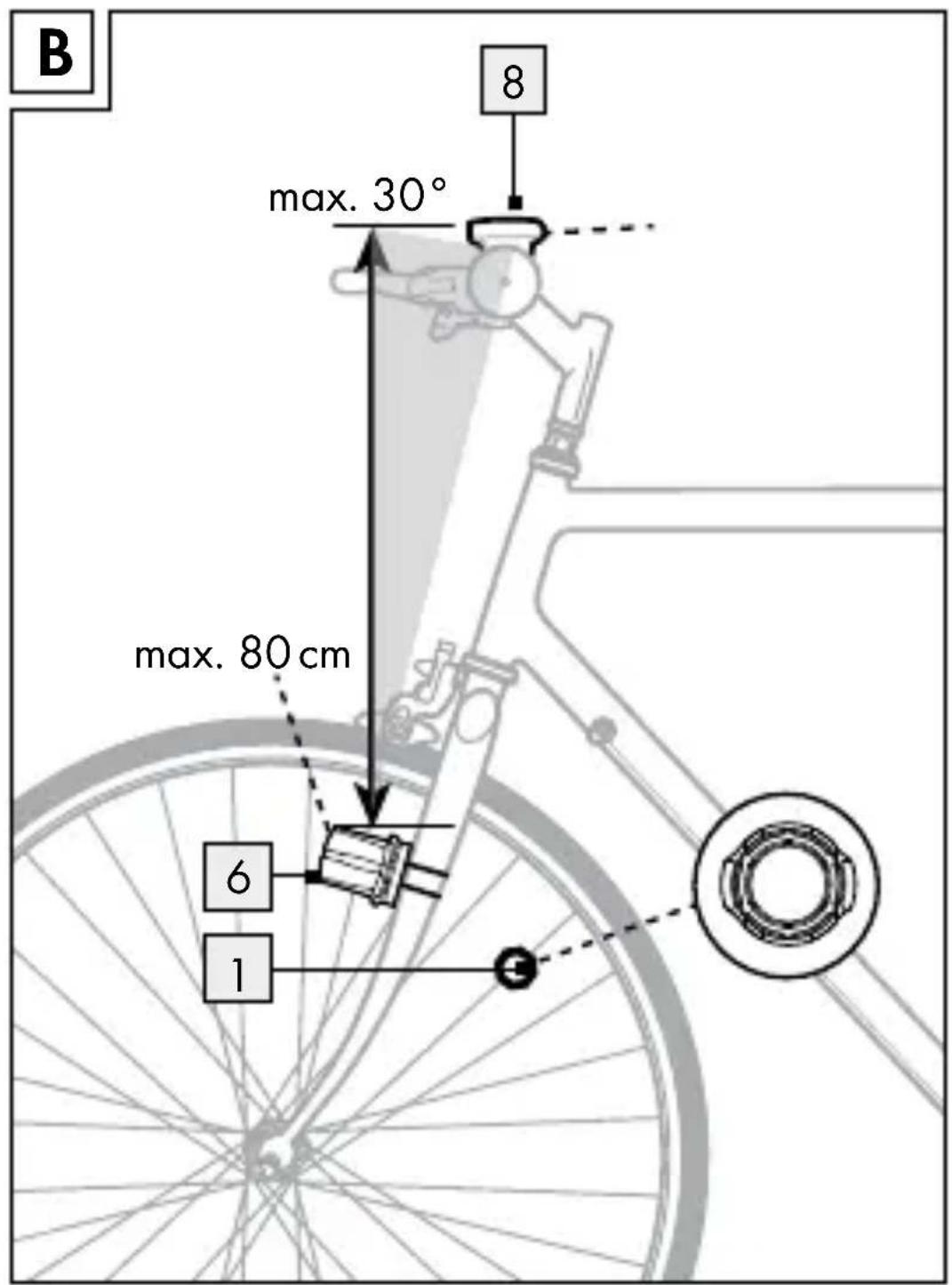

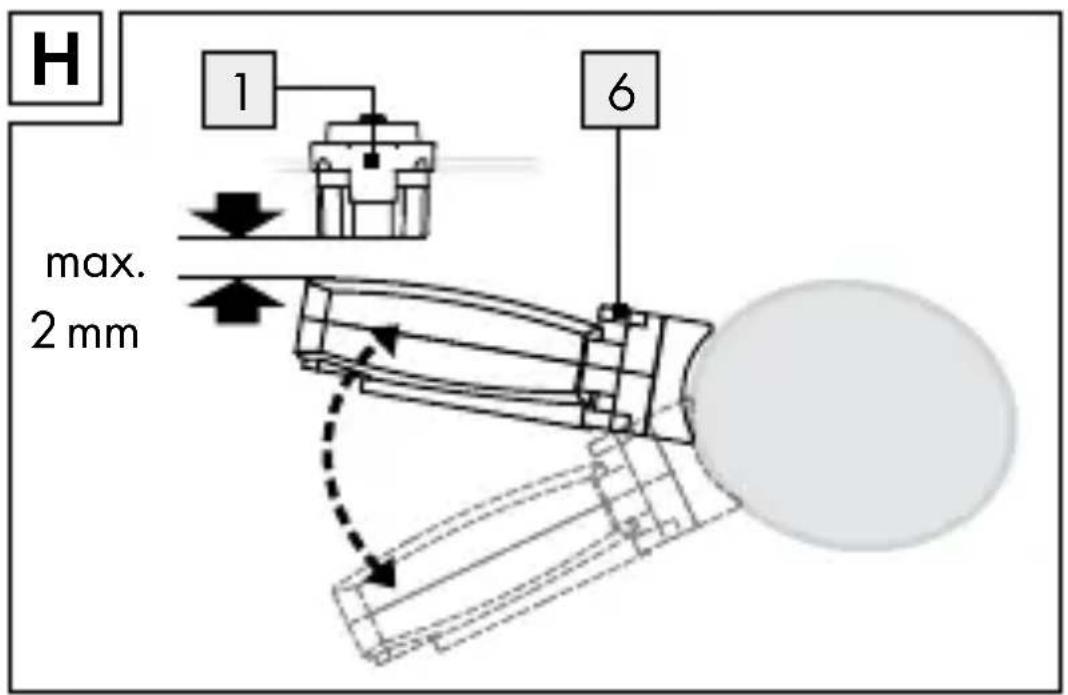

Note: Ensure that the bicycle computer 8 is attached less than 80 cm from the sensor 6. Attach the bicycle computer 8 to the sensor 6 within a 30° angle, see Fig. B.

Initialuse

Changing basic settings

Basic settings: Language > Application profile

Tyre size > Unit of length > Age > Unit of weight Weight > Time format > Time > Date format > Date > CO₂ emission rate > Maintenance interval Back light ON / OFF > ETA distance > ETA mode Fuel format > Fuel cons > Unit of temperature

Setting Display
Unit of length			SETKM
Unit of weight			SETKG
Time format/ Time		SETCLK
Date format	DATEFORM
CO2-Emission rate	CO2G/KM
Maintenance interval		SERVICE
Light ON/OFF				LIGHT
ETA distance	ETA-DIST
ETA mode		ETAMODE
Fuel format	FUELFORM
Fuel con-sumption rate	FUELCONS
Unit of temperature				SET °C

Important functions:

MODE button 14 to configure values / SET button 20 to edit and adopt settings

• Language: 6 language can be select.
• Application profile: ADVANCE or EASY can be select.
• Tyre size: Enter the circumference for your tyres size in mm, 4 digit number can be input.

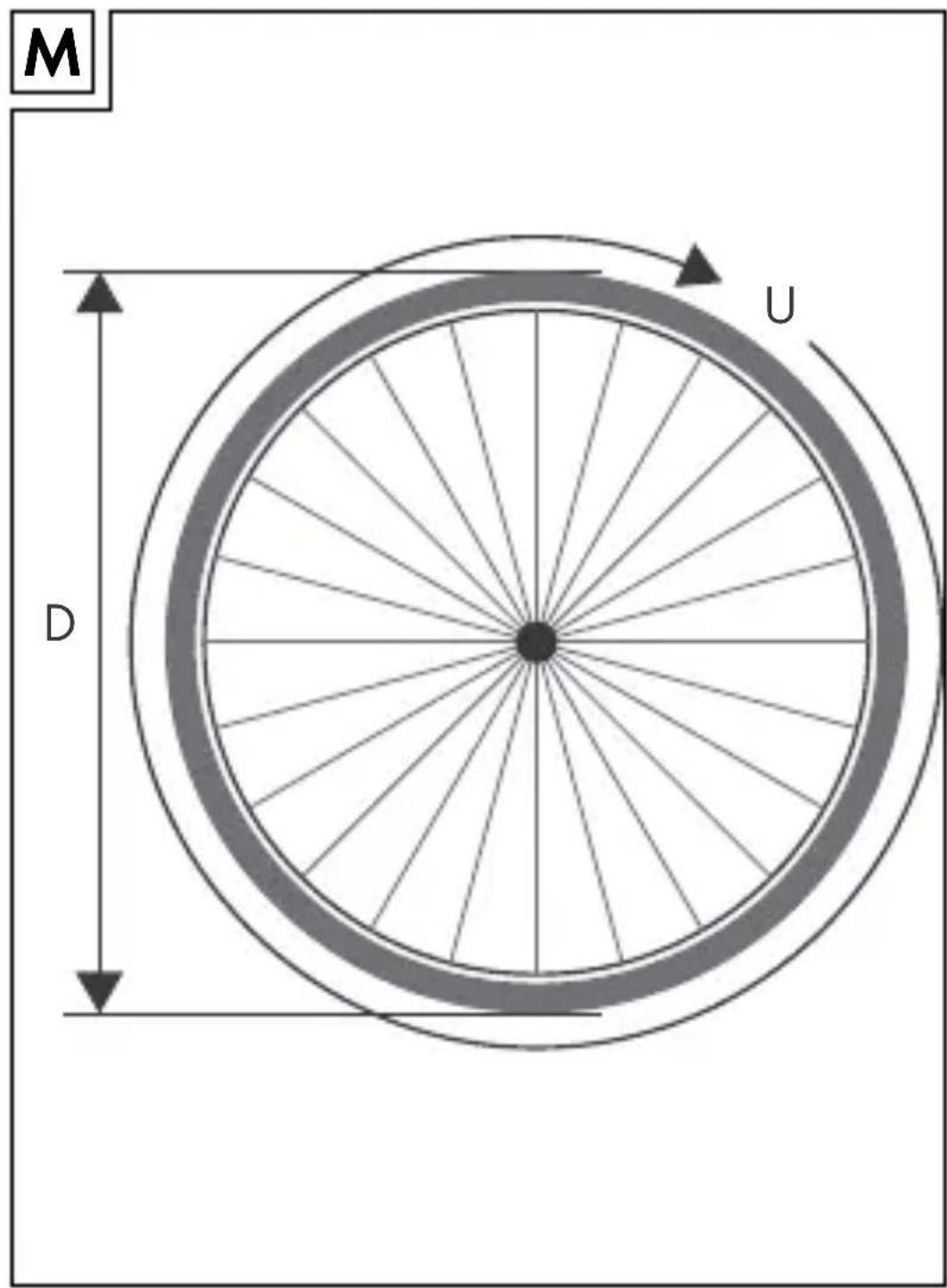

Note: You can calculate your tyre circumference (U) by multiplying the tyre diameter (D) in "mm"

by 3.1416 (Fig. M). The list (Fig. N) features the tyre circumferences (U) of conventional tyre diameters (D).

• Unit of length: KM / KMH or MILE / MPH can be select.
• Age: 2 digit number can be input.
• Unit of weight: KG or LB can be select.
• Weight: 3 digit number can be input in unit of KG or LB per select.
• Time format: 12 or 24hrs can be select.
• Time: hour and min can be input.
• Date format: DD-MM-YY or MM-DD-YY can be select.
• Date: Year, month and day can be input.
• CO2 emission rate ( CO2 value of your own car): 3 digit number can be input in unit of G / KM.
• Maintenance interval: 3 digit number can be input in unit of KM or MILE per select. Maintenance interval display 17 will be shown on the LC display 13 as a reminder for maintenance.

Note: If the maintenance interval input "000" will switch off the service indicator.

- Back light ON / OFF: Switch ON or OFF the back light function. When switch ON, you can input the LIGHT ON and LIGHT OFF time. The back light can be activated during the input time.

- ETA distance: 5 digit number can be input in unit of KM or MILE per select.

- ETA mode: CLOCK or TIME for select.

- Fuel format: LITER or GALLON can be select.

- Fuel cons: 3 digit number can be input in unit of L / 100 KM (LITER) or mpg (GALLON) per select.

- Unit of temperature: °C or °F can be select.

☐ Confirm your choice using the SET button 20.

☐ Press the MODE button 14 to exit settings. You have now successfully configured the basic settings.

If you wish to change the basic settings, please follow the steps outlined in the chapter "Resetting the bicycle computer" and reset all basic settings.

Connecting the bicycle computer to the sensor

Use the magnet 1 to trigger the sensor 6, the speed tendency 19 shows a curve to confirm successful connection. The bicycle computer 8 is now ready to use. If the connection breaks, please follow the steps in the chapter "Troubleshooting" and reset all basic settings. You will then have to reestablish the connection between the bicycle computer 8 and the sensor 6.

• Using the bicycle computer

Note: The bicycle computer will automatically switch to standby mode when it has not been used for over 5 minutes. Pressing any button or vibrations will reactivate the computer. The function indicator will show the current mode

☐ Press the MODE button 14 repeatedly to scroll through the different functions. Press and hold the SET button 20 to request or reset the saved values.

The bicycle computer features the following functions:

ADVANCE mode: By pressing the MODE button 14 you can select the following function displays: CLOCK > TOTALODO > TOTAL-TM > TRIPDIST > MAXSPEED > AVGSPEED > TRIPTIME > TEMP > STPWATCH > CAL RATE > CALORIE > FAT-BURN > CO₂ KG > FUELSAVE > ETASTART > KM+ / -> TIME+ / -> SCAN

EASY mode:

By pressing the MODE button 14 you can select the following function displays:

TRIPDIST > MAXSPEED > AVGSPEED > TRIPTIME

Note: You can also apply your own settings to turn on the remaining function displays. See "CUSTOMIZE mode" chapter.

CLOCK: Displays the time.

☐ Press and hold the SET button 20 for 3 seconds and press the SET button 20 again to request the time format, time, date format and date settings.

Note: Press SET button 20 to can be switch display of the time / date.

TOTALODO: Total mileage counter.

Press and hold the SET button 20 for 3 seconds and press the SET button 20 again to change the tyre size, total mileage counter and maintenance interval settings.

TOTAL-TM: Total trip time (display in hour :min).

☐ Press and hold the SET button 20 for 3 seconds and press the SET button 20 again to change the saved total trip time.

TRIPDIST: Trip distance.

☐ Press and hold the SET button 20 for 3 seconds to set the trip distance, maximum speed, average speed and trip time to 0.

MAXSPEED: Maximum speed.

☐ Press and hold the SET button 20 for 3 seconds to set the maximum speed to 0.

AVGSPEED: Average speed.

☐ Press and hold the SET button 20 for 3 seconds to set the average speed to 0.

TRIPTIME: Trip time (display in hour : min : sec).

TEMP: Thermometer.

☐ Press the SET button 20 to display the maximum temperature value reached (HI). Press the SET button 20 again to display the lowest temperature value reached (LO). Press the SET button 20 and keep it pressed while the highest or lowest temperature is displayed to return to the current temperature and delete the saved information. Press and hold the SET button 20 for 3 seconds and press the SET button 20 again to request temperature unit setting.

STPWATCH: Stopwatch.

☐ Press the SET button 20 to start the stopwatch. Press the SET button 20 again to stop the stopwatch. Press and hold the SET button 20 for 3 seconds to set the stopwatch to 0.

CAL RATE: Current calorie consumption.

CALORIE: Calorie counter (display in unit of calorie).

☐ Press and hold the SET button 20 for 3 seconds to set the calorie counter to 0.

FAT-BURN: Fat-burning in grams.

☐ Press and hold the SET button 20 for 3 seconds to set the fat-burning value to 0.

CO_2 KG: CO_2 saved.

☐ Press and hold the SET button 20 for 3 seconds and press the SET button 20 again to request the reference value for CO _2 setting.

FUELSAVE: Fuel save comparison with a car.

☐ Press and hold the SET button 20 for 3 seconds and press the SET button 20 again to request the fuel format (FUELFORM) and fuel consumption (FUELCONS) setting.

ETASTART: Estimated time of arrival.

☐ ETASTART will be displayed. Press the SET button 20 and MODE button 14 to activate the ETA function.

☐ Press and hold the SET button 20 for 3 seconds to change the ETA distance and the ETA mode (CLOCK or TIME for select).

KM + / -: Kilometer counter.

☐ Press and hold the SET button 20 for 3 seconds and press the SET button 20 again to request the kilometer counter settings. The LC display will show the symbol for increasing or

decreasing the number (+ or -) and distance counter value.

TIME + / -: Timer (display in hour: min: sec).

☐ Press and hold the SET button 20 for 3 seconds to change the timer settings. The LC display will show the symbol for increasing or decreasing the number (+ or -) and timer counter value.

SCAN: Scan

Note: In scan mode, the display switches automatically between the trip distance, maximum speed, average speed and trip time.

Note: Refer to the "Changing basic settings" chapter to configure the settings.

Note: To deactivate scan mode press the MODE button 14 to return to ADVANCE mode.

CUSTOMIZEmode

Alongside ADVANCE and EASY mode, you can also apply your own settings in CUSTOMIZE mode.

☐ Press and hold the MODE button 14 for 3 seconds and press the SET button 20 to enter the application profile setting.

☐ Press MODE button 14 to select EASY mode.

☐ EASY will be flashing on display. Press and hold the SET button 20 to enter CUSTOMIZE mode setting.
☐ Press the SET button 20 again. Press the MODE button 14 to activate or deactivate individual settings (i. e. CLOCK).
☐ Select "ON" to add the selected function to EASY mode. Select "OFF" if you do not wish to add the selected function to EASY mode.
☐ Press the SET button 20 to confirm your entry. Press the MODE button 14 to proceed to the next function and repeat the steps as described above.
☐ Press the MODE button 14 to exit settings.

Using the backlight

Note: To use the backlight function, it must be set in advance. See "Changing basic settings".

☐ Press the SET button 20 to temporarily activate the backlight. The backlight will switch off automatically after a short amount of time.

- Resetting the bicycle computer

☐ Press and hold the SET button 20 first and hold the MODE button 14 to proceed to setting mode. SETTING OPEN or SETTING RESET will be displayed. Press the MODE 14 button until SETTING RESET displayed, Confirm reset the product by press the SET button 20.

Now you can reset the previously configured basic settings (language, age, weight, time). Other saved information will be deleted.

Note: You can select SETTING OPEN to request for changing settings but not to delete the saved information. Refer to the "Changing basic settings" chapter to configure the settings.

Replacing the battery

Note: The bicycle computer battery must be replaced when the battery state indicator 18 is shown on the LC display. Press and hold the MODE button 14 first and hold the SET button 20 at the same time and keep them pressed until the battery symbol and {{—}} are shown on the LC display. To

replace the battery, proceed as shown in figure A. Open the battery compartment by turning the battery cap anticlockwise towards to the 📄 icon using a coin. Remove the old battery and replace this with a new battery. If required, remove the battery by a sharp instrument (e.g. a screwdriver). Please note the polarity when inserting the battery. This is shown in the battery compartment. Ensure that the O-ring is attached correctly before inserting the battery. Turn the battery cap clockwise towards to the 🔒 icon onto the battery compartment using a coin to close it. Press and hold any button to return to normal operating mode.

Note: When the battery has been removed, all information will be deleted after approx. 20 seconds.

Removing the bicycle computer from the bicycle

☐ Turn the bicycle computer counter-clockwise to remove it (Fig. K).
☐ To remove the cable ties 2 using a suitable tool such as a side cutter.

Troubleshooting

Note: This product contains delicate electronic components. Therefore, interference may occur when it is near products which transmit radio signals.

- If error messages appear in the display, remove these products from the proximity of the product. If the device fails to work, remove the batteries for a short while and then replace them.

Problem Solution

Empty LC display or no response after putting the battery in again

Remove battery. If required, guide a sharp instrument (e.g. a screw-driver) into the hole labelled "RESET". Insert a 3 V battery into the battery compartment in such a way that the + terminal points upwards. Replace the battery cap on the battery compartment. The microprocessor is reset and restarted.

Speed or distance are not displayed

Adjust magnet and sensor correctly. - Check that the battery is inserted with the poles arranged the right way round.

Problem Solution
Display is black The ambient temperature is too high or the bicycle computer was exposed to direct sunlight for too long. Remove product from direct sunlight and let it cool off for a while.
The LC display shows irregular symbols.	Remove battery and replace it again.

- Cleaning and care

Do not use any liquids or cleaning agents for cleaning. Otherwise there is a risk of damaging the product.

☐ Clean the contacts on the battery / rechargeable battery and in the battery compartment and the product on the outside only with a soft, dry cloth.

Maintenance

Remove the battery from the product if the product is not going to be used for a prolonged period.
☐ Regularly examine the product i.e. check its components for damage and ensure that they are positioned correctly.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries/rechargeable batteries and/or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries/rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows:

Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

- Simplified EU declaration of conformity

Hereby, OWIM GmbH & Co. KG, Stiftsbergstraße 1, DE-74167 Neckarsulm, GERMANY declares that the product (Bike Computer, HG00734A) is in compliance with Directive 2014/53/EU and 2011/65/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.owim.com

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage

to fragile parts, e.g. switches, rechargeable batteries or glass parts.

C€ IP45

Wstep ......Strona 54

Użycie zgodne z

Symbol of two gloves inside a black circle (no text or numbers)

ZAKŁADAĆ

REKAWICE

OCHRONNE! Wylane

Warning symbol: black exclamation mark inside a triangle (no text or numbers)

Last Information Update
