Product Type	Range Hood
Brand	Best
Model	WC34IQ90SB
Width	86.4 cm (34 in)
Material	Stainless Steel
Lighting	LED bulbs (non-replaceable)
Number of Speeds	4 (low, medium-low, medium-high, high)
Control Type	Push buttons
Timer Function	10-minute delayed shut-off
Heat Sentry Thermostat	Triggers or speeds up fan in case of excessive heat
IQ Calibration Technology	Automatic calibration for optimal airflow
Grease Filter	Dishwasher safe, cleaning alert after 30 h
Charcoal Filter (optional)	For non-ducted installation, replace every 6 months
Electrical Supply	125 V, 15 A, grounded outlet
Installation	Ducted or non-ducted (recirculation)
Minimum height above cooktop	61 cm (24 in)
Maximum height above cooktop	76.2 cm (30 in)
Warranty	1 year
Included Accessories	Decorative duct, mounting brackets, damper, screws, anchors

Frequently Asked Questions - WC34IQ90SB BEST

How to clean the grease filters?

Grease filters should be cleaned frequently with a warm detergent solution. They are dishwasher safe with a phosphate-free detergent.

What to do if the filter indicator flashes?

The indicator flashes after 30 hours of operation to indicate that filters need cleaning or replacement. Press the Filter Alert Reset button to reset the counter.

How to set the delayed shut-off timer?

Press the Timer button to activate delayed shut-off. The fan continues to run for 10 minutes at the set speed, then stops automatically. The LED indicator flashes during operation.

What is the Heat Sentry thermostat?

The Heat Sentry is a thermostat that detects excessive heat above the cooking surface. It turns the fan on to high speed if it is off, or speeds it up if running at low speed.

Which fans can I use with this hood?

This hood must be installed only with an external fan Best EB6, EB9, EB12, EB15 or inline fan ILB3, ILB6, ILB9, ILB11. Fans are sold separately.

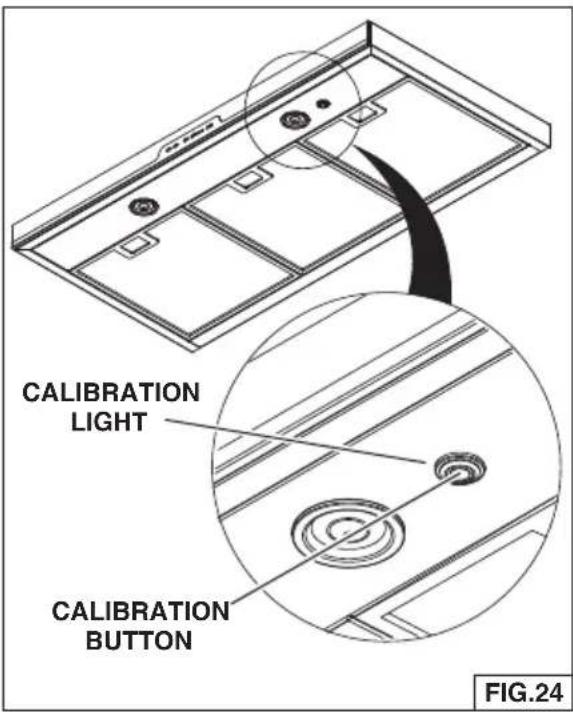

How to calibrate the IQ fan?

Press and hold the calibration button for 3 seconds. The fan turns on and calibration lasts up to 13 minutes. Once complete, if the indicator stays on, calibration is successful. If it flashes, there is too much restriction in the duct.

What is the recommended installation height?

The bottom of the hood should be installed between 61 cm (24 in) and 76.2 cm (30 in) above the cooking surface for optimal efficiency.

How to maintain stainless steel?

Clean with a clean cloth dampened with warm water and mild soap, always in the direction of the polish. Rinse and dry. Do not use steel wool, abrasive cleaners, or those containing bleach.

What to do if the motor overheats?

The motor is equipped with a thermal protection device that automatically cuts off the motor in case of overheating. It restarts after cooling. If the problem persists, have the hood repaired.

How to replace the LED bulbs?

This hood includes LED bulbs that require no maintenance and are not replaceable. In case of failure, contact customer service.

USER MANUAL WC34IQ90SB BEST

Line drawing of a kitchen air conditioner unit with vertical panel and ventilation slots (no text or symbols)

WC34 Series

ENGLISH.... 1

FRANÇAIS....24

ESPAÑOL...... 47

In USA - BEST Hartford, Wisconsin

In CANADA - BEST Drummondville, QC, Canada

REGISTER YOUR PRODUCT ONLINE AT : www.BestRangeHoods.com/register

For additional Information visit www.BestRangeHoods.com

READ AND SAVE THESE INSTRUCTIONS

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock service panel to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guidelines and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any separate solid-state speed control device.
8. To reduce the risk of fire, use only metal ductwork.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING - Improper grounding can result in a risk of electric shock.

Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the appliance.

WARNING

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

A. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe').
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface element.

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:\*

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - violent steam explosion will result.
4. Use an extinguisher ONLY if:

A. You know you have a Class ABC extinguisher and you already know how to operate it.

B. The fire is small and contained in the area where it started.

C. The fire department is being called.

D. You can fight the fire with your back to an exit.

* Based on "Kitchen Fire Safety Tips" published by NFPA.

CAUTION

1. For indoor use only.
2. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
3. Take care when using cleaning agents or detergents.
4. Avoid using food products that produce flames under the Range Hood.
5. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
6. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
7. Your hood motor has a thermal overload which will automatically shut off the motor if it becomes overheated. The motor will restart when it cools down. If the motor continues to shut off and restart, have the hood serviced.
8. For best capture of cooking impurities, the bottom of the hood should be a minimum of 24" and a maximum of 30" above the cooking surface. See "Install Mounting Bracket" section for mounting restrictions.
9. Two installers are recommended because of the large size and weight of this hood.
10. This product is equipped with a thermostat which may start blower automatically. To reduce the risk of injury and to prevent power from being switched on accidentally, switch power off at service panel and lock or tag service panel.
11. Please read specification label on product for further information and requirements.
12. To reduce the risk of fire and electric shock, install this range hood only with Best Exterior Blower Models EB6, EB9, EB12 or EB15 or Best In-Line Blower Models ILB3, ILB6, ILB9 or ILB11. Other blower cannot be substituted. Blowers sold separately.
13. Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.

Controls

The hood is operated using the (5) push buttons located on the front edge of the hood. Fig. 1.

The Light On/Off buttons turn the lights on and off.

The Blower Off / - button decreases the blower speed each time pressed. Depress and hold the button for 2 seconds to turn the blower off.

The Blower On /+ button turns the blower on and increases the blower speed each time pressed. There are four different speed settings: Low, Medium-Low, Medium-High and High.

The Blower LED Indicators illuminate to indicate the selected blower speed.

The Delay button activates the delay-off feature. When the blower in on and the button is pushed, the blower will continue to operate at the current speed setting for 10-minutes before automatically turning itself off. The LED (on the right) flashes during operation.

The LED (on the right) is also used as a filter clean reminder. It will flash after 30 hours of operation - indicating the need to clean the filters.

The Filter Clean Reset button is used to reset the 30-hour filter timer. To reset the filter clean timer after filters are cleaned or replaced: Press button once while the LED is flashing.

HEAT SENTRY™

Your hood is equipped with a HEAT SENTRY™ thermostat. This thermostat is a device that will turn on or speed up the blower if it senses excessive heat above the cooking surface.

1) If blower is OFF - it turns blower ON to HIGH speed.
2) If blower is ON at a lower speed setting - it turns blower up to HIGH speed.
When the temperature level drops to normal, the blower will return to its original setting.

WARNING

The HEAT SENTRY thermostat can start the blower even if the hood is turned OFF. When this occurs, it is impossible to turn the blower OFF with its switch. If you must stop the blower, do it from the main electrical panel.

The hood is provided with LED lamps which require no maintenance.

CLEANING AND MAINTENANCE

Proper maintenance of the Range Hood will assure proper performance of the unit.

Motor

The motor is permanently lubricated and never needs oiling. If the motor bearings make excessive or unusual noise, replace the motor with the exact service motor. The impeller should also be replaced.

Grease Filter

The grease filter should be cleaned frequently. Use a warm detergent solution. Grease filter is dishwasher safe.

Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using phosphate detergents, or as a result of local water conditions - but this will not affect filter performance. This discoloration is not covered by the warranty.

See "INSTALL FILTERS" section for removal and installation instructions.

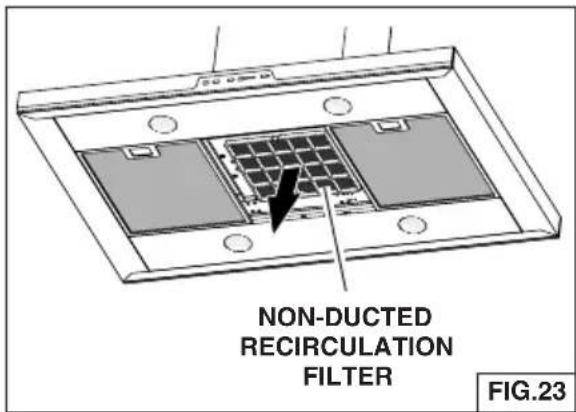

Non-ducted Recirculation Filter

The non-ducted recirculation filter should be changed every 6 months. Replace more often if your cooking style generates extra grease, such as frying and wok cooking. See “INSTALL FILTERS” section for removal and installation instructions.

Stainless Steel Cleaning

DO:

• Regularly wash with clean cloth or rag soaked with warm water and mild soap or liquid dish detergent.
• Always clean in the direction of original polish lines.
• Always rinse well with clear water (2 or 3 times) after cleaning. Wipe dry completely.
• You may also use a specialized household stainless steel cleaner.

DON'T:

• Use any steel or stainless steel wool or any other scrapers to remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction residues reach the hood. During construction/renovation, cover the range hood to make sure no dust sticks to the stainless steel surface.

Avoid: When choosing a detergent

• Any cleaners that contain bleach will attack stainless steel
• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range.

PREPARE THE HOOD

Unpack hood and check contents.

You should receive:

1 - Hood
1 - Decorative Flue Assembly
1 - Parts Bag containing:

2 - Mounting Bracket
1 - Damper Kit
1 - Flue Mounting Bracket Assembly
8 - Mounting Screws (4.8 x 38mm Pan Head)
4 - Mounting Screws (3.9 x 9.5mm Pan Head)
2 - Mounting Screws (3.9 x 6mm Flat Head)
8 - Drywall Anchors
2 - Lock Washers

1 - Installation Instructions

Simple line drawing of a three-tiered rectangular box (no text or symbols)

DECORATIVE FLUE

MOUNTING BRACKETS

4 MOUNTING SCREWS (3.9 x 9.5mm Pan Head)

2 MOUNTING SCREWS (3.9 x 6mm Flat Head)

2 LOCK WASHERS

Pure technical line drawing of a mechanical component with no text or symbols

DAMPER KIT

8 DRYWALL ANCHORS

Technical line drawing of two metal bracket assemblies with mounting holes (no text or symbols)

FLUE MOUNTING BRACKET
8 MOUNTING SCREWS (4.8 x 38mm Pan Head)
FIG. 2

EXTERIOR OR IN-LINE BLOWER SELECTION (WC34E)

CAUTION: Either an exterior blower or in-line blower may be used with this hood. The hood must be installed with blower models EB6, EB9, EB12, EB15, ILB3, ILB6, ILB9, or ILB11 only. Other Blowers cannot be substituted (Blowers sold separately).

INSTALL THE DUCTWORK

NOTE: To reduce the risk of fire, use only metal ductwork.

1. Choose the location where the Exterior or In-Line Blower will be mounted. See illustrations below for mounting location suggestions and restrictions.
2. A straight, short duct run will allow the hood to perform most efficiently.
3. Long duct runs, elbows and transitions will reduce the performance of the hood. Use as few of them as possible. Larger ducting may be required for best performance with long duct runs.
4. After the Exterior or In-Line Blower has been installed, connect round metal ductwork and work back towards the hood location. Use duct tape to seal joints between ductwork sections.

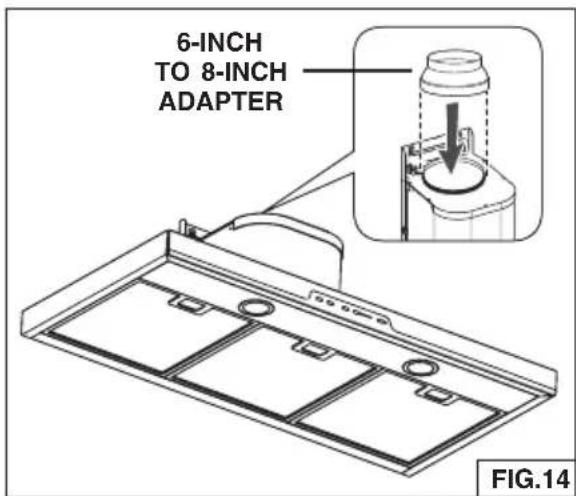

5. An 8" round to 10" round transition (Model 414) is required. For best air performance, install the transition as close to the range hood as possible.

INSTALL THE DUCTWORK

DUCTED HOODS ONLY

CAUTION: To reduce the risk of fire, use only metal ductwork.

1. Decide where the ductwork will run between the hood and the outside. Fig. 3.
2. A straight, short duct run will allow the hood to perform most efficiently.
3. Long duct runs, elbows, and transitions will reduce the performance of the hood. Use as few of them as possible. Larger ducting may be required for best performance with longer duct runs.
4. Install a roof or wall cap. Connect round metal ductwork to cap and work back towards hood location. Use duct tape to seal the joints between ductwork sections.

INSTALL ELECTRICAL

DUCTED and NON-DUCTED HOODS

WARNING : Electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards. This range hood must be properly grounded. Turn off electrical power at service entrance before wiring.

1. Plan where the hood will be located above the cook top. Refer to the "INSTALL MOUNTING BRACKET" section for hood mounting height options.
2. Install a standard 2" x 4" wall outlet box and 3-blade 125 volt, 15 Amp grounded receptacle. Fig. 4.

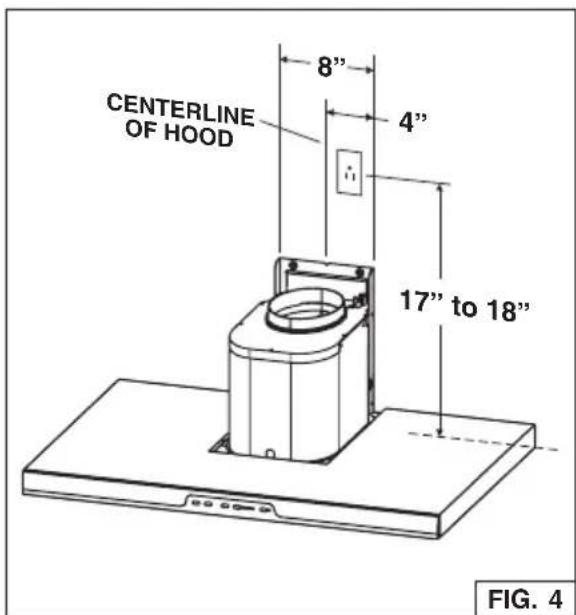

3. Mount the center of the wall outlet 17" to 18" above the bottom of the hood.
4. Locate the box and the receptacle within boundary shown and off center of the ductwork (to allow for power cord plug and flue clearance).

Blower connection at hood: (Fig. 5)

1. Run 2-wire plus ground power cable from the Exterior or In-Line Blower to the hood's wiring box marked "motor connection".

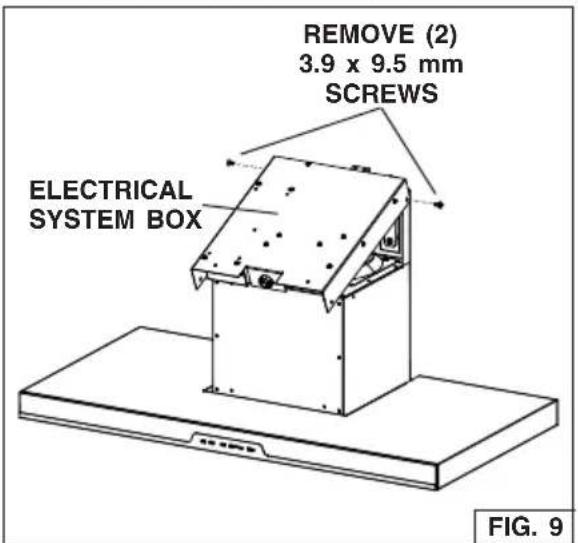

2. Remove the cover from the wiring box and remove one knockout.
3. Feed 6" of cable through the knockout opening and secure the cable to the wiring box with an appropriate connector.
4. Make electrical connections at the hood. Connect white-to-white, red-to-black and green-to-ground.
5. Replace the wiring box cover and screws. make sure wires are not pinched between the cover and box.

Exterior or In-line blower connection:

1. Make electrical connections at the exterior or in-line blower (see instructions provided with the exterior or in-line blower).

Power connection at hood:

1. Plug the power cord into the electrical wall receptacle.

INSTALL MOUNTING BRACKETS

FRAMING BEHIND WOOD CROSS SUPPORT

CENTERLINE

DUCTED and NON-DUCTED HOODS

1. Construct wood wall framing that is flush with interior surface of wall studs. Fig. 6.

Make sure:

a) the framing is centered over installation location.
b) the height of the framing will allow the mounting brackets to be secured to the framing within the dimensions shown.

1. After wall surface is finished, secure the mounting brackets to framing with (4) 4.8 x 38 mm mounting screws. See chart below for mounting bracket location. Do not use drywall anchors.

2-3/16"

3-1/2"

3-1/2"

WOOD CROSS SUPPORT BEHIND DRYWALL

DRYWALL

FIG. 6

CEILING HEIGHT	DUCT METHOD	HOOD DISTANCE ABOVE 36" HIGH COOK TOP (see note below)
		24" 25" 26" 27" 28" 29"			30"
		MOUNTING BRACKET CENTER HOLE LOCATION ABOVE 36" HIGH COOK TOP
8 FEET	DUCTED	38" 39" 40" 41"		42"	43" 44"
	NON-DUCTED	38" 39" 40" 41" 42"			43" 44"
9 FEET	DUCTED	38" * 39" *	40" *	41" 42"	43" 44"
	NON-DUCTED	38" 39" 40" 41" 42"			43" 44"
10 FEET(see note b.)	DUCTED	38" * 39" *	40" 41" 42"		43" 44"
	NON-DUCTED	38" 39" 40" 41" 42"			43" 44"
11 FEET(see notes a. & b.)	DUCTED			42"	43" 44"
	NON-DUCTED			42"	43" 44"

* Possible installation height - however, Non-Duct Filter Slots will be exposed.

Notes:

a. Minimum hood distance above cook top must not be less than 24". A maximum of 30" above cook top is highly recommended for best capture of cooking impurities. Distances over 30" are at the installer and user's discretion; and if ceiling height and flue length permit.
b. Requires optional 10' flue extension, ducted model AEWC345IQSB or non-ducted model AEWC345IQSBN.

INSTALL FLUE MOUNTING BRACKET

DUCTED AND NON-DUCTED HOODS

1. Assemble the flue mounting bracket, adjusting outside width as shown. Fig. 7.
2. Carefully center the mounting bracket directly over the range hood location.
3. Secure the bracket assembly to the ceiling using (2) 4.8 x 38 mm mounting screws and drywall anchors. Fig. 8. Make sure the bracket is pushed into the corner, tight against the wall and centered over the hood.

INSTALL THE HOOD

Note: Remove the plastic protective film from all exterior surfaces, decorative flues and filters, prior to final installation. Remove filters. (Refer to the "Install Filters" Section.)

DUCTED and NON-DUCTED INSTALLATION

1. Remove the electrical system box from chimney frame by removing (2) 3.9 x 9.5 mm screws. Fig. 9.
2. Attach electrical system box to frame using (2) 3.9 x 9.5 mm screws removed in Step 1 and (2) 3.9 x 9.5 mm screws and (2) lock washers from hardware bag.
3. Install hood onto the wall mounting brackets. Fig. 10. Adjust leveling screws on mounting brackets to level hood with floor.
4. Mark and install (2) additional screws as shown. Use drywall anchors only if necessary.

DUCTED INSTALLATION ONLY

Note: Rooms with 10-foot ceiling require flue extension model AEWC345IQSB, available from your local dealer. Discard the upper flue supplied with the range hood and replace it with the longer flue extension.

1. Remove protective tape from blower outlet before installing damper to hood with (4) screws supplied and tape joint with aluminum duct tape. Fig. 11.
2. Run 8-inch diameter metal ductwork to the outside location.
3. Install an appropriate wall or roof cap with damper to exhaust the air to the outside.
4. Tape all duct joints with aluminum duct tape.
5. Plug power cord into wall outlet.
6. Install upper and lower decorative flues onto the range hood. Fig. 12.
7. Vents are concealed on 8-foot ceilings.
8. Vents are exposed on 9-foot ceilings.
9. Secure upper flue to flue mounting bracket with (2) 3.9 x 6 mm screws. Fig. 13.

Technical line drawing of a mechanical device with labeled components and directional arrows (no readable text or symbols)

NON-DUCTED INSTALLATION ONLY

Note:

a. Purchase Model ANKWC345 Non-ducted Recirculation Kit from your local dealer.
b. Rooms with 10-foot ceiling require flue extension model AEWC345IQSB, available from your local dealer. Discard the upper flue supplied with the range hood and replace it with the longer flue extension.

1. Remove protective tape from blower outlet before installing damper to hood with (4) screws supplied and tape joint with aluminum duct tape. See Fig. 11.

2. Attach the 6"-to-8" adapter to blower discharge and tape joint with aluminum duct tape. Fig. 14.

3. Install the plenum to the upper decorative flue using (4) 3.4 x 15 mm screws provided as shown. Fig. 15.
4. Attach 6-inch expandable ducting to the plenum and tape joint with aluminum duct tape. Fig. 16.

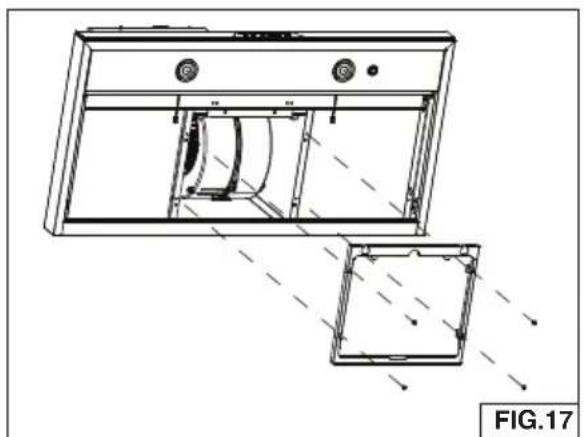

5. Attach non-duct filter frame using (4) 3.9 x 6 mm screws. Fig. 17.

Technical diagram of a mechanical assembly with internal components and an upward arrow, labeled FIG.16 (no text or symbols on the diagram itself)

Technical line drawing of a device with internal components and alignment indicators (no text or symbols)

1. Temporarily secure the upper and lower flue together with duct tape as shown. Fig. 18.
2. Lift the flue into position. Secure upper flue to the flue mounting bracket with (2) 3.9 x 6 mm screws. Fig. 19.

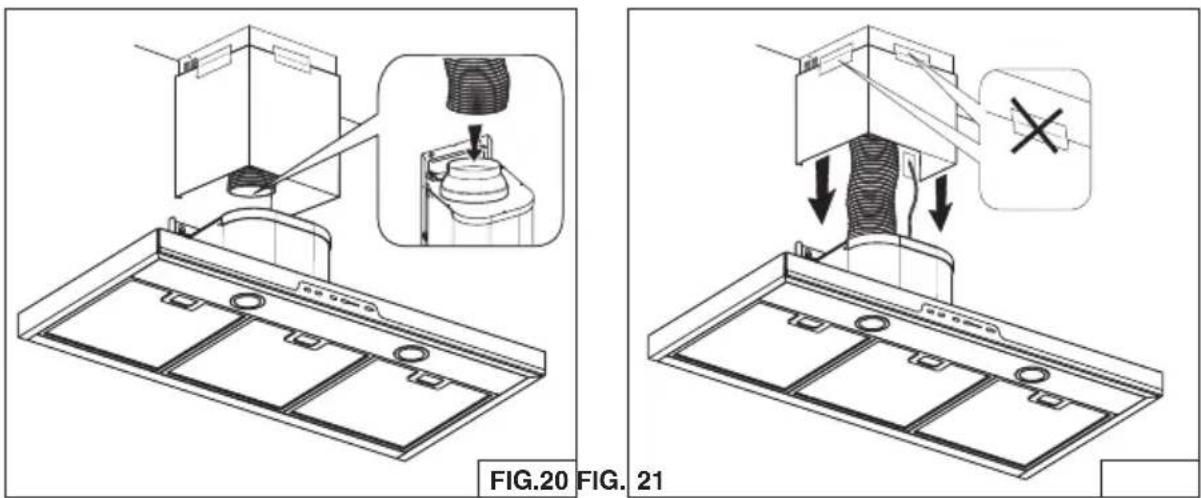

3. Stretch expandable duct, attach it to the 6"-to-8" adapter and tape duct joints. Fig. 20.
4. Plug power cord into wall outlet.
5. Remove tape from flues and lower into position on the hood. Fig. 21.

Technical line drawing of a kitchen appliance with a hand gesture and a close-up view of the interior (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

INSTALL FILTERS

DUCTED AND NON-DUCTED HOODS

1. To remove the GREASE filter, push in latch tab to disengage the filter from the hood. Tilt the filter downward and remove. Fig. 22.
2. To install the GREASE filter, align rear filter tabs with slots in the hood. Push latch tab in, push filter into position and release. Make sure the filter is securely engaged after installation. Fig. 22.

NOTE: Prior to use, remove protective film from the filter frame.

NON-DUCTED HOODS ONLY

1. To remove the CHARCOAL filter, grip and push filter tab toward rear of hood. Pull the filter down to disengage the rear filter tabs. Fig. 23.
2. To install the CHARCOAL filter, align filter in rectangular opening. Push filter against springs in rear of hood and press into place. Make sure the filter is securely engaged after assembly.
3. Install GREASE filter after charcoal filter is installed.
4. The charcoal filter replacement model is AFCWC345.

CALIBRATE IQ BLOWER

SYSTEM™ (WC34IQ)

INTERNAL BLOWER DUCTED UNITS ONLY

After the hood is installed and wired, engage the calibration process (our Guaranteed Performance System Technology to ensure full-rated airflow is being delivered). Prior to calibration, ensure that all filters, light bulbs and duct system are installed.

CALIBRATION PROCESS Fig. 24.

Hold the calibration button for 3 seconds; calibration button will light up and stay on for up to 13 minutes. The blower will start and begin the calibration process. When calibration is complete, one of two things will occur:

1. The blower turns off and calibration button light stays on = Successful calibration. Press the button to turn off the LED. Note: The LED will also turn off if you select any blower speed on the control.

2. The blower turns off and calibration button light blinks continuously = Too much restriction in the ductwork is preventing the IQ Blower System™ from achieving the rated airflow. The blower is automatically set to maximum intensity.

NOTE: Common items that cause restrictions: restricted damper flap (backdraft damper, wall cap, roof cap), too many elbows, duct size less than 80% of hood outlet, poor transition, use of flex ducting and/or crushed ducting.

Three options are available if your hood system has too much restriction:

1. Accept airflow as is.

a. Press the calibration button to accept airflow as is. The IQ Blower System™ is now configured to the highest possible performance. The blinking calibration light goes out. Note: The LED will also turn off if you select any blower speed on the control.

1. Correct duct restriction, clear the original calibration data, and repeat the calibration process.

a. Correct the duct restriction.
b. Clear the original calibration data by holding calibration button for 10 seconds. The light will blink 3 times to confirm and the blower configuration will go back to default settings.
c. Repeat calibration process from the beginning.

1. Clear calibration data to reset hood to default factory setting and achieve standard high pressure blower performance.

a. Clear calibration data and reset hood to factory default setting by holding calibration button for 10 seconds. The light will blink 3 times to confirm and the blower configuration will go back to default settings.

EXTERNAL BLOWER

PROGRAMMING MODE PROCEDURE (WC34E)

The range hood is designed to work with several different blower models. Before using, the control must first be programmed to your blower model, in order to achieve proper operating speeds.

From the chart below:

1. Find the SETUP number that corresponds to the blower model that is installed with your range hood.
2. The control is factory-preset to SETUP 3. If your blower model is listed under SETUP 3, no programming is required and the range hood is ready to use.

	SETUP 1	SETUP 2	SETUP 3 (default)
BLOWER	EB6	EB12	EB9
MODEL	ILB3	EB15	ILB11
NUMBER	ILB6	ILB9

1. To program blower models listed under SETUP 1 and 2:

A) Power must be supplied to the hood. The blower and lights must be turned off.
B) Press and hold OFF and ON/+ for 5 seconds. The Blower LED Indicators will flash 3 times. Then only the LED will stay lit. After 1 second, the Blower LED Indicators will show the current setting as follows:

● OOO SETUP 1
O ● O SETUP 2
○○○● SETUP 3

C) To select the proper SETUP: Press OFF/- or ON/+ to select the desired SETUP.
D) Once the proper SETUP is found: Press ON to memorize the setting, or wait 15 seconds and the program will automatically exit and store the SETUP.
E) The range hood is now ready to use.

WC34IQ SERIES

KEY NO.	DESCRIPTION	PART NO.
76	TOP GLASS		003102884
CAS	BLOWER ASSEMBLY 06002259
49	FAN (CLOCK WISE) 03295071
IME	ELECTRICAL INSTALLATION ASSEMBLY	06145222
114	WIRE CLAMP 032904990
506	BLDC DRIVER		97019431
67	WIRES$	06102592
202	REFLECTOR STOP		03292290
415	FAIRLEAD		03202291
60	FEEDER CABLE	02300249
507	ASSEMBLY CALIBRATION BUTTON		06102584
439	STOP RING		02320034
37	HEAT SENTRY	02300804
474	LED LAMP	08093413
AQI	SWITCH BOX ASSEMBLY	06102594
17	LIGHT DIFFUSER SUPPORT	E3351891
9	GREASE FILTER		08087825
ARU	CONNECTION AIR OUTLET SET		080810849
485	TELESCOPIC DUCT KIT		08016368
120	TELESCOPIC DUCT UPPER BRACKET		08091851
ANKWC345	NON-DUCT FILTER KIT		08999175
58	8” TO 6” REDUCER 03294170
503	6” EXPANDABLE DUCT		02011557
86	6” ADAPTER RING		03292300
122	NON-DUCT PLENUM		08093478
64	NON-DUCT FILTER FRAME	08093447
	NON-DUCT FILTER		08999176
998	HARDWARE BAG		080810993

WC34IQ SERIES

WC34E SERIES

KEY NO.	DESCRIPTION	PART NO.
76	TOP	GLASS 003102884
IME	ELECTRICAL INSTALLATION ASSEMBLY	06145223
166	ELECTRICAL PRINTED CIRCUIT BOARD	08080877
115	FEEDER CABLE CONNECTION BOX		E3350233
147	JUNCTION CLAMP R2300132
116	FEEDER CABLE CONNECTION BOX COVER		E3334252
151	ELECTRICAL BOX WIRES STOP		032920200
114	WIRE CLAMP		032904990
67	WIRES		06102593
60	FEEDER CABLE 02300249
37	HEATE SENTRY		02300804
202	WIRE CLAMP		03292290
474	LED LAMP		08093413
AQI	SWITCH BOX ASSEMBLY		06102595
17	LIGHT DIFFUSER SUPPORT		E3351891
9	GREASE FILTER		08087825
ARU	CONNECTION AIR OUTLET SET		080810849
485	TELESCOPIC DUCT KIT		08016368
120	TELESCOPIC DUCT UPPER BRACKET		08091851
998	HARDWARE BAG	08010993

WC34E SERIES

ONE YEAR LIMITED WARRANTY FOR BEST PRODUCTS

Broan-NuTone LLC (Broan-NuTone) warrants to the original consumer purchaser of Best products that such products will be free from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use and service.

THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN AND INCANDES-CENT BULBS, FUSE, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING.

This warranty does not cover (a) normal maintenance and service or (b) any products or parts which have been subject to misuse, negligence, accident, improper maintenance or repair (other than by Broan-NuTone), faulty installation or installation contrary to recommended installation instructions.

The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.

BROAN-NUTONE'S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE'S OPTION, SHALL BE THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This warranty supersedes all prior warranties.

To qualify for warranty service, you must (a) notify Broan-NuTone at the address stated below or telephone number stated below, (b) give the model number and part identification and (c) describe the nature of any defect in the product or part. At the time of requesting warranty service, you must present evidence of the original purchase date.

In USA - Best®, 926 W. State Street, Hartford, WI 53027 (800-558-1711)

In Canada - Best®, 550 Lemire Blvd., Drummondville, QC J2C 7W9 (866-737-7770)

www.BestRangeHoods.com

best®

Line drawing of a kitchen air conditioner unit with vertical panel and ventilation slots (no text or symbols)

Série WC34

ENGLISH.... 1

FRANÇAIS....24

ESPAÑOL...... 47

Au CANADA - BEST Drummondville, QC, Canada

ENREGISTREZ VOTRE PRODUIT EN LIGNE À : www.BestRangeHoods.com/register

Pour de plus amples informations, visitez www.BestRangeHoods.com

LIRE CES DIRECTIVES ET LES CONSERVER

⚠️ POUR USAGE DOMESTIQUE SEULEMENT ⚠️

AVERTISSEMENT

OBSERVEZ LES DIRECTIVES CI-DESSOUS AFIN DE RÉDUIRE LES RISQUES D'INCENDIE, DE CHOC ÉLECTRIQUE OU DE BLESSURES CORPORELLES :

Simple line drawing of a three-tiered rectangular box (no text or symbols)

CONDUIT DÉCORATIF

BRIDES DE MONTAGE

Simple line drawing of a mechanical component with a circular base and central blade (no text or symbols)

ENSEMBLE DE CLAPET

Technical line drawing of two metal bracket assemblies with mounting holes (no text or symbols)

BRIDE DE MONTAGE DU CONDUIT DÉCORATIF

HOTTES AVEC OU SANS CONDUITS

INSTALLATION AVEC CONDUITS UNIQUEMENT

Technical line drawing of a mechanical device with labeled components and directional arrows (no readable text or symbols)

INSTALLATION SANS CONDUITS SEULEMENT

Remarque :

Technical diagram of a mechanical assembly with internal components and an upward arrow, labeled FIG.16 (no text or symbols on the diagram itself)

Technical line drawing of a device with internal components and alignment indicators (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a hand interacting with a component (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

INSTALLATION DES FILTRES

HOTTES AVEC OU SANS CONDUITS

GARANTIE LIMITÉE D'UN AN DES PRODUITS BEST

www.BestRangeHoods.com

best®

Line drawing of a kitchen air conditioner unit with vertical panel and ventilation slots (no text or symbols)

Serie WC34

ENGLISH.... 1

FRANÇAIS....24

ESPAÑOL...... 47

REGISTRE SU PRODUCTO EN LÍNEA EN: www.BestRangeHoods.com/register

Si desea información adicional, visite www.BestRangeHoods.com

LEA Y CONSERVE ESTAS INSTRUCCIONES

⚠ INDICADO SOLAMENTE PARA COCINAR EN CASA

ADVERTENCIA

PARA REDUCIR EL RIESGO DE INCENDIOS, DESCARGAS ELÉCTRICAS O LESIONES PERSONALES, SIGA LAS SIGUIENTES PRECAUCIONES:

Simple line drawing of a 3D rectangular box with no text or symbols

Pure technical line drawing of a mechanical component with no text or symbols

JUEGO DE REGULADOR

8 TAQUETES PARA PLACA DE YESO

Technical line drawing of two metal bracket assemblies with mounting holes (no text or symbols)

Technical line drawing of a mechanical device with labeled components and directional arrows (no readable text or symbols)

ÚNICAMENTE EN INSTALACIONES SIN CONDUCTOS

Nota:

Technical diagram of a mechanical assembly with internal components and an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Technical line drawing of a mechanical assembly with an inset showing a hand interacting with a component (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

www.BestRangeHoods.com
