Product Type	3.1-Channel Soundbar System
Model	Cinema 600
Brand	Klipsch
Connectivity	HDMI-ARC, Digital Optical (Toslink), Analog (3.5mm), Bluetooth® 5.0
Audio Formats	Dolby Digital, DTS Virtual:X
Sound Modes	Dialog Enhance (3 levels), Night Mode, Virtual Surround
Subwoofer	Wireless, 30 ft (9m) range
Remote Control	Includes: Volume, Mute, Source, Subwoofer Level, Sound Modes, Bluetooth
LED Indicators	Source (HDMI, Optical, Analog, Bluetooth), Dolby Digital, Virtual Surround, Dialog Enhance, Night Mode
Wall Mountable	Yes, with included brackets and screws
TV Remote Programming	Compatible with most TV remotes for volume and mute control
Bluetooth Version	5.0
Bluetooth Range	30 ft (9m)
Power Supply	AC 100-240V, 1.0A (soundbar and subwoofer)
Included Accessories	Remote control, HDMI cable, Power cords (2), Wall-mount brackets (2), Screws (2), Wall-mount template
Battery Type (Remote)	Lithium coin cell (CR2032)
Warranty (Electronics)	1 year
Warranty (Woofer/Cabinet)	3 years
Safety Certifications	CE, FCC, IC, RoHS, WEEE
Operation Temperature	10°F to 45°C (approx. -12°C to 45°C)
Dimensions (Soundbar)	Not specified in manual (typical soundbar length ~ 45 in / 114 cm)
Weight	Not specified

Frequently Asked Questions - Cinema 600 KLIPSCH

How do I connect the soundbar to my TV?

Use the included HDMI cable to connect the soundbar's HDMI-ARC port to your TV's HDMI-ARC port. Ensure CEC is enabled on your TV. Alternatively, use an optical or analog cable (not included).

Why is there no sound from the soundbar?

First, check that the soundbar is powered on and the correct input source is selected. Verify that your TV audio output is set to 'External Speakers' or 'ARC'. Also ensure the TV speakers are turned off in the TV menu.

How do I pair the wireless subwoofer?

Power on the soundbar first. Plug in the subwoofer; it will automatically pair within 30 ft. The subwoofer LED will turn solid (not flashing) when connected. If not, press the 'PAIR' button on the subwoofer rear panel.

How do I reset the subwoofer connection?

Press and hold the 'Sub Reset' button on the remote for 3 seconds. Alternatively, unplug both devices, wait 10 seconds, plug in subwoofer first, then soundbar.

Can I use Bluetooth to stream music?

Yes. Press the Bluetooth button on the remote or source button on the soundbar until the blue LED blinks. On your phone, select 'Klipsch Cinema 600' from the Bluetooth list. The LED will turn solid when connected.

How do I program my TV remote to control the soundbar?

On the soundbar remote, press and hold the 'Source' and 'Volume Down' buttons for 5 seconds until the source LED flashes 3 times. Then press the 'Volume Up' button on your TV remote (pointing at soundbar). The soundbar source LED will turn solid to confirm.

What is Dialog Enhance mode?

It boosts vocal frequencies to make dialogue clearer. Press the 'Dialog' button on the remote to cycle through Mode 1, 2, 3, and Off. The white LED indicates the mode.

How do I clean the soundbar?

Unplug the unit. Use a soft, dry cloth to wipe the exterior. Do not use any solvents or abrasive cleaners. Avoid getting moisture inside the device.

What does the '((SUR))' button do?

It toggles Virtual Surround mode, which simulates a wider soundstage. Press to enable/disable. The white SUR LED will illuminate when active.

How do I mount the soundbar on the wall?

Attach the included brackets to the back of the soundbar using the provided screws. Then install wall anchors (not included) and bracket screws into the wall. Hang the soundbar on the brackets ensuring it is level.

USER MANUAL Cinema 600 KLIPSCH

CINEMA 600 SOUND BAR

Klipsch

1-2 - INSIDE

3-4 - DISPLAY AND CONTROLS

5 - DIRECT WALL MOUNTING

6 - CONNECTIONS - HDMI-ARC

7 - TURN OFF TV SPEAKERS

8 - CONNECTIONS - DIGITAL OPTICAL

9 - CONNECTIONS - ANALOG

10 - SUBWOOFER PLACEMENT

11 - SUBWOOFER WIRELESS CONNECTION

12 - SUBWOOFER RECONNECT

13-14 - REMOTE

15-16 - SOUND MODES

17 - DIALOG MODE SELECT

18 - LED ON/OFF

19-20 - BLUETOOTH® WIRELESS TECHNOLOGY

21-22 - SURROUND BUTTON OPERATION (SURROUND 3'S NOT CONNECTED)

25-26 - TV REMOTE PROGRAMMING

27 - REMOTE CONTROL CODES (UNIVERSAL / CABLE REMOTES)

28 - SURROUND 3 PAIRING (SURROUND 3 SOLD SEPARATELY)

29 - FACTORY RESET / CARE AND CLEANING

30 - WIRELESS, AUDIO & DIGITAL FEATURES

31-37 - IMPORTANT SAFETY INFORMATION

38-43 - WARRANTY INFORMATION

INSIDETABLE OF CONTENTS

CONTENU • CONTENIDO • INHALT • CONTENUTO • CONTEÚDO • 目录

Sound Bar

Wall-Mount Template

Subwoofer Remote

Sound BarBarre de sonBarra de sonidoSoundbarSoundBarBarra sonora条形音箱

SubwooferCaisson de gravesSubwooferSubwooferSubwooferSubwoofer低音炮

Wall-Mount TemplateGabarit de montage muralPlantilla de montaje en la paredWandbefestigungsschabloneDima per il fissaggio a pareteModelo para instalação na parede挂壁模板

RemoteTélécommandeControl remotoFernbedienungTelecomandoControle remoto遥控器

Power Cord (2) HDMI CableWall Mount Brackets (2) Wall Mount Screws (2)

Wall Mount BracketsSupports pour montage muralSoportes de montaje en la paredWandhalterungenStaffe per montaggio a parefeSuportes para montagem em parede塑挂式支架

Wall Mount Screwsvis pour montage muralTornillos de 1/4 plq.1/4" SchraubenViti 1/4"Parafusos 1/4"1/4" 填钉

Power CordCordon d'alimentationCordón de alimentaciónGleichstromkabelCavo di alimentazioneCabo de alimentação直流电源线

HDMI CableCâble HDMICable de HDMIHDMI-KabelCavo HDMCabo HDMHDMI 电缆

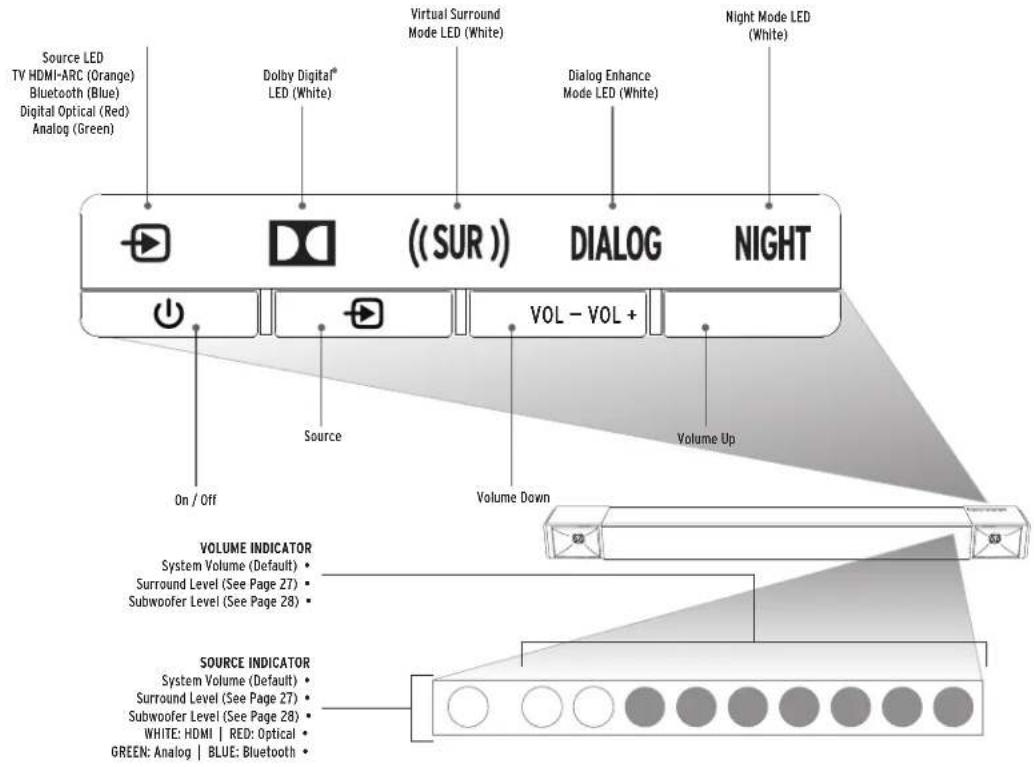

DISPLAY AND CONTROLS

BARRE DE SON • BARRA DE SONIDO • SOUND BAR • SOUND BAR • BARRA SONORA • 条形音箱

Bluetooth® LED (Blue)	Analog LED (Green)	Digital Optical LED (Red)	HDMI LED (White)
DEL Bluetooth (Bleu)	DEL Analogique (Vert)	DEL Optique numérique (Rouge)	DEL Source HDMI (blanc)
LED de fuente Bluetooth (Azul)	LED de fuente analógica (Verde)	LED de fuente óptica digital (Rojo)	Indicador LED de fuente de HDMI (bianco)
Bluetooth-LED (Blau)	Analog-LED (Grün)	Digital-optische LED (Rofo)	HDMI-Quellen-LED (Weiß)
LED segnale Bluetooth (Blu)	LED segnale analogico (Verde)	LED segnale ottico digitale (Rossa)	LED segnale HDMI (bianca)
LED do Bluetooth (Azul)	LED analógica (Verde)	LED ático digital (Vermelho)	LED de fonte - HDMI (branco)
蓝牙 LED 灯 (蓝色)	模拟 LED 灯 (绿)	数字光学 LED 灯 (红)	电视电源 LED (白色)

Source LED (White)DEL Source TV (blanc)Indicador LED de fuente de TV (blanco)TV-Quellen-LED (Weiß)LED segnale TV (bianca)LED de fonte - TV (branco)电视电源 LED (白色)

Dolby Digital LED (White)DEL Dolby Digital (orange)LED de Dolby Digital (naranja)Dolby-Digital-LED (orange)LED segnale Dolby Digital (arancia)LED Dolby Digital (laranja)杜比数字 LED 灯 (橙子)

Virtual Surround Mode LED (White)DEL Mode ambiophonique virtuel (blanc)LED de modalidad de surround virtual (blanco)LED Virtueller Surroundmodus (Weiß)LED modalità surround virtuale (bianca)LED do modo surround virtual (branco)虚拟环绕声模式 LED 灯 (白色)

Dialog Enhance Mode LED (White)DEL Mode d'égalisation d'accentuation vocale (blanc)LED de modalidad de eculización de mejoramiento de voz (blanco)LED EO-Modus für verbesserte Stimmen (Weiß)LED modalità equalizzatore potenziamento vocale (bianca)LED do modo de EO de melhoria de voz (branco)音效增强均衡器模式 LED 灯 (白色)

Night Mode LED (White)DEL Mode nocturne (blanc)LED de modalidad nocturna (blanco)Nachtmodus-LED (Weiß)LED modalità nocturna (bianca)LED do modo nocturno (branco)夜间模式 LED 灯 (白色)

On / OffSous tensio / Hors tensionEncendido / ApagadoEin / AusAcceso / SpentoLigar / Destigar开/关

Source Select (Toggle)Sélection de source (commutation)Selección de fuente (cíclica)Quellenwahl (Umschalten)Selezione segnale (in sequenza ciclica)Seleção da fonte (Alternar)电源选择(切换)

Volume DownVolume basBajada de volumenLeiserRiduzione volumeDiminuir o volume音量减小

Volume UpVolume hautSubida de volumenLauterAumento volumeAumentar o volume音量增大

DIRECT WALL MOUNTING

MONTAGE MURAL DIRECT • MONTAJE DIRECTO EN LA PARED • DIREKTE WANDBEFESTIGUNG • MONTAGGIO DIRETTO A PARETE • MONTAGEM DIRETA NA PAREDE • 直接墙上安装

TV MOUNT MOUNTING

MONTAGE POUR TÉLÉVISEURS • MONTAJE DEL SOPORTE DEL TELEVISOR • TV-WANDBEFESTIGUNG • MONTAGGIO DEL SUPPORTO DEL TELEVISORE • MONTAGEM EM SUPORTE DE TV • 电视架安装

BRACKET NOT INCLUDED

SUPPORT MON INCLUS

NO SE INCLUYE EL SOFORTE

A Basic TV HDMI Input will not transfer the TV audio signal to the Sound Bar. The Cinema 600 Sound Bar will only receive TV audio through HDMI-ARC (with CEC turned ON), Optical or Analog connection.

OU RÉGLER SUR AUTO SUR ARC

O BIEN FIJAR EN "AUTO ON ARC"

OU CONFIGURE PARA "AUTO ON ARC"

或设置为 "AUTO ON ARC"

CONNECTIONS - DIGITAL OPTICAL (IF TV HAS NO OPTICAL OUT SEE NEXT PAGE)

CONEXÕES - ÓTICA DIGITAL (SE A TV NÃO TIVER SAÍDA ÓTICA, CONSULTE A PRÓXIMA PÁGINA) • CONEXIONES - DIGITAL ÓPTICA (SI EL TELEVISOR NO TIENE SALIDA ÓPTICA, VEA LA PÁGINA SIGUIENTE.) • ANSCHLÜSSE - DIGITAL-OPTISCH (WENN TV KEINEN OPTISCHEN AUSGANG HAT, SIEHE NÄCHSTE SEITE) • CONNESSIONI - OTTICA DIGITALE (SE IL TELEVISORE NON HA UN'USCITA OTTICA, VEDERE ALLA PAGINA SUCCESSIVA) • CONEXÕES - ÓTICA DIGITAL (SE A TV NÃO TIVER SAÍDA ÓTICA, CONSULTE A PRÓXIMA PÁGINA) • 连接 - 数字光学（如果电视没有光学输出，请参见下一页）

CABLE NOT INCLUDED

CÂBLE NON INCLUS

NO SE INCLUYE EL CABLE

CONNECTIONS - ANALOG

CONNEXIONS - AUXILIAIRE 3,5MM • CONEXIONES - 3.5 MM AUXILIAR • ANSCHLÜSSE - 3,5-MM-AUX • CONNESSIONI - INGRESSO AUSILIARIO DA 3,5 MM • CONEXÕES - AUXILIAR DE 3,5 MM • 连接 - 3.5MM 辅助电缆

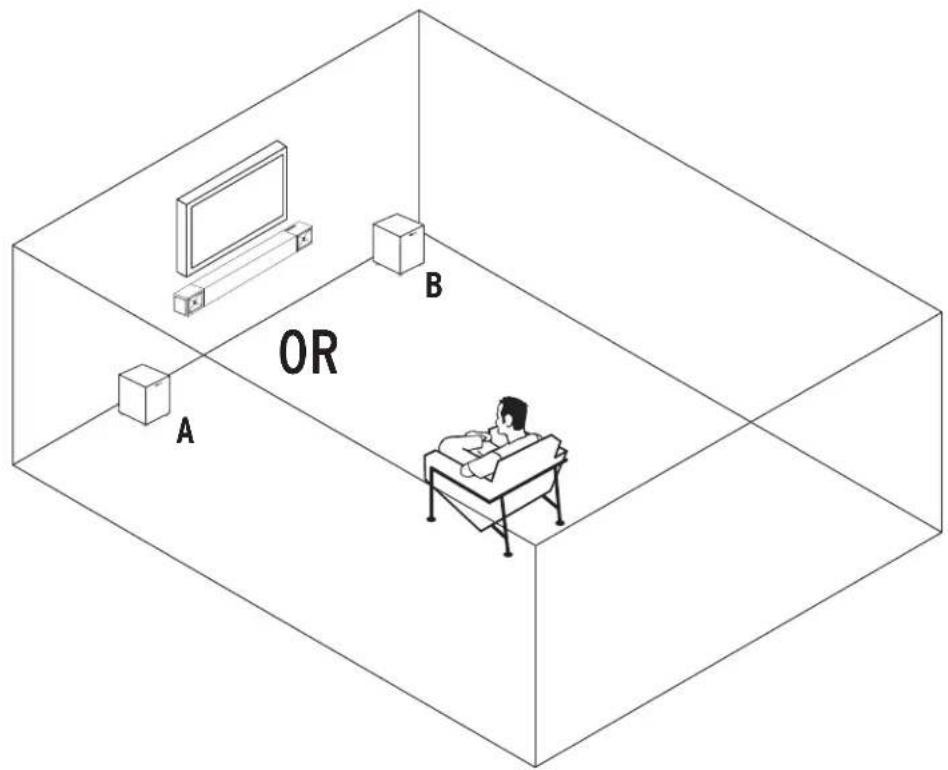

SUBWOOFER PLACEMENT

POSITIONNEMENT DU CAISSON DE GRAVES • UBICACIÓN DEL SUBWOOFER • SUBWOOFER-PLATZIERUNG • COLLOCAZIONE DEL SUBWOOFER • POSIÇÃO DO SUBWOOFER • 低音炮布置

A

B

Corner placement will increase the amount of bass output, while placing the subwoofer along the middle of a wall, or out in the room will decrease the amount of bass output.

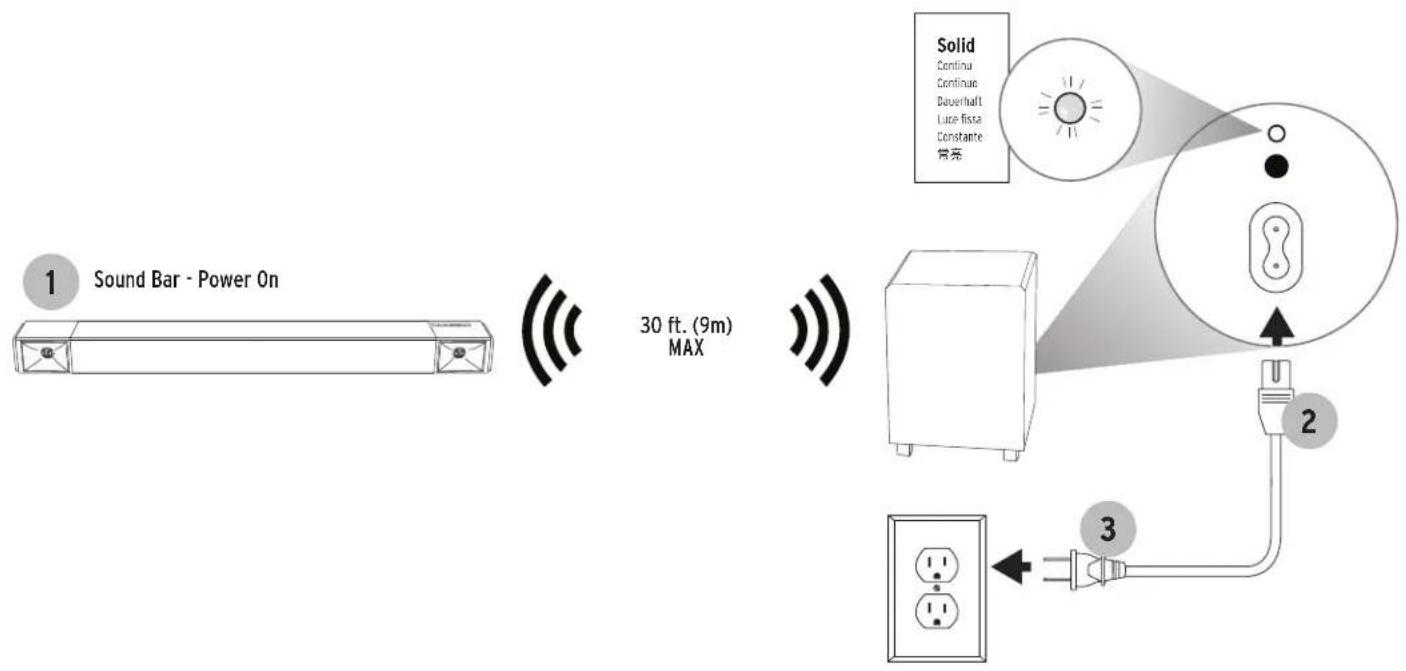

SUBWOOFER WIRELESS CONNECTION

CONNEXION SANS FIL DU CAISSON DE GRAVES • CONEXIÓN INALÁMBRICA DEL SUBWOOFER • DRAHTLOSE VERBINDUNG ZUM SUBWOOFER • CONNESSIONE WIRELESS CON IL SUBWOOFER • CONEXÃO SEM FIO DO SUBWOOFER • 低音炮无线连接

SUBWOOFER RECONNECT

RECONNECTER • RECONNECTAR • ERNEUT VERBINDEN • RICONNESSIONE • RECONNECTAR • 重新连接

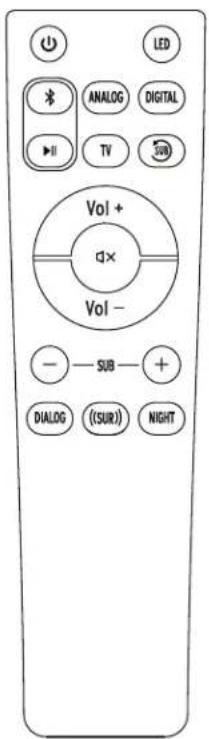

REMOTE

TÉLÉCOMMANDE • CONTROL REMOTO • FERNBEDIENUNG • TELECOMANDO • CONTROLE REMOTO • 遥控器

On/Off

LEDs DIM/Off (Sound Bar)

Bluetooth ^x Source Select

Source Select Selects Analog (3.5mm) Input

Source Select Selects Optical Input

Play/Pause Controls Play/Pause for Bluetooth Source

Source Select Selects HDMI Input

Sub Reset Resets subwoofer to factory volume level (Hold for 3 seconds

System Volume Mute

-

Subwoofer Level Adjusts Subwoofer Volume

Dialog Enhance Mode Toggles through Dialog Enhance Mode 1, 2, 3 and OFF

Surround Mode Surround Level Adjust

Night Mode On/Off

On / OffSous tensio / Hors tensionEncendido / ApagadoEin / AusAcceso / SpentoLigar / Desligar开/关

LEDs On/Off (Sound Bar)DEL Sous tensio / Hors tension (Barre de Son)LED Encendido / Apagado (Barre de Sonido)LED Ein / Aus (Sound Bar)LED Acceso / Spento (Sound Bar)LED Ligar / Desligar (Barra Sonora)LED 开/关(条形音箱)

System Volume UpVolume hautSubida de volumenLauterAumento volumeAumentar o volume音量增大

System Volume DownVolume basBajada de volumenLeiserRiduzione volumeDiminuir o volume音量减小

Subwoofer Level UpVolume haut - Caisson de gravesSubida de volumen - SubwooferLauter - SubwooferAumento volume - SubwooferAumentar o volume- Subwoofer音量增大

Subwoofer Level DownVolume bas - Caisson de gravesBajada de volumen - SubwooferLeiser - SubwooferRiduzione volume - SubwooferDiminuir o volume - Subwoofer音量减小

MuteSourdineSilenciadorStummschaltungDisattivazione audioDesativar audio静音

Bluetooth ® Source SelectSelection de la source Bluetooth ® Selección de fuente Bluetooth ® Bluetooth~QuellenwahlSelezione segnale Bluetooth ® Seleção de fonte Bluetooth蓝牙源选择

Source SelectSelection de la sourceSelección de fuenteQuellenwahlSelezione segnaleSeleção de fonte源选择

Surround Mode SelectMarche/Arrêt Mode ambiophonique virtuelActivación/desactivación de modalidad de surround virtualVirtueller Surroundmodus Ein/AusModalità surround virtuale On/OffAlivar/desativar o modo surround virtual虚拟环绕声模式开/关

Dialog Enhance Mode SelectMarche/Arrêt Mode d'égalisation d'accentuation vocaleActivación/desactivación de eculización de mejoramiento de vozEO-Modus für verbesserte Stimmen Ein/AusEqualizzatore potenziamento vocale On/OffAlivar/desativar o modo de EO de melhoria de voz音效格强均衡器开/关

Night Mode On/Off

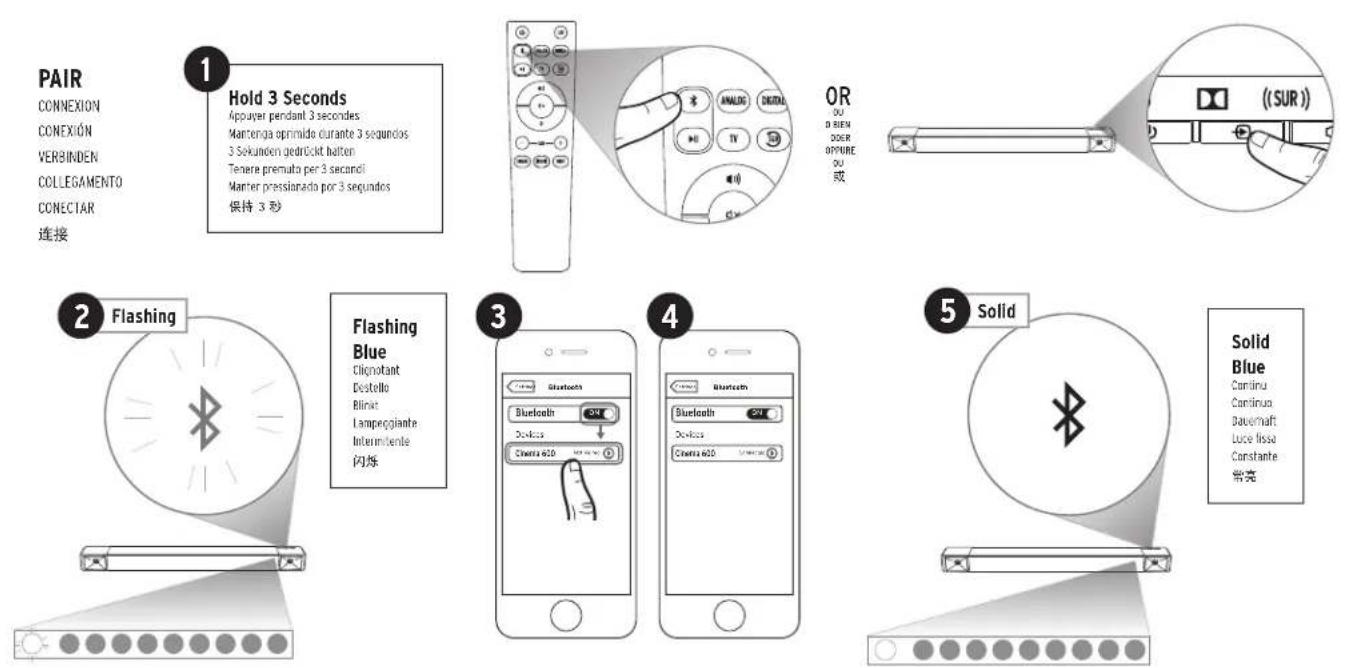

BLUETOOTH WIRELESS TECHNOLOGY

TECNOLOGÍA INALÁMBRICA BLUETOOTH® • CONFIGURACIÓN DE TECNOLOGIA WIRELESS BLUETOOTH® • DRAHTLOSE BLUETOOTH® - TECHNOLOGIE-SETUP • CONFIGURAZIONE TECNOLOGIA WIRELESS BLUETOOTH® • CONFIGURAÇÃO DE TECNOLOGIA SEM FIO BLUETOOTH® • BLUETOOTH® 蓝牙无线电技术

PAIR

CONNEXION

CONEXIÓN

VERBINDEN

COLLEGAMENTO

CONECTAR

连接

Hold 3 Seconds

BLUETOOTH WIRELESS TECHNOLOGY

TECNOLOGÍA INALÁMBRICA BLUETOOTH® • CONFIGURACIÓN DE TECNOLOGIA WIRELESS BLUETOOTH® • DRAHTLOSE BLUETOOTH®-TECHNOLOGIE-SETUP • CONFIGURAZIONE TECNOLOGIA WIRELESSBLUETOOTH® • CONFIGURAÇÃO DE TECNOLOGIA SEM FIO BLUETOOTH® • BLUETOOTH® 蓝牙无线电技术

RECONNECT

RECONNECTER

RECONECTAR

ERNEUT VERBINDEN

RICONNESSIONE

RECONECTAR

重新连接

TV REMOTE PROGRAMMING

PROGRAMMATION À DISTANCE DU TÉLÉVISEUR • PROGRAMACIÓN DEL CONTROL REMOTO DEL TELEVISOR • PROGRAMMIEREN DER TV-FERNBEDIENUNG • PROGRAMMAZIONE CON IL TELECOMANDO TV • PROGRAMAÇÃO DO CONTROLE REMOTO DA TV • 电视机遥控器编程

If you want to use the TV remote to control the sound bar, you can program the sound bar to take commands from your TV remote

Source Flashes x3 and Turns Solid

La source active clignote 3 fois, source active continue

* To program Volume Down and Mute buttons repeat the steps shown and replace steps 3 and 5 with the button you want to program.

SURROUND 3 PAIRING (Surround 3 Sold Separately)

Clears Bluetooth ^® pairing history and user programmed IR commands

Bluetooth®

"The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Klipsch Group, Inc. is under license. Other trademarks and trade names are those of their respective owners."

DOLBY AUDIO™

Manufactured under license from Dolby Laboratories, Dolby, Dolby Audio, and the doube-D symbol are registered trademarks of Dolby Laboratories.

HDMI ^TM

HIGH-DEFINITION MULTIMEDIA INTERFACE

HDMI, High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing. Administrator in the United Staed and/or other countries.

IMPORTANT SAFETY INSTRUCTIONS!

READ these instructions
2. Keep these instructions
3. HEEDALAMINES
4. SUCUM all industriers
A. 173.45 (using the model of the parameter).
6、第五届董事会第十六次会议
3. BCD MT blocks any ventilation openings install in accordance with the manufacturer's instructions.
0. DO NOT install near any heat sources such as radiators, heat registers, switches, or other apparatus including amplifiers that produce heat.
9. DCTOT defect the safety purpose of the pole lead or ground ring cycle plug. A coal-fired plug has two blisters with one other than the other. A ground-type plug has two blisters and a third grounding progn. The wide blade or the third progn are provided for your safety. If the provided plug does not fill into your out end, consult an electric car for next quarter of the circuit point.
10. PROTECT the power cord from being walked on or pinned particularly at plugs, convenience nooptraders, and the point where they call from the apparatus.
IL ONLY SE attachment accessories is specified by the manufacturer.
12. IGS: IP4Y with the cart, stand in port bracket, or as in specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the car happenus some notion to avoid in any from his own.
12. UMPUS this apparatus during lightning storms or after construction for long periods of time.
14. RENTER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug in damage; liquid thus been called or objects have fallen into the apparatus. The apparatus has been exposed to minor moisture does not account normally or has been proposed.
15. DC HOT expose this apparatus to dripping or splashing and ensure that no objects filled with optics such as notes, are placed on the apparatus.
15. To completely disconnect this apparatus from the AC Hairs, disconnect the power supply and plus from the AC resesade.
14. The more plus/apprance coupler is used as disconnected device, the disconnected device shall remain read by operable
18. UO NOT onboard and pull-in or extension cords beyond their rated capacity, as this can cause electric shock or fire
19. The equipment shall be used at minimum 10°F, 45°C and constant temperature.

The excavation point, within an ecological triangle, is intended to alert the user for the presence of important according and maintenance (service recommendations in the literature accompanying the product

The lighting system with ambient and spectral action in an electrical triangle is intended to be the user for the presence of uncontrolled "dangerous voltage" within the product's one case that may be of sufficient capacity to contribute a risk of electric shock. It is persons.

MARRIG: To reduce the risk of fire or electrical shock, consider exposure to apparatus for an or mixture.

MARIN G. To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instruction

The following is not taken into sources - such as candles - should be placed on the product.

Methanis ☐ This equipment is a three-tier double inductor electrical accordance. It has been designed in such a way that it does not require a safety connection to electrical earth. THIS PRODUCT CONTAINS A UTHUM CON CELL BATTERY. IT VISUED OR ABUSED THIS CAN RESULT IN

• Smoke or gas hazard

• Heat hazard

• Forward

• Fennings bezart

WARWARI do not place batteries in mouth or inged. Chemical sums reward keep new and new batteries out of reach of children and pets. If swallowed, it can cause several internal sums in just 2 hours and can lead to death.

I say, this batteries might have been sold at a price inside the par. of the box, so it must be made attention.

WAPPAHA E battery compartment does not close securely, stop using the product and keep it away from children and pets.

WAPALIC Do not handle asking or damaged Lithium batteries.

WASHINGTON Risk of Isolace. Only use the specified type of batteries. Never mix now and uses barriers as. Observe correct solely. Remove batteries from products that are not in use for extended periods of time. Share batteries in any place.

WARMAE Batteries (battery peak or batteries in a left shell) not be exposed to excessive dust such as sunshine, fire or heat like.

WASHINGTON danger of explosive battery is incorrectly replaced. Because only with the same or equivalent type.

WARNING: Do not recharge non rechargeable batteries.

WARNING: Avoid exposure to extreme heat or cold.

Please dispose of any used batteries property, following any coal regulations that include risks.

WARNING: Do Not Open Risk of Electrical Units. Volages in this statement are hazardous to the No user-service pairs inside. Refer all servicing to qualified service personnel.

Place the equipment near a main power supply outlet and move sure that you can easily access the power breakers switch.

WARNING: This product is intended to be operated (PMV) from the AC voltages based on the back panel included power supply of the product. Operation I can other voltages other than those indicated may create accessible discope to the product and use the products warranty. This use of AC/Par Adapters or circuit resistance can allow the product to be applied into voltage in which the product was not designed to operate. If the product is equipped in the debahade power cord, one only the type provided with your product or by your local distributor nor/or filter. If you are unsure of the correct operational voltage please contact your local dish door and/or reliable.

EU COMPLIANCE INFORMATION

Eligible to bear the 31 mark; Conforme to European Union Low voltage Directive 2014/15/18, European Union on EVC Directive 2014/30/EU; European Union on Restriction of Hazardous Substances Recast VIaHS20 Directive 2014/65/EU. European Union WEEE Directive 2012/19/EU; European Union

Los-Ceson Directive 2003/12/13 European Union Legislation, Legislation, Authoritarian and Restriction of Chemicals (REACH) Directive 2006/12/EC: European Union Radio Equipment Directive (ALD) 2004/12/13

the product contains better as that are covered under the 2006/06/12 European Directive, which cannot be disposed of with normal household items. Please follow local regulations.

You may obtain a free copy of the Declaration of Conformity by contacting your dealer who has been on Lipsch Group, Inc. 3 and other headquarters. Contact information can be found here http://www.lipsch.com/Contact-Us

MEEE NOTICE

Note: This marks applies only to countries within the European Union (E10 and Norway)

This appliance is labeled in accordance with European Directive 2012/19/20 containing waste of electrical and electronic equipment (AFTF). This label indicates that this product should not be chosen of all household waste. It should be deposited at an appropriate facility to enable recovery and recycling.

FCC AND CANADA EMC COMPLIANCE INFORMATION

This service comprises with Part 15 of the TCC Rules. Operation is subject to the following two conditions: 7. This device may not cause harmful interference and

(7) This device must accept any interference received, including interference that may cause its desired operation.

MILK: This equipment has been leased but not found to comply with the title for a Class B-100 class, pursuant to part 5 of the 70% Rules. These limits are designed to provide reasonable protection against the main interference in a test condition. The equipment reminders, use and maintain the role frequency energy, it is not included and used in accordance with the instructions, may cause harmful interference in basic communications. It becomes, there is no guarantee that its resistance which occurs in particular installation. If this equipment does cause harmful interference to reduce or Television reception which cannot be determined by turning the equipment all done, the use is encouraged to try to correct, the time necessary by one or more of the following measures.

- Recruit, or relocate the receiving direction.

• Increase the separation on between the equipment and receiver

- Correct the equipment into a cylinder on a circular different from that to which the receiver is connected.

- Consult the dealer or an experienced residency technician for help.

Approve under the verification on provision of FCC Part 15 as a Class B Digital Device

Either Changes or modifications not expressly approaching the manufacturer could work the user's authority to operate this device.

Conclusion: To comply with the limits of the Class 3 digital device, pursuant to Part II 15 of the FOC Index, this device is not comply with Class B limits. All components must be shielded and grounded. Operation with non-certified peripherals or non-shipped cables may result in interference by risks or exceptions.

WIRELESS TRANSMITTER COMPLIANCE INFORMATION

Social on League Statement

This equipment comprises with FOZ radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the detector & your box.

Slave Equipment for prev 1 module 2.45 and 50 Hz dual battery

This device is slave equipment, the device is not a water detection and not ad hoc operation.

the 345 hmt

Industry Canada statement

This device complies with Industry Canada's license-exempt RSEs. Operation is subject to the following two conditions:

(b) This device may use cause interference and

12) This device must accept any interference including interference that may cause undesired operation of the device.

Caudrofor play-fi module 2.4G and 5.8Kc dual bonds

(1) the device for operation in the card 550-5750 MHz is only to recover use to reduce the potential for normal interference by a channel mobile safe file system.

In the maximum antenna gain corrected for low-res in the haves 5210-5290 MHz and 3470-5775 MHz shall be such just the equipment still couples with the electric limit.

(1) The maximum antenna gain permitted for devices in the band 525-5260 MHz shall be such that, the equipment still complies with the e.g. limits specified for point-to-point and non-point-to-point operation as appropriate, and

In the best-case fit angle(s) necessary to remain constant with the our publication mask requirement set forth Section 6.2.230 shall be clear indicated

(in liters should also be advised that high-power raters are allowed as primary users) (i.e., priority use of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to -4.4V devices

Radiation Exposure Statement

This equipment complies with SAB radiation exposure limits set forth for an uncontrolled lead environment. This equipment should be installed and operated with minimum distance 20cm between the controller & your body.

RSB-3

FIRMADE VERSION 14

Bulcath Operating Frequency: 240-250MHz

Maximum of Power: 4.5Bm (e.g.)

RSD-0

Bluetooth Operating Frequency: 2402-7493MHz

Koiman of Power: 4.50 (e.g.)

RSB-T

Bluetooth Operating Frequency: 2402-2493MHz

Koianan SF Pove: 0 clr (e)

Wireless To & Re Operating Frequency: 247535924773946

Injinnal Dres. Uchu, 2019

RSB-14

Bluetooth Operating Frequency: 2002-2100MHz

Minimum 5F Power-10dBm (Jou)

Wireless To & Rx Operating Frequency: 2415.35-2477.35MHz

Maximum SF Power-10dBm (p) 1.03

M-1000000000000000000000000000000000000000000

Koijum 37 Dves 20: Box

Médi Gérardine Frouges 200-350CMHz 5.5470-1775VHz

Maximum 57 Paves: 20 LBM (e.g.

CONSIGNES DE SÉCURITÉ IMPORTANTES!

1 UFE des renignes

INFORMATIONS DE CONFORMITÉ UE

https://www.cisch.com/Contact-11

AVIS DEEE

Radiation Exposure Statement

This equipment complies with PCI rad shot exposure limits set forth for an uncontrollable environmental. This equipment should be installed endoculated with minimum distance 20cm between the radiator & your body.

Slave Equipment for playtime to 2.45 and 500x dual barriers

This device is slave equipment, the device is not, radar selection and not ad hoc operation in the CE3 hand.

Industry Canada statement.

Cancrofor play-fi module 2.4G and 2.5Hz dual bands

if the device for operation in the band 550-5250 H-r2 is only for indoor use to reduce the potential for manual interference to co-channel mobile save file systems.

on the maximum antenna gain permitted for devices in the band 5250-5360 MHz and 5470-5723 MHz shall be such that the equipment still complies with the up-polar;

(1) the maximum antenna gain permitted for devices in the band 5723-6850 Nbe shall be such that the equipment still couples with the e.g. limits specified for point-to-point, and non-point-to-point operation as appropriate and

iv, the worst-case fit angle(s) necessary to turn constant with the a tr. positioning mask requirement set for thin Section (6.2.201) shall be clear by indicated.

1st users should also be able to find that high-power readers are allocated as primary users.

priority use of the bomb 5250/5350 N·h and 5680/5850 N·h and that these radars could cause maintenance and/or damage to 14.4% due to

Radiation Exposure Statement

This equipment consists with SED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20km between the detector & your body.

• Gilded product Size

• Единов'я

• Emittagspratahr

Radiation Lactoure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the detector & your body.

Slate Equipment for plachimodule 2.45 and 50Hz dual bands

This device is slave equipment, the device's not, reader detection and not ad hoc operation in the CFS band.

Inclusive Canada statement:

(1) the device for operation in the card5760-5250 Hve is only for inoper use to reduce the potential for cardL interference to co-channel mobile safe life systems.

In the maximum antenna gain permitted for devices in the band 5625-5800 MHz shall be such that the equipment still complies with the e.g. limits specified for point to point and non point to point operation as appropriate and

If: Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bomb 5652-2830 Wks and that these radars could cause interference and damage to L-LAV devices.

Canizofor play-fi module 2.4G and 2.8Hz dual bands

if the device for operation in the band 550-5250 MHz is only to recover use to reduce the potential for normal after leverage to co-channel mobile safe file systems.

in the maximum antenna gain permitted for devices in the hands 5250-5350 MHz and 3470-5725 MHz shall be such as the equipment still couples with the e.i.p. limit.

In the maximum antenna gain permitted for devices in the band 5275-6830 NHB shall be such that the equipment still complies with the a-up limits specified for point-to-point and non-point-to-point operation, so as appropriate and

(1) the word case is angle necessary to remain constant with the α positioning mask

requirement set for thin Section 6.2.230 shall be clearly indicated

(in billions should also be added that high-power sectors are allocated as primary users) is priority use of the bonds 5250-5350-NHz and 5650-5850-NHz and that these markets could cause performance and/or damage to L-H/NHz devices

Partition Exposure Statement

This equipment consists with SED radiation exposure units set to it for an uncontrolled environment. This equipment should be installed and operated with minimum distance from between the radiator & your body.

INSTRUÇÕES DE SEGURANÇA IMPORTANTES!

Radiation Exposure Statement

This equipment consists of an PC and allion exposure limits set forth for an uncontrollable environment. This equipment should be installed and operated with minimum distance 20cm between the controller by your body.

Clave Equipment: for play, time module 246 and 50Hz dual bands

This device is active statement, the device is not near selection and not address operation in the OTS band.

Industry Canada statement

(2) Use device for operation in the card 5150 5250 MHz is only for indoor use to reduce the potential for tunnel interference to on-channel mobile smart systems.

(i) the maximum antenna gain permitted for devices in the band 5725-5890 MHz shall be such in the equipment still complex with the up limits specified for point-to-point and non-point-to-point operation as appropriate and

(1) Users should also be achieved that high-power radars are allocated as primary users (i.e. primary users of the bonds 5802-3804 WtE and that these radars could cause interference and damage to LE LVM devices.

Caudrofor play-fi module 2.4G and 50Hz dual bands

(i) the device for operation in the card 5760-5790 MHz is only for in-car use to reduce the potential for harmful interference to co-channel mobile safe life systems.

(in the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz) shall be such that the equipment still complies with the a.p. limit;

fill: the maximum antenna gain permitted for devices in the band 3725 5850 MHz shall be such that the equipment still complies with the d-jux limits specified for point-to-point and non-point-to-point operation as appropriate and

iv, the word-case (II) model; necessary to remain consistent with the air-p. deviation risk requirement set to thin Section 6.2.23 shall be clearly indicated

In there should also be added that high-power radars are siliconized as primary users (i.e., primary users of the bonds 5200-5350 NHz and 5600-5850 NHz and that these radars could cause interference and/or damage to LE LAV devices.

Radiation Lactose Statement

This equipment complies with the SFD radiation exposure limits set forth for an uncorrected environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your mark;

ISTRUZIONI IMPORTANTI DI SICUREZZA

- Part of Initialization

- Exposed inspein

- Packind selection

Eligible to bear the CE more. Conforms to European Union Low Voltage Directive 2006/95; EU: European Union EVC Directive 2007/05/EC: European Union Restriction of Hazardous Substances Record (360-52) Directive 2008/5/FC: European Union MFFF Directive 2010/56/FC: European Union Low-Design Directive 2005/25/FC: European Union Registration, Evaluation, Authorization and Restriction of Chemicals (BIFACII) Directive 2006/97/FC: European Union Radio and Telecommunications Terminal Equipment (RSTTE) Directive 2010/53/FC

Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set, both for an uncontrollable environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Save Equipment for playtime in 245 and 50Hz dual bands

This device is slave equipment. The device is not, radar detection and not ad hoc operation in the GPS hand.

Industry Canada statement

if the device for operation in the band 5150 5250 MHz is only for indoor use to reduce the potential for small interference in octahedral scale of file system.

ill the maximum antenna gain permitted for devices in the band 5725 5800 MHz shall be such that the equipment still complies with the e.g. In its specified for point-to-point and non-point-to-point operation as appropriate and

If it users should also be advised that high-power radars are allocated as primary users (i.e. priority users of the bond 5602-3550 Wks and that these radars could cause interference and damage to LE LAN devices

Cancroton plough module 2.40 and 3.5Hz dual bands

(1) the device for operation in the card 950-9250 MHz is only; for indoor use to reduce the potential for named interference to co-channel mobile see its supreme.

in the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still couples win the air-pullift.

(1) the maximum antenna gain permitted for devices in the band 5723/5830/96 shall be such that the equipment still complies with the e.g. In its specified for point-to-point, and non-point-to-point operation as appropriate and

In the worst case III, single is necessary to remain constant with the e.i.p. evolution risks requirement not further Sochion & 270 to shall be clearly indicated

(in) Others should also be advised that high power users are allocated as primary users of the primary users of the bonds 5200-5810-N-b and 3600-3810-N-b and that these motors could cause interference and/or damage to 14.4% devices

Radiation Detection Statement

This equipment complies with the SED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20km between the radiator & your body.

重要安全说明

ENGLISH - WARRANTY - U.S.

Kipsch Group, Inc. (KGI) warrants to the original retail purchaser that this product is to be free from defective materials and workmanship for a period of one (1) year on electronics and three (3) years on woofer, cabinet and non-electrical mechanics, from the date of purchase, if it is properly used and maintained. If this product proves defective in either material or workmanship, KGI, at its option, will (a) repair the product, or (b) replace the product, at no charge for parts or labor. If the product model is no longer available and cannot be repaired effectively or replaced with an identical model, KGI at its sole option may replace the unit with a current model of equal or greater value. In some cases, modification to the mounting surface may be required where a new model is substituted. KGI assumes no responsibility or liability for such modification. To obtain a repair or replacement under the terms of this warranty, please return to dealer first, if possible, and the dealer will direct you accordingly for repairs or replacement. You will be required to submit a copy of the original receipt.

Return shipping for exchanges/repairs is the sole responsibility of the original retail purchaser.

Limitations:

• This limited warranty does not cover failure of the product resulting from improper installation, misuse, abuse, accident, neglect, mishandling, or wear from ordinary use or environmental deterioration.
• This limited warranty does not cover cosmetic damage, including paint damage, or consequential damage to other components or premises which may result for any reason from the failure of the product.
• This limited warranty is null and void for products not used in accordance with KGI's instructions.
• This limited warranty is null and void for products with altered or missing serial numbers and for products not purchased from an authorized dealer.
  * This limited warranty terminates if you sell or otherwise transfer this product to another party.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE

TO STATE, JURISDICTION TO JURISDICTION OR COUNTRY TO COUNTRY. KGI'S RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN HARDWARE IS LIMITED TO REPLACEMENT OR REPAIR AS SET FORTH IN THIS WARRANTY STATEMENT. ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN TIME TO THE TERM OF THIS WARRANTY. SOME STATES, JURISDICTIONS OR COUNTRIES DO NOT ALLOW THE EXCLUSION OF CERTAIN IMPLIED WARRANTIES OR CONDITIONS, OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THIS LIMITATION MAY NOT APPLY TO YOU. KGI DOES NOT ACCEPT LIABILITY FOR SPECIAL, INDIRECT, CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING WITHOUT LIMITATION, ANY LIABILITY FOR THIRD PARTY CLAIMS AGAINST YOU FOR DAMAGES OR FOR PRODUCTS NOT BEING AVAILABLE FOR USE. THE MAXIMUM LIABILITY FOR WHICH KGI MAY BE RESPONSIBLE WILL BE NO MORE THAN THE AMOUNT YOU PAID FOR THE PRODUCT THAT IS THE SUBJECT OF THE CLAIM. SOME STATES, JURISDICTIONS OR COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

WARRANTY OUTSIDE THE U.S.

The Warranty on this product shall comply with applicable law when sold to a consumer outside of the United States. To obtain any applicable warranty service, please contact the dealer from which you purchased this product, or the distributor that supplied this product.

FRENCH - GARANTIE - ÉTATS-UNIS

POLISH-GWARANCJA-USA

KEEPERS OF THE SOUND

3502 WOODVIEW TRACE, INDIANAPOLIS, IN, USA

KLIPSCH.COM

©2020, Klipsch Group, Inc. Klipsch Group, Inc. is a wholly-owned subsidiary of Vox International Corporation.

Klipsch and Keepers of the Sound are trademarks of Klipsch Group, Inc., registered in the United States and other countries.

The Bluetooth ^® word mark is a registered trademark owned by Bluetooth SIG, Inc. and any use of such mark by Klipsch Group, Inc. is under license. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, VirtualX, and the DTS VirtualX logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

CE

V02-200903
