Product Type	Pneumatic blasting gun
Brand	Parkside
Model	PDSP 1000 C3
Category	Uncategorized
Operating pressure	6.3 bar
Air consumption	320 l/min
Tank capacity	900 ml
Required air quality	Clean and oil-free
Sound pressure level	LpA = 95 dB(A), KpA = 3 dB(A)
Sound power level	LWA = 106 dB(A), KWA = 3 dB(A)
Vibration emission value	ah ≤ 2.5 m/s² (according to EN 12096)
Intended use	Removal of paint and rust on metal surfaces
Scope of delivery	Gun, nozzles (flat, spot, outside edge, inside edge), collection bag, hose clamp, 2 kg blasting media
Main functions	Compressed air blasting with flow control (button 1/0), trigger, interchangeable nozzles
Maintenance and cleaning	Clean with compressed air after each use, store in a dry place
Safety	Wear goggles, gloves, protective clothing, and respiratory protection; do not use in explosive areas; max pressure 6.3 bar
Spare parts available	Yes (housing, screws, seals, nozzles, trigger, tank, etc.)
Warranty	3 years (according to legal conditions)
After-sales service	Ecos Office Forbach, [e-mail], phone [phone]

Frequently Asked Questions - PDSP 1000 C3 PARKSIDE

How do I connect the blasting gun to the compressor?

Connect the quick coupler of the supply hose to the male connector of the gun. Make sure the rotary knob is set to 0 before connecting.

What compressed air pressure should I use?

The maximum operating pressure is 6.3 bar. Use a pressure regulator and a filter to control the compressed air.

How do I fill the blasting media tank?

Turn off the compressed air supply, open the screw cap, pour in the blasting media without exceeding 900 ml, then close firmly.

What blasting media should I use?

Use a blasting agent free of silicosis risk (powdered blast furnace slag) with a granulation of 0.2 mm to 0.8 mm. The supplied media is fine.

How do I attach the collection bag?

Attach the collection bag to the device using the provided screw-type hose clamp and a screwdriver.

What nozzles are available and how do I choose them?

Flat, spot, outside edge, and inside edge nozzles. Choose based on your project: flat for large areas, spot for details, etc.

How do I use the blasting gun?

Set the rotary knob to 1, bring the nozzle close to the surface, press the trigger. To stop, release the trigger then set the knob to 0.

What do I do if there is no material flow?

Check that the air is dry (install a water separator), that the pressure is sufficient, that the nozzle is properly seated, and that the lines are not blocked.

How do I clean the gun after use?

Disconnect the air supply, then blow compressed air through the gun and tank. Store in a dry place.

What are the essential safety instructions?

Always wear goggles, gloves, protective clothing, and a dust mask. Never point the jet at people. Work in a ventilated area and do not exceed 6.3 bar.

USER MANUAL PDSP 1000 C3 PARKSIDE

Operation and Safety Notes Translation of the original instructions

NL

PERSLUCHTZANDSTRAALPISTOOL

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DK

GB/IE/NI Operation and Safety Notes Page 5

Table of contents

List of pictograms used....Page 6

Introduction Page 6

Intended use Page 6

Features Page 6

Package contents....Page 6

Technical specifications Page 7

General safety instructions....Page 7

Workplace safety......Page 7

Device-specific safety instructions for air-driven sandblasting equipment ......Page 8

Operation Page 9

Connecting the compressed air supply Page 9

Filling the blasting material tank....Page 9

Fitting the collecting bag for sandblasting material....Page 9

Selecting and fitting attachments....Page 9

Using the air-driven sandblasting gun....Page 10

Emptying the collecting bag for sandblasting material....Page 10

Troubleshooting......Page 11

Component parts......Page 11

Maintenance and cleaning......Page 12

Warranty and service information Page 12

Warranty conditions....Page 12

Extent of warranty....Page 12

Processing of warranty claims ......Page 13

Original EC Declaration of Conformity....Page 13

/// PARKSIDE

GB/IE/NI 5

Introduction

List of pictograms used
	Read the operating instructions before setup/first use.		Always wear eye protection while using or maintaining the sandblasting machine.
	Wearing protective gloves and protective clothing is recommended.		Always wear respiratory protection in dusty environments.
			Always wear hearing protection.

AIR SANDBLASTER GUN PDSP 1000 C3

- Introduction

Congratulations! You have purchased one of our high-quality products. Before setup or first use, please famil-

iarise yourself with the product. To do so, please read through the following operating and safety instructions carefully. This product must be set up or used only by people who have been trained to do so.

KEEP THIS DEVICE OUT OF THE REACH OF CHILDREN!

- Intendeduse

The air-driven sandblasting gun PDSP 1000 C3 (hereinafter "device") is designed for removing rust and paint from metal surfaces. Any other use or modification of the device is considered a misuse and carries a risk of serious accidents and/or injury. We assume no liability for damage or injury resulting from misuse. This device is intended for use by private consumers only.

- Features

1 Air-driven sandblasting gun
2 Barbed fitting for air supply
3 Trigger lever
4 Collecting bag for sandblasting material
5 Screw clamp
6 Blasting nozzle
7 Rotary control (1/0)
8 Blasting material tank
9 Screw cap
10 Wide-angle attachment
11 Spot attachment
12 Outer edge attachment
13 Inner edge attachment

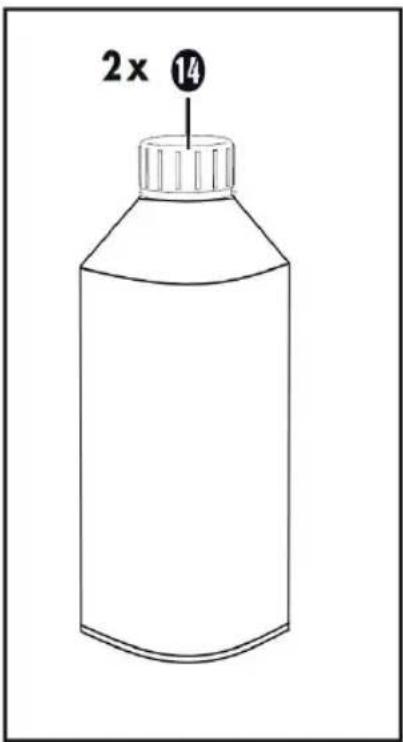

14 Blasting material

• Package contents

1 air-driven sandblasting gun PDSP 1000 C3
1 wide-angle attachment
1 spot attachment
1 edge attachment
1 inner corner attachment
1 collecting bag for sandblasting material
1 screw clamp
2 kg blasting material
1 set of operating instructions

Introduction/General safety instructions

• Technical specifications

Working pressure: 6.3 bar

Air consumption: 320 l/min

Tank capacity: 900 ml

Air quality required: clean and oil-free

Settings

while working: working pressure set at

pressure regulator or filter pressure gauge to max. 6.3 bar.

Noise emission level:

Noise emission level measured according to EN 1265. Typical A-weighted emission sound pressure level of the pneumatic tool:

Sound pressure level: L _pA = 95 dB (A)

Uncertainty: K _pA = 3 dB (A)

Sound power level: L _WA = 106 dB (A)

Uncertainty: K_WA = 3 dB (A)

Wear ear protectors!

Vibration total value:

Vibration total value measured according to EN 12096:

q _ h = ≤ 2. 5 m / s ^ 2

WARNING! The vibration level stated in these instructions has been measured in accordance with a standardised measurement procedure given in EN 12096 and can be used to compare different equipment. The vibration total value stated can also be used for an initial estimation of exposure from the machine. The vibration level will change in accordance with how the pneumatic tool is used and may in some cases exceed the value given in these instructions. The vibration exposure could therefore be underestimated if the pneumatic tool is regularly used in this kind of way.

NOTE For an accurate estimate of the vibration exposure during a specific period of working time, periods of time should also be included in which the device is switched off or is running but is not actually being actively used (idling). This can significantly reduce the vibration exposure over the entire period of working time.

- General safety instructions

WARNING! Read all safety instructions and other instructions. Failure to follow or comply with the safety instructions or other instructions could lead to an electric shock, fire and/or serious injuries.

Please keep all safety instructions and other instructions in a safe place.

• Workplace safety

a) Ensure that your work area is clean and well illuminated. Untidiness and poorly lit work areas can cause accidents to happen.
b) Do not work with the device in explosion hazard areas, where combustible liquids, gases or dusts are present. The device can generate sparks that could ignite such dusts or fumes.
c) Keep children and other persons out of the work area while the device is being used. If you are distracted, you could lose control of the device.

/// PARKSIDE

GB/IE/NI

7

General safety instructions

• Device-specific safety instructions for air-driven sandblasting equipment

Before setup or first use, check the device for any damage. Do not start using the device if it has any obvious defects.
- Keep children and other persons out of the work area while the device is being used. If you are distracted, you could lose control of the device.
■ DANGER OF INJURY! PROHIBITED MISUSE! Do not point the device at people and/or animals.

Wear a dust mask!

Wear protective goggles!

Near protective gloves!

Near protective clothing!

EXPLOSION HAZARD!

The air-driven sandblasting gun must not be used in an environment where gases, naked flames, fire or gas-driven water heating systems are present.

NO SMOKING!
■ Always work in a room with adequate ventilation.
- Do not use oxygen or combustible gases as a source of energy.
■ Never exceed the maximum working pressure of 6.3 bar.

WARNING!

RECOIL HAZARD!

High working pressures can produce powerful recoil forces that can in some circumstances create hazards due to continuous stress and strain.

■ DANGER OF INJURY!

Disconnect the device from the compressed air supply before carrying out repair and servicing or moving the device.

■ DANGER OF INJURY!

Disconnect the device from the compressed air supply before filling with blasting material.

NOTE

Please also follow the safety

instructions from the blasting material manufacturer.

■ Only use materials that are compatible with the air-driven 1 sandblasting gun.
Always use suitable blasting material!
■ ATTENTION! Device produces clouds of dust. Take precautions before use!
■ Ensure that blasting material is collected for disposal to avoid polluting the environment.
- Do not remove any device labels/type plates. These are important for safety.
If you do not have experience with using the device, you should seek training to ensure you can use it safely.

WARNING!

POISONOUS DUSTS!

Working with harmful/poisonous dusts represents a health hazard for the device operator or persons present in the vicinity of the work area.

ATTENTION

Ensure that the device is

disconnected from the compressed air supply when not in use, when replacing accessory parts or carrying out repairs. The air hose must not be under pressure.

- Operation

NOTE

The maximum grit size is

0.8 mm.

- Connecting the compressed air supply

NOTE The air-driven sandblasting gun must be operated with compressed air that is clean, oil-free, moisture-free and at a maximum pressure of 6.3 bar. To regulate the compressed air supply, a pressure regulator and filter should be used (e.g. Parkside Compressed Air Maintenance Unit PDWE 8 A1).

■ Connect the air-driven sandblasting gun to a suitable compressed air supply. Plug the quick-connect plug on the supply hose into the barbed fitting 2 on the air-driven sandblasting gun 1. The plug locks into place automatically.

NOTE Ensure that the rotary control is set to "0" before you connect the device to your compressed air supply.

- Filling the blasting material tank

ATTENTION Before opening the screw cap on the 9 blasting material tank 8 or changing any other settings, the device must be completely depressurised and the sandblasting gun must be disconnected from the compressed air supply (e.g. compressor).

■ Only use compatible blasting material for your sandblasting work 14.

NOTE We recommend using blasting material with no risk of silicosis (ground blast furnace slag) with a grit size of 0.2 mm to 0.8 mm.

■ Ensure that the blasting material is absolutely dry and not too coarse-grained.

• Open the screw cap on the blasting material tank 8 by turning the cap anticlockwise.
• Fill the desired quantity of blasting material into the blasting material tank 8.
  ■ Take care not to overfill the tank: the maximum tank capacity is 900 ml.
• Replace and close the screw cap on the blasting material tank 8 by turning it clockwise. Ensure that the screw cap is properly seated and tightly closed.

NOTE

BLASTING MATERIAL GRIT SIZE

☐ The larger/coarser the grit size of the blasting material used, the less precise the dirt removal process. The blasting material included is small and is very suitable for the removal of rust bloom or soiling. Finer blasting material is also gentler on the surface of the material and abrasion is confined to the surface. For larger areas of rust, coarser blasting material should be used, which can be purchased from larger stockists. Attention: do not exceed the maximum grit.

● Fitting the collecting bag for sandblasting material

■ Using a screwdriver, attach the collecting bag 4 to the device with the screw clamp included in the package contents 5.

- Selecting and fitting attachments

■ Select the attachment that is the best tool for the job in hand (10, 11, 12, 13).
■ Fit your chosen attachment firmly to the blasting nozzle 6, taking care to ensure that no air can escape at the sides.

/// PARKSIDE

GB/IE/NI

9

Operation

• Using the air-driven sandblasting gun

■ Prepare your workpiece for sandblasting. Clean and degrease your workpiece.

NOTE

Dust and grease deposits will significantly impair your results.

• Carefully cover up or mask off anything that should not be sandblasted.
  The distance from the attachment to your workpiece is critical for the end result. Keep the distance as short as possible, to ensure that the 14 collecting bag 4 can catch all of the material.
  The closer you get to your workpiece, the smaller the blasting radius on the workpiece itself, and vice versa.
  To check results beforehand, you can perform a test run on a piece of scrap material. This helps you to identify the right distance/working pressure and avoids excessive sandblasting of your actual workpiece.

• Emptying the collecting bag for sandblasting material

NOTE

Do not reuse excess

sandblasting material from the collecting bag 4 before it has been properly cleaned.

- You can empty the excess sandblasting material that has been collected in the collecting bag 4 by opening the bag's zip fastener. Alternatively, you can use a screw-driver to loosen the screw clamp 5 and then remove the collecting bag 4 from the device.

Switching on:

• Set the rotary control to "1" to open the air check valve.
  ■ Move the air-driven sandblasting gun to the surface you will be working on.
  ■ Press the trigger lever to start using the air-driven sandblasting gun 1.

Switching off:

■ Release the trigger lever to switch off the air-driven sandblasting gun 1.
- Set the rotary control to "0" to close the air check valve.
■ Disconnect the device from the compressed air supply after completing work.

NOTE

Detach the hose from the compressed air supply first, before you remove the supply hose from the device.

This will prevent a situation where the supply hose whips around uncontrollably.

Troubleshooting/Component parts

• Troubleshooting

Faults/ Possible cause	Solution
Material does not flow freely
Air is not dry enough	Fit a water separator (water trap) to your compressed air system.
Air pressure too low In	crease the output pressure on your compressor.
Attachment not properly seated	Ensure that the attachment is fitted firmly to the device and that no air can escape at the sides.
Clogged sandblasting material supply line(s)	Check that clumps of sandblasting material are not clogging the supply lines. An air blow gun is the best tool for cleaning any clogged supply lines.(Wear protective goggles!) Check the outlet on the tank.
Sandblasting finish is not as expected
Air is not dry enough	Fit a water separator (water trap) to your compressed air system.
Size of the sandblasting material is not uniform	Replace the sandblasting material.
Sandblasting material is contaminated	Sandblasting material should be cleaned/replaced
The attachment is worn	Replace the attachment
Other faults
Please talk to a sandblasting professional or your local stockist.

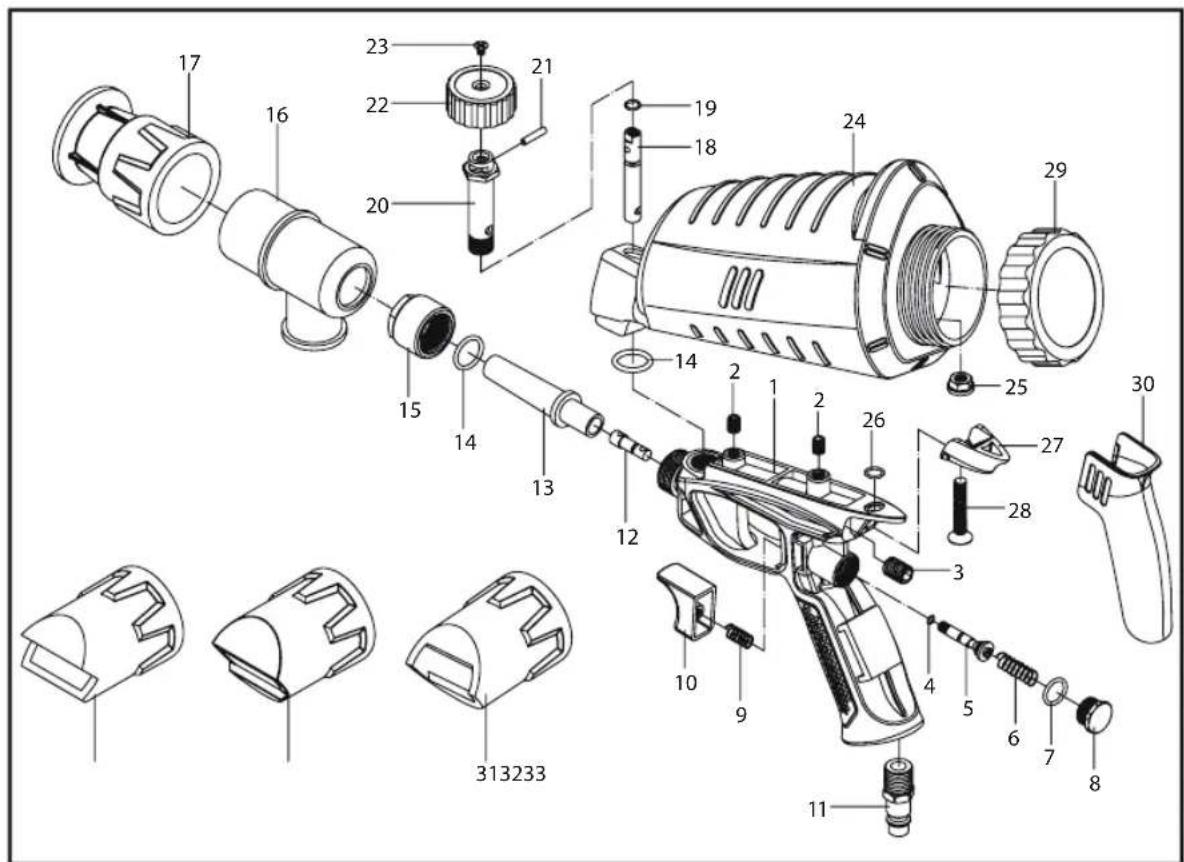

• Component parts

(see fold-out page at back)

Item no.	Description Quantity
01 Case	1
02 Screw	2
03 Screw	1
04 O-ring	1
05 Pin	1
06	Air valve spring	1
07 O-ring	1
08	Nut for screw	1
09	Spring	1
10	Trigger 1
11	Air inlet	1
12	Socket	1
13	Nozzle	1
14 O-ring	2
15	Cup ring	1
16	Adapter	1
17	Nozzle	1
18	Setting lever	1
19 O-ring	1
20	Connecting lever	1
21 Pin	1
22	Setting knob	1
23 Screw	1
24 Tank	1
25	Nut for screw	1
26 O-ring	1
27	Protective cap	1
28 Screw	1
29	Screw cap	1
30	Handle cover	1
31	Nozzle	1
32	Nozzle	1
33	Nozzle	1

/// PARKSIDE

GB/IE/NI 11

Maintenance and cleaning/Disposal/Warranty and service information

- Maintenance and cleaning

WARNING! DANGER OF INJURY! Always disconnect the device from the compressed air supply before cleaning it.

■ Always clean the air-driven sandblasting gun
1 and the sandblasting material tank 8 after completing your work. Use compressed air to blow through the air-driven sandblasting gun
1 and the sandblasting material tank 8.
■ Always store the air-driven sandblasting gun
1 in a dry place.

Should this product show any defect in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our discretion – free of charge. This warranty service requires that you retain proof of purchase (sales receipt) for the defective device for the three year period and that you briefly explain in writing what the fault entails and when it occurred.

If the defect is covered by our warranty, we will repair and return your product or send you a replacement. The original warranty period is not extended when a device is repair or replaced.

- Disposal

Do not dispose of the product in household waste, in fire or in water. Devices that are no longer functional

should be recycled wherever possible. Ask your local stockist for advice.

- Warranty and service information

Warranty from Creative Marketing Consulting GmbH

Dear Customer,

The warranty for this equipment is 3 years from the date of purchase. In the event of product defects, you have legal rights against the retailer of this product. Your statutory rights are not affected in any way by our warranty conditions, which are described below.

- Warranty conditions

The warranty period begins on the date of purchase. Please retain the original sales receipt. This document is required as your proof of purchase.

- Extent of warranty

This device has been manufactured according to strict quality guidelines and carefully inspected before leaving the factory.

The warranty applies to material and manufacturing defects only. This warranty does not cover product parts that are subject to normal wear and tear and can therefore be regarded as consumables, nor does it cover damage to fragile parts such as switches, rechargeable batteries, baking tins or parts made from glass.

This warranty is voided if the product becomes damaged or is improperly used or maintained.

For proper use of the product, all of the instructions given in the operating instructions must be followed precisely. If the operating instructions advise you or warn you against certain uses or actions, these must be avoided in all circumstances.

The product is for consumer use only and is not intended for commercial or trade use. The warranty becomes void in the event of misuse and improper use, use of force, and any work on the device that has not been carried out by our authorised service branch.

12 GB/IE/NI

/// PARKSIDE

Warranty and service information/Original EC Declaration of Conformity

- Processing of warranty claims

To ensure prompt processing of your claim, please follow the instructions given below.

■ Please retain proof of purchase and the article number (e.g. IAN 12345) for all inquiries.
The product number can be found on the type plate, an engraving, the cover page of your instructions (bottom left), or as a sticker on the back or underside of the device.
In the event of malfunctions or other defects, please first contact our service department below by phone or email.
If your product is found to be defective, you can then send your product with proof of purchase (till receipt) and a statement describing what the fault involves and when it occurred free of charge to the service address given.

Note:

If you visit www.lidl-service.com, you can download this manual and many other manuals, product videos and software.

How to contact us:

GB, IE, NI

Name: C. M. C. GmbH

Website: www.cmc-creative.de

E-mail: [e-mail]

Phone: [phone]

Registered office: Germany

IAN 292181

Importer

Please note that the following address is not a service address.

Address:

C. M. C. GmbH

Katharina-Loth-Str. 15

66386 St. Ingbert

GERMANY

- Original EC Declaration of Conformity CE

We,

C. M. C. GmbH

Responsible for documentation: Mark Uhle

Katharina-Loth-Str. 15

66386 St. Ingbert

Germany

hereby declare that this product is compliant with the following standards, normative documents and EU Directives:

Machinery Directive

(2006/42/EC)

Applied harmonised standards:

EN 1248: 2001+A1

EN ISO 12100:2010

Machine type designation:

Air-driven sandblasting gun PDSP 1000 C3

Year of manufacture: 04/2018

Serial number: IAN 292181

St. Ingbert, 5 October 2017

pp. Marc Uhle

- Documentation Officer -

/// PARKSIDE

GB/IE/NI 13

14 GB/IE/NI

/// PARKSIDE

Indholdsfortegnelse

Symbolforklaring....Side 16

Indledning....Side 16

WAARSCHUWING GEVAAR VOOR LETSEL!

WAARSCHUWING GEVAAR VOOR LETSEL!

Directive relative aux machines (2006/42/CE)

[e-mail]

[e-mail]

Telefon: [phone]
