Product Type	Cordless Rotary Hammer
Brand	Milwaukee
Model	M18 BH
Battery Voltage	18 V
No-Load Speed	0 - 1300 min⁻¹
Rate of Percussion (max)	0 - 7000 min⁻¹
Impact Energy (EPTA Procedure 05/2009)	1.2 J
Drilling Capacity in Concrete	16 mm
Drilling Capacity in Steel	10 mm
Drilling Capacity in Wood	16 mm
Chuck Neck Diameter	43 mm
Weight (with 4.0 Ah battery)	2.5 kg
Sound Pressure Level	87.9 dB(A) (K=3 dB)
Sound Power Level	98.9 dB(A) (K=3 dB)
Vibration Emission (hammer drilling concrete)	10.3 m/s² (K=1.5 m/s²)
Battery System	Milwaukee M18
Chuck Type	SDS-plus

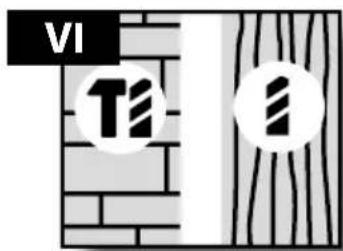

Drilling Modes	Hammer drilling, drilling
Applications	Hammer drilling in concrete, drilling in wood, metal, plastic
Safety Features	Wear ear protectors, use auxiliary handle, insulated gripping surfaces
Maintenance	Keep ventilation slots clear; carbon brush replacement by service
Battery Charger	Use only Milwaukee M18 chargers
Production Code Range	4433 21 03 ... 000001-999999

Frequently Asked Questions - M18 BH MILWAUKEE

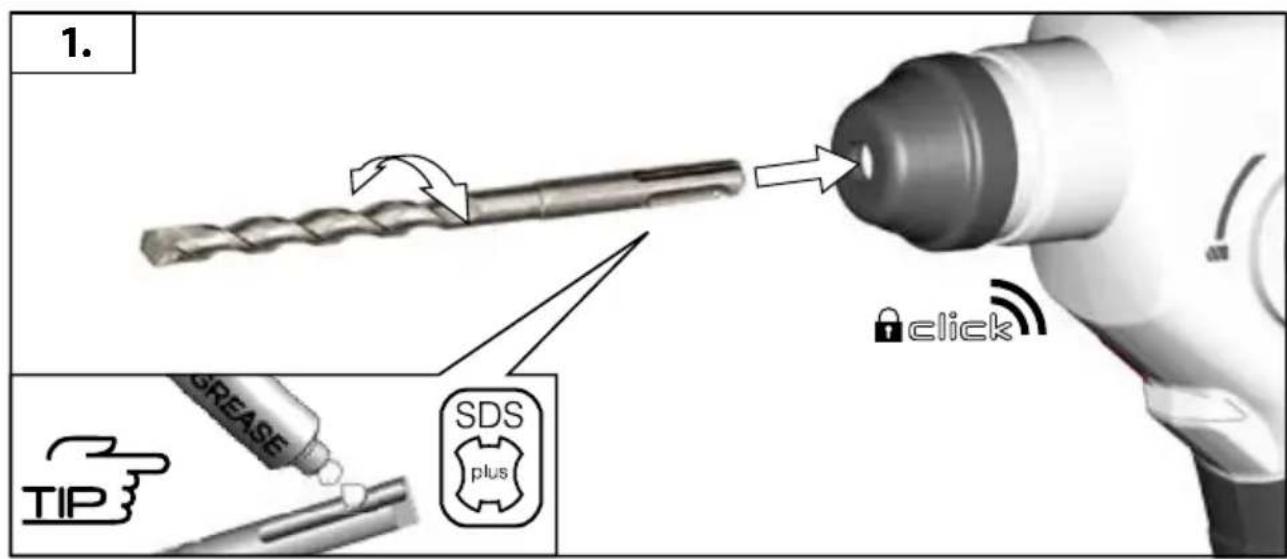

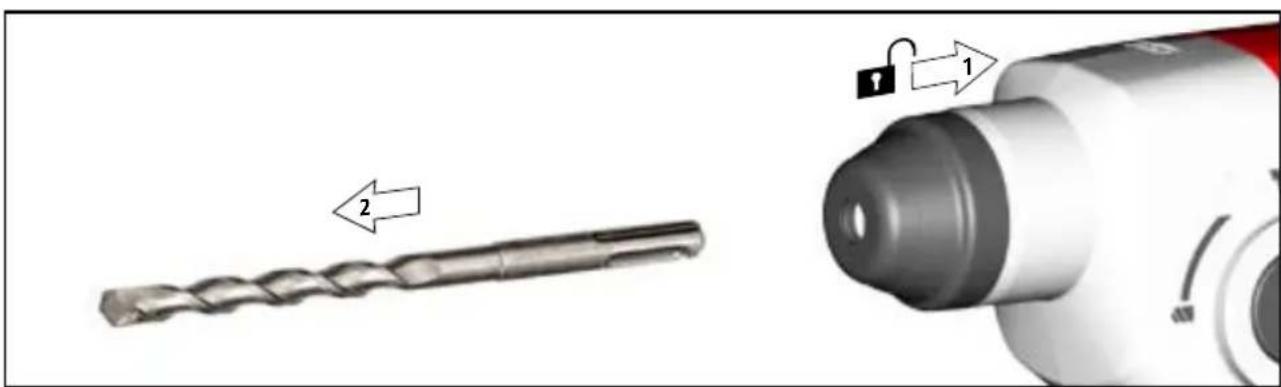

How do I change the drill bit on the Milwaukee M18 BH?

First, remove the battery pack. Then, open the chuck by turning it. Insert the SDS-plus bit and push until it locks. To remove, pull back the chuck sleeve.

What battery packs are compatible with the M18 BH?

Only Milwaukee M18 battery packs should be used. Do not use packs from other systems.

What is the maximum drilling capacity in concrete?

The maximum drilling capacity in concrete is 16 mm.

How should I clean and maintain the tool?

Keep ventilation slots clear of dust. Use a damp cloth to clean the housing. For carbon brushes, send the tool to an authorized service center.

What safety equipment is required while using this hammer drill?

Always wear safety glasses, ear protectors, and use the auxiliary handle. Also, wear a dust mask if working in dusty environments.

Why does the tool suddenly stop during operation?

The tool may stall if it is overloaded, tilted in the workpiece, or if the material breaks. Immediately switch off and correct the issue.

How should I store the battery pack when not in use?

Store the battery pack at temperatures below 27°C, away from moisture, and at a charge level of 30-50%. Recharge every six months.

Can I use the M18 BH for drilling in metal?

Yes, the drill can be used for drilling in metal up to 10 mm capacity.

How do I transport lithium-ion batteries safely?

Ensure terminals are protected to prevent short circuits. Secure the battery in packaging. Do not transport cracked or leaking batteries.

What does the EC declaration of conformity mean?

It signifies that the product meets EU directives (2006/42/EC, 2014/30/EU, 2011/65/EU) and relevant harmonized standards.

USER MANUAL M18 BH MILWAUKEE

Red and black Milwaukee electric drill put tool with handle and control lever (no text or symbols visible)

M18 BH

Original instructions

Red and black Milwaukee 1998 electric drill put tool (no text or symbols visible)

3D rendered image of a black rectangular electronic component with red and black markings (no visible text or symbols)

Close-up of a hand holding a pen tip with two arrows indicating rotation or movement (no text or symbols)

Close-up of a red and white handheld tool with black buttons and a circular dial (no visible text or symbols)

Close-up of a mechanical component with a coiled spring and red clip, labeled 'V' in the corner (no readable text or symbols)

Accessorio • Acessório Toebehoren • Tilbehør Tilbehør • Tillbehör Lisälaite • Εξαρτήματα Aksesuar • Príslušenstvn Príslušenstv • Wyposażenie Azokat a tartozékokat Oprema • Piederumi Priedas • Tarvikud Дополнитель • Аксесоари Accesorii • ополнителна опрема • Комплектуючі الملكة

Black and red isometric object with a triangular handle and internal slots (no text or symbols visible)

1.2.

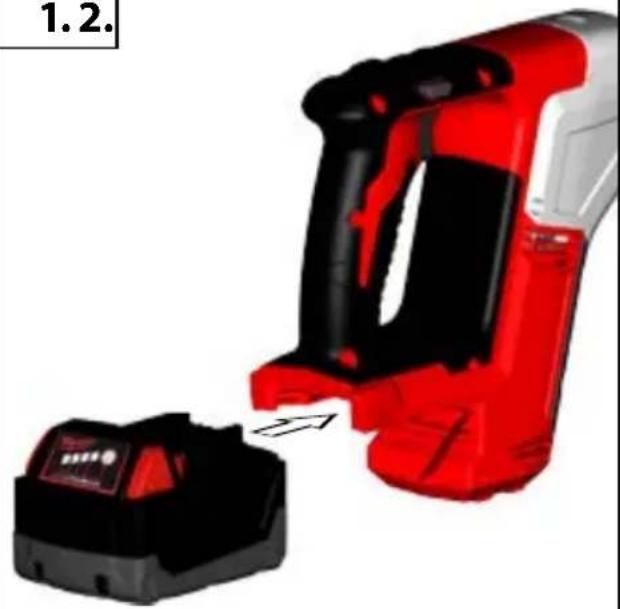

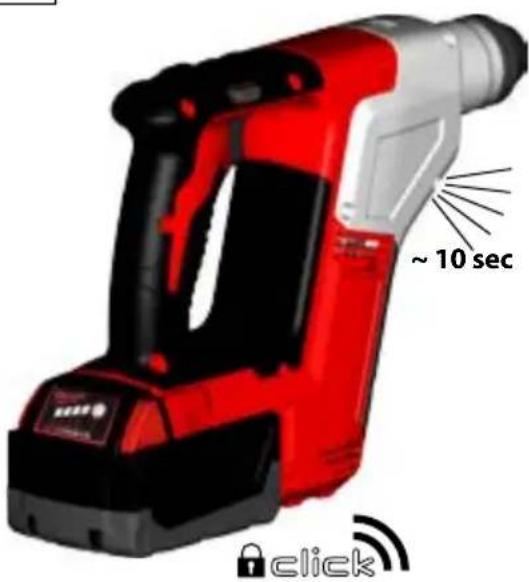

Red and black handheld device with a small battery component inserted, labeled '1.2.' (no text or symbols on the device itself)

1.2.

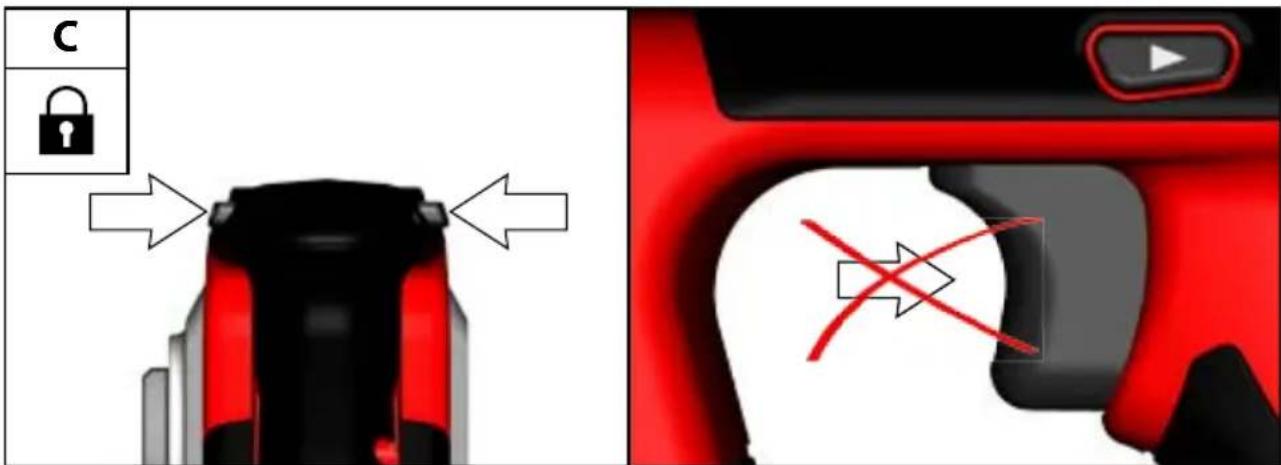

Red and white handheld device with a lock icon and directional arrows indicating assembly or repair (no text or symbols on the device itself)

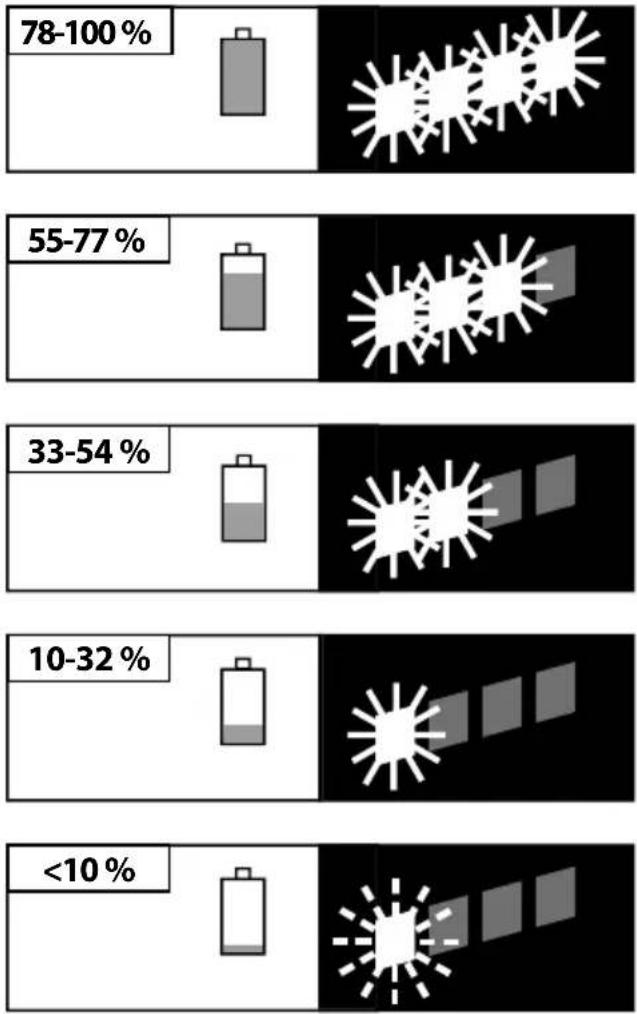

Red and black handheld device with a small inset showing a battery (no visible text or symbols)

Black and red 3D-rendered object resembling a battery or sensor device (no visible text or symbols)

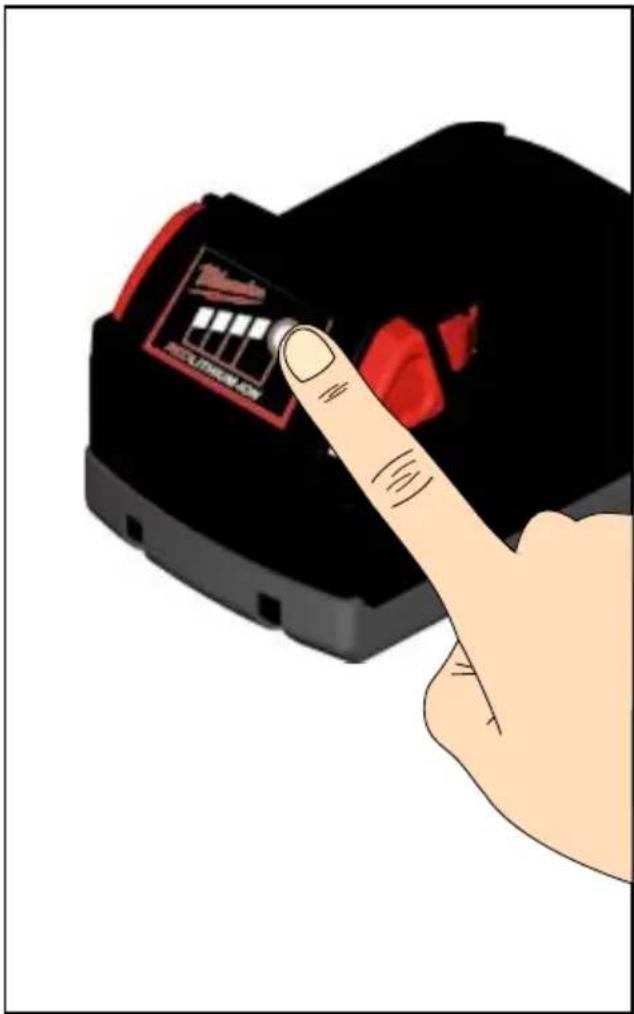

Illustration of a hand pressing a black electronic device with red buttons and a 'SOLUTION' label (no text or symbols on the device itself)

Close-up of a hand holding a pen with two curved arrows indicating motion or direction (no text or symbols)

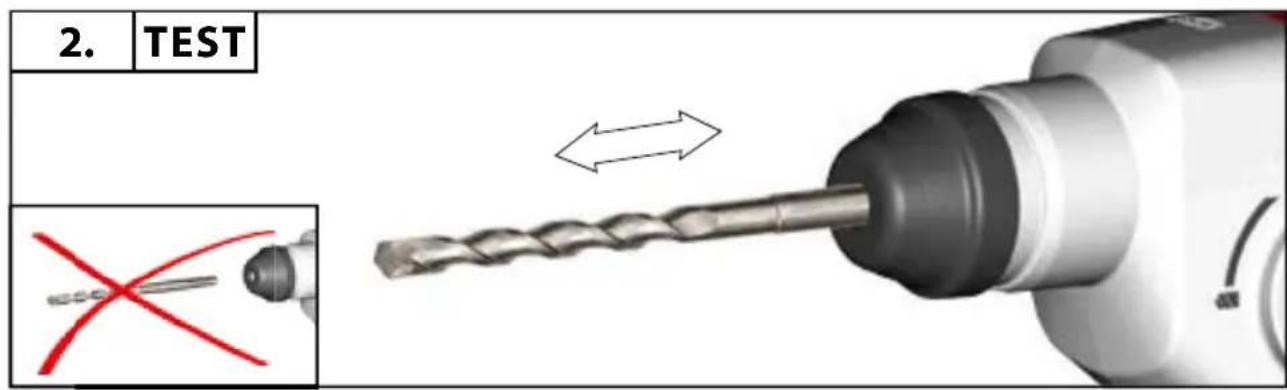

Technical illustration of a drill bit and a tool with a lock, showing mechanical components (no text or symbols)

Close-up of a red and white handheld device with black connectors and a circular dial (no visible text or symbols)

Mechanical assembly diagram showing a tool interacting with a mechanical component (no text or symbols visible)

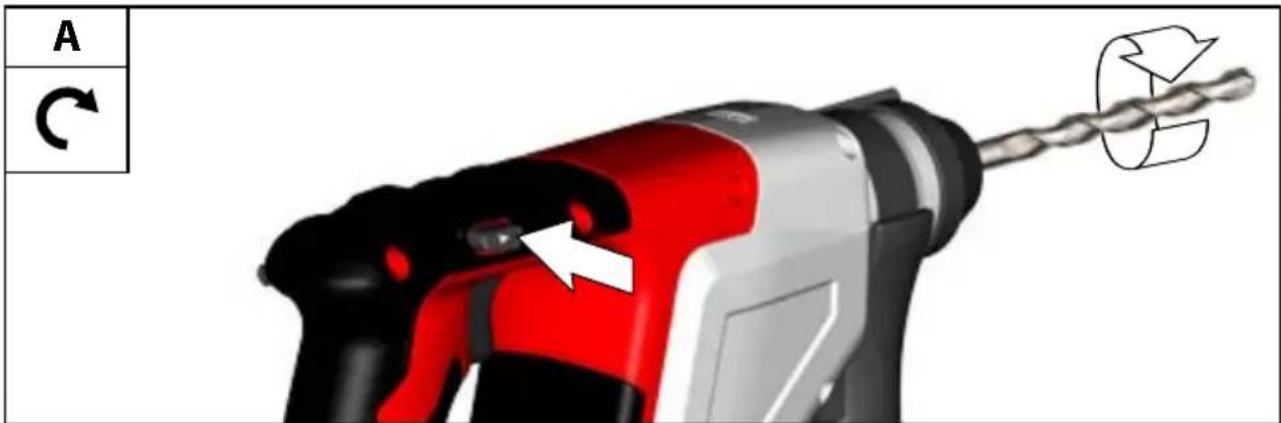

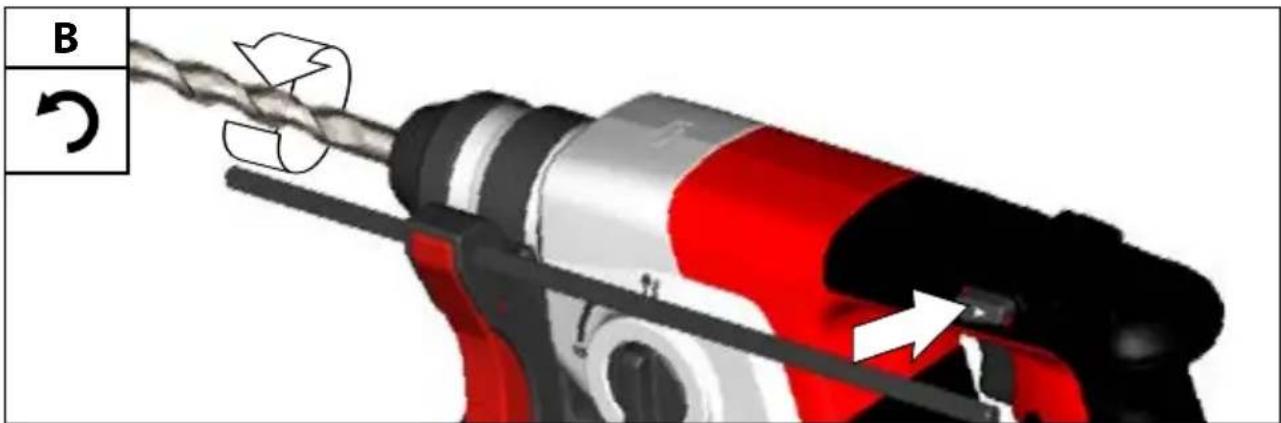

Close-up of a red and black Milwaukee drill bit with handle and screw (no text or symbols visible)

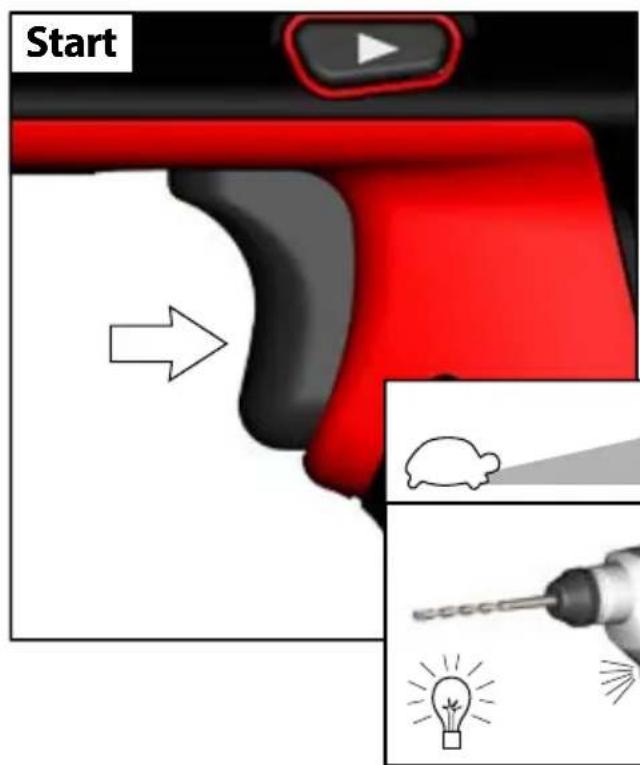

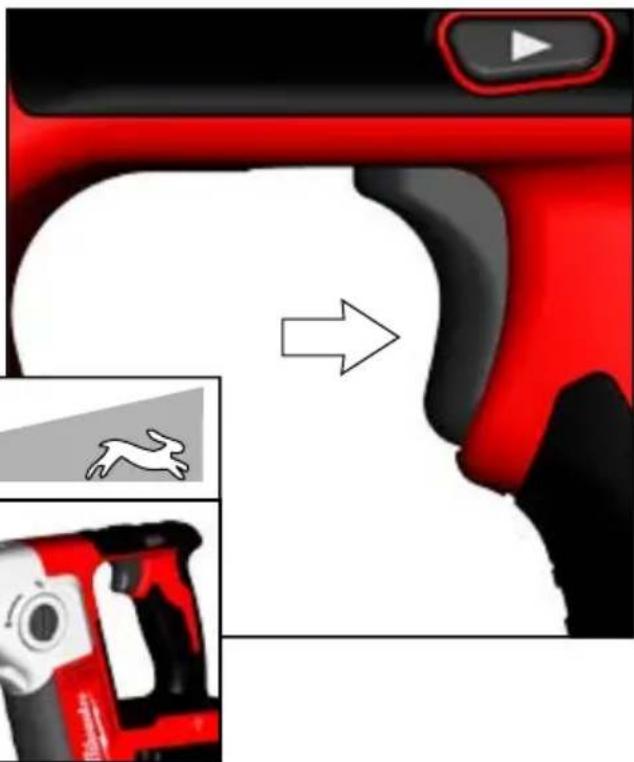

Close-up of a red and black object with an arrow pointing to a white surface, alongside a small inset image showing a rabbit-like symbol (no text or labels visible)

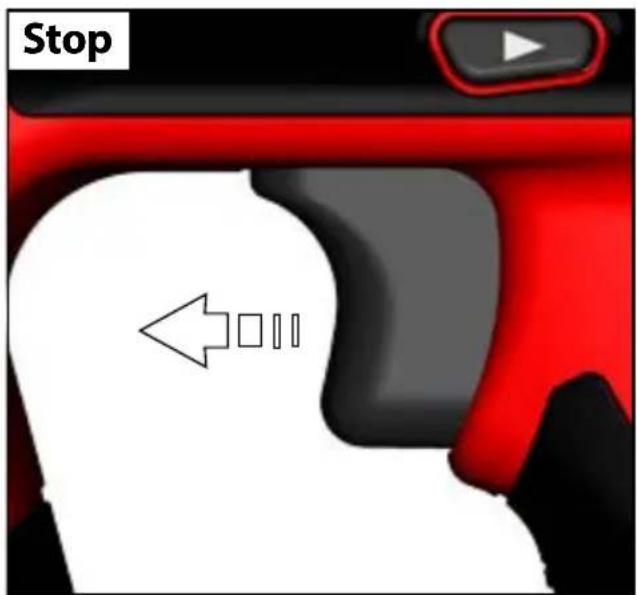

Close-up of a mechanical tool with a chain and screwdriver (no visible text or symbols)

Illustration of a drill bit being inserted into a wooden block, showing the blade and drill bit (no text or symbols present)

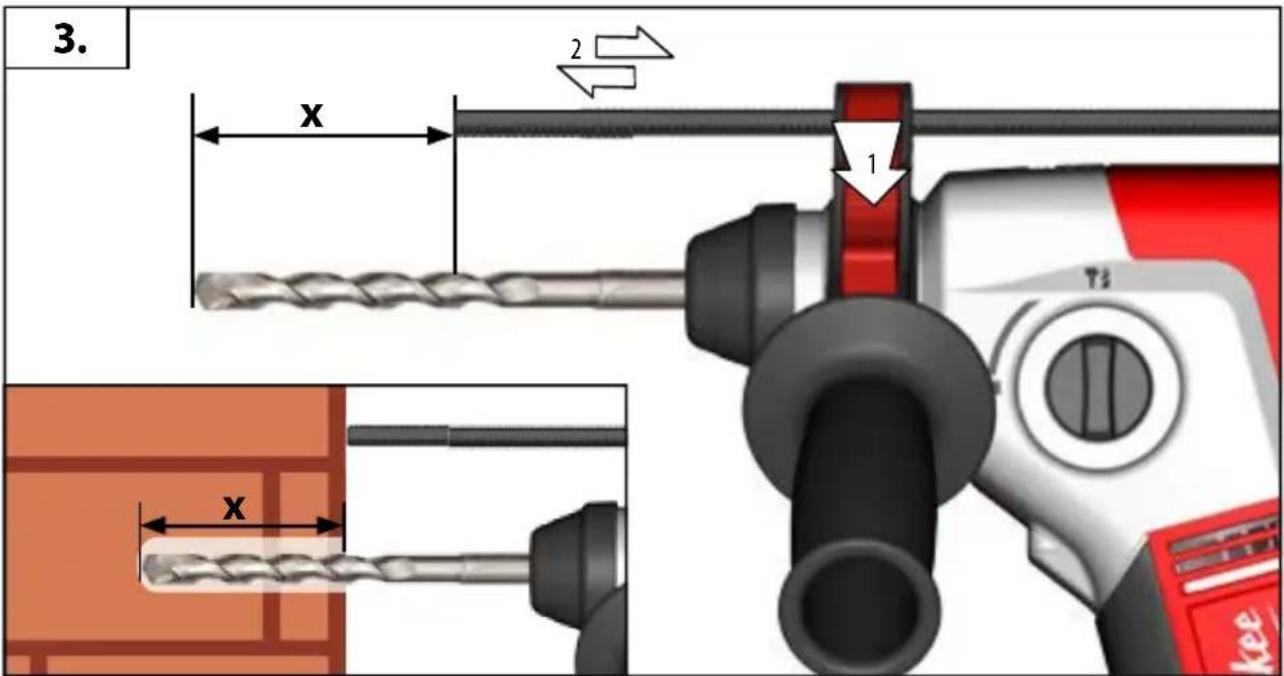

Illustration of a hand tool with a red and black grip, showing a twisted rope or wire between brick walls (no text or symbols)

TECHNICAL DATACordless Rotary Hammer	M18 BH
Production code 4433 21 03 ...	... 000001-999999
Battery voltage 18 V
No-load speed 0 - 1300 min	-1
Rate of percussion under load max. 0 - 7000 min	-1
Impact energy per stroke according to EPTA-Procedure 05/2009 1,2 J
Drilling capacity in concrete 16 mm
Drilling capacity in steel 10 mm
Drilling capacity in wood 16 mm
Chuck neck diameter 43 mm
Weight according EPTA-Procedure 01/2003 ( Li-lon 4,0 Ah) 2,5 kg
Noise informationMeasured values determined according to EN 60745. Typically, the A-weighted noise levels of the tool are:
Sound pressure level (Uncertainty K=3dB(A))	87,9 dB (A)
Sound power level (Uncertainty K=3dB(A))	98,9 dB (A)
Wear ear protectors!
Vibration informationVibration total values (triaxial vector sum) determined according to EN 60745
Vibration emission value a_h,HD Hammer-drilling into concreteUncertainty K=	10,3 m/s ^2 1,5 m/s ^2

WARNING

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

WARNING! Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

HAMMER SAFETY WARNINGS

Wear ear protectors. Exposure to noise can cause hearing loss.

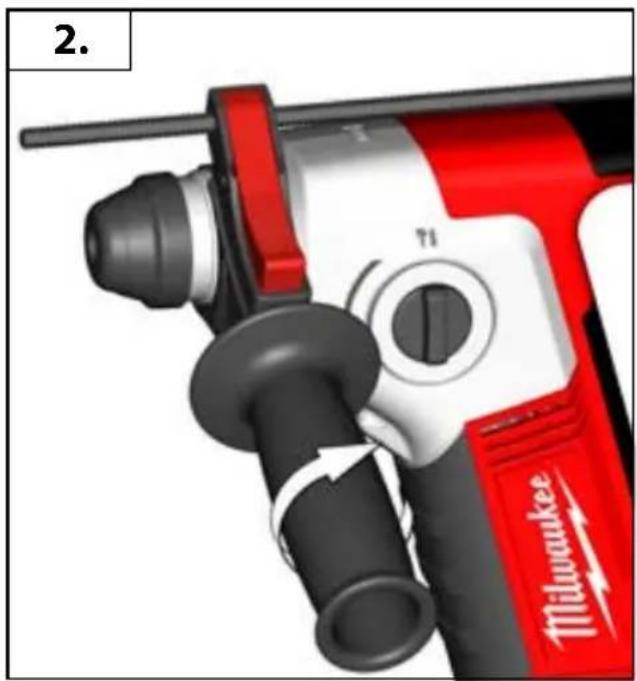

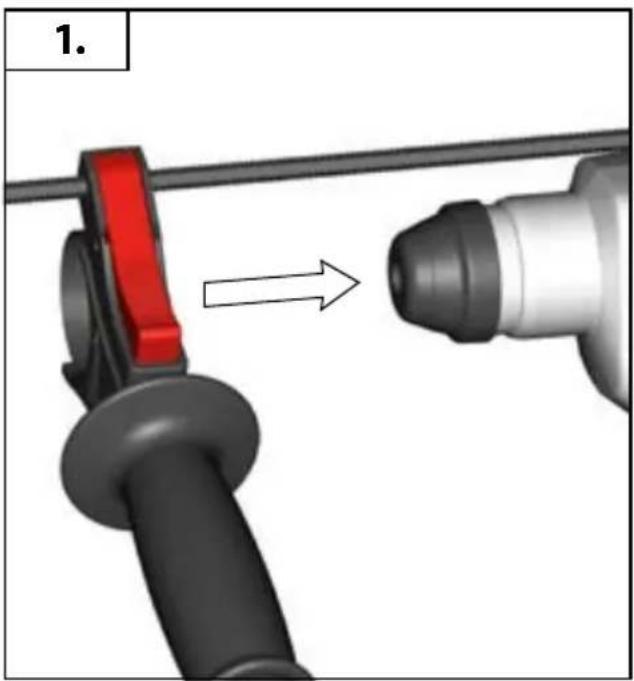

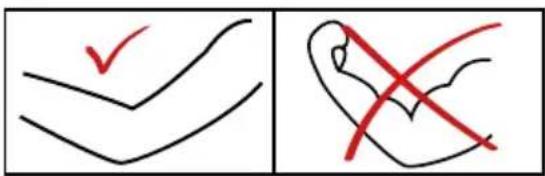

Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.

Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Additional Safety and Working Instructions

Use protective equipment. Always wear safety glasses when working with the machine. The use of protective clothing is recommended, such as dust mask, protective gloves, sturdy non-slip footwear, helmet and ear defenders.

The dust produced when using this tool may be harmful to health. Do not inhale the dust. Use a dust absorption system and wear a suitable dust protection mask. Remove deposited dust thoroughly, e.g. with a vacuum cleaner.

Do not machine any materials that present a danger to health (e.g. asbestos).

When working in walls ceiling, or floor, take care to avoid electric cables and gas or waterpipes.

Clamp your workpiece with a clamping device. Unclamped workpieces can cause severe injury and damage.

English

Switch the device off immediately if the insertion tool stalls! Do not switch the device on again while the insertion tool is stalled, as doing so could trigger a sudden recoil with a high reactive force. Determine why the insertion tool stalled and rectify this, paying heed to the safety instructions.

Possible causes can be:

• it is tilted in the workpiece to be machined
• breakage of the material to be used
• the power tool is overloaded

Do not reach into the machine while it is running.

The insertion tool may become hot during use. WARNING! Danger of burns

• when changing tools
• when setting the device down

Chips and splinters must not be removed while the machine is running.

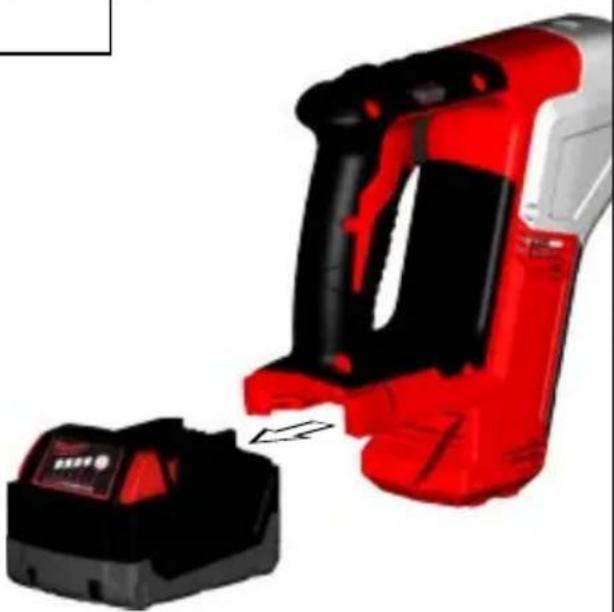

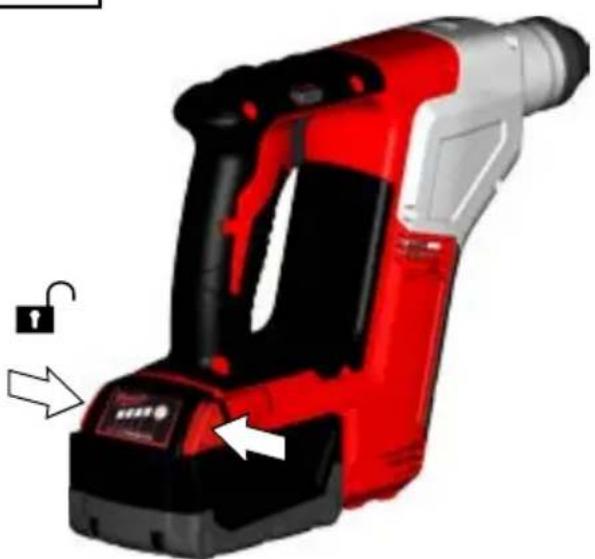

Remove the battery pack before starting any work on the appliance.

WARNING! To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse your tool, battery pack or charger in fluid or al-low a fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach containing products, etc., Can cause a short circuit.

Use only System M18 chargers for charging System M18 battery packs. Do not use battery packs from other systems.

Never break open battery packs and chargers and store only in dry rooms. Keep dry at all times.

BATTERIES

Battery packs which have not been used for some time should be recharged before use.

Temperatures in excess of 50^ C ( 122^ F) reduce the performance of the battery pack. Avoid extended exposure to heat or sunshine (risk of overheating).

but

For an optimum life-time, the battery packs have to be fully charged, after use.

To obtain the longest possible battery life remove the battery pack from the charger once it is fully charged.

For battery pack storage longer than 30 days: Store the battery pack where the temperature is below 27^ C and away from moisture Store the battery packs in a 30% - 50% charged condition Every six months of storage, charge the pack as normal.

Do not dispose of used battery packs in the household refuse or by burning them. Milwaukee Distributors offer to retrieve old batteries to protect our environment.

Do not store the battery pack together with metal objects (short circuit risk).

No metal parts must be allowed to enter the battery section of the charger (short circuit risk).

Battery acid may leak from damaged batteries under extreme load or extreme temperatures. In case of contact with battery acid wash it off immediately with soap and water. In case of eye contact rinse thoroughly for at least 10 minutes and immediately seek medical attention.

TRANSPORTING LITHIUM BATTERIES

Lithium-ion batteries are subject to the Dangerous Goods Legislation requirements.

Transportation of those batteries has to be done in accordance with local, national and international provisions and regulations.

The user can transport the batteries by road without further requirements.

Commercial transport of Lithium-Ion batteries by third parties is subject to Dangerous Goods regulations. Transport preparation and transport are exclusively to be carried out by appropriately trained persons and the process has to be accompanied by corresponding experts.

When transporting batteries:

Ensure that battery contact terminals are protected and insulated to prevent short circuit. Ensure that battery pack is secured against movement within packaging. Do not transport batteries that are cracked or leak. Check with forwarding company for further advice

SPECIFIED CONDITIONS OF USE

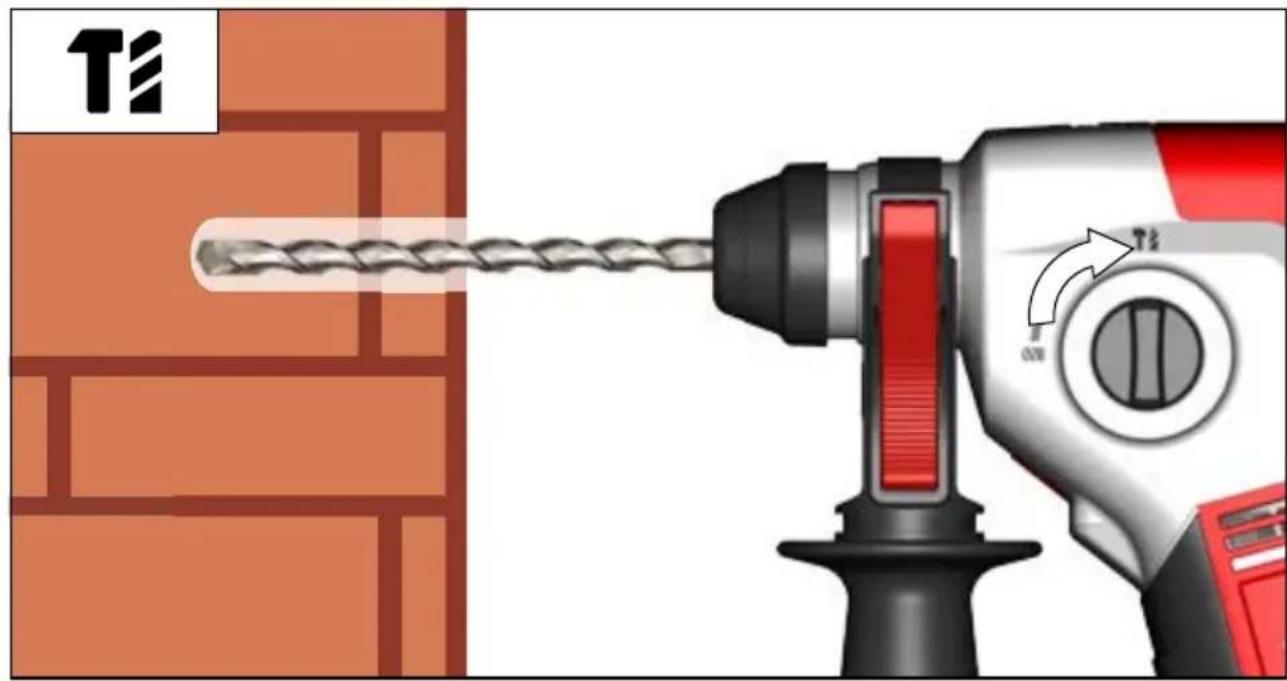

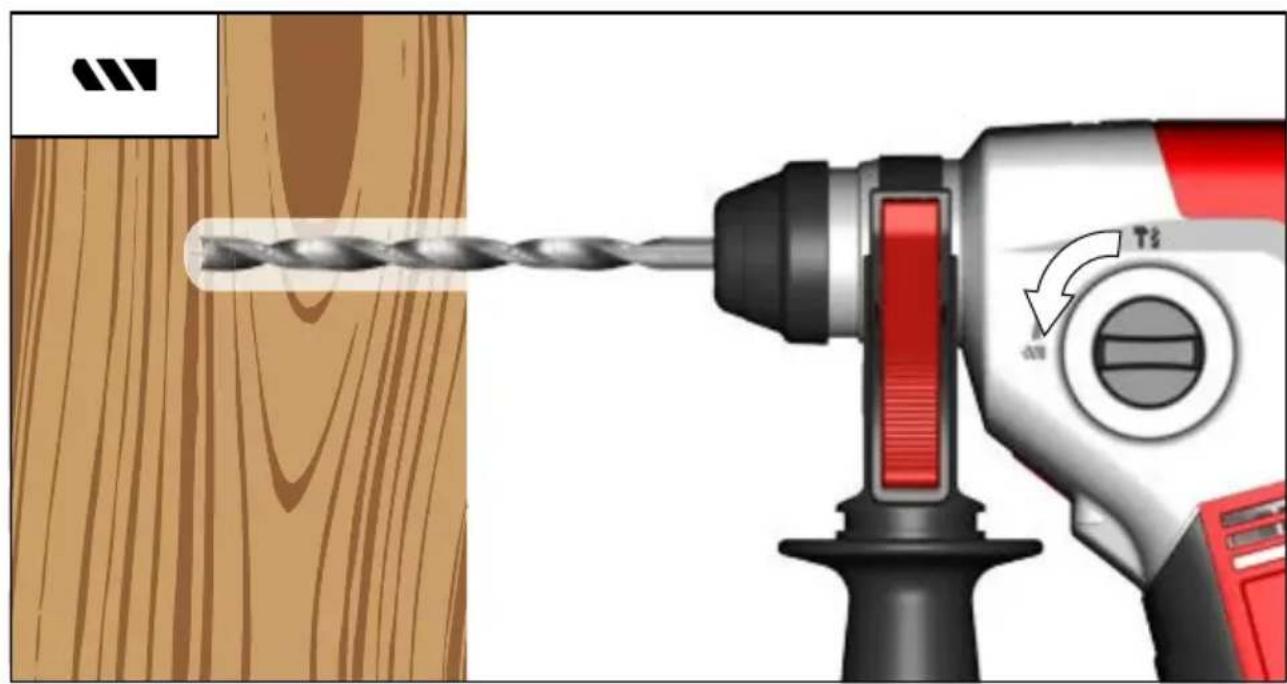

The battery rotary pneumatic hammer can be used for hammer drilling and drilling in wood, metal as well as plastic for independent use away from mains supply.

MAINTENANCE

The ventilation slots of the machine must be kept clear at all times. Important note! If the carbon brushes are worn, in addition to exchanging the brushes the tool should be sent to after-sales service. This will ensure long service life and top performance.

Use only Milwaukee accessories and Milwaukee spare parts. Should components need to be replaced which have not been described, please contact one of our Milwaukee service agents (see our list of guarantee/service addresses).

If needed, an exploded view of the tool can be ordered. Please state the Article No. as well as the machine type printed on the label and order the drawing at your local service agents or directly at: Techtronic Industries GmbH, Max-Eyth-Straße 10, 71364 Winnenden, Germany.

EC-DECLARATION OF CONFORMITY

We declare under our sole responsibility that the product described under "Technical Data" fulfills all the relevant provisions of the directives

2011/65/EU (RoHS)

2006/42/EC

2014/30/EU

and the following harmonized standards have been used.

EN 60745-1:2009 + A11:2010

EN 60745-2-6:2010

EN 55014-1:2006 + A1:2009 + A2:2011

EN 55014-2:2015

EN 50581:2012

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Authorized to compile the technical file

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLS

Please read the instructions carefully before starting the machine.

CAUTION! WARNING! DANGER!

Remove the battery pack before starting any work on the appliance.

Accessory - Not included in standard equipment, available as an accessory.

Do not dispose electric tools, batteries/rechargeable batteries together with household waste material. Electric tools and batteries that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. Check with your local authority or retailer for recycling advice and collection point.

European Conformity Mark

UkrSEPRO Conformity Mark

EurAsian Conformity Mark

English

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLE

DÉCLARATION CE DE CONFORMITÉ

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLES

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SIMBOLI

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SÍMBOLOS

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLE

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLEN

OPGELET! WAARSCHUWING! GEVAAR!

EurAsian-symbol van overeenstemming.

Nederlands

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLER

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLER

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLER

Läs instruktionen noga innan du startar maskinen.

OBSERVERA! WARNING! FARA!

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLIT

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

ΣΥΜΒΟΛΑ

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SEMBOLLER

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Česky

SYMBOLY

CE - VYHLÁSENIE KONFORMITY

Winnenden, 2017-11-30

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLY

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLE

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SZIMBÓLUMOK

UPORABA V SKLADU Z NAMEMBNOSTJO

Akumulatorski udarni vrtalnik je univerzalno uporaben za udarno vrtanje v kamnu in za vrtanje v lesu, kovini ter umetni masi, neodvisno od omrežnega priključka.

VZDRŽEVANJE

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Slovensko

SIMBOLI

Proximo, da pred uporabo pozorno preberete to navodilo za uporabo.

POZOR! OPOZORILO! NEVARNO!

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Ovlašten za formiranje tehničke dokumentacije.

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SIMBOLI

Molimo da pažljivo pročitate uputu o upotrebi prije puštanja u rad.

PAŽNJA! UPOZORENIE! OPASNOST!

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SIMBOLI

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Igaliotas parengti techninius dokumentus.

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SIMBOLIAI

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Eesti

SÜMBOLID

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

СИМВОЛЫ

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

СИМВОЛИ

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SIMBOLURI

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

СИМБОЛИ

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

СИМВОЛИ

Winnenden, 2017-11-30

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany
