Product Type	Cordless automatic screwdriver
Brand	Makita
Model	DFR750Z
Category	Automatic screwdriver
Compatible screw strip	4 x 45 - 75 mm
No load speed	4,000 min⁻¹
Overall length	464 mm
Net weight (with battery)	2.1 - 3.2 kg (depending on battery)
Rated voltage	18 V DC
Standard battery	BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860B
Compatible charger	DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF / DC18SH / DC18WC
Power supply	18 V lithium-ion battery (sold separately)
Use	Screwing into wood, metal, and plastic
Screw length adjustment	7 positions (45 to 75 mm)
Screw depth adjustment	Yes, by rotating knob
Forward/reverse switch	Yes, with neutral position
Protection system	Against overload, overheating, and deep discharge
Battery charge indicator	Yes (on battery with indicators)
Bit	Cross-head (supplied as option)
Sound pressure level	79 dB(A)
Sound power level	Not specified for DFR750, but < 89 dB(A) (model DFR550)
Vibration (screwing without impact)	≤ 2.5 m/s², uncertainty K=1.5 m/s²
Maintenance	Clean with a dry cloth; repairs by Makita authorized service center
Safety	Use only Makita batteries and chargers; wear hearing protection
Optional accessories	Self-drilling screw strips, additional bits, plastic case

Frequently Asked Questions - DFR750Z MAKITA

How to adjust the screw length on the DFR750Z?

Pull the base of the stopper while pressing the lever until the number corresponding to the desired length (45 to 75 mm) appears in the opening. Check the label on the feeder box for the correspondence.

How to adjust the screw depth?

Push the base of the stopper fully, then turn the adjustment knob until the bit protrudes about 5 mm. Drive a test screw and adjust: turn in direction A if the head protrudes, in direction B if it is countersunk.

What types of batteries can I use with this model?

Use exclusively the following Makita 18 V batteries: BL1815N, BL1820B, BL1830B, BL1840B, BL1850B, BL1860B. Compatible chargers are DC18RC, DC18RD, DC18RE, DC18SD, DC18SE, DC18SF, DC18SH, DC18WC.

What to do if the battery does not install correctly?

Make sure to align the battery tab with the housing groove and push until it clicks. If the red indicator is still visible, the battery is not locked. Do not apply excessive force.

How to change the bit?

Loosen the wing screws, pull the housing, push the dust cover toward the flat bearing, then remove the bit. To insert a new one, rotate it slightly and pull to check that it holds.

How to install a screw strip?

Insert the screw strip through the screw guide, then into the feeder box until the first screw is near the driving position. To remove, pull in the direction of the arrow or use the reversing button.

The tool stops suddenly: what to do?

It may be a protection activated: overload, overheating, or discharged battery. Turn off the tool, let it cool if necessary, or recharge the battery. If the problem persists, contact a Makita service center.

How to maintain the screwdriver?

Clean with a dry cloth; do not use gasoline or thinner. Repairs and brush replacement must be carried out by a Makita authorized service center.

What are the important safety instructions?

Hold the tool by insulated surfaces, wear hearing protection, keep hands away from rotating parts, use only Makita accessories, and do not modify the battery. Read all instructions before use.

Can I use the tool near a wall?

Yes, the tool can screw up to 15 mm from a wall. If the base of the stopper touches the wall, screwing quality may be affected and the bit may wear prematurely.

USER MANUAL DFR750Z MAKITA

GB Cordless Auto Feed Instruction manual Screwdriver

Line drawing of a firearm with trigger and grip components (no text or symbols)

1 012156 2 015659

3 008123 4 008124

5 008282 6 008283

7 008285 8 008286

9 008290 10 008288

Technical line drawing of a firearm with an arrow indicating motion (no text or symbols)

11 008281 12 008128

Line drawing of a hand holding a firearm with a serrated blade, adjacent to a wall (no text or symbols)

Line drawing of a firearm with a curved grip and arrow indicating motion (no text or symbols)

13 008289 14 008262

15 1406101 16 008263

17 006812

ENGLISH (Original Instructions)
Explanation of general view

1. Red indicator	10. Casing	19. Screw strip
2. Button	11. Adjusting knob	20. Screw guide

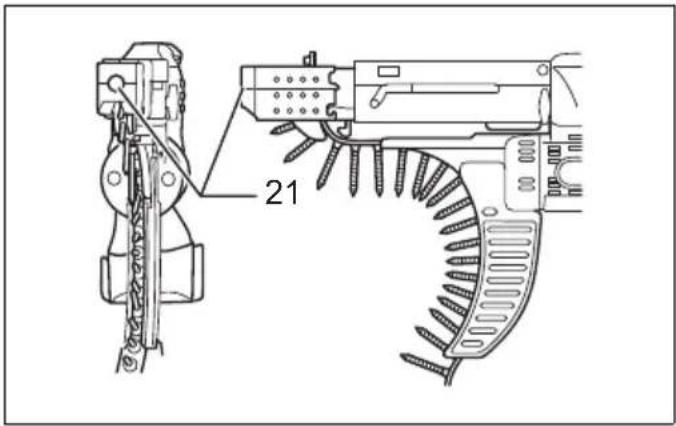

3. Battery cartridge	12. Switch trigger	21. Driving position

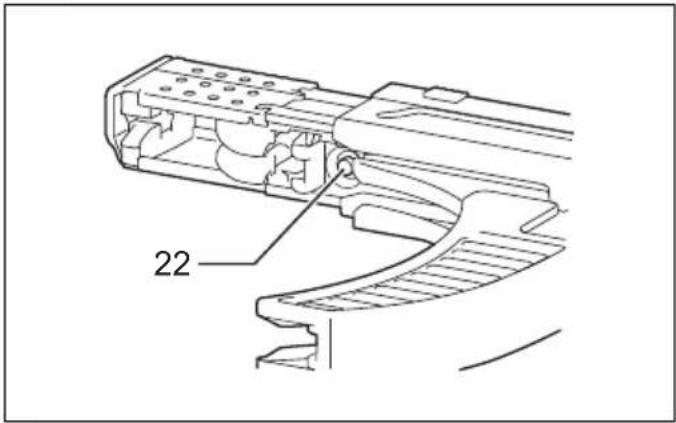

4. Indicator lamps	13. Reversing switch lever	22. Reverse button
5. Check button	14. Thumb screw	23. Hook
6. Lever	15. Plane bearing	24. Hanging hole
7. Stopper base	16. Dust cover	25. Wall
8. Label on feeder box	17. Bit
9. Fenestella	18. Feeder box

SPECIFICATIONS

Model DFR540 DFR550 DFR750
Screw strip 4 x 25 - 55 mm 4 x 45 - 75 mm
No load speed (min ^-1 ) 4,000
Overall length 424 m	464 mm
Net weight	2.0 - 3.0 kg	2.1 - 3.1 kg	2.1 - 3.2 kg
Rated voltage	D.C. 14.4 V	D.C. 18 V	D.C. 18 V

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Specifications may differ from country to country.
• The weight may differ depending on the attachment(s), including the battery cartridge. The lightest and heaviest combination, according to EPTA-Procedure 01/2014, are shown in the table.

Applicable battery cartridge and charger

Battery cartridge	D.C.14.4 V Model	BL1415N/BL1430B/BL1440/BL1460B
	D.C.18 V Model	BL1815N/BL1820B/BL1830B/BL1840B/BL1850B/BL1860B
Charger		DC18RC/DC18RD/DC18RE/DC18SD/DC18SE/DC18SF/DC18SH/DC18WC

• Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.

WARNING:

- Only use the battery cartridges and chargers listed above. Use of any other battery cartridges and chargers may cause injury and/or fire.

Intended use

ENE033-1

The tool is intended for screw driving in wood, metal and plastic.

General power tool safety warnings

GEA010-2

WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

CORDLESS SCREWDRIVER SAFETY WARNINGS

GEB139-2

1. Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
2. Always be sure you have a firm footing. Be sure no one is below when using the tool in high locations.
3. Hold the tool firmly.
4. Keep hands away from rotating parts.
5. Do not touch the bit or the workpiece immediately after operation; they may be extremely hot and could burn your skin.

6. Always secure workpiece in a vise or similar hold-down device.

7. Make sure there are no electrical cables, water pipes, gas pipes etc. that could cause a hazard if damaged by use of the tool.

SAVE THESE INSTRUCTIONS.

WARNING: DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

Important safety instructions for battery cartridge ENC007

ENC007-17

1. Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
2. Do not disassemble or tamper with the battery cartridge. It may result in a fire, excessive heat, or explosion.
3. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

4. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.
(3) Do not expose battery cartridge to water or rain.
A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

1. Do not store and use the tool and battery cartridge in locations where the temperature may reach or exceed 50 °C (122 °F).

2. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.

3. Do not nail, cut, crush, throw, drop the battery cartridge, or hit against a hard object to the battery cartridge. Such conduct may result in a fire, excessive heat, or explosion.

4. Do not use a damaged battery.

5. The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements.

For commercial transports e.g. by third parties, forwarding agents, special requirement on packaging and labeling must be observed.

For preparation of the item being shipped, consulting an expert for hazardous material is required. Please also observe possibly more detailed national regulations.

Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging.

1. When disposing the battery cartridge, remove it from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.

2. Use the batteries only with the products specified by Makita. Installing the batteries to non-compliant products may result in a fire, excessive heat, explosion, or leak of electrolyte.

3. If the tool is not used for a long period of time, the battery must be removed from the tool.

4. During and after use, the battery cartridge may take on heat which can cause burns or low temperature burns. Pay attention to the handling of hot battery cartridges.

5. Do not touch the terminal of the tool immediately after use as it may get hot enough to cause burns.

6. Do not allow chips, dust, or soil stuck into the terminals, holes, and grooves of the battery cartridge. It may cause heating, catching fire, burst and malfunction of the tool or battery cartridge, resulting in burns or personal injury.

7. Unless the tool supports the use near high-voltage electrical power lines, do not use the battery cartridge near high-voltage electrical power lines. It may result in a malfunction or breakdown of the tool or battery cartridge.

8. Keep the battery away from children.

SAVE THESE INSTRUCTIONS.

CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger.

Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.

3. Charge the battery cartridge with room temperature at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.

4. When not using the battery cartridge, remove it from the tool or the charger.

5. Charge the battery cartridge if you do not use it for a long period (more than six months).

FUNCTIONAL DESCRIPTION

CAUTION:

- Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool.

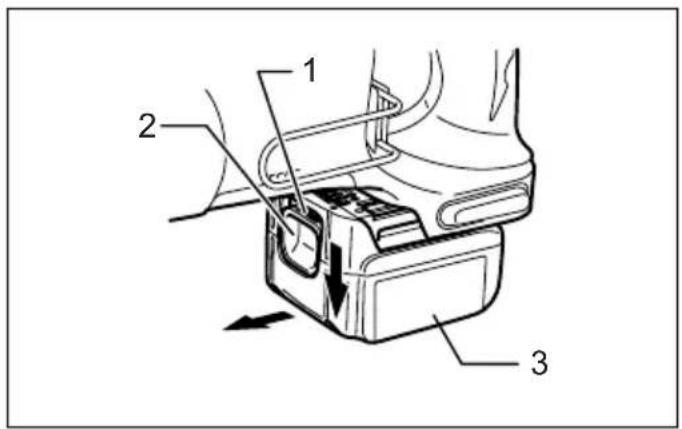

Installing or removing battery cartridge (Fig. 1)

• Always switch off the tool before installing or removing of the battery cartridge.

• To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge.

• To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Always insert it all the way until it locks in place with a little click. If you can see the red indicator on the upper side of the button, it is not locked completely. Install it fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.

• Do not use force when installing the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly.

Tool / battery protection system

The tool is equipped with a tool/battery protection system. This system automatically cuts off the power to extend tool and battery life. The tool will automatically stop during operation if the tool or battery is placed under one of the following conditions:

Overload protection

This protection works when the tool/battery is operated in a manner that causes it to draw an abnormally high current. In this situation, turn the tool off and stop the application that caused the tool to become overloaded. Then turn the tool on to restart.

Overheat protection

This protection works when the tool or battery is overheated. In this situation, let the tool and battery cool before turning the tool on again.

Overdischarge protection

This protection works when the remaining battery capacity gets low. In this situation, remove the battery from the tool and charge the battery.

Indicating the remaining battery capacity

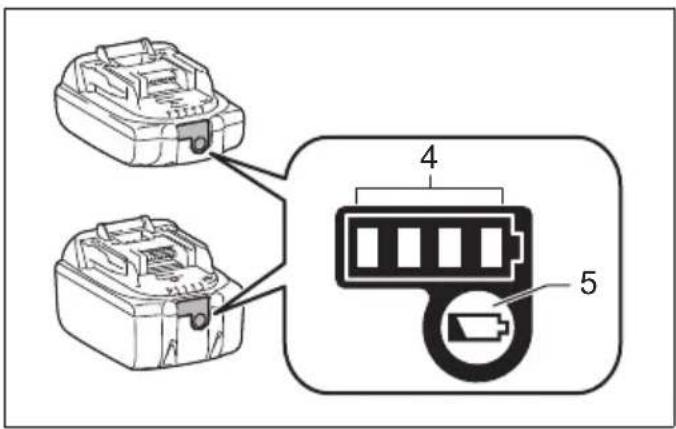

Only for battery cartridges with the indicator (Fig. 2) Press the check button on the battery cartridge to indicate the remaining battery capacity. The indicator lamps light up for a few seconds.

Indicator lamps			Remaining capacity
Lighted Off Blinking		[CBWQ]
[CTKS]			75% to 100%
[1348]			50% to 75%
			25% to 50%
			0% to 25%
[ΣΣ24]			Charge the battery.
[1886]◆ 1[X:CSC]			The battery may have malfunctioned.

NOTE:

• Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity.
• The first (far left) indicator lamp will blink when the battery protection system works.

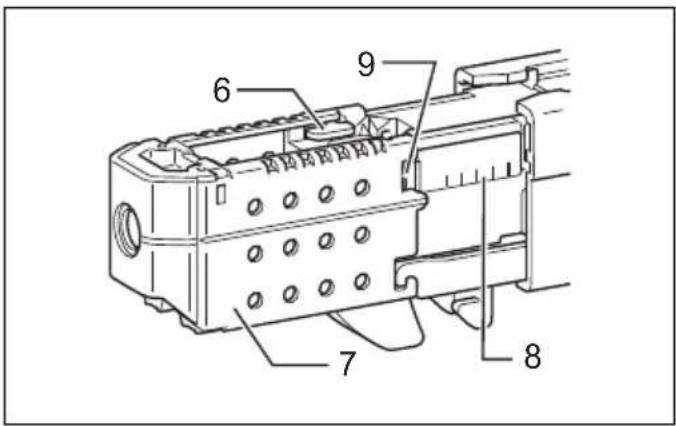

Setting for desired screw length (Fig. 3)

There are 7 positive-lock screw length settings. To obtain the desired setting, pull out the stopper base while depressing the lever until you see the number of the desired screw length (indicated on the label on feeder box) appear to rest in the fenestella of stopper base. See the table below for the relation between the number indicated on the label on feeder box and the respective screw length.

For Models DFR540, DFR550

Number indicated on the label Screw length
25	25
30	30
35	35
40	40
45	45
50	50
55	55

008238

For Model DFR750

Number indicated on the label Screw length
45	45
50	50
55	55
60	60
65	65
70	70
75	75

008241

Adjusting the driving depth (Fig. 4)

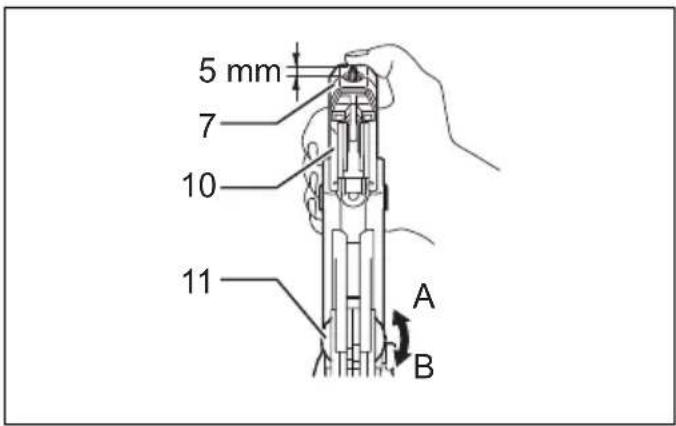

Depress the stopper base as far as it will go. While keeping it in this position, turn the adjusting knob until the bit tip projects approx. 5 mm from the stopper base. Drive a trial screw. If the screw head projects above the surface of the workpiece, turn the adjusting knob in the "A" direction; if the screw head is counter-sunk, turn the adjusting knob in the "B" direction.

Switch action (Fig. 5)

CAUTION:

- Before inserting the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released.

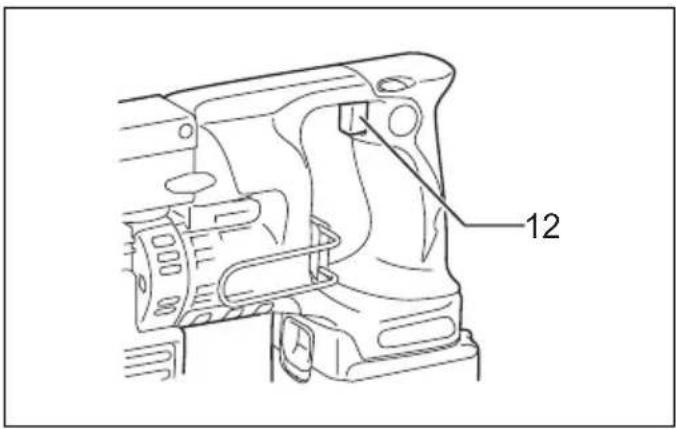

To start the tool, simply pull the switch trigger. Release the switch trigger to stop.

Reversing switch action (Fig. 6)

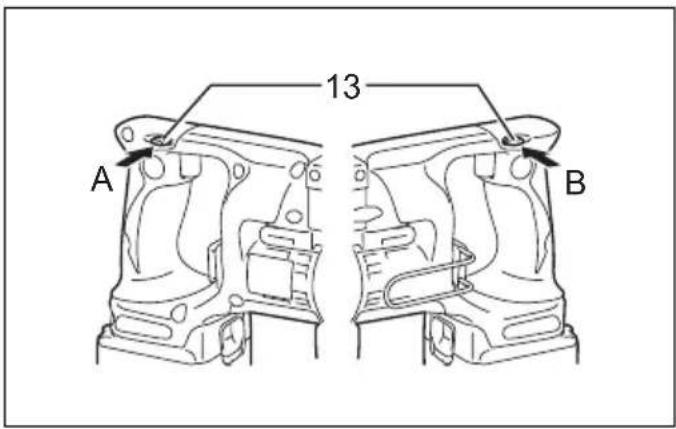

This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the A side for clockwise rotation or from the B side for counterclockwise rotation.

When the reversing switch lever is in the neutral position, the switch trigger cannot be pulled.

CAUTION:

• Always check the direction of rotation before operation.
• Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may damage the tool.
• When not operating the tool, always set the reversing switch lever to the neutral position.

ASSEMBLY

CAUTION:

• Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool.

Installing or removing the bit

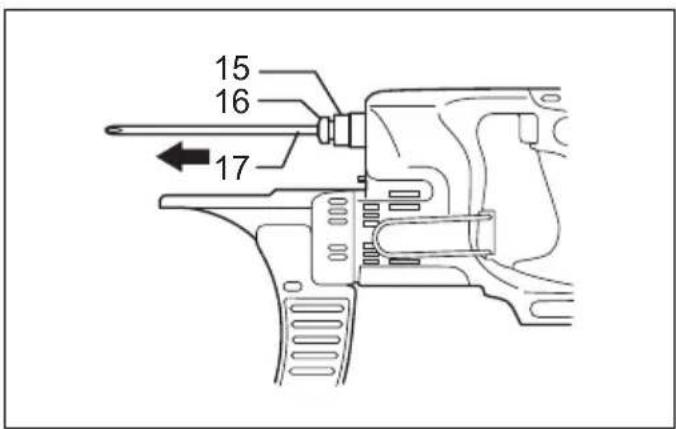

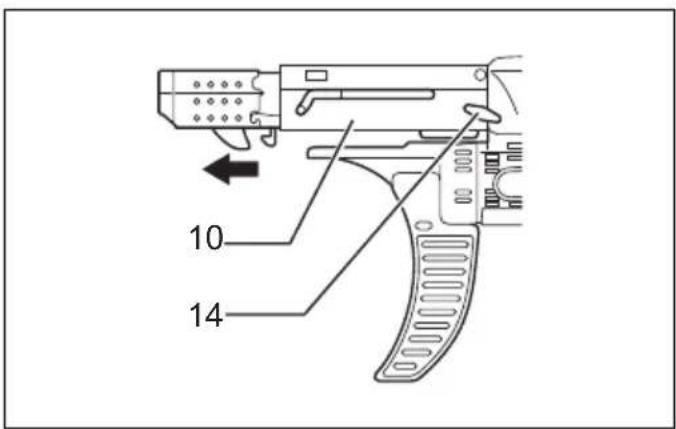

Loosen the thumb screws which secure the casing. Pull out the casing in the direction of the arrow. (Fig. 7) Press the dust cover toward the plane bearing and pull out the bit. If the dust cover cannot be moved as far as the plane bearing, try it again after turning the bit slightly. To install the bit, insert it into the socket while turning it slightly. After installing, always make sure that the bit is securely held in place by trying to pull it out. (Fig. 8)

Installing screw strip

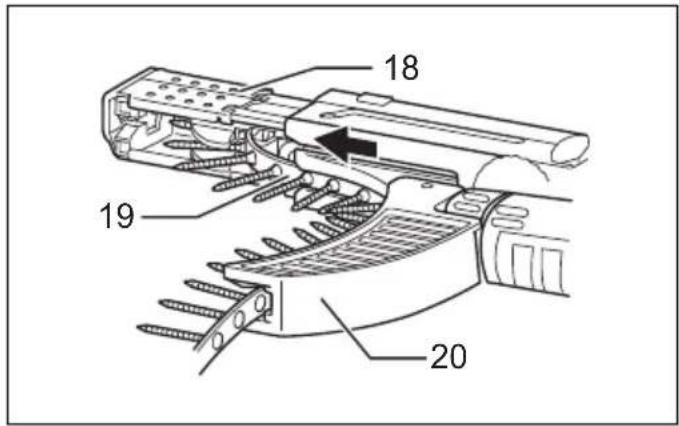

Insert the screw strip through the screw guide. Then insert it through the feeder box until the first screw reaches the position next to the driving position. (Fig. 9 & 10)

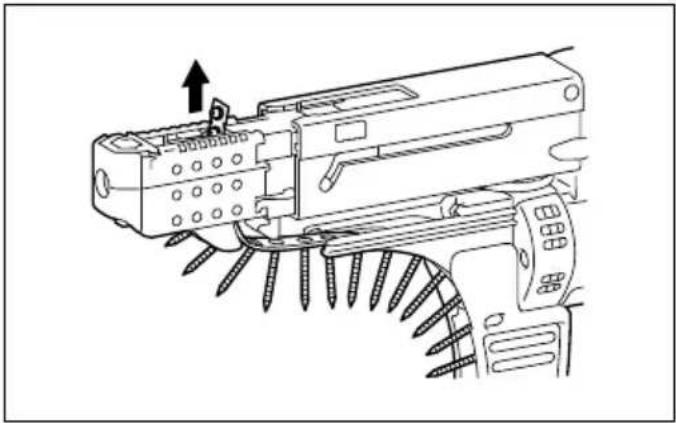

Removing screw strip

To remove the screw strip, just pull it out in the direction of the arrow. If you depress the reverse button, you can pull out the screw strip in the reverse direction of the arrow. (Fig. 11 & 12)

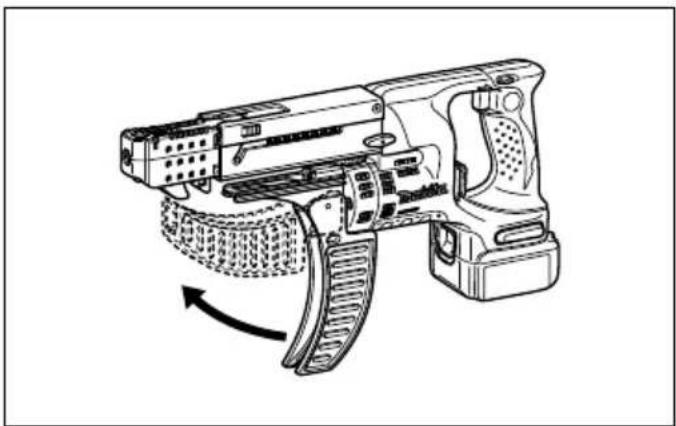

Folding screw guide (Fig. 13)

Screw guide is foldable. Folding the screw guide allows space used for storage to be minimal.

Carry hook

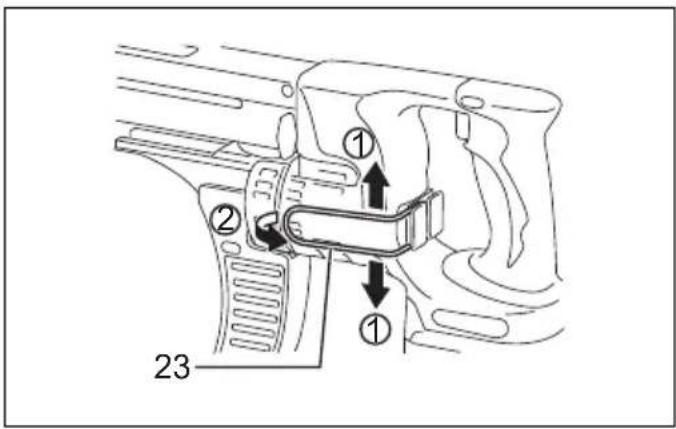

The carry hook is convenient for temporarily hooking the tool. It can be installed on either side of the tool. When removing the carry hook, widen it by pressing its right ends ON BOTH SIDES in the directions of arrow (1) and raise it in the direction of the arrow (2). (Fig. 14)

Using hole

WARNING:

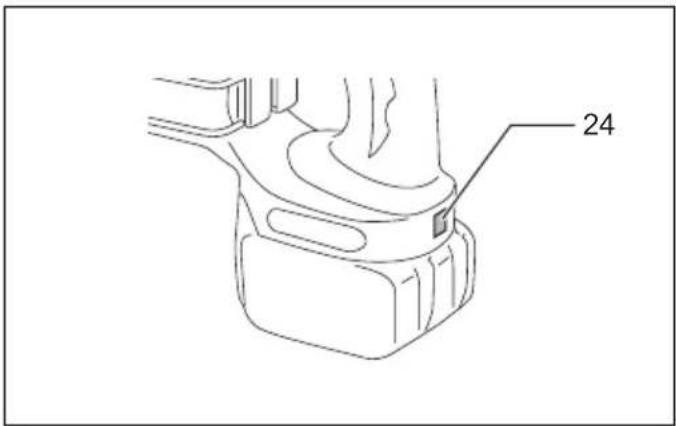

- Never use the hanging hole for unintended purpose, for instance, tethering the tool at high location. Bearing stress in a heavily loaded hole may cause damages to the hole, resulting in injuries to you or people around or below you. (Fig. 15)

Use the hanging hole at the bottom rear of the tool to hang the tool on a wall using a hanging cord or similar strings.

OPERATION

Driving operation (Fig. 16)

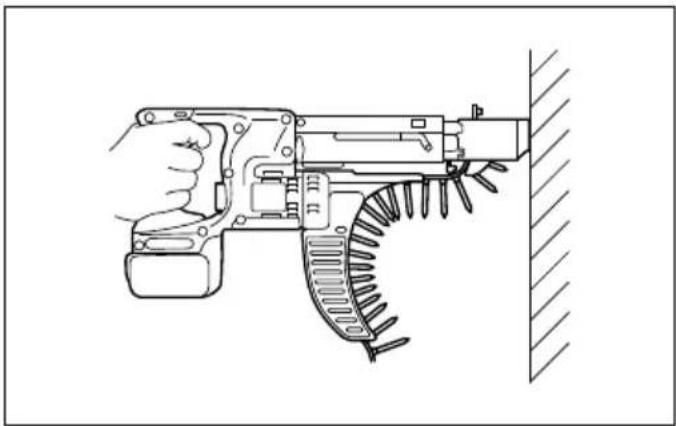

Switch on the tool by pulling the switch trigger. Hold the tool squarely and firmly up against the driving surface. A screw will be automatically carried to the driving position and fastened.

CAUTION:

• Always check the bit carefully for wear before driving operations. Replace a worn bit or poor fastening may result.
• Always hold the tool squarely against the driving surface. Holding it at an angle may damage the screw heads and cause wear on the bit. This may also lead to poor fastening.
• Always keep the tool firmly against the driving surface until the driving is over. Failure to do so may cause insufficient fastening of screws.
- Be careful not to drive a screw onto another screw already fastened.
- Do not operate the tool without screws. It will damage the driving surface.
- Do not apply oil or grease on the sliding surface of the feeder box.

Driving in corner (Fig. 17)

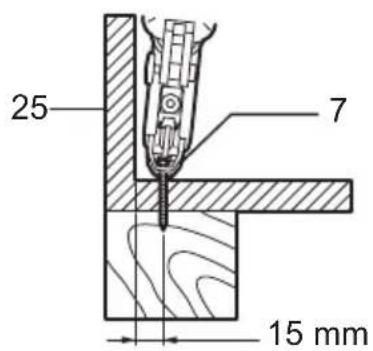

This tool can be used to drive at a position 15 mm away from the wall as shown in the figure.

CAUTION:

- Driving at a position closer than 15 mm to the wall or driving with the stopper base in contact with the wall may damage the screw heads and cause wear on the bit. This may also lead to poor fastening of screws and malfunction of the tool.

MAINTENANCE

CAUTION:

• Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance.
- Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, carbon brush inspection and replacement, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.

OPTIONAL ACCESSORIES

CAUTION:

• These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Drywall screw strip
• Phillips bit
• Makita genuine battery and charger
• Plastic carrying case

NOTE:

- Some items in the list may be included in the tool package as standard accessories. They may differ from country to country.

Noise

ENG905-1

The typical A-weighted noise level determined according to EN62841-2-2:

Model DFR550

Sound pressure level ( L_pA ): 81 dB (A)

Sound power level ( L_WA ): 89 dB (A)

Uncertainty (K): 3 dB (A)

Model DFR750

Sound pressure level ( L_pA ): 79 dB (A)

Uncertainty (K): 3 dB (A)

The noise level under working may exceed 80 dB (A).

ENG907-1

• The declared noise emission value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another.
• The declared noise emission value(s) may also be used in a preliminary assessment of exposure.

WARNING:

- Wear ear protection.

• The noise emission during actual use of the power tool can differ from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.
• Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

Vibration

ENG900-1

The vibration total value (tri-axial vector sum) determined according to EN62841-2-2:

Work mode: screwdriving without impact Vibration emission ( a_h ): 2.5 m/s ^2 or less Uncertainty (K): 1.5 m/s ^2

ENG901-2

• The declared vibration total value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another.
• The declared vibration total value(s) may also be used in a preliminary assessment of exposure.

WARNING:

• The vibration emission during actual use of the power tool can differ from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.
• Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as

the times when the tool is switched off and when it is running idle in addition to the trigger time).

Declarations of Conformity

For European countries only

The Declarations of conformity are included in Annex A to this instruction manual.

⚠ WAARSCHUWING: Lees alle
