Product Type	Thermoelectric Refrigerator
Model	10005439
Brand	Klarstein
Capacity (Net)	21 liters (multiple options available)
Voltage	220-240V / 120V
Frequency	50/60 Hz
Rated Power	50 W (varies by model)
Dimensions (W x D x H)	385 x 450 x 370 mm
Net Weight	12 kg
Cooling System	Thermoelectric heat pump
Defrost	Automatic
Interior Light	LED
Door Reversal	Yes (hinge can be swapped)
Lock	Yes (lock hole diameter 18 mm, center 62 mm from bottom edge)
Temperature Control	Adjustable thermostat
Installation Type	Built-in capable (requires ventilation clearances)
Ventilation Clearances	At least 20 mm from sides, 50 mm from bottom, 200 cm³ ventilation area
Ambient Temperature Range	10°C to 25°C (optimal 20-25°C)
Energy Saving	Heat-pipe technology, environmentally friendly
Safety Features	Earth grounding required, leakage detection
Certification	CCC / CB / CE / EMC & LVD

Frequently Asked Questions - 10005439 Klarstein

What should I do if the refrigerator does not operate?

Check if the appliance is plugged in properly. Also verify that the circuit breaker has not tripped or a fuse blown. If the issue persists, contact after-sales service.

Why is my refrigerator not cold enough?

Possible causes include: room temperature is too high, door is opened too often or not closed completely, temperature control is not set correctly, door gasket is not sealing properly, or the refrigerator does not have the correct clearances. Also check for abnormal voltage.

Can I reverse the door opening direction?

Yes, the door can be reversed. Remove the screws from the right hinge, install the left hinge (provided in the carton) and secure with three self-screws. Then attach the left hinge cover.

How do I install the lock?

The lock hole diameter is 18 mm. The distance from the bottom edge to the center of the lock hole is 62 mm. Drill a hole accordingly and install the lock.

What are the ventilation requirements for built-in installation?

Ensure at least 200 cm³ ventilation area. The distance between wall and refrigerator side must be at least 20 mm, and the bottom should have at least 50 mm for air flow. Air passing through must not be preheated.

How do I adjust the temperature?

The temperature is controlled by a thermostat dial. Turn it to a higher number for colder temperatures. Adjust according to your needs.

What if the interior light does not work?

First check if the refrigerator is plugged in and the circuit breaker is on. If those are fine, the LED light may be burnt out and needs replacement.

Does the refrigerator need manual defrosting?

No, the refrigerator has an automatic defrosting system, so manual defrosting is not required.

How to clean the refrigerator?

Clean the interior and exterior with a mild detergent and a soft cloth. Avoid abrasive cleaners. Ensure the appliance is unplugged before cleaning.

Is the refrigerator energy efficient?

Yes, it uses heat-pipe technology which is environmentally friendly and costs only pennies to operate. It consumes low power and helps save energy.

USER MANUAL 10005439 Klarstein

Black Klar STEIN refrigerator with visible label and side panel (no text or symbols on body)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

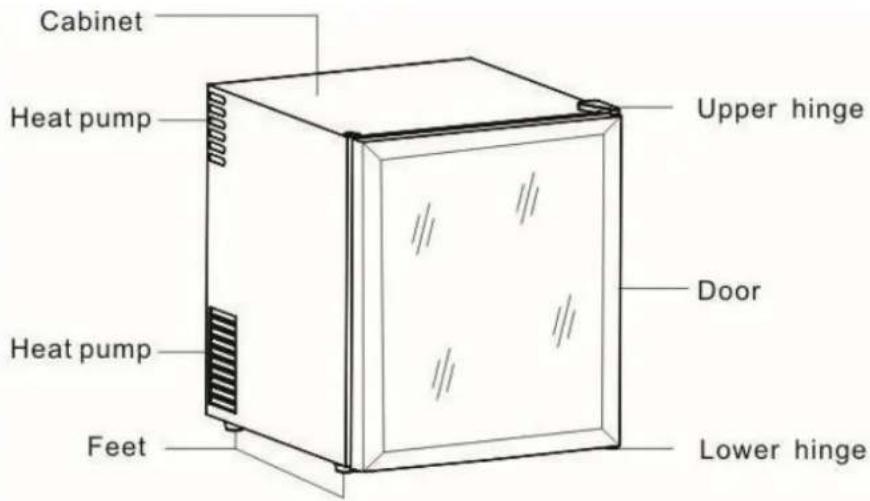

Model with glass door:

Instruction for users

• Position your refrigerator so that the plug is accessible.
• Keep your refrigerator out of direct sunlight.
• Do not place next to heat generating appliance.
• Do not place directly on the ground. Provide suitable stand.

Very important

• The refrigerator will have better performance at ambient of 20-25 degree; We suggest the refrigerator be powered off if the ambient temperature is lower than 10 degree.
• After plugging the appliance, allow the unit to cool down for 2-3 hours before placing beverage into the refrigerator compartment.
• Ventilation is very important for this kind thermoelectric refrigerator; The inside PCB will be broken easily if the ventilation is bad; It will also reduce the life of the refrigerator.
• If leakage occurs (which can be easily detected due to the unpleasant smell), please
  A: Switch off the refrigerator immediately
  B: Ventilate the room thoroughly
  C: Call for the after sales service department
  • The refrigerator applies automatic defrosting system, so there is no need to defrost it manually.

Power supply

• The refrigerator must be connected to a properly earthed socket in line with relevant valid country regulations before operating:
• Check the data label (which is on the side of the refrigerator) for voltage and frequency corresponds to your local one; If not, don't plug your cable into the socket;

Installation Instruction

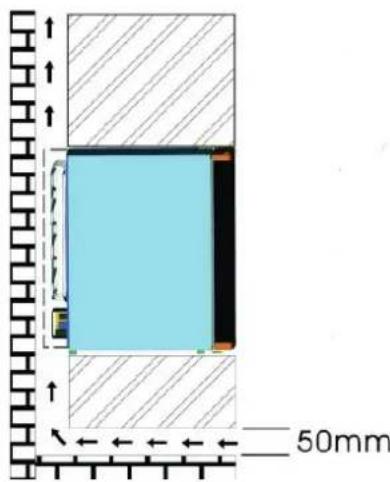

When install a Heat pipe Refrigerator, ventilation should be considered seriously, please refer to the following:

1. there should be left at least 200~cm^3 for ventilation

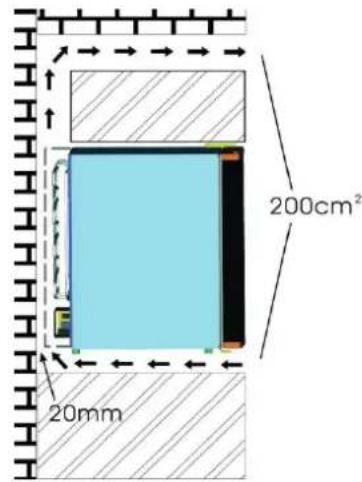

2. the distance between wall and refrigerator side should be at least 20mm
3. the bottom should be left at least 50mm for air flowing
4. air passing through must not be preheated
5. entire cooling system should be considered in the ventilation

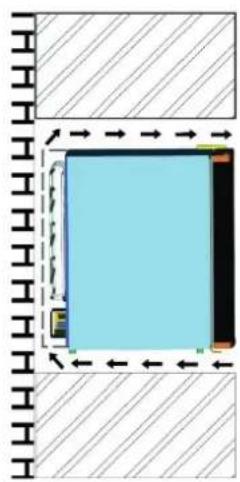

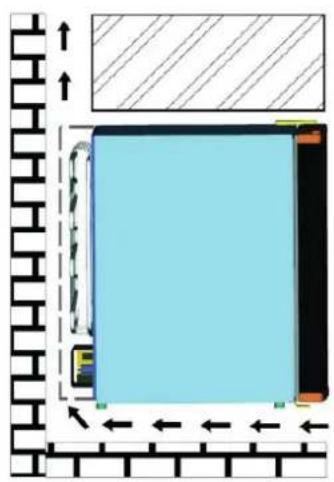

6. the following four pictures show four installation ways:

Diagram of a mechanical or architectural component with directional arrows and hatched top section (no text or symbols)

Diagram showing a square object with arrows indicating direction, surrounded by diagonal hatching (no text or symbols)

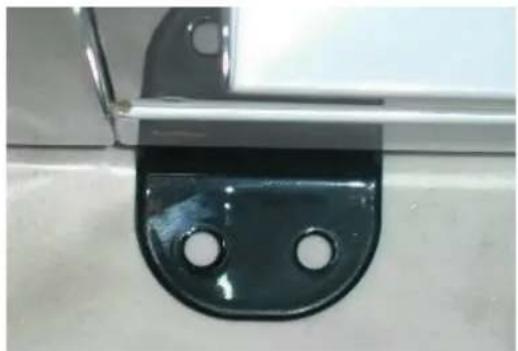

Instruction of the Sliding Hinge

1. Use two self-screws to fix the sliding hinge.
2. After checking the suitable distance, use two self-screws to fix the bottom feet respectively.

Close-up of a black plastic mechanical component with two circular holes (no text or symbols visible)

Close-up of a black metal bracket with two circular holes, mounted on a white surface (no text or symbols visible)

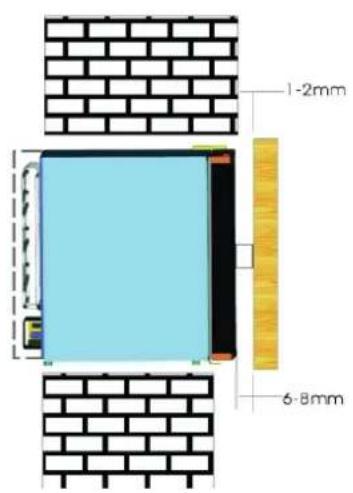

1. If the refrigerator is closed, there should be have a distance of 1-2mm between the wooden cabinet door and the surrounding.
2. There must be left a distance of 6-8mm between the wooden cabinet and the refrigerator door.

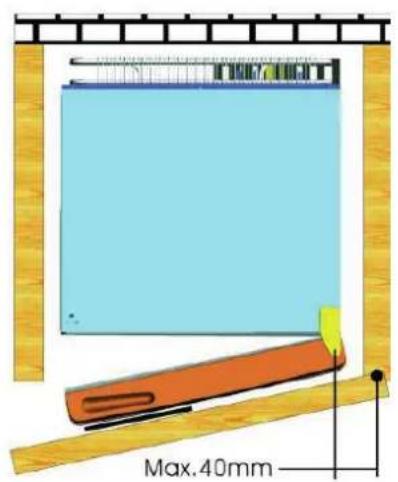

3. The maximum distance between the refrigerator's and the cabinet's hinge is about 40mm.

Changing the Swing Hinge

1. Pull out the three screws from right hinge.
2. Remove the hinge (upper and lower) away, find the following in the carton:

One left hinge cover

Two left hinges (up one and low one)

Three self-screws

1. Install the door in suitable position with left hinges, use three self-screws to fix them. Then put on the left hinge cover.

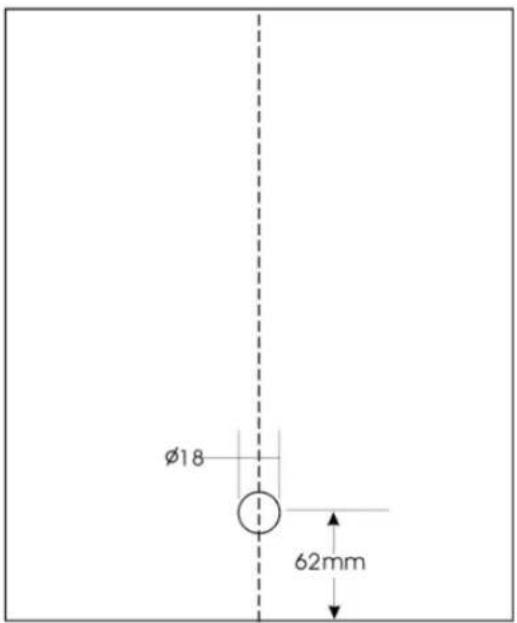

Installation of the lock & key

1. The diameter of the lock hole is: 18mm
2. The distance between the bottom edge and the middle of the lock hole is: 62mm

Trouble Shooting Guide

PROBLEM POSSIBLE	CAUSE
Refrigerator does not operate.	Not plugged in.The circuit breaker tripped or a blown fuse.
Refrigerator is not cold enough.	The room temperature is hotter than normal.The door is opened too often.The door is not closed completely.The temperature control is not set correctly. The door gasket does not seal properly.The refrigerator does not have the correct clearances. Abnormal voltage.
The light does not work.	Not plugged in.The circuit breaker tripped or a blown fuse. The LED light has burned out.
Vibrations. Check to assure	that the refrigerator is level.
The door will not close properly.	The refrigerator is not level.The door was reversed and not properly installed.The gasket is dirty.The shelves, bins, or baskets are out of position.

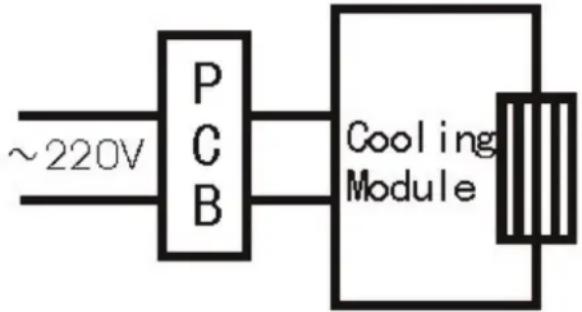

Electric Diagram

Electric Diagram

Energy Saving Tips

• The refrigerator should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.
  • Overloading the refrigerator forces the thermoelectric cooling system to run longer.
• Reduce door openings and extended searches, remove as many item as needed at one time, and close the door as soon as possible.
• One characteristic of heat-pipe units is the length of time it requires to recover from having the door opened and shut frequently. It may be necessary to wait longer for the temperature to return to its former level once the door has been opened for too long. This is normal for the type of unit.
• Heat-pipe technology costs just pennies to operate. It is environmentally friendly due to the lack of CFC's.

Specification Table

Net Capacity (liters)	21	24	28
Voltage (V)	220-240 / 120
Frequency (Hz)	50-60
Rated Power (W)	50	60	62
Dimension (mm)	385x450x370	380x380x470	380x380x470
Packing (mm)	420x480x400	460x430x520	460x430x520
Net Weight (kg)	12	9	9.5
Gross Weight (kg)	13	10	10.5
Approval	CCC/ CB/ CE/ EMC & LVD

32	36	40	42
220-240 / 120
50-60
64	66	70	70
380x445x470	380x445x470	401x440x550	401x440x550
430x520x522	430x520x522	460x495x585	460x495x585
11	11.5	13	13.2
12	12.5	15	14.2
CCC/ CB/ CE/ EMC & LVD

Technical specifications

The manufacturer of this product is CHAL-TEC Vertriebs- + Handels GmbH, Wallstraße 16, 10179 Berlin.

This product complies with the requirements of the directives

2004/108/EC (EMC)

2006/95/EC (LVD)

2011/65/EU (RoHS)

Electric and electronic equipment and included batteries contains materials, componentsans substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.

Electric and electronic equipment and batteries is marked with the crossed ou trash can symbol, seen here. This symbol signifies that electric and electronic equipment and batteries should not be disposed of with other household waste, but should be disposed of separately.

As the end user it is important that you submit your used batteries to the appropriate and designated facility. In this manner you make sure that the batteries are recycled in accordance with legislature and will not harm the environment.

All cities have established collection points, where electric and electronic equipment and batteries can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.

CHAL-TEC Vertriebs- + Handels GmbH; Wallstraße 16; 10179 Berlin, Germany
